KNF LIQUIPORT 100**.18 Series User manual

LAB
LIQUIPORT
NF 100_ _.18
NF 1.100_ _.18
NF 300_ _.18
NF 1.300_ _.18
OPERATING INSTRUCTIONS
DIAPHRAGM
LABORATORY PUMP

KNF Flodos AG
Wassermatte 2
6210 Sursee, Switzerland
Tel [phone]
Fax [phone]
www.knf.com

Operating Instructions LIQUIPORT EN Content
KNF Flodos | BA_LIQUIPORT_EN_11_153820.docx | Translation of original operating instructions, English 3
1. General information 5
1.1 Information about the instructions 5
1.2 Warnings 6
1.3 Symbols 7
1.4 Disclaimer of liability 8
1.5 Manufacturer's address 8
1.6 Year of manufacture 8
1.7 Other applicable documents 8
1.8 Copyright 8
1.9 Warranty conditions 8
2. Safety 9
2.1 Intended use 9
2.2 Reasonably foreseeable misuse 9
2.3 Owner's responsibility 10
2.4 Personnel requirements 10
2.5 Product-specific dangers 11
2.6 Personal protective equipment 12
2.7 Safety equipment 12
2.8 Environmental protection considerations 13
2.9 Danger areas 13
2.10 Declaration of conformity 14
3. Technical data 15
3.1 Items included in delivery 15
3.2 Storage conditions 15
3.3 Pump materials 15
3.4 Product key 16
3.5 Dimensions 17
3.6 Installation location requirements 18
3.7 Electrical connections and performance data 18
3.8 Other parameters 19
3.9 External actuation (RC version only) 20
3.10 Hydraulic ratings 21
3.11 Hydraulic connections 22
3.12 Transferred medium 23
4. Assembly and function 24
4.1 Metering pump assembly 24
4.2 Operating principle 24
5. Shipment 25
5.1 Checking delivery 25
5.2 Registering a complaint 25
5.3 Arranging for return 25
6. Installation and initial start-up 26
6.1 Safety 26
6.2 Installation 27
6.3 Initial start-up 30
7. Operation 31
7.1 Safety 31
7.2 Operating controls 32
7.3 Starting the pump 32
7.4 Stopping the transferring operation 32
7.5 Adjusting the flow rate 33
8. RC version –external actuation 34
8.1 External actuation analog input 34
8.2 Start/Stop pulse input 35

Content Operating Instructions LIQUIPORT EN
4 KNF Flodos | BA_LIQUIPORT_EN_11_153820.docx | Translation of original operating instructions, English
8.3 Digital output 36
8.4 Shutting down the pump in an emergency 36
9. Cleaning and maintenance 37
9.1 Safety 37
9.2 Maintenance plan 37
9.3 Cleaning the pump 38
9.4 Cleaning / replacing valve plates and pump diaphragm 39
9.5 Checking that pump is leak-tight 42
10. Shutdown 43
10.1 Safety 43
10.2 Procedure 43
11. Troubleshooting 44
11.1 Safety 44
11.2 Rectifying transfer problems 45
12. Spare parts and accessories 46
12.1 Spare parts 46
12.2 Accessories 46
13. Decontamination declaration 47

Operating Instructions LIQUIPORT EN General information
KNF Flodos | BA_LIQUIPORT_EN_11_153820.docx | Translation of original operating instructions, English 5
1. General information
1.1 Information about the instructions
The Operating Instructions contain important notes on how to use the
pump. In order to ensure safe working and proper functioning it is es-
sential to observe all the specified safety precautions.
These Operating Instructions are part of the product, and must be
stored in its immediate vicinity in a location accessible to personnel at
all times.
These Operating Instructions are part of the product, and must be
passed on to the next owner if the device is resold.
Customer-specific project pumps (pump models which begin with "PL"
or "PML") may differ from the Operating Instructions, in which case the
agreed specification is also applicable. It is listed with the other appli-
cable documents.
Illustrations in these Operating Instructions may be to scale, but do not
have be.
The illustrations may differ slightly from the actual product.
Contents
Storage location
Passing on
Project pumps
Illustrations in the instructions

General information Operating Instructions LIQUIPORT EN
6 KNF Flodos | BA_LIQUIPORT_EN_11_153820.docx | Translation of original operating instructions, English
1.2 Warnings
Warnings in the Operating Instructions are identified with the danger
symbol, keywords and colours. These provide an indication of the ex-
tent of the danger.
DANGER
Indicates a dangerous situation which will lead directly to death or se-
rious injury if it is not avoided.
WARNING
Indicates a dangerous situation which may lead to death or serious
injury if it is not avoided.
CAUTION
Indicates a dangerous situation which may lead to moderate or minor
injuries if it is not avoided.
NOTE
Indicates a situation which may cause damage to property if it is not
avoided.

Operating Instructions LIQUIPORT EN General information
KNF Flodos | BA_LIQUIPORT_EN_11_153820.docx | Translation of original operating instructions, English 7
1.3 Symbols
The following symbols appear in the Operating Instructions, on labels
on the device, and on its packaging:
WARNING
Danger of injuries and property damage caused by illegible la-
bels
The labelling on the device may become illegible with time.
- Maintain labels on the device in a legible condition.
- Replace any illegible labels.
The following symbols in the Operating Instructions and on the device
and its packaging indicate environmental protection considerations:
Recycling
Not to be disposed of with household waste
The following symbols in safety precautions and on the device indicate
the nature of the danger:
General danger symbol
Further details of the nature of the danger are provided in the warn-
ing highlighted by this symbol.
Electrical danger
Fire danger
Danger of caustic burns or burns
Danger of automatic start-up
Disconnect device from power supply by pulling out the mains plug

General information Operating Instructions LIQUIPORT EN
8 KNF Flodos | BA_LIQUIPORT_EN_11_153820.docx | Translation of original operating instructions, English
1.4 Disclaimer of liability
In preparing the contents of these Operating Instructions, account has
been taken of applicable regulations and the state of the art.
The manufacturer can accept no liability for any damage or malfunc-
tions caused by failure to follow the Operating Instructions.
The manufacturer can accept no liability for any damage or malfunc-
tions caused by modification or conversion of the device or improper
handling.
The manufacturer can accept no liability for any damage or malfunc-
tions caused by the use of non-approved spare parts and accessories.
1.5 Manufacturer's address
KNF Flodos AG
Wassermatte 2
6210 Sursee, Switzerland
Tel [phone]
Fax [phone]
www.knf.com
1.6 Year of manufacture
The year of manufacture is shown on the device's type plate.
1.7 Other applicable documents
The documents listed must also be taken into consideration.
▪Chemical resistance list
▪Sales documents
▪GTCs
1.8 Copyright
The information, texts and illustrations in these Operating Instructions
are protected by copyright. The contents of these Operating Instruc-
tions must not be copied, translated or passed to third parties without
the written consent of the manufacturer.
1.9 Warranty conditions
The applicable warranty conditions are set out in the General Terms
and Conditions of Business and the sales documents.
The warranty does not cover the following:
▪Malfunctions caused by particles/fibres in the valve system
▪Sticking of the valve system as a result of inadequate flushing

Operating Instructions LIQUIPORT EN Safety
KNF Flodos | BA_LIQUIPORT_EN_11_153820.docx | Translation of original operating instructions, English 9
2. Safety
2.1 Intended use
This pump is intended exclusively for use as follows:
▪For transferring and metering liquids.
▪For indoor operation.
▪For temporary operation in laboratories for research pur-
poses.
▪For operation in accordance with the operating parameters
specified in the technical data (see Chapter 3) and other ap-
plicable documents.
▪For transferring media which meet the requirements in the
technical data and other applicable documents.
▪For operation in fully assembled condition.
▪For upright operation on a firm table top.
2.2 Reasonably foreseeable misuse
The pump may not:
▪be operated in an explosive atmosphere;
▪be used to transfer explosive media;
▪be used to produce foodstuffs or pharmacological products
(additional certifications are required for this purpose);
▪be used to transfer media whose compatibility with the pump
head, valves, diaphragm and seals has not been established;

Safety Operating Instructions LIQUIPORT EN
10 KNF Flodos | BA_LIQUIPORT_EN_11_153820.docx | Translation of original operating instructions, English
2.3 Owner's responsibility
The operator is responsible for compliance with the safety precautions
in these Operating Instructions and with any safety, accident preven-
tion and environmental protection regulations which apply to the me-
dium to be transferred and the range of applications of the device.
These include the following in particular:
▪The operator must perform a risk assessment to identify any
additional risks which may arise from the specific working con-
ditions at the pump's installation location and the nature of the
medium to be transferred. The operator must convert these
into instructions for operating the device.
▪The operator must ensure that any employees working with
the pump have read the Operating Instructions.
▪The operator must train personnel at regular intervals and in-
form them of the risks involved.
▪The operator must provide personnel with the necessary pro-
tective equipment as specified in the safety data sheet for the
medium to be transferred.
▪The operator must maintain the pump in perfect working or-
der.
▪The operator must ensure compliance with the maintenance
intervals described in the Operating Instructions.
2.4 Personnel requirements
WARNING
Danger of injuries and property damage caused by insufficiently
qualified staff
Improper use of the pump may result in serious injury and damage to
property.
- All activities must be performed only by adequately qualified
personnel.
The following qualifications are specified for various activities in the
Operating Instructions:
These have been instructed in the task assigned to them and made
aware of potential dangers and risks. This training is the minimum
qualification for working on the device. Where no other qualification is
specified, the activity must be performed by a trained individual as a
minimum.
The specialist training, knowledge and experience of such personnel,
together with their knowledge of the relevant regulations, standards
and directives, allow them to perform their assigned duties correctly,
and to independently identify and avoid potential dangers and risks.
Individuals whose reactions have been impaired by the consumption
of medicines, alcohol, drugs or by other causes and conditions are not
authorised to perform activities on the device.
Trained personnel
Specialist personnel
Unauthorised personnel

Operating Instructions LIQUIPORT EN Safety
KNF Flodos | BA_LIQUIPORT_EN_11_153820.docx | Translation of original operating instructions, English 11
2.5 Product-specific dangers
This chapter describes residual risks that have been identified in a risk
assessment. Safety precautions and warnings in this chapter and in
other chapters in the Operating Instructions must be observed in order
to avoid dangerous situations.
DANGER
Danger of injuries and property damage caused by leaks in con-
nections and the pump head
Poisoning and caustic burns, or undesirable reactions caused by es-
caping hazardous materials
- Maintain the torque of connections (see hydraulic connec-
tions)
- Check tightening torque of head screws regularly
- Only use pump if it is in perfect working order
- Operate pump in accordance with the technical data
DANGER
Danger of injuries and property damage caused by medium es-
caping from the discharge outlet
Poisoning and caustic burns, or undesirable reactions caused by es-
caping hazardous materials
- Place the pump in a suitable collecting vessel
- Never close the discharge outlet
- If medium escapes from the pump's discharge outlet, stop
using the pump and contact your KNF dealer
DANGER
Risk of fire from escaping flammable media
Escaping or leaking flammable media can produce a combustible en-
vironment.
- Take fire protection precautions that are appropriate for the
transferred media
- Keep ignition sources away
- Keep suitable extinguishers accessible
- Use means of fire detection
WARNING
Danger of serious injuries or property damage caused by escap-
ing media in the event of overpressure on the suction side
Excessive pressure on the suction side will result in uncontrolled es-
cape of fluid, even if the pump is not operating
- Avoid overpressure on the suction side

Safety Operating Instructions LIQUIPORT EN
12 KNF Flodos | BA_LIQUIPORT_EN_11_153820.docx | Translation of original operating instructions, English
2.6 Personal protective equipment
Special protective equipment must be used when performing certain
tasks. These are indicated separately in the individual chapters.
Where the wearing of protective equipment is concerned it is essential
to observe the safety data sheet for the medium to be transferred.
The following symbols appear in the working area or in the Operating
Instructions:
Safety gloves
to protect skin from contact with the transferred medium in accord-
ance with the safety data sheet.
Safety glasses
to protect the eyes from contact with the transferred medium in ac-
cordance with the safety data sheet.
Face protection
to protect skin and eyes from contact with the transferred medium in
accordance with the safety data sheet.
2.7 Safety equipment
2.7.1 Discharge outlet
DANGER
Danger of injuries and property damage caused by medium es-
caping from the discharge outlet
Poisoning and caustic burns, or undesirable reactions caused by es-
caping hazardous materials
- Place the pump in a suitable collecting vessel
- Check the discharge outlet regularly for leaks
- Never close the discharge outlet (see Fig. 1)
- If medium escapes from the pump's discharge outlet, stop
using the pump and contact your KNF dealer
If the pump diaphragm ruptures, the transferred medium is channelled
out of the pump through the discharge outlet (see Fig. 1).
2.7.2 Emergency Stop
Pulling out the mains plug acts as an Emergency Stop. If the pump is
installed permanently, an Emergency Stop and a maintenance switch
must be fitted.
Fig. 1: Discharge outlet

Operating Instructions LIQUIPORT EN Safety
KNF Flodos | BA_LIQUIPORT_EN_11_153820.docx | Translation of original operating instructions, English 13
2.8 Environmental protection considerations
All replacement parts should be properly stored and disposed of in ac-
cordance with the applicable environmental protection regulations. En-
sure adherence to the pertinent national and international regulations.
This applies especially to parts contaminated with toxic substances.
Dispose of any packaging material that is no longer required in an en-
vironmentally friendly manner. The packaging materials are recyclable.
Dispose of end-of-life equipment in an environmentally friendly man-
ner. Use appropriate waste collection systems for the disposal of end-
of-life equipment. Used pumps contain valuable recyclable materials.
2.9 Danger areas
A discharge of aggressive, corrosive, ionizing, flammable or biological
liquids can be dangerous.
The pump danger area should be limited by safe workplaces. Safe
workplaces should comply with the requirements of local work safety
regulations.

Safety Operating Instructions LIQUIPORT EN
14 KNF Flodos | BA_LIQUIPORT_EN_11_153820.docx | Translation of original operating instructions, English

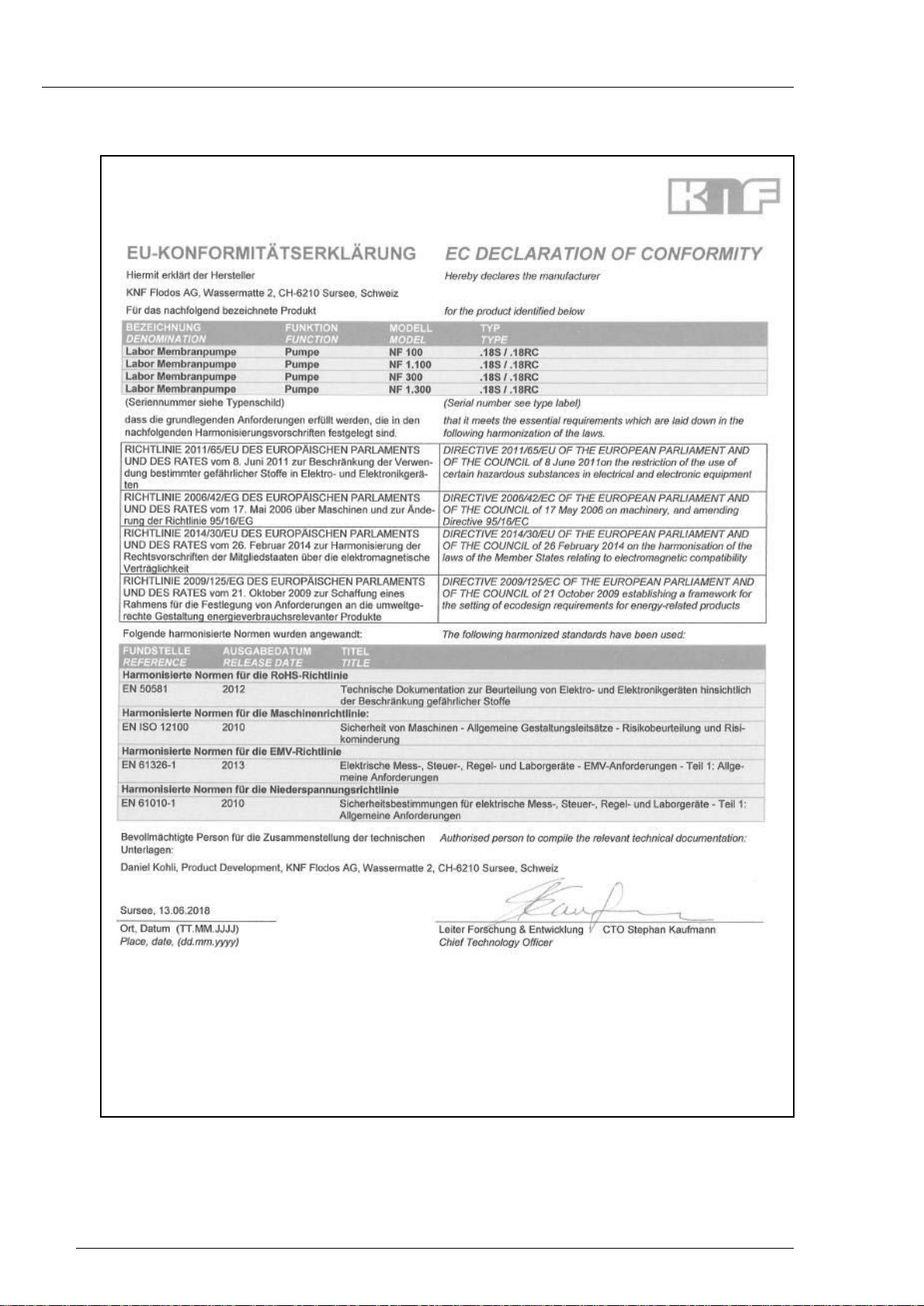

2.10 Declaration of conformity

Operating Instructions LIQUIPORT EN Technical data
KNF Flodos | BA_LIQUIPORT_EN_11_153820.docx | Translation of original operating instructions, English 15
3. Technical data
3.1 Items included in delivery
▪LIQUIPORT pump
▪Mains plug
▪Operating instructions
3.2 Storage conditions
▪Pumps must be stored in a dry place and protected from con-
tamination.
▪The storage temperature must be between 5°C and 40°C.
▪The pump is supplied with protective caps. These protective
caps must be fitted during storage.
▪Store pump upright and with protection.
3.3 Pump materials
The type designation KT stands for:
Assembly
Material1)
Pump head
PP
Valve plate / seals
FFKM
Diaphragm
PTFE-coated
Housing
PA, TPE, PC
Tab. 1: KT 1) according to DIN ISO 1629 and 1043.1
The type designation TT stands for:
Assembly
Material1)
Pump head
PVDF
Valve plate / seals
FFKM
Diaphragm
PTFE-coated
Housing
PA, TPE, PC
Tab. 2: TT 1) according to DIN ISO 1629 and 1043.1
The type designation FT stands for:
Assembly
Material1)
Pump head
PTFE
Valve plate / seals
FFKM
Diaphragm
PTFE-coated
Housing
PA, TPE, PC
Tab. 3: FT 1) according to DIN ISO 1629 and 1043.1

Technical data Operating Instructions LIQUIPORT EN
16 KNF Flodos | BA_LIQUIPORT_EN_11_153820.docx | Translation of original operating instructions, English
3.4 Product key
Description
Meaning
PML / PL
Customer-specific designs
NF
Flodos liquid pump
100 / 1.100 / 300 / 1.300
Pump type
KT / TT / FT
Head material
.18
Laboratory device with housing
S / RC
S without external actua-
tion
RC with external actuation
(remote control)
Tab. 4: Product key
NF 100 KT .18 S
.18
100 / 1.100 / 300 / 1.300
NF
S / RC
- / PMLxxxx / PLxxxx

Operating Instructions LIQUIPORT EN Technical data
KNF Flodos | BA_LIQUIPORT_EN_11_153820.docx | Translation of original operating instructions, English 17
3.5 Dimensions
Fig. 2: Mounting dimensions LIQUIPORT 100 / LIQUIPORT 1.100
Fig. 3: Mounting dimensions LIQUIPORT 300 / LIQUIPORT 1.300

Technical data Operating Instructions LIQUIPORT EN
18 KNF Flodos | BA_LIQUIPORT_EN_11_153820.docx | Translation of original operating instructions, English
3.6 Installation location requirements
The pump is designed to be operated in an upright position.
NOTE
An unsuitable location may cause damage to the device
- Install in a dry place
- Protect the installation location of the pump from water in
the form of rain, spray, splashes and drips
- Do not operate the pump in an aggressive or flammable en-
vironment
- Choose a safe location (a level, flat surface) for the pump
- Place the pump in a suitable collecting pan
- If the stability of the pump cannot be ensured, fasten the
pump in place using two screws
- Make sure that the hose connections can be fitted without
strain on the hoses
- Protect the pump against shocks, impacts and strong vibra-
tions
3.7 Electrical connections and performance data
Pump type
LIQUIPORT
100
LIQUIPORT
1.100
Nominal mains voltage [V]
100 –240V AC +/- 10%,
Frequency [Hz]
50-60 Hz
Max. power consumption AC
100 V / 115 V / 240 V [W]
12 / 12 / 12
15 / 15 / 16
Max. power consumption DC [W]
12
15
Pump DC voltage [V]
24V DC
Maximum operating current, DC
RMS 24 V [A]
0.5
0.63
Max. short-term peak current [A]
0.8
0.8
Power supply fuse
Electronic overload protection
Pump fuse
Electronic overload protection
Tab. 5: Electrical data LIQUIPORT 100
Pump type
LIQUIPORT
300
LIQUIPORT
1.300
Nominal mains voltage [V]
100 –240V AC +/- 10%,
Frequency [Hz]
50-60 Hz
Max. power consumption AC
100 V / 115 V / 240 V [W]
22 / 22 / 24
30 / 30 / 32
Max. power consumption DC [W]
22
29
Pump DC voltage [V]
24V DC
Maximum operating current, DC
RMS 24 V [A]
0.92
1.2
Max. short-term peak current [A]
1.3
1.3
Power supply fuse
Electronic overload protection
Pump fuse
Electronic overload protection
Tab. 6: Electrical data LIQUIPORT 300

Operating Instructions LIQUIPORT EN Technical data
KNF Flodos | BA_LIQUIPORT_EN_11_153820.docx | Translation of original operating instructions, English 19
3.8 Other parameters
Pump type
LIQUIPORT 100
LIQUIPORT 1.100
LIQUIPORT 300
LIQUIPORT1.300
Pump weight [kg] 1)
1.0
1.5
Permissible ambient tempera-
ture [°C]
+5 to +40
Permissible media temperature
[°C]
+5 to +80
Permissible working height [m
above sea level]
2000
Max. humidity
90% (non-condensing)
Nominal speed [rpm]
3000 rpm
Noise level [dBA]
< 40dBA
Pump protection type
IP 65
Power supply protection type
IP 40
Protection class
III
Tab. 7: Other parameters
1) The weight may differ slightly from the stated value, depending on
the version.

Technical data Operating Instructions LIQUIPORT EN
20 KNF Flodos | BA_LIQUIPORT_EN_11_153820.docx | Translation of original operating instructions, English
3.9 External actuation (RC version only)
Parameter
Value
Analog input
Signal range
0-10V
Signal range optional 1)
0-20mA
Input resistance
133 kat 0-10 V
510 at 0-20mA
Dielectric strength
24V DC
Digital input
Signal range
Pull up to 24 V
Dielectric strength
24V DC
Voltage level without external wir-
ing
19V typ.
Level low
≤ 4.0V = low
Level high
≥ 14.0V = high
Pull-up resistance
10 k
Resistance to ground/GND
43 k
Digital output –open-collector output (NPN transistor to GND)
Dielectric strength
24V DC
Loading capacity/output current
low level
0…10mA typ.
20mA max.
Tab. 8: External actuation
1) Optional on request.
1Analog input
Brown
2External actuation jumper
White
3Pulse input
Blue
4Open collector output
Black
5Ground
Grey
Fig. 4: RC cable pin assignment
Pin no.
Lead colour
Description
Function
1
brown
Analog input
(0%) 15% to 100% flow
rate
2
white
External actuation
jumper
Switches pump over to
external actuation.
→Control knob is deac-
tivated
3
blue
Pulse input
Start/Stop via external
actuation
4
black
Open collector out-
put
Operating mode output
(On/Off)
5
grey
Ground/GND
--
Tab. 9: RC cable pin assignment
