Knight 1800V Series Operating instructions

07/06/2023 1
operators manual 1800v.doc
1800V Series Self Propelled
CROP SPRAYER
OPERATING AND MAINTENANCE MANUAL

07/06/2023 2
operators manual 1800v.doc
Knight Farm Machinery Limited
UK & EU Declaration of Conformity
This certificate confirms that the machine described meets the requirements of:
Machinery Directive 2006/42/EC
Supply of Machinery (Safety) Regulations 2008
Responsible person:
Knight Farm Machinery Limited
Wireless Hill
South Luffenham
Oakham
Rutland
LE15 8NF
Description of Machine:
1835 Self Propelled Crop Sprayer
Serial Number: 032******
Date: **/**/2023
Signed on behalf of responsible person:
Darren Bentley
Engineering Director

07/06/2023 3
operators manual 1800v.doc
EU Declaration of Conformity.......................................Error! Bookmark not defined.
Section 1: Technical Specifications .............................................................................5
Identification.........................................................................................................................5
Dimensions (on 12.4 X 32 Wheels)......................................................................................6
Weights & Distribution........................................................................................................6
Engine & Transmission.......................................................................................................7
Refill capacities.....................................................................................................................7
Fluids & Lubricants.............................................................................................................7
Vehicle Filter List.................................................................................................................8
Wheels & Tyres....................................................................................................................8
Wheel nut torque settings....................................................................................................8
Section 2: Safety First...................................................................................................9
Read Before moving off.......................................................................................................9
When moving off..................................................................................................................9
When operating....................................................................................................................9
When maintaining the vehicle...........................................................................................10
Engine Electronics..............................................................................................................11
Section 3: Operation ...................................................................................................12
Cab Controls.......................................................................................................................13
4 Wheel Steering.................................................................................................................17
System Logic (read before operating) ..............................................................................17
Knight “Smart Drive” Transmission Control.................................................................18
Suggested Spraying Mode .................................................................................................19
When ready to move off.....................................................................................................19
Slowing or Stopping the Vehicle.......................................................................................19
Emergency Stop..................................................................................................................19
Suggested Road Mode........................................................................................................19
When ready to move off.....................................................................................................19
Slowing or Stopping the Vehicle.......................................................................................19
Emergency Stop..................................................................................................................19
Starting the engine......................................................................................................20
Using the external controls when filling the sprayer ......................................................21
Jump starting......................................................................................................................22
Engine Diagnostics.............................................................................................................23
Cab Access..........................................................................................................................23
Towing.................................................................................................................................23
The vehicle must only be towed using a rigid tow bar, with the engine stopped..........23
Lights and visibility............................................................................................................23
Air Conditioning ................................................................................................................24
Steering ...............................................................................................................................24
Engine speed ranges and transmission control................................................................24
Section 4: Vehicle Maintenance.................................................................................25
Safety First..........................................................................................................................25
General Care and Maintenance........................................................................................25
Maintenance Schedules......................................................................................................28
Daily maintenance (or every 8 hours) ..............................................................................30
50 hours (or Weekly)..........................................................................................................30
500 hours (or Yearly).........................................................................................................30
1000 hours (Yearly)............................................................................................................31
5000 hours...........................................................................................................................31
Test / Replace......................................................................................................................31
Hydraulics...........................................................................................................................32
Replenishing the hydraulic fluid.......................................................................................33

07/06/2023 4
operators manual 1800v.doc
Engine..................................................................................................................................33
Cab air conditioning drive belts........................................................................................33
Cab air conditioning carbon filter element......................................................................34
Greasing..............................................................................................................................34
Steering adjustment...........................................................................................................34
Electrical System................................................................................................................35
Fuses....................................................................................................................................35
Fuses in the main PCB.......................................................................................................36
Relays in the main PCB.....................................................................................................36
Fuses on secondary relay board........................................................................................37
Relays on secondary relay board......................................................................................37
Relays on secondary relay board –Smart Drive.............................................................37
Roof Mounted Fuses ..........................................................................................................37
Roof Mounted Relays.........................................................................................................39
Engine Bay Fuses ...............................................................................................................39
Wheels and tyres ................................................................................................................40
Torque settings...................................................................................................................40
Maintenance log book........................................................................................................41
Section 5: Sprayer Operating Instructions ................................................................44
Operating the Muller/Knight Integrated Control System..............................................44
External Control Panel..........................................................Error! Bookmark not defined.
Filling the Spray Tank with Water...................................................................................46
Filling with chemical..........................................................................................................47
To operate the induction hopper ......................................................................................47
Spraying..............................................................................................................................47
Clean Water Valve.............................................................................................................47
Spray Pressure Adjustment ..............................................................................................48
CROP SPRAYER CALIBRATION............................................................................49
Operating the “4” Series Boom..................................................................................51
General Description...........................................................................................................51
Folding the boom for transport ........................................................................................51
Hydraulic boom levelling...................................................................................................51
Levelling the boom in work...............................................................................................52
Operating the Triple Fold Boom................................................................................54
General Description...........................................................................................................54
Opening the boom for work..............................................................................................54
Folding the boom for transport ........................................................................................54
SPRAYER CLEANING & STORAGE.......................................................................56
Washing out the Spray Lines............................................................................................56
Washing out the tank.........................................................................................................56
FROST PROTECTION ......................................................................................................56
Cleaning the filters.............................................................................................................57
Suction Filter......................................................................................................................57
Pressure Filter....................................................................................................................57
Pressure Filter Element –removal & replacement.........................................................57
Blocked Nozzles..................................................................................................................57
Cleaning Blocked Nozzles..................................................................................................58
DEMOUNTING THE SPRAYER..............................................................................59
Demounting.........................................................................................................................59
Refitting...............................................................................................................................59

07/06/2023 5
operators manual 1800v.doc
Section 1: Technical Specifications
Identification
Please quote the machine serial number and respective identification number when ordering spare parts or making machine technical
enquiries
Machine

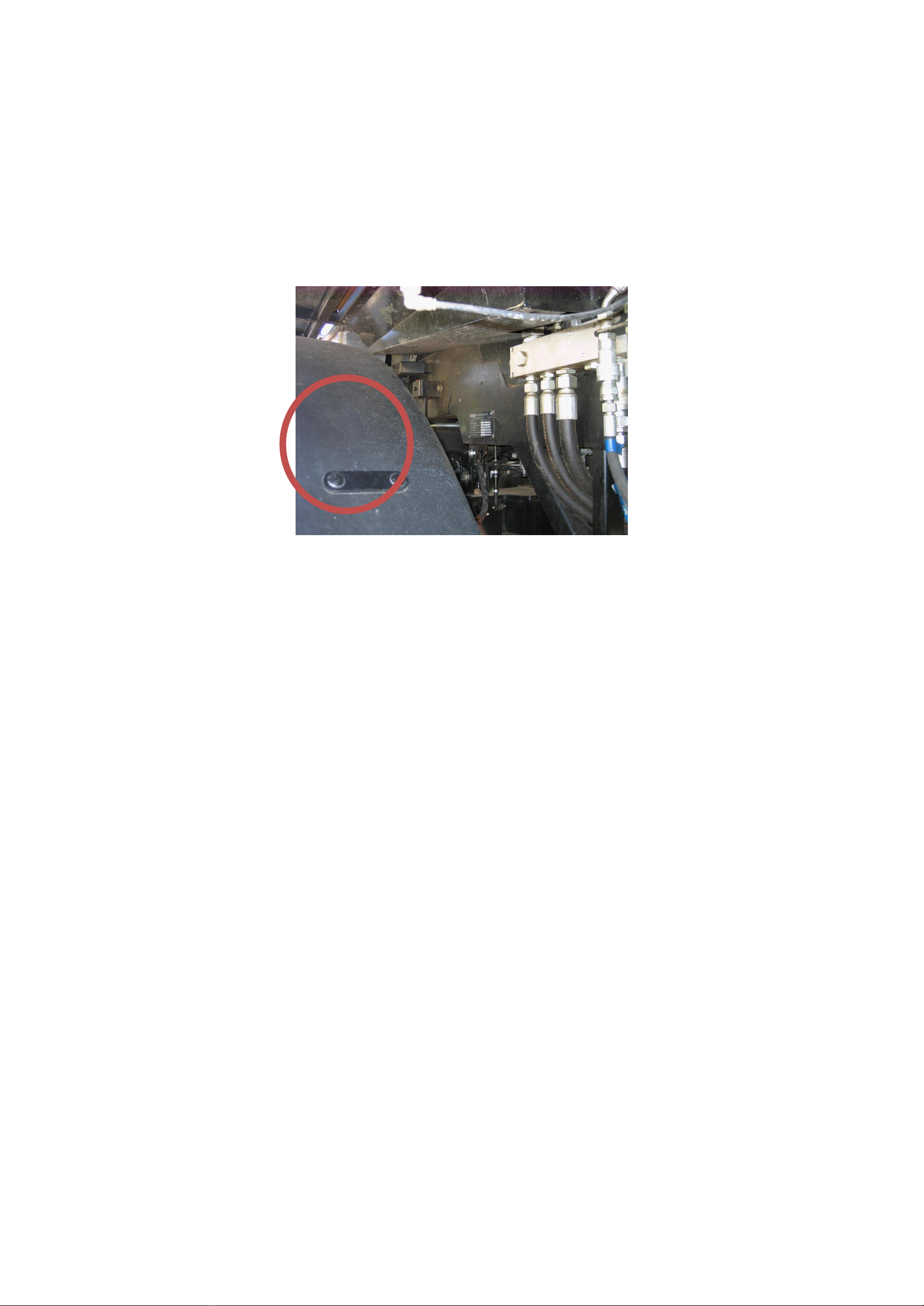

The machine identification plate is located on the left hand side of the machine below the engine service bay.
Wheel Motors
The identification plate for each wheel motor is located on the side of each wheel motor

07/06/2023 6
operators manual 1800v.doc
Engine
The engine identification plate is located on the left hand side of the cylinder block to the rear of the front engine mount/ hydraulic
steering pump.
Cab
The identification plate is located on the right hand side of the cab below the control panel. Open the emergency exit access on the right
hand side of the machine to view.
Dimensions (on 12.4 X 32 Wheels)
(No sprayer) Length 9 m
Width 2.9 m
Height 3 m
(24m sprayer) Length 11 m
Width 2.9 m
Height 3.9m
Weights & Distribution
(24m sprayer, full 3000-litre tank)
Total 9500 kg

07/06/2023 7
operators manual 1800v.doc
Front wheels ww kg
Rear wheels ww kg
Engine & Transmission
Engine type Perkins 1206F series
Wheel motors type Poclain
Refill capacities
Fuel tank 375 litres
Hydraulic tank 200 litres
AdBlue tank 24litres
Engine Sump 19litres
Coolant System 31litres
Fluids & Lubricants
Engine lubricant: 15W40,
For turbo charged engines which meet or exceed APICF4 standard.
Texaco TD 15/40
or Ursula Super LA 15/40
BP Global C4 15/40
Shell Rimula X 15/40
Mobil Deluac Super 15/40
Hydraulic fluid: HVI46
Grease points: Multipurpose Grease

07/06/2023 8
operators manual 1800v.doc
Vehicle Filter List
Part Description
Part Number
Quantity
Transmission Oil Filter element
MPCS100P10A
4
Transmission Pressure element (long)
MPHP0504A10ANP01
1
Fuel Pre Filter
HI01030
1
Inline Fuel Filter
HIT412017
1
Fuel Filter /Water Separator element
HI3611273
1
Fuel Secondary element (on engine)
HI3611274
1
Crankcase Breather Element
HI3624146
1
Fuel Tank Breather
MPCSAB050A01A
1
Air Cleaner Element (Primary)
HI26510353
1
Air Cleaner Safety Element
HI26510354
1
Engine Oil Filter
HI4627133
1
AdBlue Filter
TBC
1
Dry Air Canister
4324102227
1
Cab Pre Filter
FTV476 x 88
2
Cab Carbon Filter
FTVCB478
2
** If in doubt check part no of filter fitted to machine
Wheels & Tyres
Tyre type
Make
Bar
380/85 R34
Continental
1.9
600/60R28 Xeobib
Michelin
1.8
Caution –Due to available specification, tyres may not always be rated for the maximum load and maximum vehicle speed. Always
keep tyres inflated correctly and be aware of speed limitations when running at maximum load.
Wheel nut torque settings
M20 X 1.5 stud, 12.9 grade, tighten to 600Nm
** Check wheel nuts daily

07/06/2023 9
operators manual 1800v.doc
Section 2: Safety First
Read Before moving off
Never move the vehicle with a passenger in the cab unless the cab is fitted with an extra seat.
Always adjust the driver’s seat for proper control and comfort. Always fasten the safety belt before moving.
Make sure that all guards and closures are properly fitted and secure.
Before first use check the wheel nuts for tightness, then check daily.
Before starting the engine make sure that the parking brake is on and the transmission control lever is in neutral.
Do you understand the instructions and warnings conveyed by all the decals on the vehicle? Are all the decals still in place and
legible? Replace any decals that become damaged or dirty and illegible.
Your Knight 1800series self-propelled sprayer has excellent visibility to allow safe operation. Make sure that your windows are
clean so that you retain this advantage. Also, keep the cab interior clean, especially the controls.
Make sure that there are no flammable materials near the vehicle exhaust.
When moving off
Take extra care when reversing. Always make sure that there is no-one near the machine
Make sure your way is clear, remember that you are driving a high vehicle.
Always ensure 2 wheel steering is selected when leaving the field.
Move off slowly. Never exceed 40 km/h on the road under any circumstances. A lower maximum speed might sometimes be
appropriate if special equipment is fitted. Remember that all self-propelled vehicles have a much higher centre of gravity than tractors
and must therefore always be driven with more care.
When operating
Is your working area clear of obstructions, particularly overhead power lines. Remember the height of your vehicle and sprayer.
Always drive at a safe speed, having regard to ground conditions and the dangers posed by banks, ditches and slopes. Take extra
care when cornering when the ground is rough, slippery or sloping.
Take extra care when working up and down gradients, particularly in the use of the throttle.

07/06/2023 10
operators manual 1800v.doc
Always bring the vehicle to a controlled halt and engage the parking brake before dismounting from the cab.
When maintaining the vehicle
Care should be taken when working on the engine as it is fitted with the latest high pressure common rail fuel system and
exhaust aftertreatment system.
Never check the engine fuel lines for leaks when the engine is running or cranking.
Never loosen the high pressure fuel lines in order to remove air from the fuel system. This procedure is not required.
Do not work on the engine while it is still running or cranking. Allow 60 seconds after the engine has stopped before
commencing any work on the engine. This will allow any pressure in the high pressure fuel lines to be purged.
All maintenance should be done with the vehicle stationary, with the parking brake engaged, the transmission selector in neutral
and the engine switched off. Ensure the engine cannot be started.
Take care when re-fuelling with a hot engine. DO NOT SMOKE WHEN RE-FUELLING.
Never add coolant to a hot system, allow it to cool first and then take care to protect against scalding when releasing the radiator
cap.
If you are unsure what to do or how to do it, ask for advice. Although the vehicle components are robustly designed to withstand
tough operational conditions it is essential that they are properly set up and adjusted or the vehicle may be made unsafe or damaged.
Take extra care with electrical and electronic components and circuitry. Ensure battery isolator is switched off before any
maintenance is performed on the electrical system. Ensure the AdBlue system is purged before disconnecting the battery.
Make sure that any chemical contaminants are cleaned from any part of the vehicle before attempting maintenance and ensure
that the chemical residues are properly disposed of.
Always use axle stands after jacking up the vehicle. Do not work under the vehicle if supported only on jacks. When jacking,
make sure that the vehicle is restrained from moving by suitably placed chocks.
Take care with hydraulic fluids. They can be harmful to the skin. Use proper protective clothing and wash thoroughly any skin
that has contact. Take extra care if searching for hydraulic leaks by feeling or close examination. Hot, high pressure leaks of hydraulic
fluid are very dangerous to the skin and eyes.
Cautiously remove the following parts. To prevent spraying or splashing of pressurized fluids hold a rag over the part this is
being removed
•Filer caps
•Pressure taps
•Breathers
•Drain plugs
•Grease fittings

07/06/2023 11
operators manual 1800v.doc
After maintenance, make sure that all tools are safely put aside, that all guards and closures are fitted and fastened and the
vehicle is in a proper operational condition.
Report all necessary repairs
Engine Electronics
The engine has a Electronic Control Module (ECM) that monitors the engine operating conditions. If any of the engine
parameters extend outside an allowable range the ECM will initiate an immediate action.
The following actions are used as part of the engine monitoring control
•Warning
•Derate
•Shutdown
The following monitored engine operating conditions and components can limit engine speed and/or engine power
•Engine coolant temperature
•Engine Oil Pressure
•Engine speed
•Intake Manifold Air Temperature
•Supply voltage to sensors
•Fuel Rail Pressure
•NOx Reduction System
•Engine Aftertreatment System

07/06/2023 12
operators manual 1800v.doc
Section 3: Operation
Figure 1 Inside the cab

07/06/2023 13
operators manual 1800v.doc
Cab Controls
Park Brake
P.T.O 1
On/Off
Engine Speed
Adjust

07/06/2023 14
operators manual 1800v.doc
The in-cab colour screen control panel houses many of the vehicle related controls and information, further details of these can be seen in
figures 1 & 2.
Figure 2 Colour Screen Control Panel In Field Mode –Controls
Field Mode
Uphill
Driving
(SmartDrive
machines
default to
bottom gear)
Normal
Driving
Downhill
Driving
Foot Controlled Steering Switch
Spray Controlled Steering Switch
4WS
2WS
Access Engine
Diagnostics
Conditions
Hillside
Correction
Adjust
Conditions
Amber Light - Engine Problem, Maintenance Required
Red Light - Engine Problem, Stop and Seek Assistance
Conditions

07/06/2023 15
operators manual 1800v.doc

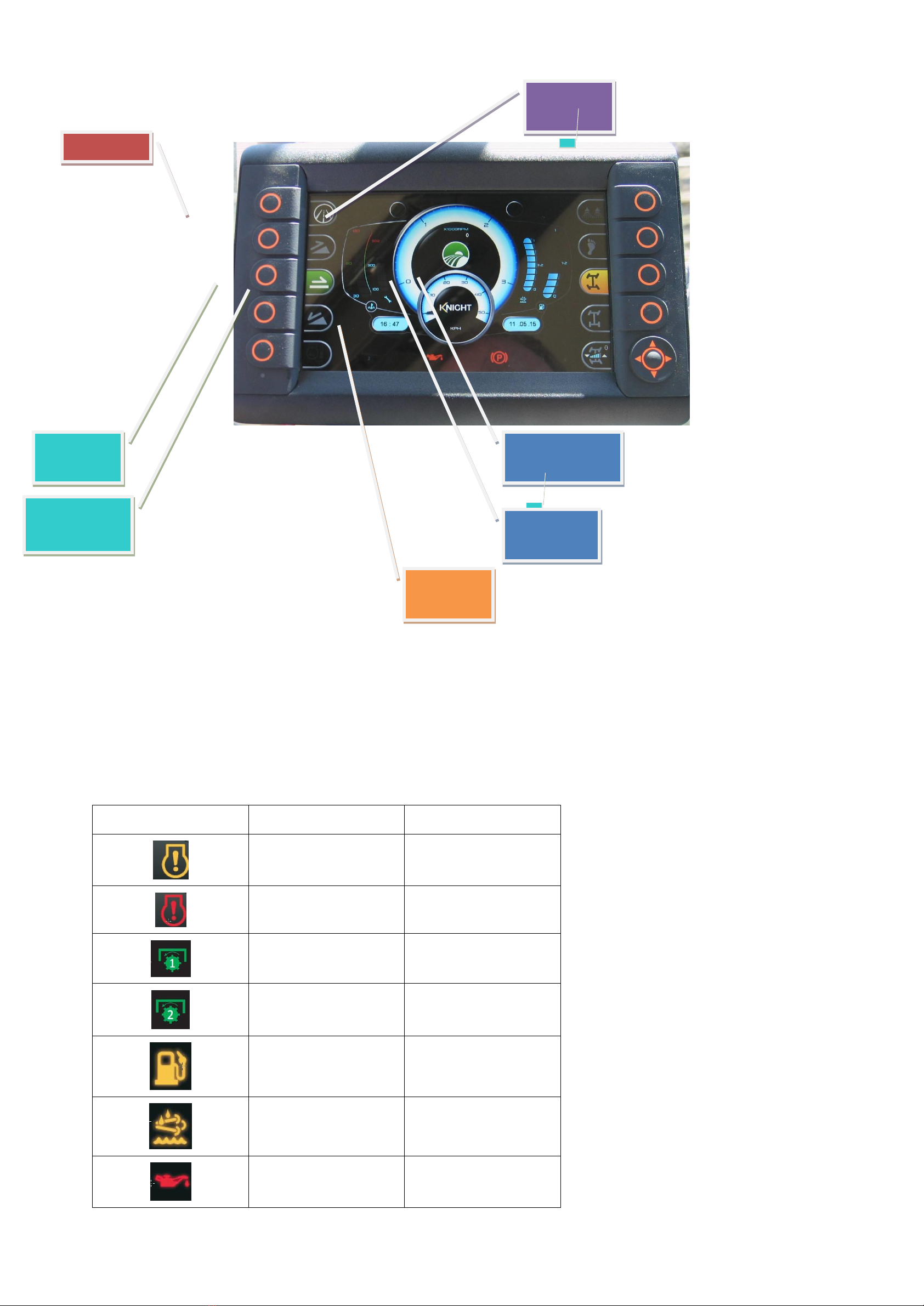

Figure 3 Colour Screen Control Panel In Field Mode - Information
Indicator
Description
Action
Engine Warning Lamp
Seek assistance at the first
available opportunity.
Engine Stop Lamp
Stop Machine and seek
assistance.
PTO 1 On (Sprayer Pump)
PTO 2 On
Low Fuel Level Warning
Refill Fuel Tank
Low AdBlue Level
Warning
Refill AdBlue Tank
Engine Oil Pressure
Engine
Temperature
Engine Service
Indicator
Forward
Speed
Engine RPM
Normal
Conditions
Fuel Gauge
on
Normal
Conditions
AdBlue
Gauge
on
Field Mode

07/06/2023 16
operators manual 1800v.doc
Battery Charge Lamp
Emissions Malfunction
Lamp
Seek assistance at the first
available opportunity.
Park Brake on
Low Hydraulic Oil Level
Stop Machine and Check
Hydraulic System for
Leaks
Filter Blockage
Change Twin and Pressure
Filter
Filter Blockage
Change Motor Drain Filter
Check Fuse 75

07/06/2023 17
operators manual 1800v.doc
4 Wheel Steering
The 4 wheel steering system on the 2000
series is operated from the colour screen
control panel (figures 1+2)
System Logic (read before
operating)
The advanced logic of the Knight 4
wheel steering system allows selection
of two or four wheel steering
regardless of the current steering
position. There is no requirement for
the wheels to pass through the
straight ahead position before a mode
is activated.
To avoid sudden and dangerous rear axle movement the system incorporates an advanced logic that will only permit a slow creep
of the rear axle unless the operator is turning the steering wheel. This provides a very safe and smooth transition form two to four
wheel steering. N.B. When changing modes it is useful to remember that the closer you are to driving in a straight line, the
quicker the system will synchronise.
The steering system is fitted with a speed interlock. Only 2 wheel steering is available when high speed range is selected.
2 wheel steering (road) - Press the 2WS button on the control panel.
4 wheel steering (field) - Press the 4WS button on the control panel.
Foot Switch –The floor mounted switch located to the right of the steering column can be used to switch between two wheel and
four wheel steering. To select this mode of operation press the button indicated by a foot on the main control panel. The system
will now toggle between two and four wheel steering when the foot switch is momentarily pressed. The selected mode is
indicated by an illuminated symbol.
Spray Related Switching –If you prefer, the system can activate 4 wheel steering when the spray is off and 2 wheel steering
when the spray is on. To select this mode, press the button with a picture indicating a spray pattern. The system will now toggle
between two and four wheel steering when the spray is turned on and off. The selected mode is indicated by an illuminated
symbol.
Hillside Control - When spraying on side slopes there is a tendency for the rear of the machine to drift slightly downhill, to
compensate for this the Knight 2000 series is equipped with a hillside correction function. This function automatically steers the
rear wheels slightly uphill to compensate this drift, the amount of compensation can be adjusted using the hillside correction
adjust button. Figure 4 shows this button in use with the setting selected momentarily displayed.
Figure 4 Demonstrating Hillside Correction Adjust

07/06/2023 18
operators manual 1800v.doc
Knight “Smart Drive” Transmission Control
Smart Drive is a sophisticated transmission management system that provides seamless speed control throughout the full speed range of
the vehicle. Incorporated within the system is cruise control, slip control* and engine speed management for maximum power or
maximum efficiency.
The mode of operation can be selected according to the working conditions. The following instructions should be used as a stage by
stage approach to setting the different switch options.
Figure 5 Control Panel Layout
P.T.O 2
On/Off
Where Fitted
Park Brake
Cruise Control
Adjust
Track Width Adjust
Engine Speed
Adjust
Cruise Control
On/Off
Active Slip Management
On/Off
P.T.O 1
On/Off

07/06/2023 19
operators manual 1800v.doc
Suggested Spraying Mode
1. When spraying the engine control must be set to Field mode; this will allow the engine speed to be manually set to provide a constant
P.T.O output.
2. The Transmission switch should be set to Normal.
3. Select slip control where fitted*.
4. Set the cruise control to ON
When ready to move off
1. Release the parking brake.
2. Move the main transmission joystick slowly forward until it is in the full forward position. The vehicle will advance forward.
3. Press the cruise control Set/Decrease speed button.
4. Set the forward speed with the cruise control Increase/Decrease switch. This changes the speed in regular steps.
Slowing or Stopping the Vehicle
a. Move the transmission joystick towards the central position or see b
b. Press the brake pedal gently and the forward speed will be reduced. The vehicle will continue at the reduced speed until the transmission
joystick is moved backward to match the new speed and then moved fully forward to return to the previously selected cruise speed.
Alternatively the set speed can be resumed by pressing the Resume/Increase cruise speed button.
Emergency Stop
Depress the brake pedal to decelerate the vehicle as required; return the transmission lever to the middle position before moving off again.
Suggested Road Mode
1. Select Road mode.
2. Turn off the slip control where fitted.
When ready to move off
1. Release the parking brake.
2. Move the transmission joystick slowly forward to advance the forward speed and engine R.P.M as required. The engine speed and the
transmission system operate in parallel to provide the selected forward speed in the most efficient way.
Slowing or Stopping the Vehicle
Move the transmission joystick towards the central position and press the brake pedal gently to reduce the forward speed as required.
Emergency Stop
Depress the brake pedal to decelerate the vehicle as required, return the transmission lever to the middle position before moving off again.

07/06/2023 20
operators manual 1800v.doc
Starting the engine
For safety reasons always ensure that you have completed all the safety checks detailed in Section 2 of this manual before starting and
moving off.
Switch the ignition key clockwise to the first ‘ignition on’ position.
Make sure that the parking brake indicator light is showing that the parking brake is engaged.
Make sure that the transmission lever is in the neutral (central) position. A warning will sound if it is not in the correct starting position.
Make sure that the PTO (Power Take-Off) switch (or switches if there is more than one) is/are in the off position.
If the horn sounds, the transmission oil level is low. Switch off the ignition and top up the oil. Check for leaks before and after starting
the engine.
Switch the ignition switch clockwise, against the slight pressure of the spring return to the next position to heat up the glow plug. The
glow plug will heat as long as the switch is held in this position. For colder engine starts, hold the key in this position for a little longer.
Turn the ignition switch further clockwise to the next position and hold against the spring loaded return. This engages the starter motor.
Release as soon as the engine fires. If the engine fails to fire after running the starter motor for 15 seconds, release the ignition switch.
Wait for a minute or so before re-trying the starting sequence.
The electronic throttle must be turned to the idle position before increasing the rpm. This is achieved by rotation it to the lowest setting.
Allow the engine to warm up before operating any engine-driven facilities. This is best done by running the engine un-loaded for a few
minutes at about 1200 rpm.
