Knightsbridge GUSPIKER Instruction Manual

INSTALLATION & MAINTENANCE MANUAL
GUSPIKER / GUSPIKES

These instructions should be read carefully and retained by the end-user after installation for
future reference and maintenance.
These instructions should be used to aid the installation of the following products:
GUSPIKER / GUSPIKES
GENERAL INSTRUCTIONS
• This product must be installed in accordance with the latest edition of the IEE Wiring Regulations (BS7671)
and current Building Regulations. If in any doubt, consult a qualified electrician
• Please isolate mains prior to installation or maintenance
• Check the total load on the circuit (including when this product is fitted) does not exceed the rating of the
circuit cable, fuse or circuit breaker

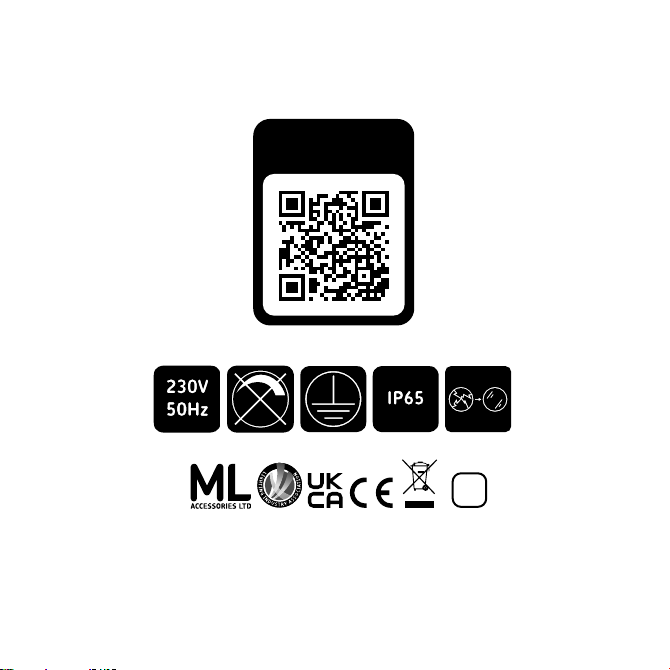

• Please note the IP (Ingress Protection) rating of this luminaire when deciding the location for installation
• This product is Class I and must be earthed
• This product is IP65 rated
SAFETY
Provide power to the required point of installation (refer to BS7671 for correct cabling methods). Suitable IP
rated junction boxes should be used where required
• The power source connections should be local and accessible via a suitable IP rated enclosure
• Choose a position for the luminaire ensuring the ground is suitable to firmly hold the spike and luminaire
in position. Check the ground is not liable to flooding and the spike does not infringe with any underground
pipes or cables (see Fig. 1)
INSTALLATION

• The body of the product should not rest directly on the ground
• The preinstalled cable supplied is for above-ground use only. Cables that are to be routed within walls or
below ground must be protected by means of suitable conduit or trunking (see Fig. 2)
INSTRUCTIONS –SPIKE4BL
These instructions should be read carefully and retained by the end-user after installation for future reference and
maintenance.
These instructions should be used to aid the installation of the following product:
SPIKE4BL
SAFETY
•This product must be installed in accordance with the latest edition of the IEE Wiring Regulations
(BS7671) and current Building Regulations. If in any doubt, consult a qualified electrician
•Please isolate mains prior to installation or maintenance
•Check the total load on the circuit (including when this luminaire is fitted) does not exceed the rating
of the circuit cable, fuse or circuit breaker
•Please note the IP (Ingress Protection) rating of this luminaire when deciding the location for
installation
•This product is Class I and must be earthed
•This product is IP65 rated
INSTALLATION
Please note - if this luminaire is being used in conjunction with an external PIR or sensor, please
confirm with the manufacturer of the sensors that they are compatible with LED luminaires
•Provide power to the required point of installation (refer to BS7671 for correct
cabling methods). Suitable IP rated junction boxes should be used where required
•The power source connections should be local and accessible via a suitable IP rated enclosure
•Choose a position for the luminaire ensuring that the ground is suitable to firmly hold the spike and
luminaire in position. Check the ground is not liable to flooding and the spike does not infringe with
any underground pipes or cables (see Fig. 1)
Fig. 1
•The body of the product should not rest directly on the ground
•The pre-installed cable supplied is for above-ground use only. Cables that are to be routed within
walls or below ground must be protected by means of a suitable conduit or trunking (see Fig. 2)
Fig. 1
Fig. 2
•For wall mounting, using the bracket as a template, mark the location for, and drill the fixing holes
ensuring not to infringe with any gas/water pipes or electrical cables (see Fig. 3)
Fig. 3
•Connect the luminaire to the mains supply ensuring that correct polarity is observed: Live (Brown),
Earth (Green/Yellow), Neutral (Blue)
•Switch on and check for correct operation
WARNING
This luminaire must be disconnected from the circuit if subjected to any high voltage or insulation resistance
testing. Irreparable damage will occur if this instruction is not followed.
GENERAL
The LED lamps fitted in this product are non-replaceable. The product should be recycled in the correct manner
when it reaches the end of its life. Check local authorities for where facilities exist.
Clean with a soft dry cloth only, do not use aggressive cleaning products or solvents which may damage the
product.
Do not use any source of high-pressure washers to maintain or clean this product.
This product is not suitable for installation in or near a coastal or marine environment.
A light film of acid free oil is recommended after installation and maintained periodically (2-3 times a year) to aid
corrosion prevention.
This product is non-dimmable.
WARRANTY
This product has a warranty of 2 years from the date of purchase. Failure to install this product in accordance
with the current edition of the IEE Wiring Regulations (BS7671), improper use, or removal of the batch code will
Fig. 2

• For wall mounting, using the bracket as a template, mark the location for, and drill the fixing holes ensuring
not to infringe with any gas/water pipes or electrical cables (see Fig. 3). Fix the bracket to the surface using
suitable fixings (not included)
Fig. 3
• Connect the luminaire to the mains supply ensuring the correct polarity is observed: Live (brown), Earth
(green/yellow), Neutral (blue)
• Insert a suitable GU10 lamp (max. 35W)
• Switch on and check for correct operation
•For wall mounting, using the bracket as a template, mark the location for, and drill the fixing holes
ensuring not to infringe with any gas / water pipes or electrical cables (see Fig. 3)
Fig. 3
•Connect the luminaire to the mains supply ensuring that correct polarity is observed: Live (Brown),
Earth (Green/Yellow), Neutral (Blue)
•Unscrew the bezel by turning anti-clockwise
•Insert a suitable GU10 lamp (max 35W) into the lamp holder. Align the pins and turn 45° clockwise to
secure the lamp (a suction cup is provided to aid insertion / removal of the lamp where required)
•Replace the bezel ensuring the gasket is not damaged, and is tightened to form a weatherproof seal
•Switch on and check for correct operation
WARNING
This luminaire must be disconnected from the circuit if subjected to any high voltage or insulation resistance
testing. Irreparable damage will occur if this instruction is not followed.
GENERAL
This product should be recycled in the correct manner when it reaches the end of its life. Check local authorities
for where facilities exist.
Clean with a soft dry cloth only, do not use aggressive cleaning products or solvents which may damage the
product.
Do not use any source of high-pressure washers to maintain or clean this luminaire.
This product is not suitable for installation in or near a coastal or marine environment.
WARRANTY
This product has a warranty of 2 yearsfrom the date of purchase. Failure to install this product in accordance
with the current edition of the IEE Wiring Regulations (BS7671), improper use, or removal of the batch code will
invalidate the warranty. If this product should fail within its warranty period it should be returned to the place of
purchase for a free of charge replacement. ML Accessories does not accept responsibility for any installation
costs associated with the replacement product. Your statutory rights are not affected. ML Accessories reserve
the right to alter product specification without prior notice.
AVSEP19_V1

Clean the external surfaces with a damp cloth using a mild solution of detergent and warm water only, do
not use aggressive cleaning products or solvents which may damage the product.
Do not use any source of high-pressure washers to maintain or clean this product.
This product is dimmable dependant on lamp type.
This product should be recycled in the correct manner when it reaches the end of its life. Check local
authorities for where facilities exist.
This product is not suitable for installation in or near a coastal or marine environment.
WARNING
GENERAL
This product has a warranty of 2 years from the date of purchase. Failure to install this product in accordance
with the current edition of the IEE Wiring Regulations (BS7671), improper use, or removal of the batch
code will invalidate the warranty. If this product should fail within its warranty period, it should be returned
to the place of purchase for a free of charge replacement. ML Accessories does not accept responsibility for
any installation costs associated with the replacement product. Your statutory rights are not affected. ML
Accessories reserve the right to alter product specification without prior notice.
WARRANTY

AKDEC21_V1
