Knightsbridge LEDGL3D Instruction Manual

INSTALLATION & MAINTENANCE MANUAL
LEDGL3D / LEDGL3W

These instructions should be read carefully and retained after installation by the end user for
future reference and maintenance.
These instructions should be used to aid installation of the following products:
LEDGL3D / LEDGL3W
GENERAL INSTRUCTIONS
• This product must be installed in accordance with the latest edition of the IEE Wiring Regulations (BS7671)
and current Building Regulations. If in any doubt, consult a qualified electrician
• Please isolate mains prior to installation or maintenance
• Check the total load on the circuit (including when this product is fitted) does not exceed the rating of the
circuit cable, fuse, or circuit breaker
• Please note the IP (Ingress Protection) rating of this product when deciding the location for installation
• This product is safe for use as a drive-over fitting (800kg @ 5mph)
• This product is Class I and must be earthed
• This product is IP65 rated
SAFETY
INSTALLATION
Note - If this product is being used in conjunction with an external PIR or sensor, please confirm with the
manufacturer of the sensors that they are compatible with LED luminaires.
• Provide power to the required point of installation (refer to BS7671 for correct cabling methods). Suitable IP
rated junction boxes should be used where required
• The power source connections should be local and accessible via a suitable IP rated enclosure
• Cut a suitable hole in the mounting surface as per the cut-out details (see Fig.1) ensuring not to infringe with
any joists, gas/water pipes or electrical cables.

Fig. 2
•There must be enough cable below the luminaire to carry out maintenance work (see Fig. 3)
Fig. 3
•Secure the sleeve into the mounting surface
•Connect the luminaire to the mains supply ensuring the correct polarity is observed L - Live (brown), E
- Earth (green/yellow), N - Neutral (blue)
•Remove the bezel and secure the luminaire into the sleeve by two screws under the seal
•Replace the bezel ensuring the seal is in place and not damaged
•Switch on and check for correct operation
•Should the protective glass be cracked or damaged it should be replaced immediately
•This fitting must not be used without the protective glass installed
WARNING
This product must be disconnected from the circuit if subjected to any high voltage or insulation resistance
testing. Irreparable damage will occur to the lamp if this instruction is not followed.
Care should be taken when installing into high ‘clay’ content soils which naturally retain water and have poor
drainage. We recommend IP67 or IP68 products to be installed where these environmental conditions occur as
IP65 luminaires will likely be compromised.
This product is not suitable for installation in or near a coastal or marine environment.
GENERAL
This product contains a light source of energy efficiency class G to Regulation (EU) No. 2019/2015.
INSTALLATION & MAINTENANCE MANUAL
These instructions should be read carefully and retained after installation by the end user for future reference
and maintenance.
These instructions should be used to aid installation of the following products:
LEDGL3D / LEDGL3W
SAFETY
•This product must be installed in accordance with the latest edition of the IEE Wiring Regulations
(BS7671) and current Building Regulations. If in any doubt, consult a qualified electrician
•Please isolate mains prior to installation or maintenance
•Check the total load on the circuit (including when this product is fitted) does not exceed the rating of
the circuit cable, fuse, or circuit breaker
•Please note the IP (Ingress Protection) rating of this product when deciding the location for installation
•This product is safe for use as a drive-over fitting (800kg @ 5mph)
•This product is Class I and must be earthed
•This product is IP65 rated
INSTALLATION
Note - If this product is being used in conjunction with an external PIR or sensor, please confirm with the
manufacturer of the sensors that they are compatible with LED luminaires.
•Provide power to the required point of installation (refer to BS7671 for correct cabling methods).
Suitable IP rated junction boxes should be used where required
•The power source connections should be local and accessible via a suitable IP rated enclosure

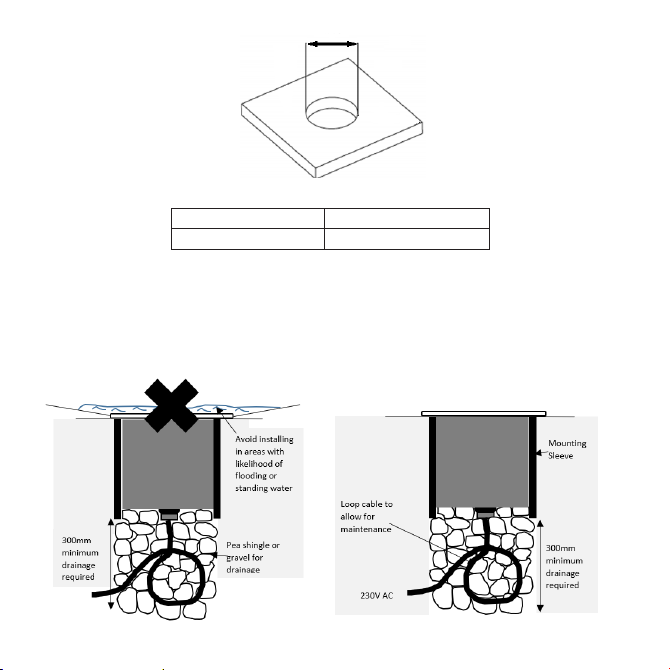

•Cut a suitable hole in the mounting surface as per the cut-out details (see Fig.1) ensuring not to
infringe with any joists, gas/water pipes or electrical cables.
Product Code
Cut-out diameter (mm)
LEDGL3x
78
Fig. 1
•The sleeve should be used for direct mounting in the ground
•We recommend not installing in areas where there is a high risk of flooding or areas where water may
sit on top of the fitting (see Fig. 2)
•Ensure a minimum of 300mm of drainage is put below the luminaire (see Fig. 2)
Fig. 1
INSTALLATION & MAINTENANCE MANUAL
These instructions should be read carefully and retained after installation by the end user for future reference
and maintenance.
These instructions should be used to aid installation of the following products:
LEDGL3D / LEDGL3W
SAFETY
•This product must be installed in accordance with the latest edition of the IEE Wiring Regulations
(BS7671) and current Building Regulations. If in any doubt, consult a qualified electrician
•Please isolate mains prior to installation or maintenance
•Check the total load on the circuit (including when this product is fitted) does not exceed the rating of
the circuit cable, fuse, or circuit breaker
•Please note the IP (Ingress Protection) rating of this product when deciding the location for installation
•This product is safe for use as a drive-over fitting (800kg @ 5mph)
•This product is Class I and must be earthed
•This product is IP65 rated
INSTALLATION
Note - If this product is being used in conjunction with an external PIR or sensor, please confirm with the
manufacturer of the sensors that they are compatible with LED luminaires.
•Provide power to the required point of installation (refer to BS7671 for correct cabling methods).
Suitable IP rated junction boxes should be used where required
•The power source connections should be local and accessible via a suitable IP rated enclosure
•Cut a suitable hole in the mounting surface as per the cut-out details (see Fig.1) ensuring not to
infringe with any joists, gas/water pipes or electrical cables.
Product Code
Cut-out diameter (mm)
LEDGL3x
78
Fig. 1
•The sleeve should be used for direct mounting in the ground
•We recommend not installing in areas where there is a high risk of flooding or areas where water may
sit on top of the fitting (see Fig. 2)
•Ensure a minimum of 300mm of drainage is put below the luminaire (see Fig. 2)
• The sleeve should be used for direct mounting in the ground
• We recommend not installing in areas where there is a high risk of flooding or areas where water may sit on
top of the fitting (see Fig. 2)
• Ensure a minimum of 300mm of drainage is put below the luminaire (see Fig. 2)
Fig. 2
Fig. 2
•There must be enough cable below the luminaire to carry out maintenance work (see Fig. 3)
Fig. 3
•Secure the sleeve into the mounting surface
•Connect the luminaire to the mains supply ensuring the correct polarity is observed L - Live (brown), E
- Earth (green/yellow), N - Neutral (blue)
•Remove the bezel and secure the luminaire into the sleeve by two screws under the seal
•Replace the bezel ensuring the seal is in place and not damaged
•Switch on and check for correct operation
•Should the protective glass be cracked or damaged it should be replaced immediately
•This fitting must not be used without the protective glass installed
WARNING
This product must be disconnected from the circuit if subjected to any high voltage or insulation resistance
testing. Irreparable damage will occur to the lamp if this instruction is not followed.
Care should be taken when installing into high ‘clay’ content soils which naturally retain water and have poor
drainage. We recommend IP67 or IP68 products to be installed where these environmental conditions occur as
IP65 luminaires will likely be compromised.
This product is not suitable for installation in or near a coastal or marine environment.
GENERAL
This product contains a light source of energy efficiency class G to Regulation (EU) No. 2019/2015.

• There must be enough cable below the luminaire to carry out maintenance work (see Fig. 3)
Fig. 2
•There must be enough cable below the luminaire to carry out maintenance work (see Fig. 3)
Fig. 3
•Secure the sleeve into the mounting surface
•Connect the luminaire to the mains supply ensuring the correct polarity is observed L - Live (brown), E
- Earth (green/yellow), N - Neutral (blue)
•Remove the bezel and secure the luminaire into the sleeve by two screws under the seal
•Replace the bezel ensuring the seal is in place and not damaged
•Switch on and check for correct operation
•Should the protective glass be cracked or damaged it should be replaced immediately
•This fitting must not be used without the protective glass installed
WARNING
This product must be disconnected from the circuit if subjected to any high voltage or insulation resistance
testing. Irreparable damage will occur to the lamp if this instruction is not followed.
Care should be taken when installing into high ‘clay’ content soils which naturally retain water and have poor
drainage. We recommend IP67 or IP68 products to be installed where these environmental conditions occur as
IP65 luminaires will likely be compromised.
This product is not suitable for installation in or near a coastal or marine environment.
GENERAL
This product contains a light source of energy efficiency class G to Regulation (EU) No. 2019/2015.
Fig. 3
• Secure the sleeve into the mounting surface
• Connect the luminaire to the mains supply ensuring the correct polarity is observed L - Live (brown),
E - Earth (green/yellow), N - Neutral (blue)
• Remove the bezel and secure the luminaire into the sleeve by two screws under the seal
• Replace the bezel ensuring the seal is in place and not damaged
• Switch on and check for correct operation
• Should the protective glass be cracked or damaged it should be replaced immediately
• This fitting must not be used without the protective glass installed

GENERAL
WARNING
This product must be disconnected from the circuit if subjected to any high voltage or insulation resistance
testing. Irreparable damage will occur to the lamp if this instruction is not followed.
Care should be taken when installing into high ‘clay’ content soils which naturally retain water and have poor
drainage. We recommend IP67 or IP68 products to be installed where these environmental conditions occur as
IP65 luminaires will likely be compromised.
This product is not suitable for installation in or near a coastal or marine environment.
This product contains a light source of energy efficiency class G to Regulation (EU) No. 2019/2015.

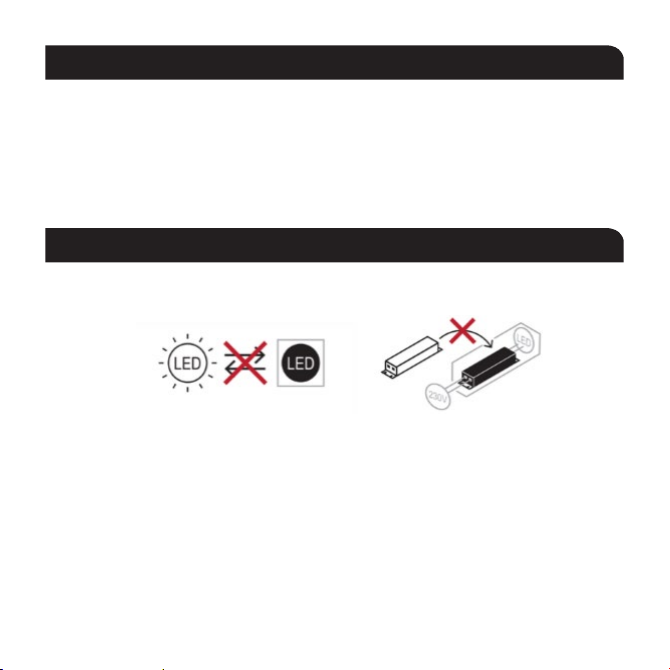

This product contains a non-replaceable LED light source and control gear.
This product contains a non-replaceable LED light source and control gear.
Clean the external surfaces with a damp cloth using a mild solution of detergent and warm water only, do not
use aggressive cleaning products or solvents which may damage the product.
Do not use any source of high-pressure washers to maintain or clean this luminaire.
A light film of acid-free oil is recommended after installation and maintained periodically (2-3 times a year) to aid
corrosion prevention.
This product is non-dimmable.
This product should be dismantled for disposal when it reaches the end of its life. Please see website for
dismantling instructions.
This product should be recycled in the correct manner when it reaches the end of its life. Check local authorities
for where facilities exist.
WARRANTY
This product has a warranty of 2 years from date of purchase. Failure to install this product in accordance with
the current edition of the IEE Wiring Regulations (BS7671), improper use, or removal of the batch code will
invalidate the warranty. If this product should fail within its warranty period, it should be returned to the place of
purchase for a free of charge replacement. ML Accessories does not accept responsibility for any installation
costs associated with the replacement product. Your statutory rights are not affected. ML Accessories reserve
the right to alter product specification without prior notice.
230V 50Hz, IP65, Class 1, non-dim, driveover wheel, cracked glass
DCxxx21_V2
Clean the external surfaces with a damp cloth using a mild solution of detergent and warm water only, do not
use aggressive cleaning products or solvents which may damage the product.
Do not use any source of high-pressure washers to maintain or clean this luminaire.
A light film of acid-free oil is recommended after installation and maintained periodically (2-3 times a year) to
aid corrosion prevention.
This product is non-dimmable.
This product should be dismantled for disposal when it reaches the end of its life. Please see website for
dismantling instructions.
This product should be recycled in the correct manner when it reaches the end of its life. Check local authorities
for where facilities exist.

WARRANTY
This product has a warranty of 2 years from date of purchase. Failure to install this product in accordance with
the current edition of the IEE Wiring Regulations (BS7671), improper use, or removal of the batch code will
invalidate the warranty. If this product should fail within its warranty period, it should be returned to the place
of purchase for a free of charge replacement. ML Accessories does not accept responsibility for any installation
costs associated with the replacement product. Your statutory rights are not affected. ML Accessories reserve
the right to alter product specification without prior notice.

DCAUG21_V2
ML Accessories Limited LU5 4LT
www.mlaccessories.co.uk
