KOBE CH00 SQB-5 Series Troubleshooting guide

KOBE Range Hoods
Deluxe Series
CH00 SQB-5 Series
Model No.
Under Cabinet: CH0030SQB-5 (30”)
CH0036SQB-5 (36”)
CH0042SQB-5 (42”)
CH0048SQB-5 (48”)
Wall Mount: CH0030SQB-WM-5 (30”)
CH0036SQB-WM-5 (36”)
CH0042SQB-WM-5 (42”)
CH0048SQB-WM-5 (48”)
INSTALLATION INSTRUCTIONS
AND OPERATION MANUAL

READ BEFORE INSTALLATION
1. Carefully check all contents of packages.
2. Thoroughly inspect the unit for any shipping damages, cosmetic
damages or defects.
3. Have a certified contractor/electrician test the unit before installation.
IF THERE IS ANY PROBLEM:
1. DO NOT INSTALL THE UNIT AND KEEP ALL ORIGINAL
PACKAGING MATERIAL.
2. Have your original invoice as proof of purchase and product serial
number ready.
3. Contact your merchant for product replacement due to shipping
damages, cosmetic damages or defects.
4. For all other issues, call 1-877-BUY-KOBE (289-5623), or e-mail to
[email protected] .
NO RETURN, NO REFUND, NO EXCHANGE IF:
1. PRODUCT HAS BEEN INSTALLED
2. KNOCK-OUT HOLES HAVE BEEN PUNCTURED
3. MISSING ORIGINAL PACKAGING MATERIAL
AND/OR PARTS
IMPORTANT
READ THIS FIRST

[ENGLISH]
- READ AND SAVE THESE INSTRUCTIONS -
CONTENTS
IMPORTANT SAFETY INSTRUCTIONS.....................................................................................1
COMPONENTS OF PACKAGE...................................................................................................3
INSTALLATION...........................................................................................................................4
OPERATION INSTRUCTIONS..................................................................................................11
MAINTENANCE........................................................................................................................12
SPECIFICATIONS ....................................................................................................................13

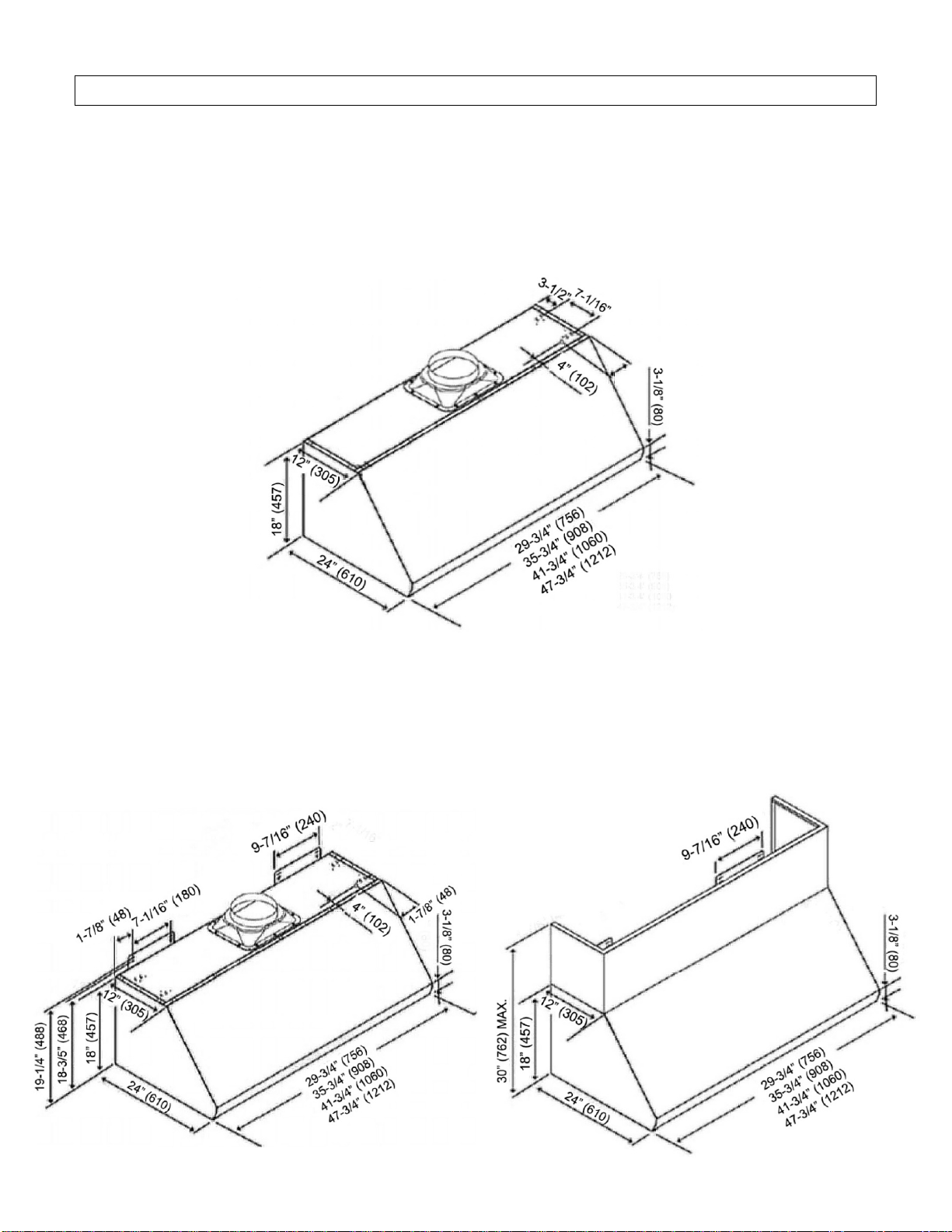

MEASUREMENTS & DIAGRAMS.............................................................................................15
PARTS LIST..............................................................................................................................17
CIRCUIT DIAGRAM..................................................................................................................20
TROUBLE SHOOTING.............................................................................................................21
WARRANTY.............................................................................................................................22
PRODUCT REGISTRATION.....................................................................................................24
- READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING -
ALL WIRING MUST BE DONE BY A PROFESSIONAL AND IN ACCORDANCE WITH
NATIONAL AND LOCAL ELECTRICAL CODES.

1
IMPORTANT SAFETY INSTRUCTIONS
- PLEASE READ THIS SECTION CAREFULLY BEFORE INSTALLATION -
WARNING : TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL INJURY,
OBSERVE THE FOLLOWING:
1) Installation and electrical wiring must be done by qualified professionals and in accordance with all
applicable codes and standards, including fire-rated construction.
2) When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or other hidden
utilities.
3) Ducted fans must be vented to the outside.
a) Before servicing or cleaning unit, open the light panel and SWITCH POWER OFF AT SERVICE
PANEL.
b) Clean all grease laden surfaces frequently. To reduce the risk of fire and to disperse air properly,
make sure to vent air outside. DO NOT vent exhaust air into wall spaces, attics, crawl spaces or
garages.
NOTE - This warranty is invalid without an authorized agent’s receipt or if unit is
damaged due to misuse, poor installation, improper use, mistreatment,
negligence or any other circumstances beyond the control of KOBE
RANGE HOODS authorized agents. Any repair carried out without the
supervision of KOBE RANGE HOODS authorized agents will
automatically void the warranty.
- KOBE RANGE HOODS will not be held responsible for any damages to
personal property or real estate or any bodily injuries whether caused
directly or indirectly by the range hood.
WARNING : TO REDUCE THE RISK OF PERSONAL INJURY IN THE EVENT OF A RANGE
TOP GREASE FIRE:
1. Keep all fan, baffle/spacer/filter/oil tunnel/oil container and grease-laden surfaces clean. Grease
should not be allowed to accumulate on fan, baffle/spacer/filter/oil tunnel/oil container.
2. Always turn hood ON when cooking.
3. Use high settings on cooking range ONLY when necessary.
4. Do not leave cooking range unattended when cooking.
5. Always use cookware and utensils appropriate for the type and amount of food prepared.
6. Use this unit only in the manner intended by the manufacturer.
7. Before servicing, switch power off at service panel and lock service panel (if possible) to prevent
power from switching on accidentally.
8. Clean ventilating fan frequently.

2
What to Do In The Event Of a Range Top Grease Fire
• SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner.
KEEP FLAMMABLE OR COMBUSTIBLE MATERIALAWAY FROM FLAMES. If the flames do not go
out immediately, EVACUATE THE AREAAND CALL THE FIRE DEPARTMENT or 911.
• NEVER PICK UPA BURNING PAN – You May Get Burned.
• DO NOT USE WATER, including wet dishcloths or towels – a violent steam blast will result.
• Use an extinguisher ONLY if:
a) You have a Class A, B, C extinguisher and know how to operate it.
b) The fire is small and contained in the area where it started.
c) The fire department has been called.
d) You can fight the fire with your back to an exit.
What to Do If You Smell Gas
- Extinguish any open flame.
- Do not try to turn on the lights or any type of appliance.
- Open all doors and windows to disperse the gas. If you still smell gas, call the Gas Company and
Fire Department right away.
CAUTION
1) For general ventilation use only. Do not use to exhaust hazardous or explosive materials and vapors.
2) To reduce the risk of fire, use only metal ductwork. Sufficient air is needed for proper combustion and
exhausting of gases through the flue (chimney) to prevent back drafting.
3) Follow the heating equipment manufacturer’s guideline and safety standards such as thosepublished
by the National Fire Protection Association (NFPA), and the American Society for Heating,
Refrigeration and Air Conditioning Engineers (ASHRAE), and code authorities.
4) Activating any switch on may cause ignition or an explosion.
5) Due to the size and weight of this hood, two people installation is recommended.
ELECTRICAL SHOCK HAZARD – Can result in serious injury or death.
Disconnect appliance from electric power before servicing. If equipped,
the fluorescent light bulb contains small amounts of mercury, which must
be recycled or disposed of according to Local, State, and Federal Codes.

3
COMPONENTS OF PACKAGE
(Must keep all material for returns or refunds)
CH00 SQB-5 Series RANGE HOOD BOX
{A} KOBE Range Hood
{B} Warranty Registration Card
{C} Quick Reference Guide
{D} Oil Tunnel
{E} Baffle Filter – 2 (30” & 36”)
– 3 (42” & 48”)
{F} Spacer x 2
{G} 6” Round Plastic Collar (30” & 36”)
8” Round Exhaust Plate (42” & 48”)
{H} Screws Package
{I} Hood-Mounting Bracket x 2
{J} Screws Package
{K} Wire Cap x 3
{L} Screws Package (for Under Cabinet only)
{A}
{B} {C}
{D} {E}
{F} {G}
{H}
{I} {J}
{K} {L}
Duct Cover (Included in Wall Mound Hood ONLY)
Option Of:
Model No. CH0030DC-12 for 30'' hood
Duct Cover
Screw Package for Duct Cover
Model No. CH0036DC-12 for 36'' hood
Duct Cover
Screw Package for Duct Cover
Model No. CH0042DC-12 for 42'' hood
Duct Cover
Screw Package for Duct Cover
Model No. CH0048DC-12 for 48'' hood
Duct Cover
Screw Package for Duct Cover
- FOR MORE INFORMATION, PLEASE VISIT OUR WEBSITE www.koberangehoods.com OR
CONTACT KOBE RANGE HOODS AT [phone].
Wire caps (3)
M4 x 3/4"
(4 for 30” & 36”)
(8 for 42” & 48”) M4 x 1-1/4”
(4 for 30” & 36”)
(8 for 42” & 48”)
M4 x 1-1/2” (6)

4
INSTALLATION
PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING
Calculation before Installation
Calculate the length of the installation, before installing the hood. (All calculation is measure in inches.)
- FOR UNDER THE CABINET -
TABLE 1
A = Height of Floor to Ceiling
B = Height of Floor to Counter Top
(Standard: 36”)
C = Preferred Height of Counter Top to Hood
Bottom
30” & 36” Hood (Recommended 27” to 30”)
42” & 48” Hood (Recommended 30” to 36”)
D = Height of Hood
E = Height of the Cabinet
- FOR STAND ALONE -
TABLE 2
A = Height of Floor to Ceiling
B = Height of Floor to Counter Top
(Standard: 36”)
C = Preferred Height of Counter Top to Hood
Bottom
30” & 36” Hood (Recommended 27” to 30”)
42” & 48” Hood (Recommended 30” to 36”)
[(A – B] – (D + E)]
D = Height of Hood
E = Height of Duct Cover

5
SAFETY WARNING
HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF IT IS
NECESSARY TO REMOVE ANY PARTS FOR INSTALLING, CLEANING OR SERVICING.
NOTE: BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE HOOD
MAY OCCUR.
CH00 SERIES – UNDER THE CABINET INSTALLATION ..................................................................6
CH00 SERIES – STAND ALONE INSTALLATION ..............................................................................8

6
CH00 SQB-5 SERIES – UNDER THE CABINET INSTALLATION
Preparation before Installation
NOTE: TO AVOID DAMAGE TO YOUR HOOD,
PREVENT DEBRIS FROM ENTERING
THE VENT OPENING.

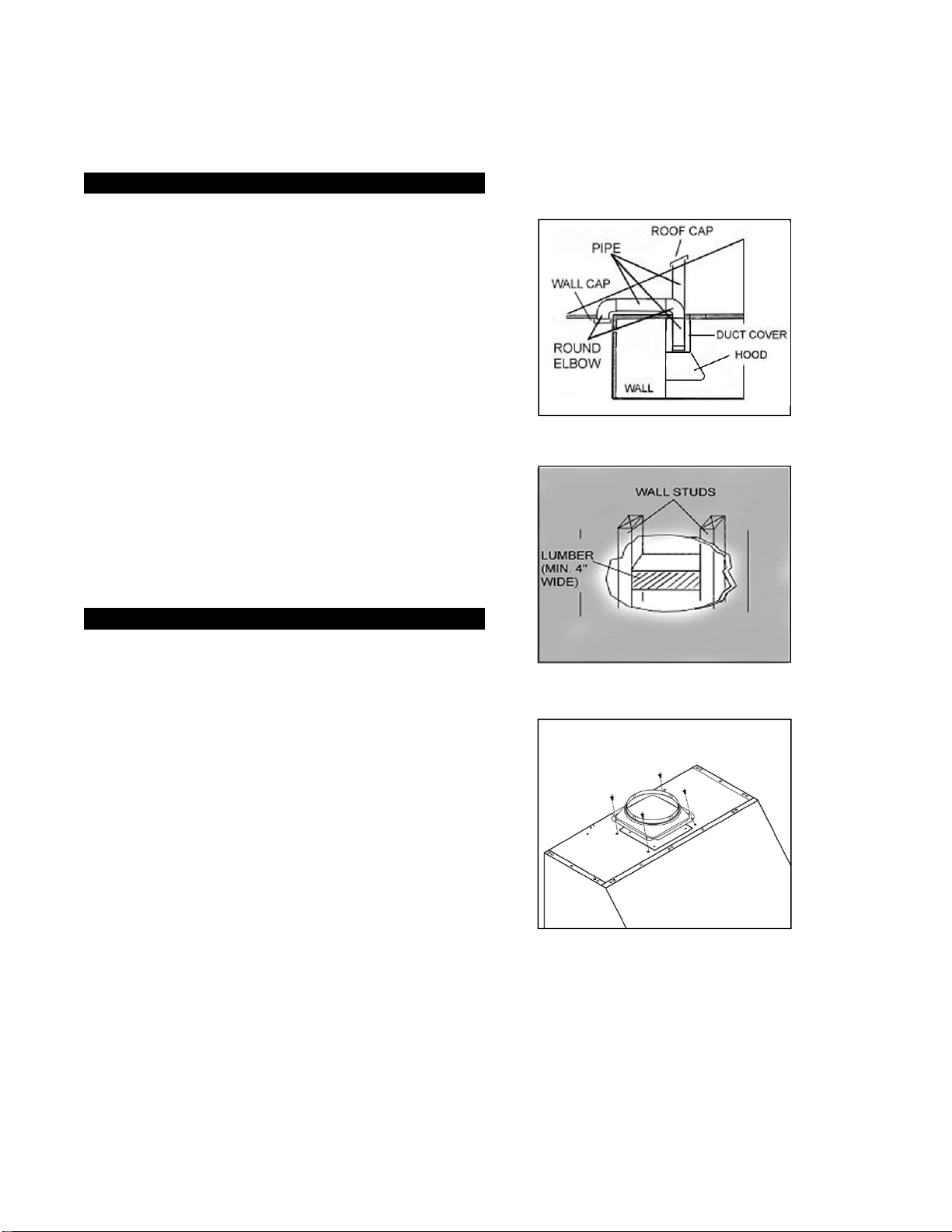

 Decide the location of the venting pipe from the
hood to the outside. Refer to Figure 1.
 A straight, short venting run will allow the hood
to perform more efficiently.
 Try to avoid as many transitions, elbows, and
long run as possible. This may reduce the
performance of the hood.
 Temporarily wire the hood to test for proper
operation before installing.
 Important: Peel protective film off the hood
(if any).
 For installing under the cabinet with recessed
bottom, attach 4-inch wide wood filler strips (not
included) on each side. Refer to Figure 2.
 Measure and create access opening for
electrical wires under the cabinet.
Hood Installation
CAUTION: If required to move the cooking
range to install the hood, turn off the power on
an electric range at the main electrical box.
SHUT OFF THE GAS BEFORE MOVING A GAS
RANGE.

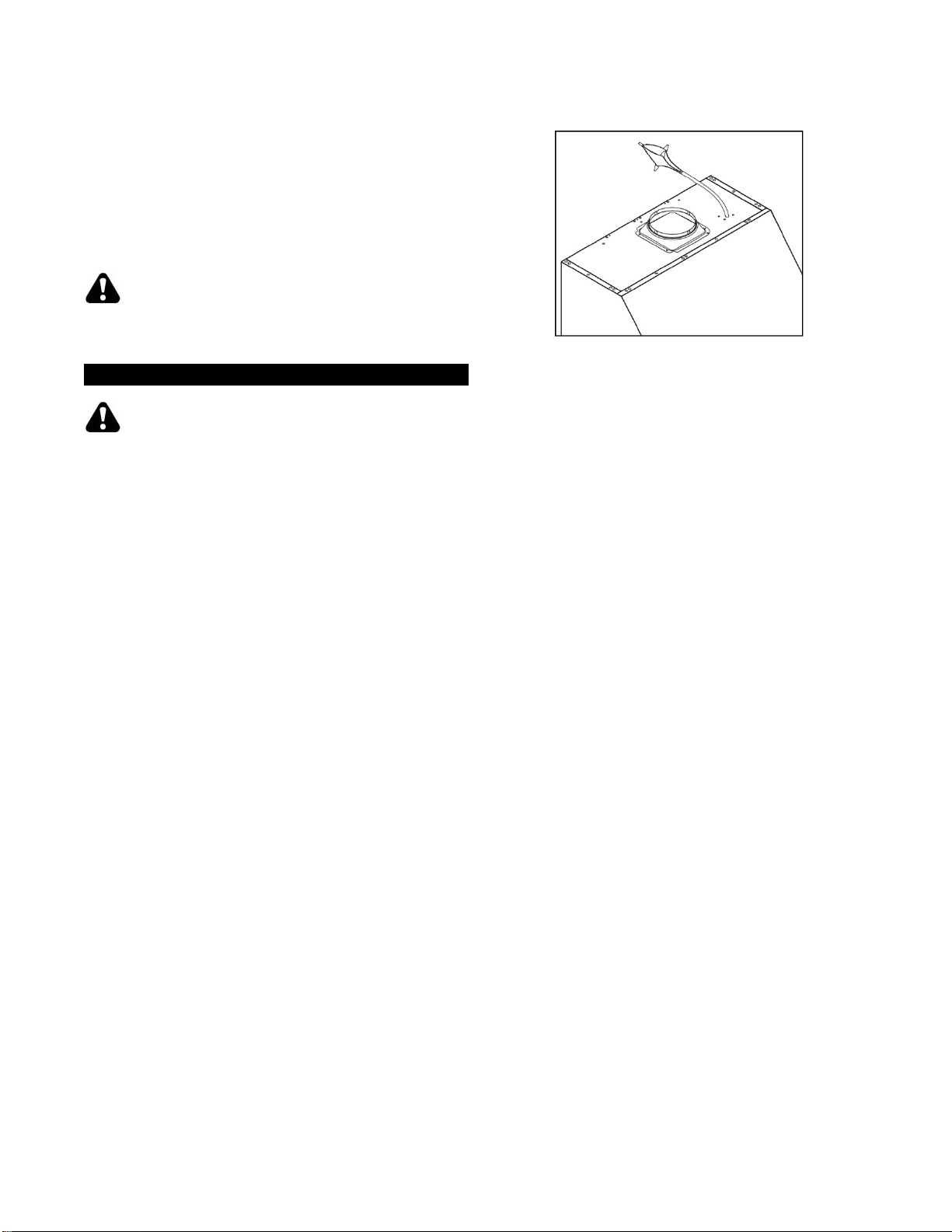

1. Puncture the knockout holes on the hood as
shown in Figure 3.
2. (This step only applies to 42” and 48” models.)
Attach exhaust plate on hood with four (3/16” x
3/8”) screws (included). Shown in Figure 4.
3. Using references on Table 1 and
measurements on page 15 center the hood in
place beneath the cabinet and flush with the
front of the cabinet.
4. Draw electrical wires through cabinet access
opening. Refer to Figure 6.
5. From the bottom of the hood, place screw
(provided) into the exact center of each
knockout hole. Make sure all screws are in
place before tightening screws. CAUTION:
MAKE SURE THE HOOD IS SECURE
BEFORE RELEASING.
6. For safety purpose, pre-drilled mounting holes
are provided through the back of the hood. For
a more secure installation, use as many
mounting holes as needed to secure from the
inside of hood (screws included).
Figure 1
Figure 2
Figure 3
Figure 4

7

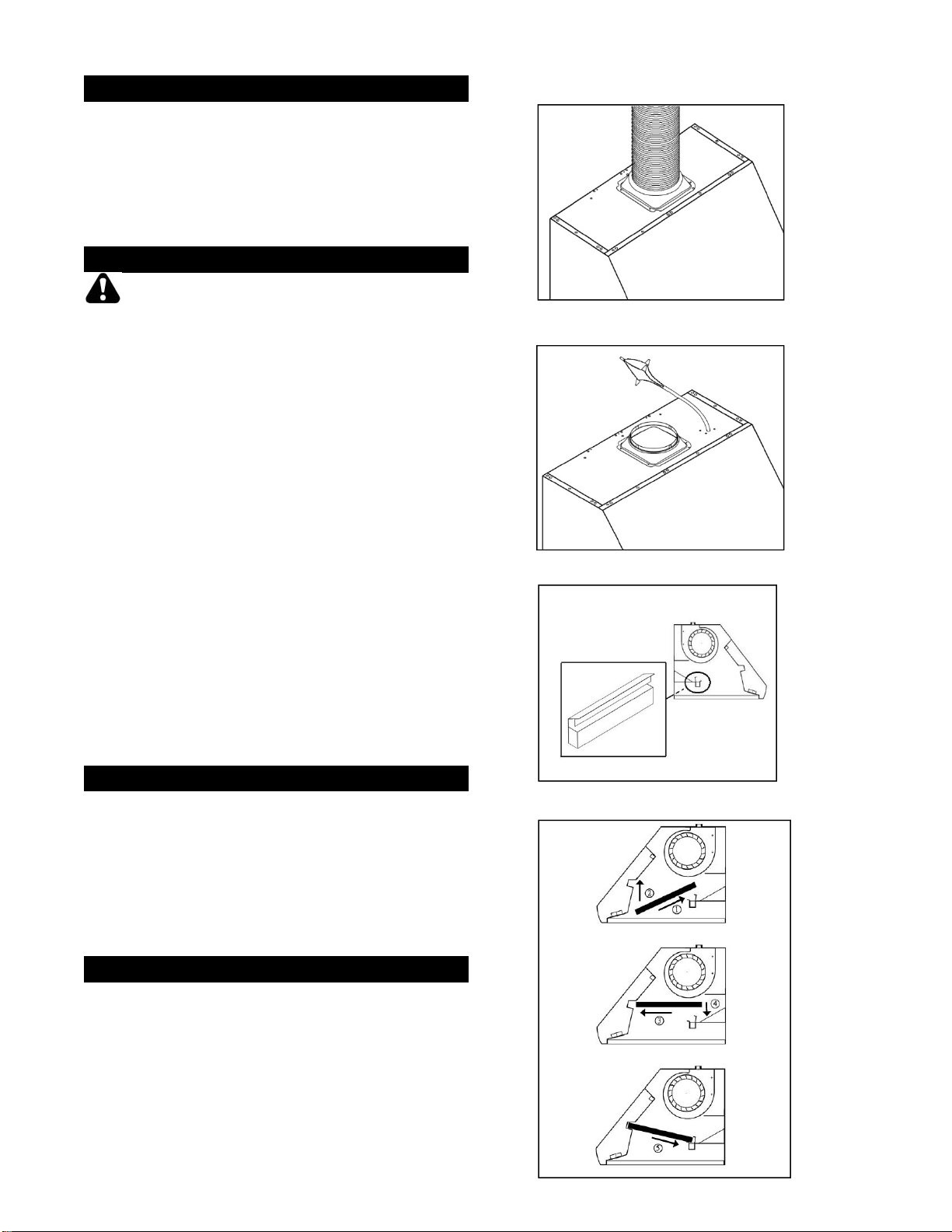

Ductwork Installation
7. Use 6” round steel pipe for 30” and 36” models
or 8” round steel pipe for 42” and 48” models
(follow building codes in your area) to connect
the exhaust on the hood to the ductwork above.
Use duct tape to make all joints secure and air
tight. Refer to Figure 5.
Wiring to Power Supply
SAFETY WARNING
RISK OF ELECTRICAL SHOCK. THIS RANGE
HOOD MUST BE PROPERLY GROUNDED.
MAKE SURE THIS IS DONE BY SPECIALIZED
ELECTRICIAN IN ACCORDANCE WITH ALL
APPLICABLE NATIONAL AND LOCAL
ELECTRICAL CODES. BEFORE CONNECTING
WIRES, SWITCH POWER OFF AT SERVICE
PANEL AND LOCK SERVICE PANEL TO
PREVENT POWER FROM BEING SWITCHED ON
ACCIDENTALLY.
8. Connect the electrical wires.
- Connect three wires (black, white and
green) to house wires and cap with wire
connectors. Connect according to color:
black to black, white to white, and green to
green as shown on Figure 6.
- If necessary to hide the electrical wire
connections, push wires back into the wiring
box. Access the wire connections
underneath the hood. To prevent any
damage, make sure wires do not slip
between motor or any moving parts.
Install Accessories
9. Attach Oil Tunnel. Refer to Figure 7.
10. Refer to Figure 8. Slide the baffle filter into
the hood. Push the baffle filter upward. 
Slide forward. Pull downward. Fit into
place.
11. Repeat until all baffle filters and spacers are
resting against oil tunnel. Refer to page 22.
Final Assembly
12. Turn power ON in controlpanel. Check all lights
and fan operation.
13. Make sure to leave this manual for the
homeowner.
Figure 5
Figure 6
Figure 7
Figure 8

8
CH00 SQB-5 SERIES – STAND ALONE INSTALLATION
***This installation required to have Duct Cover
Model No. CH0030DC-12 / CH0036DC-12 / CH0042DC-12 / CH0048DC-12
Preparation before Installation
NOTE: TO AVOID DAMAGE TO YOUR HOOD,
PREVENT DEBRIS FROM ENTERING
THE VENT OPENING.
 Decide the location of the venting pipe from the
hood to the outside. Refer to Figure 9.
 A straight, short venting run will allow the hood
to perform more efficiently.
 Try to avoid as many transitions, elbows, and
long run as possible. This may reduce the
performance of the hood.
 Temporarily wire the hood to test for proper
operation before installing.
 Important: Peel protective film off the hood
and the duct cover (if any).
 If necessary, prepare back wall frame with cross
framing lumber for secure installation.
 Using references on Table 2 and measurements
on page 15-16, decide the level of the lumber.
Refer to Figure 10.
Preparation before Installation
CAUTION: If required to move the cooking
range to install the hood, turn off the power on
an electric range at the main electrical box.
SHUT OFF THE GAS BEFORE MOVING A GAS
RANGE.
1. (This step only applies to 42” and 48” models.)
Attach exhaust plate on hood with four (3/16” x
3/8”) screws (included). Shown in Figure 11.
2. If necessary, remove the rubber stand on the
back of the hood.
3. Use twelve (3/16” x 3/8”) screws (included) to
attach the two hood-mounting brackets
(included) to the top of the hood.
4. Using references in Table 2 and Measurements
and Diagrams on pages 15-16, mark the leveling
point of the hood. Position six mounting screws
(included) on the wall, leaving 1/8” awayfromthe
wall.
Figure 9
Figure 10
Figure 11

9
5. Align hood-mounting bracket to the six screws
on the wall and hook hood into place. Tighten
screws to secure hood to the wall.
6. For safety purpose, pre-drilled mounting holes
are provided through the back of the hood. For
a more secure installation, use as many
mounting holes as needed to secure from the
inside of hood (screws included).
CAUTION: MAKE SURE HOOD IS
SECURE BEFORE RELEASING.
Wiring to Power Supply
SAFETY WARNING
RISK OF ELECTRICAL SHOCK. THIS RANGE
HOOD MUST BE PROPERLY GROUNDED.
MAKE SURE THIS IS DONE BY SPECIALIZED
ELECTRICIAN IN ACCORDANCE WITH ALL
APPLICABLE NATIONAL AND LOCAL
ELECTRICAL CODES. BEFORE CONNECTING
WIRES, SWITCH POWER OFF AT SERVICE
PANEL AND LOCK SERVICE PANEL TO
PREVENT
POWER FROM BEING SWITCHED ON
ACCIDENTALLY.
7. Connect the electrical wires.
- Connect three wires (black, white and
green) to house wires and cap with wire
connectors. Connect according to color:
black to black, white to white, and green to
green as shown on Figure 12.
- If necessary to hide the electrical wire
connections, push wires back into the wiring
box. Access the wire connections
underneath the hood. To prevent any
damage, make sure wires do not slip
between motor or any moving parts.
Figure 12

10
Duct Cover Installation
8. Use 6” round steel pipe for 30” and 36” models
or 8” round steel pipe for 42” and 48” models
(follow building codes in your area) to connect
the exhaust on the hood to the ductwork above.
Use duct tape to make all joints secure and air
tight. Refer Figure 13. Slide the duct cover onto
the hood.
9. Use 3/16” x 3/8” screws (included) to attach duct
cover to hood.
Install Accessories
10. Attach oil tunnel. Refer to Figure 14.
11. Refer to Figure 15. Slide the baffle filter into
the hood. Push the baffle filter upward. 
Slide forward. Pull downward. Fit into
place.
12. Repeat until all baffle filters and spacers are
resting against oil tunnel. Refer to page 22.
Final Assembly
13. Turn power ON in controlpanel. Check all lights
and fan operation.
14. Make sure to leave this manual for the
homeowner.
Figure 13
Figure 14
Figure 15

11
OPERATION INSTRUCTIONS
This KOBE hood is equipped with two rotary controls with powerful centrifugal squirrel cage, baffle filters,
and bright LED lights.
The two rotary controls are Light Control & Speed Control. Refer to Figure 28.
Figure 28
Note: For best results, turn hood to QuietMode™ prior to preparation or cooking to establish
airflow in the kitchen. Adjust speed as needed.
•Rotate the Speed Control clockwise to cycle from QuietMode, Low, High, and off;
and rotate counterclockwise to cycle from High, Low, QuietMode, and off
•Rotate the Light Control clockwise to turn on the light.

12
MAINTENANCE
For the optimal level of operation, clean the range hood surface and baffles regularly.
To Clean Hood Surface
CAUTION: NEVER USE ABRASIVE CLEANERS, PADS, OR CLOTHS.
*** Regular care will help preserve its fine appearance.
1. Use only mild soap or detergent solutions. Dry surfaces using soft cloth.
2. If hood looks splotchy (stainless steel hood), use an orange base cleaner to clean the surface of
the hood. Avoid cleaner to get on the control switches. Only spread a light coating over the
surface of the hood and leave on for a few minutes (do not leave on too long or this may cause
damage to hood finish). Use soft towel to wipe off the cleaning solution, gently rubs any stubborn
spots. Use a slightly damp towel to get rid of any cleaning solution. Use dry soft towel to dry the
hood.
3. To bring the glow back into a stainless steel finish, use a stainless steel cleaner.
4. DO NOT allow deposits to remain for long periods of time.
5. DO NOT use ordinary steel wool or steel brushes. Small bits of steel may adhere to the surface
causing rust.
6. DO NOT allow salt solutions, disinfectants, bleaches, orcleaning compounds to remain in contact
with stainless steel for extended periods. Many of these compounds contain chemicals, which
may be harmful. Rinse with water after exposure and wipe dry with a clean cloth.
To Clean Baffle Filters & Oil Tunnel
CAUTION: DRAIN BAFFLE FILTERS AND OIL TUNNEL BEFORE OIL WILL OVERFLOW.
1. Remove the baffle filters and oil tunnel.
2. Using a sponge, wash with warm soapy water. Dry completely before returning into place.
(Note: Baffle Filters are top rack dishwasher safe.)

13
SPECIFICATIONS
CH
00
SQB
-
5
Series
MODEL / SIZE
For Under Cabinet Application
CH0030SQB-5 / 30” / Single Blower
CH0036SQB-5 / 36" / Single Blower
CH0042SQB-5 / 42” / Dual Blowers
CH0048SQB-5 / 48” / Dual Blowers
For Wall Mount Application
CH0030SQB-WM-5 / 30” / Single Blower
CH0036SQB-WM-5 / 36” / Single Blower
CH0042SQB-WM-5 / 42” / Dual Blowers
CH0048SQB-WM-5 / 48” / Dual Blowers
COLOR
Commercial Grade Stainless Steel
CONSUMPTION / AMPERE
CH0030SQB-5 and CH0030SQB-WM-5 – 320W / 2.86A
CH0036SQB-5 and CH0036SQB-WM-5 – 320W / 2.86A
CH0042SQB-5 and CH0042SQB-WM-5 – 350W / 3A
CH0048SQB-5 and CH0048SQB-WM-5 – 350W / 3A
VOLTAGE
120V 60Hz
NUMBER OF
BLOWER
1 (30” & 36”)
2 (42” & 48”)
DESIGN
18-Gauge Seamless / Satin Finish
FAN TYPE
: CENTRIFUGAL
Squirrel Cage
EXHAUST
Top 6” Round (30” & 36”)
Top 8” Round (42” & 48”)
CONTROLS
Rotary Switch
LIGHTS
3-Watt LED x 2 – 30”, 36”
3-Watt LED x 3 – 42”, 48”
HOOD DIMENSION
(W x D x H)
CH0030SQB
-
5
and CH0030SQB
-
WM
-
5
29-3/4” x 24” x 18”
CH0036SQB-5 and CH0036SQB-WM-5 35-3/4” x 24” x 18”
CH0042SQB-5 and CH0042SQB-WM-5 41-3/4” x 24” x 18”
CH0048SQB-5 and CH0048SQB-WM-5 47-3/4” x 24” x 18”
OPTIONAL ACCESSORIES
(W x D x H)
1)
Duct Cover (Included in Wall Mount Hood)
Model No. CH0030DC-12 (30” x 12” x 12”)
Model No. CH0036DC-12 (36” x 12” x 12”)
Model No. CH0042DC-12 (42” x 12” x 12”)
Model No. CH0048DC-12 (48” x 12” x 12”)
2) Model No. SSP30
30” Stainless Steel Back Panel (30” x 1/10” x 32”)
3) Model No. SSP36
36” Stainless Steel Back Panel (36” x 1/10” x 32”)
HOOD WEIGHT (lbs)
Net
Gross
CH0030SQB
-
5
62 73
CH0036SQB
-
5
61 84
CH0042SQB
-
5
71 93
CH00
48SQB
-
5
75 111

14
SPEED
QuietMode
Low
High
SINGLE BLOWER
CH0030SQB
-
5
CH0036SQB-5
CH0030SQB-WM-5
CH0036SQB-WM-5
DUAL BLOWERS
Air
Capacity (cfm)
290 550 720
Sone
*
1.8 4.7 5.4
CH0042SQB
-
5
CH0048SQB-5
CH0042SQB-WM-5
CH0048SQB-WM-5
Air
Capacity (cfm)
450 700 1100
Sone
*
2.5 6.0 8.0
*One sone is equivalent to the sound of a refrigerator at 40 decibels.
**Specifications subject to change without notice.

15
MEASUREMENTS & DIAGRAMS
*** All inch measurements are converted from millimeters. Inch measurements are estimated.
*** All measurements in ( ) are millimeters.
CH00 SQB-5 Series - FOR UNDER THE CABINET –
- FOR STAND ALONE –
MODEL NO.:
CH0030SQB
-
5
(30”)
CH0036SQB
-
5
(36”)
CH0042SQB
-
5
(42”)
CH004
8
SQB
-
5
(48”)
MODEL NO.:
CH0030SQB
-
WM
-
5
(30”)
CH0036SQB
-
WM
-
5
(36”)
CH0042SQB
-
WM
-
5
(42”)
CH004
8
SQB
-
WM
-
5
(48”)

16
- FOR STAND ALONE-
***Hood-Mounting Bracket Baffle Filters & Stainless Steel Spacer
CH
00
SQB
-
5
Series
MODEL NO.:
CH0030SQB
-
WM
-
5
(30”)
CH0036SQB
-
WM
-
5
(36”)
CH0042SQB
-
WM
-
5
(42”)
CH004
8
SQB
-
WM
-
5
(48”)

17
PARTS LIST
CH
00
SQB
-
5
Series
MODEL NO.:
CH00
30SQB
-
5
and CH0030SQB
-
WM
-
5
(30”)
CH0036SQB-5 and CH0036SQB-WM-5 (36”)
CH0042SQB-5 and CH0042SQB-WM-5 (42”)
CH0048SQB-5 and CH0048SQB-WM-5 (48”)
NO. DESCRIPTION MODEL /SIZE PART NO.
1 Screw(3/16”x3/8”) L1-0707-0002
2 6” Round Plastic Exhaust CH0030SQB-5/CH0036SQB-5 L1-0505-0003
8” Round Exhaust Plate CH0042SQB-5/CH0048SQB-5 L1-0505-0004
3 Light Panel
CH0030SQB-5 B101-0030-06
CH0036SQB-5 B101-0036-06
CH0042SQB-5 B101-0042-06
CH0048SQB-5 B101-0048-06
4 Blower System CH0030SQB-5/CH0036SQB-5 X5-L1-0302-0120-802RO
CH0042SQB-5/CH0048SQB-5 X5-L1-0302-0120-802RE
4A Motor Support CH0042SQB-5/CH0048SQB-5 L1-0233-0242
5 LED Light (3W) L1-0403-0301
6 Capacitor Panel
CH0030SQB-5 L1-0201-0030
CH0036SQB-5 L1-0201-0036
CH0042SQB-5 L1-0201-0042
CH0048SQB-5 L1-0201-0048
7 Capacitor x 1PCS CH0030SQB-5/CH0036SQB-5 L1-0401-0120-24
Capacitor x 2PCS CH0042SQB-5/CH0048SQB-5 L1-0401-0120-24
8 LED Driver L1-0402-D001
9 Valve Stem(LIGHT) L1-0405-0404-B
10 Valve Stem(ON/OFF) L1-0405-0402-B
11 Knob L1-0405-0400-A
12
Metal Oil Tunnel CH0030SQB-5 B101-9130-14A
Metal Oil Tunnel CH0036SQB-5 B101-9136-14A
Metal Oil Tunnel CH0042SQB-5 B101-9142-14A
Metal Oil Tunnel CH0048SQB-5 B101-9148-14A
13 Baffle Filter L1-0214-0191
14
Stainless Steel Spacer {1-5/16”( 33)x14-3/8”(365)} CH0030SQB-5 B101-9130-15
Stainless Steel Spacer {4-5/16”(109)x14-3/8”(365)} CH0036SQB-5 B101-9136-15
Stainless Steel Spacer {15/16”(23)x14-3/8”(365)} CH0042SQB-5 B101-9142-15
Stainless Steel Spacer {3-7/8” (98)x14-3/8”(365)} CH0048SQB-5 B101-9148-15
Duct Cover (Included in CH00 SQB-WM-5 Series ONLY)
NO. DESCRIPTION MODEL /SIZE PART NO.
01 Duct Cover
CH0030DC-12 12-0030DC-1
CH0036DC-12 12-0036DC-1
CH0042DC-12 12-0042DC-1
CH0048DC-12 12-0048DC-1
02 Screw (3/16” x 3/8”) L1-0707-0002
