KOBE Brand Range Hood
Model No. / Nos de modèles / Modelo No.
IS2236SQF
IS2242SQF
INSTALLATION INSTRUCTIONS
AND OPERATION MANUAL
MANUEL D'INSTALLATION
ET MODE D'EMPLOI
INSTRUCCIONES DE INSTALACIÓN
Y MANUAL DE OPERACIÓN

[ENGLISH]................................................................................................................................. 1
[FRENCH].................................................................................................................................21
[SPANISH]................................................................................................................................42

1
READ BEFORE INSTALLATION
1. Carefully check all contents of packages;
2. Thoroughly inspect the unit for any cosmetic damages or
defects;
3. Test the unit before installation;
4. Have a certified contractor/electrician do the installation.
IF THERE IS ANY PROBLEM:
1. DO NOT INSTALL THE UNIT AND KEEP ALL ORIGINAL
PACKAGING MATERIAL.
2. Have your original proof of purchase and product serial
number ready.
3. Call 1-877-BUY-KOBE (289-5623); or e-mail to
[email protected] to report the problem.
NO RETURN, NO REFUND, NO EXCHANGE IF:
1. PRODUCT HAS BEEN INSTALLED
2. KNOCK-OUT HOLES HAVE BEEN PUNCTURED
3. MISSING ORIGINAL PACKAGING MATERIAL AND/OR
PARTS
IMPORTANT
READ THIS
FIRST

2
[ENGLISH]
- READ AND SAVE THESE INSTRUCTIONS -
CONTENTS
IMPORTANT SAFETY INSTRUCTIONS.................................................................................... 3
COMPONENTS OF PACKAGE.................................................................................................. 5
INSTALLATION.......................................................................................................................... 6
OPERATING INSTRUCTION....................................................................................................10
MAINTENANCE........................................................................................................................11
SPECIFICATIONS ....................................................................................................................12
MEASUREMENTS & DIAGRAMS.............................................................................................13
PARTS LIST..............................................................................................................................14
CIRCUIT DIAGRAM..................................................................................................................16
TROUBLE SHOOTING.............................................................................................................17
WARRANTY .............................................................................................................................18
PRODUCT REGISTRATION.....................................................................................................20
- READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING -
A L L W I R I N G M U S T B E D O N E B Y A P R O F E S S I O N A L A N D I N
A C C O R D A N C E W I T H N A T I O N A L A N D L O C A L E L E C T R I C A L C O D E S

3
IMPORTANT SAFETY INSTRUCTIONS
- PLEASE READ THIS SECTION CAREFULLY BEFORE INSTALLATION -
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL INJURY,
OBSERVE THE FOLLOWING:
1) Installation and electrical wiring must be done by qualified professionals and in accordance with all
applicable codes and standards, including fire-rated construction.
2) When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or other hidden
utilities.
3) Ducted fans must be vented to the outside.
a) Before servicing or cleaning unit, open the light panel and SWITCH POWER OFF AT SERVICE
PANEL.
b) Clean all grease laden surfaces frequently. To reduce the risk of fire and to disperse air properly,
make sure to vent air outside. DO NOT vent exhaust air into wall spaces, attics, crawl spaces or
garages.
NOTE
-
This warranty is invalid without an authorized agent’s receipt or if unit is
damaged due to misuse, poor installation, improper use, mistreatment,
negligence or any other circumstances beyond the control of KOBE
RANGE HOODS authorized agents. Any repair carried out without the
supervision of KOBE RANGE HOODS authorized agents will
automatically void the warranty.
-
KOBE RANGE HOODS will not be held responsible for any damages to
personal property or real estate or any bodily injuries whether caused
directly or indirectly by the range hood.
WARNING: TO REDUCE THE RISK OF PERSONAL INJURY IN THE EVENT OF ARANGE
TOP GREASE FIRE:
Keep all fan, baffle/spacer/filter/oil tunnel/oil container and grease-laden surfaces clean. Grease
should not be allowed to accumulate on fan, baffle/spacer/filter/oil tunnel/oil container.
Always turn hood ON when cooking.
Use high settings on cooking range ONLY when necessary.
Do not leave cooking range unattended when cooking.
Always use cookware and utensils appropriate for the type and amount of food prepared.
Use this unit only in the manner intended by the manufacturer.
Before servicing, switch power off at service panel and lock service panel (if possible) to prevent
power from switching on accidentally.
Clean ventilating fan frequently.

4
What to Do In The Event Of a Range Top Grease Fire
•SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner.
KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not go
out immediately, EVACUATE THEAREAAND CALLTHE FIRE DEPARTMENT or 911.
•NEVER PICK UPA BURNING PAN –You May Get Burned.
•DO NOT USE WATER, including wet dishcloths or towels –a violent steam blast will result.
•Use an extinguisher ONLY if:
a) You have a Class A, B, C extinguisher and know how to operate it.
b) The fire is small and contained in the area where it started.
c) The fire department has been called.
d) You can fight the fire with your back to an exit.
What to Do If You Smell Gas
- Extinguish any open flame.
- Do not try to turn on the lights or any type of appliance.
- Open all doors and windows to disperse the gas. If you still smell gas, call the Gas Company and
Fire Department right away.
CAUTION
1) For general ventilation use only. Do not use to exhaust hazardous or explosive materials and vapors.
2) To reduce the risk of fire, use only metal ductwork. Sufficient air is needed for proper combustion and
exhausting of gases through the flue (chimney) to prevent back drafting.
3) Follow the heating equipment manufacturer’s guideline and safety standards such as those published
by the National Fire Protection Association (NFPA), and the American Society for Heating,
Refrigeration and Air Conditioning Engineers (ASHRAE), and code authorities.
4) Activating any switch on may cause ignition or an explosion.
5) Due to the size and weight of this hood, two people installation is recommended.
ELECTRICAL SHOCK HAZARD –Can result in serious injury or death.
Disconnect appliance from electric power before servicing. If equipped,
the fluorescent light bulb contains small amounts of mercury, which
must be recycled or disposed of according to Local, State, and Federal
Codes.

5
COMPONENTS OF PACKAGE
(Must keep all material for returns or refunds)
Range Hood Box (Box 1 of 2)
{A} KOBE Range Hood –1
{B} Mounting Template –1
{C} Warranty Registration Card - 1
{D} Instructions Manual –1
{E} Aluminum Filters –4
{F} Screws Package –1
{A} {B}
{C} {D}
{E} {F}
Duct Cover Box (Box 2 of 2 )
BOX 2
{G} Telescopic Stack –1
{H} Two-Piece Duct Cover –1
{G} {H}
- FOR MORE INFORMATION, PLEASE VISIT OUR WEBSITE www.KOBERangeHoods.com OR
CONTACT KOBE RANGE HOODS AT [phone].

6
INSTALLATION
PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING

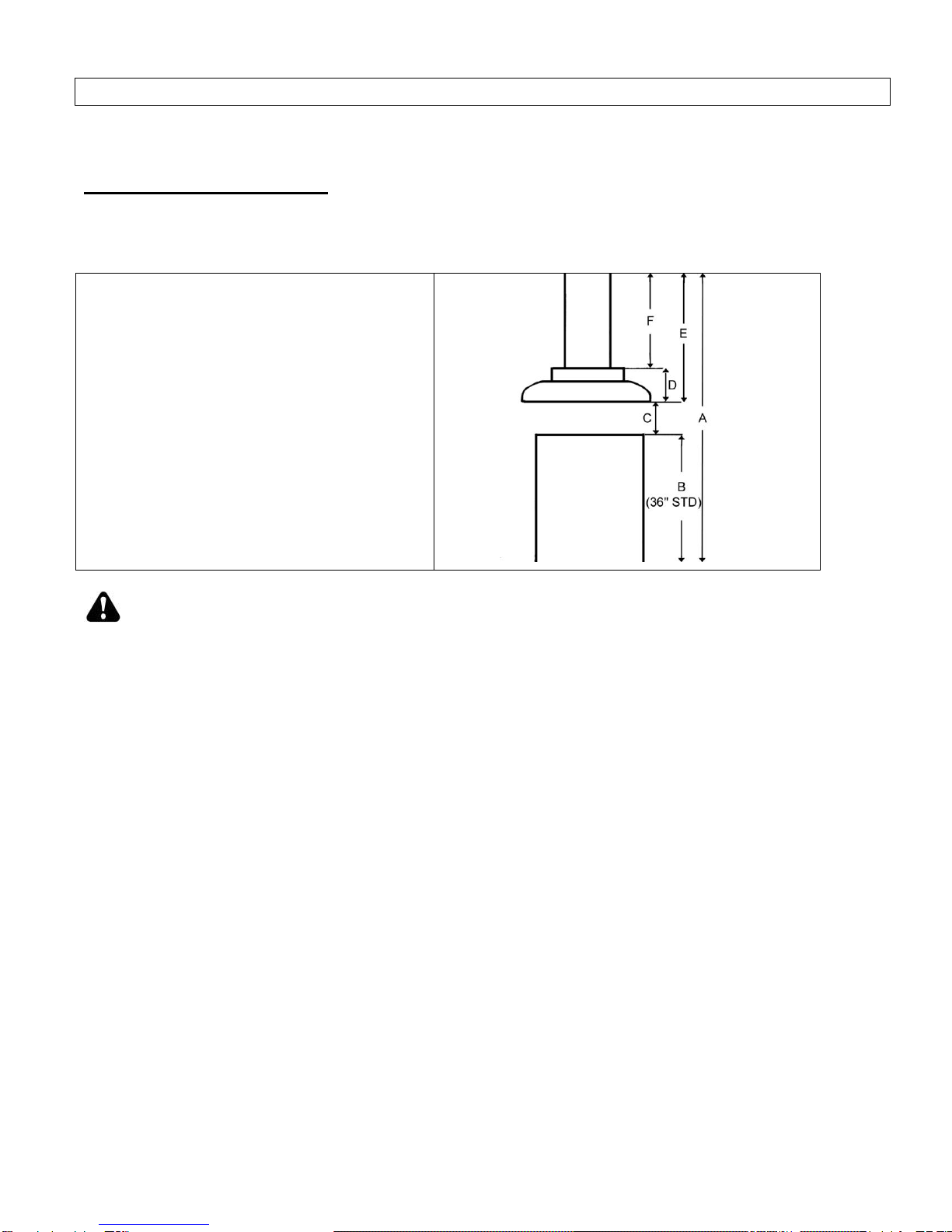

Calculation before Installation
To calculate installation, please refer to TABLE 1. (All calculation in inches.)
TABLE 1
A = Height of Floor to Ceiling
B = Height of Floor to Counter Top
(Standard: 36”)
C = Preferred Height of Counter Top
to Hood Bottom (Recommended
30” to 36”)
D = Height of Hood
E = Height of the Hood Installation
[A –(B+C)]
F = Height of Duct Cover
[E –D]
SAFETY WARNING
HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF
REMOVING ANY PARTS FOR INSTALLING, CLEANING OR SERVICING.
NOTE:BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE HOOD
MAY OCCUR.

7
Preparations of Ductwork and Location
NOTE: TO AVOID DAMAGE TO YOUR
HOOD, PREVENT DEBRIS FROM
ENTERING THE VENT OPENING.
- Decide the location of the venting pipe from
the hood to the outside. Refer to Figure 1.
- A straight, short venting run will allow the
hood to perform more efficiently.
- Try to avoid as many transitions, elbows,
and long run as possible. This may reduce
the performance of the hood.
- Temporarily wire the hood to test for proper
operation before installing.
- Important: Peel any protective film off the hood
-Use duct tape to seal the joints between
pipe sections.
Telescopic Stack Installation
1. Mark centerlines of cook top or range on
ceiling above. Use centerlines marked on
ceiling to position the mounting template
as shown in Figure 2.
2. Remove and save template. Cut and
remove ceiling drywall. Install 2” x 4”
cross framing lumber (not provided)
between ceiling joists. Refer to Figure 3.
Consult a professional if you have
difficulty or your installation is unique.
3. Finish the ceiling surface. Be sure to
mark the location of the ceiling joists and
cross framing, or replace the mounting
template in the position of the ceiling joists
& cross framing.
4. Attach the telescopic stack to the ceiling
and securely fasten to the joists and cross
framing with eight screws (not provided)
as shown in Figure 3. Make sure screws
are driven into center of joists and cross
framing for maximum support.
5. Adjust the telescopic stack using
reference Fcalculated in Table 1 and
measurements on page 12. Tighten from
the side with four (4x8 mm) screws
(provided) as shown in Figure 3.
Figure 1
Figure 2
Figure 3

8
Wiring to Power Supply
SAFETY WARNING
RISK OF ELECTRICAL SHOCK. THIS RANGE
HOOD MUST BE PROPERLY GROUNDED.
MAKE SURE THIS IS DONE BY A SPECIALIZED
ELECTRICIAN IN ACCORDANCE WITH ALL
APPLICABLE NATIONAL AND LOCAL
ELECTRICAL CODES. BEFORE CONNECTING
WIRES, SWITCH POWER OFF AT SERVICE
PANEL AND LOCK SERVICE PANEL TO
PREVENT POWER FROM BEING SWITCHED ON
ACCIDENTALLY.
6. Connect three wires (black, white and green)
to house wires and cap with wire connectors.
Connect according to color: black to black,
white to white, and green to green.
7. Test the operation of the hood before moving
on to next step. Make sure power is supplied
to the hood.
Ductwork Installation
8. Use 6” steel pipe (not provided) to connect
the plastic exhaust on the hood to the
ductwork above.
9. Use duct tape to make all joints secure and
air tight.
Duct Cover Installation
10. Slide the duct cover up and secure the inner
duct cover to the telescopic stack with four
(4x8 mm) screws (provided). Refer to Figure
4.
Figure 4

9
Hood Installation
11. Place four (4 x 8 mm) temporary screws
(provided) to hold the duct cover up. Install
the hood as shown in Figure 5.
12. Use eight (3/16x3/8 mm) screws (provided) to
secure hood to telescopic stack. Make sure
to tighten screws securely. Refer to Figure 5.
13. Connect all the wire connections inside the
hood.
Install Accessories
14. Place aluminum filters underneath the hood
Final Assembly
15. Remove the temporary screws and slide the
outer duct cover downward so that it sits
properly on the hood.
16. Turn power ON in control panel. Check all
lights and fan operation.
17. Make sure to leave this manual for the
homeowner.
Figure 5

10
OPERATING INSTRUCTION
Figure 6
To operate the fan function
Press button to choose from speed.
oQ= QuietMode™ speed
oL = Low speed
oH = High speed
Press “OFF” to turn fan off.
To operate the light function
Press the Light Control to turn lights on and off.

11
MAINTENANCE
SAFETY WARNING
NEVER PUT YOUR HAND INTO AREA HOUSING THE FAN WHILE THE FAN IS OPERATING.
Cleaning Hood Surface
CAUTION: NEVER USE ABRASIVE CLEANERS, PADS, OR CLOTHS. DO NOT USE
PAPER TOWEL ON STAINLESS STEEL.
For optimal operation, clean range hood and all baffle/spacer/filter/oil tunnel/oil container regularly.
*** Regular care will help preserve the appearance of the hood.
1. Use only mild soap or detergent solutions. Dry surfaces using soft cloth.
2. If hood looks splotchy (stainless steel hood), use a stainless steel cleaner to clean the surface of the
hood. Avoid getting cleaning solution onto or into the control panel. Follow directions of the stainless
steel cleaner. Caution: Do not leave on too long as this may cause damage to hood finish. Use
soft towel to wipe off the cleaning solution, gently rub off any stubborn spots. Use dry soft towel to
dry the hood.
3. DO NOT allow deposits to accumulate or remain on the hood.
4. DO NOT use ordinary steel wool or steel brushes. Small bits of steel may adhere to the surface and
cause rusting.
5. DO NOT allow salt solutions, disinfectants, bleaches, or cleaning compounds to remain in contact
with stainless steel for extended periods. Many of these compounds contain chemicals, which may
be harmful. Rinse with water after exposure and wipe dry with a clean lint free cloth.
To Clean Aluminum Filters
1. Remove all the aluminum filters.
2. Wash with warm soapy water. Dry completely before returning into place.

12
SPECIFICATIONS
MODEL / SIZE
IS2236SQF / 36”
IS2242SQF / 42”
COLOR
Commercial Grade Stainless Steel
CONSUMPTION / AMPERE
211 W / 1.82 A
VOLTAGE
120V 60Hz
NUMBER OF MOTORS
1
DESIGN
Seamless / Satin Finish
FAN TYPE
Double Horizontal Squirrel Cage
EXHAUST
Top 6" Round
CONTROLS
Mechanical Push Button
LIGHTS
LED 3 W x 4
HOOD DIMENSION
(W x D x H)
(IS2236SQF) - 35-3/4” x 27” x 3-15/16”
(IS2242SQF) - 41-3/4” x 27” x 3-15/16”
DUCT COVER DIMENSION
(W x D x H)
Two-Piece Adjustable Duct Cover
(IS22DC) - 13-1/4” x 13-1/4” x (23-3/8” ~ 37-3/4”)
WEIGHT (lbs)
Net
Gross
(IS2236SQF)
20
29
(IS2242SQF)
21
31
(IS22DC)
43
55
SPEED
Quietmode ™
Low
High
Air Capacity (cfm)
280
480
700
Sone*
1.3
2.8
4.8
*Specifications subject to change without notice.

13
MEASUREMENTS & DIAGRAMS
All measurements in ( ) are millimeters.
All inch measurements are converted from millimeters. Inch measurements are
estimated.

14
PARTS LIST
MODEL NO.:
IS2236SQF
IS2242SQF
BOX 1 of 2
NO.
DESCRIPTION
MODEL /SIZE
PART NO.
1
6” round Plastic Exhaust
C1-0505-0001
2
Hood Casing
IS2236SQF
B101-6036-02
IS2242SQF
B101-6042-02
3
LED Light
C1-0403-0306
4
Control Unit
C1-0405-0303
5
Control Unit Support
C1-0207-6200
6
Capacitor
C1-0401-A350-035
7
Light Transformer
C1-0402-D001
8
Light Panel
B101-0636-04B
9
Aluminum Filters
IS2236SQF
C1-0604-0105
IS2242SQF
C1-0604-0107
BOX 2 of 2
NO.
DESCRIPTION
MODEL /SIZE
PART NO.
10
Duct Cover
B102-6000-36A/B
11
Telescopic Stack
C1-0203-600-36A/B
12
Air Chamber & Motor
C1-0302-A120-09
13
Safety Screen
C1-0602-0103
14
Motor Casing
C1-0106-6000-A/B

15

16
CIRCUIT DIAGRAM
MODEL NO.:
IS2236SQF
IS2242SQF

17
TROUBLE SHOOTING
Issue
Possible Cause
Solution
After Installation,
both motors and
lights are not
working.
The power is not on.
Make sure the circuit breaker and the unit’s power is
ON. Use a voltage meter to check the power supply.
The wire connection is not secure.
Check and tighten wire connection.
Lights are
working, but
motor(s) is not.
The motor(s) is defective.
Replace the motor.
The capacitor(s) is defective.
Replace capacitor(s).
The range hood
is vibrating.
The blower system is not secure.
Tighten the turbine impeller/squirrel cage and air
chamber.
The turbine impeller/squirrel cage is not
balanced.
Replace the turbine impeller/squirrel cage.
Hood is not secured in place.
Check the installation of hood, tighten the mounting
bracket.
The motor is
working, but the
lights are not
working.
Light Fixture(s) is defective.
Replace the Light Fixture(s).
The light wiring(s) is loose.
Check wire continuity from processor board to light
transformer to halogen light housing(s).
Light transformer is defective.
Check power input and power output on the light
transformer. If it’s needed, replace the light
transformer.
The range hood
is not venting
out correctly.
The range hood is installed outside of the
manufacture recommended clearance.
Adjust the clearance between the range hoods and
cook top to 27” to 30”. For Island range hood, the
clearance between the range hoods and cook top is
30” to 36”.
There is no make-up air inside the house.
Open the window to enhance the performance of the
range hood by creating a sufficient make-up air.
Obstacle blocking the pipe work.
Remove all obstacles from the duct work.
The pipe size is smaller than the
suggested pipe size.
Change the ducting according to the manufacture
suggestion.
Cold air is
coming into the
home.
The pipe connection is not properly sealed.
Check the pipe installation.
The damper is not installed.
By installing the damper, it will help to eliminate air
backflow.

18
WARRANTY WARRANTY CERTIFICATE
KOBE Range Hoods (referred to herein as “we”or “us”) warrants to the original purchaser
(referred to herein as “you” or “your”) all products manufactured or supplied by us to be free from
defect in workmanship and materials as follows:
TWO-YEAR LIMITED WARRANTY FOR PARTS AND LABOR ON KOBE PREMIUM SERIES:
For two years from the date of your original invoice from a KOBE authorized dealer, we will, at
our sole discretion, choose to repair or replace the product free of charge that failed due to
manufacturing defects.
It is your sole responsibility to ensure the product is readily accessible for the service technician
to perform repairs. The service technician will not, under any circumstance, remove, alter
or modify any fixture built around and/or connected to the product to gain access to
perform repairs.
During the two-year Limited Warranty period, additional charges may apply which include but
are not limited to:
Service technician travel charges if the requested service location is 30-miles out of
KOBE’s authorized service area
Parts shipping expenses
Un-installation of defective product and Installation of replacement product
ONE-YEAR LIMITED WARRANTY FOR PARTS ON KOBE BRILLIA SERIES:
For one year from the date of your original invoice from a KOBE authorized dealer, we will
provide, free of charge, parts to replace those that failed due to manufacturing defects. It is our
sole discretion to choose to repair or replace defective parts. It is your sole responsibility for all
labor costs associated with this warranty.
Warranty Exclusions:
This warranty does not cover, including but not limited to the following:
a. Improper installation.
b. Any repair, alteration, modification not authorized by KOBE.
c. Duct alteration, modification and connection.
d. Incorrect electric current, voltage or wiring.
e. Normal maintenance and service required for the product.
f. Consumable parts such as light bulbs and carbon filters.
g. Improper usage of the product that it is not intended for, such as commercial use, outdoor
use and multi-family use.
h. Normal wear and tear.
i. Chips, scratches or dents by abuse or misuse of the product.
j. Damages caused by accident, fire, flood and other Acts of God.
k. Expenses incurred for service located outside of the designated service area.
l. Purchases from unauthorized dealers.
m. Removal fees of defective product and Installation fees associated with replacement
product.
