KOBE IN26 SQB-1100-5A Series Troubleshooting guide

KOBE Range Hoods
Deluxe Series
IN26 SQB-1100-5A Series
Model No.: IN2636SQB-1100-5A (36”)
IN2642SQB-1100-5A (42”)
IN2648SQB-1100-5A (48”)
INSTALLATION INSTRUCTIONS
AND OPERATION MANUAL

IMPORTANT
READ THIS FIRST
READ BEFORE INSTALLATION
1. Carefully check all contents of package(s).
2. Thoroughly inspect the unit for any shipping damages, cosmetic
damages or defects.
3. Have a certified contractor/electrician test the unit before installation.
IF THERE IS ANY PROBLEM:
1. DO NOT INSTALL THE UNIT AND KEEP ALL ORIGINAL
PACKAGING MATERIAL.
2. Have your original invoice as proof of purchase and product serial
number ready.
3. Contact your merchant for product replacement due to shipping
damages, cosmetic damages or defects.
4. For all other issues, email [email protected].
NO RETURN, NO REFUND, NO EXCHANGE IF:
1. PRODUCT HAS BEEN INSTALLED
2. KNOCK-OUT HOLES HAVE BEEN PUNCTURED
3.MISSING ORIGINAL PACKAGING MATERIAL
AND/OR PARTS

[ENGLISH]
- READ AND SAVE THESE INSTRUCTIONS -
CONTENTS
IMPORTANT SAFETY INSTRUCTIONS.................................................................................... 1
COMPONENTS OF PACKAGE................................................................................................. 3
INSTALLATION ......................................................................................................................... 4
OPERATING INSTRUCTIONS.................................................................................................. 7
MAINTENANCE......................................................................................................................... 9
SPECIFICATIONS....................................................................................................................10
MEASUREMENTS & DIAGRAMS.............................................................................................11
PARTS LIST.............................................................................................................................16
CIRCUIT DIAGRAM..................................................................................................................16
TROUBLE SHOOTING.............................................................................................................17
WARRANTY.............................................................................................................................18
WARRANTY INFORMATION FORM........................................................................................20
- READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING -
A L L W I RI NG M U S T B E D O N E B Y A P R O F E S S I O N A L A N D I N
A C C O R D A N C E W IT H N A T I O N A L A N D L O C A L E L E C T R I C A L C O D E S

3
IMPORTANT SAFETY INSTRUCTIONS
- PLEASE READ THIS SECTION CAREFULLY BEFORE INSTALLATION -
WARNING : TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL INJURY,
OBSERVE THE FOLLOWING:
1) Installation and electrical wiring must be done by qualified professionals and in accordance with all
applicable codes and standards, including fire-rated construction.
2) When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or other hidden
utilities.
3) Ducted fans must be vented to the outside.
a) Before servicing or cleaning unit, open the light panel and SWITCH POWER OFF AT SERVICE
PANEL.
b) Clean all grease laden surfaces frequently. To reduce the risk of fire and to disperse air properly,
make sure to vent air outside. DO NOT vent exhaust air into wall spaces, attics, crawl spaces or
garages.
NOTE - This warranty is void without an authorized agent’s receipt or if unit is
damaged due to misuse, poor installation, improper use, mistreatment,
negligence or any other circumstances beyond the control of KOBE
RANGE HOODS authorized agents. Any repair carried out without the
supervision of KOBE RANGE HOODS’ authorized agents will
automatically void the warranty.
- KOBE RANGE HOODS will not be held responsible for any damages to
personal property or real estate or any bodily injuries whether caused
directly or indirectly by the range hood.
WARNING : TO REDUCE THE RISK OF PERSONAL INJURY IN THE EVENT OF A RANGE
TOP GREASE FIRE:
1. Keep all fan, baffle/spacer/filter/oil tunnel/oil container and grease-laden surfaces clean. Grease
should not be allowed to accumulate on fan, baffle/spacer/filter/oil tunnel/oil container.
2. Always turn hood ON when cooking.
3. Use high settings on cooking range ONLY when necessary.
4. Do not leave cooking range unattended when cooking.
5. Always use cookware and utensils appropriate for the type and amount of food prepared.
6. Use this unit only in the manner intended by the manufacturer.
7. Before servicing, switch power off at service panel and lock service panel (if possible) to prevent
power from switching on accidentally.
8. Clean ventilating fan frequently.

4
What to Do In The Event Of a Range Top Grease Fire
• SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner.
KEEP FLAMMABLE OR COMBUSTIBLE MATERIALAWAYFROM FLAMES. If the flames do not go
out immediately, EVACUATE THE AREAAND CALLTHE FIRE DEPARTMENT or 911.
• NEVER PICK UP A BURNING PAN – You May Get Burned.
• DO NOT USE WATER, including wet dishcloths or towels – a steam blast will result.
• Use an extinguisher ONLY if:
a) You have a Class A, B, C extinguisher and know how to operate it.
b) The fire is small and contained in the area where it started.
c) The fire department has been called.
d) You can fight the fire with your back to an exit.
What to Do If You Smell Gas
- Extinguish any open flame.
- Do not try to turn on the lights or any type of appliance.
- Open all doors and windows to disperse the gas. If you still smell gas, call the Gas Company and
Fire Department right away.
CAUTION
1. For general ventilation use only. Do not use to exhaust hazardous or explosive materials and vapors.
2. To reduce the risk of fire, use only metal ductwork. Sufficient air is needed for proper combustion and
exhausting of gases through the flue (chimney) to prevent back drafting.
3. Follow the heating equipment manufacturer’s guideline and safety standards such as thosepublished
by the National Fire Protection Association (NFPA), and the American Society for Heating,
Refrigeration and Air Conditioning Engineers (ASHRAE), and code authorities.
4. Activating any switch on may cause ignition or an explosion.
5. Due to the size and weight of this hood, installation by 2 persons is recommended.
ELECTRICAL SHOCK HAZARD – Can result in serious injury or death.
Disconnect appliance from electric power before servicing. If equipped,
the fluorescent light bulb contains small amounts of mercury, which must
be recycled or disposed of according to Local, State, and Federal Codes.

5
COMPONENTS OF PACKAGE
(Must keep all material for returns or refunds)
FOR MORE INFORMATION, PLEASE VISIT OUR WEBSITE www.koberangehoods.com.
Range Hood Box
{A} KOBE Range Hood
{B} Warranty Registration Card
{C} Quick Reference Guide
{D} Baffle Filter x 2 (36”),
x 3 (42” & 48”)
{E} Oil Tunnel
{F} Stainless Steel Spacer x 2 (For 36” & 48”)
{G} Power Cord
{H} Twist-on Wire Cap
{I} Screws Package
{A}
{B} {C}
{D} {E}
{F} {G}
{H} {I}
{J} Remote Control
{J}
Handle is included
M4 x 1/2"
(12 for 36” &42”)
(16 for 48”)
Optional Accessories (Sold Separately)
*Batteriesincluded

6
INSTALLATION
PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING
Calculation Before Installation

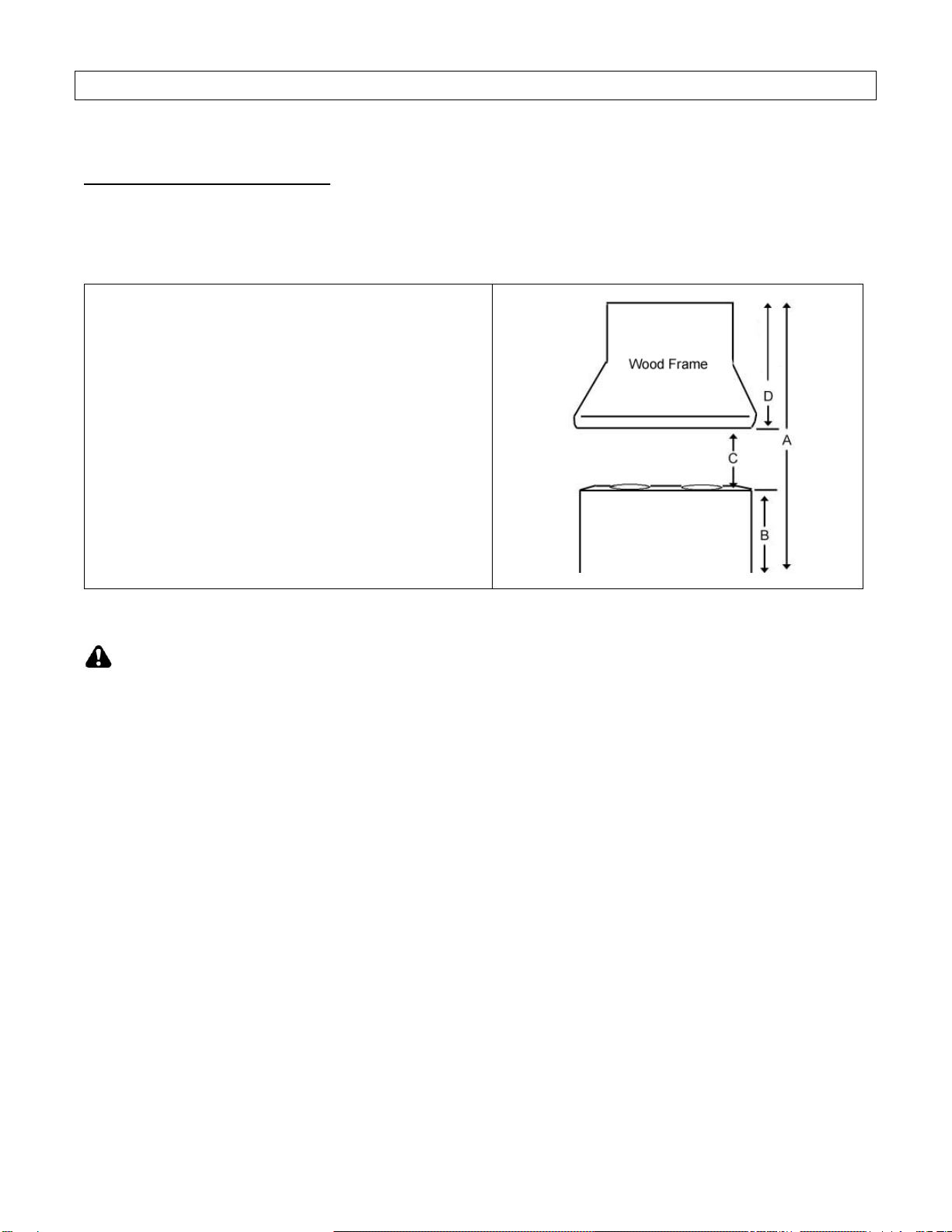

To calculate installation, please refer to TABLE 1. (All calculation in inches.)
- FOR BUILT-IN / INSERT -
TABLE 1
A = Height of Floor to Ceiling
B = Height of Floor to Counter Top
(Standard: 36")
C = Height of Counter Top to Wood Frame
Bottom (Minimum 27" to 30")
D = Height of Wood Frame
SAFETY WARNING
HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF
REMOVING ANY PARTS FOR INSTALLING, CLEANING OR SERVICING.
NOTE: BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE
HOOD MAY OCCUR.

7
Preparation Before Installation
NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT
DEBRIS FROM ENTERING THE VENT OPENING.
 Decide the location of the venting pipe from the hood to the
outside. Refer to Figure 1.
 A straight, short vent run will allow the hood to perform more
efficiently.
 Try to avoid as many transitions, elbows, and long run as
possible. This may reduce the performance of the hood.
 Temporarily wire the hood to test for proper operation before
installing.
 Important: Peel protective film off the hood, if any.
 Use duct tape to seal joints between pipe sections.
CAUTION: If moving the cooking range is necessary to
install the hood, turn off the power in an electric range at
the main electrical box. SHUT OFF THE GAS BEFORE
MOVING A GAS RANGE. And use a protective covering
to protect cooktop and/or countertop from damage.
Custom Hood Preparation
1. The custom hood frame must be designed based on the

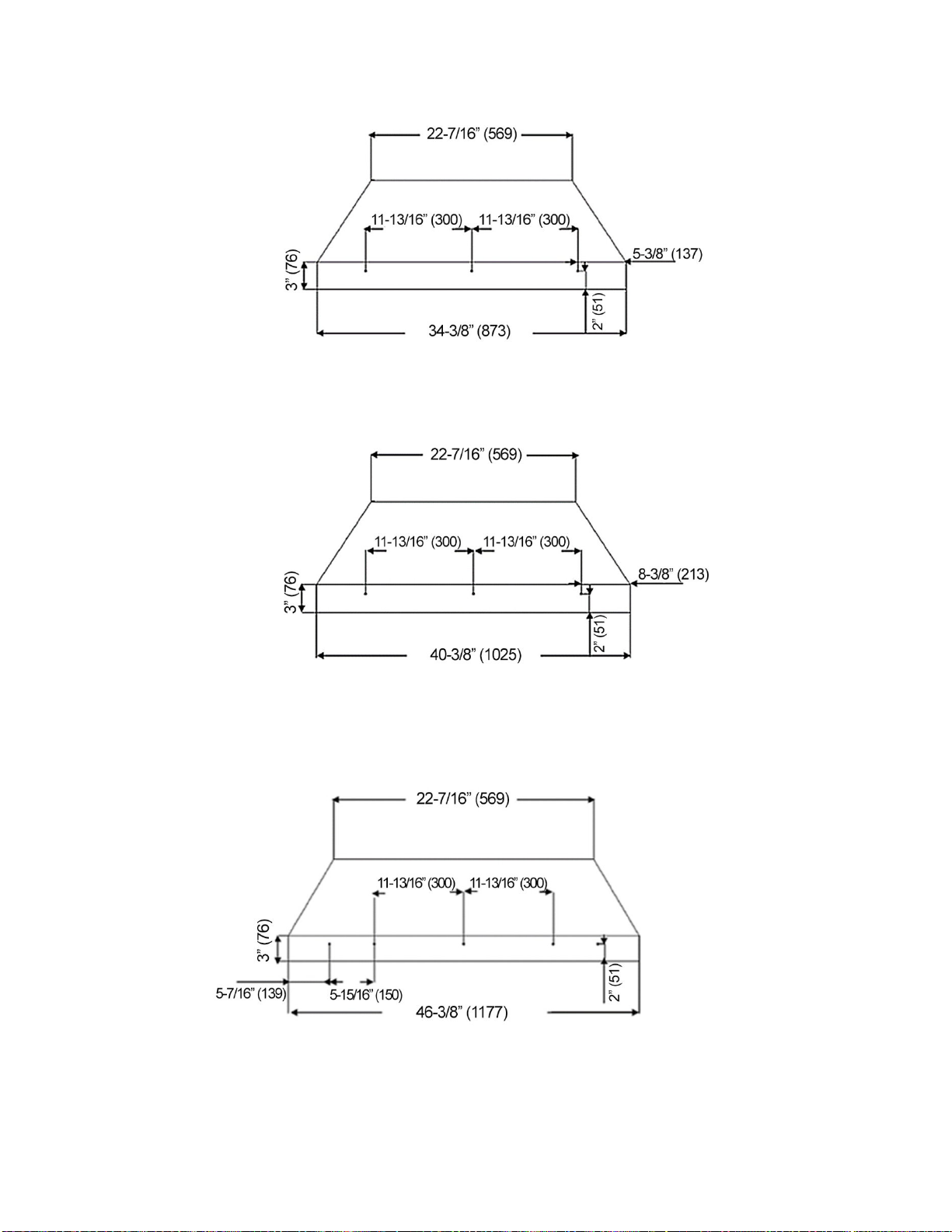

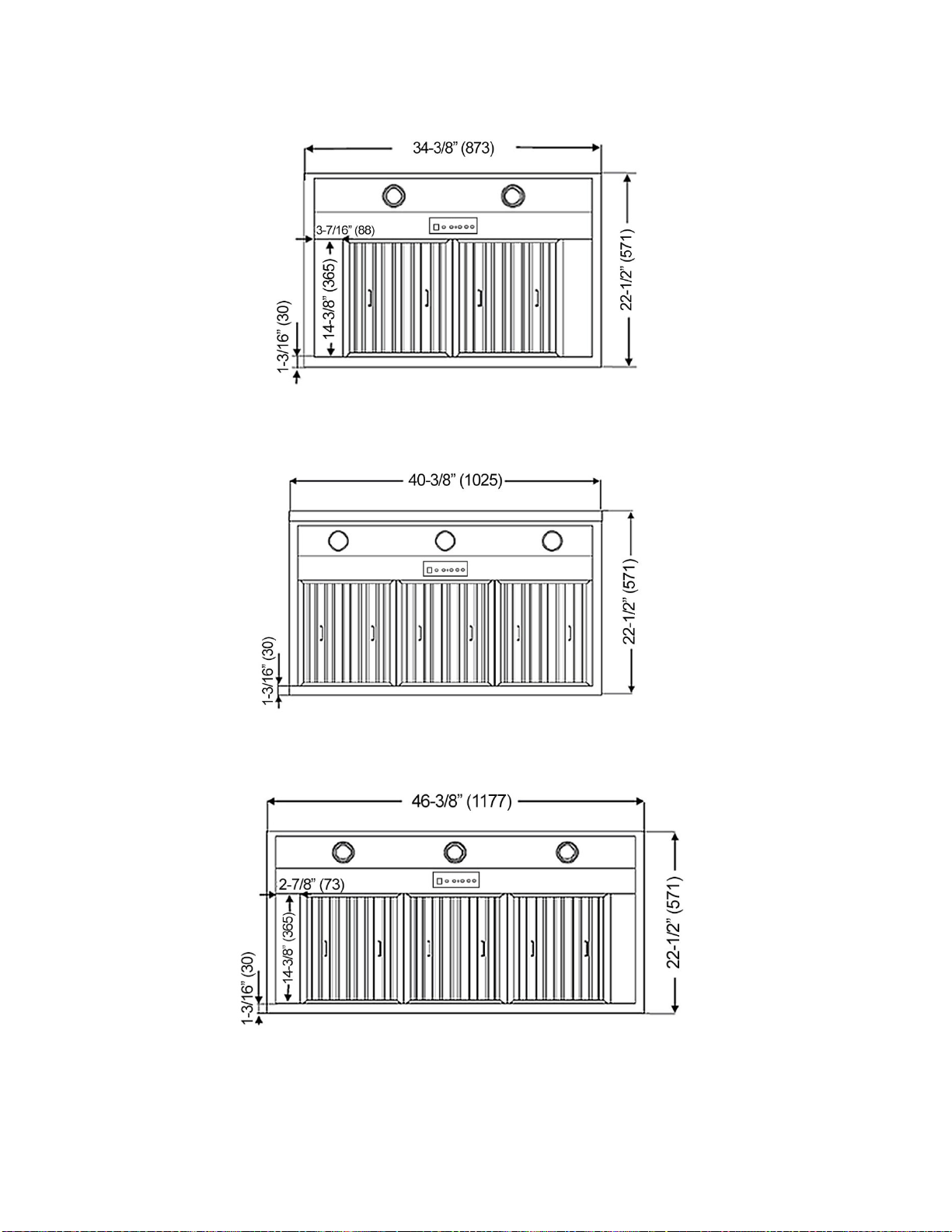

shape and the weight of the hood. Refer to Measurements
and Diagrams of hood on Page 13-15.
2. A sturdy base (3/4 inch thick plywood recommended) is
needed to sustain the weight of hood.
3. It is recommended to install front & rear stud support (not
included). Refer to Figure 2. For safety purposes, extra
installation holes on the side of the hood
are provided.
Prepare the side stud support if needed.
4. Determine and mark the centerlines on the base of the wood
frame where the hood will be installed.
5. Determine the
proper location for the Power Supply Cable.
Make a wiring access hole using a drill bit. Install the wire
cable and seal the gap around hole.
6. Cut out the opening where the hood will be installed. (Refer to
Figure 3 for appropriate dimensions based on width of hood.)
Wiring to Power Supply
CAUTION: If moving the cooking range is necessary to
install the hood, turn off the power in an electric range at
the main electrical box. SHUT OFF THE GAS BEFORE
MOVING A GAS RANGE. RISK OF ELECTRICAL SHOCK.
TH
IS RANGE HOOD MUST BE PROPERLY GROUNDED.
MAKE SURE THIS IS DONE BYQUALIFIED ELECTRICIAN
IN ACCORDANCE WITH ALL APPLICABLE NATIONAL
AND LOCAL ELECTRICAL CODES. BEFORE
CONNECTING WIRES, SWITCH POWER OFF AT
SERVICE PANEL AND LOCK SERVICE PANEL TO
PREVENT POWER FROM BEING SWITCHED ON
ACCIDENTALLY.
7. Temporarily wire the hood to test for proper operation before
Figure 1
Figure 2
Figure 3
IN2636SQB-1100-5A (36”)
IN2642SQB-1100-5A (42”)
IN2648SQB-1100-5A (48”)

8
installing. If the hood does not operate, check the circuit
breaker or house fuse. If the hood is still not working,
disconnect power supply and check the continuity of all wire
connections.
8. If hood is operatingnormally, connect threewires (black, white
and green) to house wires and cap with wire connectors.
9. Store wires in the wiring box.
Duct Work Installation
10.Determine and make all necessary cuts in the wall or ceiling
for the ductwork. Note: Install the ductwork before installing
the hood.
11.Use steel 8” round pipe to connect the ductwork above to the
exhaust of the hood. The hood is preinstalled with a
rectangular to 8” round transition (Refer to Figure 4). Use duct
tape to make all joints secure and air tight.
12.Please refer to local codes for the usage of a damper (not
included).
Hood Installation
NOTE: USE HAND TOOLS ONLY. DO NOT OVER TIGHTEN
SCREWS. IT MAY CAUSE DAMAGE TO THE HOOD.
13.Remove the light panel by removing screws located at the
bottom of the hood (8 screws for 36” & 42” and 11 screws for
48”) Refer to Figure 5 as reference. Carefully remove the light
support panel.
14.Position the hood inside the custom wood frame, and secure
the hood to the front and rear stud support ( Refer to Figure 2)
by using the front and rear mounting holes (Screws included).
15.For a more secure installation, use the mounting holes located
on the side of the hood
16.Make sure hood is secure before releasing.
17.Re-installthe light support panel. (Do not over tighten screws.)
CAUTION: MAKE SURE HOOD IS SECURE BEFORE
RELEASING
Final Assembly
18.Install the oil tunnel into recess support near rear of hood.
Refer to Figure 6.
19.Install baffle filters. Angle baffle filter toward back of hood
①. Push baffle filter up until almost level ②. Slide forward
into recess behind the front of hood ③. Lower baffle filter
④. Slide back until it fits into resting position ⑤. Refer to
Figure 7.
Figure 4
Figure 5
Figure 6
Figure 7
*Note: Sample image only. May not be actual model.

9
OPERATING INSTRUCTIONS
Note: For best results, turn fan on prior to any preparation or cooking and keep fans running while
cooking. Adjust speed as needed.

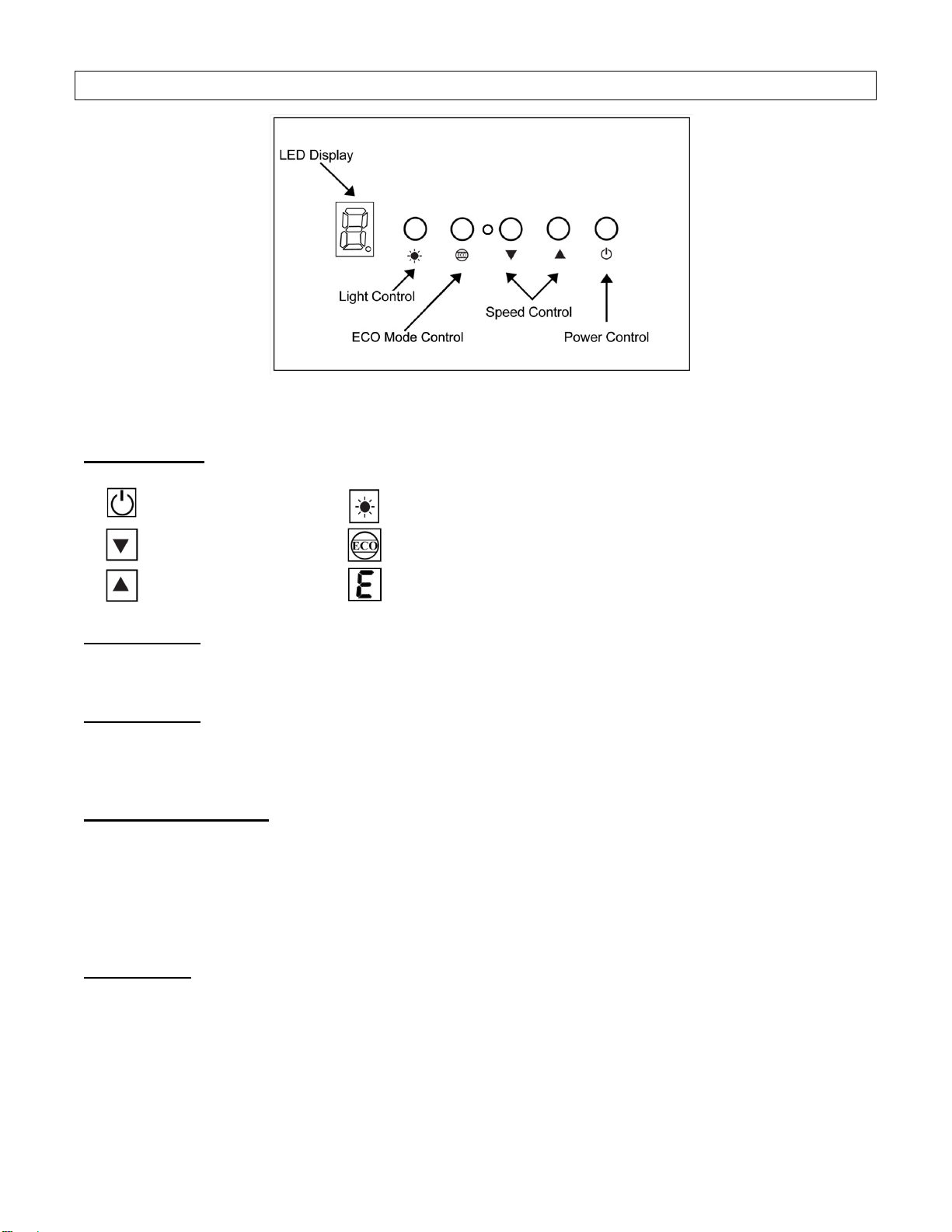

Button Control
Power Control Light Control
Decrease Fan
Speed
ECO Mode Control
Increase Fan
Speed
ECO Mode Icon
Power Control
To turn the hood ON/OFF, press the power button once.
Speed Control
The hood starts on speed #3 by default. To decrease speed level, press the Decrease Fan Speed.
To increase speed level, press the Increase Fan Speed.
3-Minute Delay Shutoff
To activate the 3-minute delay shutoff, press and hold the power button for about 3 seconds.
Once the delay shutoff has been activated the LED display will flash and the fan speed will change
to speed #3. While the 3 minute countdown is running, the speed level can be adjusted by
pressing the increase/decrease fan speed buttons. To turn the fan off immediately, press the
power button a second time.
Light Control
Press the light button to turn the LED lights ON. Each press of the light button will cycle the light
intensity through bright, medium bright, dim and off. Lights are controlled independently from
power control and delay shutoff. Turning the fan off will not turn the lights off.

10
ECO Mode Control
ECO Mode is set to turn the fan on QuietMode™ setting for 10 minutes every hour to remove
excess moisture, microscopic particles and odors for better kitchen air quality.
ECO Mode is independent from the power control and delay shutoff.
ECO Mode can be activated while fan is running on or off. Press and hold the ECO button until
the “E” icon briefly appears in the LED display. While the fan is running, you can change the
speed, use delay shutoff or turn off the fan without disabling the ECO Mode.
When the fan is off and ECO Mode has been activated, the “E” icon will appear in the LED display.
The “E” icon will flash while ECO Mode is operating on QuietMode™. To deactivate, press and
hold the ECO button until the “E” icon no longer appears in the LED display.
NOTE: Press the power button while ECO Mode is active will activate the regular fan function and
the speed will be displayed on the LED display.
WARNING: Make sure there is sufficient make-up air when ECO Mode is activated by opening
doors or windows.
Remote Control
1. Power control and 3-minute delay shutoff control (press and hold for 3 seconds).
2. Increase fan speed.
3. Decrease fan speed.
4. ECO Mode control. Press and hold for 3 seconds to activate ECO Mode.
5. Light control. Turns on brightest setting by default.
The remote control has magnet to allow it to be attached on any magnetic surface.
NOTE: Remote control uses CR2032 batteries (provided). Remote control range is up to 16 feet.

11
MAINTENANCE
For optimal performance, clean the range hood surface and baffles regularly.
To Clean Hood Surface
CAUTION: NEVER USE ABRASIVE CLEANERS, PADS, OR CLOTHS.
*** Regular care will help preserve its fine appearance.
1. Use only mild soap or detergent solutions. Dry surfaces using soft cloth.
2. If hood looks splotchy (stainless steel hood), use a stainless steel cleaner to clean the surface of
the hood. Avoid getting cleaning solution onto or into the control panel. Follow directions of the
stainless steel cleaner. Caution: Do not leave on too long as this may cause damage to hood
finish. Use soft towel to wipe off the cleaning solution, gently rub off any stubborn spots. Use
dry soft towel to dry the hood.
3. DO NOT allow deposits to accumulate or remain on the hood.
4. DO NOT use ordinary steel wool or steel brushes. Small bits of steel may adhere to the surface
and cause rusting.
5. DO NOT allowsalt solutions, disinfectants, bleaches, or cleaning compounds to remain in contact
with stainless steel for extended periods. Many of these compounds contain chemicals, which
may be harmful. Rinse with water after exposure and wipe dry with a clean lint free cloth.
For Baffle Filter models only: to Clean Baffle Filter/Oil Tunnel
CAUTION: DRAIN OIL FROM BAFFLE FILTER & OIL TUNNEL REGULARLY TO PREVENT
OVERFLOW.
1. Remove all the baffle filters, spacers and oil tunnel. Note: Not all models have spacers and oil
tunnels.
2. Using a sponge, wash with warm soapy water. Dry completely before returning into place.
CAUTION: SHARP EDGES (Note: Baffle Filters are top rack dishwasher safe.)

12
SPECIFICATIONS
MODEL / SIZE
IN2636SQB-1100-5A (36”)
IN2642SQB-1100-5A (42”)
IN2648SQB-1100-5A (48”)
COLOR
Commercial Grade Stainless Steel
CONSUMPTION / AMPERE
580W / 5.0A
VOLTAGE
120V 60Hz
NUMBER OF BLOWERS
2
BLOWER TYPE
Single Horizontal Squirrel Cage
EXHAUST
Top Transition Rectangular to 8” Round
CONTROLS
Electronic Control (5 Buttons) with LED Display
- 3-Minute Delay Shut-Off
- ECO Mode
- Wireless Remote Control (Sold Separately)
LIGHTS
LED Lights 3W x 2 – 36”, 3-Level Lighting
LED Lights 3W x 3 – 42” & 48”, 3-Level Lighting
HOOD DIMENSION
(W X D X H)
IN2636SQB
-
1100
-
5A
34-3/8” x 22-1/2” x 12”
IN2642SQB-1100-5A 40-3/8” x 22-1/2” x 12”
IN2648SQB-1100-5A 46-3/8” x 22-1/2” x 12”
HOOD WEIGHT (lbs)
Net Gross
IN2636SQB-1100-5A (36”) 58.0 71.0
IN2642SQB-1100-5A (42”) 63.0 77.0
IN2648SQB-1100-5A (48”) 67.0 83.0
Blower Air Capacity (cfm)
QuietMode™ 1 2 3 4 5
350 420 540 680 900 1100
Sone*
1.6 2.8 3.5 5.0 7.0 8.0
dB
46.5 55.0 58.0 63.5 67.5 70.0
* One Sone is equivalent to 40 decibels.
**Specifications subject to change without notice.

13
MEASUREMENTS & DIAGRAMS
All ( ) are in millimeter.
All inch measurements are converted from millimeters. Inch measurements are estimated.
MODEL NO.:
I
N2636SQB
-
1100
-
5A (36
”
)
IN2642SQB-1100-5A (42”)
IN2648SQB-1100-5A (48”)
Side View
Top View

14
Bottom View
MODEL NO: IN2636SQB-1100-5A (36”)
MODEL NO: IN2642SQB-1100-5A (42”)
MODEL NO: IN2648SQB-1100-5A (48”)

15
Front View
MODEL NO: IN2636SQB-1100-5A (36”)
MODEL NO: IN2642SQB-1100-5A (42”)
MODEL NO: IN2648SQB-1100-5A (48”)

16
PARTS LIST
MODEL NO
.:
IN2636SQB
-
1
100
-
5A
(36
”
)
IN2642SQB-1100-5A (42”)
IN2648SQB-1100-5A (48”)
NO.
DESCRIPTION
MODEL/SIZE
PART NO.
1 Exhaust Plate L1-0505-0004
2 Hood Casing IN2636SQB-1100-5A 10-2636B-1200-1
IN2642SQB-1100-5A 10-2642B-1200-1
IN2648SQB-1100-5A 10-2648B-1200-1
3 Processor Board L1-0404-6001-D
4 Capacitor x2PCS L1-0401-0120-24
5 Motor Transformer L1-0402-6120-40D
6 Motor Bracket L1-0233-2642-1
7 Oil Tunnel IN2636SQB-1100-5A B101-2636-28-12
IN2642SQB-1100-5A B101-2642-28-12
IN2648SQB-1100-5A B101-2648-28-12
8 Blower System (Right) X5-L1-0302-0120-590RE
Blower System (Left) X5-L1-0302-0120-590RE
9 Bottom Casing IN2636SQB-1100-5A B101-2636-09-12
IN2642SQB-1100-5A B101-2642-09-12
IN2648SQB-1100-5A B101-2648-09-12
10 Baffle Filter Support IN2636SQB-1100-5A B101-2636-30-12
IN2642SQB-1100-5A B101-2642-30-12
IN2648SQB-1100-5A B101-2648-30-12
11 Stainless Steel Spacer
{3-5/16”(84)x14-3/8” (365)} IN2636SQB-1100-5A B101-3636-14B
Stainless Steel Spacer {2-15/16”(75)x14-3/8” (365)} IN2648SQB-1100-5A B101-3648-14B
12 Baffle Filter L1-0214-0191
13 Control Unit L1-0404-6001-C
14 Light Panel IN2636SQB-1100-5A B101-2636-06-12A
IN2642SQB-1100-5A B101-2642-06-12A
IN2648SQB-1100-5A B101-2648-06-12A
15 LED Light (3W) x2 IN2636SQB-1100-5A L1-0403-0301
LED Light (3W) x3 IN2642SQB-1100-5A
IN2648SQB-1100-5A

17
MODEL NO
.:
IN2636SQB
-
1
100
-
5A
(36
”
)
IN2642SQB-1100-5A (42”)
IN2648SQB-1100-5A (48”)

18
CIRCUIT DIAGRAM
MODEL NO. : IN2636SQB-1100-5A (36”)
IN2642SQB-1100-5A (42”)
IN2648SQB-1100-5A (48”)

19
TROUBLE SHOOTING
Issue
Possible Cause
Solution
After
Installation,
both motors
and lights are
not working.
The power is not on. Make sure the circuit breaker and the
unit’s power is ON. Use a voltage meter to
check the power supply.
The wire connection is not secure. Check and tighten wire connection.
The control unit and processor
board wiring are disconnected. Check wire continuity from control unit to processor board.
Lights are
working, but
motor(s) is
not.
The control unit and processor
board is defective. Replace the control unit or processor board.
The motor(s) is defective. Replace the motor.
The capacitor(s) is defective. Replace capacitor(s).
The range
hood is
vibrating.
The control unit or processor board
is defective. Replace the control unit or processing board.
The blower system is not secure.
Tighten the turbine impeller/squirrel cage and air chamber.
The turbine impeller/squirrel cage is
not balanced. Replace the turbine impeller/squirrel cage.
The motor is
working, but
the lights are
not working.
Hood is not secured in place. Check the installation of hood, tighten the
mounting bracket.
LED light fixture(s) is defective.
Replace LED light fixture(s)
The light wiring(s) is loose.
Check wire continuity from processor board to light transformer to LED light
fixture(s).
The range
hood is not
venting out
correctly.
The control unit or processor board
is defective.
Replace the control unit or processing
board.
The range hood is installed outside
of the manufacture recommended
clearance.
Adjust the clearance between the range
hoods and cook top to 26” to 30”. For
Island range hood, the clearance between
the range hoods and cook top is 30” to
36”.
There is no make-up air inside the
house. Open the window to enhance the performance of the range hood by creating
a sufficient make-up air.
Obstacle blocking the pipe work.
Remove all obstacles from the duct work.
Cold air is
coming into
the home.
The pipe size is smaller than the
suggested pipe size. Change the ducting according to the manufacture suggestion.
The pipe connection is not properly
sealed. Check the pipe installation.
The damper is not properly installed
or is missing from the installation. Check the damper installation.
