KOBE Brand Range Hood
Model No. / Nos de modèles / Modelo No.
RA2230SQF
RA2236SQF
INSTALLATION INSTRUCTIONS
AND OPERATION MANUAL
MANUEL D'INSTALLATION
ET MODE D'EMPLOI
INSTRUCCIONES DE INSTALACIÓN
Y MANUAL DE OPERACIÓN

[ENGLISH]………………………………………………………1
[FRENCH]………………………………………………………21
[SPANISH]…………………………………………………….41

1
[ENGLISH]
-READ AND SAVE THESE INSTRUCTIONS -
CONTENTS
IMPORTANT SAFETY INSTRUCTIONS .........................................................................2!
COMPONENTS OF PACKAGE .......................................................................................4!
INSTALLATION................................................................................................................5!
OPERATION INSTRUCTIONS ........................................................................................9!
MAINTENANCE .............................................................................................................10!
SPECIFICATIONS..........................................................................................................11!

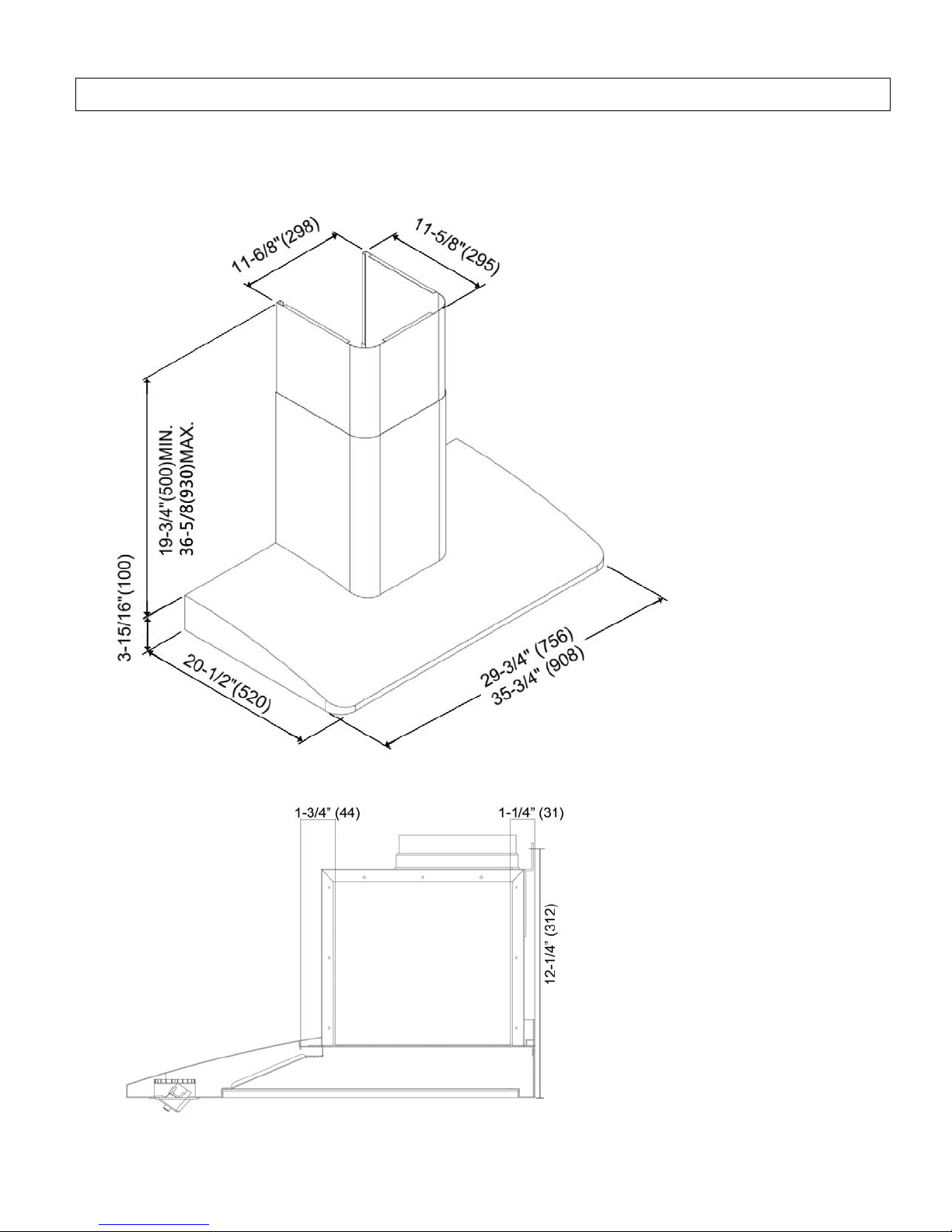

MEASUREMENTS & DIAGRAMS..................................................................................12!

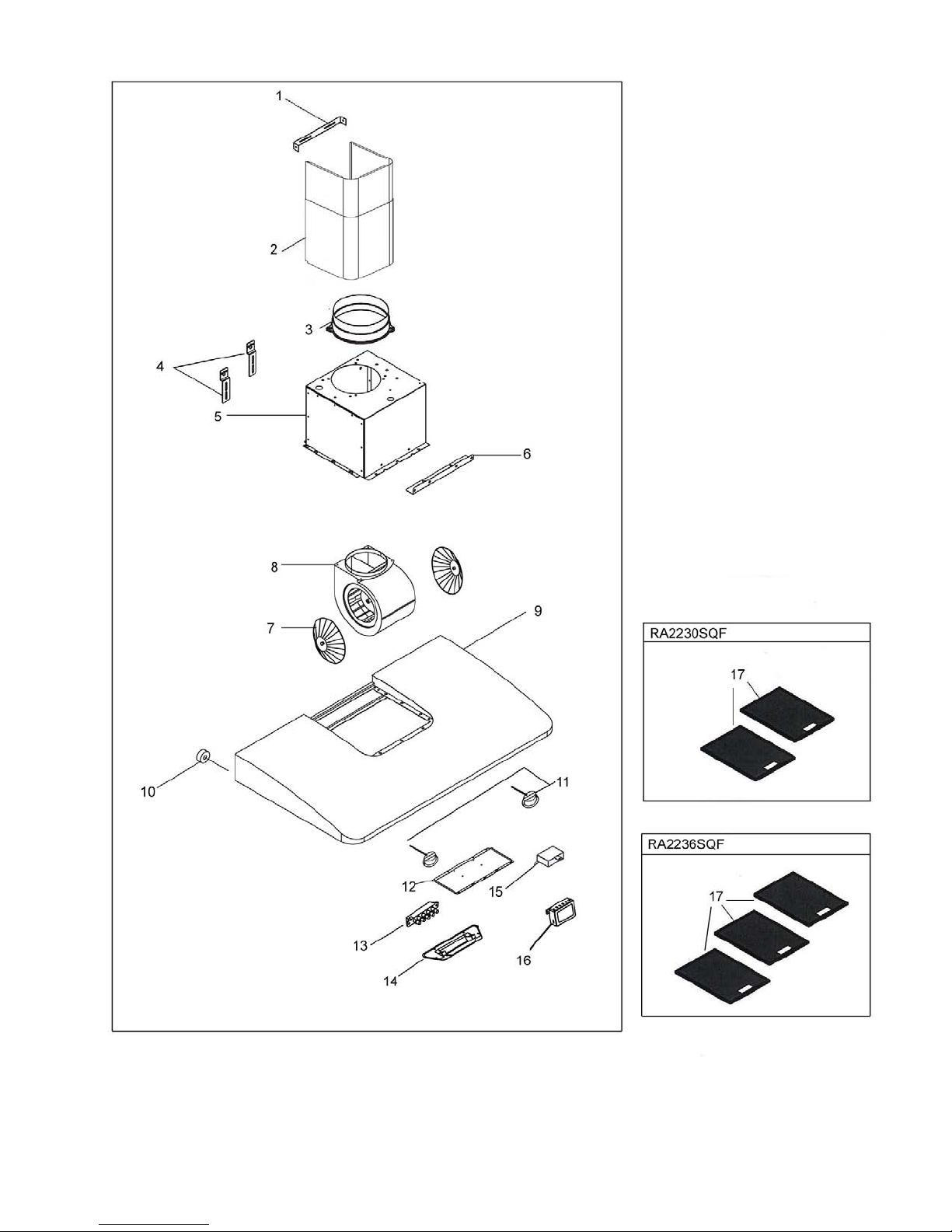

PARTS LIST...................................................................................................................13!

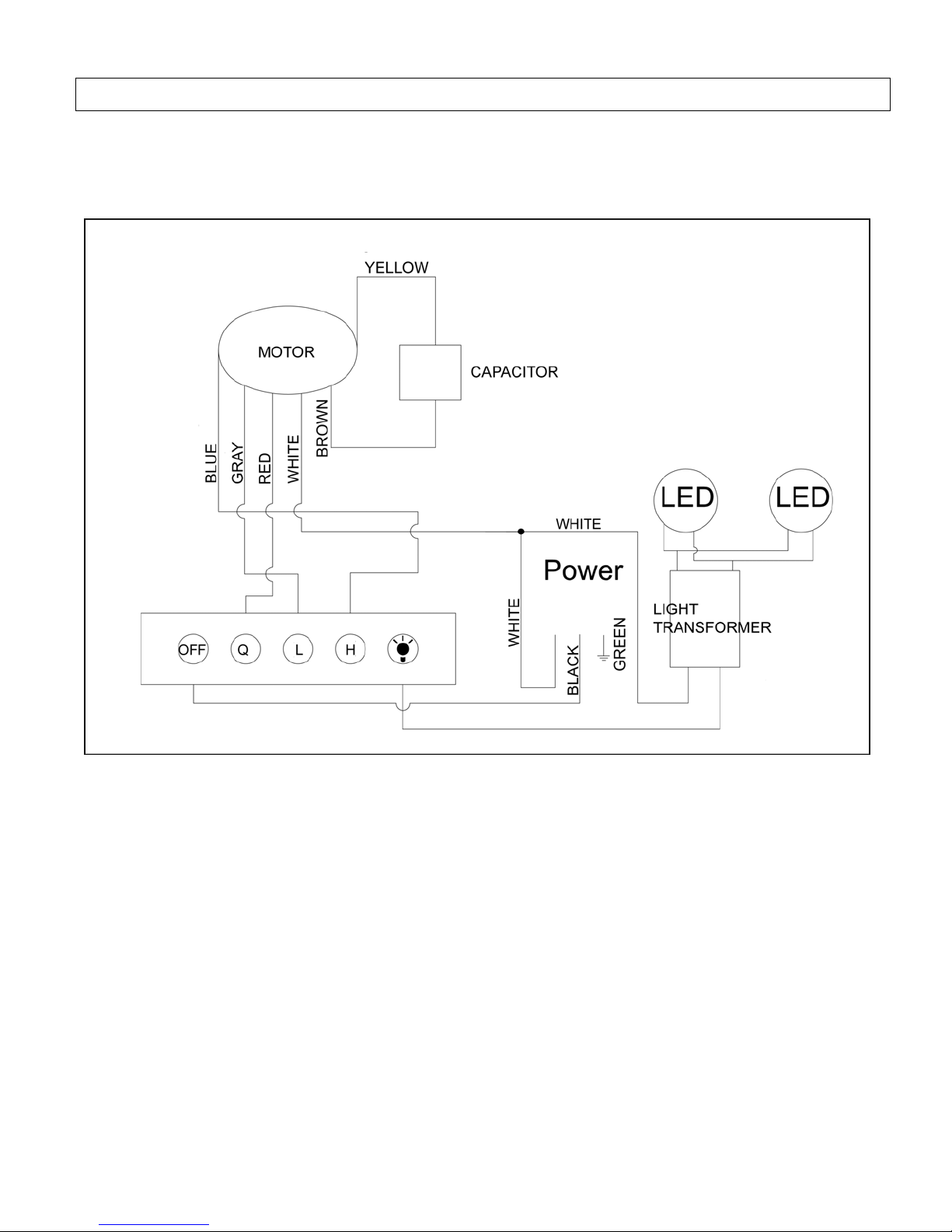

CIRCUIT DIAGRAM .......................................................................................................15!
TROUBLE SHOOTING ..................................................................................................16!
DISCLAIMER..................................................................................................................17!
WARRANTY...................................................................................................................18!
PRODUCT REGISTRATION..........................................................................................20!
-READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING -
ALL WIRING MUST BE DONE BY A PROFESSIONAL AND IN
ACCORDANCE WITH NATIONAL AND LOCAL ELECTRICAL CODES

2
IMPORTANT SAFETY INSTRUCTIONS
-PLEASE READ THIS SECTION CAREFULLY BEFORE INSTALLATION -
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL
INJURY, OBSERVE THE FOLLOWING:
1) Installation and electrical wiring must be done by qualified professionals and in accordance with all
applicable codes and standards, including fire-rated construction.
2) When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or other hidden
utilities.
3) Ducted fans must be vented to the outside.
a) Before servicing or cleaning unit, open the light panel and SWITCH POWER OFF AT SERVICE
PANEL.
b) Clean all grease laden surfaces frequently. To reduce the risk of fire and to disperse air
properly, make sure to vent air outside. DO NOT vent exhaust air into wall spaces, attics, crawl
spaces or garages.
NOTE
-
This warranty is invalid without an authorized agent’s receipt or if unit is
damaged due to misuse, poor installation, improper use, mistreatment,
negligence or any other circumstances beyond the control of KOBE
RANGE HOODS authorized agents. Any repair carried out without the
supervision of KOBE RANGE HOODS authorized agents will
automatically void the warranty.
-
KOBE RANGE HOODS will not be held responsible for any damages to
personal property or real estate or any bodily injuries whether caused
directly or indirectly by the range hood.
WARNING: TO REDUCE THE RISK OF PERSONAL INJURY IN THE EVENT OF A
RANGE TOP GREASE FIRE:
•Keep all fan, baffle/spacer/filter/oil tunnel/oil container and grease-laden surfaces clean. Grease
should not be allowed to accumulate on fan,baffle/spacer/filter/oil tunnel/oil container.
•Always turn hood ON when cooking.
•Use high settings on cooking range ONLY when necessary.
•Do not leave cooking range unattended when cooking.
•Always use cookware and utensils appropriate for the type and amount of food prepared.
•Use this unit only in the manner intended by the manufacturer.
•Before servicing, switch power off at service panel and lock service panel (if possible) to prevent
power from switching on accidentally.
•Clean ventilating fan frequently.

3
What to Do In The Event Of a Range Top Grease Fire
• SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner.
KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not
go out immediately, EVACUATE THE AREA AND CALL THE FIRE DEPARTMENT or 911.
• NEVER PICK UP A BURNING PAN –You May Get Burned.
• DO NOT USE WATER, including wet dishcloths or towels –a violent steam blast will result.
• Use an extinguisher ONLY if:
a) You have a Class A, B, C extinguisher and know how to operate it.
b) The fire is small and contained in the area where it started.
c) The fire department has been called.
d) You can fight the fire with your back to an exit.
What to Do If You Smell Gas
- Extinguish any open flame.
- Do not try to turn on the lights or any type of appliance.
- Open all doors and windows to disperse the gas. If you still smell gas, call the Gas Company and
Fire Department right away.
CAUTION
1) For general ventilation use only. Do not use to exhaust hazardous or explosive materials and
vapors.
2) To reduce the risk of fire, use only metal ductwork. Sufficient air is needed for proper combustion
and exhausting of gases through the flue (chimney) to prevent back drafting.
3) Follow the heating equipment manufacturer’s guideline and safety standards such as those
published by the National Fire Protection Association (NFPA), and the American Society for
Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and code authorities.
4) Activating any switch on may cause ignition or an explosion.
5) Due to the size and weight of this hood, two people installation is recommended.
ELECTRICAL SHOCK HAZARD – Can result in serious injury or
death. Disconnect appliance from electric power before servicing.
If equipped, the fluorescent light bulb contains small amounts of
mercury, which must be recycled or disposed of according to
Local, State, and Federal Codes.

4
COMPONENTS OF PACKAGE
(Must keep all material for returns or refunds)
Range Hood Box
{A} KOBE Range Hood –1
{B} Warranty Registration Card –1
{C} Instructions Manual –1
{D} Screws Package – 1
{E} Hood-Mounting Bracket – 2
{F} Duct Cover Mounting Bracket –1
{G} Aluminum Filters - 2 (30”)
-3 (36”)
{A}
{B} {C}
{D}
{E}
{F}
{G}
- FOR MORE INFORMATION, PLEASE VISIT OUR WEBSITE www.KOBERangeHoods.com OR
CONTACT KOBE RANGE HOODS AT [phone].

5
INSTALLATION
PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING

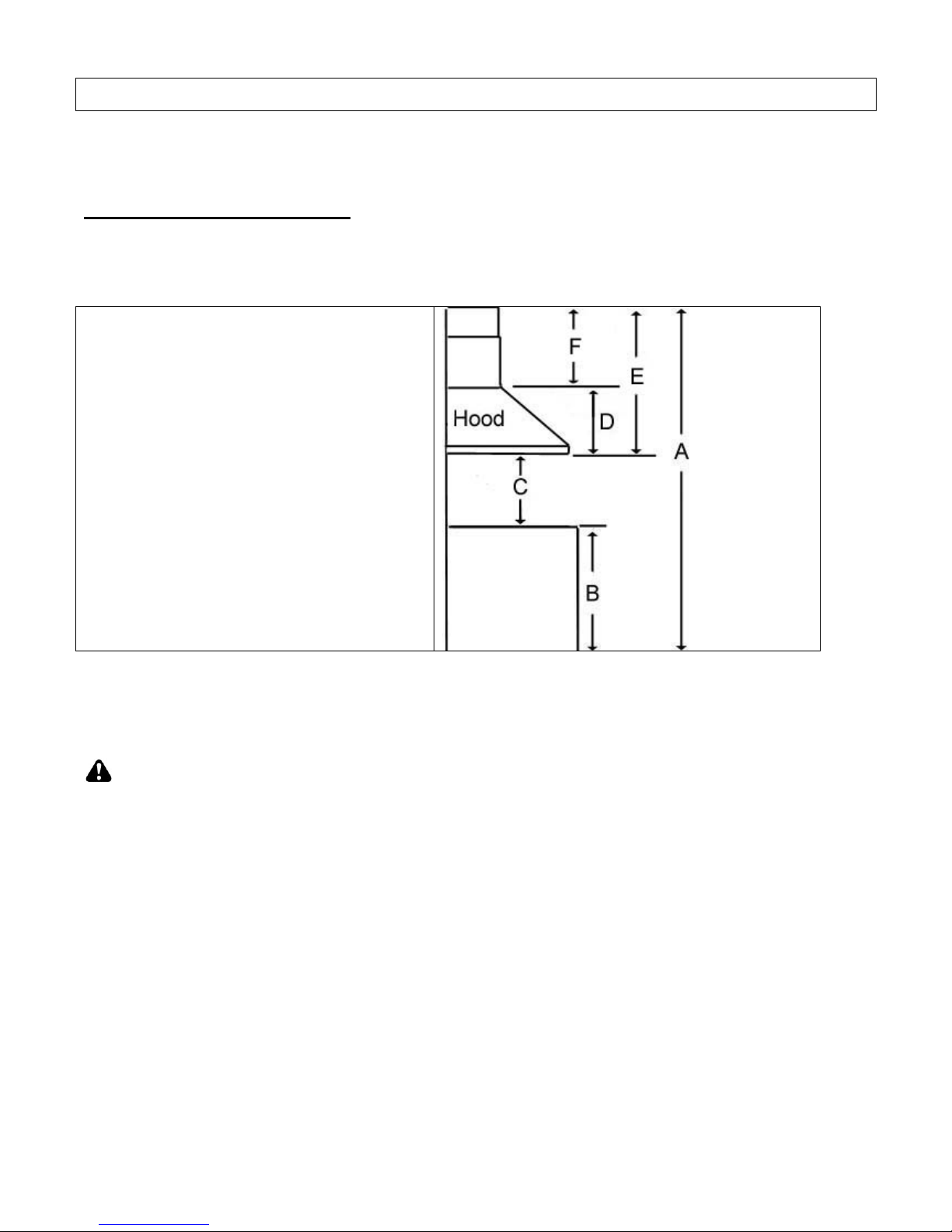

Calculation before Installation
To calculate installation, please refer to TABLE 1. (All calculation in inches)
TABLE 1
A = Height of Floor to Ceiling
B = Height of Floor to Counter Top
(Standard: 36”)
C = Preferred Height of Counter Top to
Hood Bottom (Recommended 27” to 32”)
D = Height of Hood
E = Height of the Hood Installation
[A – (B+C)]
F = Height of Duct Cover
[E – D]
SAFETY WARNING
HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF
REMOVING ANY PARTS FOR INSTALLING, CLEANING OR SERVICING.
NOTE: BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE
HOOD MAY OCCUR.

6

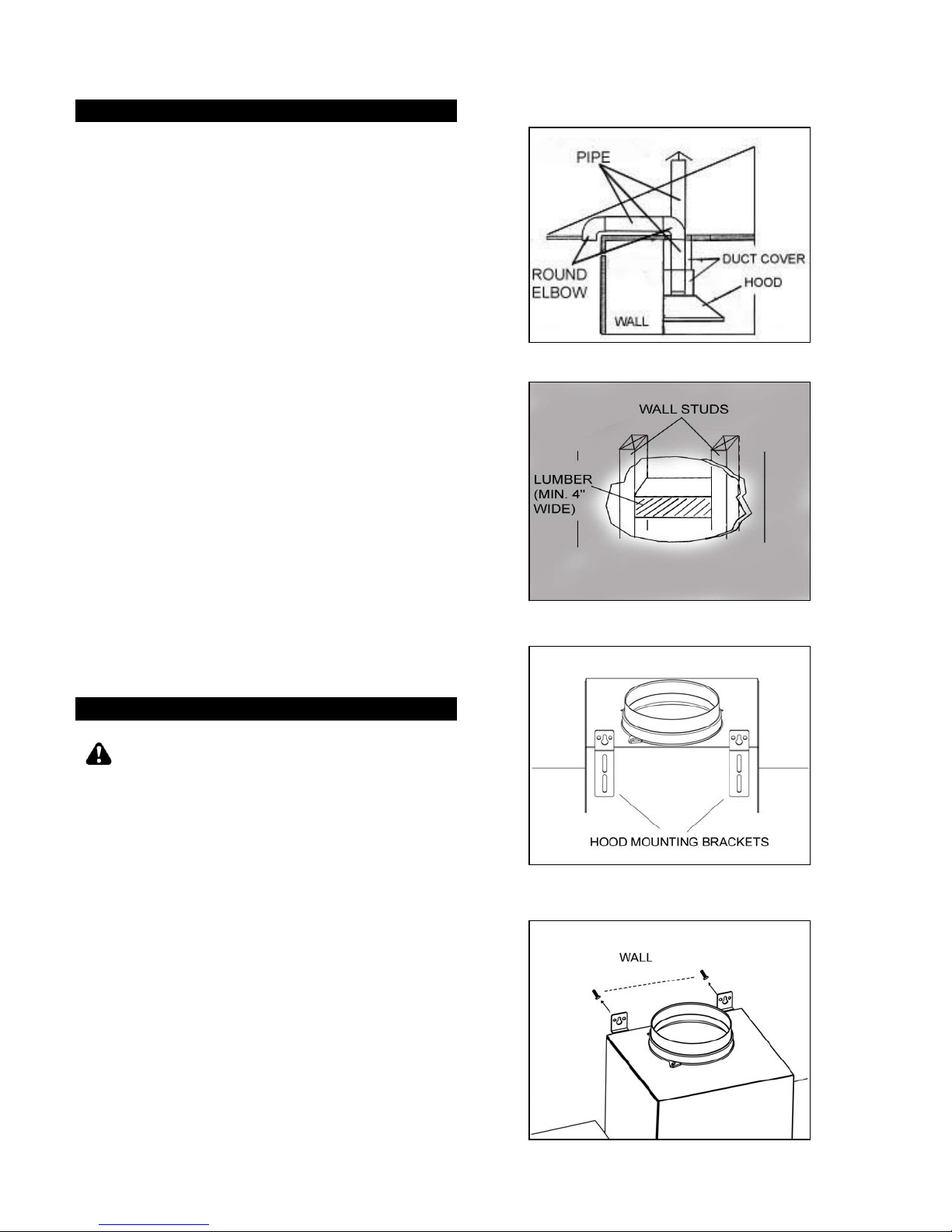

Preparation before Installation
NOTE: TO AVOID DAMAGE TO YOUR HOOD,
PREVENT DEBRIS FROM ENTERING
THE VENT OPENING.
- Decide the location of the venting pipe from
the hood to the outside. (Figure 1)
- A straight, short venting run will allow the
hood to perform more efficiently.
- Try to avoid as many transitions, elbows,
and long run as possible. This may reduce
the performance of the hood.
- Temporarily wire the hood to test for proper
operation before installing.
- Important: Peel any protective film off the
hood.
- Use duct tape to seal the joints between
pipe sections.
- If necessary, prepare back wall frame with
cross framing lumber for secure installation.
Refer to Table 1 and measurements on
Page 12 to decide the level of the lumber.
(Figure 2)
- Loosen hood-mounting brackets at the back
of the hood, adjust brackets and tighten
screws as shown in Figure 3.
- If necessary,remove the rubber stand on
the back of the hood and discard.
Hood Installation
CAUTION: If required to move the
cooking range to install the hood, turn
off the power on an electric range at the
main electrical box. SHUT OFF THE
GAS BEFORE MOVING A GAS RANGE.
1. Using references in Table 1 and
measurements on Page 12, mark the
leveling locations point for hood-mounting
bracket on the wall.
2. Secure two mounting screws (not provided)
to the wall,leaving an 1/8” space from the
wall. (Figure 4)
3. Align the hood-mounting bracket to the
mounting screws on the wall and hang hood
into place.
Figure 1
Figure 2
Figure 3
Figure 4

7
4. Secure and tighten the mounting screws.
CAUTION: MAKE SURE THE HOOD IS
SECURE BEFORE RELEASING.
Ductwork Installation
5. Using Reference Efrom Table 1 and
measurements on Page 12, mark the
leveling point for duct cover-mounting
bracket.
6. Secure the duct cover-mounting bracket to
the wall with two screws (not provided).
(Figure 5and Figure 8)Make sure all
screws are tightened. NOTE: Inner duct
cover will cover the duct cover-mounting
bracket.
7. Use 6” steel pipe (not provided) to connect
the plastic exhaust on the hood to the
ductwork above. Use duct tape to ensure
all joints are secure and air tight as shown
in Figure 6.
Wiring to Power Supply
SAFETY WARNING
RISK OF ELECTRICAL SHOCK. THIS
RANGE HOOD MUST BE PROPERLY
GROUNDED. MAKE SURE THIS IS DONE
BY A SPECIALIZED ELECTRICIAN IN
ACCORDANCE WITH ALL APPLICABLE
NATIONAL AND LOCAL ELECTRICAL
CODES. BEFORE CONNECTING WIRES,
SWITCH POWER OFF AT SERVICE PANEL
AND LOCK SERVICE PANEL TO PREVENT
POWER FROM BEING SWITCHED ON
ACCIDENTALLY.
8. Connect three wires (black, white and
green) to house wires and cap with wire
connectors. Connect according to color:
black to black, white to white, and green to
green as shown in Figure 7.
9. Test the operation of the hood before
performing the next step. Make sure power
is supplied to the hood.
Duct Cover Installation
10. Slide inner duct cover up 2 inches before
sliding entire duct cover onto the hood.
(Figure 8)
11. Align the inner duct cover to the duct cover-
mounting bracket. Secure inner duct cover
with two (4x8 mm) screws (provided).
Figure 5
Figure 6
Figure 7
Figure 8

8
12. Fasten outer duct cover to plastic plate on
the hood with four (4x8 mm) screws
(provided).
Install Accessories
13. Place aluminum filters underneath the hood.
Final Assembly
14. Turn power ON in control panel. Check all
lights and fan operation.
15. Leave this Installation Instructions and
Operation Manual for the homeowner.

9
OPERATION INSTRUCTIONS
Figure 9
To operate the fan function
•Press button to choose from speed.
oQ= QuietMode™ speed
oL = Low speed
oH = High speed
•Press “OFF” to turn fan off.
To operate the light function
•Press the Light Control to turn lights on and off.

10
MAINTENANCE
SAFETY WARNING
NEVER PUT YOUR HAND INTO AREA HOUSING THE FAN WHILE THE FAN IS OPERATING.
Cleaning Hood Surface
CAUTION: NEVER USE ABRASIVE CLEANERS, PADS, OR CLOTHS. DO NOT USE
PAPER TOWEL ON STAINLESS STEEL.
For optimal operation, clean range hood and all baffle/spacer/filter/oil tunnel/oil container regularly.
*** Regular care will help preserve the appearance of the hood.
1. Use only mild soap or detergent solutions. Dry surfaces using soft cloth.
2. If hood looks splotchy (stainless steel hood), use a stainless steel cleaner to clean the surface of the
hood. Avoid getting cleaning solution onto or into the control panel. Follow directions of the stainless
steel cleaner. Caution: Do not leave on too long as this may cause damage to hood finish. Use
soft towel to wipe off the cleaning solution, gently rub off any stubborn spots. Use dry soft towel to
dry the hood.
3. DO NOT allow deposits to accumulate or remain on the hood.
4. DO NOT use ordinary steel wool or steel brushes. Small bits of steel may adhere to the surface and
cause rusting.
5. DO NOT allow salt solutions, disinfectants, bleaches, or cleaning compounds to remain in contact
with stainless steel for extended periods. Many of these compounds contain chemicals, which may
be harmful. Rinse with water after exposure and wipe dry with a clean lint free cloth.
To Clean Aluminum Filters
1. Remove all the aluminum filters.
2. Wash with warm soapy water. Dry completely before returning into place.

11
SPECIFICATIONS
MODEL / SIZE
RA2230SQF / 30”
RA2236SQF / 36”
COLOR
Commercial Grade Stainless Steel
CONSUMPTION / AMPERE
205 W / 1.77 A
VOLTAGE
120V 60Hz
NUMBER OF MOTORS
1
DESIGN
18-Gauge Seamless / Satin Finish
FAN TYPE
Double Horizontal Squirrel Cage
EXHAUST
Top 6" Round
CONTROLS
Mechanical Push Button
LIGHTS
LED 3 W x 2
HOOD DIMENSION
(W x D x H)
(RA2230SQF) - 29-3/4” x 20-1/2” x 3-15/16”
(RA2236SQF) - 35-3/4” x 20-1/2” x 3-15/16”
OPTIONAL ACCESSORIES
(W x D x H)
1) Model No. SSP30
30" Stainless Steel Back Panel (30" x 1/10" x 32")
2) Model No. SSP36
36" Stainless Steel Back Panel (36" x 1/10" x 32")
Net
Gross
(RA2230SQF)
38
51
(RA2236SQF)
42
58
WEIGHT (lbs)
SPEED
Quietmode ™
Low
High
Air Capacity (cfm)
280
480
700
Sone*
1.3
2.8
4.8
*Specifications information is subject to change without notice.

12
MEASUREMENTS & DIAGRAMS
All measurements in ( ) are millimeters.
All inch measurements are converted from millimeters. Inch measurements are estimated.

13
PARTS LIST
MODEL NO.:
RA2230SQF
RA2236SQF
NO.
DESCRIPTION
MODEL /SIZE
PART NO.
1
Duct Cover-Mounting Bracket
C1-0203-3810
2
Duct Cover
B102-6100-A/B
3
6” round Plastic Exhaust
C1-0505-0006
4
Hood-Mounting Bracket
C1-0221-3810
5
Motor Casing
C1-0106-6100-A
C1-0106-3810-B
6
Motor Bracket
C1-0105-6100
7
Safety Screen
C1-0602-0103
8
Air Chamber & Motor
C1-0302-A120-09
RA2230SQF
B101-6130-02
9
Hood Casing
RA2236SQF
B101-6136-02
10
Rubber Stand
C1-0510-0101
11
LED Light
C1-0403-0306
12
Electric Component Support
C1-0205-6100-B
13
Control Unit
C1-0405-0303
14
Control Unit Support
C1-0207-6200
15
Capacitor
C1-0401-A300-08
16
Light Transformer
C1-0402-D001
17
Aluminum Filters
C1-0604-0107

14

15
CIRCUIT DIAGRAM
MODEL NO.:
RA2230SQF
RA2236SQF

16
TROUBLE SHOOTING
Issue
Possible Cause
Solution
The power is not on.
Make sure the circuit breaker and the unit’s power is
ON. Use a voltage meter to check the power supply.
After Installation,
both motors and
lights are not
working.
The wire connection is not secure.
Check and tighten wire connection.
The motor(s) is defective.
Replace the motor.
Lights are
working, but
motor(s) is not.
The capacitor(s) is defective.
Replace capacitor(s).
The blower system is not secure.
Tighten the turbine impeller/squirrel cage and air
chamber.
The turbine impeller/squirrel cage is not
balanced.
Replace the turbine impeller/squirrel cage.
The range hood
is vibrating.
Hood is not secured in place.
Check the installation of hood, tighten the mounting
bracket.
Light Fixture(s) is defective.
Replace the Light Fixture(s).
The light wiring(s) is loose.
Check wire continuity from processor board to light
transformer to halogen light housing(s).
The motor is
working, but the
lights are not
working.
Light transformer is defective.
Check power input and power output on the light
transformer. If it’s needed, replace the light
transformer.
The range hood is installed outside of the
manufacture recommended clearance.
Adjust the clearance between the range hoods and
cook top to 27” to 32”. For Island range hood, the
clearance between the range hoods and cook top is
30” to 36”.
There is no make-up air inside the house.
Open the window to enhance the performance of the
range hood by creating a sufficient make-up air.
Obstacle blocking the pipe work.
Remove all obstacles from the duct work.
The range hood
is not venting
out correctly.
The pipe size is smaller than the
suggested pipe size.
Change the ducting according to the manufacture
suggestion.
The pipe connection is not properly sealed.
Check the pipe installation.
Cold air is
coming into the
home.
The damper is not installed.
By installing the damper, it will help to eliminate air
backflow.

17
DISCLAIMER
1) CAREFULLY INSPECT ALL ITEMS FOR DAMAGES BEFORE ACCEPTING DELIVERY. NOTE
ANY DAMAGES ON THE FREIGHT BILL OR EXPRESS RECEIPT. REQUEST NAME AND
SIGNATURE OF THE CARRIER’S AGENT AND KEEP COPY TO SUPPORT YOUR CLAIM.
Upon acceptance of items, owner assumes responsibility for its safe arrival. Report damages to the
carrier and file a claim immediately. Failure to do so may result in the denial of your claim. The
carrier will furnish you with necessary forms for filing a claim.
DAMAGES CAUSED DURING TRANSIT ARE NOT COVERED UNDER OUR WARRANTY.
2) PLEASE INSPECT CONTENTS OF PACKAGE(S) CAREFULLY UPON RECEIVING!
We must be notified in writing of any damages and/or missing parts within the allocated days upon
your receipt of package(s). Contact your local KOBE dealer or distributor or call KOBE for the time
limit.
CLAIMS WILL NOT BE ACCEPTED AFTER THE ALLOCATED DAYS.
NOTE: ITEMS WERE THOROUGHLY TESTED AND CAREFULLY PACKED IN OUR FACTORY
BEFORE SHIPPING.
3) Products must be returned in good working condition with ALL original parts and documentation
packed in ALL original cartons, fillers and shipping cartons. A restocking fee of 25% will be charged
for all approved return(s).
EXCHANGES OR RETURNS MAY NOT BE ACCEPTED IF ANY PACKAGING IS MISSING.
4) MAKE SURE TO INSPECT THE HOOD FOR DAMAGES AND DEFECTS BEFORE
INSTALLATION. Appearance flaws of the hood found after installation and not affecting hood
performance is not covered under our warranty for returns or exchanges. Service visits not covered
under warranty will carry a service charge.
A) Before Installation: Return for exchange or refund (please see above for acceptable
returns).
B) After Installation: NO exchange or refund.

18
WARRANTY
WARRANTY CERTIFICATE
KOBE Range Hoods warrants all products manufactured or supplied by it to be free from defects in
workmanship and materials. Its obligations pursuant to this warranty are limited to a period of two years
from the date of purchase and to the repair or replacement at its option and subject to the terms and
conditions stated below, of any component part, which its examination shall disclose to be so defective.
TWO-YEAR WARRANTY SERVICE PERIOD
Any covered failure occurring within two years of original purchase arising from defective workmanship or
material in manufacture will be repaired (or at our discretion, replaced) free of charge by an authorized
KOBE Range Hoods Agent or KOBE Range Hoods as applicable. Keep proof of purchase (or original
invoice) handy for inspection.
If the range hood is sold by the original purchaser during the warranty period the new owner is protected
until expiration of the original purchaser’s warranty.
CONDITIONS
The following conditions apply only in relation to the warranty expressly given in this certificate.
1. This warranty applies only:
a) within U.S.A. and Canada.
b) to range hoods used for PRIVATE SINGLE FAMILY USE (if used for COMMERCIAL or
MULTIPLE FAMILY USE or other purposes, warranty will be voided).
2. Repair of any fault to be provided under this warranty shall not be provided:
a) if the identification number attached to the range hood has been altered, rendered illegible or
removed;
b) if notice of the defect has not been given within the period applicable;
c) for failure of light bulbs or heat lamps;
d) for physical damage;
e) for surfaces damaged by use of improper chemical cleaning agents;
f) if the appliance has been:
i. subject to misuse, abuse, negligence, accident, incorrect installation or failure to follow the
operating instructions;
ii. connected to improper, inadequate or faulty electricity service or exhaust ducts, flues or duct
cover, or operated using incorrect or contaminated lubricants;
iii. installed, maintained or operated otherwise than in accordance with the instructions furnished
by KOBE Range Hoods including the improper use of detergents, bleaches, or cleaners.
g) for damage to range hood during transit, delivery, installation or removal;
h) for damage by or resulting from attempted repairs conducted by anyone other than our Authorized
Service Agent.
i) noise or vibration caused by improper installation of range hood and/or damper.
