KOBE IN2636SQB-1200 Troubleshooting guide

KOBE Brand Range Hood
Model No. IN2636SQB-1200
IN2642SQB-1200
IN2648SQB-1200
PREMIUM IN-026 SERIES
INSTALLATION INSTRUCTIONS
AND OPERATION MANUAL

READ BEFORE INSTALLATION
1. Carefully check all contents of packages.
2. Thoroughly inspect the unit for any shipping damages, cosmetic damages
or defects.
3. Have a certified contractor/electrician test the unit before installation.
IF THERE IS ANY PROBLEM:
1. DO NOT INSTALL THE UNIT AND KEEP ALL ORIGINAL
PACKAGING MATERIAL.
2. Have your original invoice as proof of purchase and product serial number
ready.
3. Contact your merchant for product replacement due to shipping damages,
cosmetic damages or defects.
. For all other issues, call 1-877-BUY-KOBE (289-5623), or e-mail to
[email protected] .
NO RETURN, NO REFUND, NO EXCHANGE IF:
1. PRODUCT HAS BEEN INSTALLED
2. KNOCK-OUT HOLES HAVE BEEN PUNCTURED
3. MISSING ORIGINAL PACKAGING MATERIAL
AND/OR PARTS
IMPORTANT
READ THIS FIRST

[ENGLISH]
- READ AND SAVE THESE INSTRUCTIONS -
CONTENTS
IMPORTANT SAFETY INSTRUCTIONS.................................................................................... 1
COMPONENTS OF PACKAGE................................................................................................. 3
INSTALLATION ......................................................................................................................... 4
OPERATING INSTRUCTIONS.................................................................................................. 7
SPECIFICATIONS....................................................................................................................12
MEASUREMENTS & DIAGRAMS.............................................................................................13
PARTS LIST.............................................................................................................................16
CIRCUIT DIAGRAM..................................................................................................................18
TROUBLE SHOOTING.............................................................................................................19
WARRANTY.............................................................................................................................20
WARRANTY INFORMATION FORM........................................................................................22
- READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING -
A L L W I R I N G M U S T B E D O N E B Y A P R O F E S S I O N A L A N D I N
A C C O R D A N C E W I T H N A T I O N A L A N D L O C A L E L E C T R I C A L C O D E S

1
IMPORTANT SAFETY INSTRUCTIONS
- PLEASE READ THIS SECTION CAREFULLY BEFORE INSTALLATION -
WARNING : TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL INJURY,
OBSERVE THE FOLLOWING:
1) Installation and electrical wiring must be done by qualified professionals and in accordance with all
applicable codes and standards, including fire-rated construction.
2) When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or other hidden
utilities.
3) Ducted fans must be vented to the outside.
a) Before servicing or cleaning unit, open the light panel and SWITCH POWER OFF AT SERVICE
PANEL.
b) Clean all grease laden surfaces frequently. To reduce the risk of fire and disperse air properly,
make sure to vent air outside. DO NOT vent exhaust air into wall spaces, attics, crawl spaces or
garages.
NOTE - This warranty is void without an authorized agent’s receipt or if unit is
damaged due to misuse, poor installation, improper use, mistreatment,
negligence or any other circumstances beyond the control of KOBE
RANGE HOODS authorized agents. Any repair carried out without the
supervision of KOBE RANGE HOODS authorized agents will
automatically void the warranty.
- KOBE RANGE HOODS will not be held responsible for any damages to
personal property or real estate or any bodily injuries whether caused
directly or indirectly by the range hood.
WARNING : TO REDUCE THE RISK OF PERSONAL INJURY IN THE EVENT OF A RANGE
TOP GREASE FIRE:
1. Keep all fan, baffle/spacer/filter/oil tunnel/oil container and grease-laden surfaces clean. Grease
should not be allowed to accumulate on fan, baffle/spacer/filter/oil tunnel/oil container.
2. Always turn hood ON when cooking.
3. Use high settings on cooking range ONLY when necessary.
4. Do not leave cooking range unattended when cooking.
5. Always use cookware and utensils appropriate for the type and amount of food prepared.
6. Use this unit only in the manner intended by the manufacturer.
7. Before servicing, switch power off at service panel and lock service panel (if possible) to prevent
power from switching on accidentally.
8. Clean ventilating fan frequently.

2
What to Do In The Event Of a Range Top Grease Fire
• SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner.
KEEP FLAMMABLE OR COMBUSTIBLE MATERIALAWAY FROM FLAMES. If the flames do not go
out immediately, EVACUATE THE AREAAND CALLTHE FIRE DEPARTMENT or 911.
• NEVER PICK UPA BURNING PAN – You May Get Burned.
• DO NOT USE WATER, including wet dishcloths or towels – a steam blast will result.
• Use an extinguisher ONLY if:
a) You have a Class A, B, C extinguisher and know how to operate it.
b) The fire is small and contained in the area where it started.
c) The fire department has been called.
d) You can fight the fire with your back to an exit.
What to Do If You Smell Gas
- Extinguish any open flame.
- Do not try to turn on the lights or any type of appliance.
- Open all doors and windows to disperse the gas. If you still smell gas, call the Gas Company and
Fire Department right away.
CAUTION
1. For general ventilation use only. Do not use to exhaust hazardous or explosive materials and vapors.
2. To reduce the risk of fire, use metal ductwork only. Sufficient air is needed for proper combustion and
exhaustion of gases through the flue (chimney) to prevent back drafting.
3. Follow the heating equipment manufacturer’sguideline and safety standards such asthose published
by the National Fire Protection Association (NFPA), and the American Society for Heating,
Refrigeration and Air Conditioning Engineers (ASHRAE), and code authorities.
4. Activating any switch may cause ignition or an explosion.
5. Due to the size and weight of this hood, installation by 2 persons is recommended.
ELECTRICAL SHOCK HAZARD – Can result in serious injury or death.
Disconnect appliance from electric power before servicing. If equipped,
the fluorescent light bulb contains small amounts of mercury, which must
be recycled or disposed of according to Local, State, and Federal Codes.

3
COMPONENTS OF PACKAGE
(Must keep all material for returns or refunds)
Range Hood Box
{A} KOBE Range Hood
{B} Warranty Registration Card
{C} Quick Reference Guide
{D} Baffle Filter x 2 (36”),
X 3 (42” & 48”)
{E} Oil Tunnel
{F} Stainless Steel Spacer x 2 (For 36” & 48”)
{G} Remote Control
{H} Power Cord
{I} Twist-on Wire Cap
{A}
{B} {C}
{D} {E}
{F} {G}
{H} {I}
(AAA Batteries not included.)
Handle is included

4
- FOR MORE INFORMATION, PLEASE VISIT OUR WEBSITE www.koberangehoods.com OR CONTACT
KOBE RANGE HOODS AT [phone].
INSTALLATION
PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING
Calculation Before Installation
To calculate installation, please refer to TABLE 1. (All calculation in inches.)
- FOR UNDER THE CABINET -
TABLE 1
A = Height of Floor to Ceiling
B = Height of Floor to Counter Top
(Standard: 36")
C = Height of Counter Top to Wood Frame Bottom
(Minimum 27"to 30")
D = Height of Wood Frame
SAFETY WARNING
HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF REMOVING
ANY PARTS FOR INSTALLING, CLEANING OR SERVICING.
NOTE: BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE HOOD MAY OCCUR.

5
Preparation Before Installation
NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT DEBRIS
FROM ENTERING THE VENT OPENING.
• Decide the location of the venting pipe from the hood to the
outside. Refer to Figure 1.
• A straight, short vent run will allow the hood to perform more
efficiently.
• Try to avoid as many transitions, elbows, and long run as
possible. This may reduce the performance of the hood.
• Temporarily wire the hood to test for proper operation before
installing.
• Important: Peel protective film off the hood, if any.
• Use duct tape to seal joints between pipe sections.
CAUTION : If moving the cooking range is necessary to
install the hood, turn off the power in an electric range at
the main electrical box. SHUT OFF THE GAS BEFORE
MOVING A GAS RANGE. And use a protective covering to
protect cooktop and/or countertop from damage.
Custom Hood Preparation
1. The custom hood frame must be designed based on the shape
and the weight of the hood. Refer to Measurements and
Diagrams of hood on Page 13-15.
2. A sturdy base (3/4 inch thick plywood recommended) is needed
to sustain the weight of hood.
3. It is recommended to install front & rear stud support (not
included). Refer to Figure 2. For safety purposes, extra
installation holes on the side of the hood are provided. Prepare
the side stud support if needed.
4. Determine and mark the centerlines on the base of the wood
frame where the hood will be installed.
5.
Determine the proper location for the Power Supply Cable.
Make a wiring access hole using a drill bit. Install the wire
cable and seal the gap around hole.
6. Cut out the opening where the hood will be installed. (Refer to
Figure 3 for appropriate dimensions based on width of hood.)
Wiring to Power Supply
CAUTION : If moving the cooking range is necessary to
install the hood, turn off the power in an electric range at
the main electrical box. SHUT OFF THE GAS BEFORE
MOVING A GAS RANGE. RISK OF ELECTRICAL SHOCK.
THIS RANGE HOOD MUST BE PROPERLY GROUNDED.
MAKE SURE THIS IS DONE BY QUALIFIED ELECTRICIAN
IN ACCORDANCE WITH ALL APPLICABLE NATIONAL AND
LOCAL ELECTRICAL CODES. BEFORE CONNECTING
WIRES, SWITCH POWER OFF AT SERVICE PANEL AND
LOCK SERVICE PANEL TO PREVENT POWER FROM
BEING SWITCHED ON ACCIDENTALLY.
7. Temporarily wire the hood to test for proper operation before
installing. If the hood does not operate, check the circuit breaker
or house fuse. If the hood is still not working, disconnect power
supply and check the continuity of all wire connections.
8. If hood is operating normally, connect three wires (black, white
and green) to house wires and cap with wire connectors.
Figure 1
Figure 2
Figure 3
IN2636SQB-1200 (36”)
IN2642SQB-1200 (42”)
IN2648SQB-1200 (48”)

6
9. Store wires in the wiring box.
Duct Work Installation
10. Determine and make all necessary cuts in the wall or ceiling for
the ductwork. Note: Install the ductwork before installing the
hood.
11. Use steel 8” round pipe to connect the ductwork above to the
exhaust of the hood. The hood is preinstalled with a rectangular
to 8” round transition (Refer to Figure 4). Use duct tape to make
all joints secure and air tight.
12. Please refer to local codes for the usage of a damper (not
included).
Hood Installation
NOTE: USE HAND TOOLS ONLY. DO NOT OVER TIGHTEN
SCREWS. IT MAY CAUSE DAMAGE TO THE HOOD.
13. Remove thelightpanelbyremovingscrews locatedat thebottom
of the hood (8 screws for 36” & 42” and 11 screws for 48”) Refer
to Figure 5 as reference. Carefully remove the light support
panel.
14. Position the hood inside the custom wood frame, and secure the
hood to the front and rear stud support ( Refer to Figure 2) by
using the front and rear mounting holes (Screws not included).
15. For a more secure installation, use the mounting holes located
on the side of the hood
16. Make sure hood is secure before releasing.
17. Re-install the light support panel. (Do not over tighten screws.)
CAUTION : MAKE SURE HOOD IS SECURE BEFORE
RELEASING
Final Assembly
18. Install the oil tunnel into recess support near rear of hood.
Refer to Figure 6.
19. Install baffle filters. Angle baffle filter toward back of hood ①
. Push baffle filter up until almost level ②. Slide forward into
recess behind the front of hood ③. Lower baffle filter ④. Slide
back until it fits into resting position ⑤. Refer to Figure 6.
Figure 4
Figure 5
Figure 5
Figure 6

7
OPERATING INSTRUCTIONS

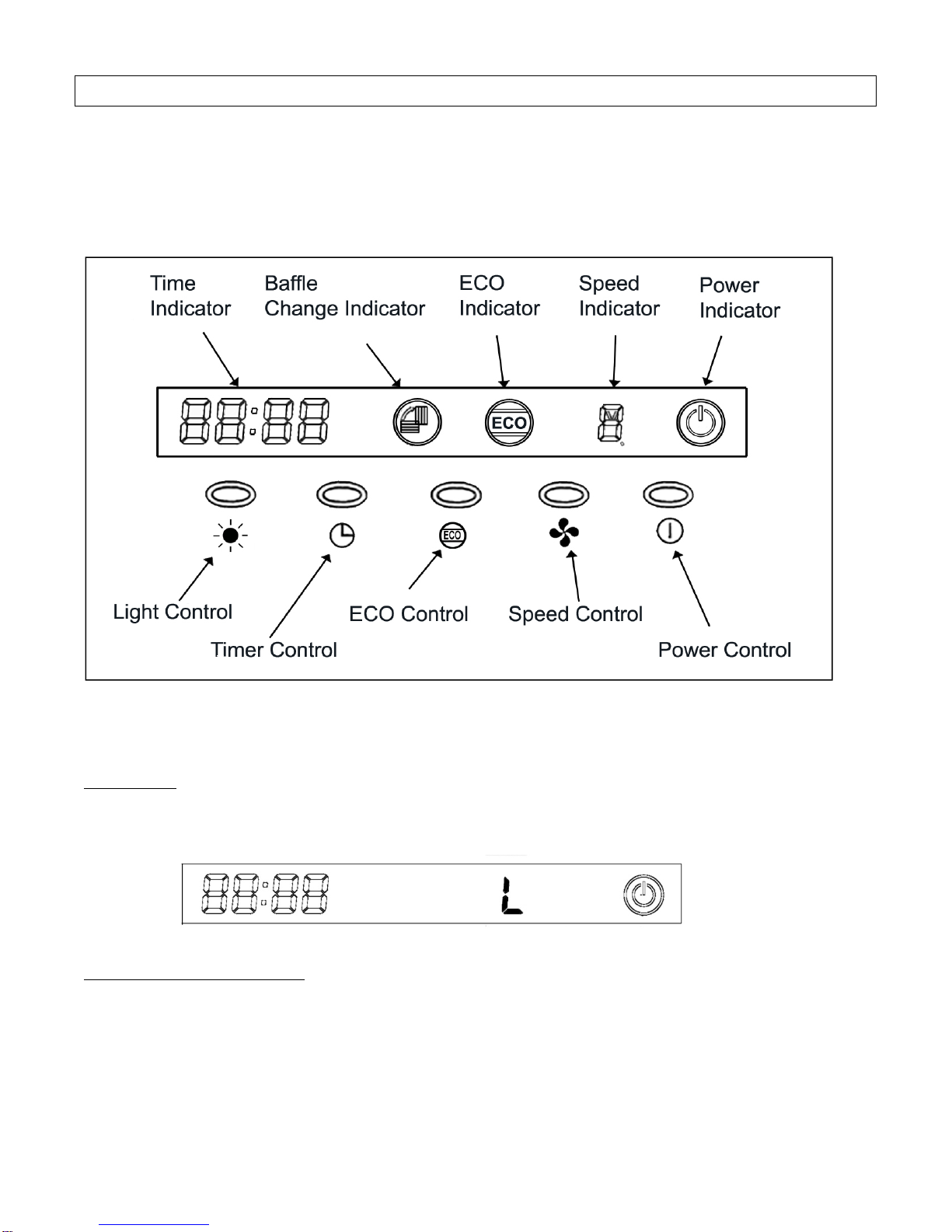

This KOBE hood is equipped with five electronic push buttons with LED display, a wireless remote control, a double
horizontalsquirrel cage blower with stainless steel baffle filters and two LED lights.
The five control buttons are Power Control (On/Off & 3-Minute Delay Shut-Off), Speed Control (High, Medium, Low &
QuietMode™), ECO Control, Timer Control and Light Control. Refer to Figure 14.
Figure 14
Note: For best results, turn the range hood to QuietMode™ prior to any preparation or cooking. Adjust speed as
needed.
Power Control
Press Power Control to turn On/Off the range hood. Hood will power on at Low speed.
Output Display:
3-Minute Delay Shut-Off Control
Delay Shut-Off Control powers down the range hood after 3 minutes. Press the Power Control to activate
Delay-Shut off. The Timer Indicator will automatically begin to count down from the default 3 minutes. When
the time is up, the unit will completely power off.
To bypass the 3-Minute Delay Shut-Off, press the Power Control again to completely power down the unit.

8
Speed Control
(Each press of Speed Control will cycle the fan through Low, Medium, High and QuietMode™.)
Output Display will indicate:
= QuietMode™ Speed
= Low Speed
= Medium Speed
= High Speed
ECO Control
The ECO function is set to turn on the range hood on QuietMode™ setting for 10 minutes every hour
to remove excess moisture, microscopic particles and odors for better kitchen air quality.
ECO is independent from the power function.
To activate ECO when the unit is powered off, press the ECO Control. The ECO icon will be displayed
to show that it is active. To deactivate it, press the ECO Control again. The icon will turn off, indicating
it has been deactivated.
To activate ECO when the unit is powered on, press the ECO Control. The ECO icon will be displayed
to show that it has been activated. In order for ECO to take effect, the unit must be turned off. If
the fan is running, power it off by pressing the Power Control. The unit will automatically shut down in
3 minutes. To power down immediately, Press the Power Control again to power down the unit. Once
the unit is powered off, the ECO icon will remain displayed, indicating that it is active. To deactivate it,
press the ECO Control again. The icon will turn off, indicating it has been deactivated.
NOTE: Must open door or windows to create sufficient make-up air when ECO is operating.
Output Display when ECO is active:
Light Control
(Lights are controlled independently from Power Control. Turning the power off will not turn the lights off.)
Press Light Control to turn lights ON. Press Light Control again to DIM the lights. Press Light Control
again to turn lights OFF.
Timer Control
The Timer Control allows users set their range hood to automatically turn off. The timer ranges from 1 min.
to 99 mins.

9
To activate the timer, the fan must be on (High, Medium, Low, or QuietMode™). As the fan is running,
toggle the timer by pressing the Timer Control. The Timer Indicator will flash, indicating it is ready to be set.
Press the Timer Control to set desired time, starting from 1 min. up to 99 mins. When finished setting time,
the timer will begin to automatically count down.
Baffle Change Indicator
The display will indicate when baffle filter needs cleaning. Press and hold the Power Control for 5 seconds
to reset the Baffle Change Indicator.

10
Remote Control
The six control buttonsfor the wireless remotecontrol are Power Control(On/Off & 3 Minute DelayShut-Off), Light Control,
ECO Control, Timer Switch Control and Speed Controls (High, Medium, Low & QuietMode™).
NOTE: Requires 2 AAA Batteries. Batteries not included.
Power Control
Press Power Control to turn hood ON and OFF. Hood will power on at Low speed.
3-Minute DelayShut-Off Control
Delay Shut-Off Control powers down the range hood after 3 minutes. Press the Power Control to activate
Delay-Shut off. The Timer Indicator will automatically begin to count down from the default 3 minute setting.
When the time is up, the unit will completely power down. To bypass the 3 minute Delay Shut-Off, press
the Power Control again to completely power off the unit.
Light Control
(Lights are controlled independently from Power Control. Turning the power off will not turn the lights off.)
Press Light Control to turn lights ON. Press Light Control again to DIM the lights. Press Light Control
again to turn OFF lights.
Speed Control
Press the Speed Control to activate the fan. The fan will start on Low speed. Each press of the Speed
Control button will cycle through the various speeds.
Press to cycle from High, Medium, Low and QuietMode™
Press to cycle from Low, Medium, High and QuietMode™.
Press Power Control to activate 3-Minute Delay
Timer Control
While the fan is running, press the Timer Control to activate the Timer. The Time Indicator will flash,
indicating it is ready to be set. Use the arrow keys to set the desired time.
Press of will decrease the time by 1 minute. Each press of will increase the time by 1 minute.
When finished setting desired time, the timer will automatically begin to count down or press the Timer
Control to immediately begin the countdown.
If the timer is not set ( OR ) within 6 seconds, the unit will automatically exit Timer Control Mode
and arrow keys will return to speed function control.

11
ECO Control
To activate ECO when the unit is powered off, press the ECO Control. The ECO icon will be displayed
to show that it is active. To deactivate it, press the ECO Control again. The icon will turn off, indicating
it has been deactivated.
To activate ECO when the unit is powered on, press the ECO Control. The ECO icon will be displayed
to show that it has been activated. In order for ECO to take effect, the unit must be turned off. If
the fan is running, power it off by pressing the Power Control. Then press the Power Control again to
power down the unit. Once the unit is powered off, the ECO icon will remain displayed to indicate that
it is active. To deactivate it, press the ECO Control again. The icon will turn off, indicating it has been
deactivated.
For optimal performance, clean the range hood surface and baffles regularly.
To Clean Hood Surface
CAUTION: NEVER USE ABRASIVE CLEANERS, PADS, OR CLOTHS.
*** Regular care will help preserve its fine appearance.
1.Use only mild soap or detergent solutions. Dry surfaces using soft cloth.
2.If hood looks splotchy (stainless steel hood), use a stainless steel cleaner to clean the surface of the hood. Avoid getting
cleaning solution onto or into the control panel. Follow directions of the stainless steel cleaner. Caution: Do not
leave on too long as this may cause damage to hood finish. Use soft towel to wipe off the cleaning solution, gently
rub off any stubborn spots. Use dry soft towel to dry the hood.
3.DO NOT allow deposits to accumulate or remain on the hood.
4.DO NOT use ordinary steel wool or steel brushes. Small bits of steel may adhere to the surface and cause rusting.
5.DO NOT allow salt solutions, disinfectants, bleaches, or cleaning compounds to remain in contact with stainless steel
for extended periods. Many of these compounds contain chemicals, which may be harmful. Rinse with water after
exposure and wipe dry with a clean lint free cloth.
To Clean Baffle Filter/Oil Tunnel
CAUTION: DRAIN OIL FROM BAFFLE FILTER, SPACERS & OIL TUNNEL REGULARLY TO PREVENT
OVERFLOW.
1.Remove all the baffle filters, spacers and oil tunnel.
2.Using a sponge, wash with warm soapy water. Dry completely before returning into place.
CAUTION: SHARP EDGES
(Note: Baffle Filters are top rack dishwasher safe.)

12
SPECIFICATIONS
MODEL / SIZE
IN2636SQB-1200 / 36”
IN2642SQB-1200 / 42”
IN2648SQB-1200 / 48”
COLOR
Stainless Steel
CONSUMPTION / AMPERE
580W / 5.0A
VOLTAGE
120V 60Hz
NUMBER OF
BLOWERS
2
BLOWER
TYPE: CENTRIFUGAL
Double Horizontal Squirrel Cage
EXHAUST
Top Transition Rectangular to 8” Round
CONTROLS
5 Push-Button Controls with LED Display
- Timer Control,
- 3-Minute Delay Shut-Off
- Wireless Remote Control
- ECO Control
LIGHTS
LED Lights 3W x 2 – 36”, Dual Level Lighting
LED Lights 3W x 3 – 42” & 48”, Dual Level Lighting
HOOD DIMENSION
(W X D X H) (IN2636SQB-1200) 34-3/8” x 22-1/2” x 12”
(IN2642SQB-1200) 40-3/8” x 22-1/2” x 12”
(IN2648SQB-1200) 46-3/8” x 22-1/2” x 12”
HOOD WEIGHT (lbs)
Net
Gross
IN2636SQB-1200 57lbs 69.5lbs
IN2642SQB-1200 62lbs 72lbs
IN2648SQB-1200 66lbs 81.5lbs
Blower
Air Capacity (cfm)
QuietMode™
Low
Medium
High
350 475 900 1200
Sone*
1.6 2.8 7.0 8.0
dB
46.5 53.5 67.5 70.0
* One Sone is equivalent to 40 decibels.
**Specifications subject to change without notice.

13
MEASUREMENTS & DIAGRAMS
All ( ) are in millimeter.
All inch measurements are converted from millimeters. Inch measurements are estimated.
MODEL NO: IN2636SQB-1200
IN2642SQB-1200
IN2648SQB-1200
Side View
Top View

14
Bottom View
MODEL NO: IN2636SQB-1200 (36”)
MODEL NO: IN2642SQB-1200 (42”)
MODEL NO: IN2648SQB-1200 (48”)

15
Front View
MODEL NO: IN2636SQB-1200 (36”)
MODEL NO: IN2642SQB-1200 (42”)
MODEL NO: IN2648SQB-1200 (48”)

16
PARTS LIST
NO.
DESCRIPTION
MODEL/SI
ZE
PART NO.
1 Ducting Transition
L1-0505-0004
2 Hood Casing
IN2636SQB-1200
10-2636B-1200
IN2642SQB-1200
10-2642B-1200
IN2648SQB-1200
10-2648B-1200
3 Processor Board
L1-0404-2636-B
4 Capacitor
L1-0401-0120-10
5 Electric Component Support
L1-0201-2636-12
6 Motor Bracket
L1-0233-2642
7 Blower System
L1-0302-0120-802DE
8 Bottom Casing IN2636SQB-1200
L1-0302-0120-802RE
IN2642SQB-1200
B101-2636-09-12
IN2648SQB-1200
B101-2642-09-12
9 Baffle Filter Support IN2636SQB-1200
B101-2648-09-12
IN2642SQB-1200
B101-2636-30-12
IN2648SQB-1200
B101-2642-30-12
10 Oil Tunnel IN2636SQB-1200
B101-2648-30-12
IN2642SQB-1200
B101-2636-28-12
IN2648SQB-1200
B101-2642-28-12
11
Stainless Steel Spacer IN2636SQB-1200
B101-2648-28-12
IN2648SQB-1200
B101-3636-14B
12 Baffle Filter
B101-3648-14B
13 Control Unit Support
L1-0214-0191
14 Control Unit
L1-0207-2630
15 Light Panel
Light Panel
Light Panel
IN2636SQB-1200
L1-0404-2636-A
IN2642SQB-1200
B101-2636-06-12
IN2648SQB-1200
B101-2642-06-12
16 LED Light (3W)
B101-2648-06-12
MODEL NO ： IN2636SQB-1200 (36”)
： IN2642SQB-1200 (42”)
： IN2648SQB-1200 (48”)

MODEL NO：
：：
：IN2636SQB-1200 (36”)
：
：：
：IN2642SQB-1200 (42”)
：
：：
：IN2648SQB-1200 (48”)
