KOBE Brand Range Hood
Model No. RA3830SQD
RA3836SQD
RA-038 SERIES – 5” HEIGHT
“RECIRCULATING HOOD”
INSTALLATION INSTRUCTIONS
AND OPERATION MANUAL

- READ AND SAVE THESE INSTRUCTIONS -
CONTENTS
Important Safety Instructions……………………………………………………………….
Components of Package……………………………………………………………………
Installation……………………………………………………………………………………
Under the Cabinet Installation………………………………..……..………………….
Stand Alone Installation…………………………………………………………………
Operating Instructions.…………………………………...…………………………………
Maintenance………………………………………………………………………………….
Specifications…………………………………………………….……..…………………...
Measurements & Diagrams…………………………………………………………...……

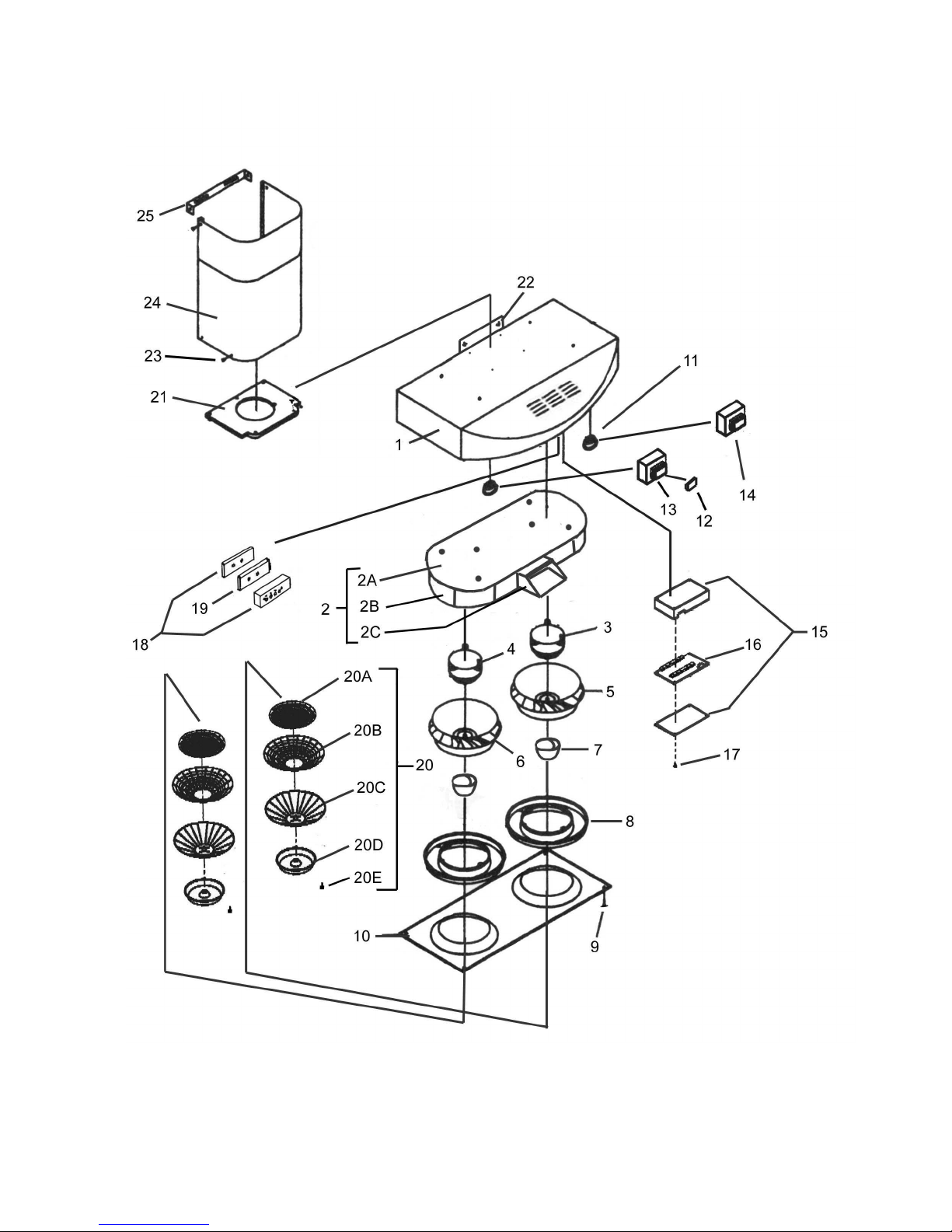

Parts List…………………………………………………………………..………………….
Circuit Diagram………………………………………………………………...…………….
Disclaimer…………………………………………………………………………………….
Warranty…………………………………………………………………...…………………
Product Registration………………………………………………………...………………
1
3
4
5
7
10
11
13
14
15
17
18
19
21
- READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING -
ALL WIRING MUST BE DONE BYA PROFESSIONALAND IN
ACCORDANCE WITH NATIONALAND LOCAL ELECTRICAL CODES.

1
IMPORTANT SAFETY INSTRUCTIONS
- PLEASE READ THIS SECTION CAREFULLY BEFORE INSTALLATION -
WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL INJURY,
OBSERVE THE FOLLOWING:
1) Installation and electrical wiring must be done by qualified professionals and in accordance
with all applicable codes and standards, including fire-rated construction.
2) When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or
other hidden utilities.
3) Before servicing or cleaning unit, SWITCH POWER OFF AT SERVICE PANEL.
4) Clean fan, filter, if any, and grease laden surfaces frequently.
NOTE - This warranty is invalid without an authorized agent’s
receipt or if unit is damaged due to misuse, poor
installation, improper use, mistreatment, negligence or
any other circumstances beyond the control of KOBE
RANGE HOODS authorized agents. Any repair carried
out without the supervision of KOBE RANGE HOODS
authorized agents will automatically void the warranty.
- KOBE RANGE HOODS will not be held responsible for
any damages to personal property or real estate or any
bodily injuries whether caused directly or indirectly by
the range hood.
WARNING – TO REDUCE THE RISK OF PERSONAL INJURY IN THE EVENT OF A RANGE
TOP GREASE FIRE:
• Keep fan, filter, if any, and grease-laden surfaces clean.
• Always turn hood ON when cooking at high heat.
• Use high settings on cooking range ONLY when necessary. Heat the oil slowly on low to
medium setting.
• Do not leave cooking range unattended when cooking.
• Always use cookware and utensils appropriate for the type and amount of food prepared.
• Use this unit only in the manner intended by the manufacturer.
• Before servicing, switch power off at service panel and lock service panel (if possible) to
prevent power from switching on accidentally.
• Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan, filter
and oil containers.

2
What to Do In The Event Of a Range Top Grease Fire
-SMOTHER FLAMES with a close fitting lid, cookie sheet, or metal tray, and then turn off the
burner. KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If
the flames do not go out immediately, EVACUATE THE AREA AND CALL THE FIRE
DEPARTMENT or 911.
- NEVER PICK UP A BURNING PAN – You may get burned.
-DO NOT USE WATER, including wet dishcloths or towels – a violent steam blast will result.
- Use an extinguisher ONLY if:
a) You have a Class A, B, C extinguisher and know how to operate it.
b) The fire is small and contained in the area where it started.
c) The fire department has been called.
d) You can fight the fire with your back to an exit.
What to Do If You Smell Gas
- Extinguish any open flame.
- Do not try to turn on the lights or any type of appliance.
-Open all doors and windows to disperse the gas. If you still smell gas, call the Gas
Company and Fire department right away.
CAUTION
1) For general ventilation use only. Do not use to exhaust hazardous or explosive materials
and vapors.
2) To reduce the risk of fire, use only metal ductwork.
3) Follow the heating equipment manufacturer’s guideline and safety standards such as those
published by the National Fire Protection Association (NFPA), and the American Society for
Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and code authorities.
4) Activating any switch may cause ignition or an explosion.
ELECTRICAL SHOCK HAZARD – Can result in serious injury or death.
Disconnect appliance from electric power before servicing.
If equipped, the fluorescent light bulb contains small amounts of mercury,
which must be recycled or disposed of according to Local, State, and
Federal Codes.

3

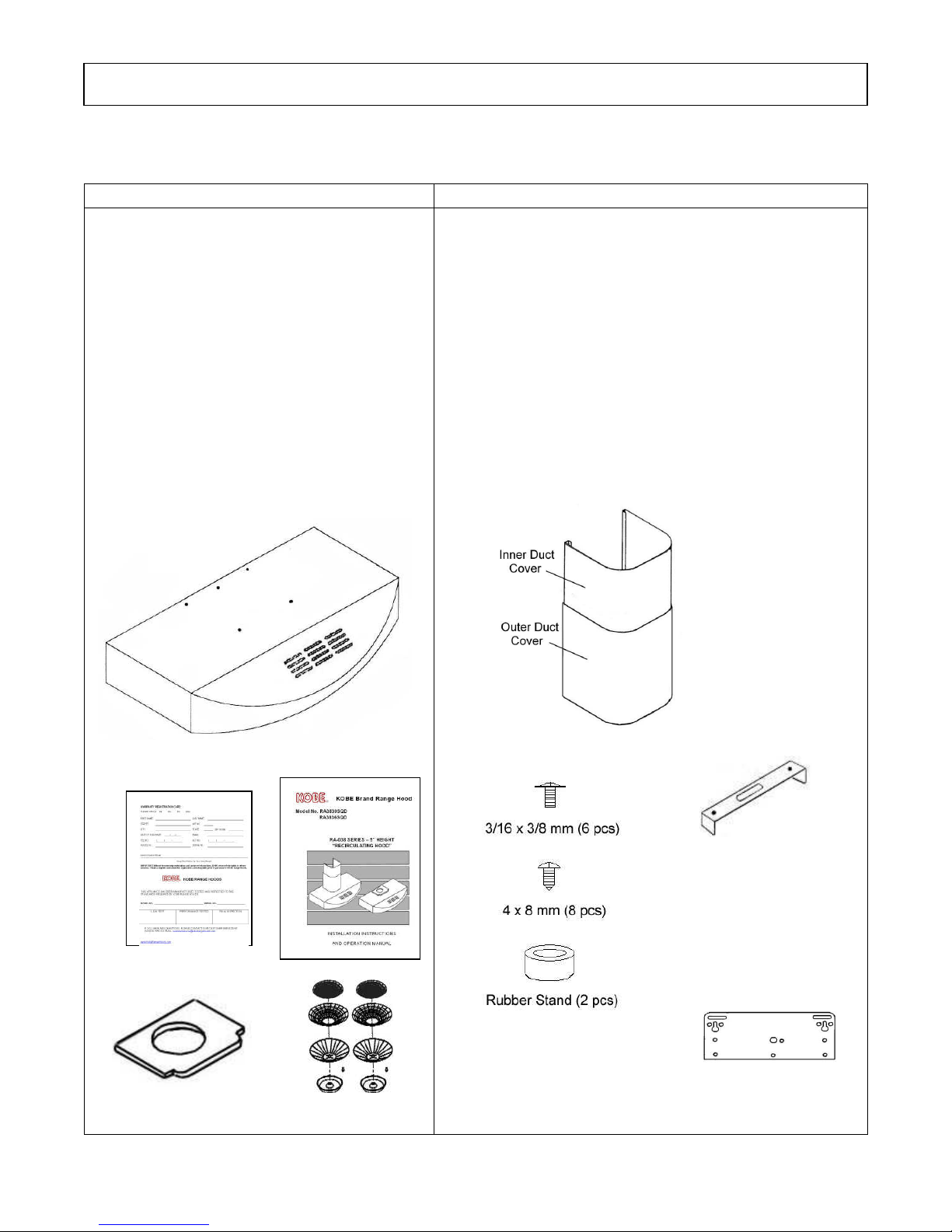

COMPONENTS OF PACKAGE
(Must keep all material for returns or refunds)
Range Hood Box Duct Cover Box (Sold Separately)
{A} KOBE Range Hood
{B} Warranty Registration Card
{C} Instructions Manual
{D} Plastic Plate
{E} Charcoal Filter Set
(Model No. RH-CF01)
- Charcoal Filter x 2
- Mesh Filter x 2
- Safety Screen x 2
- Oil Container x 2
- Screw x 2
{A}
{B} {C}
{D} {E}
***Only used with purchase
of duct cover. ***Attached to hood
{F} KOBE Duct Cover (Model No. RA1020DC)
{G} Screws Package
{H} Duct Cover-Mounting Bracket
{I} Hood-Mounting Bracket
{F}
{G} {H}
{I}

4
INSTALLATION
PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING

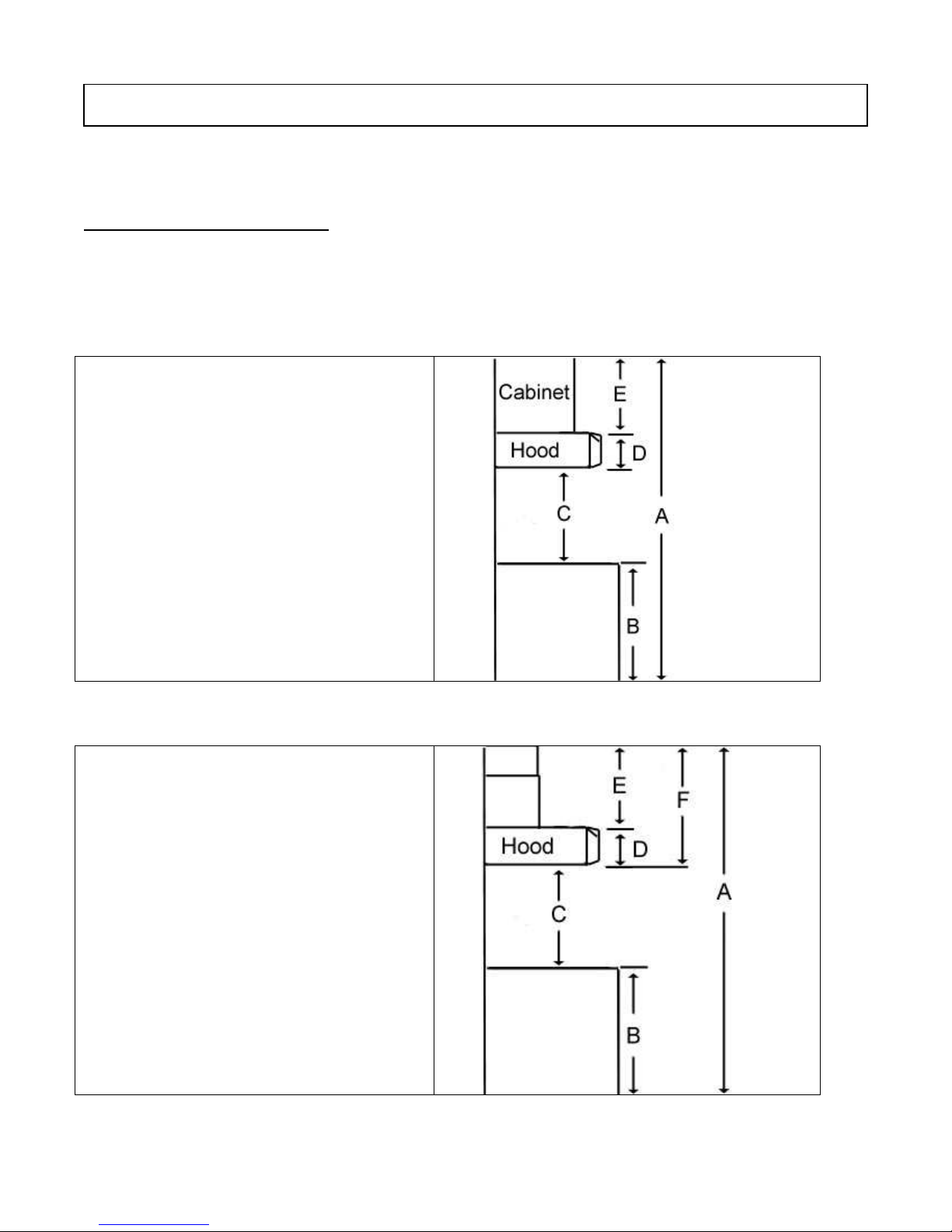

Calculation before Installation
Calculate the length of the installation, before installing the hood. (All calculation is measure in
inches.)
- FOR UNDER THE CABINET -
TABLE 1
A = Height of Floor to Ceiling
B = Height of Floor to Counter Top
(Standard: 36”)
C = Preferred Height of Counter Top
to Hood Bottom (Re
commended
27” to 30”)
D = Height of Hood
E = Height of the Cabinet
- FOR STAND ALONE (WITH OPTIONAL DUCT COVER) -
TABLE 2
A = Height of Floor to Ceiling
B = Height of Floor to Counter Top
(Standard: 36”)
C = Preferred Height of Counter Top
to Hood
Bottom (Recommended
27” to 30”)
D = Height of Hood
E = Height of Duct Cover [F – D]
F = Height of the Hood Installation
[A – (B+C)]

5
UNDER THE CABINET INSTALLATION
SAFETY WARNING
HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF IT
IS NECESSARY TO REMOVE ANY PARTS FOR INSTALLING, CLEANING, OR
SERVICING.
Preparation before Installation
- Temporarily wire the hood to test for proper operation before installing.
- Peel protective film off the hood (if any).
- For installing under the cabinet with recessed bottom, attach 4-inch wide wood filler
strips (not included) on each side. Refer to Figure 1.
- Measure and create access opening for electrical wires under the cabinet.
Hood Installation
CAUTION: If required to move the cooking range to install the hood, turn off the power on an
electric range at the main electrical box. SHUT OFF THE GAS BEFORE MOVING A GAS
RANGE.
1. Puncture the knockout holes. Refer to Figure 2.
Figure 1 Figure 2
2. Unscrew the six screws on the bottom casing. Remove the bottom casing as shown in
Figure 3. If necessary, arrange the electrical wire to run through the 1” diameter hole on
the hood.
3. Use calculation on Table 1 and measurements on page 14 as references. Center the hood
in place beneath the cabinet and flush with the front of the cabinet. Refer to Figure 4.
Figure 3 Figure 4

6
4. Draw electrical wires through cabinet access opening.
5. Place screws (not provided) into the exact center of each knockout hole. Make sure all
screws are in place before tightening screws. CAUTION: MAKE SURE THE HOOD IS
SECURE BEFORE RELEASING.
6. Connect the electrical wires. Refer to “Wiring to Power Supply.” If necessary to hide the
electrical wire connections, push wires back into the wiring box. Access the wire
connections underneath the hood by removing the bottom casing from the six screws.
Before reattaching the bottom casing, make sure wires do not slip between motors,
impellers, or any moving parts to prevent any damage. NOTE: Be careful when using
electrical screwdriver, damage to the hood may occur.
Wiring to Power Supply
SAFETY WARNING
RISK OF ELECTRICAL SHOCK. THIS RANGE HOOD MUST BE PROPERLY GROUNDED.
MAKE SURE THIS IS DONE BY SPECIALIZED ELECTRICIAN IN ACCORDANCE WITH ALL
APPLICABLE NATIONAL AND LOCAL ELECTRICAL CODES. BEFORE CONNECTING
WIRES, SWITCH POWER OFF AT SERVICE PANEL AND LOCK SERVICE PANEL TO
PREVENT POWER FROM BEING SWITCHED ON ACCIDENTALLY.
- Connect three wires (black, white and green) to house wires and cap with wire connectors.
- Connect according to color: black to black, white to white, and green to green.
- Test the operation of the hood before moving on to next step. Make sure power is supplied
to the hood.
Final Assembly
7. Turn power ON in control panel. Check all lights and fan operation.
8. Make sure to leave this manual for the homeowner.

7
STAND ALONE INSTALLATION
***This installation only applies with the purchase of an optional duct cover (Model No. RA1020DC).
SAFETY WARNING
HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF IT
IS NECESSARY TO REMOVE ANY PARTS FOR INSTALLING, CLEANING OR
SERVICING.
Preparation before installation
- Temporarily wire the hood to test for proper operation before installing.
- Peel protective film off the hood and the duct cover (if any).
- If necessary, prepare back wall frame with cross framing lumber for secure installation.
Using references on Table 2 and measurements on page 14, decide the level of the
lumber. Refer to Figure 5.
Hood Installation
CAUTION: If required to move the cooking range to install the hood, turn off the power on an
electric range at the main electrical box. SHUT OFF THE GAS BEFORE MOVING A GAS
RANGE.
1. Remove the five screws at the center of the hood top. Use the five screws to attach the
plastic plate onto the hood as shown in Figure 6. NOTE: Disregard the hole through the
plastic plate.
2. If necessary, attach two rubber stands (provided) with two (4x8 mm) screws (provided) to
the back of the hood.
Figure 5 Figure 6
3. Attach the hood-mounting bracket to the back of the hood with six (3/16 x 3/8 mm) screws
(provided) as shown in Figure 7.
4. Use the references on Table 2 and the measurements on page 14 to decide the level of
the hood. Position two mounting screws (not provided) on the wall, leaving 1/8” away
from the wall. Refer to Figure 8.

8

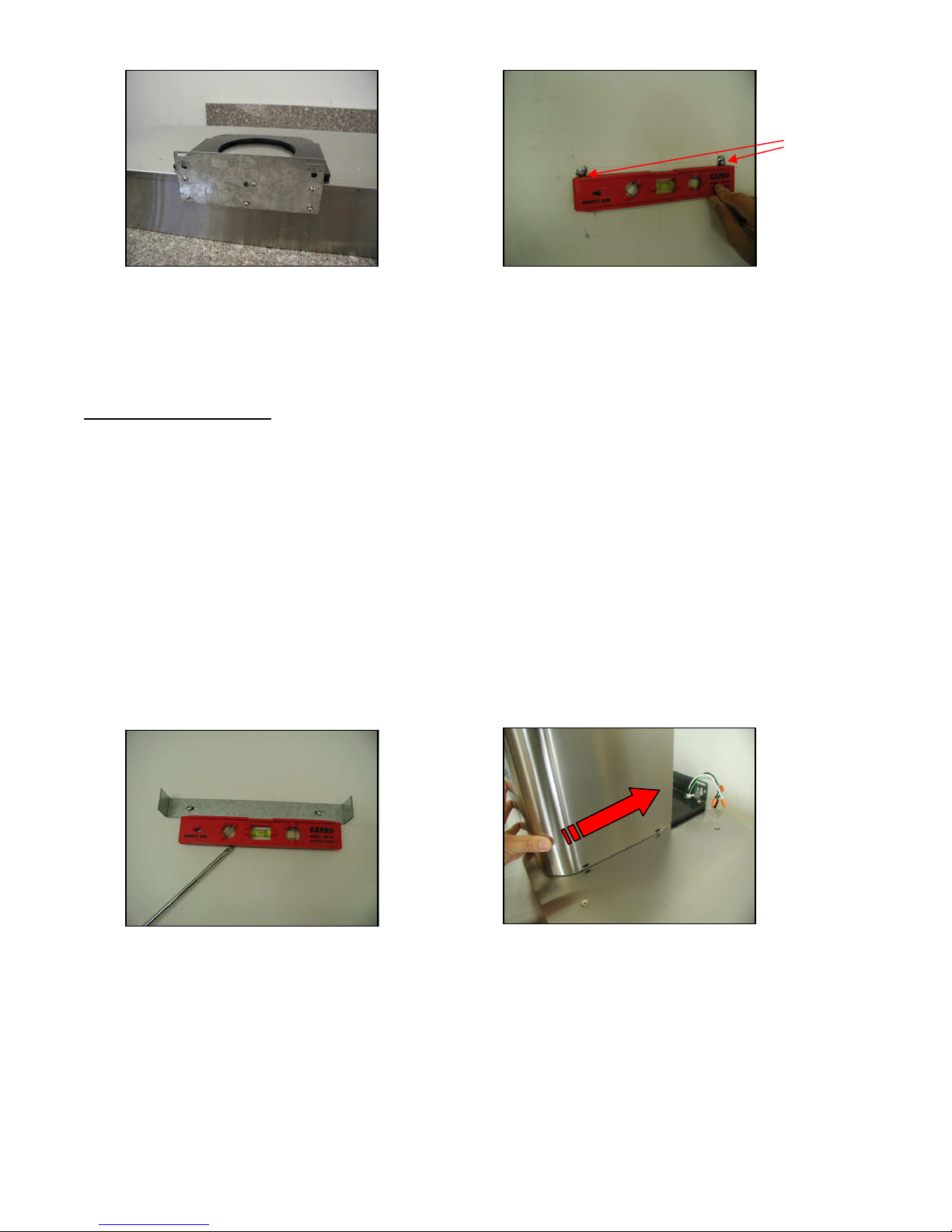

Figure 7 Figure 8
5. Align hood-mounting bracket to the two screws on the wall and hook hood into place.
Tighten screws to secure hood to the wall. CAUTION: MAKE SURE THE HOOD IS
SECURE BEFORE RELEASING.
Duct Cover Installation
6. Mark the position of the duct cover-mounting bracket. Use reference Efrom Table 2 and
measurements on page14. Attach and secure duct cover-mounting bracket with two
screws (not provided). Refer to Figure 9. NOTE: Inner duct cover will cover the duct
cover-mounting bracket.
7. Connect electrical wires. Refer to “Wiring to Power Supply.” If necessary to hide the
electrical wire connections, push wires back into the wiring box. Access the wire
connections underneath the hood by removing the bottom casing. Before reattaching the
bottom casing, make sure wires do not slip between motors, impellers, or any moving
parts to prevent any damage. NOTE: Be careful when using electrical screwdriver,
damage to the hood may occur.
8. Slide the inner duct cover up 2 inches before sliding entire duct cover onto the hood.
Refer to Figure 10.
Figure 9 Figure 10
9. Adjust the height of the inner duct cover to the duct cover-mounting bracket. Secure
inner duct cover with two (4x8 mm) screws (provided) as shown in Figure 11.
Mounting
Screws

9
Figure 11
10. Fasten outer duct cover to plastic plate on the hood with four (4x8 mm) screws (provided).
Wiring to Power Supply
SAFETY WARNING
RISK OF ELECTRICAL SHOCK. THIS RANGE HOOD MUST BE PROPERLY GROUNDED.
MAKE SURE THIS IS DONE BY SPECIALIZED ELECTRICIAN IN ACCORDANCE WITH ALL
APPLICABLE NATIONAL AND LOCAL ELECTRICAL CODES. BEFORE CONNECTING
WIRES, SWITCH POWER OFF AT SERVICE PANEL AND LOCK SERVICE PANEL TO
PREVENT POWER FROM BEING SWITCHED ON ACCIDENTALLY.
- Connect three wires (black, white and green) to house wires and cap with wire connectors.
- Connect according to color: black to black, white to white, and green to green.
- Test the operation of the hood before moving on to next step. Make sure power is supplied
to the hood.
Final Assembly
11. Turn power ON in control panel. Check all lights and fan operation.
12. Make sure to leave this manual for the homeowner.
Attach Together

10
OPERATING INSTRUCTIONS
This KOBE hood is equipped with four electronic controls with a 10-second standby startup &
30-second delay shutoff, two powerful centrifugal turbine impellers with charcoal filter set, and
two bright 12-volt 20-watt halogen lights.
The four button controls are Light Control, Speed Control A (cycles through Low, Medium,
High, QuietMode), Speed Control B (cycles through Low, QuietMode, High, Medium) and
the Power Control (On/Off). Refer to Figure 12.
Figure 12
Turn On:
- Press Power Control (On/Off) button once. (If any Control button is not pressed
within 10 seconds, power will be automatically turned off).
- The KOBE hood will start on Low speed. Each press of the Speed Control button
will cycle through the various speeds.
- Press Speed Control A button to cycle from Low, Medium, High, or QuietMode.
Press Speed Control B button to cycle from Low, QuietMode, High or Medium.
- Press Light Control button to turn halogen light on.
Turn Off:
- Press Power Control (On/Off) button once, panel lights will flash and power will be
completely shut off after 30 seconds.
OR
- Press Power Control (On/Off) button twice, all power will be shut off immediately.
- If only the lights are on, pressing Power Control (On/Off) button once will turn power
off after 30 seconds.
Speed
Control
A
(Cycles through Low, Medium, High, QuietMode 

 )
Power Control
Speed
Control
B
(Cycles through Low, QuietMode 

 , High, Medium)
Light Control

11
MAINTENANCE
CAUTION: NEVER PUT YOUR HAND INTO THE AREA HOUSING THE FAN WHILE THE
FAN IS OPERATING.
For the optimal level of operation, clean the range hood surface, charcoal filter unit, and oil
containers regularly.
To Clean Hood Surface
CAUTION: NEVER USE ABRASIVE CLEANERS, PADS, OR CLOTHS.
*** Regular care will help preserve its fine appearance.
1) Use only mild soap or detergent solutions. Dry surfaces using soft cloth.
2) If hood looks splotchy (stainless steel hood), use an orange base cleaner to clean the
surface of the hood. Avoid getting cleaning solution on the control switches. Only
spread a light coating over the surface of the hood and leave on for a few minutes (do
not leave on too long or this may cause damage to hood finish). Use soft towel to wipe
off the cleaning solution, gently rub off any stubborn spots. Use a slightly damp towel to
get rid of any cleaning solution. Use dry soft towel to dry the hood.
3) To bring the glow back into a stainless steel finish, use a stainless steel cleaner.
4) DO NOT allow deposits to remain for long periods of time.
5) DO NOT use ordinary steel wool or steel brushes. Small bits of steel may adhere to the
surface and cause rust.
6) DO NOT allow salt solutions, disinfectants, bleaches, or cleaning compounds to remain
in contact with stainless steel for extended periods. Many of these compounds contain
chemicals, which may be harmful. Rinse with water after exposure and dry with a clean
cloth.
To Clean Charcoal Filter Set and Oil Containers
CAUTION: DRAIN OIL CONTAINER BEFORE OIL CAN OVERFLOW.
1) Cleaning Charcoal Filter Set
- Remove the safety screen screw and slide the charcoal filter set out. Remove oil
container (round) by turning counter-clockwise.
- Wash with warm soapy water. Dry completely before returning into place.
- Top rack dishwasher safe.

12
To Replace Light Bulb
CAUTION: HALOGEN LIGHT UNIT MAY BE HOT! WAIT UNTIL UNIT IS COOL.
1) Make sure all control switches are off, and range hood is unplugged.

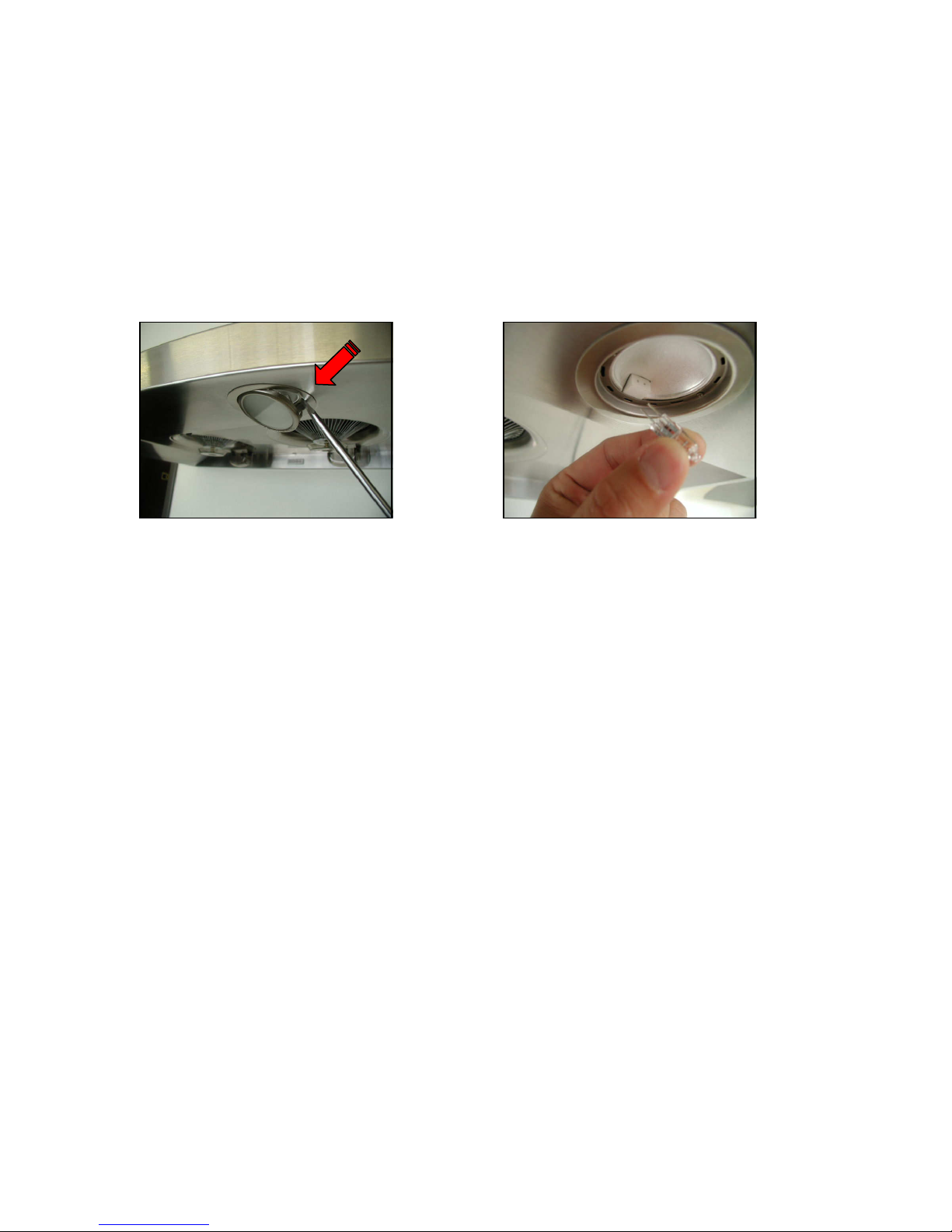

2) Use a flat head screwdriver to pop out the protective covering as shown on Figure 13.
3) Gently pull out the defective light bulb and discard. Light bulb should be 12V 20W
maximum. Refer to Figure 14. Push bulb securely into light socket.
4) Replace protective cover.
5) Plug in range hood.
Figure 13 Figure 14

13
SPECIFICATIONS
MODEL / SIZE RA3830SQD / 30”
RA3836SQD / 36”
COLOR # 430 Commercial Grade Stainless Steel
VOLTAGE 120V 60Hz
NUMBER OF MOTORS 2
DESIGN 18-Gauge Seamless
FAN TYPE Twin Turbine Impeller
EXHAUST Ductless with Charcoal Filter Set
CONTROL Electronic Control (4 Buttons) –
10-Second Standby Startup
30-Second Delay Shutoff
HALOGEN LIGHT 12V 20W x 2
HOOD DIMENSION
(W x D x H) (RA3830SQD) 29-3/4” x 20-1/2” x 5-1/8” (RA3836SQD) 35-1/4” x 20-1/2” x 5-1/8”
OPTIONAL ACCESSORIES
(W x D x H) 1) Two-Piece Adjustable Duct Cover (RA1020DC) 10-5/8” x 9-1/8” x (22-7/8” ~ 39-5/8”)
2) 30” Stainless Steel Back Panel
(SSP30) 30” x 1/10” x 32”
3) 36” Stainless Steel Back Panel
(SSP36) 36” x 1/10” x 32”
WEIGHT (lbs) Net Gross RA3830SQD 36.3 40.7
RA3836SQD 39.6 44.0
SPEED QuietModeLow Medium High
Air Capacity (cfm)* 150 200 330 400
Sone 2.0 2.8 4.0 4.6
*In House Test Static Pressure “0”.
**Specifications subject to change without notice.

14
MEASUREMENTS & DIAGRAMS
***All inch measurements are converted from millimeter. Inch measurements are estimated.
***All measurements in ( ) are millimeters.
- FOR UNDER THE CABINET -
30” = Knockout Holes “A”
36” = Knockout Holes “A” & “B”
- FOR STAND ALONE (WITH OPTIONAL DUCT COVER) -
***Hood-Mounting Bracket ***Duct Cover-Mounting Bracket

15
PARTS LIST
MODEL NO.: RA3830SQD
RA3836SQD
(Optional Duct Cover)
NO.
DESCRIPTION
MODEL /SIZE
PART NO.
1 Hood Casing RA3830SQD 10-03300-F
RA3836SQD 10-03360-F
2
A
B
C
Air Chamber
Air Chamber (Top) C1-0102-0770F
Air Chamber (Side) C1-0101-0770F
Air Chamber (Opening) C1-0241-0770FA
3 Motor (Right) C1-0301-0120-08A
4 Motor (Left) C1-0301-0120-07A
5 Impeller (Right) C1-0251-0092-02
6 Impeller (Left) C1-0251-0092-01
7 Impeller Plastic Cover C1-0251-0001
8 Oil Tunnel C1-0502-0201
9 Flat Head Screws (3/16” x 5/8”) C1-0704-0001
10 Bottom Casing RA3830SQD B101-0330-09F
RA3836SQD B101-0336-09F
11 Halogen Light (12V 20W Max.) C1-0403-0101
12 Capacitor C1-0401-0120-01A
13 Transformer (Motor) C1-0402-A120-04
14 Transformer (Halogen Light) C1-0402-0120-40
15 Processor Board Box C1-0501-0102
16 Processor Board C1-0404-0401-B
17 Round Head Screw (TS 1/8” x 3/8”) C1-0708-0003
18 Control Unit C1-0501-0101
19 Control Board C1-0404-0401-A
20
A
B
C
D
E
Charcoal Filter Set RH-CF01
Charcoal Filter C1-0603-0302
Mesh Filter MF-0201 C1-0604-0201
Safety Screen C1-0602-0202
Oil Container (Round) C1-0503-0201
Safety Screen Screw C1-0705-0001
21 Plastic Plate C1-0507-0201
NO.
DESCRIPTION
MODEL /SIZE
PART NO.
22 Hood-Mounting Bracket C1-0221-0330
23 Round Head Screw (TS 4 x 8 mm) C1-0708-0006
24 Duct Cover RA1020DC 12-02000-430
25 Duct Cover-Mounting Bracket C1-0203-0002

16
MODEL NO.: RA3830SQD
RA3836SQD

17
CIRCUIT DIAGRAM
MODEL NO.: RA3830SQD
RA3836SQD

18
DISCLAIMER
1. CAREFULLY INSPECT ALL ITEMS FOR DAMAGES BEFORE ACCEPTING
DELIVERY. NOTE ANY DAMAGES ON THE FREIGHT BILL OR EXPRESS
RECEIPT. REQUEST NAME AND SIGNATURE OF THE CARRIER’S AGENT AND
KEEP COPY TO SUPPORT YOUR CLAIM.
Upon acceptance of items, owner assumes responsibility for its safe arrival. Damages
should be reported to carrier and a claim filed. Failure to do this could result in the
carrier refusing to honor your claim. The carrier will furnish you with necessary forms
for filing a claim.
DAMAGES CAUSED DURING TRANSIT ARE NOT COVERED UNDER OUR
WARRANTY.
2. PLEASE INSPECT CONTENTS OF PACKAGE (S) CAREFULLY UPON RECEIVING!
We must be notified in writing of any damages and/or missing parts within the allocated
days upon receipt of package(s). Contact your local KOBE dealer or distributor or call
KOBE for the time limit.
CLAIMS WILL NOT BE ACCEPTED AFTER THE ALLOCATED DAYS.
NOTE: ITEMS WERE THOROUGHLY TESTED AND CAREFULLY PACKED IN OUR
FACTORY.
3. Products must be returned in good working condition with ALL original parts and
documentation packed in ALL original cartons, fillers and shipping cartons. A restocking
fee of 25% will be charged for all approved return(s).
EXCHANGES OR RETURNS MAY NOT BE ACCEPTED IF ANY PACKAGING IS
MISSING.
4. MAKE SURE TO INSPECT THE HOOD FOR DAMAGES AND DEFECTS BEFORE
INSTALLATION. Appearance flaws of the hood found after installation and not
affecting hood performance is not covered under our warranty for returns or exchanges.
Service visits not covered under warranty will carry a service charge.
A) Before Installation: Return for exchange or refund (please see above for
acceptable returns).
B) After Installation: NO exchange or refund.
