Kodak PIXPRO AZ401 User manual

User Manual
KODAK PIXPRO AZ401
DIGITAL CAMERA

ii
1
ii
1
Declaration of Conformity
Responsible Party: JK Imaging Ltd.
Address: JK Imaging Ltd., 17239 So. Main Street, Gardena, CA 90248 USA
JK Imaging Europe, 71 Clarendon Road, Watford, WD17 1DS, UK
Company Website: kodakpixpro.com
For Customers in the U.S.A.
Tested to Comply with FCC Standards FOR HOME OR OFFICE USE
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
For Customers in Europe
"CE" mark indicates that this product complies with the European requirements for
safety, health, environment and customer protection. "CE" marked cameras are
intended for sales in Europe.
This symbol [crossed-out wheel bin WEEE Annex IV] indicates separate collection
of electrical waste and electronic equipment in the European countries. Please do
not throw the equipment into domestic refuse. Please use the return and collection
systems available in your country for proper, safe disposal of this product.
Batteries: Please dispose of used batteries at designated collection centers.
Packaging: Please follow local regulations for the recycling of packaging.
BEFORE YOU START

2
3
2
About this Manual
Thank you for purchasing this KODAK PIXPRO Digital Camera. Please read this manual
carefully and keep it in a safe place for future reference.
JK Imaging reserves all rights of this document. No part of this published manual may
be reproduced, transmitted, transcribed, stored in a retrieval system or translated
into any language or computer language, in any form, by any means, without the prior
written permission of JK Imaging.
All trademarks mentioned in this manual are used for identiication purposes only and
are properties of their respective owners.
This manual provides you with instructions on how to use your new KODAK PIXPRO
Digital Camera. Every effort has been made to ensure that the contents of this manual
are accurate, however JK Imaging reserves the right to make changes without notice.
Throughout this manual, the following symbols are used to help you locate
information quickly and easily:
Indicates useful information.
In the instructions below, the following symbols may be used throughout this manual
on how to operate the camera. This is to facilitate better understanding.
「Item properties」： The optional properties in the camera interface are indicated
by the symbol「」.

2
3
SAFETY NOTES
Safety Notes for this Camera
Do not drop the camera or allow it to
hit solid objects.
Do not attempt to disassemble or
repair the camera.
Do not use or store the camera in dusty
places or on a beach to prevent dust
or sand from entering the camera,
causing possible damage to it.
Do not use or store the camera in a hot
environment or under direct sunlight.
Do not use or store the camera near a
powerful magnetic ield, for example
near a magnet or transformer.
Avoid touching the lens of the camera.
Do not expose the camera to direct
sunlight for a long period of time.
To prevent the camera from being
damaged by moisture, do not use
or store the camera in very humid
environments, such as in rain or near
bodies of water.
If water accidentally comes in contact
with the camera, turn the camera off,
remove the battery and the memory
card, and dry it within 24 hours.
When you take the camera from a
cold place to a warmer environment,
condensation may occur. Please wait
for a reasonable period of time before
you turn it on.
Before you remove the battery and
memory card, the camera should be
turned off.
When you clean the body of the
camera, do not use abrasive, alcohol-
based or organic cleaner.
Use a professional lens wiping cloth
and dedicated cleaner to wipe and
clean the lens.
Download your photos and remove the
memory card when you are going to
store the camera for a long period of
time.
If this camera is not in use for a long
time, please keep it in a dry and clean
condition.
Our company will not pay
compensation for any failure of
playback of pictures or videos caused
by improper operation.

4
Safety Notes for Battery
If battery luid leaks inside the
camera, contact our customer service
department. If battery luid leaks onto
your skin, rinse your skin with clean
water and seek immediate medical
attention.
Disposal of used batteries should be
carried out in accordance with the
local (national or regional) regulations.
To prevent the battery from being
damaged, do not drop the battery or
allow it to hit solid objects or to be
scratched by the objects.
Do not let the battery come in contact
with metal objects (including coins)
to avoid short circuiting, discharging,
excessive heat, or possible leakage.
Do not attempt to disassemble the
battery.
Do not expose the battery to water.
Always keep the battery contacts dry.
Do not heat the battery or throw it into
a ire to avoid a possible explosion.
Do not store the battery in a hot
environment or in direct sunlight.
When the camera is stored for a long
period of time, remove the battery
and keep it in a dry place that is not
accessible to infants and children.
In a colder environment, the
performance of the battery could be
noticeably reduced.
When you install the battery, install it
according to the positive and negative
markings on the battery compartment.
Never force it into the battery
compartment.

5
Safety Notes for Memory Card
We suggest buying only well-known,
name brand memory cards to ensure
peak performance.
Format the memory card using the
camera before you use it or insert a
new one.
Do not drop the memory card or
allow it to hit solid objects to avoid
damaging it.
Do not attempt to disassemble or
repair the memory card.
Do not expose the memory card to
water. Always keep it dry.
Do not remove the memory card when
the camera is turned on. Otherwise,
the memory card could be damaged.
Do not directly edit the data on the
memory card. Copy the data to your
PC before you edit them.
When the camera is stored for a long
period of time, be sure to download
your photos and remove the memory
card. Store it in a dry environment.
Do not modify the name of the iles
or folders of the memory card using
your PC. Modifying the ile names may
cause the iles to not be recognized
on the camera or a possible error may
occur.
A photo taken with the camera
will be stored in the folder that is
automatically generated on the
memory card. Do not store photos
that are not taken using this camera in
these folders as the pictures cannot be
recognized during the playback.
When you insert a memory card, make
sure the notch of the card matches the
markings on the top of the card slot.

6
7
6
Other Safety Notes
Do not disconnect the power or turn the product off during the update process. Doing
so may cause incorrect data to be written and the product may not power on later.
Do not hang the neck strap of the camera around the neck of a child.
When using your product on an airplane, observe the relevant rules speciied by the
airline.
Due to the limitations of manufacturing technology, the LCD may have a few dead or
bright pixels. These pixels do no effect the quality of the photos or video.
Do not expose the LCD to water. In a humid environment, only wipe it with a soft and
dry cleaning cloth.
If the LCD is damaged, pay particular attention to the liquid crystal in the screen.
If any of the following situations arise, take the recommended immediate action
indicated below:
1. If liquid crystal comes in contact with your skin, please wipe with a dry cloth, wash
thoroughly with soap, and rinse with plenty of clean water.
2. If liquid crystal gets into your eye, lush the eye immediately with plenty of clean
water for at least 15 minutes and then seek for medical assistance.
3. If liquid crystal is swallowed, immediately lush your mouth thoroughly with clean
water and induce vomiting. Seek for medical assistance.

6
7
BEFORE YOU START................ 1
SAFETY NOTES .......................3
CONTENTS..............................7
GETTING READY.....................11
Accessories Included......................11

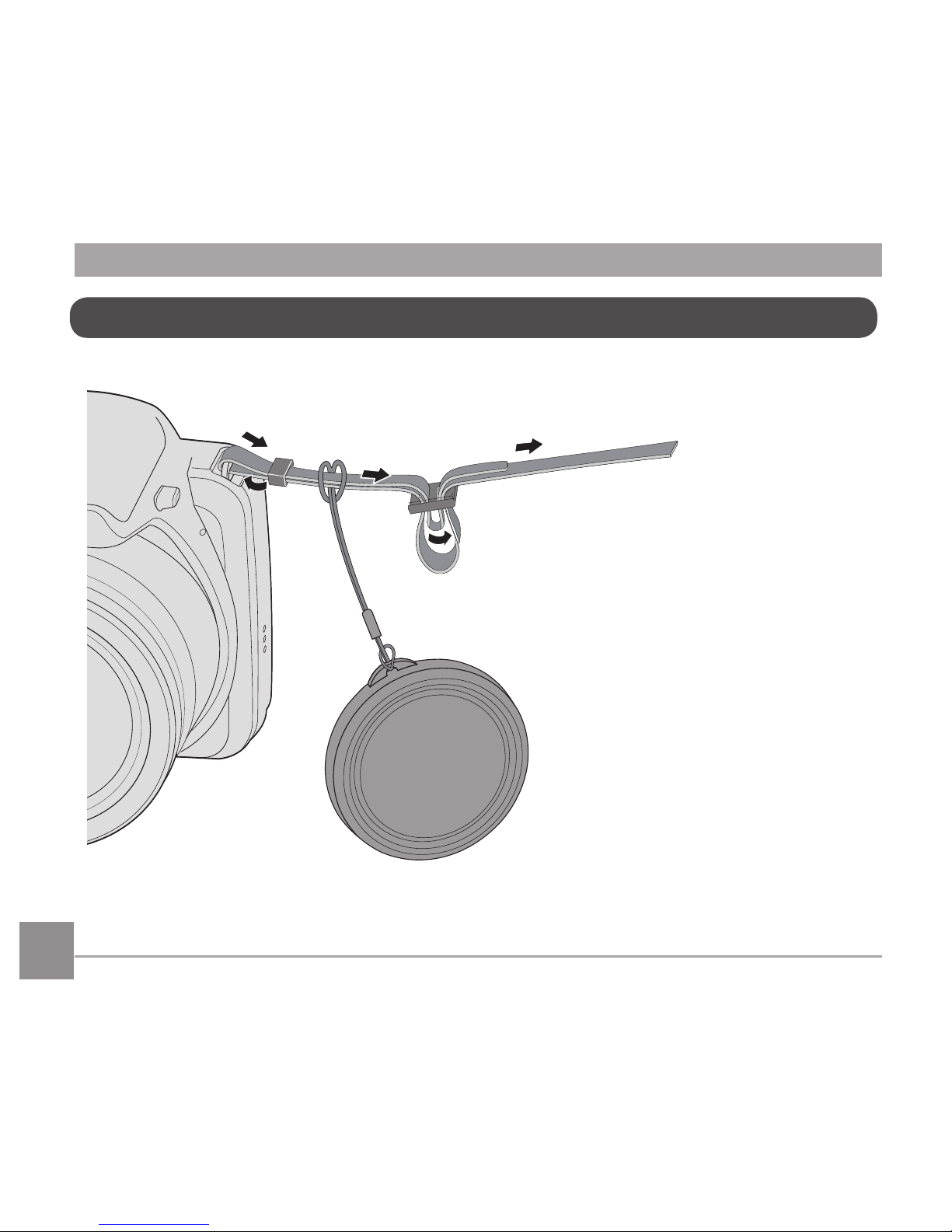

Install lens cap and neck strap .......12
Part Names ......................................13
Installing Battery and Memory
Card .................................................15
Turn On / Off the Camera ...............17
How to take pictures .......................17
Set your Language, Date/Time
after the irst power-on.............18
Resetting your Language..........18
Set your Language, Date/Time.......18
Resetting Date/Time .................19
MODE OVERVIEW ................ 20
Display Setting ................................20
LCD Screen Display.........................21
Overview of the screen icons in
photo shooting mode ...............21
Overview of the screen icons in
movie mode ..............................23
Overview of the screen icons in
playback mode..........................24
Using the Mode Dial ........................25
Auto Mode .......................................26
Program AE......................................27
Shutter Priority ...............................27
Aperture Priority..............................28
Manual Mode...................................28
Face Beautiier.................................29
Panorama Mode ..............................30
Scene Mode.....................................31
Auto Scene Mode (ASCN).........33
CONTENTS

8
Custom Settings..............................34
BASIC OPERATION............... 36
Using the Zoom Function................36
Focus Setting...................................37
Macro Mode.....................................38
Self-timer Setting ............................39
Flash Mode .....................................40
White Balance Setting.....................41
Continuous Shot .............................42
EV Setting ........................................43
Exposure Compensation ..........43
ISO.............................................44
Shutter Adjustment...................44
Aperture Adjustment ................45
Using Quick Recording ...................45
i Button Function Menu...................46
PLAYBACK .............................47
Viewing Photos and Videos ............47
Thumbnail View...............................48
Using Zoom Playback (for still
pictures only)...................................49
Photos and Video Deletion .............50
Slideshow ........................................51
USING THE MENUS...............52
Photo Setup Menu...........................52
Expo Metering (Exposure
Metering)...................................52
Image Size.................................53
OIS.............................................53
Cont. AF.....................................54
HDR............................................54
Face Beautiier ..........................55
Scene.........................................55
Photo Shooting Setting Menu ........57

9
Quality .......................................57
AFAssist Beam .........................58
Digital Zoom..............................58
Date Imprint ..............................59
Quick Review ............................59
Custom Settings .......................60
Face Detection..........................60
Movie Menu .....................................61
Expo Metering (Exposure
Metering)...................................61
Video Quality.............................62
OIS.............................................62
Movie Setting Menu ........................63
Custom Settings .......................64
Digital Zoom..............................64
Playback Menu ................................65
Playback ....................................66
HDR............................................66
Touch-up ...................................67
Rotate ........................................68
Resize ........................................69
i button playback function..............70
Playback Setting Menu ...................71
Protect.......................................72
Delete ........................................73
DPOF (Digital Print Order
Format) ......................................74
Trim............................................74
Setup Menu .....................................75
Sound Settings..........................75
Power Saver...............................76
Power Saver...............................76
Language...................................76
World Time ................................76
Date/Time..................................77
LCD Brightness..........................77
Battery Type ..............................77

10
11
10
Format .......................................78
File Settings.....................................78
Copy to Card.............................79
File Numbering..........................79
Reset..........................................80
FW Version.................................80
CONNECTIONS..................... 81
Connecting to a Computer.............81
Setting the USB Mode ..............81
Transferring iles to your
computer...................................82
Video System ..................................83
Set Eye-Fi Card Connection Mode .84
Supported HDMI Connections .......85
Connecting HDMIReady TV.....85
Setting the USB Mode ..............86
Connecting to a PictBridge
Compatible Printer..........................86
Connecting to your Printer.......87
Print (with Date) ........................88
Using the PictBridge Menu .............88
Print (without Date)...................89
Print Index .................................90
Print DPOF Images ....................91
Exit.............................................91
APPENDICES .........................92
Speciications..................................92
Prompts and Warning Messages ....96
Troubleshooting ..............................100

10
11
GETTING READY
Your camera box should contain the camera model you purchased along with the
following accessories. If anything is missing or appears to be damaged, please contact
your retailer.
Accessories Included
Neck strapAA alkaline battery ×4 Lens cap with cord
Warranty cardQuick start guide Service card
Quick Start Guide
STOP

12
13
Install lens cap and neck strap






12
13
Part Names
1. Zoom Lever
2. Shutter Button
3. Strap Eyelet
4. Exposure Compensation Button
5. Continuous Shot Button
6. Power Switch
7. AF Assist Beam/Self-timer Lamp
8. Mode Dial
9. Flash Lamp
10. Flash Button
11. Microphone
12. Speaker
13. Lens
1
2
3
11
12
13
4 5 6 7 8 9 10 3

14
15
14
14. i Button
15. Indicator Lamp
16. Fast Video Recording Button
17. Menu Button
18. Micro USB Port
19. Micro HDMI Port
20. AF Button/Up Button
21. Flash Button/Right Button
22. Delete Button/Self-timer Button/
Down Button
23. Display Button
24. Battery Cover Switch
25. Battery Cover
26. Playback Button
27. Tripod Socket
28. Macro Button/Left Button
29. SET Button
30. LCD
16 171514
2729 25 2426
20
22
23
21
18
19
2830

14
15
2. Insert the batteries into the battery slot
in the correct position as shown in the
following diagram:
1. Open the battery cover according to
①,②,③.
Installing Battery and Memory Card

16
17
16
4. Close the battery cover according to
①,②.
2
1
3. Insert the memory card into the
memory card slot as shown in the
diagram below:
The memory card (SD/SDHC) is
optional and not included in all
camera packaging. It needs to be
purchased separately. Please use an
original memory card which is Class
4 or higher and has a capacity of
4GB to 32GB.
To remove your memory card, open
the battery cover, gently press the
memory card to eject it and remove
it carefully.
Write Protection
Buckle

16
17
Turn On / Off the Camera
Slide the power switch to turn on/off the
camera.
Power Switch
When the power is off, press and
hold the button to power on and
enter playback mode.
How to Take Pictures
1. Hold the camera with both hands , not
blocking the lash and lens by ingers.
2. Aim the camera at the object and then
frame with the LCD.
3. Use the zoom lever to select Tele or
Wide positions to zoom in or out on
your subject.
4. Press the shutter button half way to
focus on the subject. When the focus
frame turns green, press the shutter
button completely down to take the
picture.

18
19
1. Press the button, press the up/down
arrow buttons to select , and press
the button to enter the menu.
2. Press the up/down arrow buttons to
select , and press the button or
right arrow button to enter the menu.
3. Press the up/down arrow buttons to
select 「Language」and press the
button or right arrow button to enter
the menu.
4. Press the arrow buttons to select your
desired language and press the
button to conirm.
5. Press the button and the snapshot
screen appears.
Set your Language, Date/Time after
the irst power-on
1. When you turn the camera on for
the irst time, the language selection
screen appears.
2. Press the arrow buttons to select your
desired language.
3. After you press the button to
conirm the selection, the Date/Time
settings screen appears.
4. Press the left/right arrow buttons to
select the Date/Time to be adjusted:
Time is displayed in YYYY.MM.DD
HH:MM.
5. Press the up/down arrow buttons to
adjust the value for the selected Date/
Time.
6. Press the button to conirm the
time settings and the snapshot screen
appears.
Resetting your Language
After you set your language for the irst
time, follow the instructions below to
reset your language.
Set your Language, Date/Time

19
18
19
Resetting Date/Time
After you set your Date/Time for the irst
time, follow the instructions below to
reset date and time.
1. Press the button, press the up/down
arrow buttons to select , and press
the button to enter the menu.
2. Press the up/down arrow buttons to
select , and press the button or
right arrow button to enter the menu.
3. Press the up/down arrow buttons to
select 「Date & Time」and press the
button or right arrow button to
enter the menu.
4. Press the left/right arrow buttons to
select the Date/Time to be adjusted:
Time is displayed in YYYY.MM.DD
HH:MM.
5. Press the up/down arrow buttons to
press the value for your selected block.
After you inish your settings, press the
button to conirm.
6. Press the button and the following
snapshot screen appears.
