Koeppl Frastalent FT User manual
!!!"#$%&&'"($)*+,$-#$%&&'"($)
Translation of the original manual
for
2-wheel tractor
Frästalent series
The basis for working with the 2-
wheel tractor is that you read, understand and follow this
operating manual and that for the attachments as well as the engine manufacturer’s operat-
ing manual. You may not commence with the operation before havi
ng done so. It is forbidden to
start work without observing this manual!
Edition / Rev. date
01-2011 – 28/4/2011
Retain for future reference!
TypeFT / FTS
Table of contents
!
"#$
%&"#"'
!
"#$$
%
&$'%
%
()*
*
+,-.
.
$,-/
/
-0/
$$
&$
$
!
10
2
)
$
#--!
"(
3--%
%
*
!
$4$.
54#$
3
%
0
*
6'
.
2!
/
$
7-
$
00#0$*
!
+$.
# !
8-/
)"!
9
2
6$'
!
6$!
!
5
%
:$
*
0
"*!+
&#$
:
#)"& "!(
!
8
Foreword
Before putting the 2-wheel tractor into operation, it is absolutely essential to read
and follow the instructions regarding appropriate use, the operating manual and the
safety instructions as well as the operating manuals for the attached devices operated
with the 2-wheel tractor!
The guarantee only applies in the case of proper operation!
Dear customer, you have made the right choice!
Although the available choice is large, you have decided on a 2-wheel tractor. We
are particularly pleased about that. We will do our best to satisfy you for many years to
come.
We hope you will be our best advertisement from now on.
The following points distinguish our product:
•The appliance is very well balanced, you can work without effort.
•It is equipped with an outstanding engine.
•Maintenance costs are hence very low.
•The shifter is easy to operate.
•The supply of spare parts is guaranteed and takes place promptly.
•Optimum customer service is at your disposal at all times.
The 2-wheel tractor is the result of decades of experience and can therefore be
used practically and continuously.
The company is constantly working on the further development of all of its
machines and appliances. We therefore reserve the right to make changes to the
form, technology and equipment of the scope of supply. Please understand that no
claims can be derived from the specifications and illustrations contained in this
manual.
IF YOU HAVE ANY REQUESTS FOR IMPROVEMENT, PLEASE LET US
KNOW!
$
:
Appropriate use
The 2-wheel tractor (Type Frästalent) and the original attached devices approved
by the manufacturer are designed exclusively for normal usage and work in agriculture and for-
estry, such as mowing grass and pastures. This could also include snow clearing, winter services
and sweeping.
Depending on the setting of the steering shaft, the 2-wheel tractor is designed for the fol-
lowing work:
Front attachment: for mowing, rotary ploughing, chaff cutting, cleaning, snow hoeing, snow
clearing and transporting.
Rear attachment: for hoeing, ploughing, grubbing and for single-axle trailers (brake required).
•The conditions specified in the quotation and in ‘appropriate use’ are decisive. Any other
use is construed as being inappropriate. The manufacturer shall not be liable for any dam-
ages resulting from this; the user alone bears the risk.
•This work is permitted only if the engine sizes, wheel sizes and environmental conditions
are suitable.
•The 2-wheel tractor (type Frästaslent / Frästalent Spezial) may only be used, main-
tained and repaired by persons who are familiar with this work and who have been instruct-
ed about the hazards.
•The 2-wheel tractor may not be used on steep slopes. There are conversion kits for
these special types of operation – twin wheels, iron slope wheels, gauge extensions etc.
•Unauthorised conversions and alterations to the 2-wheel tractor are forbidden for
safety reasons!
•Relevant regulations governing the prevention of accidents as well as the generally accept-
ed regulations governing health and safety at work and road traffic rules must be complied
with.
Information!
The operating, service and maintenance conditions for the 2-wheel tractor specified
in this operating manual are prerequisites for appropriate use and must be strictly adhered
to.
Warning!
If the machine is used for any other purpose than that stated above or is driven with a
higher power than is permitted, dangerous situations may arise for people and damage to
property can occur.
Warning!
The manufacturer is not aware of any inappropriate or prohibited uses of the machine.
The improper attachment of additional devices or the attachment of additional devices and
parts not purchased from the company exclude liability for any resulting damage.
5
'
General safety instructions
1. Possible hazards in dealing with the 2-wheel tractor.
In the case of incorrect operation or misuse, there is a danger of
•injury to or death of the operator,
•damage to the 2-wheel tractor and other property belonging to the user,
•impairment of the efficient operation of the 2-wheel tractor.
All persons who are involved with the start-up, operation, service and maintenance of the
2-wheel tractor must
•be appropriately qualified and
•observe and follow this operating manual precisely!
It’s your safety that is at stake!
2. Safety instructions and tips

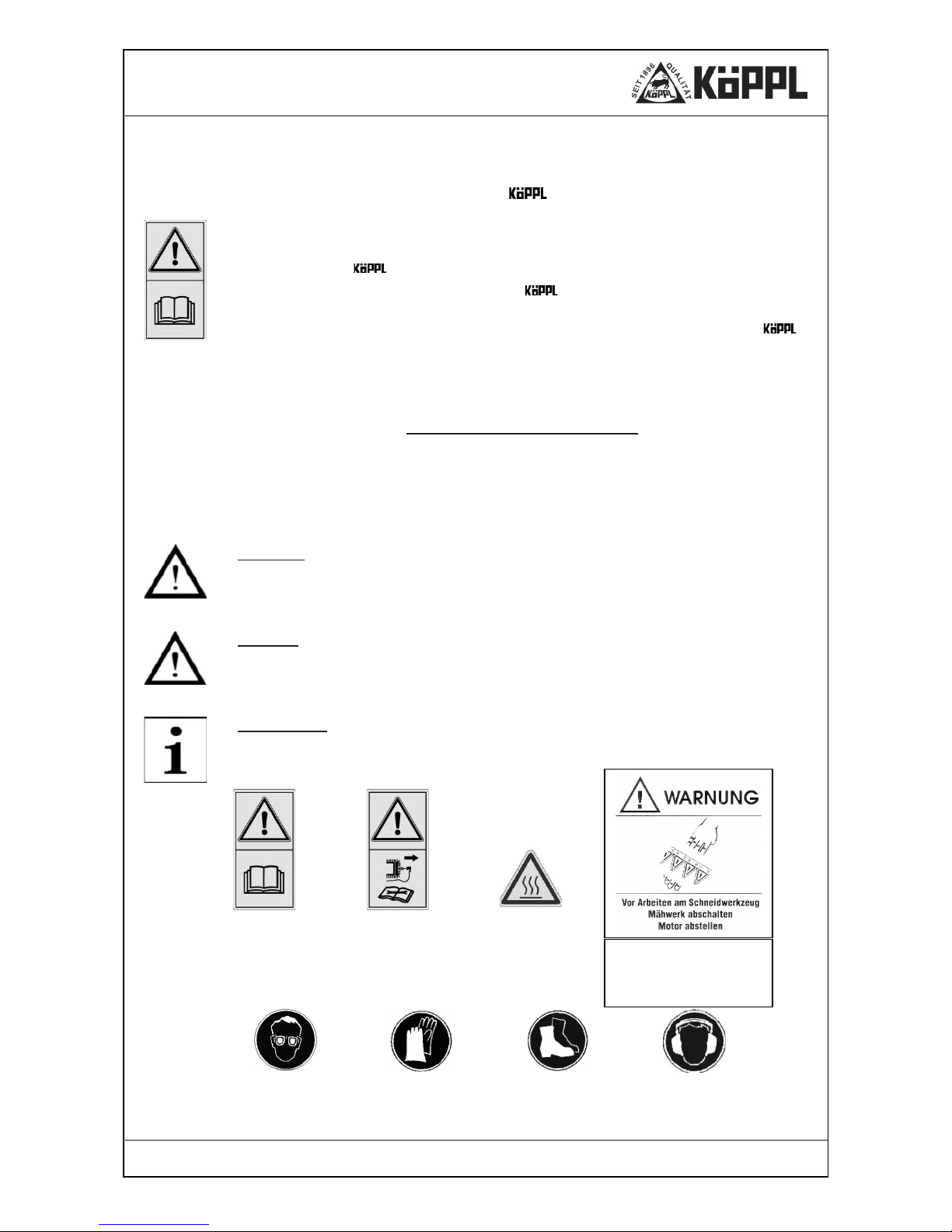

The following symbols are used in this operating manual:
Warning!
This symbol indicates important safety information in this operating manual.
If you see this symbol, beware of the possible risks of injury. Read the following instructions
carefully and also inform other operating personnel.
Caution!
This symbol indicates a possibly dangerous situation.
Slight injuries may result from failing to follow the instructions.
Information!
This symbol denotes safety tips and other useful information.
Switch off the engine
and remove the spark
plug cap before
repair, maintenance
and cleaning!
Read and follow the
oper
ating manual and
safety instructions
before putting into
operation!
Warning of a hot
surface
Wear safety glasses
Wear protective
gloves
Wear safety shoes
Wear ear protectors
Switch off the mowing
attachment and the en-
gine before working on
the cutting tool
+
5
3. Hazards due to accessories
Attached devices, mowing devices and any other additional devices used must not disable
the safety devices of the 2-wheel tractor.
4. Noise / vibration values
Noise information (sound power level EN ISO 3744) - emissions
Noise information (sound pressure level EN ISO 11201) - immissions
Vibrations (hand/arm vibrations DIN 45675 Part 8) - immissions
The A-weighted sound power level and the A-weighted emission sound pressure level of the
2-wheel tractor, without additional devices, measured at the operator's ear are
Version
Sound power level
[dB(A)]/[rpm]
Sound pressure level
[dB(A)]/[rpm]
Vibrations
[m/s²]
FT6 97.3 84.0 2.5
FT10 98.8 84.7 3.6
FT12 98.1 86.5 3.7
FT8H 104.2 92.5 4.2
FT12H 103.5 90.1 4.6
It is to be expected that the sound pressure level will increase by up to 4.5 dB(A), depending on
the attached tool - wear ear protectors!
•Measurement took place on a lawn in the open air, based on EN ISO 3744 (sound power
level) and EN ISO 11201 (sound pressure level).
•The measuring instrument used, Norsonic type 116, complies with the DIN IEC 651 class
1, DIN IEC 804 class 1 and DIN 45657 class 1 standards.
•Engine speed = highest engine operating speed
•Radius of the semicircular measurement area = 4 m.
2. Vibration measurements took place in accordance with EN 1033
Measuring devices
•Measuring device – CASTEL, GA-2003
•Vibration recorder - MONITRAN LTD, MTN / P100T-10, S/N 203988
Operating conditions
•Fuel tank approx. 50 % full.
•Steering shaft adjusted to the body height of the operator.
•Appliance run-in and at operating temperature.
•Measured on the steering shaft in accordance with EN 12733.
Engine speed = highest engine operating speed
(
5
5. Sources of danger
The 2-wheel tractor may be used on both commercial and private properties.
•Check that the unit is safe to operate and to be used in traffic each time before putting
it into operation!
•Observe the generally applicable regulations for safety and the prevention of accidents in
addition to the instructions in this operating manual.
•When using the 2-wheel tractor on public roads, the stipulations of the respective
national road traffic laws in their current versions apply.
•Familiarise yourself with all devices and controls as well as their functions before starting
work. Make sure that all protective devices have been attached properly! Doing so during
the work assignment is too late!
•The user is responsible for the safety of third parties in the working area!
•It is forbidden to enter or remain in the working and danger area of the 2-wheel trac-
tor!
•Before starting up, check the immediate vicinity - children! Ensure that visibility is ade-
quate!
•Do not let the engine run in closed rooms!
•The driver should wear tight-fitting clothes. Avoid loose-fitting clothes. Wear sturdy shoes!
•Be careful when handling fuel – increased risk of fire! Never refill the fuel tank in the prox-
imity of open flames, igniting sparks and hot engine parts. Do not smoke when refuelling!
•Before refuelling, switch off the engine and remove the ignition key (if one exists). Do not
refuel in closed rooms. Do not spill fuel! Use a suitable pouring aid.
•In order to avoid the risk of fire, keep the tractor clean!
•Be careful when handling brake fluids and battery acid – they are toxic and caustic!
•Turn off the engine and pull off the spark plug cap before performing maintenance
and cleaning work.
•Observe permissible axle loads, overall weights and transport dimensions!
•Particular caution is necessary when coupling or uncoupling attached tools to or from
the tractor!
•Make sure that all protective devices have been attached properly!
6. Lighting devices on single-axle tractors
Distinction must be made here whether the single-axle tractor
•is guided by a pedestrian via the steering shafts,
•is driven from a sulky (single-track trailer) or
•is driven from a trailer.
In the dark, or when the necessitated by the weather, single-axle tractors guided by pedestrians
via the steering shafts require at least a single lamp with a white light, which must be affixed
to the left-hand side (UK: right-hand side) or carried by hand so that its light is well visible for
oncoming or overtaking traffic (Section 50, paragraph 2, German Highway Code and section 17,
paragraph 5, German Highway Code).
Single-axle tractors driven from a sulky or a trailer must be equipped with
•one headlight up to a vehicle width of 1000 mm or
•two headlights if the vehicle width exceeds 1000 mm. If a single-axle trailer is attached,
the headlights can be affixed to it (Article 50, Section 2, German Highway Code).
If the single-axle tractor is driven from a single-track sulky, this must be fitted with a triangular
rear reflector and a rear light (Article 53, Section 6, German Highway Code); blinkers (direction
,
5
indicator lights) are not required for a sulky (Article 54, Section 5, No. 5, German Highway
Code).
No operating permit and no driving licence is required for single-axle traction and working ma-
chines guided by pedestrians via steering shafts.
If a single-axle tractor and trailer used for agricultural or forestry purposes is transported on a
public road, operating permission is sufficient for a design-related top speed of 20 km/h. This
must accompany the tractor. The name and place of residence of the keeper of the vehicle must
be displayed by a sign on the trailer. A Class L driver’s licence is sufficient. Permission is re-
quired for a design-related speed exceeding 20 km/h.
7. Operator position, danger area
The operator position on the 2-wheel tractor is located at the two steering shafts (controls)
in front of the 2-wheel tractor.
It is forbidden to enter the danger area during work.
This area begins in the middle of the wheel axle and extends to the sides and to the front by vary-
ing distances, depending on the attached tool.
Danger area
Operator position
Direction of travel
Fig. 1. Operator position.
Direction of travel
Operator position
FRONT ATTACHMENT REAR ATTACHMENT
-
5
Where:
•Mowing bars b
s
= 2.0 m b
v
= 2.0 m
•Snow plough blade bs = 0.5 m bv = 2.0 m
•AZM-S bs = 2.0 m bv = 5.0 m
•AZM-A bs = 25.0 m bv = 25.0 m
•Sweeping machine bs = 2.0 m bv = 5.0 m
•Snow hoe bs = 25.0 m bv = 25.0 m
•Hoe bs = 5.0 m bv = 5.0 m
Also refer to the operating manuals for the respective attached devices!

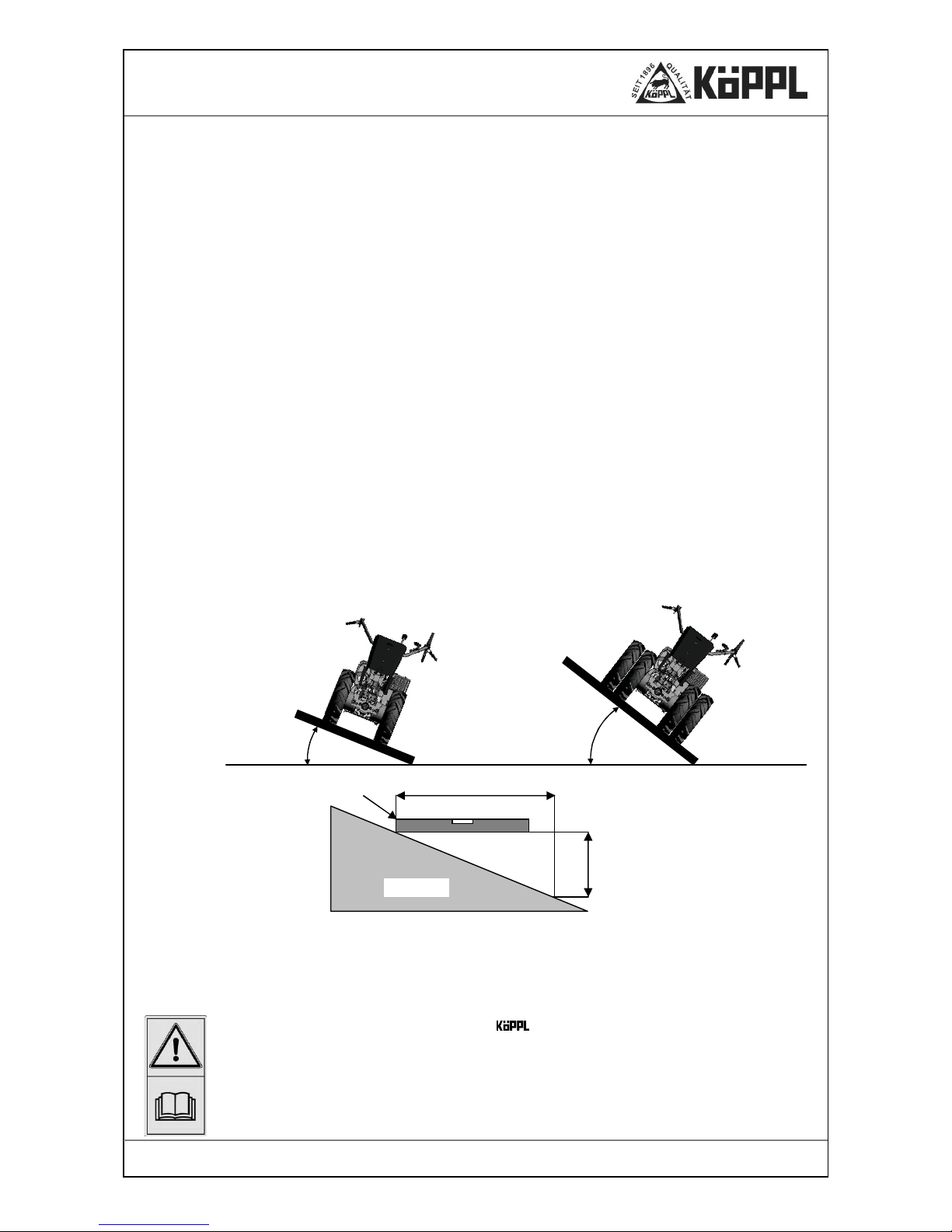

Working on slopes with a gradient higher than 40% or in uneven terrain
On slopes with a gradient of over 40% or in uneven terrain, the device can slip or tip over; the
danger zone is extended by the possible slipping or tipping area of the machine.
•Check the terrain before starting work.
•Select the correct tyres: Twin tyres, additional iron slope wheels, spiked rollers…
•Use the maximum possible track and axle width.
•Check the tyre pressures.
•It is compulsory to wear sturdy, closed shoes with gripping soles. Work with crampons if
necessary.
•Keep persons clear of the danger area.
•Adapt your working speed to the surroundings.
•Keep a constant watch on the lie of the terrain.
•Pay attention to the weather – increased risk of accident in wet weather
8. Requirements for the operating personnel
Only authorised persons may work with the 2-wheel tractor.
The minimum age for operators is 16 years. No operating permit and no driving licence is re-
quired for single-axle traction and working machines guided by pedestrians via steering shafts.
The operator is responsible for the safety of third parties in the working area.
> 40% to 100%
100 cm
40 cm = 40%
Spirit level
Terrain
< 40%

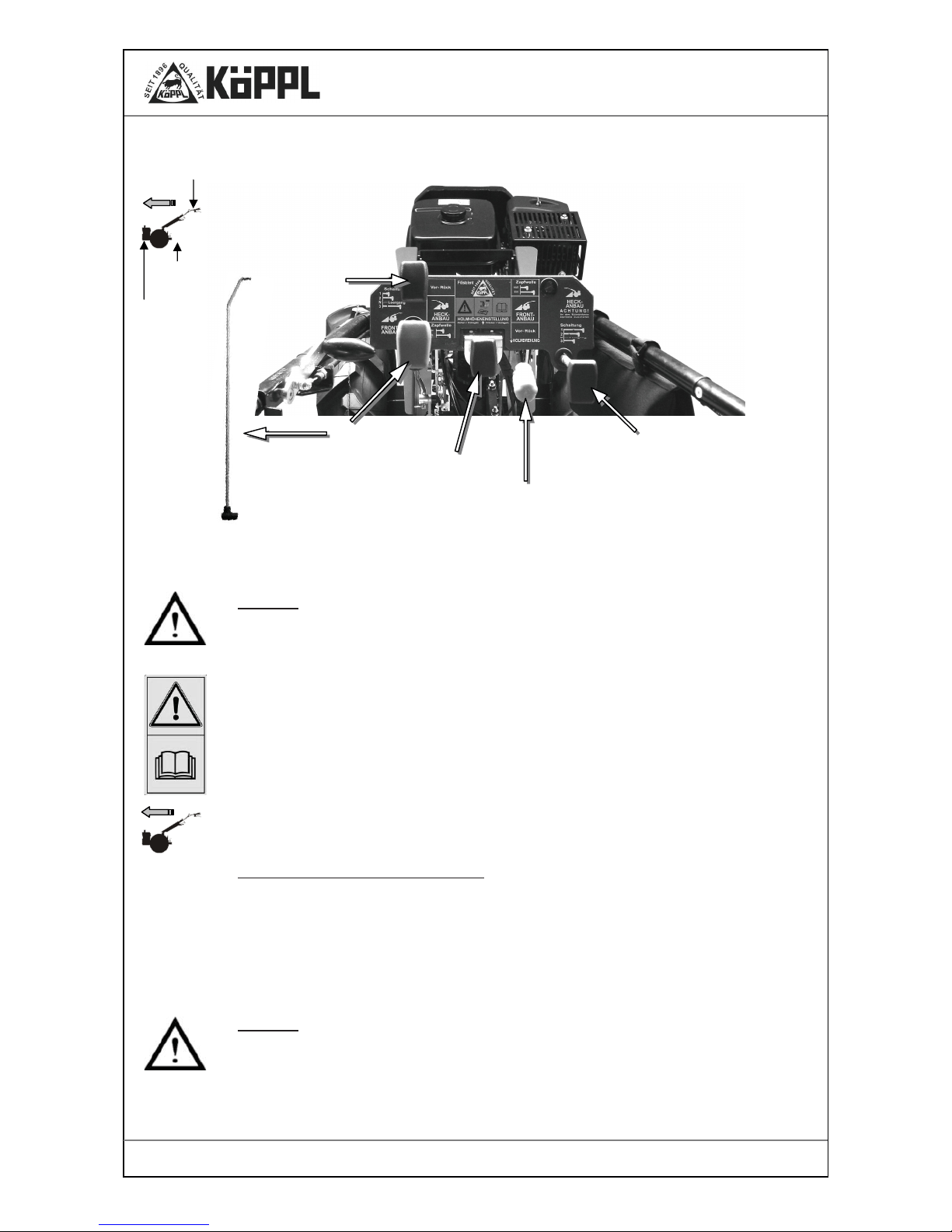

Fig. 2. Working on a slope
Checking the inclination of the
terrain with a spirit level
5
The responsibilities for different activities on and with the 2-wheel tractor must be clearly
defined and adhered to. Unclear competences are a safety risk.
The user must
•make the operating manual available to the operator and
•ensure that the operator has read and understood it.
9. Personal protective equipment
For operation
Wear sturdy shoes
Wear tight-fitting clothes
You should wear suitable ear protectors in the case of long work periods.
For cleaning
Wear sturdy safety gloves (leather) to protect against sharp objects (attached devices)
For grinding the mowing blades
Wear safety goggles
10. Safety measures at the place of work
•When starting the engine, the traction and attached device drives must be disengaged
(i.e. the safety stop lever is not depressed; see fig. 2, page 11).
•The driving speed must be always adapted to the environmental conditions. Avoid sudden
turns when driving up, down or across a slope. Never disengage the clutch and/or shift gear
on slopes.
•Couple trailers and attached devices according to the regulations. The driving, steering,
braking capability and tipping behaviour will be affected by attached devices. Therefore
make sure that steering and braking capabilities are sufficient and adapt your working
speed to the respective environmental conditions!
•Driving downhill in neutral is forbidden! The appliance could roll away under its own
weight!
•Persons fitted with a cardiac pacemaker must not touch electrically conducting parts
of the ignition system when the engine is running.
•Before starting to drive, check the brakes and their function.
•Remove larger objects from the work area (e.g. planks, cables, stones etc.).
•Keep hands and feet away from moving parts during operation.
•Ensure that the work area is sufficiently well illuminated.
•Drive at a right angle to the slope, never up or down the slope!
•Be particularly careful when changing direction on the slope.
•Never disengage the clutch and shift gear on slopes.
•Never leave the operator position during work.
5
•Do not alter or repair supporting and safety-relevant parts (frame, axles etc.).
•In the case of damage to the appliance, switch it off immediately. Remove the spark
plug cap and have the damage repaired!
•If the appliance is to be used for mowing crops that are classified as foodstuffs, parts
which come into contact with the foodstuffs must not be lubricated with machine oil
or grease or protected against rust.
•If there is a danger of slipping on a sloping terrain, an accompanying person must
hold the 2-wheel tractor with a rod or a rope. The accompanying person must
remain above the vehicle at a safe distance from the working tools.
11. Protective devices
The 2-wheel tractor is equipped with a clutch/safety stop lever on the steering shaft
(left), which disengages the drive via the clutch when released – the engine continues to run. The
drive and the clutch are switched off (see fig. 2 - page 12).
The clutch/safety stop lever serves as an emergency stop switch in dangerous situations where
fast switch-off is required. It swivels automatically into the ‘STOP’ position when released.
It is locked there and can only be actuated when the catch is pressed. Stop the 2-wheel trac-
tor immediately if there are any malfunctions with the clutch/safety stop lever. Have the
malfunction rectified immediately!
Caution!
The engine runs on due to the centrifugal mass!
Tools running on – danger of injury!
•The clutch/safety stop lever must be depressed (operating position) during operation.
•The clutch/safety stop lever must always be in the Drive OFF position when starting the
machine.
•It is forbidden by to leave the clutch/safety stop lever in the start position (cou-
pling/safety stop lever is not depressed) when the machine is to be cleaned – e.g. in order to
clean the snow hoe. First bring the appliance to a halt only by switching off the engine and
then clean the tool.
It is forbidden to disable the safety stop lever by tying or taping it up.

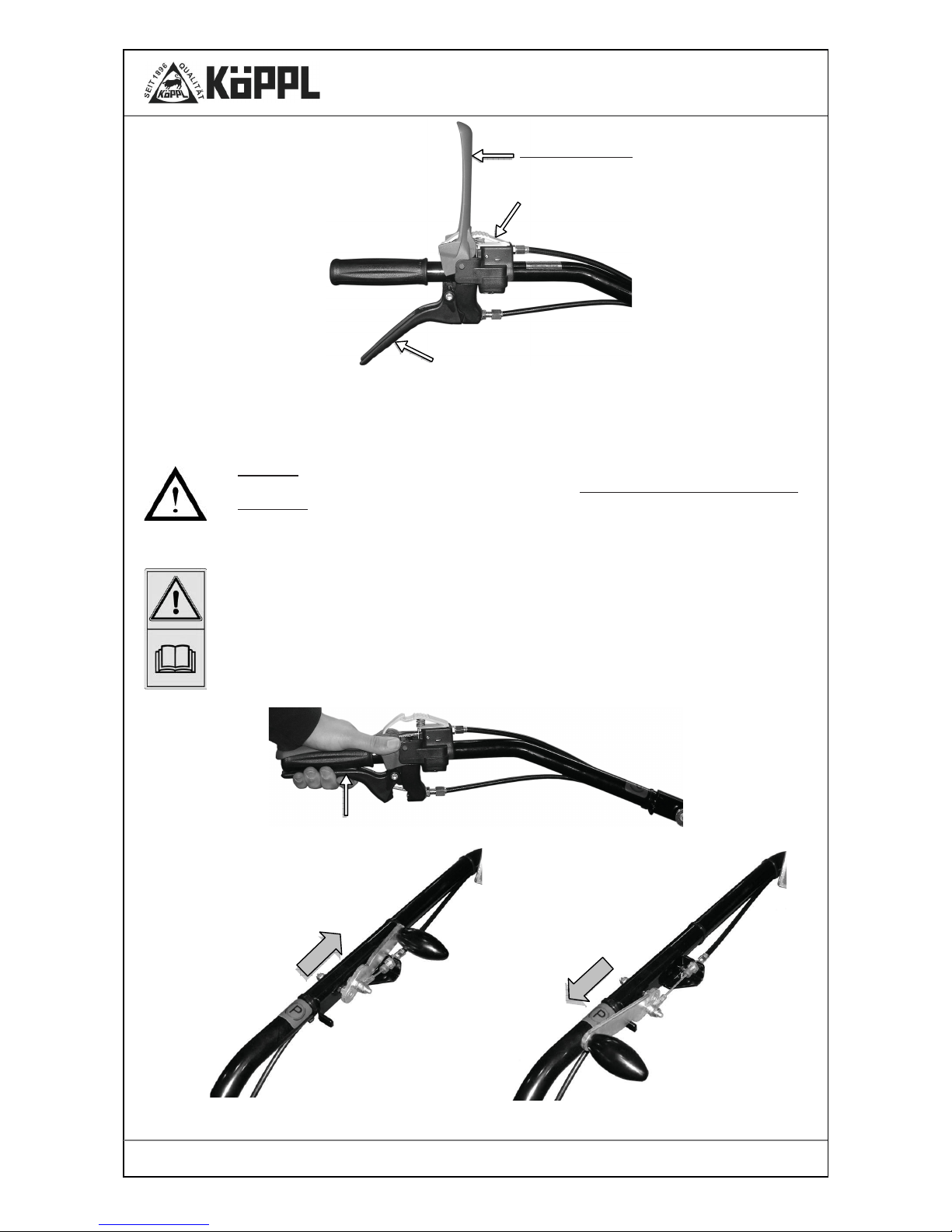

Fig. 2. Safety stop lever – Drive OFF position
Clutch lever
Fig. 3. Safety stop lever – Drive ON position
It is essential to observe the clutch play of
approx. 5 - 10 mm
Adjusting screw
Catch
Clutch/safety stop lever
Drive OFF position
Engine continues to run
Clutch/safety stop lever
Drive ON position
5
The protective devices
are installed for the safety of the operating personnel and may not under any circumstances be al-
tered, removed or circumvented by means of alterations to the 2-wheel tractor.
12. Leaving the tractor
•Switch off the engine; engage gear; apply the parking brake; remove the ignition key (if
there is one).
•When leaving the 2-wheel tractor, secure it against rolling away (parking brake,
wheel chocks) and use by unauthorised persons.
•Never leave the 2-wheel tractor unattended if the engine is still running.
•Never leave the operator position at the steering shaft during driving.
•When parking the tractor, close the petrol tap.
13. Safety of attached devices
Fundamental rule:
Check that the unit is safe to operate and to be used in traffic each time before putting it into op-
eration!
•There is a risk of injury when coupling and decoupling attached devices. Be especially
careful! Connect attached devices according to the regulations.
•The devices may only be attached or detached when the engine is switched off and the de-
vice drive is disengaged.
•Persons must not stand between the tractor and the attached device if the tractor is not
secured against rolling away by means of wheel chocks.
•Connect the attached devices according to regulations and fasten them only to the pre-
scribed fittings.
•It is not permitted to ride on the attached device of the 2-wheel tractor during work or
transport.
•Observe permissible axle loads, overall weights and transport dimensions!
•Check and attach transport equipment (lighting, warning devices, protective devices).
•In the case of damage to the appliance, switch it off immediately. Remove the ignition key
if there is one. Have the damage repaired.
•Following repair work, place the protective and safety devices in the protective position
again; only then is operation allowed again.
•Check the protective devices and working devices for wear.
•It is forbidden to enter or remain in the working, rotating and swivelling area! Keep a safe
distance!
•Before starting work, remove any foreign bodies from the area to be worked.
•Beware of foreign bodies during operation!
•Be careful of working tools that run on! Repair work is only permitted at a complete stand-
still and with the engine switched off (spark plug cap removed).
•Be careful when working on a slope! There is a danger of tipping when lifting the 2-
wheel tractor! Drive at a right angle to the slope if possible.
•When driving outside the working area, disengage the device drive; the 2-wheel trac-
tor must thereby be raised into the transport position.
!
5
•Never work on the attached device when the engine is running; switch the engine off in or-
der to carry out such work.
•Observe the generally applicable regulations for safety and the prevention of accidents in
addition to the instructions in this operating manual.
•The mating surfaces of the rapid-change flange on the basic device and on the attached de-
vice must be clean; they must be cleaned if necessary.
•The mating surfaces must be greased with special long-life grease (see appendix).
•Secure the 2-wheel tractor and the attached devices against rolling away (parking
brake, wheel chocks). Attach the transport lock and safety device and place them in the pro-
tective position.
•There are crushing and cutting zones on externally powered parts (e.g. hydraulics).
•Only work if the light and visibility conditions are good.
•The 2-wheel tractor may not be driven (operated) in 4th gear if a sulky is in use!
14. Brakes
•Check the function of the brakes – if they exist – each time before driving!
•The brake system must be subjected to regular thorough checks.
•Adjustments and repairs to the brake system may be carried out only by specialist work-
shops or recognised brake service companies.
15. Engine
•Do not leave the engine running in a closed room – danger of poisoning!
•Always switch the ignition off when turning the engine off!
•Never transport the engine with the fuel tank or the fuel tap open. Refer also to the motor
manufacturer’s operating manual!
16. Tyres, screwed connections
•When working on the wheels, ensure that the tractor is parked safely and secured against
rolling away!
•Repairs to the tyres may be carried out by specialists using suitable mounting tools!
•There is a risk of explosion if the tyres are over-inflated!
•Check the tyre pressures regularly!
$
Transport

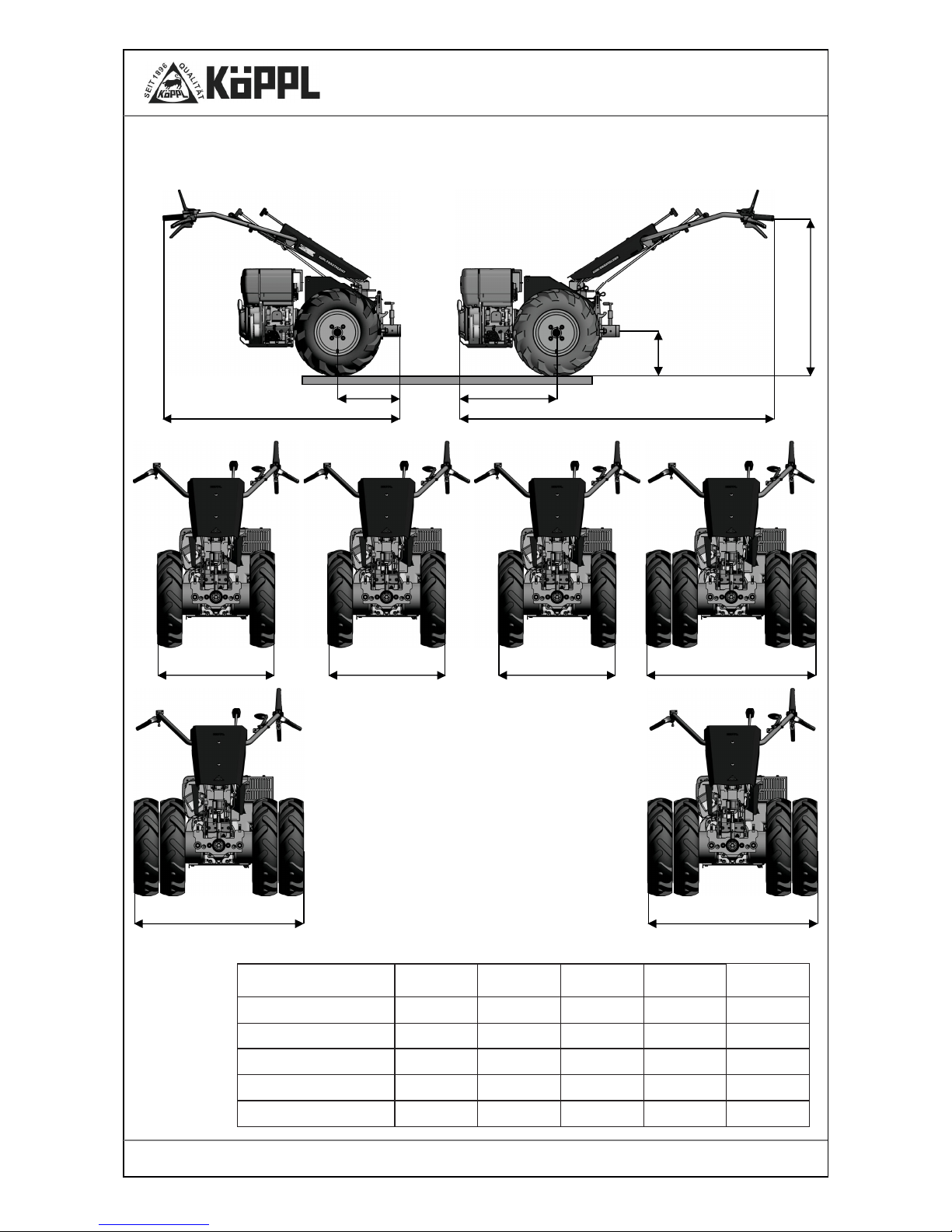

1. Tractor size / machine dimensions
Tyres
a
[mm]
c
[mm]
d
[mm]
h
[mm]
l
[mm]
4.00 x 8 377 220 210 1,191 1,415
4.00 x 12 377 280 270 1,241 1,415
5.00 x 10 377 270 260 1,241 1,415
18 x 9.5 x 8 377 230 220 1,211 1,415
21 x 11.00 x 008 377 270 260 1,241 1,415
'
2. Technical data
Suitable for
FT
Garden construction,
landscape gardening
FT Special
Garden construction,
landscape gardening
Engine at rear
No. of gears
Working speed
Tyre size 5.00x10AS
3 F / 3 R
1 – 3.5 / 1 – 3.5
km/h
4 F / 3 R
1 – 8.7 / 1 – 3.2
km/h
Engine at front
No. of gears
Working speed
Tyre size 6.00x12AS
3 F / 3 R
1 – 3.5 / 1 – 3.5
km/h
3 F / 3 R
1 – 3.2 / 1 – 3.2
km/h
Power take-off [rpm]
950
at 3,600 rpm
engine speed
950
at 3,600 rpm
engine speed
Swivel steering shaft
for front and rear attached devices Standard Standard
Differential with lock
Standard from 10 HP
upwards Standard
Gearbox oil SAE-85 W 90 API GL
4/5
SAE-85 W 90 API GL
4/5
Gearbox oil filling quantity approx. 1.8 litres approx. 1.8 litres
Type Engine
Variant 1
Engine
Variant 2
Approx. weight
[kg]
FT 8H
Diesel
Hatz /
1B 30
5.6 kW - from 86
FT 12H
Diesel
Hatz / 1B 40
7.8 kW - from 93
FT 6
Petrol
Robin / EH 172D
4.4 kW - from 106
FT 10
Petrol
Robin /
EX 27
6.6 kW -from 82
FT 12
Petrol
Robin /
EH36
8.5 kW -from 92
FT 14
Petrol
Robin /
EH41
9.9 kW - from 115
Tyres
Tyre type Tyre size Pressure Track width
[cm]
Track widening
[cm]
Field tyres
4.00 x 8 AS
4.00 x 12 AS
5.00 x 10 AS
2.0 bar
53
66
64
-
-
-
Turf tyres 18 x 9.50 x 8 2.0 bar 76 -
Wide-base tyres 18 x 9.50 x 8 AS
16 x 6.50 x8 AS 2.0 bar 76
59
-
-
Lamella tyres
Snow tyres
4.80 x 8
16 x 6.50 x 8 2.0 bar 53
59
-
-
Low pressure tyres 21 x 11 x 10 AS 1.5 bar 84 -
Twin wheels
with intermediate flange
4.00 x 8
4.00 x 12
5.00 x 10
2.0 bar
76 / 84
84 / 86
91 / 96
12 / 16
12 / 16
12 / 16
+
3. Transport of the 2-wheel tractor
The 2-wheel tractor is delivered ready for operation.
Unpacking
Remove the cardboard box and the film.
The generally recognised and applicable regulations for safety and the prevention of acci-
dents must be adhered to when transporting the 2-wheel tractor!
•Transport work may be carried out only by persons who are qualified for such work, ob-
serving the safety instructions.
•The machine may be raised only at the points intended for the purpose and without attached
devices.
•When transporting on a trailer, it is essential to secure the machine against slipping and
rolling away.
•Use suitable ramps for loading and unloading.
•Follow the national road traffic regulations when driving on public roads.
•Ensure that all protective devices are properly attached.
•Ensure that no protective devices have been damaged or rendered inoperable during
transport.
•Check the transport equipment (lighting, warning devices, protective devices) and attach
them if necessary.
•If protective devices and working tools are subject to wear they should be inspected at
regular intervals and replaced if necessary!
•Place protective and safety devices in the protective position again after transport. Only
then is operation allowed again.
Fig. 4. Frästalent in the front and rear attachment positions.
(
(
Operation
In order to avoid damage to the machine and life-threatening injuries when putting the machine
into operation, it is essential to pay attention to the following points:
You must have read and understood:
•the engine manufacturer’s operating manual,
•the operating manual for the respective attached device and
•the operating manual for the 2-wheel tractor,
•in particular chapter 1, safety and protective devices.
You may not operate the 2-wheel tractor before having done so.
1. Commissioning
Warning!
Exhaust gases contain carbon monoxide!
They are highly toxic if inhaled and can lead to death.
Important!
During the first 20 hours of operation (the running-in period) the engine should not be operated
up to its performance limit.
After about 10 hours of operation, check that all screws, bolts and controls on the basic machine
and attached devices are tight.
The following items must be checked before putting into operation for the first time:
•Check the engine oil – see the engine manufacturer’s operating manual.
•Check the gearbox oil.
•Check all safety devices.
•Check whether there is sufficient fuel in the fuel tank.
•Check that all screws and controls on the basic unit and attached devices are tight.
•Remove all tools and foreign parts from the machine.
•Adjust the steering shaft to the operator’s body size and in accordance with the pur-
pose of use.
2. Starting
Warning!
If the traction and device drive is engaged, you could be run over, causing serious injuries.
The traction and device drive must be disengaged when starting the engine.
Do not stand with your feet near the attached working device.
Please observe when starting the tractor:
The clutch/safety stop lever must be in the Drive OFF position (start position) - see fig. 5,
page 18. Follow the respective engine manufacturer’s operating manual when starting the
engine – start according to the engine manufacturer’s operating manual.
Once the engine is running, slowly bring the throttle lever to the middle position and allow the
engine to warm up for a short time. Push the CHOKE lever slowly back to the operating position
if it has been pulled out.
Please also refer to the engine manufacturer’s operating manual regarding this point.
In the case of a diesel engine, it must be started in accordance with the engine manufactur-
er’s instructions!
,
(
3. Shifting gear - general
Caution!
When shifting gear, especially on a slope, it is essential to engage the parking brake before each
gear change – place the lever in the brake position: see below. Only then should the desired gear
be selected. If you shift gear without engaging the parking brake it is possible for the machine to
roll away.
Follow the procedure below:
•Pull the clutch lever up
•Engage the parking brake (left-hand steering shaft)
•Select the gear
•Slowly release the parking brake and at the same time release the clutch (similar to driving
a car).
LEVER AT
FRONT
Parking brake is
released
LEVER AT
REAR
Parking brake is
applied
Fig. 6. Parking brake
Fig. 5. Clutch/safety stop lever – Drive OFF position.
Arretierung
Clutch lever
Clutch/safety stop lever
Drive OFF position
Engine continues to run
Clutch lever
Catch
-
(
4. Shift levers – swivel steering shaft
Shift levers – tool attachment at front
Caution!
The clutch must always be disengaged before any shifting operation.
Shift lever designation (see fig. 7)
Lever A Shift lever for different working speeds and neutral (black grip on shift rod).
Lever B Shift lever for engaging and disengaging the power take-off drive (red grip on shift
rod).
Lever C Shift lever for forward and reverse driving (black grip on shift rod).
Forward and reverse driving (working position: front attachment)
Engage the desired gear with lever A – always disengage the clutch first.
Select forward or reverse driving direction with lever C.
For type FT/FTS
Forward gear Push lever C forwards.
Reverse gear Pull lever C backwards.
B
Fig. 7. Shift levers in front attachment position.
C
Lever 2
Steering shaft swivelling
Lever
1
Steering shaft height adjustment
A
Front attachment
Engine at rear
(
Shift levers – tool attachment at rear
Caution!
The clutch must always be disengaged before any shifting operation.
Shift lever designation (see fig. 8)
Lever A Shift lever for different working speeds and neutral (black grip on shift rod).
Lever B Shift lever for engaging and disengaging the power take-off drive (red grip on shift
rod).
Lever C Shift lever for forward and reverse driving (black grip on shift rod).
Forward and reverse driving (working position: rear attachment)
Engage the desired gear with lever A – always disengage the clutch first.
Select forward or reverse driving direction with lever C.
For type FT/FTS
Forward gear Pull lever C backwards.
Reverse gear Push lever C forwards.
Caution!
4th gear (Frästalent Spezial) must not be selected for reverse driving.
Do not remove the safety device attached for this under any circumstances.
Fig. 8. Shift levers in rear attachment position.
A
B
C
Lever 2
Steering shaf
t swivelling
Lever 1
Steering shaft height adjustment
Engine at front
Swivel steering shaft
Rear attachment
This manual suits for next models
1
Table of contents
Other Koeppl Lawn Mower manuals
