Kogan SMARTERHOME KABBCM1C1DA User manual

KOGAN SMARTERHOME™ PAN
& TILT SMART BABY MONITOR
(CAMERA & DISPLAY)
KABBCM1C1DA

2
Components
3
Overview
4
Installation
7
Connect to SmarterHomeTM App
9
Google Home Control
12
Amazon Alexa Control
15
Operation
18
FAQ
26
Notes
27

3
Camera
Monitor
USB Cable (x2)
Power adapter (x2)
Mounting hardware
Bracket
User Guide
Reset pin
COMPONENTS

4
Camera
Power
DC 5V/1A
Microphone
Captures sound for your video
SD card slot
Support local SD Card storage (Max.128G)
Status indicator
Solid RED: network is malfunctional
Flashing RED: ready for network connection (fast blinking)
Solid BLUE: camera is working correctly
Notification/Pair
Pressing this button will send a pop-up notification to your
linked smartphone. Long press to pair with the monitor.
Reset
Press and hold for 5 seconds to reset the camera (if you have
modified settings, they will return to factory defaults) and
place it in Wi-Fi pairing mode
OVERVIEW
Status Indicator
Reset
Power
input
Microphone
Night light
Speaker
SD card slot
Notification/pair

5
Display
Power
DC 5V/1A
Charging indicator
Solid ORANGE: Charging
Solid GREEN: Fully charged
Status indicator
Solid YELOW: The monitor is on
Off: The monitor is Off
Microphone
Captures sound for your video
Antenna
Adjust the angle to improve signal
Microphone
OK
Directional
buttons
Menu
Zoom
Charging
indicator
Back
Call
Status
indicator
Antenna
Power
button
Speaker
Kickstand
SD card
slot
Reset
Power
input

6
Power button
Press and hold for 5 seconds to turn the monitor ON/OFF
Zoom button
Press this button to cycle through zoom options (x1, x2 & x4)
Menu button
Press to bring up the menu
Long press to bring the settings menus
Directional buttons
Control the camera/navigate the menus
OK
Confirm
Call
Press to talk to your baby through the camera
SD card slot
Support local SD Card storage (Max.128G)
Reset
Press with pin to reset the monitor
Back
Press to return to previous menu
On the home screen, long press to stop playing music

7
Connection preparation
Bring the camera and your phone within 30 – 100cm of the router.
Insert the microSD card
Insert a microSD card (not supplied) into the SD card slots on both the camera and the
monitor.
Camera Power Connection
1. Connect the USB cable to the power input port on the camera and connect the other
end into the power adapter.
2. Plug the power adapter into an electrical outlet and turn it on, the status indicator will
turn blue.
INSTALLATION
Camera
Smartphone
Router

8
Mounting to wall/ceiling (masonry):
1. Drill pilot holes and insert the supplied wall anchors first.
2. Place the bracket against the surface, in line with the wall anchors, and secure it in
place with the supplied screws.
3. Attach the camera to the bracket.
Mounting to wall/ceiling (timber / dry wall):
1. If not drilling into timber studs, drill pilot holes and insert the supplied wall anchors first
2. Place the bracket against the surface, in line with the wall anchors (if used) and secure
it in place with the supplied screws.
3. Attach the camera to the bracket.
Alternatively, the camera can be placed on a clean, horizontal, flat surface.

9
Install App
Download the “Kogan SmarterHome” app from the Play Store (Android) or App Store (iOS).
Play Store (Android)
App Store (iOS)
To register:
1. If you already have a SmarterHome account, select ‘Log In’. To register a new
account, select ‘Sign Up’.
2. The system will automatically recognise your country. If needed, you can manually
select your country from the drop-down box. Enter your email address and tap ‘Get
Verification Code’ to continue.
3. A 6-digit code will be sent to the submitted email address. Enter this code before the
one-minute timer expires.
4. Continue to the next page and complete your SmarterHome profile.
CONNECT TO SMARTERHOME™ APP

10
Set device in pairing mode
When the device is first turned on, it may automatically enter pairing mode (prompt tone
will be heard and the indicator will be rapidly flashing red).
If not automatically in pairing mode when powered on, you can manually set the device in
pairing mode by pressing and holding the reset button for 5 seconds until a prompt tone is
heard and the indicator begins rapidly flashing red.
Add device through network
1. Once registered, tap “Add Device” on the app’s home page, or the “+” in the upper
right corner, to add a new device through the network.
2. Select the product type from the list of options in the app (Home Security > Cameras).
3. Ensure that the device is in pairing mode, with the prompt heard and light flashing,
and tap “Next”.
4. Enter your Wi-Fi details. It is important that your SmarterHome™ device and the app
are connected to the same Wi-Fi network during setup.
Notes:
• The device and the app have to use the same Wi-Fi network.
• The device is only compatible with 2.4Ghz networks.
• Depending on the product, Steps 3 and 4 may be in opposite order.

11
5. Calibrate the smart camera by holding your smartphone 15-20cm away from the
camera lens until it successfully scans the QR code shown on the following screen of
the setup. The device will make a prompt sound to confirm, click “I heard a prompt” to
proceed to the next screen.
6. The device will commence the pairing process and connect to the app. Ensure your
Wi-Fi router, mobile phone, and the SmarterHome™ device are kept close until
connection is complete.
7. After successfully being added, you will have the option to rename the device and
assign it to a location. It will now be listed on the app’s home page. Tap the device
listing to enter its control page.
Note:
Once connected, you can select Create Scene from the “+” in the upper right
corner (or from the Scene tab) to group connected SmarterHome™ products
and automate their functions.

12
Adding “SmarterHome” to the Google Home app
1. From the home page of the Google Home app, select the “+” icon (top left corner, see
arrow in the below screenshot) to access the ‘Add and manage’ page.
2. Select ‘Set up device’, then select the ‘Works with Google’ option.
GOOGLE HOME CONTROL
Note:
You will need to have set up a Google Home account prior to linking
your Kogan SmarterHome™ device.

13

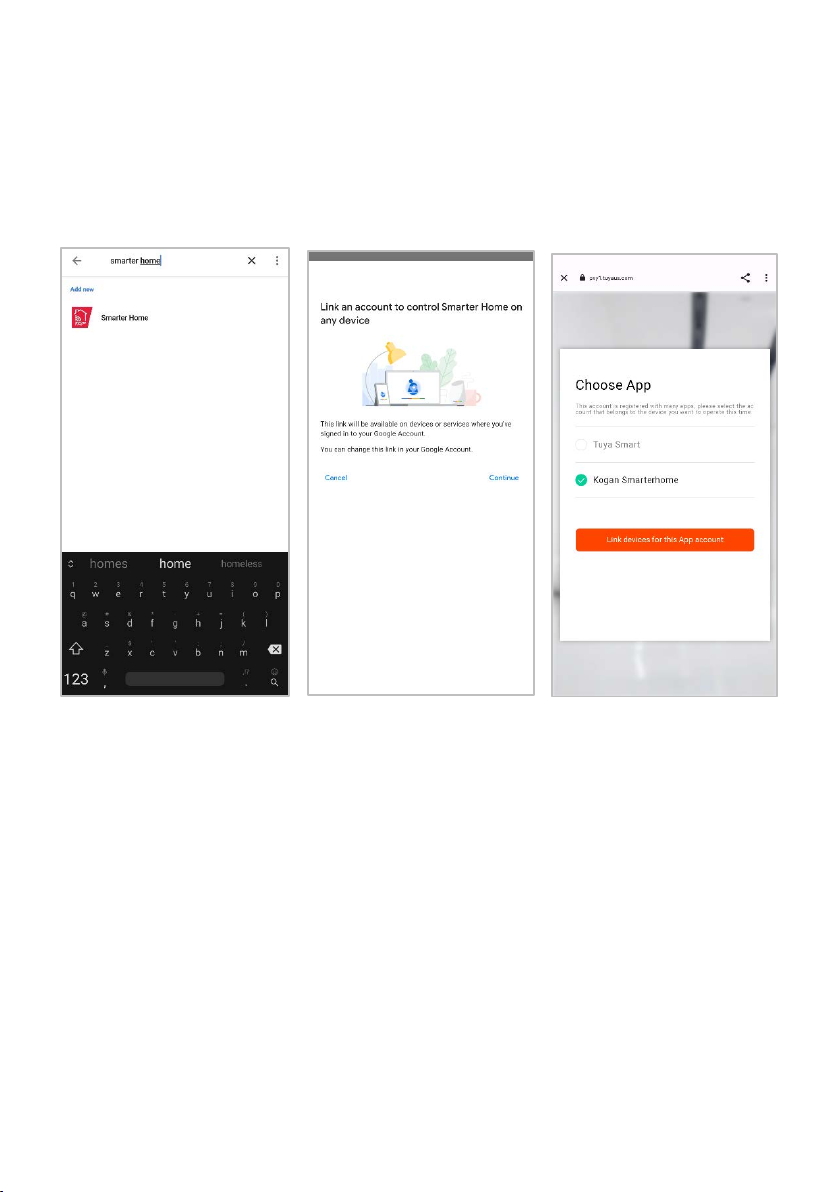

3. Select the search bar and type ‘Smarter Home’ to locate the Kogan SmarterHome™
service.
4. From here, you will be prompted to sign into your SmarterHome™ account using
either your email or mobile phone number, depending on which method you used to
register your account.
5. Select “Kogan SmarterHome™” from the app options.

14
6. Tap ‘Authorise’ to grant Google permission to access the SmarterHome™ app and
your devices.
7. Once connected, the app will display any compatible devices linked to your
SmarterHome™ account. From here you can assign them to rooms and set up any
routines. Tap on any of the devices to view a list of available commands.
Note:
Please note that Google Home can only control the base/core functions of any
compatible SmarterHome™ devices. To make full use of this product’s smart
functionality, please use the Kogan SmarterHome™ app.

15
Adding “SmarterHome” to the Alexa app
1. From the home page of the Alexa app, select the “ ” icon in the bottom-right and
select “Skills & Games” from the sidebar.
2. Select the search bar and type ‘Smarter Home’ to locate the Kogan SmarterHome™
skill.
AMAZON ALEXA CONTROL
Note:
You will need to have set up an Alexa account prior to linking your Kogan
SmarterHome™ device.

16
3. Tap ‘Enable to Use’ to add the Kogan SmarterHome™ skill to Alexa.
4. From here, you will be prompted to sign into your SmarterHome™ account using
either your email or mobile phone number, depending on which method you used to
register your account.
5. Select “Kogan SmarterHome™” from the app options.

17
6. Tap ‘Authorise’ to grant Alexa permission to access the SmarterHome™ app and your
devices.
7. Once connected, the app will perform a search and display the devices linked to your
SmarterHome™ account. When your devices have successfully connected to the
Alexa app, you will be able to control your Kogan SmarterHome™ devices via Alexa’s
voice commands.
Note:
Please note that Alexa can only control the base/core functions of any
compatible SmarterHome™ devices. To make full use of this product’s smart
functionality, please use the Kogan SmarterHome™ app.

18
In the SmarterHomeTM App Camera’s interface, click "…" in the upper right corner to access
the camera’s settings
Press the down arrow to view all the camera settings.
Lullaby:Select music
to sooth your baby
Direction: Move
the camera
OPERATION
Light: Toggle night light
on/off and adjust the light
settings

19
Pan/Tilt
Rotate the camera by sliding your finger on your smartphone’s screen, allowing you to have
a greater field of vision.
Video flip
Flip your video stream vertically. This is useful if you’ve mounted the camera upside down.
Motion detection
Smart motion detection will send push notifications to your smartphone when movement is
detected.
Crying detection
The camera can detect sounds such a crying baby and will send push notifications to your
smartphone. The sensitivity of the audio detection can be adjusted in the setting menu.
Temperature & humidity detection
The camera can detect the temperature and humidity of the environment. These values
can be monitored using the app.
Record
This function allows 24-hour continuous recording using high-capacity microSD card
storage (max. 128GB).
Screenshot
Saves a screenshot of the current video feed to the microSD card.
Day & Night
Never miss a moment, even in complete darkness, with powerful night-vision technology.
Daytime
Night

20
Auto-connect the Camera and Monitor
1. Ensure the Camera is powered on (indicator is blue).
2. Press and hold the power button on the monitor for 5 seconds. The monitor will turn
on and the status (status indicator is yellow). To turn the monitor off, press and hold
the power button for 5 seconds.
3. The camera and monitor will automatically connect when they are first powered on.
4. If the connection fails, follow the steps below to manually pair the camera and
monitor. Ensure the distance between the camera and the monitor is no more than
200m.
Manually Connect the Camera and Monitor
1. Press Menu button on the monitor screen and select > Camera.
2. Select from either Camera 1 or Camera 2.
3. Long press the Notification/pair button on the camera until you hear the prompt tone.
4. Press the OK button on the monitor to start pairing.
5. To pair a second camera, repeat step 2 - 4.
Disconnect the Monitor and Camera
1. Press the Menu button on the monitor screen and select > Camera.
2. Select Camera 1 or Camera 2.
3. Long press OK button to disconnect the camera from the monitor.
Notes:
• If you have paired 2 cameras, the monitor screen will display 2 live views at the
same time.
• If you want to set parameters or enable functions of one of the cameras, you need
to select the camera first.
