Kogan KASLRMTLITA User manual

SOLAR POWERED MOTION
SENSOR LED FLOOD LIGHT
KASLRMTLITA


WARNING
Failure to follow these warnings and instructions may result in electric shock, fire and/or
serious injury. Save all warnings and instructions for future reference.
1. Keep the installation area clean. Cluttered areas invite accidents.
2. Observe installation area conditions. Keep work area well-lit during installation.
3. Check for damaged parts. Before using any product, any part that appears
damaged should be carefully checked to determine that it will operate properly and
perform its intended function. Check for any broken or damaged parts and any
other conditions that may affect its operation. Replace or repair damaged or worn
parts immediately. Do not use the Security Light if any switch does not turn on and
off properly.
4. Replacement parts and accessories. When servicing, use only identical
replacement parts. Use of any other parts will void the warranty.
5. Check hardware and assembled parts after assembling. All connections should be
tight and hardware tightened.
6. Keep children away. Mount the Light, Solar Panel and Cord out of children’s reach.
7. Dress properly. Protective, electrically non-conductive clothes and non-skid
footwear are recommended when working with the Solar Powered Security Light.
Wear restrictive hair covering to contain long hair.
8. Use eye protection. Wear ANSI-approved impact safety goggles when setting up
this product.
9. Maintain products with care. Keep the Solar Powered Security Light clean for better
and safer performance. Inspect the Light periodically. If damaged, have it repaired
by a qualified technician.
10. Do not overreach. Keep proper footing and balance at all times. If a ladder is to be
used during installation, it should be supported by an assistant.
11. Do not set up the Solar Powered Security Light if under the influence of alcohol or
drugs. Read warning labels on prescriptions to determine if your judgement or
reflexes are impaired while taking drugs. If there is any doubt, do not set up the
Light.
12. NiCd battery must be recycled or disposed of properly. Do not short, incinerate or
open the battery.
13. Have your power tool serviced by a qualified repair person using only identical
replacement parts. This will ensure that the safety of the power tool is maintained.
14. The warnings, precautions and instructions discussed in this instruction manual
cannot cover all possible conditions and situations that may occur. It must be
understood by the operator that common sense and caution are factors which
cannot be built into this product but must be supplied by the operator.
SAFETY & WARNINGS

Figure 1
OVERVIEW
Lamp
Battery Housing
Battery
Housing Outlet
(On bottom of
battery housing)
Mounting Bracket
Solar Panel
Power Switch (On
bottom of battery
housing)
Motion
Detector
Head
Motion Detector
Controls (On
bottom of motion
detector Head)
Detector Angle Lock
(On side of Motion
Detector Head)
Solar Panel Cable
Base

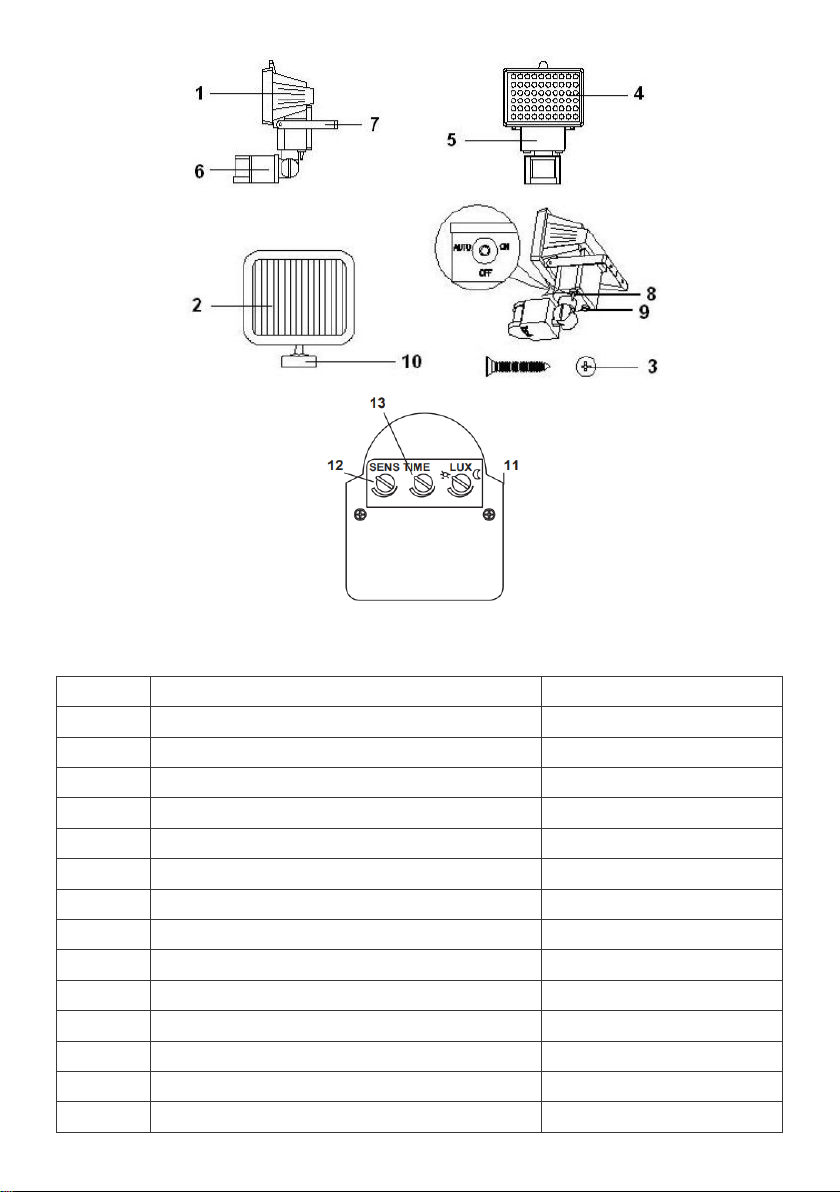

Part List
Part
Description
Qty
1
Lamp
1
2
Solar Panel
1
3
Mounting Screw
6
4
LED
60
5
Battery Housing
1
6
Motion Detector Head
1
7
Mounting Plate
1
8
Power Switch
1
9
Battery Housing Outlet
1
10
Solar Panel Mounting Bracket
1
11
LUX Adjusting Knob
1
12
SENS Adjusting Knob
1
13
TIME Adjusting Knob
1
14
6V NiCd Battery Pack (not shown)
1
Underside of
motion detector
head (6)

Set-up before use
Read the entire important safety information section at the beginning of this manual
including all text under subheadings therein before setting up or use of this product.
Installation
1. Decide where you want to place the Lamp and the Solar Panel. The Solar Panel is
equipped with a 16ft. connecting wire, so the Lamp and Solar Panel can be
installed up to 16ft. apart. The Solar Panel must be set in a location that receives
full, direct sunlight, a minimum of eight hours a day. Ideally, the solar panel should
be angled slightly toward the north.
2. Mount the Solar Panel:
a) Place the Solar Panel in the desired location, adjusting the unit to best fit the
surface.
b) Mark the hole locations of the Base, then set the Solar Panel aside.
c) Check that the marked areas are clear of obstacles such as cables and
electrical lines. Drill holes for the enclosed Screws and Plastic Anchors.
d) Insert the plastic Anchors then secure the Solar Panel in place with the screws.
3. Mount the Lamp:
a) Locate the unit six to eight feet above the ground on a solid surface capable of
supporting the Lamp and secure enough so that it will not move when
exposed to vibrations or wind. The unit must be high enough to allow for
motion detection and light distribution.
b) Mark the hole locations of the Mounting Bracket, then set the Lamp aside.
c) Check that the marked areas are clear of obstacles such as cables and
electrical lines. Drill holes for the enclosed Screws.
d) Secure the Lamp in place with the screws.
4. Carefully route the Power Cord of the Solar Panel to the Lamp and plug it into the
Battery Housing Outlet on the back of the Battery Housing.
5. Loosen the Detector Angle Lock, swivel the Motion Detector Head so that it faces
the area where the movement will occur and tighten the Detector Angle Lock.
INSTALLATION
Note:
For additional information regarding the parts listed in the following pages, refer to Parts
List and Diagram on page 10.

Read the entire important safety information section at the beginning of this manual
including all text under subheadings therein before set up or use of this product.
Initial Battery Charging
Before the Security Light can operate properly, the batteries need to be fully charged. To
charge the batteries:
1. Turn OFF the Power Switch.
2. Allow 3 days of full sunlight to fully charge the batteries.
3. After charging, turn the Power Switch Auto. The light will illuminate for a short time
when first switched on. This indicates that it is working properly.
Power Switch
The Power Switch, located under the Battery Housing of the Lamp has three settings:
OFF: Centre position.
ON: Towards the Lamp. The lamp stays on functioning as a normal light.
AUTO: Away from the Lamp. The light will turn on automatically when motion is detected by
the Motion Sensor Head.
OPERATION
WARNING: The Unit will not function unless:
The Solar panel is first charged for 3 days of full sun with the sensor off.

Motion Detector Control Knobs
The Solar Powered Security Light has 3 different Control Knobs on the underside of the
Motion Detector Head. They control the Motion Detector Head’s sensor. They are sensitive
to light (LUX), the light’s duration (TIME) and the sensor’s sensitivity to motion (SENS).
Note:
After each adjustment, walk the detection area to check the adjustment just made.
LUX
Adjusting
Knob
SENS
Adjusting
Knob
TIME Adjusting
Knob
Underside of motion detector head

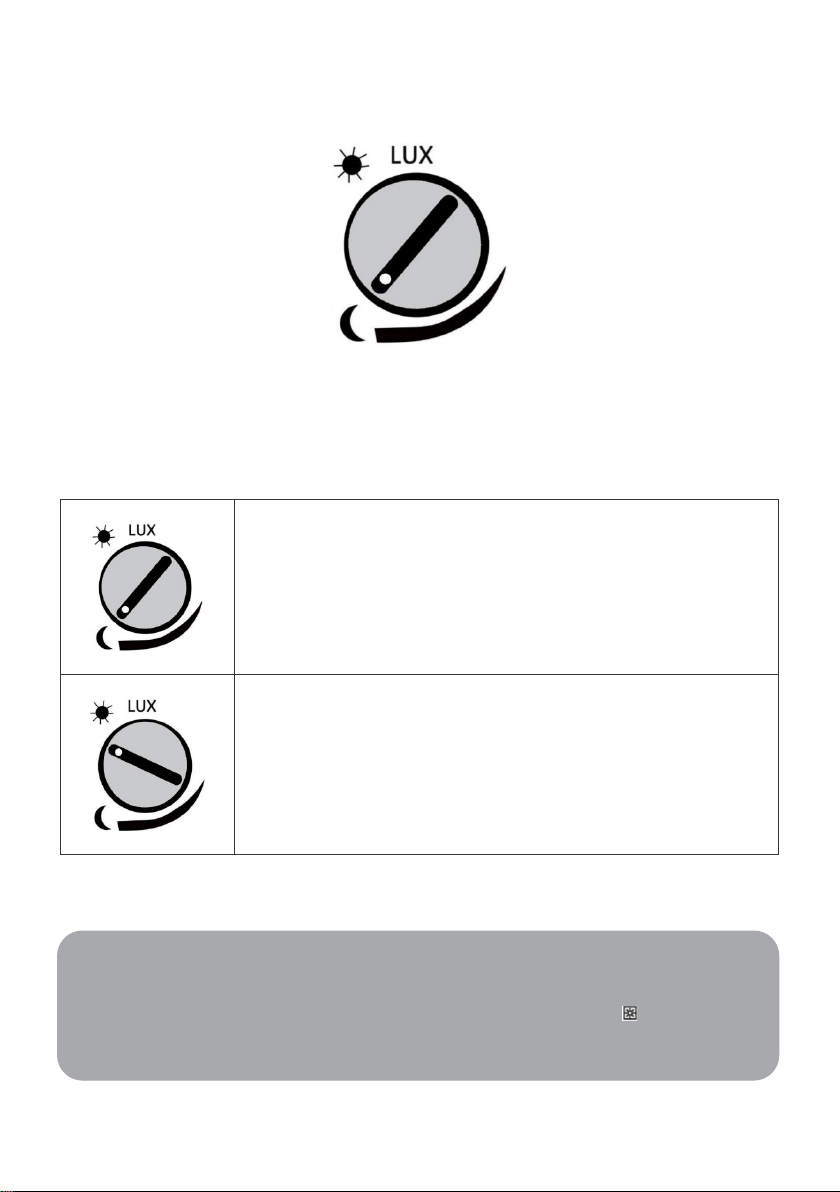

LUX (Light Level)
The LUX Adjusting Knob (9) tells the sensor the level of darkness that must be reached
before the Light turns on.
Lowest Setting:
If the dial is turned towards the moon icon, the sensor will only
trigger when it’s dark. This is usually the best position for general
evening and night operation.
Maximum Setting:
If the dial is turned towards the sun icon, the light will turn on in
most situations ranging from dusk to daylight.
Note:
If the Security Light is not operating at night due to interference from a streetlight or
other interference, turn the LUX knob towards the maximum setting ( ). Adjust the
dial as needed between the minimum and maximum settings to achieve the desired
level of sensitivity.
Adjust the light level
that activates the light

TIME (Light Duration)
The TIME Adjusting Knob (11) sets how long the light stays lit after motion is no longer
detected by the sensor.
The TIME is adjustable from 5 seconds to 2 minutes.
Minimum Position:
Turn the dial counter-clockwise to the minimum for the light to stay
on for 5 seconds after motion is no longer detected.
Mid-Range:
Adjusting the dial between the Minimum and Maximum to choose
any time between 5 seconds and 2 minutes for the light to stay on
after motion is no longer detected.
Maximum Position:
Turn the dial clockwise to the maximum for the light to stay on for 2
minutes after motion is no longer detected.
Adjust how long the
light stays on

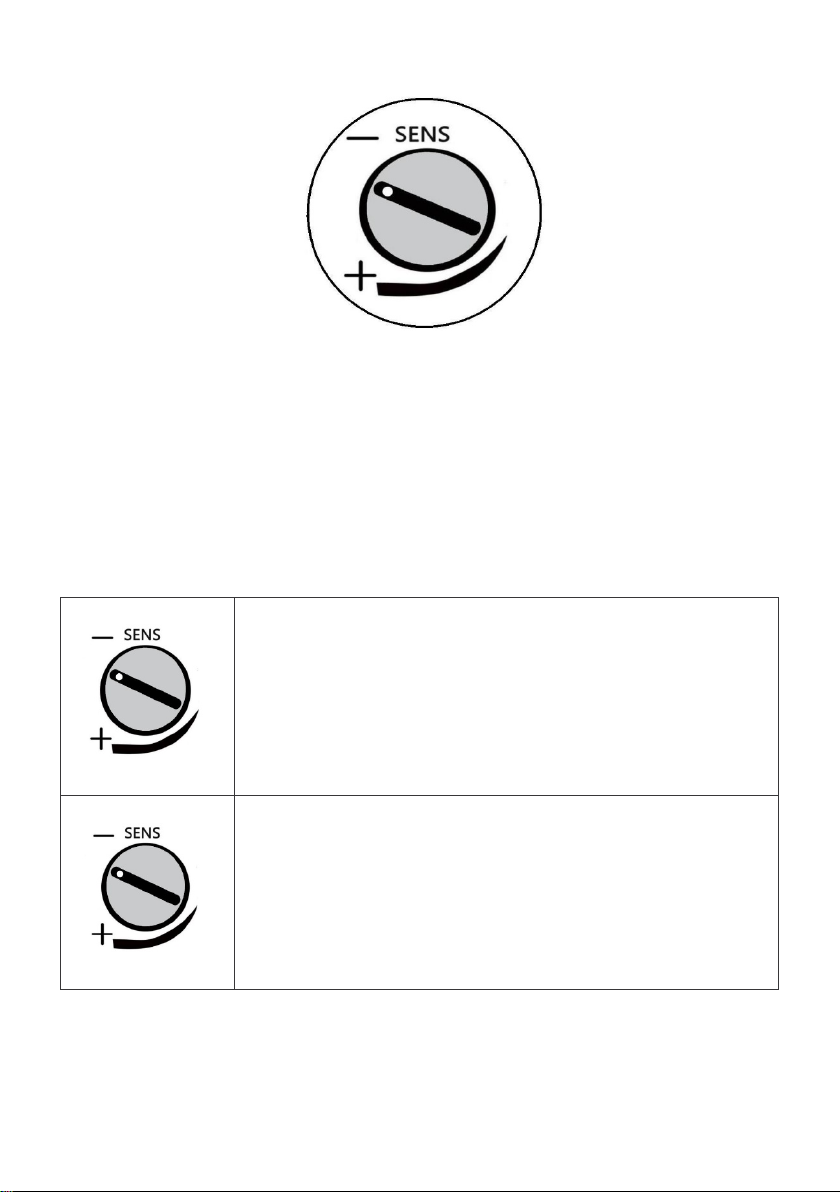

SENS (Sensitivity)
The SENS Adjusting Knob (10) sets the level of sensitivity of the Motion Detector Head.
The Motion Detector Head is most sensitive to movement across the detection zone, rather
than movement toward or away from the Motion Detector Head (6).
Movement is best detected at a distance of 40 feet or less.
Sensitivity is affected by the ambient air temperature. If it is hot outside, the sensor has
difficulty detecting changes in heat. In cold temperatures, the sensitivity is increased and
may need to be adjusted.
Minimum Position:
Rotate the dial to the “-” indicator to decrease the sensor distance
Maximum Position:
Rotate the dial to the “+” indicator to increase the sensor distance
Adjust Sensitivity
(For small or large
moving objects)

Testing the Light
After the battery is charged and the control Knobs are set, walk slowly around the detection
area. The sensor detects infrared radiation given off by a person or animal. This triggers the
light to turn on. The Light should go on in the area that you set up the Security Light to
monitor. Adjust the Knobs and sensor and re-test until the unit functions as desired. Repeat
the test procedure as needed when there are weather and/or temperature changes.
Note:
Turn the dial anywhere between the minimum and maximum settings to adjust the
level of sensitivity, as needed.

Procedures not specifically explained in this manual must be performed only by a qualified
technician.
Warning:
To prevent serious injury, do not use damaged equipment. If abnormal noise occurs, have
the problem corrected before further use.
Cleaning and Maintenance
Periodically, inspect the general condition of the item. Check for:
•Leaking, swollen or cracked battery pack
•Loose hardware
•Misalignment or binding of parts
•Cracked or broken parts
•Any other issue that may affect safe operation
If there are any issues with the device, contact Kogan.com support.
CLEANING & CARE

Lamp
60 Super Bright White LEDs
Battery Pack 6V, 900mAh, NiCd Battery Pack
Solar Panel 6-1/4" x 5" Amorphous Solar Panel
Detects Motion
Up to 50'
Range of Motion Up to 120°
Delay Time 5 to 120 Seconds (adjustable)
SPECIFICATIONS

Problem
Possible Causes
Likely Solutions
Light won’t turn
on.
1. Power is not on.
2. Cable connection is loose.
3. LUX control is set too low.
4. Motion sensor not detecting
movement.
5. Battery pack not fully charged.
1. Check that Power Switch
is set to on or auto.
2. Plug-in firmly at the back
of Battery Housing.
3. Turn LUX knob to turn
settings higher.
4. Adjust angle and direction
of Motion Detector Head.
5. Keep the solar panel
clean. Allow charging in
full sunlight for 3 days with
the Power Switch off.
Light turns on
during day.
LUX control is set too close to. Turn knob towards.
Light flashes on
and off with
clicking sounds.
Low battery.
With Switch set to “off”, allow
charging
in full sunlight for 3 days
before further use.
Light stays “on”.
1. Duration time setting too long.
2. Frequent changes in heat
being detected.
3. Power Switch set to on.
1. Turn TIME knob counter-
clockwise to reduce the
time the light stays on.
2. Check sensing area for
possible heat sources such
as air vents, vehicles or
objects in wind. Reposition
the Motion Detector Head
if needed or turn SENS
Knob counter-clockwise to
lower sensitivity.
3. Turn Power Switch to auto.
Light turns on
and off.
1. Changes in heat are being
detected from a fixed heat
source or moving object.
2. Sudden temperature changes
due to storms or high winds.
1. Check sensing area for
possible heat sources such
as air vents, vehicles or
objects in wind. Reposition
the Motion Detector Head.
2. Turn Power Switch “off”
until the storm passes.
Mount in a sheltered
location.
Follow all safety precautions whenever diagnosing or servicing Disconnect Battery Pack
and Charger power supply before service.
TROUBLESHOOTING

Need more information?
We hope that this user guide has given you
the assistance needed for a simple set-up.
For the most up-to-date guide for your product,
as well as any additional assistance you may require,
head online to help.kogan.com
Other manuals for KASLRMTLITA
1
Table of contents
Other Kogan Floodlight manuals
Popular Floodlight manuals by other brands

Gruppe
Gruppe Delta Installation Instruction Manual and Maintenance

VISIO
VISIO BW-18-3RGBW DXX user manual

Eye Lighting
Eye Lighting FGY-30L-408-W-UNV-DB Installation instructions manual

Eterna
Eterna VECOF10PIR installation instructions

Enttec
Enttec PHERO 30 White manual

Squareled
Squareled BLADE 5 user manual
