KAIRN01STMA
USER MANUAL

2000W Steam Iron
INSTRUCTION MANUAL
Introduction
Thank you for buying the 2000W steam-ironing system from KOGAN.
The iron offers non-stop ironing functionality with a detachable water tank that can be refilled at
any time.
The iron has a constant high steam output which is a unique feature for steam-ironing systems
with unlimited autonomy. This gives you constant fast ironing results.

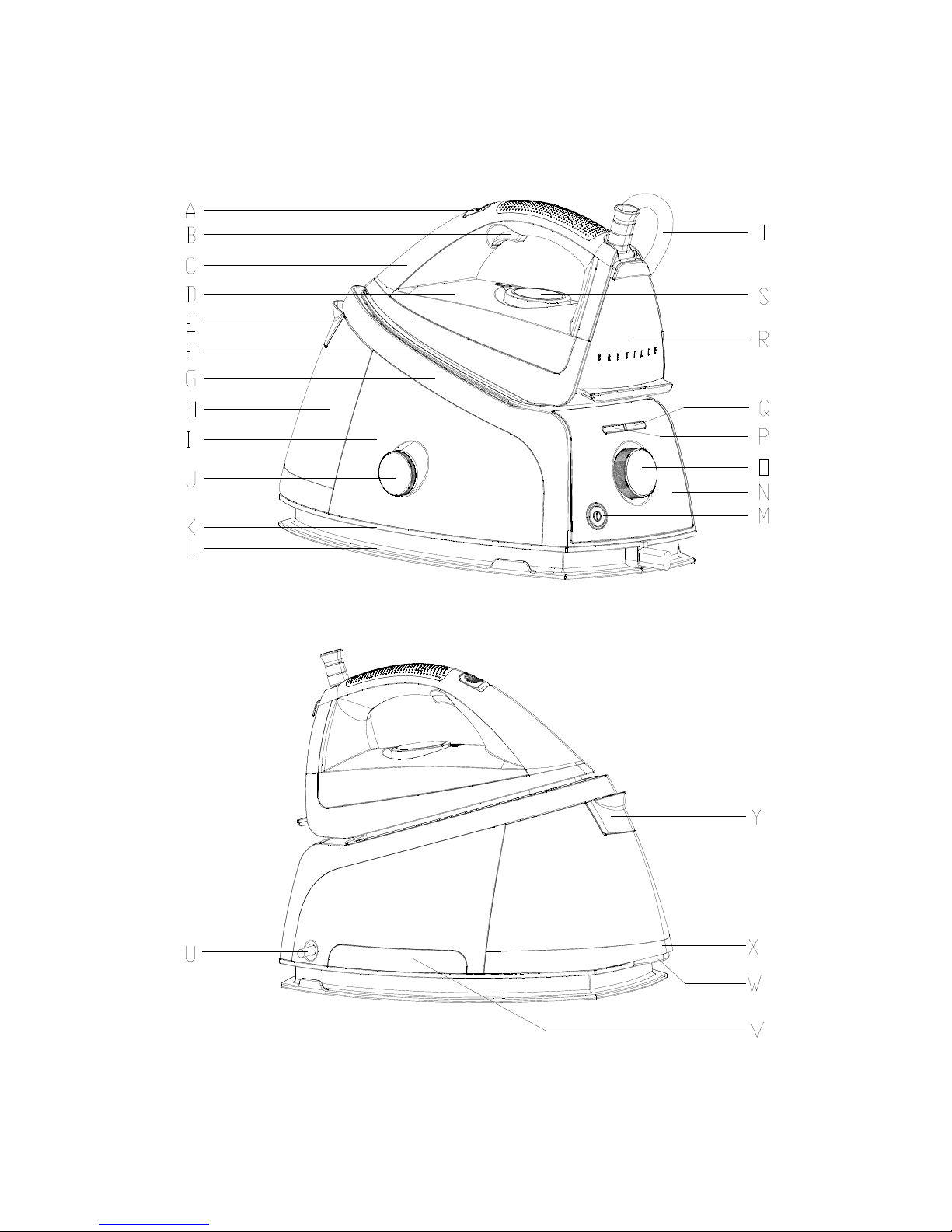

General Description

A Steam Button
B Steam Trigger
C Handle Cover
D Handle
E Skirt
F Soleplate
G Station Skirt
H Water Tank
I Upper Station
J Self-Clean Cover
K Bottom Station
L Foundation Support
M Switch Button
N Panel
O Steam Control Knob
P Lower Water Indicator Light
Q Steam Indicator Light
R Rear Cover
S Temperature Control Dial
T Cord Hose
U Power Cord
V Cord Wrap Seat
W Water Tank Locker
X Water Tank Seat
Y Water Inlet Cover
Important
Readin this manual thorou hly before usin the appliance will ensure optimum results and
maximum safety.
Save these instructions for future reference
●Check if the voltage indicated on the bottom of the steam tank corresponds to the local mains
voltage before you connect the appliance.
●Only connect the appliance to an earthed wall socked
●Do not use the appliance if the plug the cord the hose or the appliance itself is damaged.
●Regularly check if the mains cord and the supply hose are still undamaged and safe.
●If the mains cord is the damaged it must be replace by KOGAN a service center authorized
by KOGAN or similarly qualified persons in order to avoid a hazard.
●Never leave the iron unattended when it is connected to the mains.
●Never immerse the iron or the steam tank in water.
●Infirm persons should not be allowed to use the appliance without supervision. Keep the
appliance out of the reach of children.
●The iron stand and the soleplate of the iron can become extremely hot and may cause burns if
touched. If you want to move the steam tank do not touch the stand.

●Always place the iron on the stand or on its heel. Do not put the hot iron on the supply hose or
the mains cord. Make sure that mains cord and the supply hose do not come into contact with
the hot soleplate.
●Do not put perfume vinegar starch descaling agents ironing aids or other chemicals in the
water tank.
●Always place the appliance on a stable level and horizontal surface.
●When you have finished ironing or plan to leave the iron for a short while unplug the iron
and put it on the iron stand.
●If steam escapes from the steam tank when the appliance is heating up switch the appliance
off and tighten the Calc-Clean rinsing plug. If steam continues to escape when the appliance is
heating up switch the appliance off and contact the KOGAN support team.
●Rinse the steam tank once a month or after 10 times of use to prevent damage to your iron.
●Never remove the Calc-Clean rinsing cap or unscrew the Calc-Clean rinsing plug when the
steam tank is hot.
Before first use
● The iron may give off some smoke when you use it for the first time. This is normal and will
stop after a short while.
● White particles may out of the soleplate (F) when you use the iron for the first time. This is
normal; the particles are harmless and will stop coming out of the iron after a short while.
● When you switch the appliance on the steam station may produce a pumping sound. This is
normal; the sound tells you that water is being pumped into the boiler.
1 Remove any sticker or protective foil from the soleplate (F) and clean the soleplate (F) with a
soft cloth.
2 Place the steam station on a stable and level surface i.e. on the ironing board or on a table.

Preparin for use
Fillin Water
● If the tap water in your area is very hard we advise you to mix the tap water with a equal
amount of deminerialized water.
● Do not put perfume vinegar starch descaling agents ironing aids other chemicals or 100
percent distilled water in the detachable tank(H).
1 Pull down the Detachable water tank locker (W).
2 Remove the detachable water tank (H) from the steam station.
3 Fill the detachable water tank with water up to the MAX indication.
4 Pull down the Detachable water tank locker(W).
5 Slide the detachable water tank (H) back into the steam station.
●The detachable water tank (H) can be refilled at any time during use.
●This appliance has a built-in water level sensor. When the minimum level in the detachable
water tank (H) has been reached the water tank lower water indicator light (P) will start
flashing. Steam ironing will not be possible！
Note: When you use the appliance for the first time or after Calc Clean, a lot
of water will be pumped from the detachable water tank into the steam
station.
Refill the tank, if necessary.
Settin the temperature
Check the garment label for the required ironing temperature
● Synthetic fabrics (e.g. acrylic viscose polyamide) and silk
●● Wool
●●● Cotton
MAX Linen
1 Set the temperature control dial (S) to the required ironing temperature by turning it to
the appropriate temperature indication.
2 Insert the main plug (U) into an earthed wall socket and press the power indicator.
The steam station and the iron will now start heatin up.
The iron takes approx. 1 minute to heat up to ●● and the steam station takes approx. 2
minutes to heat up.
As soon as the steam station has reached its maximum pressure level and is ready for
steam ironin , the steam indicator li ht (Q) oes on.

Tips
‐If the article consists of various kind of fibers always select the temperature required by
the most delicate fiber i.e. The lowest temperature. If for example the fabric consists of
60% polyester and 40% cotton it should be ironed at the temperature indicated for polyester
(●●).
‐If you do not know what kind of fabric the article is made of determine the right ironing
temperature by ironing a part that will not be visible when you wear or use the article.
Silk woolen and synthetic materials: iron the reverse side of the fabric to prevent shiny‐
patches.
Fabrics that tend to acquire shiny patches should be ironed in one direction only (along with‐
the nap ) while applying very little pressure.
Start ironing the articles that require the lowest ironing temperature first.‐
●To make the iron cool down faster, simply apply steam or iron a piece of cloth.
Usin the appliance
Steam ironin
The cord hose (T) may become hot durin a lon ironin session.
●When plugged in the power indicator light on the panel will start flashing and the iron will go
into standby status. Press the power indicator button and the product will start working.
●The system may occasionally produce a pumping sound during steam ironing. This is normal
and tells you that water is being pumped into the steam tank.
1． Make sure there is enough water in the water tank..
●Steam ironin is only possible at hi her ironin temperatures (hi her than ●●).
●When the minimum level in the detachable water tank (H) has been reached the “water tank
lower water indicator light (P) will flash. This means you need to put water into the
detachable water tank (H). The lower water indicator will stop flashing when you've put
sufficient water into the detachable water tank (H).
2. Press the steam button (A) to start steam ironing
3. Pull up the steam trigger(B) to start continuous steam.
4．Turn-on the steam control knob (O) for adjust steam.
● Durin steam ironin , the Steam indicator light oes on from time to time to indicate
temperature and pressure.
● The openin and closin of the steam valve in the steam station will cause a clickin sound.
This is normal.
Ironin without steam
1 Start ironing without pressing the steam station.

After ironin
1. Place the iron securely on the stand.
2. Switch the appliance off.
3. Remove the mains plug from the wall socket and let the iron cool down.
Features
Vertical steamin
Never direct the steam at people.
●You can steam iron hanging curtains and clothes (jackets suits coats) by holding the iron in a
vertical position and pressing the steam activator.
Cleanin and maintenance
After each use
Never immerse the iron in water nor rinse it under the tap.
1. Clean the iron with a damp cloth.
2. Wipe scale and any other deposits off the soleplate with a damp cloth and a non-abrasive
cleaning agent.
Calc Clean
Never remove the Calc-Clean rinsing cap or unscrew the Calc-Clean rinsing plug when the steam
tank is hot.
VERY IMPORTANT: Rinse the boiler once a month or after every 10 times of use to
prevent damage to your iron.
The scale that develops inside the boiler will not deposit onto the walls. Just calc-clean the boiler
once or twice a month to keep your appliance in good condition.
1 Make sure that the steam tank has been unplugged for more than 2 hours and is not hot.
2 Remove the detachable water tank.
3 Hold the steam tank with both hands and shake well.
4 Turn the steam station on its side and remove the Calc-Clean rinsing cap & plug with a coin.
5 Empty the steam tank by pouring out the water into a sink.
6 Fill the boiler with fresh water by means of a cup and gently shake unit.
7 Empty the boiler by pouring out the water into a sink.
Repeat steps 6 & 7 twice to obtain the best result.
8 Put the Calc-Clean rinsing plug back into the steam tank and tighten it with a coin.
9 Put the Calc-Clean rinsing cap back onto the boiler.

Stora e
Always let the iron cool down before storing it.
1 Empty the water tank and store the supply hose and the mains cord.
2 There are hand-grips on the either side of the steam tank for easy transport.
Troubleshootin
Please check the followings before repair.
Problem Possible cause(s) Solution
The appliance does
not become hot
There is connection problem Check the mains cord the plug
and the wall socket.
The steam tank has not been switched
on.
Set the power switch to “on”
The temperature dial has been set to
MIN
Set the temperature dial to the
required ironing temperature
The iron does not
produce any steam.
There is not enough water in the
Detachable water tank
Fill in the Detachable water
tank
The steam pilot light is still off Wait until the steam pilot light
goes on
The selection ironing temperature is too
low for steam ironing
Set the temperature to ●● or
higher
The Detachable water tank has not been
properly attached to the steam tank.
Attach the Detachable water
tank to the steam station
properly
When the iron has been set to a very
high temperature The steam produced
is dry and hardly visible. It will be even
less visible when the ambient
temperature is relatively high and it will
be entirely invisible when the
temperature has been set to MAX.
Set the iron to a lower
temperature e.g. ●● to check
if the iron is actually producing
steam.
Water droplets
come out of the
soleplate
The selected temperature is too low for
steam ironing.
Set the temperature higher than
●●
When you start steam ironing and when
you have stopped steam ironing for a
while the steam that was still present in
the supply hose will have cooled down
and condensed into water which can
cause water droplets to come out of the
soleplate.
This is perfectly normal. Hold
the iron over an old cloth and
press the steam activator when
you start ironing (again).Wait
until steam instead of water
comes out of the soleplate.
Smoke comes
out of my new iron
when I switch it on.
Some parts of the appliance have been
lightly greased in the factory and may
initially give off some smoke when
heated.
This phenomenon is perfectly
normal and will cease after a
short while
The appliance
produces a pumping
sound
Water is being pumped into the steam
tank
This is normal

The steam station
maybe buzz at all
time.
The detachable water tank doesn't have
enough water inside it
Fill the detachable water tank
with water
The position of the detachable water
tank is wrong
Shake the steam station
or force the detachable water
tank into the steam station.
Attach the water tank to the
steam station properly
Dirty water comes
out of the soleplate.
Too much scale and minerals have
accumulated inside the steam station
Rinse the steam station. See
chapter “Cleaning and
maintenance”
