Kogan KALED42SMTZA User manual

Table of Contents
Safety Instructions.............................................................................................................................3
General Safety Instructions.......................................................................................................3
Installation........................................................................................................................................4
Cleaning............................................................................................................................................5
General Description..........................................................................................................................6
Specifications & Accessories........................................................................................................6
Specifications.................................................................................................................................6
Accessories......................................................................................................................................6
Overview................................................................................................................................................
Front Panel.......................................................................................................................................
Rear Panel........................................................................................................................................
Remote Control.............................................................................................................................8
Installing Batteries in the Remote Control.......................................................................10
External Connections.....................................................................................................................10
Antenna Connections................................................................................................................10
VCR Connection............................................................................................................................11
Camcorder Connection.............................................................................................................12

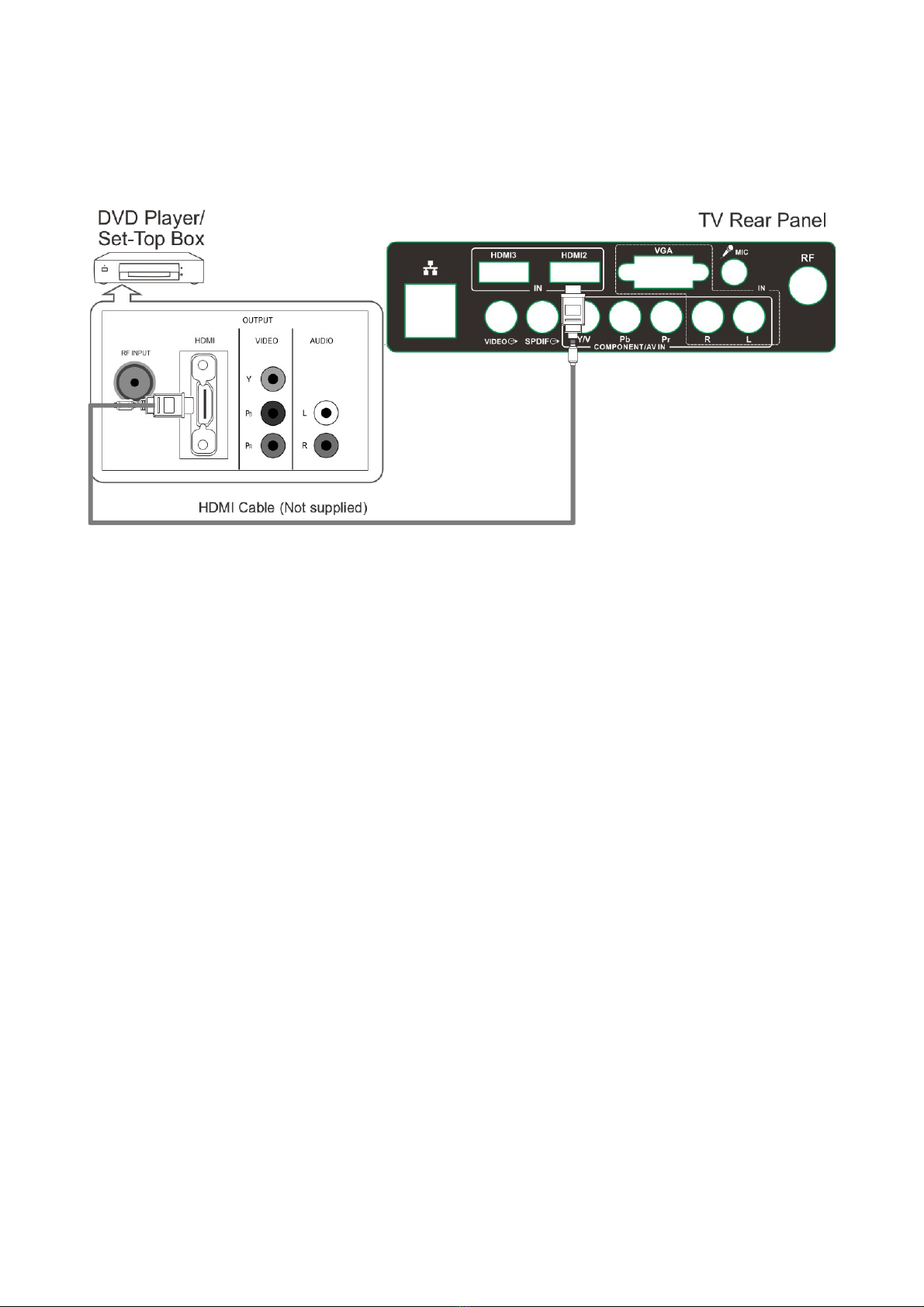

Connecting a DVD Player/Set-Top Box via HDMI.........................................................13

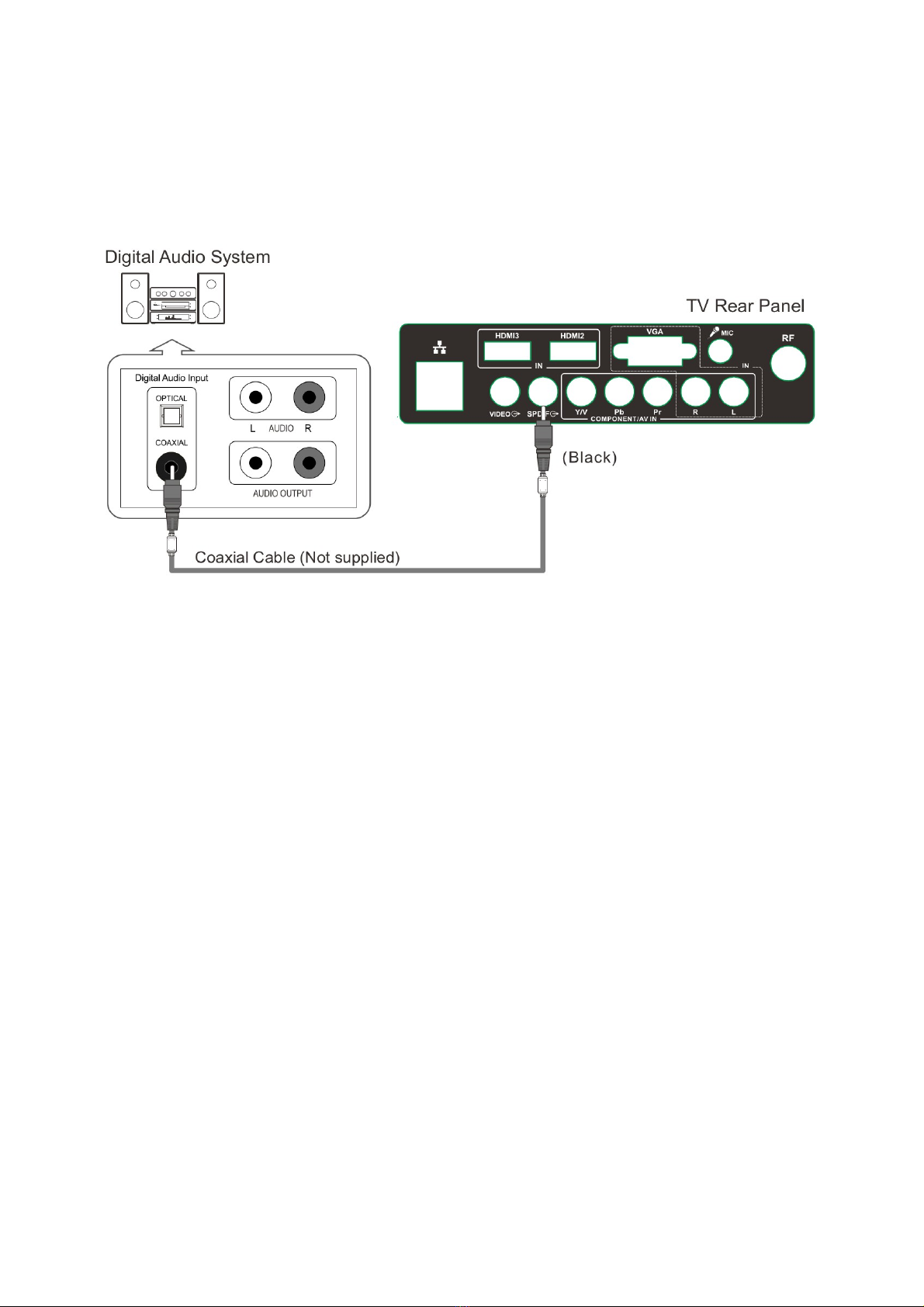

Connecting a Digital Audio System.....................................................................................14
Connecting a PC..........................................................................................................................15
Supported Signals.......................................................................................................................15
Basic Operation.................................................................................................................................16
Turning the TV on or off...........................................................................................................16
Menu Operation ...............................................................................................................................1
Main interface................................................................................................................................1
Applications...................................................................................................................................18
Menu System instruction ..............................................................................................................19
TV Menu..........................................................................................................................................19
Sound...............................................................................................................................................19
Image................................................................................................................................................21
Program..........................................................................................................................................22
Input Source.................................................................................................................................24
Function..............................................................................................................................................24
Time......................................................................................................................................................26
PVR (Personal Video Recorder)................................................................................................2
PVR File System..........................................................................................................................2
PVR Guide......................................................................................................................................28
DTV EPG (Electronic Program Guide)...............................................................................29
Digital Media Player.......................................................................................................................30
Device and File Management......................................................................................................31
Initialization Interface................................................................................................................31
USB Support.......................................................................................................................................31
Photos..............................................................................................................................................31
Music................................................................................................................................................32
Movie................................................................................................................................................32
External Connections.....................................................................................................................33
1

Assembling the Stand...............................................................................................................33
Mounting the LED TV on the wall........................................................................................33
Troubleshooting..............................................................................................................................34
2

Safety Instructions
General Safety Instructions
Risk of electric shock. DO NOT OPEN!
Do not attempt to service the television yourself, as
opening or removing the covers may expose you to
dangerous voltage or other hazards. Refer all servicing to
the Kogan customer support team.
To reduce the risk of fire or electric shock, do not expose this
product to rain or moisture. The television should not be
exposed to dripping or or splashing, and no liquid filled objects
such as vases should be placed on the case.
In the event of smoke, strange noises or a strange smell from
the unit, you should follow these steps:
•Turn off the unit immediately.
•Disconnect the power plug from the power outlet.
•Contact the Kogan customer support team. Never
attempt to make repairs yourself.
Never push objects of any kind into the set through the
cabinet slots as they may touch dangerous voltage
points or short-circuit parts that could result in a fire or
electric shock. Never spill any liquids onto the set. Use
special caution in households where children are
present. The television is not suitable for children under
4 years old to operate.
Power supply cords should be routed safely to prevent
dangers due to damaged cords.
The mains plug is the main disconnect method, so it should
be easily accessible and not be obstructed during use.
To avoid fires, no naked flame sources such as lit candles or
burning incense should be placed onto the casing of the
television.
Do not pull the plug out of a power outlet by pulling on the
power cable. Always grasp the plug and pull.
Never touch the plug with wet hands.
3

An outside antenna system should not be located in the
vicinity of overhead power lines or other electric light or
power circuits.
When installing an outside antenna system, extreme
care should be taken to keep from touching such power
lines or circuits, as contact with them may be fatal.
Always turn the set off when it is not being used.
Unplug the television from the power outlet when it will
not be used for a long time or when there is an
electrical storm.
Never touch the antenna cable during a lightning storm.
Excessive volume from earphones and headphones can
cause permanent hearing loss. Always monitor the volume of
noise from these devices, especially when children are using
them.
Installation
Ventilation should not be impeded or limited by
covering the ventilation slots with items such as
newspapers, tablecloths, curtains etc..
At least 10cm of space should be left around the
apparatus for sufficient ventilation.
The television should be situated away from heat
sources such as radiators, heaters, stoves or other
products that product heat.
Place the television in a position where the screen is
not exposed to direct sunlight. It is best to have soft
indirect lighting while watching, and you should avoid
a completely dark viewing environment and
reflections to avoid eye fatigue.
Keep the product away from high magnetic fields
(such as near an amplifier speaker) to avoid affecting
the tint.
Do not place the television on an unstable table, stand
or shelf. The set may fall, causing serious injury as well
as damage to the television itself.
If moving the television on a cart, move the unit with
care as sudden stops and starts may cause the
television to overturn.
4

Do not place this television near water, for example
near a bathtub, wash bowl, kitchen sink, laundry tub,
swimming pool or in a damp basement etc..
When moving the television to a warm location from
a cold location, allow some time for any dew or
condensation inside the television to evaporate fully
before you turn the unit on.
To prevent injury, the television must be securely
attached to the floor/wall in accordance to the
supplied installation instructions.
Cleaning
Unplug the television from the power supply before
cleaning. Do not use any liquid cleaners or harsh
chemicals. Use a soft, damp cloth.
5

General Description
•Zero X radiation complies to green environment protection requirements.
•Connects directly to PC to create a TV/monitor combo.
•MHL2.0
•Android 4.2
•USB 3.0 support.
•16:9 widescreen.
•Auto Tuning and Fine Tuning.
•HDMI input.
•Component compatible (480i; 480P; 5 6i; 5 6P; 20P; 1080i; 1080P)
•PC VGA
•Programmable sleep timer.
•Wide range voltage input.
•No signal automatic power off.
1 x ANTENNA jack 3 x HDMI inputs
1 x computer PC-RGB input 2 x USB inputs
1 x component input 1 x CVBS input
1 x AV input 1 x SPDIF output
1 x headphone output
Specifications & Accessories
Specifications
Model KALED42SMTZA
Display Screen Size 42” Diagonal
Maximum Resolution 1920 x 1080
Power Supply ~110-240V, 50/60Hz
TV Receive System PAL/SECAM: BG, DK, I DVB-T
Video In PAL/NTSC/SECAM
Antenna Input Impedance 5ohm unbalanced
Sound Output 2 x 5W
Remote Power Input DC 3V (Two AAA batteries)
Power Consumption 90W
Standby Power Consumption < 0.5W
Operating Temperatures 0°C ~ 40°C
Dimensions With stand 96 x 240 x 623mm
Without stand 96 x 62 x 5 6mm
Weight With stand 12.5kg
Without stand 10.1kg
Accessories
Remote Control
6

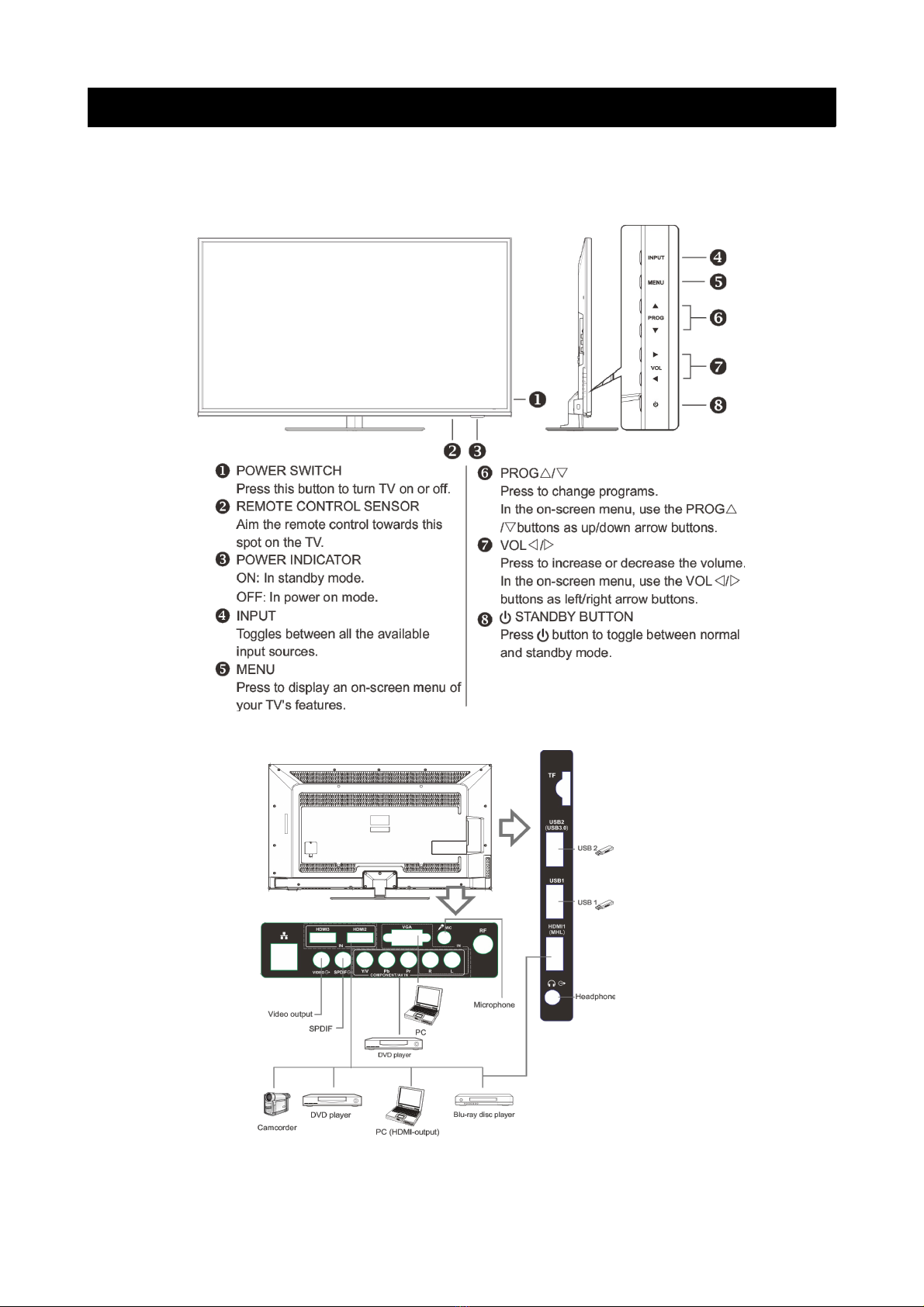

Overview
The buttons on the lower-right panel control your TVs basic features, including the on-screen
menu. To use the televisions more advanced features, you must use the remote control.
Front Panel
Rear Panel

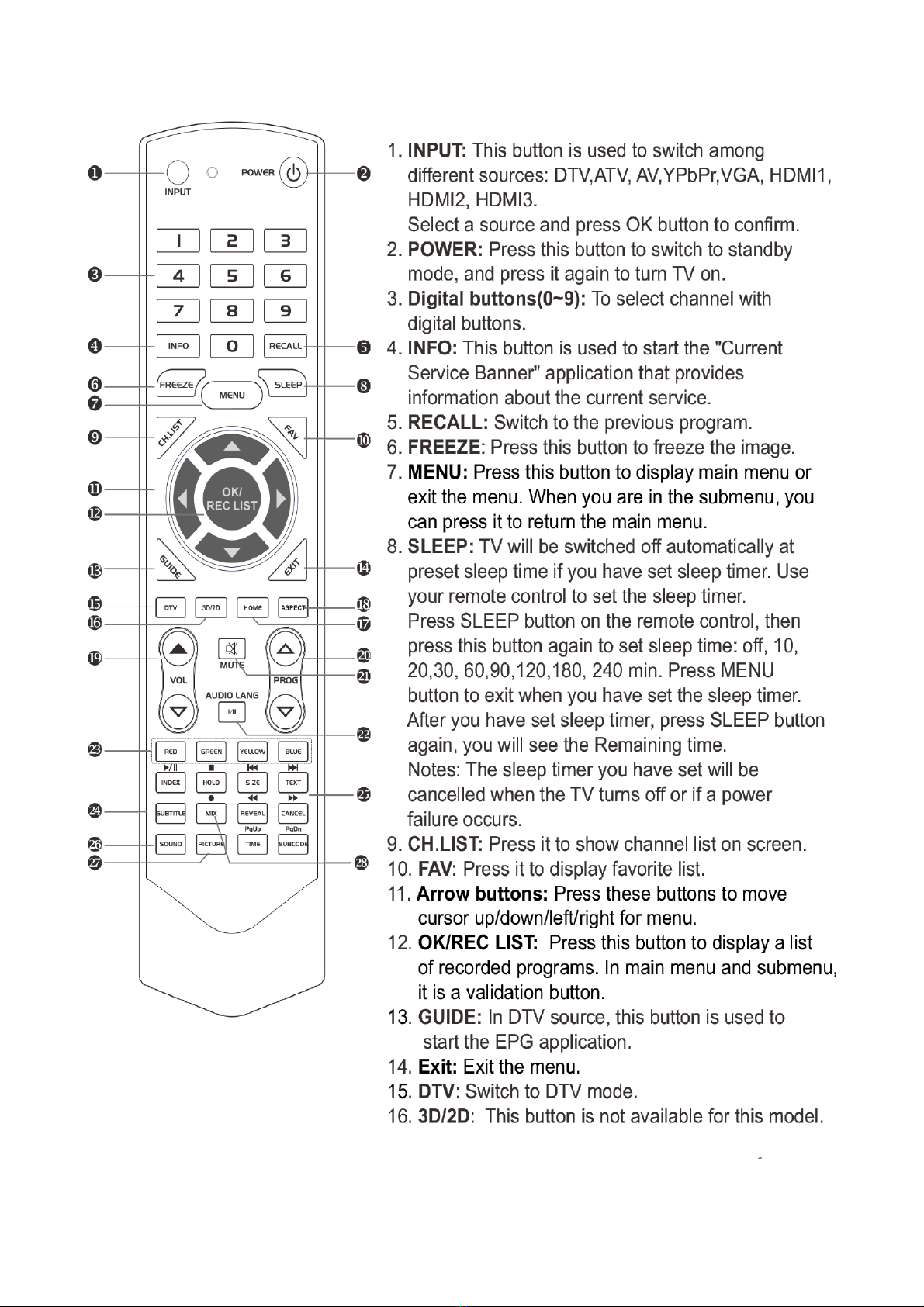

Re ote Control
8

9
Note:
Before turning off the main power, or turning off the power supply, you must
switch the television into standby mode by pressing the POWER button on
the remote control or on the television set itself.
Once the television is in standby mode, you may turn off the mains power
supply.

Installing Batteries in the Re ote Control
Notes:
•One load of batteries should last for 1 year under normal use.
•If you do not intend to use the remote control for an extended period of
time, remove the batteries to avoid damage due to leakage.
•Do not mix old and new batteries together.
•Do not expose batteries to extreme heat such as sunshine, fire etc..
External Connections
Antenna Connections
Antenna input impedance of this unit is 5ohm. VHF/UHF 5ohm coaxial cables
can be connected to the antenna jack directly. If the antenna cable is a 300ohm
parallel flat feeder cable, you need to use the 300ohm/ 5ohm converter to
connect the antenna cable to the antenna jack. For details, please refer to the
following images.
Antennas with 300ohm flat twin leads Antennas with 5ohm round leads
10

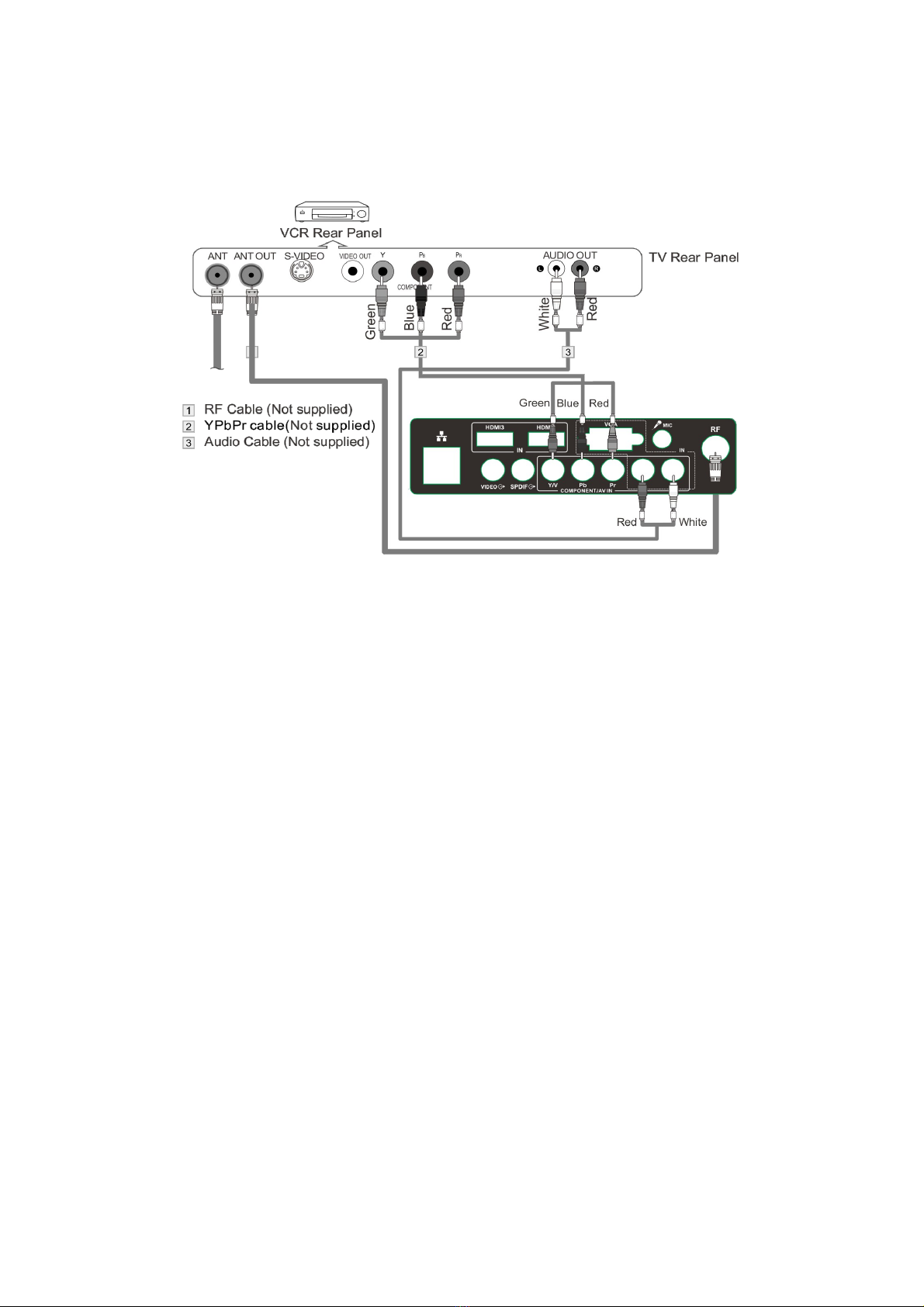

VCR Connection
These instructions are assuming you have already connected your TV to an
antenna or other cable TV system. Skip step 1 if you have not yet connected an
antenna.
Follow the instructions in Viewing a VCR or Camcorder Tape to view your VCR
tape. Each VCR has a different back panel configuration. When connecting a
VCR, match the colour of the connection terminal to the cable.
1. Unplug the cable or antenna from the back of the TV.
2. Connect the cable or antenna to the ANT IN terminal on the back of the
VCR.
3. Connect an RF cable between the ANT OUT terminal on the VCR and the
ANT IN terminal on the TV.
4. Connect a component cable between the COMPONENT (Y, Pb, Pr) jacks
on the VCR player and the YPbPr jack on the TV.
5. Connect the audio cables between the AUDIO OUT jacks on the VCR and
the AUDIO R and AUDIO L jacks on the TV.
Note:
•Whenever you connect an external device to your TV, make sure that the
power on the unit is turned off.
•When connecting an external device, match the colour of the connection
terminals to the cable.
11

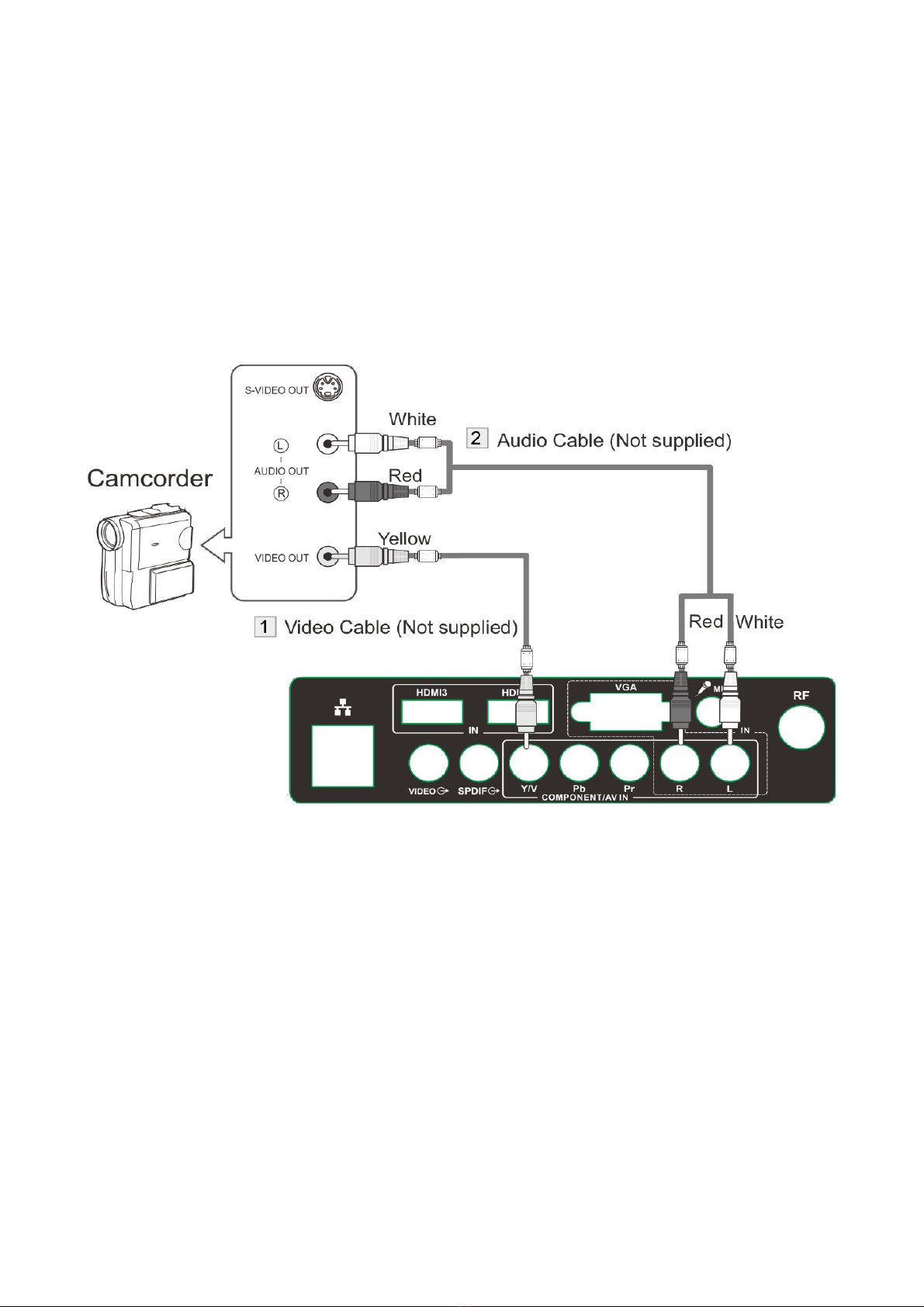

Ca corder Connection
The rear panel jacks on your TV makes it easy to connect a camcorder to your
TV. They allow you to view the recordings without using a VCR player.
Each camcorder has a different back panel configuration, so when connecting a
camcorder, match the colour of the connection terminal to the cable.
1. Connect a video cable between the AV1 VIDEO jacks on the TV and the
VIDEO OUT jack on the camcorder.
2. Connect audio cables between the AUDIO L and AUDIO R jacks on the TV
and the AUDIO OUT jacks on the camcorder.
Note:
•Whenever you connect an external device to your TV, make sure that the
power on the unit is turned off.
•When connecting an external device, match the colour of the connection
terminals to the cable.
12

Connecting a DVD Player/Set-Top Box via HDMI
This connection can only be made if there is a DVI output connector on the
external device.
What is HDMI?
HDMI, or high-definition multimedia interface, is a next-generation interface that
enables the transmission of digital audio and video signals using a single cable
without compression.
Multimedia interface is a more accurate name for it, as it allows multiple
channels of digital audio (5.1 channels).
The difference between HDMI and DVI is that the HDMI connection is smaller in
size, has HDCP (High Bandwidth Digital Copy Protection) coding installed and
supports multi-channel digital audio.
Each DVD Player/Set-Top Box has a different panel configuration.
Connect a HDMI cable between the HDMI1, HDMI2, HDMI3 or HDMI4 connector
on the TV and the HDMI connection on the DVD Player/Set-Top Box.
Note:
•Whenever you connect an external device to your TV, make sure that the
power on the unit is turned off.
•When connecting an external device, match the colour of the connection
terminals to the cable.
13

Connecting a Digital Audio Syste
The read panel jacks on the TV make it easy to connect a Digital Audio System
to your TV.
5.1 CH audio is possible when the TV is connected to an external device
that supports 5.1 CH sound.
Connect a coaxial cable between the SPDIF jacks on the TV and the Digital
Audio Input jacks on the Digital Audio System.
When a digital audio system is connected to the SPDIF terminal, decrease the
gain (volume) on the TV, then adjust the volume using the Digital Audio
System's volume controls.
14

Connecting a PC
Each PC has a different back panel configuration.
The HDMI jacks do not support a PC connection.
1. Connect a D-Sub Cable between the VGA/PC IN connector on the TV and
the PC output connector on your computer.
2. Connect a PC Audio Cable between the PC AUDIO IN jack on the TV and
the Audio Out jack on the soundcard on your computer.
You should set PC software before you connect a PC to your TV. (please refer to
“PC DISPLAY” settings)
Note:
•Whenever you connect an external device to your TV, make sure that the
power on the unit is turned off.
•When connecting an external device, match the colour of the connection
terminals to the cable.
Supported Signals
Input Mode Input Resolution Vertical Freq.
DTV DVB-T
Component
480i 60Hz
ATV PAL BG I DK 480p 60Hz
SECAM BG DK 5 6i 50Hz
CVBS PAL/NTSC/SECAM 5 6p 50Hz
20p 50/60Hz
Input Resolution Vertical Freq. 1080i 50/60Hz
PC/VGA
VGA 640x480 60Hz 1080p 50/60Hz
SVGA 800x600 60Hz
HDMI
480p 60Hz
XGA 1024x 68 60Hz 5 6p 50Hz
SXGA 1280x1024 60Hz 20p 50/60Hz
1360x 68 60Hz 1080i 50/60Hz
1080p 50/60Hz
15

Basic Operation
Turning the TV on or off
1. Insert the power cord into a power outlet.
2. If the TV is in standby mode, press the POWER
button on the remote control or on the bottom
panel of the TV.
3. Normal pictures will appear on the screen after about 15 seconds. If there
is no signal input, then “NO SIGNAL” will appear on the screen.
4. If temporary POWER off is required, press the POWER button on the
remote control or on the bottom panel of the TV.
5. If you want to completely switch off the power of the TV for an extended
period of time, unplug the power cord.
6. After switching the unit off, you should wait at least 5 seconds before
turning it on again.
Status Indication La p
ON: in standby mode
OFF: in power on mode
Auto Power-off
•If there is no signal, the TV will automatically enter standby mode after 10
minutes.
•In VGA mode, if there is no operation, TV will enter standby mode after 15
seconds.
Me ory before turning TV off
The picture and sound settings, plus preset channels will be memorised at the
point when the TV is turned off. When the TV is started up again, it will resume
with these settings.
16

Menu Operation
Main interface
You will enter the main menu directly after the TV is turned on.
Arrow buttons: Select menu and the selected menu's background will be orange.
OK button: Enter the options which you've selected.
INPUT button: You will enter the relevant function options directly.
Those state icons at the top right function function as the following in turn:
1. Add to home screen 2. All caps 3. Change wallpaper
4. Search 5. Setting 6. Mass storage
. Wired
Note:
1. The first area as the photo shown will display the current video images,
and it will display snowflake when there is no signal.
2. The second area shows some small desktop plug-ins, select one and press
the OK button, you will enter the relevant application program.
3. The third area is the entrance of the shortcut menu, select one and press
the OK button, you will enter the relevant shortcut options.
1

Applications
The Application menu shows all the applications which come pre-installed with
the TV, as well as those which you've downloaded.
Menu Button: Open or Close the app's menu
Exit Button: Return to the main menu
Arrow Button: Select the application which you want
OK Button: Enter the application you've selected.
Note:
When the applications are of more than one page, and the focus is on left or
right side of each line, the left/right buttons can page up/down.
18

Menu Syste instruction
TV Menu
Menu button: Open the TV menu.
Exit button: Close the TV menu.
Arrow buttons: Select the application which you want.
OK button: Enter the selected application settings menu.
Note: Enter the function option by click the status bar.
Sound
Sound Mode
You can select the type of special sound to be used when watching a given
settings broadcast. Your TV has five sound settings (“Standard”,“Music”,
“Movie”, “Sports”, “User”) that are preset at the factory.
Press / key to select "Sound Mode" option. ▲ ▼
Press /  key to select one sound mode.◀ ▶
•Standard: Selects the normal sound mode.
•Music: Select the sound mode for music.
•Movie: Provides live and full sound for movies.
•Sports: Emphasises bass over other sounds.
•User: Selects your custom sound settings (See "User settings for Sound”).
19
