Kogan KASBD60SA User manual

2.1CH DOLBY SOUNDBAR
WITH BUILT-IN SUBWOOFER
(60W RMS)
KASBD60SA

Ensure you have read and understood these instructions before using the product. The
contents of this User Guide may change without further notice due to changes in product
performance and functionality.
•Do not use the appliance in humid environments or under water
•Do not use the appliance near sources of heat or in high temperature areas
•Avoid exposure to direct sunlight for an extended period.
•Ensure the appliance is either placed on a level and stable surface or is correctly
wall-mounted to minimise the chance of falls or drops.
•Do not attempt to modify or disassemble the appliance without authorisation
Warning
The product should never be exposed to water droplets or water splashing.
Avoid placing the product near liquid-filled items such as vases.
To avoid fire or electric shock, ensure the household voltage matches the
voltage specified on the product before use.
•1 x Soundbar
•1 x User Guide
•1 x remote control
•1 x power adaptor
•1 x RCA cable
•1 x wall-mount screws
•2x wall-mount brackets
•1x Warranty card
SAFETY & WARNINGS
IN THE BOX

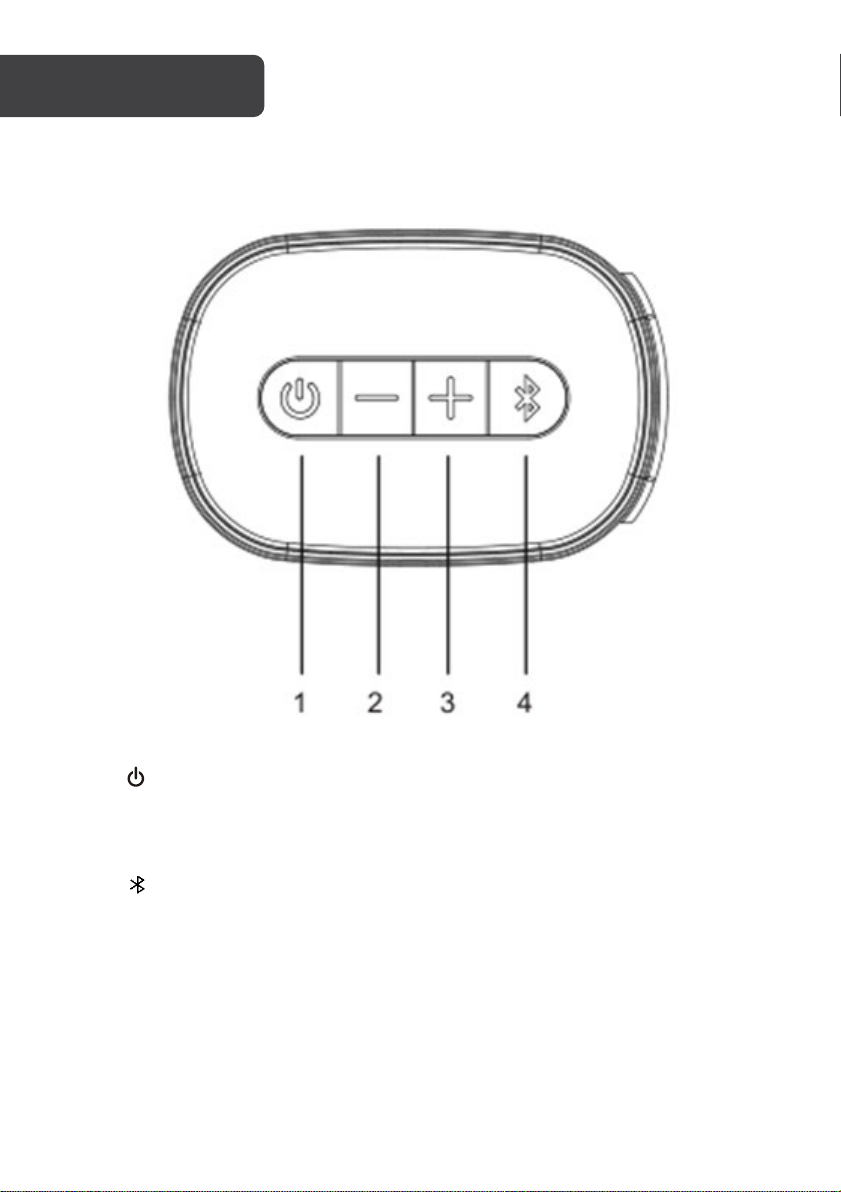

Buttons
1. : Short press to power on, short press to switch function, hold to power off
2. －:Press for volume down
3. ＋:Press for volume up
4. : Press for Bluetooth pairing
OVERVIEW

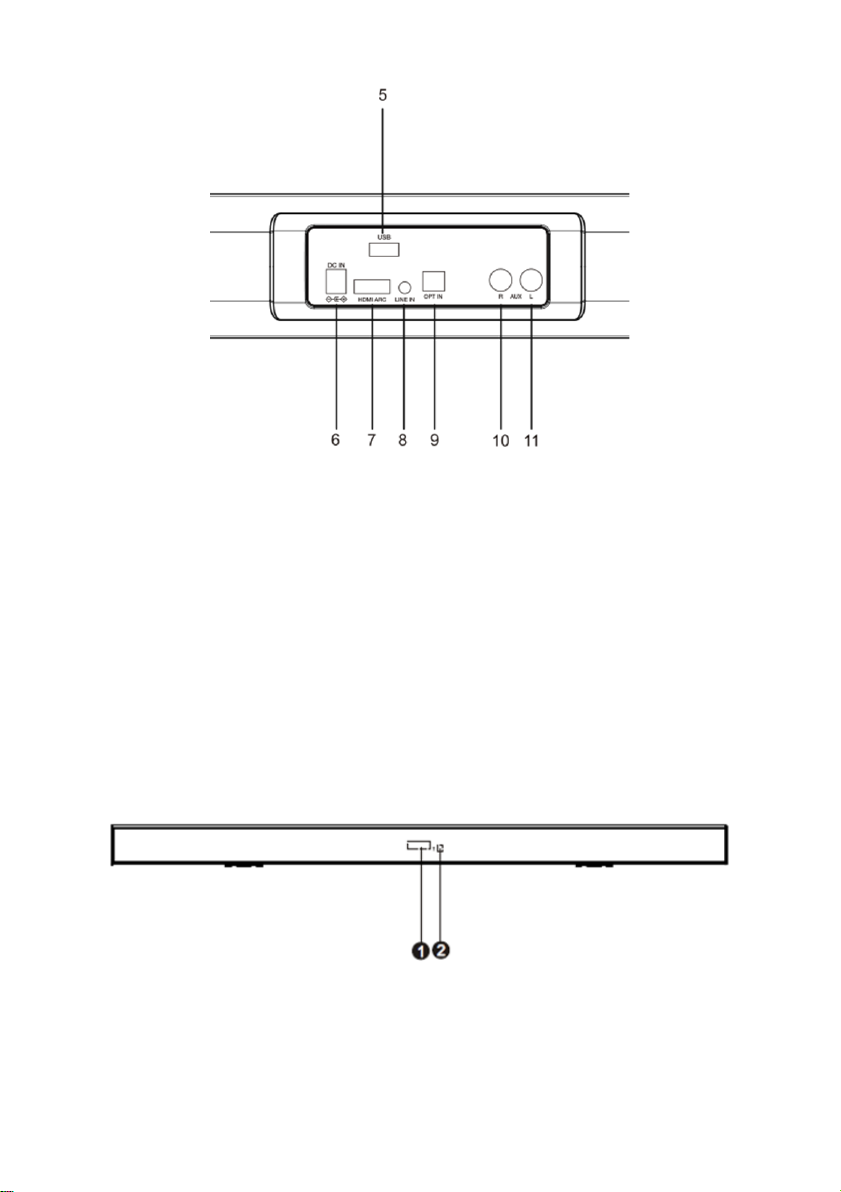

Connections
5. USB: USB port
6. DC IN: DC input
7. HDMI: HDMI in (ARC)
8. LINE IN: 3.5mm connector
9. OPT: Optical input
10. AUX IN (R): For external audio input (RCA/Phono)
11. AUX IN (L): For external audio input (RCA/Phono)
LED Display
1. LED Display
2. Remote control sensor

Remote Control
1
Press to power on and standby
2
TREBLE-
Press to decrease treble
3
TREBLE+
Press to increase treble
4
VOL+
Press to increase volume
5
VOL-
Press to decrease volume
6
Press to previous song in Bluetooth or USB mode
7
Press to next song in Bluetooth or USB mode
8
Press to play or pause in Bluetooth or USB mode
9
MUSIC
Press to select the Music sound mode
10
MOVIE
Press to select the Movie sound mode
11
DIALOGUE
Press to select the Dialogue sound mode
12
BASS-
Press to decrease bass sound
13
BASS+
Press to increase bass sound
14
Short press to change between HDMI/OPTICAL IN/LINE
IN/AUX IN/USB mode, long press to toggle mute on/off

•Unpack all parts and remove protective material.
•Do not connect the unit to the mains before checking the mains voltage and
before all other connections have been made.
Attaching mounting brackets (optional)
1. Using a screwdriver, remove the four mounting screws from the rear of the product
as shown.
2. Seat the two included mounting brackets vertically over the screw holes. Do not
attach the brackets horizontally.
3. Reinsert the screws into the holes and tighten, attaching the brackets to the
soundbar.
INSTALLATION

1. Make sure you have made all the necessary cable connections before connecting
the Soundbar to a wall outlet, the soundbar will enter to standby mode, the LED
display will show “--”.
2. Insert a AAA battery into the remote control to activate it.
3. Short press the Power/Source button on unit or remote control to turn on the
soundbar.
4. Press the Power/Source button on the soundbar or the Mode/Mute button on the
remote control to select from various sources.
1. Bluetooth Mode
After powering on, the soundbar will enter Bluetooth mode automatically. You can also
select Bluetooth mode as described above.
1. Place the audio source device (smartphone, etc.) within 3 meters of the soundbar.
2. Activate the Bluetooth function of the audio source device, so that it starts to
search for nearby Bluetooth devices (please refer to the device’s instructions for
details).
3. Select “KASBD60SA” from the discovered device list and click to connect.
4. If the device asks for a password, enter “0000” and press confirm button to pair the
device with the soundbar.
5. Make sure that the distance between the soundbar and phone is less than 10m
and there are no obstacles in the space. Music can now be played through the
soundbar over Bluetooth.
6. Short press the Play/Pause button to play and pause music. Short press the
Previous or Next buttons to play the previous or next song.
7. To disconnect, short press or long-press the Bluetooth button on the soundbar. At
this time, another mobile phone device can be used to connect Bluetooth playing.
If another connection is not selected, the soundbar will remain discoverable over
Bluetooth until it is powered off or another mode is selected.
OPERATION
Note:
The remote control works within a range of 6 metres.

2. Line in mode
After powering the unit on, connect an external audio source to the LINE IN jack of the
soundbar by using a 3.5mm audio cable, then short press the Power/Source button on the
soundbar or the Mode/Mute button on the remote control to switch to “LINE IN”. Adjust the
external audio source to a moderate volume and begin playback.
3. AUX in mode
After powering the unit on, connect an external audio source to the AUX IN jack of the
soundbar by using the included RCA cable, then short press the Power/Source button on
the soundbar or the Mode/Mute button on the remote control to switch to “AUX IN”. Adjust
the external audio source to a moderate volume and begin playback.
4. HDMI mode
Short press the Power/Source button on the soundbar or the Mode/Mute button on the
remote control to switch to “HDMI” mode. Connect a HDMI cable to the HDMI (ARC) port
on your TV and then to the HDMI IN (ARC) port on the rear of the soundbar. Ensure the
HDMI ARC function is activated on your TV and digital output is set to PCM/Dolby.
5. Optical mode
Short press the Power/Source button on the soundbar or the Mode/Mute button on the
remote control to switch to “OPTICAL”. Connect the DVD audio and equipment to the
soundbar’s OPT IN jack with an optical audio cable. This machine decodes optical fiber
digital to restore sound through power amplifier. Ensure your TV’s digital output is set to
PCM/Dolby.
6. USB mode
After powering the soundbar on, insert a USB drive into the USB port of the soundbar. The
product will automatically enter USB playback mode and plays any supported audio files
found on the USB. Press the Play/Pause button to play and pause the music. Short press
the Previous or Next button to skip back/forward between songs.

Volume and sound mode
1. After powering the sound bar on, in any mode of playback, short press or long press
the volume “-” button on the soundbar or remote control to decrease the volume.
Short press or long press the volume “+” button on the soundbar or remote control
to increase the volume.
2. After powering on, in any mode of playback, short press the relevant button on the
remote control to choose a sound effect mode: MUSIC, MOVIE or DIALOGUE.
Power off
When powered on, long press the Power/Source button on the soundbar or short press the
Power/Standby button on remote control to power the unit off. If unplugged from power the
supply, the machine will be completely powered off.
Device compatibility
The product theoretically supports all mobile phones with Bluetooth functionality and any
related equipment that connects to Bluetooth and plays music.
Note:
During volume increase and decrease, the LED display will show the
volume level as it is set (between 0–32).
Note:
In MOVIE, MUSIC and DIALOGUE modes, the BASS and TREBLE settings
can be adjusted from the remote control.

Output power
15W x 2+30W
AC/DC adaptor
100-240V~50/60Hz
Speaker frequency
50Hz - 15kHz
Bluetooth version
5.0, A2DP, AVRCP
Bluetooth range
Up to 10m
Dimensions
940 x 92 x 63mm
Issue
Possible solution
Bluetooth device
cannot be paired
Another device is already paired to the soundbar. When
powered on, the soundbar will automatically find the paired
device and connect. Turn off the Bluetooth function on the
connected device, and the soundbar will be discoverable again.
Bluetooth playback
volume is low
Adjust the output volume on the Bluetooth audio device.
Short Bluetooth
connection distance
Obstruction exists between the soundbar and Bluetooth
device. Remove any obstructions that may be present.
Bluetooth
connection is
interrupted
(broken sound)
1. Obstruction exists between the soundbar and Bluetooth
device. Remove any obstructions that may be present.
2. The Bluetooth device is beyond the maximum connection
range. Shorten the distance between the soundbar and
Bluetooth device.
SPECIFICATIONS
TROUBLESHOOTING
Note:
If the above methods are ineffective, contact Kogan.com for further support.

Need more information?
We hope this User Guide has given you
the assistance needed for a simple set-up.
For the most up-to-date guide for your product,
as well as any additional assistance you may require,
head online to help.kogan.com
