Kogan KALED32SMTWA User manual

KALED32SMTWA
USER MANUAL

Safety Precautions
Power Supply..................................................................................................................................................... 1
Installation......................................................................................................................................................... 2
Use and Maintenance....................................................................................................................................... 3
Important Safety Instructions ............................................................................................................................ 4-5
User Guidance Information
Names of each part(Back View) ........................................................................................................................ 7
Names of each part(Front View) / Accessories ................................................................................................. 6
Remote control .................................................................................................................................................. 8-9
Basic Operation
Basic Operation ................................................................................................................................................. 10
OSD Menu
1. CHANNEL Menu ........................................................................................................................................... 11-12
2. PICTURE Menu ............................................................................................................................................ 13
4. TIMER Menu ................................................................................................................................................. 15
5. OPTION Menu ............................................................................................................................................... 16
6. LOCK Menu ................................................................................................................................................... 17
Smart TV .......................................................................................................................................................... 21-35
Multimedia Operation
Multimedia Operation ........................................................................................................................................ 18-20
3. SOUND Menu ............................................................................................................................................... 14
Trouble shooting ............................................................................................................................................... 36
Specifications ................................................................................................................................................... 37
Maintenance and Service
Smart TV
Contents
Contents

1

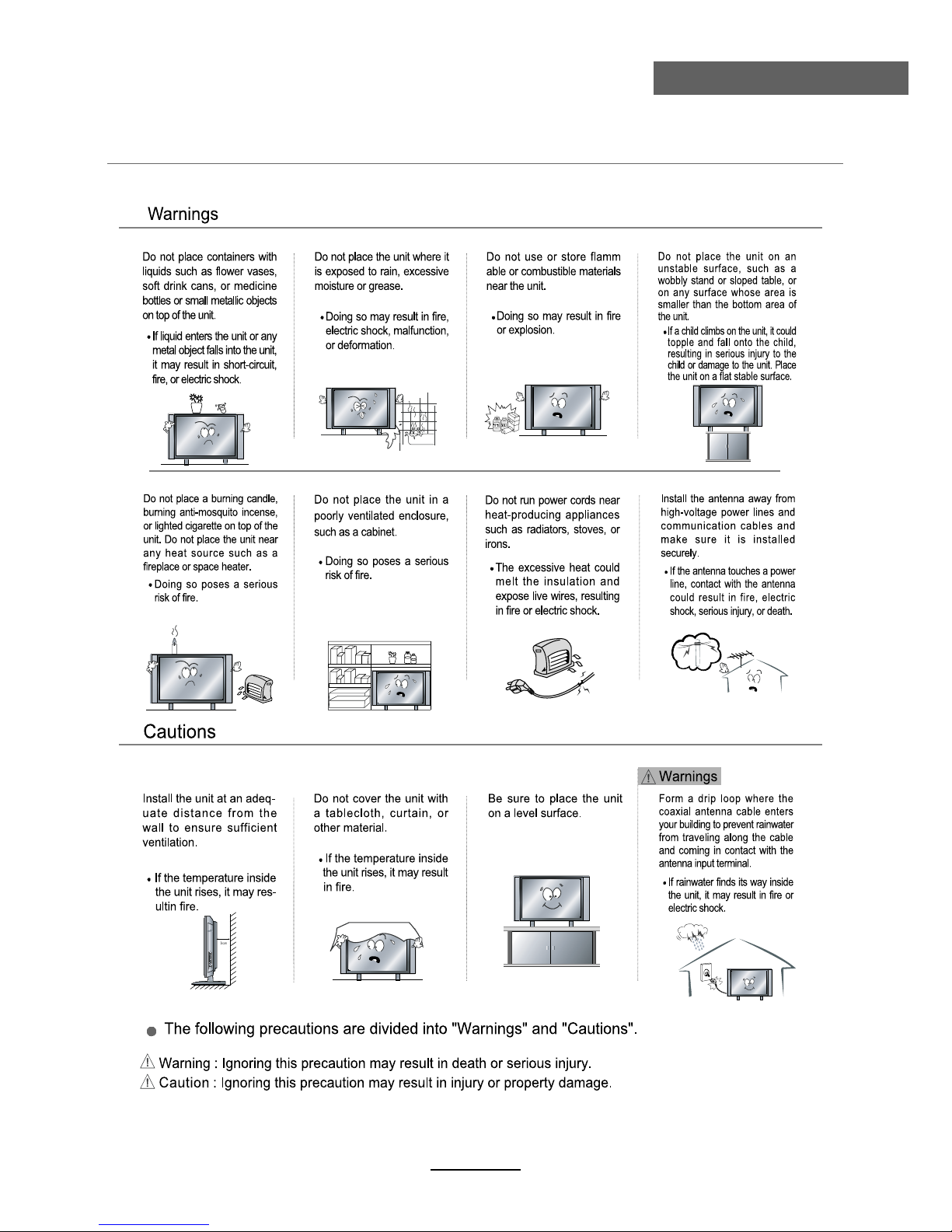

Safety Precautions

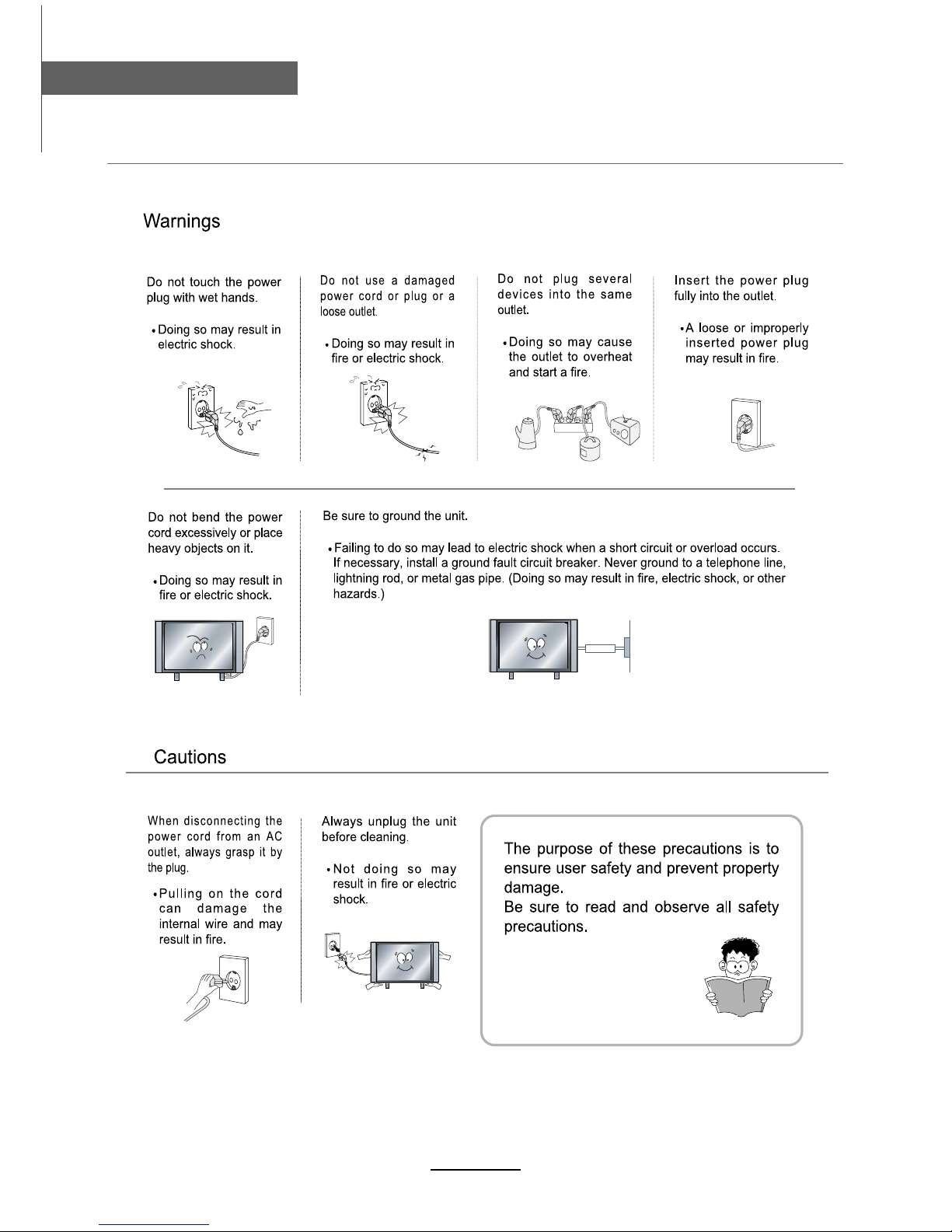

Power Supply

2
Safety Precautions
Installation

3
Safety Precautions
Use and Maintenance

4
Safety Precautions

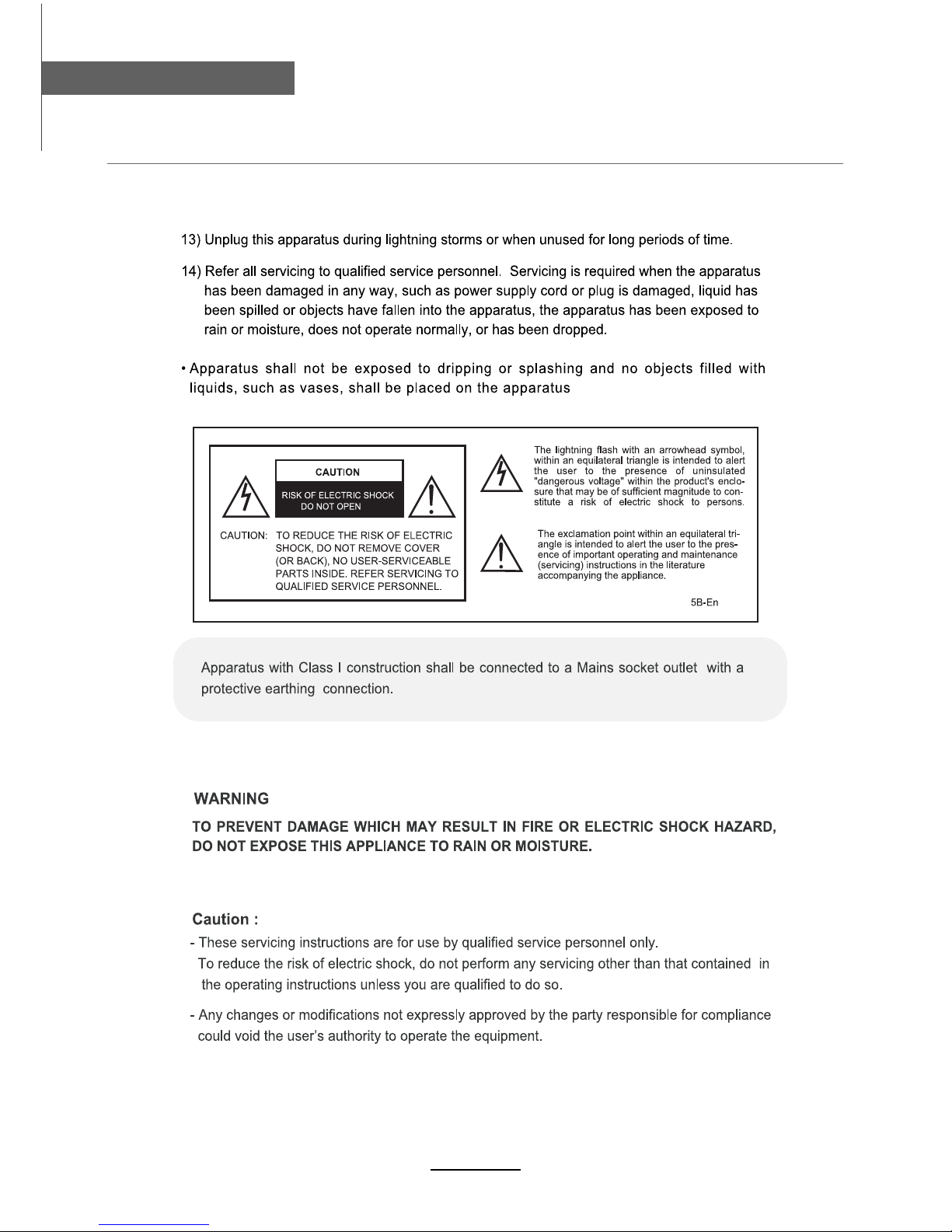

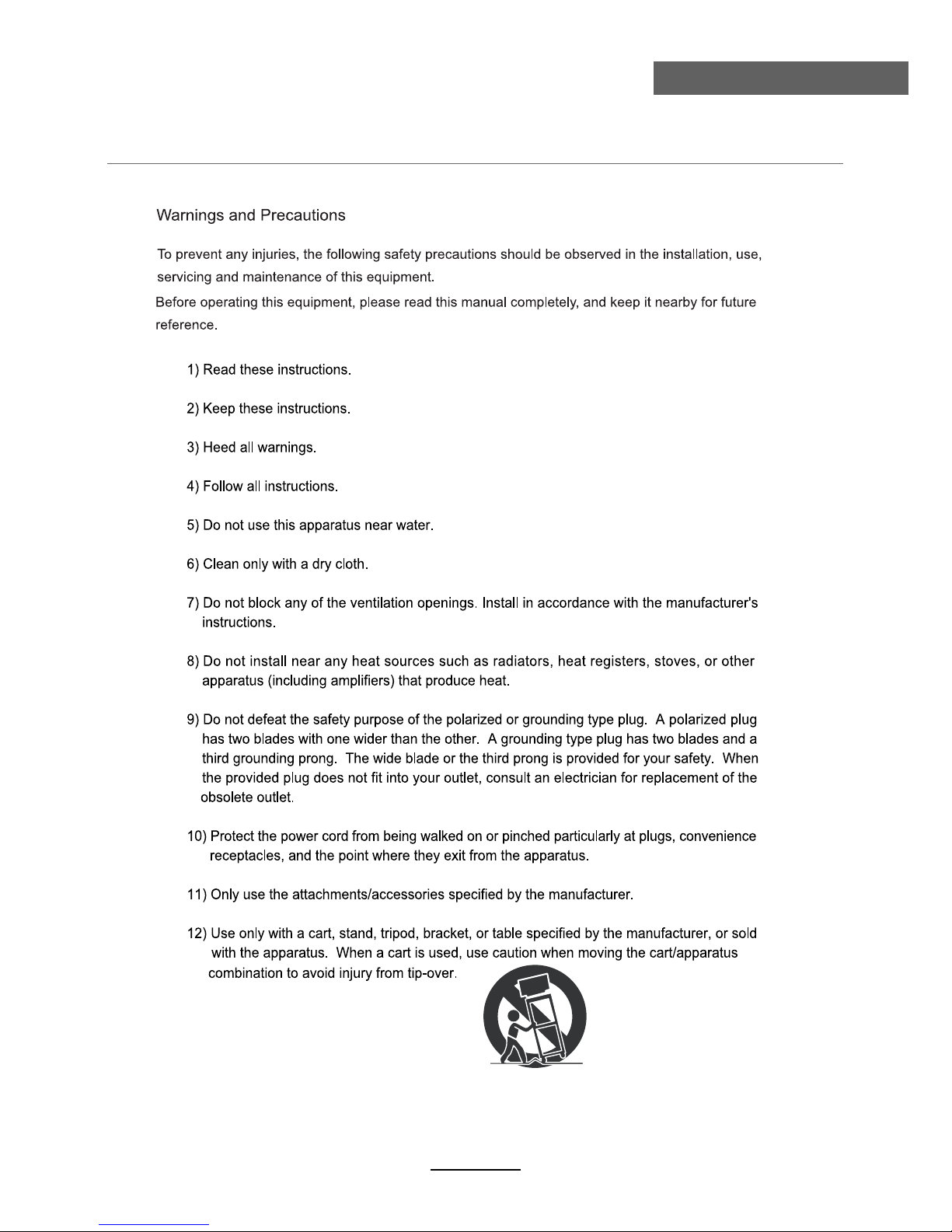

Important Safety Instructions

5

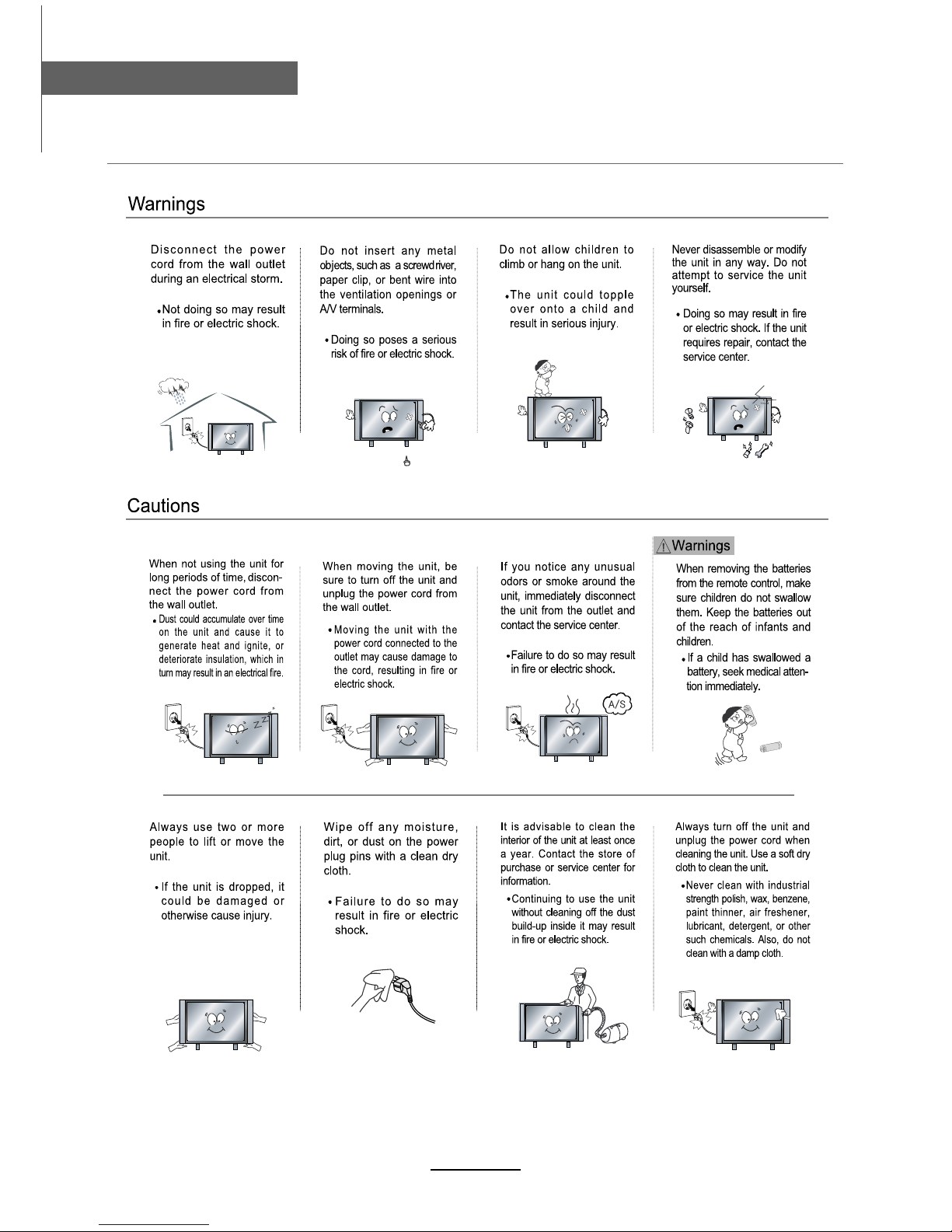

Safety Precautions
Important Safety Instructions

Remote Control
6
User Guidance Information
Names of each part

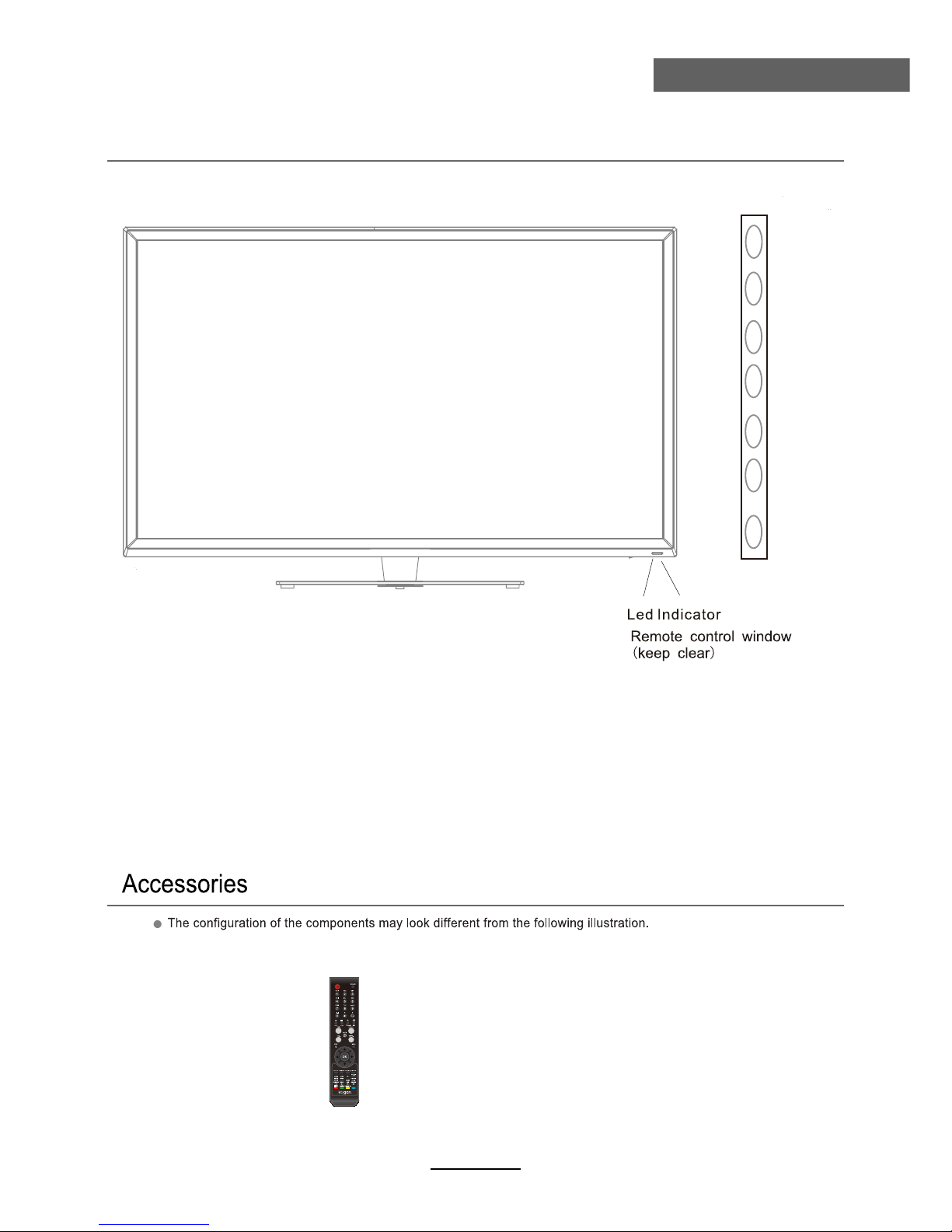

Front View
SOURCE:Display the input source menu.
MENU: Display/exit the OSD menu.
CH+/-: Scan through channels.
VOL+/-: Adjust the volume.
POWER: Turn on/standby the TV set.
SOURCE MENU CH+ CH- VOL+ VOL- POWER

YPbPr
9
USB
2VGA
6
R/L audio in
11
12
PC -IN
5
Video
10
1AC POWER IN
HDMI1/2
3
Coax out
7
RF
Headphone out
USB1/2
SD
RJ45
Recovery
8
4
1
2
3
5
4
8
7
10
11
USB
9
6
7
Names of each part
User Guidance Information

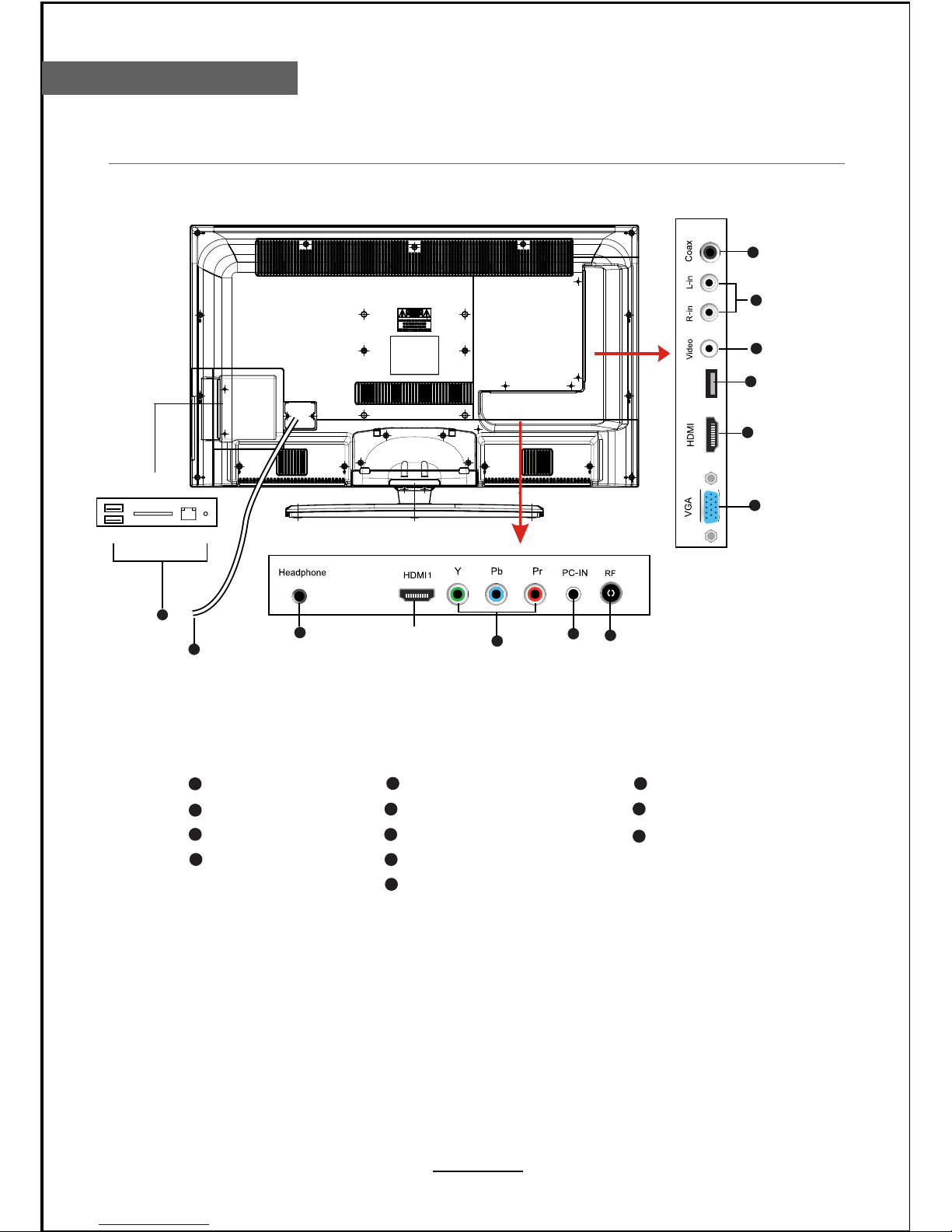

Back View
2
Recovery
RJ45
SD card
USB3
USB2
12

SOURCE
EPG
SUBTITLE
AUDIO
NICAM/A2
ABC/123
ASPECT
Rec.list
PVR TV/Radio FAV
NOTIFICATION
LIST
POWER

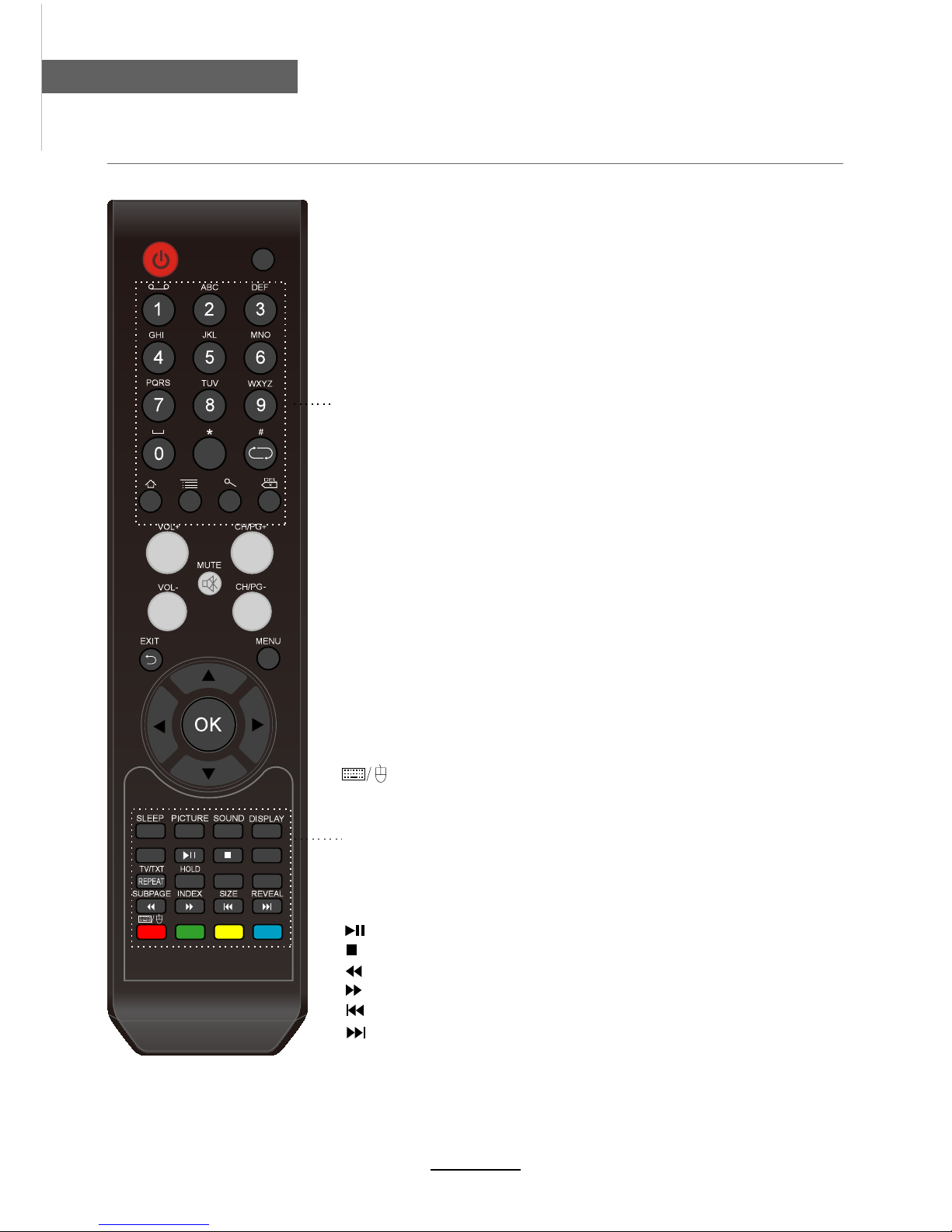

SOURCE: Press to display the input source menu.
: Turn the TV on/standby.
NUMBER BUTTONS
Press 0-9 and -/-- to select a TV channel directly when you
are watching TV.
FAV: Display the favorite program list.
Return to the previous channel viewed.
MUTE: Press to mute the sound, press again or press
VOL+ to unmute.
CURSOR KEYS OK
Allows you to navigate the on-screen menus and adjust the
system settings to your preference.
MENU: System setup menu.
EXIT: Exit the OSD menu.
EPG: To show the Electronic Program Guide during no-menu
state onl
PVR: To start record function.
TV/Radio: To switch to TV or Radio state in DTV mode.
y in DTV mode.
CH+/- : Scan through channels.
VOL+/- : Adjust the volume.
8
User Guidance Information
Remote Control

SOURCE
EPG
SUBTITLE
AUDIO
NICAM/A2
ABC/123
ASPECT
Rec.list
PVR TV/Radio FAV
NOTIFICATION
LIST
TV/TXT: Turn off
HOLD: Hold or carry on the current subpage.
/on the Teletext display.
SIZE: Press to see top half of page double size,
Press again to see the bottom
half of page
REVEAL: Reveal any hidden text.
double size. Press again for normal size.
SUBPAGE: Press to enter subpages, press again to cancel.
INDEX: Go to index.
NICAM/A2: TV Nicam/A2 select.
Color Buttons: S
: Switch to keypad/mouse or remote control.
ABC/123: Switch to digital numbers or letters.
SUBTITLE: Turn on/off the subtitle display in DTV mode.
hort cuts-follow the coloured links in the text.
:
:
:
:
:
Play/Pause program.
Stop program.
Fast reverse.
Fast forward.
Previous chapter.
Next chapter.
:
Buttons for Android
PICTURE: Select the picture mode.
SOUND: Select the sound mode.
SLEEP: Standby timer.
DISPLAY : Means information, to display brief information
concerning the current channel or disc you are watching.
Rec.list: Display the record list.
AUDIO: Change the audio language in DTV mode.
ASPECT: Cycles among screen display modes.
Repeat: Repeat playing the title or chapter.
9
User Guidance Information
Remote Control

button to select the function item, press button to adjust/setup,
Basic Operation
Basic Operation
Power on/off
1. Connect to the power supply with the power adaptor.
2. -To turn on the TV
Press POWER button on the TV or remote control.
Press POWER button on the TV or remote control.
-To turn off theTV
Input Source select
Press SOURCE button on the TV set or remote control to display input
source menu, and use CH+/- button on the TV set or button
on remote control to select the input source, press OK button on the
remote control to enter.
Note: Before you select the input source, make sure the
connections are prepared and the input source device is turned on.
Basic OSD Menu operation
Press MENU button to display the OSD menu as below:
Use /
/
button to select the main menu, and press button to enter the submenu.
In the submenu, use /
or press OK button to enter the submenu.
* (Press MENU button to return to the upper menu.)
* (Press EXIT button to exit the menu display.)
Note1: Only when you input the suitable signal, the relevant items can be activated
Note2: Please operating the OSD menu according to hint on the bottom of the banner.
Main menu
CHANNEL
SOUND
TIME
LOCK
SETUP
Submenu
(PICTURE
menu for
example)
Hint---you should operate the OSD menu according to the hint.
10
ATV
DTV
Smart TV
Media
AV
PC
Component
HDMI1
HDMI2

OSD Menu
OSD Menu
1. CHANNEL menu
Description
Auto Tuning
Press OK button to enter the hint menu, and Press /
button to select the Tune Type, then press button, and use
/ / / button to select the Country for the TV, then
press OK button to start auto tuning.
DTV Manual Tuning
Press OK button to enter the DTV Manual Tuning menu,
select a DTV channel, and press OK button to start searching.
Press / button to manual search.
ATV Manual Tuning
Press OK button to enter the ATV Manual Tuning menu.
Current CH: Select a Channel for storing the programme.
Color System: Select from PAL ,AUTO and SECAM.
Sound System: Select from L, BG, DK
Search:
Fine Tune: Press / button to fine-tune.
AFC: Automatic Frequency control ON/OFF.
ATV Manual Tuning
DTV Manual Tuning
11

channel by / / / buttons.
OSD Menu
OSD Menu

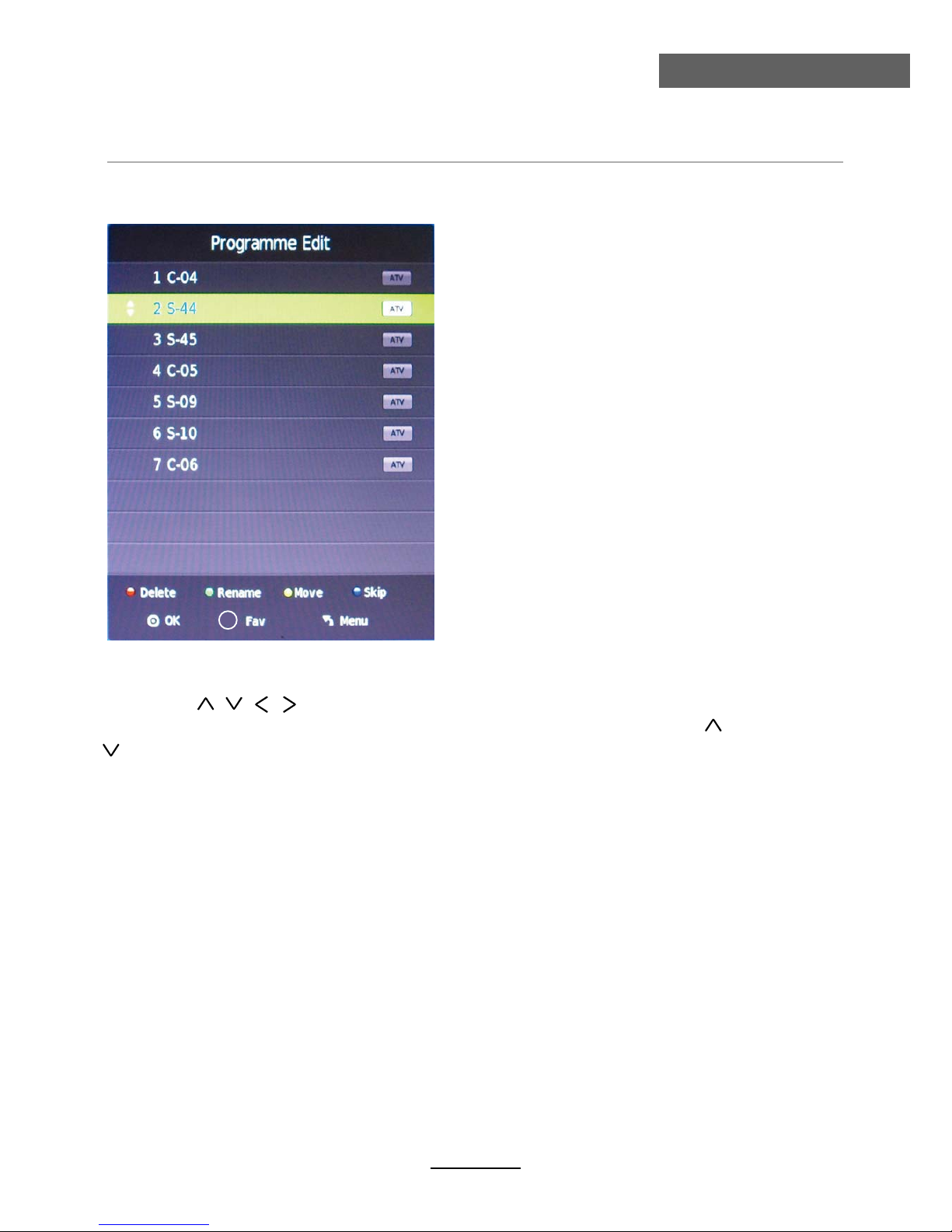

Programme Edit
Press OK button to enter the Programme Edit menu as the following picture.
Signal Information
Display the digital TV-signal information (DTV mode only).
Delete: Select a channel and press RED button, the Program will be delete.
Rename: Select an ATV channel and press the GREEN button to change the name of the
Move: Select an ATV channel and press YELLOW button, then you can use and
to change the position of the program, press YELLOW again to confirm the change.
to exit and it will automatically save the current set.
Skip: Select a channel and press the BLUE button to label the channel, as long as the channel
has a skip label it will be skipped when searching through the channels with the CH+/- buttons.
FAV
buttons
Press menu
12

OSD Menu
OSD Menu
2. PICTURE menu
Description
Picture Mode: Choose from Dynamic, Standard, Mild and Personal.
Note: Contrast, Brightness, Color Tint and sharpness are only available and can be adjusted
in the Personal mode option in the Picture Mode Settings.
Contrast: Controls the difference between the brightest and darkest regions of the picture.
Brightness: Controls the overall brightness of the picture.
Color: Control the color.
Sharpness: Increase this setting to see crisp edges in the picture; decrease it for soft edges.
Tint: Controls the tint ( NTSC mode only).
Color Temperature: Choose from Medium, Cool, User and Warm.
Noise Reduction: Choose interference noise modes form Off, Low, Middle, High and Default.
13

OSD Menu
OSD Menu
3. SOUND menu
Description
Sound Mode: Allows you to select among: Standard, Music, Movie, Sports and Personal.
Treble(Can be adjusted when the sound mode is Personal) :Controls the relative intensity of
higher pitched sounds.
Bass (Can be adjusted when the sound mode is set to Personal) : Controls the relative intensity of
lower pitched sounds.
Balance: To adjust the balance of the left and right sound track, or turn off the volume of the
left and right sound track.
Auto Volume: Control the volume of the programme automatically when you turn on the function
by selecting “On”.
SPDIF MODE: Select the spdif mode.
AD Switch: Turn on/off the AD switch.
14

OSD Menu
OSD Menu
4. TIME menu
Description
Clock: Display the time.
Time Zone: Allows you to select the time zone.
Sleep Timer: Allows you to setup the sleep timer among: 10min, 20min, 30min, 60min, 90min,
120min,180min, 240min and off.
Auto Standby :
OSD Timer: Allows you to select the time for OSD menu displays on the screen.
15
According to the latest ERP regulation, this unit will switch off itself automatically
if no change in status within the last 4 hours of operation.

OSD Menu
OSD Menu
5. LOCK menu
Description
Lock System: Turn on/off the Lock System function.
Note: You should enter the code to operate the menu. (Original code is 0000)
Set Password: Set pin code. If the Pin code has been changed you must enter the present
code.
New : Enter the new password.
Confirm: Enter the new password.
Block Program: You must enter the password to view channels that have been locked. Use
and buttons to select the channel and press the GREEN button on the remote control to
lock the channel.
Parental Guidance: Allows you to select the Parental Guidance mode.
Key Lock: Lock the buttons on the TV set when you turn on the function.
16

OSD Menu
OSD Menu
OSD Language: Allows you to select menu language.
TT Language: Allows you to select teletext language.
Hearing Impaired: Turn on/off the Hearing Impaired function.
Aspect Ratio: Choose from 4:3, 16:9, Zoom1, Zoom2, Just Scan.
Blue Screen: Turn on/off the blue screen function when there’s no signal.
First Time Installation: Display the First Time Installation menu.
Restore Factory Default: Press OK button to restore factory default.
6. SETUP menu
Description
Software update(USB)
17

Multimedia Operation
Multimedia Operation

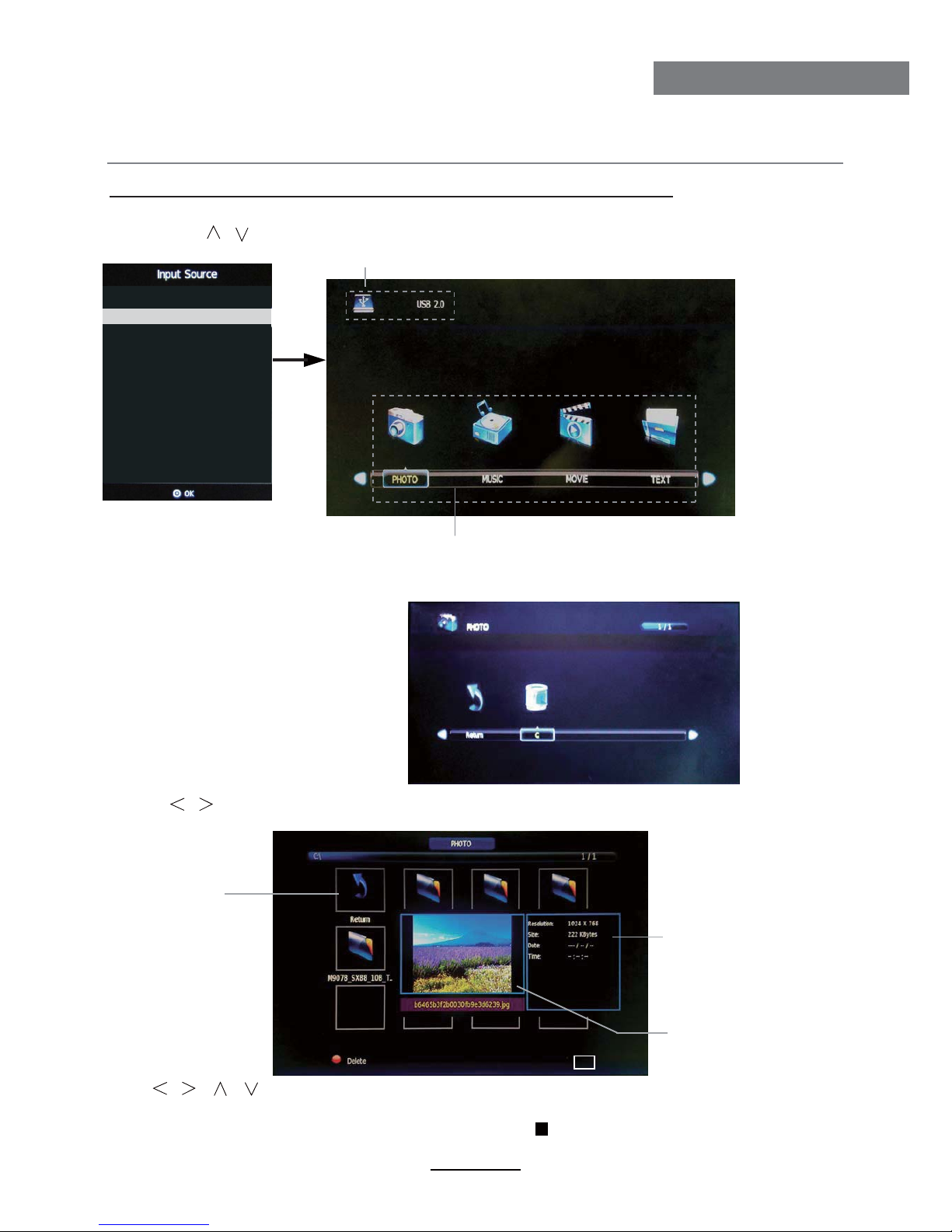

Press / / / buttons to select and the OK button to activate the file or open folder. Press
OK button to play the files in full screen mode. When in full screen mode press the OK button to
show the option menu on the bottom of the screen or press stop button to return to files.
Note: You can press RED button on the file to delete the file.
Basic Operation
2). Select the file type (mains menu) you want to view, and insert USB device, you will find the
name of the device display on the screen.
3). Press / button to select the USB device, and press OK button to enter.
1). Press the SOURCE button on the remote control to display the input source menu, select Media
source by the / buttons, and press OK button to enter the Multimedia menu seen below.
MAINS MENU: PHOTO MUSIC MOVIE TEXT
Preview
Return to
previous menu
Hints and informations of USB device
Information
EXIT
EXIT
18
ATV
DTV
Smart TV
Media
AV
PC
Component
HDMI1
HDMI2
