Kogan KAFIXEDRNGA Specification sheet

60cm Fixed
Rangehood
INSTRUCTION MANUAL / INSTALLATION MANUAL
MODEL: KAFIXEDRNGA

CONTENTS
General Safety Warnings 3
Your Rangehood 5
Operating Your Rangehood 6
Installation Instructions 7
Cleaning & Maintenance 9
Troubleshooting & Technical Data 10
Warranty 11

3
General Safety Warnings
Read this manual thoroughly before first use, even if you are familiar with this type of product. The
safety precautions enclosed herein reduce the risk of fire, electric shock and injury when correctly
adhered to. Keep the manual in a safe place for future reference, along with the completed
warranty card and purchase receipt. If applicable, pass these instructions on to the next owner of
the appliance.
Always follow basic safety precautions and accident prevention measures when using an electrical
appliance, including the following:
IMPORTANT INSTALLATION ADVICE
WARNING: All electrical work associated with the installation of this rangehood must be
carried out by a licensed electrician.
WARNING: This rangehood must be installed by a suitably qualified person in strict
accordance with all instructions in this manual.
Cables: Do not allow electrical fittings or cables to come into contact with areas on the associated
equipment (cooktop or stove) that get hot.
Air discharge: The exhaust air must not be discharged into a flue which is used for exhausting
fumes from appliances burning gas or other fuels.
External air evacuation: Make sure to follow your local laws that apply to external air evacuation
when installing and using the rangehood.
Electrical safety and cord handling
Voltage and frequency: Before plugging the unit into an appropriate electrical outlet, make sure your
outlet voltage and circuit frequency correspond to the voltage stated on the appliance rating label.
Power cord: Check the cord regularly for damage. Do not use the appliance if the cord, or any other
part of the appliance, has been damaged.
Damaged cord: A damaged cord must be replaced by the manufacturer or a similarly qualified
person in order to avoid a hazard.
Disconnect: Before cleaning the rangehood, make sure to switch it off and unplug it from the
electrical supply. Do not disconnect the appliance with wet hands. Grip by the plug, do not pull by
the cord when disconnecting.
USAGE CONDITIONS AND RESTRICTIONS
Domestic use only: This rangehood is designed for indoor domestic use only. It can be built into a
standard kitchen cabinet or housing unit following the installation instructions in this manual.
Intended purpose: Only use this rangehood for its intended purpose, in its intended environment
and as described in this manual. Any other use may cause fire, electric shock or injury.
Use common sense: These instructions are not intended to cover every possible condition and
situation. As with any electrical household appliance, common sense and caution are therefore
always recommended when installing, operating and maintaining the equipment.
Usage restriction: This rangehood is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of the appliance by a person responsible
for their safety.
Children: Supervise young children to ensure they do not play with the appliance. Close supervision
is necessary when any appliance is used by or near children.
No timer: The appliance is not intended to be operated by means of an external timer or separate
remote control system.
CAUTION: Take care when the rangehood is operating simultaneously with an open fireplace
or burner that depend on air from the environment and are supplied by other than electrical
energy, as the rangehood removes air from the environment which a burner or fireplace needs
for combustion.
Ventilation: The rangehood removes air from the environment during use. Always provide adequate
ventilation for safe operation of the rangehood. This is particularly important when the rangehood
is used at the same time as flued heaters burning gas or other fuels.
CAUTION: No open flame cooking: Do not use an open flame for cooking underneath this
rangehood. Open flames can damage the filters and present a fire hazard.
Unattended: Do not leave the rangehood unattended during use.
After use: Make sure to switch off the rangehood after use and before cleaning.

4
CAUTION: Do not touch the light bulbs after the appliance has been used as they may be hot.
Let them cool down before cleaning and maintenance.
WARNING: Fire Risk! Clean your rangehood regularly as instructed in this manual. There is a
fire risk if cleaning is not carried out in accordance with the instructions.
Cleaning: Do not use steam cleaning equipment for cleaning any part of the rangehood.
Filters: Do not check the status of the filters while the rangehood is in use.
Damage: Do not use the rangehood if any part, including the supply cord, has been damaged, is
faulty or does not work properly. Only have it repaired by an authorised service centre. Incorrect
repair could expose you to the risk of electric shock, fire or injury. Prolonged use of the unit in such
conditions could cause fire or electrocution. In case of damage, contact our after sales support line
for advice.
Liability: We assume no liability for any eventual damages caused by incorrect installation, misuse
of the product or noncompliance with these instructions.
CAUTION: Accessible parts may become hot when used with cooking appliances.
Protect from moisture: To protect against the risk of electric shock, do not immerse the unit, cord or
plug in water or spray it with any other liquid. Do not connect or disconnect the electric plug when your
hands are wet. Turn the power switch off before removing the plug from the socket.
WARNING: Disconnect! To reduce the risk of fire, electric shock or personal injury, always unplug
the appliance from the socket when not in use, when moving and before cleaning or servicing.
Never unplug the unit by pulling the power cord. Always grip the plug firmly and pull straight out
from the power point.
Electrical work: Any electrical work required for the installation of this appliance should be carried
out by a qualified electrician.
Usage restriction: This rangehood is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instructions concerning use of the appliance by a person
responsible for their safety.
Children: Supervise young children to ensure they do not play with the appliance. Never allow
children to operate or play with the rangehood.
Never: Flambé under the rangehood
Note: Exhaust air must not be discharged into an existing flue which is used by other appliances for
exhausting fumes.
Damage: Do not use the rangehood if the power cord, plug or the rangehood itself is damaged. If
the cord is damaged, contact the after sales support line and have the cord replaced by qualified
personnel in order to avoid a hazard.
Do not modify: Do not attempt to alter or modify this rangehood in any way.
WARNING: Failure to install the screws or fixing device in accordance with these instructions may
result in electrical hazards.
Repair: Do not attempt to repair or replace any part of your rangehood unless it is specifically
recommended in this manual. All other servicing should be referred to a qualified technician.
Contact the after sales support line for advice.
Caution! During unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.)
should be kept out of reach of children.
DISPOSAL OF THE APPLIANCE
• Old appliances should not simply be disposed of with normal household waste, but should be
delivered to a collection and recycling centre for electric and electronic equipment. A symbol
shown on the product, the instruction manual or the packaging shows that it is suitable for
recycling.
• Materials used inside the appliance are recyclable and are labelled with information concerning
this. By recycling materials or other parts from used devices you are making a significant
contribution to the protection of our environment. Information on appropriate disposal centres
for used devices can be provided by your local authority.
• There shall be adequate ventilation of the room when the range hood is used at the same time
as appliances burning gas or other fuels (not applicable to appliances that only discharge the air
back into the room).
General Safety Warnings Continued

5
5
Specifications
Model Product dimensions (W,D,H mm)
KAFIXEDRNGA 600mm × 500mm × 140mm
Model Extraction Other features:
440m3/hr extraction – 3 speed push button control
–1 × 2W LED lights
–2 × Aluminium filters
YOUR RANGEHOOD
Rangehood components
Your Kogan Rangehood is supplied with:
–1 × Rangehood
–1 × Packet of fasteners and wall plugs
–1 × 120mm Air outlet
–1 × Outlet cover
Typical installation tools required
You’ll most likely require the following tools/equipment
(not supplied) for the installation of your rangehood.
– Electrical drill
– Tape Measure
– Screw-driver
– Spirit Level
If ducting your rangehood, you’ll also most likely require:
– Jig saw
– Ladder
– Duct-tape
– Ducting
KAFIXEDRNGA
Your Rangehood
220

6
6
Controls Your Kogan rangehood features push button controls with three speed levels
of extraction.
Off button
Used for turning off the fan.
Low Speed button
This speed is used for basic ventilation on the kitchen.
It is suitable for simmering and cooking which does not
make much steam.
Medium Speed button
This is ideal for standard cooking operation.
High Speed button
When a high density of smoke or steam is produced,
use this speed for the highest effective ventilation.
Light button
Pressing this turns the lighting on or off.
* Note: If Low / Medium / High speed buttons are press at the same time,
the unit will only operate at the highest speed.
OPERATING YOUR RANGEHOOD
Operating Your Rangehood

7
7
It’s important to carefully read the following installation
instructions before beginning the installation of your oven.
Important installation safety – Always switch the power off prior to beginning the installation.
– Stainless steel is very easily damaged during installation. Wherever possible,
protect the rangehood with the cardboard box or plastic wrap during the
installation.
– For safety reasons, this Rangehood must be earthed.
– A power point must be located within 1.5m of the power cord exit from the
rangehood, and it should be always accessible to allow isolation from power
during cleaning or maintenance.
– A 150mm round ducting adapter is supplied, however all other ducting
accessories are not.
– All ducting must comply with building codes and local requirements.
– If you are re-circulating the air, rather than ducting, please ensure that the side
outlet grilles are not obstructed in any way as this will effect the effi ciency of
the rangehood.
– Ensure that the rangehood is mounted in a level position, both horizontally
and vertically. This is essential to ensure the rangehood operates correctly and
prevents grease build up at one end.
Ducting options Before beginning the installation of your rangehood, the method of ducting should be
considered and selected. The guide below illustrates the various ducting options.
Note: This rangehood can be operated in recirculation mode where required,
although Kogan recommends to duct wherever possible.
1. Into your ceiling cavity and then vented through your eaves.
2. Straight up and through your tiled or metal roof.
INSTALLATION INSTRUCTIONS
Installation Instructions
cooker hoood
Metal is very easily damaged during installation. Wherever possible,
protect the rangehood with the cardboard box or plastic wrap during the
installation.
A 120mm duct outlet adapter is supplied, however all other ducting
accessories are not.

8
8
Installation heights
– Over gas and electric cookers, Kogan recommends
our rangehoods to be mounted
at a height of between 600-800mm above the
cooking surface.
– Electric cooktops must have a minimum height of
600mm from the underside of the rangehood to the
cooktop face.
– Gas cooktops must have a minimum of 650mm from
the burner to the underside of the rangedhood.
– It is not recommended to install the rangehood
outside or over open flame grillers or barbecues.

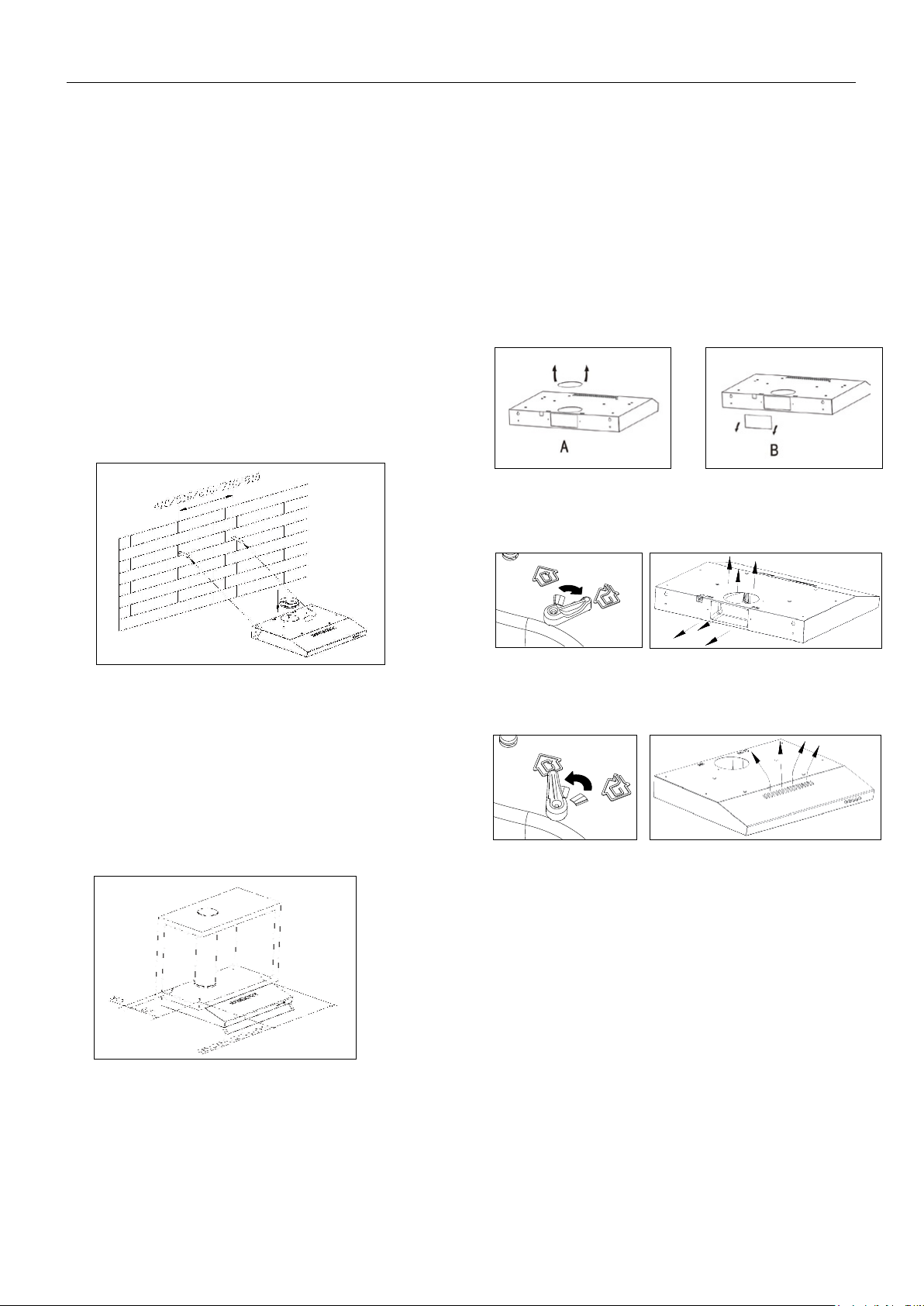

Installing the rangehood
Way one:
– To install onto the wall drill 2 holes of Ø8mm on a
suitable place according with the centre distance of
hole in the back of the cooker hood.
Insert the nut into the holes.
nsert the screws into the nuts and tight. Put the
cooker hood onto the tighten screws.
– Fix the cooker hood with safety screw. The two safety
vents are positioned on the back casing, with diameter
of 6mm.
Put the one way valve onto the cooker hood.
–Drill 4 holes of 6mm diameter at the bottom of the
hanging cupboard.
Put the one way valve on the cooker hood, then install
the cooker hood on the bottom of the hanging
cupboard, tighten the hood with enclosed 4 screws.
INSTALLATION INSTRUCTIONS
CONTINUED
The extensible pipe are optional accessory, not
supplied.
Take off protection film before installation.
There are 2 methods for ventilation , including '
horizontal ventilation' and ' vertical ventilation'. Please
pay attention to the ventilation method when installation.
Vertical ventilation: See Pic A, please use tool take out
the round cover before using, and the air can be vented
from top.
horizontal ventilation: See Pic B, please use tool take out
the rectangular cover before using, and the air can be
vented from back.
The rectangular air outlet for horizontal ventilation is not
supplied.
Way
Air ventilation setting
Outdoor exhausting: Turn the adjuster to outdoor
position, install the outlet, turn on the cooker hood, then
the air will be vented from the outside outlet.
Recycling: the recycling mode with carbon filter ,Turn the
adjuster to indoor position, install the outlet cover, turn on
the cooker hood, then the air can be vented from the
inside outlet.
Note: The charcoal filter is mounted on the back of the
grill and must be changed once three month.
Warning: the charcoal cannot be washed or recycled. It
should be changed at most after 120 hours using. The
carbon filter shouldn’t be exposed to heat.
–
–
–
–
–
–
two:
Insert
NOTE: Carbon Filter not included.

9
9
By ensuring proper cleaning and maintenance of your
Kogan rangehood, you can ensure that it will have a
long and fault free operation.
Cleaning the grease filters
Keeping this filter clean will keep the rangehood
extraction performance at an optimum. Please strictly
follow the guidelines below.
– The grease filter mesh is made of high-density
stainless steel. Please ensure you never use a
corrosive detergent during cleaning.
– Method 1: Put the mesh into 40-50°C clean water
with a small amount of regular dishwashing liquid,
and soak for 2-3 mins. Wear gloves and clean with a
soft brush. Please do not apply too much pressure, as
the mesh is delicate and will damage easy.
– Warning! Your rangehood grease filters can not be
washed in your dishwasher, or the protection coating
would be cleaned away.
Cleaning the cooker hood
To protect the main body of your rangehood from
corrosion or stains, the cooker hood should be cleaned
with hot water with a non-corrosive detergent every two
months. For stubborn stains or marks, you can try using
a specific stainless steel cleaner available from most
supermarkets.
Warning! Please do not use a corrosive
detergent, or abrasive clothes,
as it will damage the body.
– Keep the motor and other spare parts free from
water, as this will cause damage to the appliance.
– Before cleaning the rangehood, always switch the
power off at the outlet and unplug the rangehood.
– If your rangehood has a damaged plug or cord,
please ensure your rangehood remains unplugged
and contact the Kogan Support team for further
assistance. Any electrical work should only be
completed by a suitably licenced and authorised
person.
– If you’re using a carbon filter, it should never be
exposed to heat.
CLEANING & MAINTENANCE
Cleaning & Maintenance

10
10
Operation in case of emergency
In the event of an emergency you should:
– Switch off all rangehood controls.
– Switch the rangehood off at the power outlet and immediately unplug.
– Call the Support Team on 1300 256 426.
Some minor faults can be fixed by referring to the instructions given in
the Troubleshooting section below.
Important!
Warning!
If your appliance appears to be operating incorrectly, then you
should disconnect it from your electrical supply and then contact
the Support team on 1300 256 426.
Do not attempt to repair the rangehood yourself.
Please note that if an engineer is asked to attend whilst the product is under warranty
and finds that the problem is not the result of an appliance fault, then you may be liable
for the cost of the call out charge.
The appliance must be accessible for the engineer to perform any necessary repair.
If your appliance is installed in such a way that an engineer is concerned that damage
will be caused to the appliance or your kitchen, then they will not complete a repair.
This includes situations where the rangehood has been tiled in or sealed in with a
sealant.
Please refer to the conditions of that appear on the warranty card at the rear of this
user manual.
Fault: Common Cause: Common Solutions:
The lights work, however the motor
does not work
The motor is blocked or jammed or
the capacitor is damaged. Call the Support team for further guidance.
The capacitor damaged Call the Support team for further
guidance.
Neither the lights or the motor works Beside the above mentioned, check the following:
Light globes are damaged or blown Replace the light globe(s)
The power cord is loose. Ensure that the rangehood is
correctly plugged in and the power
outlet is switched on.
The rangehood is vibrating against the
wall
The rangehood canopy is not fixed to
the wall correctly.
Ensure that the internal safety
screws have been used and tight.
Insufficient suction The distance between the rangehood
and your cooktop is too great.
Have your installer re-adjust the
installation position, ensuring
that the minimum distances are
observed as per the building code.
Technical data Electrical details Rated Voltage: AC 220 – 240 V, 50Hz
TROUBLESHOOTING
& TECHNICAL DATA
Troubleshooting & Technical Data

11
WARRANTY TERMS & CONDITIONS
APPLIANCES: DISHWASHERS, LAUNDRY, REFRIGERATION, COOKING
This document sets out the terms and conditions of the product
warranties for Kogan Australia Appliances. It is an important
document. Please keep it with your proof of purchase documents
in a safe place for future reference should you require service for
your Appliance.
1. In this warranty
(a) ‘acceptable quality’ as referred to in clause 10 of this warranty
has the same meaning referred to in the ACL;
(b) ‘ACL’ means Trade Practices Amendment (Australian
Consumer Law) Act (No.2) 2010;
(c) ‘Appliance’ means any Kogan Australia product purchased by
you accompanied by this document;
(d) ‘ASR’ means Kogan Australia authorised service
representative;
(e) ‘Kogan Australia’ means Kogan Australia Pty Ltd of 139
Gladstone St, South Melbourne VIC 3205, ABN 53 152 570
351 (“Kogan Australia”) in respect of Appliances purchased in
Australia;
(f) ‘major failure’ as referred to in clause 10 of this warranty
has the same meaning referred to in the ACL and includes
a situation when an Appliance cannot be repaired or it is
uneconomic for Kogan Australia, at its discretion, to repair an
Appliance during the Warranty Period;
(g) ‘Warranty Period’ means:
(i) where the Appliance is used for personal, domestic or
household use (i.e. normal single family use) as set out
in the instruction manual, the Appliance is warranted
against manufacturing defects in Australia for 24
months following the date of delivery of the Appliance;
(h) ‘you’ means the purchaser of the Appliance not having
purchased the Appliance for re-sale, and ‘your’ has a
corresponding meaning.
2. This warranty only applies to Appliances purchased and used in
Australia and is in addition to (and does not exclude, restrict, or
modify in any way) any non-excludable statutory warranties in
Australia.
3. During the Warranty Period Kogan Australia or its ASR will, at no
extra charge if your Appliance is readily accessible for service,
without special equipment and subject to these terms and
conditions, repair or replace any parts which it considers to be
defective. Kogan Australia or its ASR may use remanufactured
parts to repair your Appliance. You agree that any replaced
Appliances or parts become the property of Kogan Australia. This
warranty does not apply to light globes, batteries, filters or similar
perishable parts.
4. Parts and Appliances not supplied by Kogan Australia are not
covered by this warranty.
5. If you reside outside of the service area, you will bear the cost of:
(a) travel of an authorised representative;
(b) transportation and delivery of the Appliance to and from
Kogan Australia’s ASR, in all instances, unless the Appliance
is transported by Kogan Australia or its ASR, the Appliance is
transported at the owner’s cost and risk while in transit to and
from Kogan Australia’s ASR.
6. Proof of purchase is required before you can make a claim under
this warranty.
7. You may not make a claim under this warranty unless the defect
claimed is due to faulty or defective parts or workmanship. Kogan
Australia is not liable in the following situations (which are not
exhaustive):
(a) the Appliance is damaged by:
(i) accident
(ii) misuse or abuse, including failure to properly maintain
or service
(iii) normal wear and tear
(iv) power surges, electrical storm damage or incorrect
power supply
(v) incomplete or improper installation
(vi) incorrect, improper or inappropriate operation
(vii) insect or vermin infestation
(viii) failure to comply with any additional instructions
supplied with the Appliance;
(b) the Appliance is modified without authority from Kogan
Australia in writing;
(c) the Appliance’s serial number or warranty seal has been
removed or defaced;
(d) the Appliance was serviced or repaired by anyone other than
Kogan Australia, an authorised repairer or ASR.
8. This warranty, the contract to which it relates and the relationship
between you and Kogan Australia are governed by the law
applicable where the Appliance was purchased.
9. To the extent permitted by law, Kogan Australia excludes
all warranties and liabilities (other than as contained in this
document) including liability for any loss or damage whether
direct or indirect arising from your purchase, use or non use
of the Appliance.
10. For Appliances and services provided by Kogan Australia in
Australia, the Appliances come with a guarantee by Kogan
Australia that cannot be excluded under the Australian Consumer
Law. You are entitled to a replacement or refund for a major failure
and for compensation for any other reasonably foreseeable loss
or damage. You are also entitled to have the Appliance repaired
or replaced if the Appliance fails to be of acceptable quality and
the failure does not amount to a major failure. The benefits to you
given by this warranty are in addition to your other rights and
remedies under a law in relation to the Appliances or services to
which the warranty relates.
11. At all times during the Warranty Period, Kogan Australia shall, at
its discretion, determine whether repair, replacement or refund will
apply if an Appliance has a valid warranty claim applicable to it.
12. To enquire about claiming under this warranty, please follow these
steps:
(a) carefully check the operating instructions, user manual and
the terms of this warranty;
(b) have the model and serial number of the Appliance available;
(c) have the proof of purchase (e.g. an invoice) available;
(d) telephone the numbers shown below.
13. You accept that if you make a warranty claim, Kogan Australia
and its ASR may exchange information in relation to you to enable
Kogan Australia to meet its obligations under this warranty.
IMPORTANT
Before calling for service or spare parts, please ensure that the steps
in point 12 have been followed.
Contact
Please call 1300 2 KOGAN (56426)
Warranty
The Australian Consumer Law requires the inclusion of the following statement with this warranty: Our goods come with guarantees that
cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation
for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of
acceptable quality and the failure does not amount to a major failure.
Warranty

12
