Kogan KAM52UMRDHA User manual

UNDERMOUNT RANGEHOOD
(52CM)
KAM52UMRDHA

• This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning use of the appliance in a
safe way and understand the hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not be made by children without
supervision. If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
• There should be adequate ventilation of the room when the rangehood is used at the
same time as appliances burning gas or other fuels.
• The filter is made of high-density aluminium. Do not use corrosive detergent for
cleaning. The proper function of the unit is conditioned by the regularity of the
maintenance.
• To protect the main body from corrosive of the long-time accumulation of dirt, the
rangehood should be cleaned with hot water with non-corrosive detergent every two
months.
• There is a fire risk if cleaning is not carried out in accordance with the instructions.
• Do not flame under the rangehood.
• The air must not be discharged into a flue that is used for exhausting fumes from
appliances burning gas or other fuels.
• The minimum distance between the supporting surface for the cooking vessels and the
lowest part of the rangehood must be at least 65 cm. If the instructions for installation
specify a smaller distance, this has to be taken into account. The distance of 65cm can
be reduced for: non-combustible parts of rangehood, except grease filters and parts
operating at safety extra low voltage, provided these parts do not give access to live
parts if deformed.
• Regulations concerning the discharge of air must be adhered to.
• The appliance uses 4 hob elements at most.
• CAUTION: Accessible parts may become hot when used with cooking appliances.
• The appliance is not intended for use by young children or persons with reduced
physical, sensory or mental capabilities without supervisions.
• Young children should be supervised to ensure they do not play with the appliance.
• To ensure proper earthing continuity, connect the power cord to an electrical outlet
with a grounding terminal.
• This rangehood is for indoor non-commercial use only, not suitable for barbecue, roast
shop and other commercial purposes.
• The rangehood and its filters should be cleaned regularly according to the instruction.
SAFETY & WARNINGS

• Do not use open flame or allow oil to go beneath the appliance.
• If there is any fault occurred with the appliance, cease use immediately and contact
help.Kogan.com for support.
• Ensure the kitchen is properly ventilated.
• Prior to any maintenance, cleaning operation, ensure the power is disconnected.
• If the supply cord is damaged, it must be replaced by Kogan.com or an authorised
service agent to avoid a hazard. The replaced power cord must be Kogan.com
• If the plug or cord is damaged, cease use immediately and contact help.Kogan.com for
support.
• There is a fire risk if cleaning is not carried out in accordance with the instruction.
• In case of damaged connecting wire, cease use immediately and contact
help.Kogan.com for support.
• Use the unit according to the instructions to avoid any fire hazard.
• The exhaust air must not be introduced into a smoke flue or chimney that is used for
exhausting fumes from appliances burning gas.
• Follow the local laws applicable for external air evacuation.
• Rangehood and other cooking fume extractors may adversely affect the safe operation
of appliances burning gas or other fuels (including those in other rooms) due to back
flow of combustion gases. These gases can potentially result in carbon monoxide
poisoning. After installation of a rangehood or other cooking fume extractor, the
operation of flued gas appliances should be tested by a competent person to ensure
that back flow of combustion gases does not occur.

OVERVIEW
259mm
13mm
248mm
284mm
520mm
492mm
256mm
497mm
Ø150mm

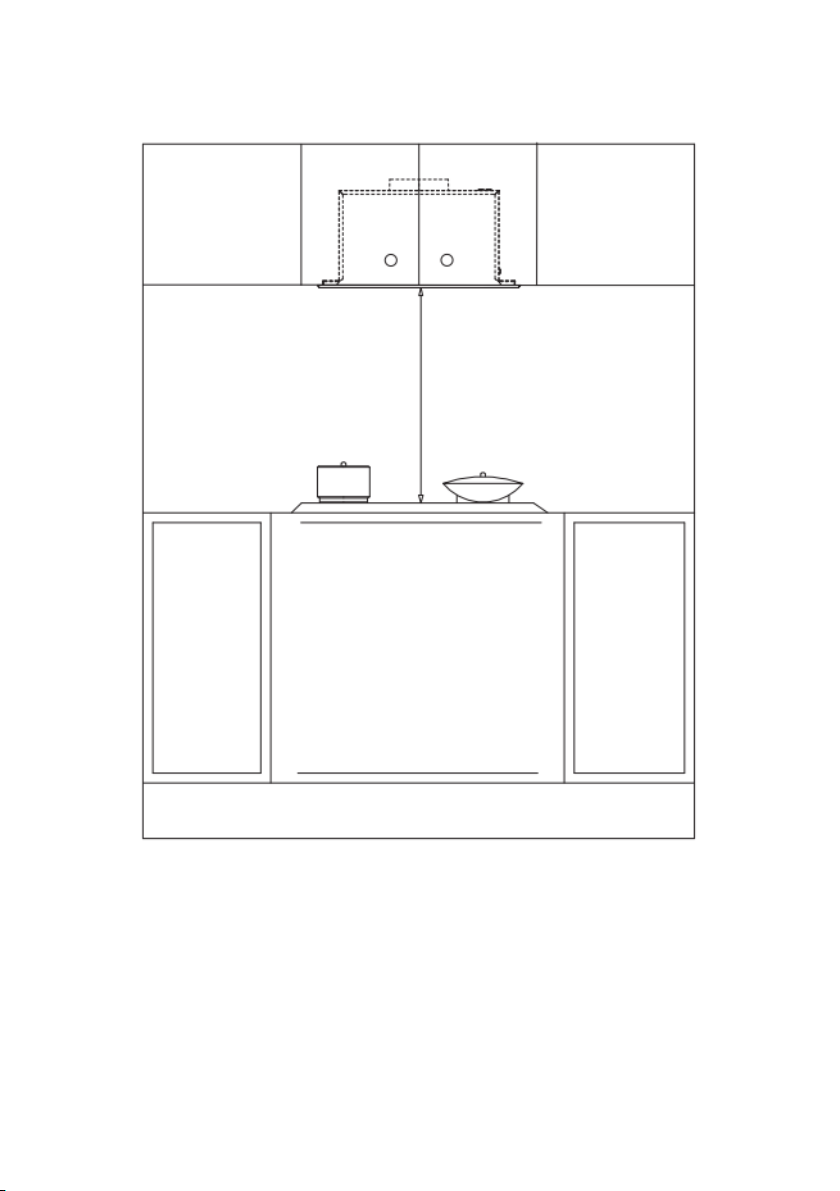

Electric Cooktop
Min. 500mm
Gas Cooktop
Min. 650mm

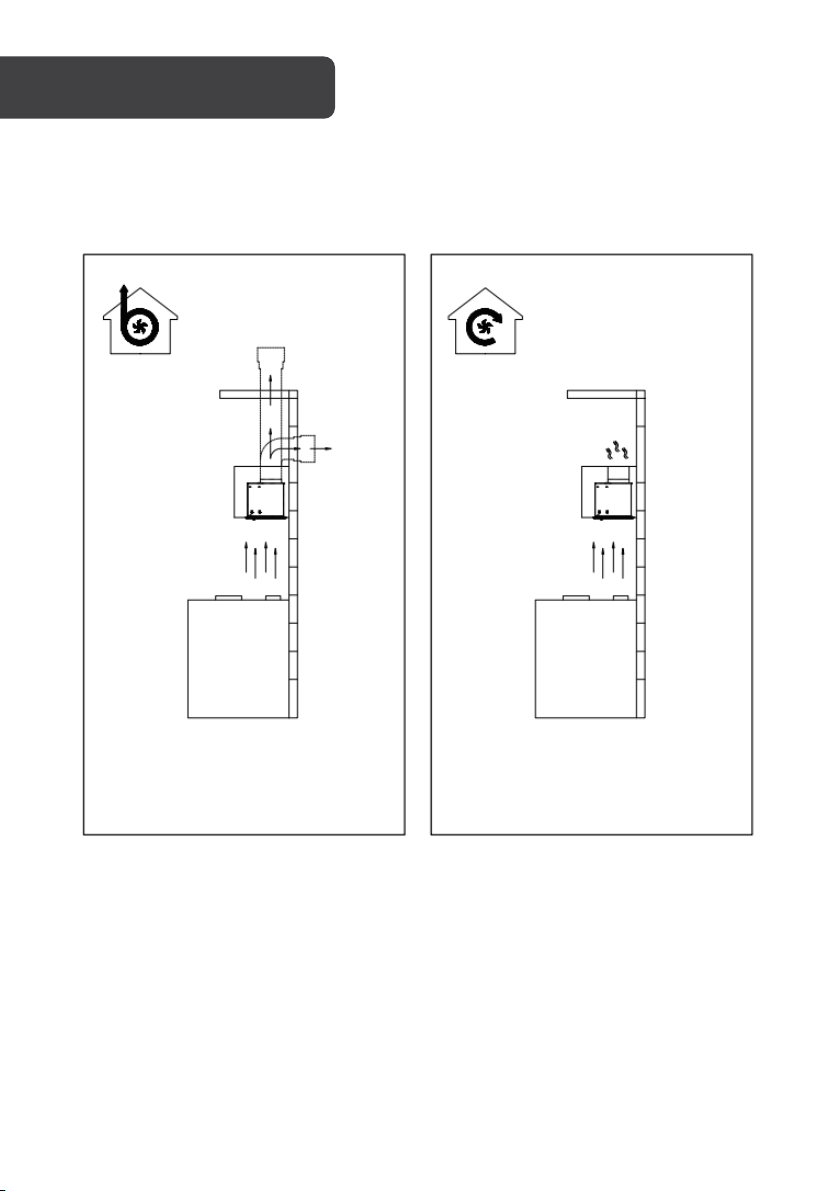

There are two venting modes, extraction-air mode and recirculation mode, before installing,
select one mode.
Extraction-air mode
Recirculation mode
INSTALLATION

• Press the release button on the
screen filter and remove the filter
by pulling it away from the
rangehood.
• Remove the stainless-steel frame
by unfastening the 4 screws
(M4x10).
• Unfasten the screw (ST4x10), and
remove the lid from the terminal
box, disconnect the control panel
wire connectors.
• Disconnect the Light wires
connectors.
• Fasten the rangehood to the
cabinet by using the 12 screws
(ST4x18).

• Screw the stainless-steel frame
back into place using the 4 screws.
• Reconnect the wires to the control
panel and light.
• Replace the screen filter.
• Install the air outlet pipe (optional).

Control Panel
• Press the Light button, the two lamps will come on. Press it again and the lamps will
turn off.
• Press the High button, the fan will run at high speed.
• Press the Mid button, the fan will run at medium speed.
• Press the Low button, the fan will run at high speed.
• Press Stop button, the fan will stop.
Note: Fan speed adjustment (not applicable to all models).
OPERATION
Light
Mid
High
Stop
Low

Prior to any maintenance, cleaning operation, ensure the power is disconnected.
Cleaning the Screen Filter
• Press the release button and remove the
screen filter.
• Place the screen filter into the dishwasher
with detergent, set the temperature below
60°C.
• Do not use abrasive detergent as this will
damage the screen filter.
• Make sure that the hood is shut off before
cleaning.
Replacing the Charcoal Filter
• With the screen filter removed. Remove the Charcoal Filters (optional), by rotating the
filters in a counter-clockwise direction.
• Attach the new Charcoal Filters but rotating them in a clockwise direction.
• Replace the screen filter according to Installation.
CLEANING & CARE
Remove
On
On
Remove

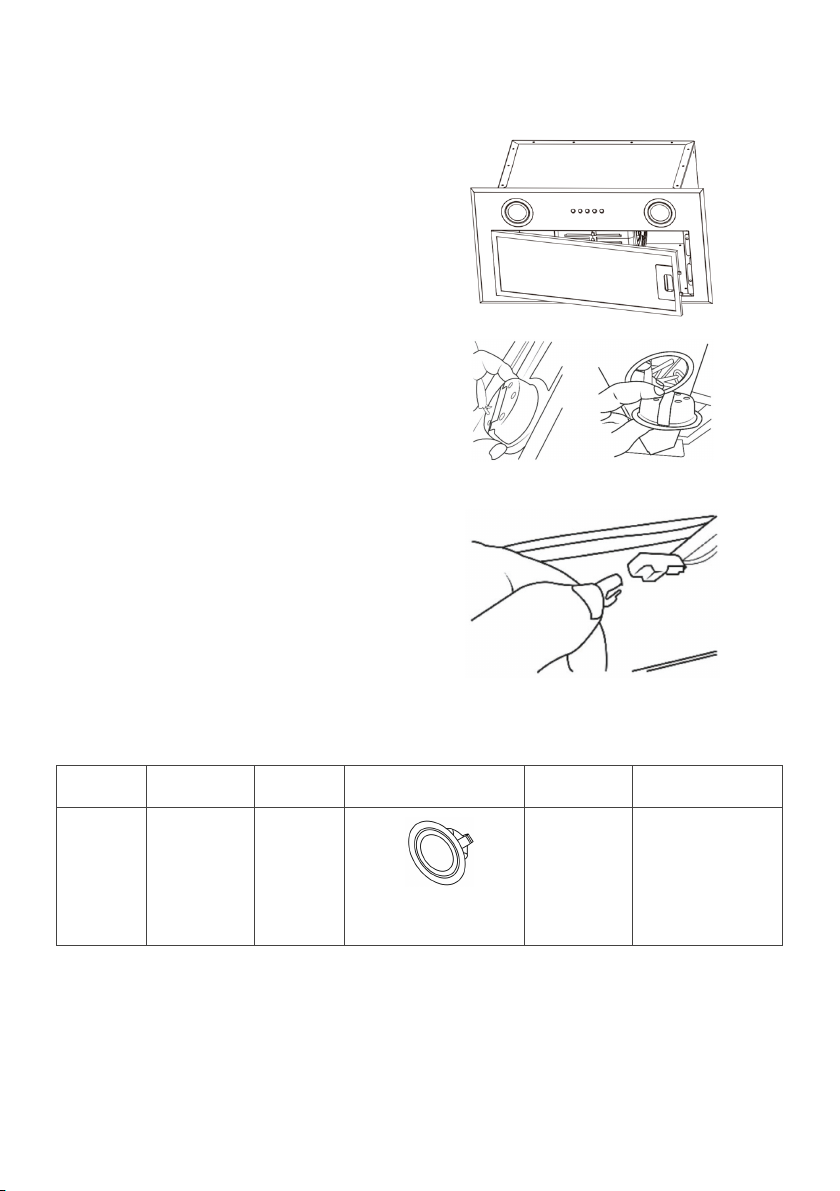

Replacing the Lamps
• Press the release button and remove
the screen filter.
• Press the lamps from the inside, to
remove the lamp from the
rangehood.
• Disconnect the lamp connectors.
• Connect the of the new lamp
connectors to the rangehood.
• Push the new Lamp from outside and
fix it to the hole.
Lamp Specifications
Max power
Voltage
Lamp Cap
ILCOS D code
LED
modules
separate
ballast
1.5W
DC 12V
Round/Diameter:
70mm
/
DSR-1.5-S-70

Problem
Possible Cause
Solution
Light on, but
motor does not work
The blades are blocked.
The capacitor is damaged.
Replace capacitor.
The motor is damaged.
Replace motor.
The internal wiring of motor is cut
off/ disconnected. An unpleasant
smell may be produced.
Replace motor.
Both light and
motor do not
work
Apart from the above mentioned, check the following:
Light damaged.
Replace lights.
Power cord loose.
Connect the wires as per
the electric diagram.
Oil leakage
Outlet and the air ventilation
entrance are not tightly sealed.
Take down the outlet and
seal with glue.
Leakage from the connection of
U-shaped section and cover.
Take u-shaped section
down and seal with soap or
paint.
Vibration
The blade, if damaged, can cause
vibrating.
Replace the blade.
The motor is not tightly fastened.
Fasten the motor tightly.
The rangehood is not tightly fixed.
Fixed the rangehood
tightly.
TROUBLESHOOTING

Insufficient suction
The distance between the
rangehood and the cook top is too
large.
Readjust the distance.
Too much ventilation from open
doors or windows.
Choose a new place to
install the appliance or
close some doors /
windows.
The machine inclines
The fixing screws are not tight
enough.
Tighten the fixing screw
and make it horizontal.
The hanging screws are not tight
enough.
Tighten the hanging screw
and make it horizontal.
Disposal
This marking indicates that this appliance should not be disposed with
other house-hold wastes. To prevent possible harm to the environment or
human health from uncontrolled waste disposal, recycle it responsibly to
promote the sustainable reuse of material resources.

NOTES

Need more information?
We hope that this user guide has given you
the assistance needed for a simple set-up.
For the most up-to-date guide for your product,
as well as any additional assistance you may require,
head online to help.kogan.com
