Kogan KAWFLWASM9B User manual

9KG FRONT LOAD INVERTER
WASHING MACHINE
SERIES 9
KAWFLWASM9A, KAWFLWASM9B

•Dismantling, repair, or alterations should only be carried out by professional
technicians to avoid the risk of electric shock, fire or injury.
•The electricity supply must always be unplugged with dry hands to avoid the risk of
electric shock.
•Do not damage or alter the cable by forcibly bending, pulling, or twisting. Do not
put weight on or trap the cable. Damaged or loosened cables or plugs should not
be used to avoid the risk of electric shock, short circuit, or fire.
•If the supply cord is damaged, it must be replaced by Kogan.com or its service
agent to avoid a hazard.
•Do not put gasoline, benzene, alcohol, thinner or fabrics with these stains into or
near the washing machine. This may present the risk of fire or explosion.
•Keep children away from the appliance when in use. Do not place boxes or shelves
next to the washing machine.
•This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities or lack of experience and knowledge unless
they have been given supervision or instruction concerning use of the appliance by
a person responsible for their safety.
•This washing machine is equipped with a grounded plug. Use a single socket with
a voltage and current that match that of the appliance. Sharing the same socket
with other electric appliances may present the risk of fire.
•Thoroughly wipe the power plug when the dirt is adhering to the prong or around
the base of the prong. Failure to do so may present a fire risk.
•The washing machine should not be installed in humid environments, or locations
exposed to wind and rain.
•This washing machine is strictly prohibited from use in environments with an open
flame, such as a candle or incense. Do not operate the machine when there is a
gas leak.
•The glass door becomes hot in the process of high-temperature washing. Do not
touch the door when the machine is on, especially children.
•If the door must be opened during high temperature washing program, wait until
the temperature drops to a safe standard and the door unlocks automatically.
SAFETY & WARNINGS
WARNING: To protect the user and other people's health and
property, be sure to observe the following safety notices. Failure to
respect these warnings may result in damage to nearby objects, severe
bodily harm, or death.

•Keep all packing materials (plastic bags, foam etc) away from children.
•Do not pull the cable from the socket when unplugging the unit. Always grasp the
plug firmly to remove the cable from the power socket.
•Do not wash, rinse, or spin waterproof fabrics or cloth, sleeping bags, raincoats, or
skiing clothes. This may otherwise lead to injury by abnormal vibration during
spinning or damage to the washing machine, walls, floor, and clothes.
•Keep hands and feet away from the bottom of the washing when it is motion. Parts
in motion beneath the unit may cause injuries.
•The water supply hose should be tightly screwed into the unit. Failure to do so may
result in water leakage. After use for an extended period, water leakage may result
from the loosening of this hose. Ensure that it is checked and tightened regularly.
•Unplug the appliance when it is not in use for an extended period.
•Water above 50˚C should not be used for washing. Electric shock or leakage may
occur due to deformation of plastic parts of the unit.
•Do not stand on or put weight on the top of the unit. Two people are required for
moving or transportation.
•Check the water supply hose connection by turning on the water before washing.
•Only utilise the new hose-sets supplied with the appliance. Old hose-sets should
not be reused.
•Ensure the ventilation openings on the bottom of the washer are unobstructed
when installed on a carpeted floor.
•Turn the water tap off when the unit is not in use
•The appliance is designed for private household use only. It is not suitable for
commercial, industrial or trade use.

Washing Machine (x1)
Water Inlet Hose (x1) Transit Bolt Caps (x4)
Spanner (x1) User Guide (x1)
COMPONENTS

OVERVIEW
Adjustable Feet
Body
Power Cord
Detergent Drawer
Control Panel
Water Inlet Valve
Washer Door
Wash/Spin Drum
Note:
It is recommended to run the drum clean program before washing clothes in the
machine for the first time.

Note:
The artwork in this user guide is intended for reference only and may differ from the
actual product.
Power Cord
Tr a n s i t Bolts
Rear Cover
Cold Water Inlet Valve

Packaging
•Remove all the packaging (Including the foam base).
•Properly dispose of all the packaging and keep them out of the reach of children.
•Some condensation may appear on the packaging plastic bag and the door glass.
Transportation
Two people are required to carry the machine. One person on each side carries the machine
by holding the base/adjustable feet of the machine.
Positioning the washing machine
The washing machine must be installed on the ground which must be hard, flat and skid-
proof. Please do not lay the washing machine on soft blankets or wooden floors. Do not lay
the washing machine on a platform or bracket.

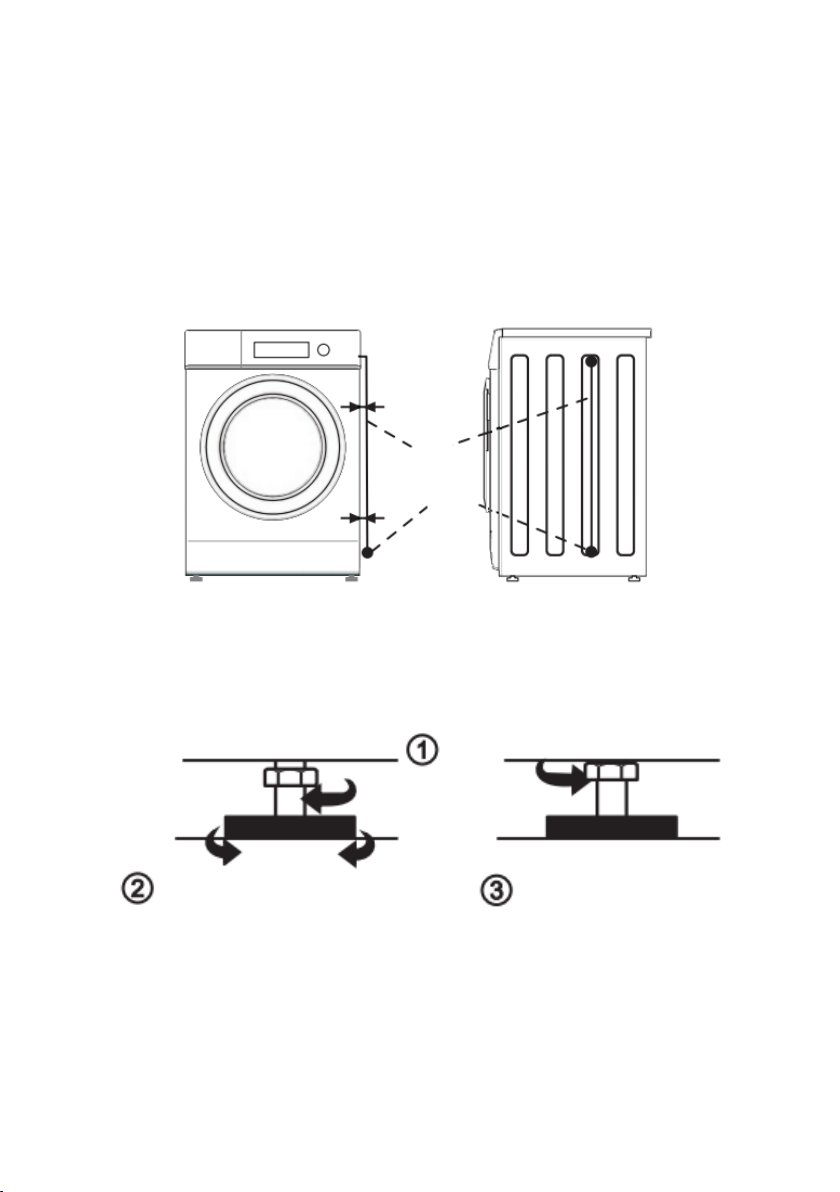

Sloping ground Platforms or brackets Uneven surfaces
INSTALLATION

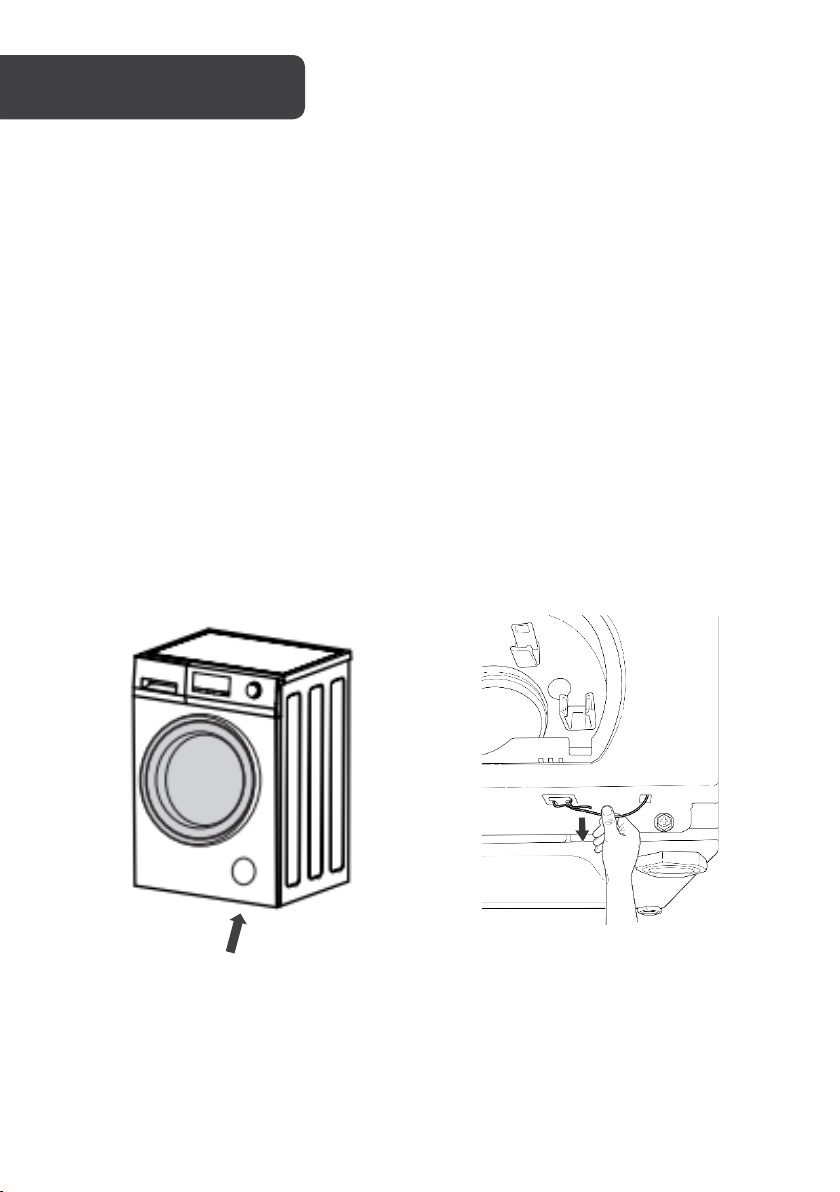

Removing the Transit Bolts
To protect the machine in transportation, there are 4 bolts inserted into the inner part of the
machine to keep the drum in place. These bolts must be removed before use, or damage to
the internal components of the machine or surrounding environment may occur.
1. Unscrew each of the four bolts with a spanner.
2. Remove the bolts horizontally.
3. Fit the supplied caps into the holes.
•Keep the transit bolts in a safe place, as they will be needed to transport the
machine in future as required.
•As shown above, confirm that the base protection device is not stuck at the bottom of
the washing machine before use.
Base protection device

Level Adjustment
Adjust the machine horizontally
There may be strong vibrations, noise and disfunction if the washing machine is not steadily
installed before operation. To ensure the appliance is correctly levelled:
1. Check whether the washer is on a level surface using a plumb line as shown in the
image below.
oThe washer is level on the floor if the frame line of the washer is parallel with
the plumb line.
2. If required, adjust the legs of the washer to make the unit level as shown below.
Opening
Plumb
Line
Opening
Plumb
Loosen
Up
Down
Adjust the lock nut with a wrench
Tighten

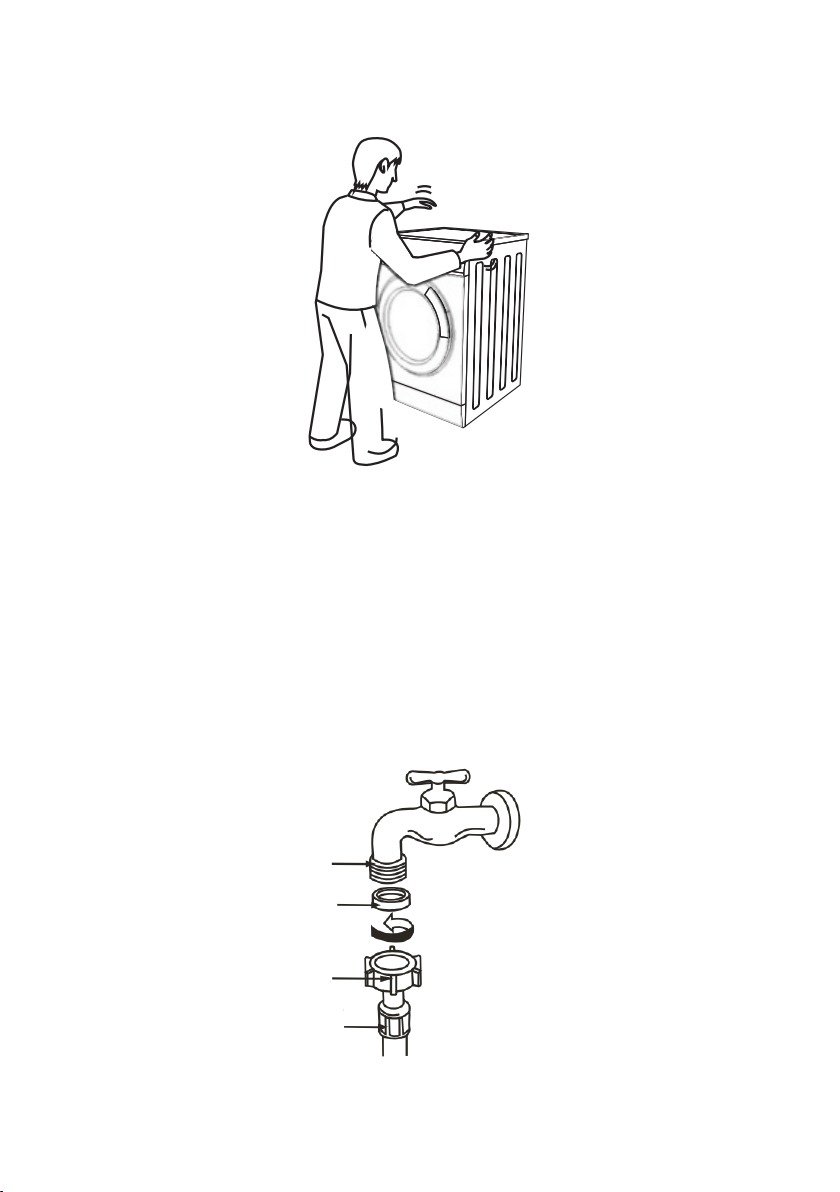

3. Place both hands on top of the washer diagonally, then press down and shake the
washer slightly to make sure that the washer is steady.
Connecting the water inlet hose to the tap
1. Check that the sealing washer is firmly seated.
2. Attach the curved end of the hose to the inlet valve of the washing machine.
Tighten the coupling nuts securely by hand.
3. Attach the straight end of the hose to the tap. Tighten the coupling nuts securely
by hand.
4. Turn on the taps and check for leaks. Tighten the coupling nuts firmly if there is any
leakage. If the water pressure is strong, close the water tap completely then open it
slightly.
Tighten
Sealing washer
Tap end
Inlet hose
Tap

Connecting the water supply hose to the washer
Turn the nut clockwise while holding the hose until the nut is tight. When the hose requires
detaching, turn the nut counter-clockwise after turning the tap off.
Connecting the drain hose
1. When the appliance is not in use, place the drain hose at the back of the washing
machine as shown in image 1.
2. When the appliance is in use, place the hose into a drainage trough as shown in
image 2. The end of the drain hose can alternatively be placed into the sewer. Keep
space between the end of the drain hose and the sewer elbow to avoid drainage
issues.
3. Clean the filter in the pump periodically to ensure reliable function.
Hose
Nut
1200 mm
Drain hose clip
Drain hose
Drain
hose
Note:
Do not remove the drain hose clip, as this will lead to drainage problems.

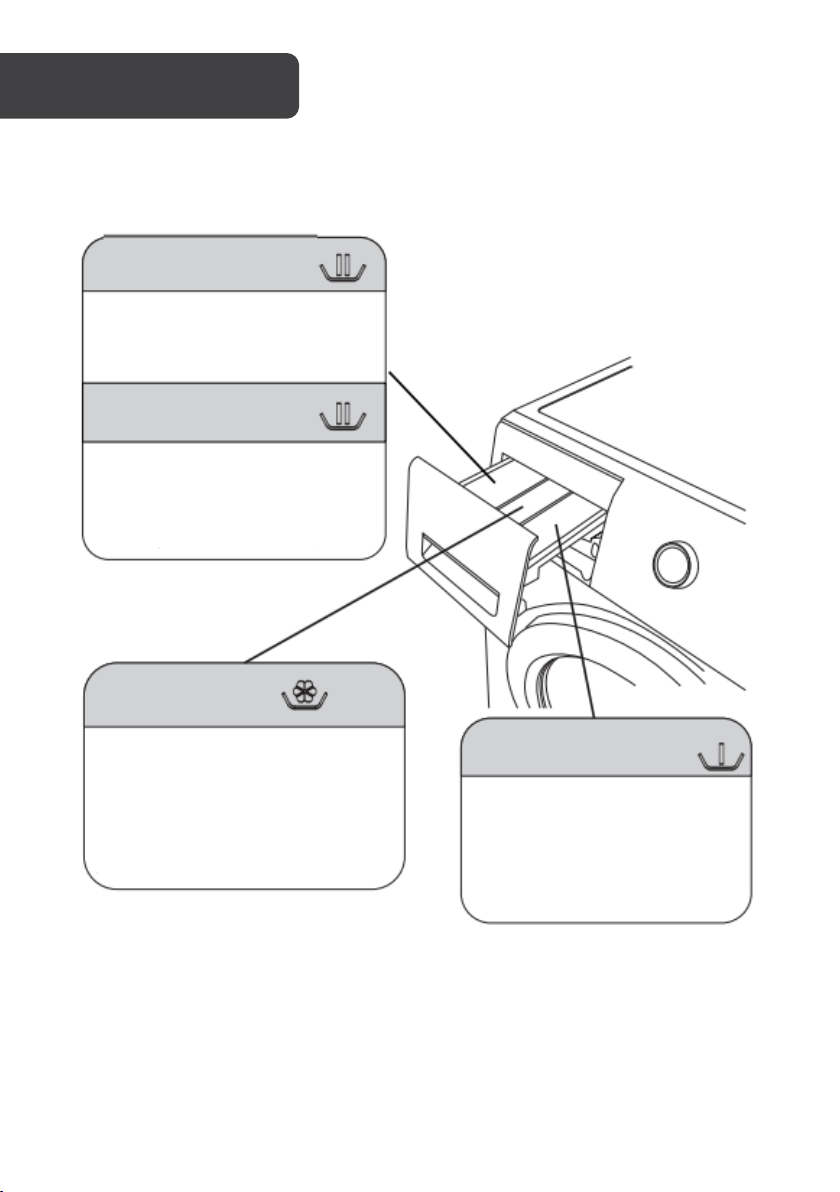

Detergent drawer
•Do not use high bubble washer powder or detergent.
•Use detergents in accordance with the instructions provided by their manufacturer.
•Excessive detergent will cause too much bubble and affect the rinse, as well as
presenting possible function faults.
•Choose suitable detergents considering the type and colour of clothes, the water
temperature, and the stains to be removed.
OPERATION
Powder synthetic
detergents
For undissolved detergents, e.g.
powder state soap, dissolve in
water in advance before
pouring into the drawer.
Liquid detergent
and bleach
Use low bubble liquid synthetic
detergents.
Dilute concentrated liquid
detergents twice with water
before pouring into the drawer.
Softener
When added to the drawer, it will be
poured into tub automatically during
the last round of rinsing.
Dilute concentrated detergents with
the corresponding proportion of water
before pouring into the draw.
Do not exceed the full mark line.
Liquid detergent and
bleach
Use low bubble liquid synthetic
detergents.
Dilute concentrated liquid
detergents twice with water
before pouring into the drawer.

Control Panel
Start/Pause button:
•Press the button to start a program and press again to pause.
Program Select knob:
•Select the desired program to power on.
•Turn to On/Off position to end a wash cycle early and power off.
•When programs finish, the machine will power off automatically.
Display window introduction:
•When powering on, it will display the spin speed and other program details.
•When running, it will display the remaining program time.
•In the event of a malfunction, it will display an error code (see the Troubleshooting
section below).
TEMP. Button:
•Sets the washing temperature according to the clothes type.
•The temperature setting range is different between programs, and some will have a
temperature range limitation.
Display
Button
Knob

Speed button:
•Set the spin speed according to the user’s requirement.
•The speed setting range is different between programs, and some will have a
temperature range limitation.
Delay button:
•Allows the user to set the finishing time of the set program.
Oxygen Fresh button:
•Used to set the Oxygen Fresh function. This program will limit some settings.
•The drum will rotate 10sec every 4 min in 4 hrs after washing program ends.
•This is used to prevent wrinkles and odours in case users forget to take out the
clothes after washing.
•The Oxygen Fresh icon will flash when this program is in use.
Rinse button:
•Set the number of rinses as needed. Adjusting the number of rinses in some
programs is limited.
Soak button:
•Set the soak time as needed. Adjusting the soak time in some programs is limited.
Stain button:
The washing machine will adjust the temperature and time in accordance with the stain
type selected.
Oil Coffee
Juice Red Wine
Watercolour Mud
Time wash button:
•Allows the user to adjust the set washing time.

Wash programs
Cotton Eco
Recommended for a normally soiled cotton load at rated capacity
Cotton
Wash cotton clothes only
Mix Wash
Mixed wash of cotton and synthetics clothes
Jeans
Wash jeans and heavy denim clothing
Wool
Wash wool clothes that are machine washable
Synthetic
Wash clothing with synthetic fibres
Winter clothes
Wash down jackets which are machine washable
Quick wash
Wash a small amount of light dirty clothes
Colours
Wash clothes with dark or light colour. Always wash dark and light-
coloured loads separately.
Under Wear
Wash underwear and delicates
Shirt
Wash dress and business shirts
Kids Wear
Wash children’s clothing
Rinse + spin
For clothes which only require rinse and spin
Spin
For clothes which only require a spin
Drum clean
For cleaning the machine’s drum. Do not run this cycle with clothes in
the drum
Backpack
For washing backpacks (see more details below)
Running a normal wash program
1. Preparation
oPut the clothes in and close the door.
oPut the detergent or washing powder into the detergent box.
oSwitch on the water tap. Connect the drainpipe. Plug the power supply.
2. Power on the machine.
3. Choose a suitable program for the clothes to be washed.
4. Adjust settings with the buttons as desired (where permitted by the selected
program).
5. Press the “START/PAUSE” button to commence operation.
6. When the program is finished, the buzzer will sound.

Wool
•Always check any care instructions that may be on the clothes before washing.
•When the wash is completed, remove the clothes for airing immediately to avoid
deformation.
•The temperature cannot be set higher than 40 degrees to avoid damage to
clothing.
•Using wool detergent can improve washing performance.
•Always wash light colour clothes and dark colour clothes separately.
Backpack
•This cycle is only intended for washing backpacks which can be washed by
washing machine.
•Remove any attached decoration (such as badges or pins) before washing and
bind the straps and any belts tightly.
•Ensure all zippers are closed and that the backpack is being washed separately
from other clothes.
•When the wash is completed, remove the backpack for airing immediately.
Delay wash
Once a suitable program has been set, press the delay button to set the finish time of the
cycle. Press the Start/Pause button to start the delay wash function. The delay time can be
set in one-hour increments to a maximum of 24 hours.
•If the delay time needs to be amended or cancelled after the program has started,
turn off the power and set again.
•When confirming the delay time, press the delay button. The set delay time will
display for 5 seconds.
•The delay time will differ depending on the water pressure, drainage, clothes type
and water temperature.
Add
Use this function to add washing to the machine after a program has commenced. Press the
“Start/Pause” button until the time disappears. The door lock will release, and the display
will show “Add”. Add washing as required then close the door and press the “Start/Pause”
button to continue to wash.
•Do not attempt to forcibly open the door, as this can easily damage internal parts
and cause safety issues.
•When there is a lot of foam or water in the drum, use a dry towel to prevent foam
and water from spilling out when the door is opened.

Mute buzzer
Enabling this function will mute the buzzer that sounds when a program has finished.
After powering on the machine, press and hold the “Start/Pause” button until the buzzer is
heard to mute the buzzer. Repeat this process to disable the mute function.
Child Protection
•If the door is opened before the program starts, the machine will activate child
protection mode.
•Firstly, the door will be opened, and the motor will be running for a while.
•And then, the door will be unlocked for a while still working again. If during the
waiting time, the door is opened. The machine will be stopped.
Child Lock
The child lock function can be set to prevent children from operating the machine when a
cycle is in progress, locking the door and the control panel (except for the power button).
Power on the machine, then press and hold the “TEMP”. button for 3 seconds until the
buzzer sounds. The child lock function is now set. If these steps are repeated, the child lock
function will be disengaged. When this function is disabled, the door can be opened again.

Unlocking the Automatic Door Lock
When the machine is operating, the door locks automatically. This is to prevent scalding
from touching hot water before it has a chance to cool down. In normal usage, the door will
not be unlocked until either the cycle is stopped, or the emergency pull-rope is activated.
When the machine is working, press the "start/stop" button. In most cases, the door can
then be opened after the inner tub stops spinning. Exceptions to this are:
•If the power plug is removed when the machine is running, the door will remain
locked as a safety measure.
•If the machine was running at a high working temperature, the door will remain
locked as a safety measure until the temperature has reduced.
In most cases, the recommended course of action is to complete a full wash cycle and wait
until the washing machine has cooled before opening.
To unlock the door in an emergency, there is a pull-rope located at the base of the washing
machine. Tilt the machine up to gain access to the underside and locate the pull-rope. Pull
the rope firmly until the door latch is unlocked, allowing door to be opened.
CAUTION – Water may be extremely hot and pose risk of scalding.
Emergency pull-rope
Note: If the door is opened whilst the machine is working, bubbles may escape. Clean the
machine with a towel.
DOOR LOCK

Ensure to maintain the machine after long term use to maximise the lifetime of the product.
Always disconnect the power before cleaning or maintaining the appliance.
Machine body
•Use a soft cloth to clean the body after each wash. If it is heavily soiled, put some
mild detergent or soapy water on the cloth to clean the body.
•Do not use water to flush the machine directly.
•Dirty powder, diluents, petrol, and alcohol are not permitted for cleaning the
machine.
Door gasket
Use a cloth to clean the gasket after each wash. If anything has become lodged in the door
gasket, ensure to remove it.
Detergent drawer
Routinely clean the detergent drawer. Take out the box and clean it with water.
Drum clean (recommended to be performed once a month)
There may be dirt left in the drum after an extended period of use. Run the drum clean
program to clean the inner and external drum when this occurs. Do not add clothes or
detergent when using the drum clean function.
CLEANING & CARE

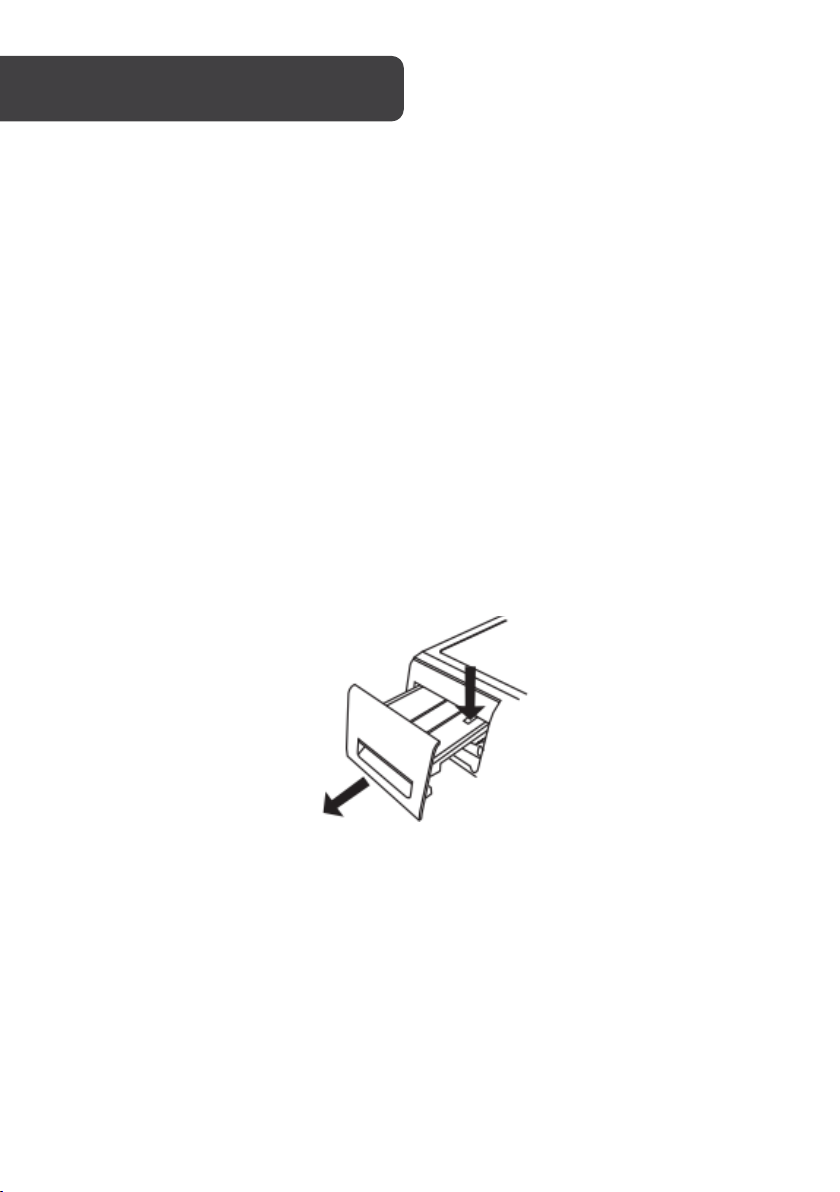

Press here
Pull out
