3
Your safety and the safety of others is very important.
Read instructions in this guide before using this product. Retain this guide for future
reference. Do not skip, substitute or modify any steps or procedures in this guide, as doing
so could result in personal injury or product damage.
Always read and follow all safety messages. This is the safety alert symbol.
This symbol alerts you to potential hazards that may kill or injure you or others.
All safety messages will be preceded by the safety alert symbol and the words "DANGER"
or "WARNING." These words mean:
Danger
You may be killed or seriously injured if you fail to follow the instructions immediately.
Warning
You may be killed or seriously injured if you fail to follow the instructions.
All safety messages will tell you what the potential hazard is, how you can reduce the risk of
injury and what may happen if the instructions are not followed
IMPORTANT SAFETY INSTRUCTIINS
WARNING: To reduce the risk of fire, electric shock or injury to persons when using the
washing machine, observe the following basic precautions:
• Read all the instructions before using the washing machine.
• Do not wash articles that have been previously cleaned in, washed in, soaked in with
petrol, dry-cleaning solvents or other flammable or explosive substances as these
substances give off vapours that might ignite or explode.
• Do not add petrol, dry-cleaning solvents or other flammable or explosive substances to
the wash water. These substances give off vapours that might ignite or explode.
• Under certain conditions, hydrogen gas may be produced in a hot water system that
has not been used for 2 weeks or more. HYDROGEN GAS IS EXPLOSIVE. If your hot
water system has not been used for this length of time, turn on all hot water taps and
let the water flow from each of them for several minutes before using the washing
machine. This will release any accumulated hydrogen gas. As hydrogen gas is
flammable, do not smoke or use an open flame during this time.
SAFETY & WARNINGS

4
WARNING: To reduce the risk of fire, electric shock or injury to persons when using the
washing machine, observe the following basic precautions:
• This appliance is not designed to be used by persons (including children) with reduced
physical, sensorial or mental skills or inadequate experience or knowledge, unless they
are supervised by another person who assumes responsible for their safety.
• Do not install your washing machine on carpets or rugs.
• Before the washing machine is removed from service or discarded, remove the door or
lid.
• Do not reach into the washing machine if the drum, tub or pulsator is moving.
• Do not tamper with the controls.
• This appliance is for household use only.
• Do not install or store the washing machine where it will be exposed to the weather or a
humid environment.
• The power cable must be plugged into a mating, 3 prong, earthing-type outlet, earthed
in accordance with local laws and regulations.
• Do not repair or replace any part of the washing machine or attempt any service work
unless specifically recommended in this user guide. You must clearly understand the
work involved and have the necessary skills to carry it out. If you are in doubt, contact
help.Kogan.com for support or contact a licenced professional for advice.
• A damaged or loose wire or plug should not be used otherwise electric shock, short
circuit or fire may take place. If any of the electrical wires show signs of damage, cease
use immediately and contact help.Kogan.com for support.
• Do not damage, alter, bend, pull, twist or forcibly handle any of the wires. Do not place
weight on or trap the wire. Damaged wires may cause electric shock or fire.
• Power supply must be unplugged with dry hands before performing and maintenance
or repair.
• Please unplug the unit when not using the unit for a long period of time. Electric shock
or leakage may occur due to deformation of plastic parts of the unit.
• Please turn off the water tap when not using the unit.
• To prevent damages caused by water leakage:
o Do not bend, pull or twist the power cord excessively. When the plug is
inserted or removed, the fingers must grip the plug insulation part to apply
force. Do not touch the metal insert of the plug in order to avoid electric shock.
• For people with long hair, take care and ensure any hair is not to caught in the gap
when closing the door.
• Thoroughly wipe the power plug if any dirt is on the prongs or around the base of the
prongs. Failure to do so may cause a fire.

5
• If the power cable is damaged, cease use immediately and contact help.Kogan.com
for support.
• Strictly follow the installation instructions to ensure safety.
• Children should be supervised to ensure that they do not play with the appliance.
• This appliance is intended to be used in household and similar applications such as:
o staff kitchen areas in shops, offices and other working environments
o farm houses
o by clients in hotels, motels and other residential type environments
o bed and breakfast type environments
o areas for communal use in blocks of flats or in launderettes
Fire Hazard:
• Do not wash items that are wet with petrol, solvents or any other products that give off
vapour or gas likely to ignite or explode.
• Do not install the washing machine close to sources of heat or flames, such as ovens or
heaters. Never place candles or similar objects (light bulbs, etc.) on the washing
machine.
• Failure to follow these instructions may cause death, explosion or fire.
Electric Shock Hazard
• Connect this appliance to an earthed outlet. Do not eliminate the earth connection of
the outlet.
• Do not use adapters.
• Do not use extension cables.
• Failure to follow these instructions may cause death, explosion or electric shock.

6
Parts Supplied
Cold water supply hose
Hot water supply hose
Drain hose
Fabric softener port
Control panel
Adjustable leg
Lint filter
Wash/Spin tub
Bleach port
Detergent powder port
Liquid detergent port
Faucet
Lid
OVERVIEW
Leg
Water supply hose
Pulsator
Power cable
Power plug
Drain hose
Frame

7
• The washing machine must be installed in a dry place out of direct sunlight. During the
winter it must not be exposed to low temperatures.
• The entire packaging must be removed; otherwise the washing machine will not work.

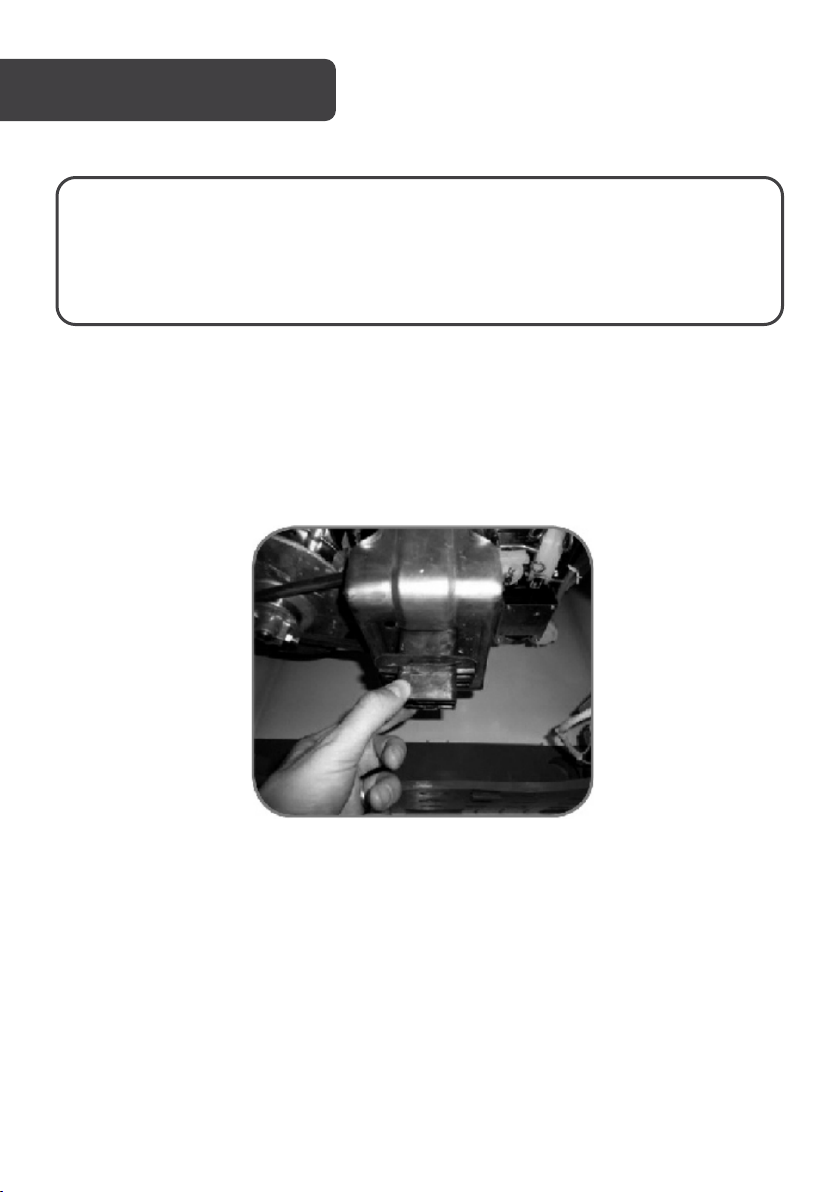

• When removing the packaging, ensure to remove the plastic piece located at the
bottom of the washing machine.
• The opening on the base must not be obstructed by carpet.
WARNING: Excessive Weight Hazard.
• Two or more people are required to move and install the washing
machine.
• Attempting to do this on your own may result in back or other injury.
INSTALLATION

8
Location Requirements
Place the washing machine on a flat, horizontal surface at least 10cm away from walls or
other furniture or objects.
IMPORTANT:
The washing machine must not be installed outdoors. Never install the washing machine
on rugs, carpets or steps.
Level the Washing Machine
Level the washing machine as follows to avoid vibration and noise:
• Level the washing machine by loosening the adjustable foot and tightening it to avoid
wobbling and/or movement during the washing and spinning operations.
• After the washing machine has been levelled, tighten the lock nut to fix the foot in
place.
Lock nut
Notes:
If the washing machine is not correctly levelled, excessive vibrations may occur. This
may cause it to stop automatically without finishing the spin.
Loosen
Tighten
Adjustment foot

9
Using the Rear Wheel
>30°
>15°

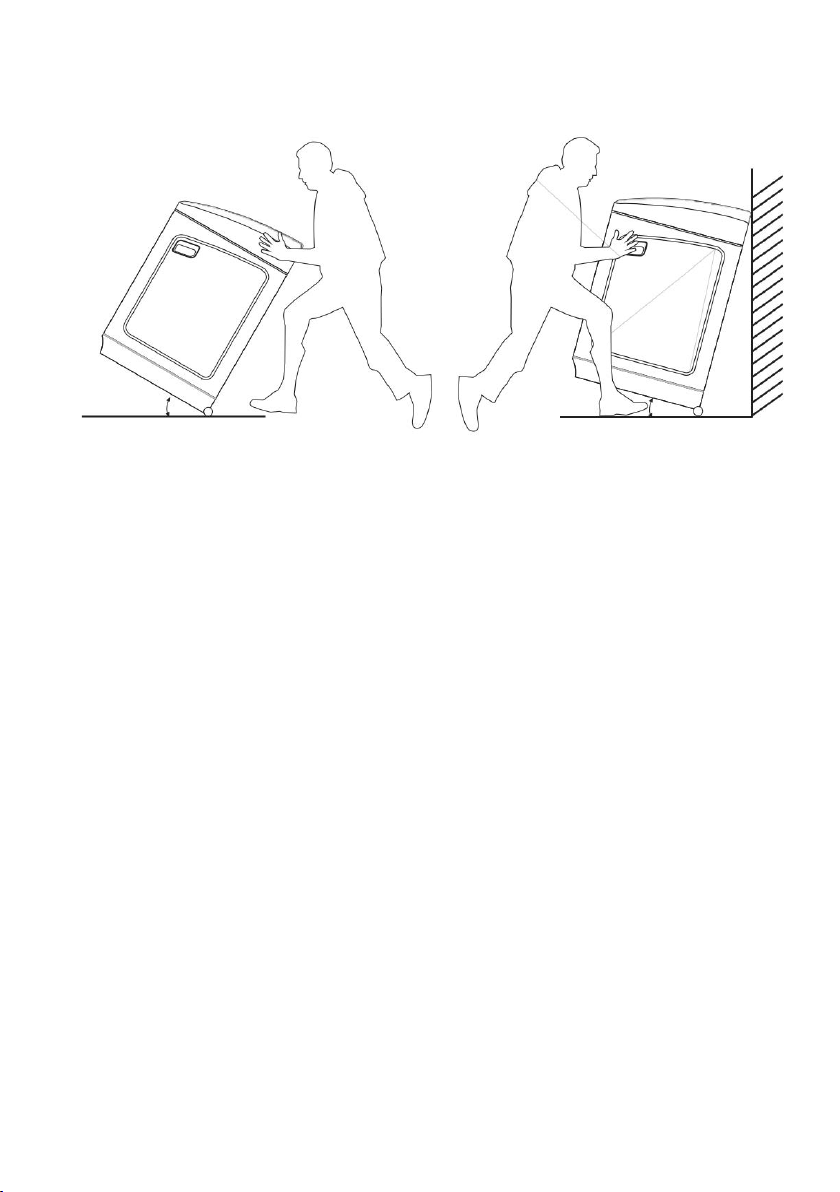

• Using the rear wheel will make moving the washing machine easier. Carefully tilt the
washing machine about 30 degrees, push forward or pull backward while firmly holding
the washing machine on both sides.
• The rear wheel is not suitable for uneven ground. Doing so may cause damage to the
rear wheel.
• Do not tilt the washing machine too hard, doing so may cause personal injury.

10
Water Inlet Hoses
Use the RED water inlet hose for hot water and the BLUE inlet hose for cold water. Check
that the water supply pressure is between 30 and 800 kPa (approximately between 2 and
80 metres of water column).

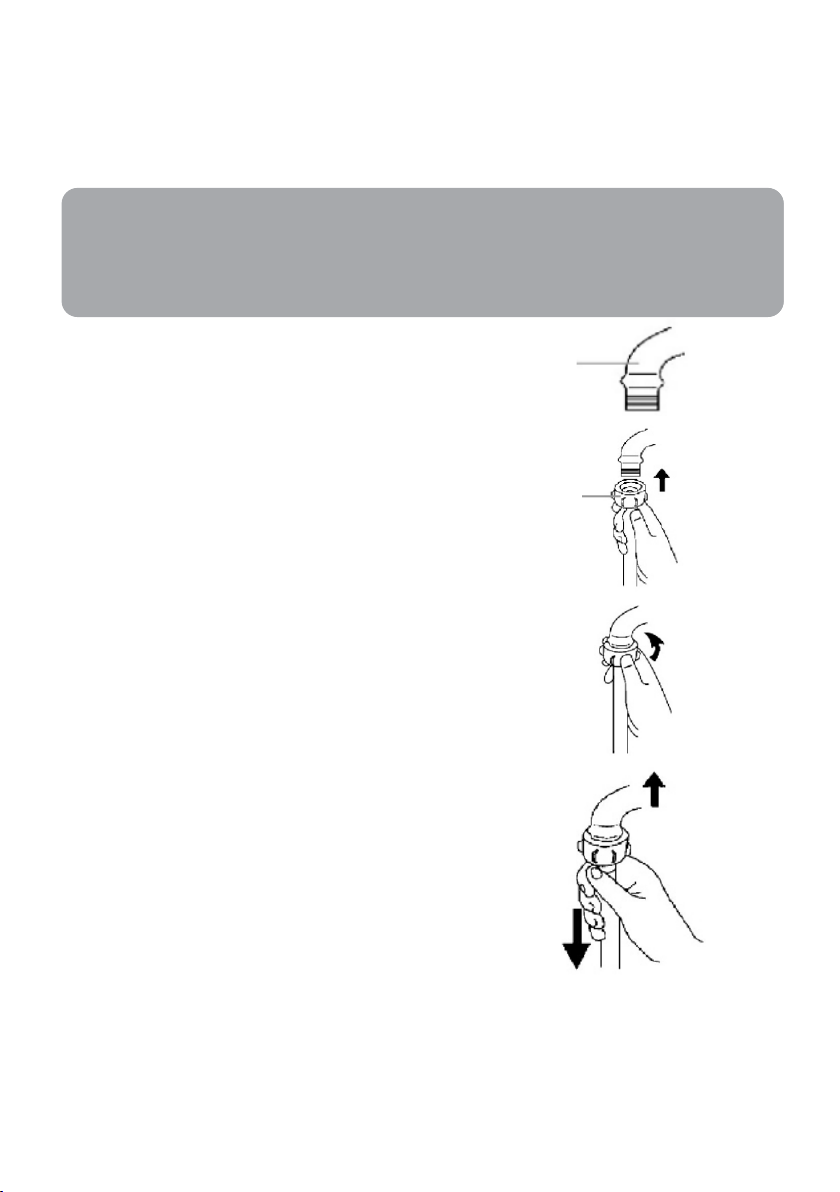

1. Check that the water tap is working.
2. Attach the connector to the water tap.
Note: Do not use water at a temperature
above 60°C.
3. Screw the coupling on by hand until it is
pressed firmly against the washing machine.
4. Pull down on the hose to make sure that it is
connected correctly.
Notes:
The washing machine must be connected to the water taps using new inlet hoses
(supplied with the washing machine).
Do not reuse old hoses.
Tap
Connector

11
5. Attach the other end of the hose to the
washing machine’s water inlet.
6. Repeat steps 1 – 4 for the remaining inlet
hose.
Drain Hose
1. The drain hose must be positioned at least 80cm but no more than 120cm above
the bottom of the washing machine.
2. The side of the washing machine has a support for attaching the drain hose. Use a
standpipe or the laundry sink to fix the drain hose.
WARNING:
It is recommended to keep the hose fixed permanently to avoid problems and to avoid
having to connect the hose every time you use the washing machine. Clogging of the drain
hose may prevent the washing machine form draining.
3. Attach the drain hose to the drain port. If
the clamp is not already in place on the
elbow end of the drain hose, slide it over
the end as shown. Squeeze the clamp
with pliers and slide the black elbow end
of the drain hose onto the black drain
port and secure with a clamp.
Notes:
After installing the hoses, turn on the water tap to check for leakages before turning on
the washing machine. If the water pressure is too high, close the tap a little to prevent
water leakages.

12
Electrical Requirements
• A 15 or 20-amp fused electrical supply is required. A time-delay fuse or circuit breaker is
recommended. It is recommended that a separate circuit breaker serving only this
appliance be provided.
• This washing machine is equipped with a power supply cable with a 3 prong earthing
plug.
• To minimize possible electric shock hazard, the power cord must be plugged into a
mating, 3 prong earthing-type outlet, earthed in accordance with local laws and
regulations. If a mating outlet is not available, it is the personal responsibility and
obligation of the customer to have a properly earthed outlet installed by a qualified
electrician.
• If regulations permit and a separate earth wire is used, it is recommended that a
qualified electrician determine that the earth path is adequate.
• Check with a qualified electrician if you are not sure that the washing machine is
properly earthed.
WARNING:
• Incorrect connection of the equipment earth conductor may result in a risk of electric
shock.
• Check with a qualified electrician or service engineer if you are in doubt as to whether
the appliance is properly earthed.
• Do not modify the plug provided with the appliance. If the plug does not fit the socket,
have a proper socket installed by a qualified electrician.
• This washing machine must be connected to an earthed permanent wiring system;
otherwise an equipment earthing conductor must be run with the circuit conductors
and connected to the equipment-earthing terminal or lead on the appliance
.
Note:
In the event of damage to the electrical wiring, it must be replaced with an original
electrical cable by an authorized electrician. Contact help.Kogan.com for support.
WARNING: Electric Shock Hazard
• Plug into an earthed 3-prong outlet. Do not remove the earth prong.
• Do not use an adapter.
• Do not use an extension cable.
• Failure to follow these instructions may result in death, fire or electric shock.

13

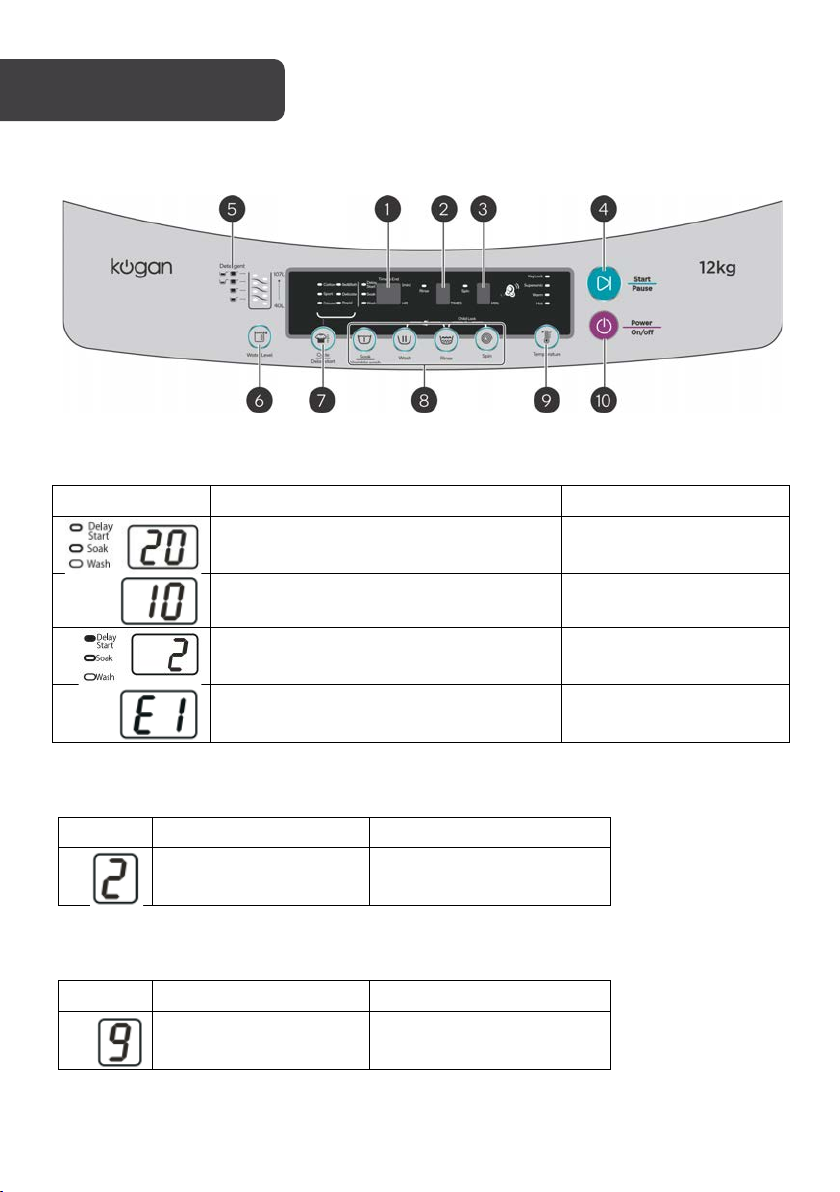

1. Timer and Delay start indicators
Display
Function
Example
Displays remaining time during washing
Remaining time is 20
mins.
When setting SOAK and WASH,
displays the time set.
Washing time is I0 mins.
Displays when the washing will be
finished
Finish washing 2 hours
later.
When abnormal conditions occur, the
display will indicate the warning.
Water is not flowing.
2. Rinse indication
Display
Function
Example
Displays rinsing times
Rinsing 2 times
3. Spin indication
Display
Function
Example
Displays spinning time
Spinning time is 9 minutes
OPERATION

14
4. Start/Pause
• Press this button to start the washer operation.
• During operation, press this button to stop the washer temporarily. Press it again to
restart the washer operation.
• Press this button to cancel the end buzzer. Press and hold it for 4 seconds until a beep
has acknowledged the command.
5. Detergent level
Indicates the detergent volume.
6. Water level
• You can cho ose the appropriate water level that matches the load size.
• Different water levels for washing or rinsing are optional.
7. Cycle and Delay start
• Press this button to cycle through the desired washing cycles (Cotton, Sport, Coloured
Rapid cycle etc.).
• Press this button to delay start the finish time of washing.
Note: Delay start function cannot be used for delicate program.
8. Process
• Press these buttons to set various wash processes.
• Press the "soak/variable wash” button before starting. 0 - 40minutes soak time can be
set. Note: This function could not be changed for Delicate or Bed & Bath cycle.
• Press the “soak/variable washes" button during washing/rinsing cycle, to adjust the
wash water flow strength. Note: This function could not be changed for Delicate or
Bed & Bath cycle.
Note: This is not a Cancel button.

15
Water flow level range: "H0, H1, H2, H3, H4 L1, L2, L3, L4”
o H0 – Standard water flow
o H4 – Highest water flow
o L4 – Lowest water flow
9. Temperature
Press the Temperature button to select between cold, warm or hot water.
10. Power
To turn the washing machine on, press the Power button. To turn the machine off, press the
Power button again.
When washing has finished, the power will automatically be turned off after 5 seconds.
If the machine is turned on and has no user input within 10 minutes, the power will
automatically be turned off.
Using the Washing Machine
1. Before use, open the washing machine’s lid.
2. Place a measured quantity of detergent in the detergent dispenser.
3. Pour fabric softener into the fabric softener dispenser (maximum quantity 90 ml).
4. Pour liquid bleach into the bleach dispenser.
Bleach dispenser
Softener dispenser

16
5. Place the clothes inside the basket and close the lid.
Place the items loose inside the basket and distribute them in a uniform manner,
starting with the larger items. The smaller items should be positioned in the middle
of the load to improve the stability of the washing machine and avoid vibrations
during washing.
The items must not exceed the level shown in the illustration below.
6. Connect the washing machine and turn it on.
7. Turn on the taps connected to the water supply hoses.
8. Press the Power button.
9. Select the desired program and options.
10. Press the Start/Pause button. The washing machine will start working according
to the selected program.
11. When the cycle ends, open the lid and remove the load. Close the door again.
The following cases do not represent problems:
• Water flows into the washing machine even after the wash or rinse has begun. This
happens if the water level sensors detect that the clothes have absorbed an excessive
amount of water. The washing machine will replenish the water level automatically to
ensure a more effective wash
• Spinning is intermittent at the beginning of the spin cycle. This is done to achieve a
better spin effect.
• During spinning (except for the final spinning process), the cycle returns to the wash
cycle. This is done to redistribute the clothes inside the basket following an unbalance
condition.
• The washing machine makes a noise after the wash cycle has been completed. The
washing machine beeps at the end of the cycle to indicate that it has finished.
Maximum
level of clothes

17
Program Table
Program
Characteristics
Sport
ECO Cycle ideal for clothes that are sweaty but not heavily soiled
Cotton
ECO Cycle for normally soiled cotton, linen, sheets and mixed
laundry loads
Coloured
ECO Cycle for coloured fabrics and heavily soiled laundry
Rapid
Rapid Cycle for small loads of 3-4 lightly soiled garments
Bed & Bath
Blankets, sheets, pillows and towels
Delicate
Recommended for underwear or children’s clothes
Operation Status for the Program
Program
Soaking
Time(min.)
Washing
Time(min.)
Rinse cycles
Spin
Time(min.)
Sport
10
15
2
6
Cotton
0
10
2
6
Coloured
0
15
2
6
Rapid
0
6
1
2
Bed & Bath
0
15
2
9
Delicate
0
5
2
3
Note: Total time may differ from display due to different water pressure
Temperature
You can set the wash temperature to “cold”, “hot” or “warm” by pressing the Temperature
button until the desired option is illuminated.
• For cold water neither light is on.
• For hot water the hot light is on.
• For warm water the warm light is on.

18
Load Volume and Quantity Of Detergent
Water Level
Detergent level indicator
Amount of
detergent
(g)
Load
Weight (kg)
20~40
0~3.0
40~60
3.0~5.0
60~80
5.0~7.0
80~100
7.0~12.0
Notes:
• The required quantity of detergent varies according to the brand of detergent.
• If you think the water level is insufficient, try changing the water level selection.

19
Loading
Suggestions for loading
Heavy work clothes
2 jeans
2 work trousers
2 work shirts
3 sports trousers
4 sports tee-shirts
Mixed load
2 sheets (queen size)
2 tablecloths
3 shirts
4 bath towels
3 tee-shirts
4 pillowcases
3 shorts
6 face towels
5 handkerchiefs
Towels
8 bath towels
4 hand towels
6 face towels
Delay start
1. Press the Power button.
2. Turn on the tap and connect the drain hose.
3. Load the washing machine and pour in the detergent.
4. Select the water level according to the laundry load to be washed.
5. Select the functions and programs.
6. Press the Cycle/Delay start button repeatedly until the Delay Start light is on.
7. Press the Cycle/Delay start button to select the delay time in hours.
Note: Each time the button is pressed, the previously set time changes by one hour
(through a 24-hour cycle).
Cancelling Delay Start
To cancel Delay start, press the Power button.
Child Lock Function:
When the Child lock function is enabled, the Washer will stop working automatically and an
alarm will sound if the washer lid opened for more than 5 seconds during operation.
To enable the Child loc, press the Power button then press and hold the Rinse and Spin
buttons till buzzer sounds.
To disable the child lock, press and hold the Rinse and Spin buttons till the buzzer sounds.

20
Ultrasonic function
The Ultrasonic function is on by default. To disable the ultrasonic function, press and hold
the Wash and Rinse buttons at the same time for 4 seconds till the buzzer sounds.
Washing blankets
Ensure the blanket does not weigh more than 5kg.
1. Dissolve the required amount of detergent in warm water (below 50°C) outside the
washing machine and then pour it into the washing machine.
2. Fold the blanket as shown in the figures below and place it inside the washing
machine.
3. Turn on the washing machine and press the Cycle button to select the “Bed &
Bath” Cycle and water level 8.
4. Press the Start/Pause button.

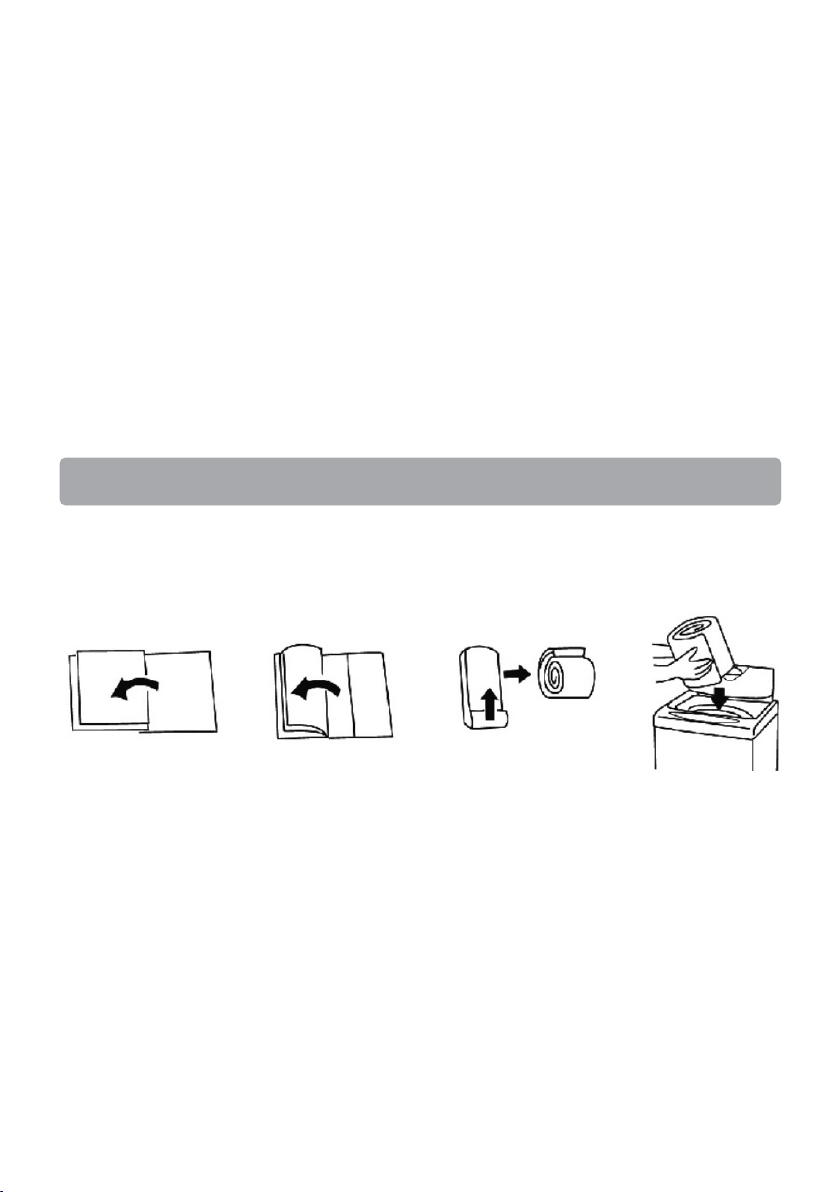

Blanket folding diagram
Note: Only blankets which have a “wash in water” label can be washed in this manner.
