komodo KDGASPATHTRA User manual

Outdoor Gas Patio Heater
KDGASPATHTRA
User Manual
Features
•Ideal solution for extending the season of outdoor entertaining
•Direct ignition
•Maximum output 40MJ/h
•Adjustable heat output
•Operates for approximately 0 hours on filled 9kg propane cylinder
•Includes a safety 'tip-over' switch that halts the supply of gas should it be
accidentally knocked over
•Flame safeguard system for enhanced safety
•Durable and weather resistant
•Complete with hose and regulator
•For outdoor use only
Safe Appliance Locations
This appliance should ONLY be used in an above ground, open-air situation with natural
ventilation, without stagnant air areas and where gas leakage and products of
combustion are rapidly dispersed by wind and natural convection.
Please refer to examples overleaf in relation to these rules.
Any enclosure in which the appliance is used shall comply with the following:
•An enclosure with walls on all sides, but at least one permanent opening at
ground level and no overhead cover (see Example ).
•Within a partial enclosure that includes an overhead cover and no more than two
walls (see Examples 2 & 3).
Within a partial enclosure that includes an overhead cover and more than two walls,
the following applies:
•at least 25% of the total wall area is completely open, and
•at least 30% of the remaining wall area is open and unrestricted
(see Examples 4 & 5).
In the case of balconies, at least 20% of the total area wall should be, and remain, open
and unrestricted.
The following figures are diagrammatic representations of outdoor areas. Rectangular
areas have been used in these figures – the same principles apply to any other shaped
areas.

Installation
Important Safet Rules
•This appliance must ONLY be used in a well ventilated area.
•This appliance must not be installed or used indoors, in buildings, garages or other
enclosed areas.
•DO NOT place any articles on or against this appliance.
•DO NOT use or store flammable materials near this appliance.
•Children and adults should be alerted to the hazards of high surface temperatures,
burns and clothing ignition.
•Children should be carefully supervised when they are in the area of the appliance.
•NEVER hang anything, including clothes or other flammable items, on the appliance.
•DO NOT operate this appliance unless it is fully assembled with heat reflectors in
place.
•DO NOT SPRAY AEROSOLS IN THE VICINITY OF THIS APPLIANCE WHILE IT IS
OPERATION.
•Repairs should only be carried out by Kogan.com technicians or other qualified
personnel, and should be serviced at least annually by a service person. Frequent
cleaning may be necessary. The control compartment, burners and circulating air
passages of the heater MUST be kept clean.
2

Prior to assembling the appliance, the following must be reviewed. Compliance with the
following should result in satisfactory and safe heater operation. This instruction manual
should be retained for future reference. The installation must conform with local codes
for such appliances.
. The patio heater is intended for heating residential outdoor spaces. The
installation must conform with local codes or, in the absence of local codes, with
the Australian standard AS 560 .
2. Adequate cleaning around the air openings into the combustion chamber,
clearance from combustible materials, provisions for accessibility and for
combustion and ventilating air must be maintained at all times when the
appliance is operating.
3. Proper clearance from combustible materials must be maintained at all times.
The minimum clearances are as follows:
Minimum Clearance from Combustibles
Side 500mm Rear 500mm
Ceiling 500mm Below 920mm
Combustible materials are considered to be wood, compressed paper, plant fibres,
plastic, plexi-glass or other materials capable of being ignited and burned. Such
materials should be considered combustible even though flame-proofed, fire-retardant
treated or plastered. Additional clearance may be required for glass, painted surfaces or
other materials which may be damaged by radiant or convection heat.
4. Heaters must be places on a level and adequate footing and be readily accessible.
5. The gas manifold supply pressure must be regulated at 2.75 kPa utilising an AGA
approved regulator (supplied with the heater).
6. The appliance must be inspected before each use, and serviced at least once
annually by a qualified service person.
a) The appliance area must be kept clear and free of combustible materials, fuel
and other flammable vapours and liquids.
b) Gas orifices and burners must be kept clear of dirt and cobwebs. Flow of
combustion and ventilation air through the perforated portions of the heater
must not be obstructed. Cleaning with a soft brush before use and at least
every six months is recommended.
c) All gas connections should be checked for leaks utilising a soap solution.
Never use a flame for this purpose.
d) The flame pattern at the emitter grid should be visually checked whenever the
heater is operated. If flames extend beyond the surface of the emitter grid or
reflector, the heater should be turned off immediately. The heater should not
be operated again until the unit has been serviced or repaired.
3

e) Any cleaning agent used on the heater should be of a non-combustible and
non-corrosive nature.
f) The stainless steel emitter grid normally does not require cleaning and should
NEVER be painted. The reflector may be cleaned, but never painted.
7. The hose assembly should be properly located out of pathways where people
may trip over it. The hose must be protected from contact with hot or sharp
surfaces both during use and while in storage. The hose assembly should be
visually inspected prior to each use of the heater. If excessive abrasion or wear is
evident, or the hose is cut, it must be replaced prior to operating the heater.
8. DO NOT use any pressure regulator or hose assembly other than those supplied
with the appliance.
9. This heater is designed to operate with a standard 9kg propane gas cylinders
with an Approved Cylinder Connection.
0. The valve outlet must be maintained in good working condition. When the
cylinder is not in use, be sure to cover it with a dust cap. A leak test should be
performed with soapy water whenever you connect a new cylinder. NEVER use a
match to test for leaks.
. The propane gas cylinder must be turned off whenever the heater is not in use.
When the heater is to be stored indoors, the propane gas cylinder must be
disconnected and stored in accordance with the Standard for Handling of
Liquefied Gases. (not indoors, but in a dry, well ventilated area).
2. The patio heater has been designed with several safety features including a tip
over switch.
NOTE: The plastic container in the base must be filled with sand prior to use.
•Do not shorten the post length.
•Do not bypass the thermocouple safety
•Do not operate the heater without the reflector
Clothing or other flammable materials should not be hung from the heater or placed
near the heater. The area above the post may become extremely hot.
C linder Connection Device
Model: KDGASPATHTRA (PH07-S)
Gas Consumption: 40MJ/h
Pressure KPA: 2.75kpa
Injector Orifice: .85mm
Gas Type Propane
IAPMO GMK 026
4

Minimum Clearance from Combustible Surfaces
* combustible materials are considered to be wood, compressed paper, plant fibres, plastic or mother materials that are
capable of being ignited and burned.
5

Installation Process
Assembly time: 30 minutes
Remove all packaging and protective additives from parts before assembly.
Step – Unscrew the nuts and bolts from the base and sand tank.
Step 2 – Attach wheel assembly to the base.
•Line up the holes in the wheel bracket with the corresponding holes in the base.
Insert 2 x M6 bolts through the holes and finger tighten 2 x M6 nuts.
•Be sure that the wheel assembly is parallel to the base, and fully tighten the bolts.
Wheel Assembly
2pcs M6 Bolts
2pcs M6 Nuts
•Screw the sand tank back onto the base.
•Remove the base cap and fill the base with fine sand.
6

Step 3 – Attach post bracket to base
•Attach the post brackets to the base with 3 x M8 bolts, then use a wrench to
fasten.
3pcs M8 Bolts
Step 4 – Put the post on the post bracket
•Put the lower post on the bracket with 6 x M6x22 bolts and M6 nuts. Then
unscrew 4 x M5x 0 screws from the lower post, and attach the upper post to it.
6pcs M6x22 Bolts
6pcs M6 Nuts
4pcs M5x 0 Screws
7
Then fasten the lower post and
upper post with 4 x M5x 0 screws.

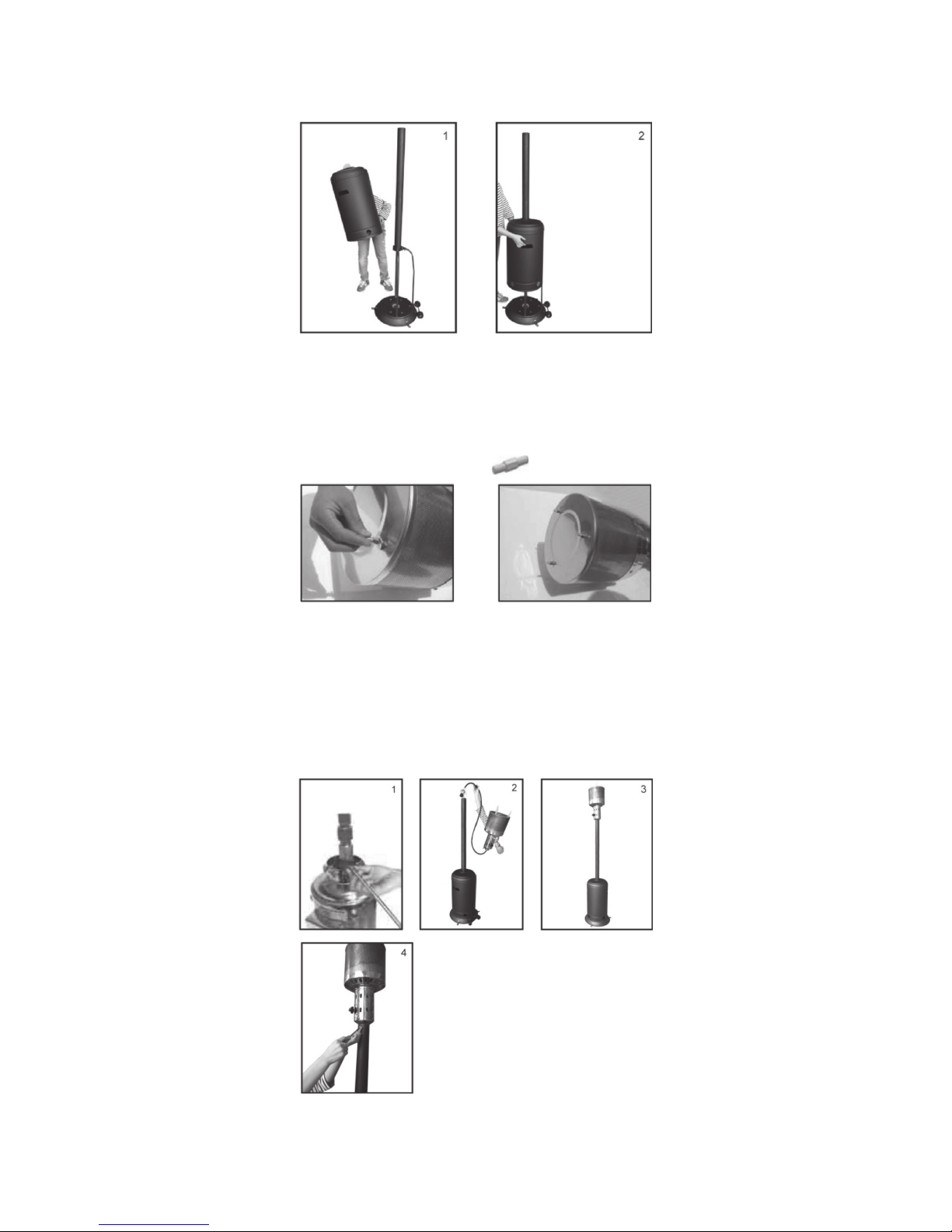

Step 5 – Set the tank housing
Step 6 – Attach reflector studs to screen cover
•Insert 3 reflector studs
•Tight studs securely
3 Reflector Studs
Step 7 – Attach head assembly to post
•Unscrew 4 small screws, then load the head assembly by inserting the hose into
the post.
•Attach the head assembly to the post then install the 4 small screws and tighten
them securely.
8

Step 8 – Attach reflector assembly to studs
Support the heater
Slide 3 large flat washers over the ends of the studs
6pcs Large Flat Washers
3pcs Wing Nuts
•Locate the reflector assembly on 3 studs.
•Install the large flat washers on the studs, then securely tighten the wing nuts,
however be sure to NOT over-tighten them.
Step 9
Raise the cylinder housing and rest it on the post. Connect the regulator to the hose
using 2 spanners and conduct a leak check of the connection.
Step 0 – Leak Check
Connect the regulator to a full gas cylinder and test all gas connection using a soapy
water solution. If bubbles appear at a connection, tighten that connection and repeat
the leak test. Do not use the heater unless all connections are tight.
9

Reflector Assembl
. Place the 3 parts of the reflector segments so they are overlapping with each
other, then attach with 3 screws, washers and nuts.
2. Place the round part of the reflector over the 3 segments, then attach with 6
screws, washers and nuts.
Usage
Test Firing Heater
Test fire the heater following the lighting instructions on the heater post. Leak test all
gas connections with soapy water. Soap bubbles indicate gas leakage. DO NOT use a
match to test for gas leaks.
WARNING: White smoke may appear around the radiant head during the first minute of
the initial firing. This is completely normal.
Abnormal Operation
Any of the following are considered to be abnormal operations:
•Yellow tips on the burner flames.
•Fumes or strong odours.
•Soot build-up.
•A gas valve that is difficult to turn on or gets stuck.
If the heat operates abnormally, DO NOT use the heater. Contact the Kogan.com
customer support team.
0

Lighting Instructions
Warning: white smoke may appear around the radiant head during the first minutes of
the initial firing.
Step
Ensure the control knob is off. Slowly open the gas cylinder valve.
Step 2
Push the control knob in and turn anti-clockwise to 'HIGH' whilst simultaneously
pushing the ignitor button several times.
Step 3
Check for a flame at the burner. If the burner does not light immediately, turn the
control knob to 'OFF' and try the instructions again from the start. Allow 30 seconds
between ignition attempts to allow the gas to dissipate. Several attempts may be
necessary.
Failure to follow this procedure may result in flames rolling out beyond the emitter grid.
Step 4
With the burner alight, keep the control knob depressed for 5 seconds.
Step 5
For minimum heat, push the control knob in and turn it to 'LOW'.
Step 6
To turn the heater off, turn the control knob to 'OFF'.
Troubleshooting
Problem Possible Causes
Main burner won't light
•No gas
•Low gas pressure
•Blockage in hose or orifice
•Manual valve not in the 'LOW' or 'HIGH' position
Note: if the heater cannot be adjusted to perform correctly, it should not be used until
serviced or repaired.
Warning: improper installation, adjustment, alteration, service or maintenance can cause
injury or property damage. Any modifications or adjustments made to the product
without prior authority from Kogan.com will void any warranty claims.
Read the installation, operation and maintenance instructions thoroughly before
installing or servicing this equipment.
