Komshine KFM-200 Technical manual

KFM-200 Handheld Fiber Microscope Operation instruction
Front panel function description
1Eyepiece viewing
4
Two lighting modes
Battery cover
2
3
KFM-200
FiberConnector Microscope
X
200
1
5
2
3
4
Eyepiece: Optical fiber end face viewing window
1
Battery cover: unscrew to put the battery
2
Switch: Two different lighting modes can be selected
3
Adapter interface: including 1.25 mm and 2.5 mm
universal adapters
4
Focus knob: adjust the focus of the knob to check the
clarity of the fiber end face
5
KFM-200
200X
Fiber Connector Microscope
KFM-200
200X
Fiber Connector Microscope
KFM-200
200X
Fiber Connector Microscope
5
KFM-200
200X
Fiber Connector Microscope
6
KFM-200
200X
Fiber Connector Microscope
Toggle "|" to jump to the
axial illumination, toggle "||" to
jump to the side illumination,
and toggle "o" to directly turn
off.
The first step is to unscrew
the battery cover, and the
second step is to put the battery
in, and the battery can be
replaced and used in time.
Holding the fiber optic
microscope with one hand, aiming
at the eyepiece with a single eye,
you can accurately check whether
the fiber end face needs to be cleaned.
Ocus knob
Universal adapter
Align the eyepiece and
adjust the focal length of the
knob to clearly check the degree
of dirt on the end face.
Universal adapter
interface, respectively 1.25mm
and 2.5mm is appropriate
interfaces Orchestration.

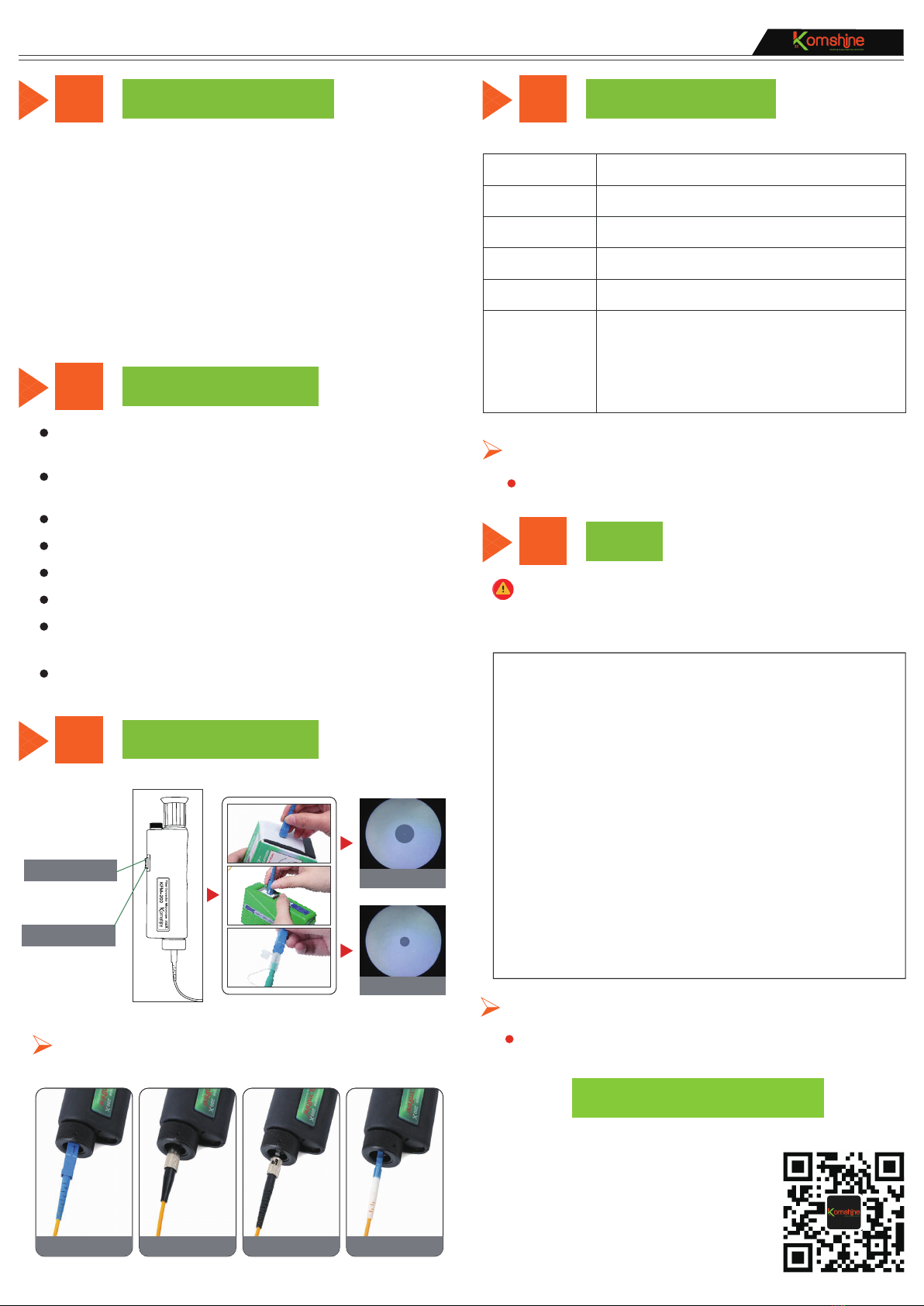

KFM-200 Handheld Fiber Microscope Operation instruction
Product parameter
10
Tips
11
product description
7
Product features
Product parameter
8
9
200 times magnification, the fiber end face
is clearly visible.
The frosted silicone shell is non-slip, drop-proof
and shock-proof.
Support SC, FC, ST, and LC male headers of UPC.
Imported coated lens, fouling is clearly visible.
3*LR44 button battery 6F22 (need to buy by yourself).
Manually adjust the focus quickly.
Small size, can be held with one hand, convenient
and fast.
100,000 hours of LED lighting, 20 hours of standby.
Side lighting
Axial lighting
侧向
轴向
Magnification 200 times &400 times
Light source and
usage time
Size 225mm x 60mm x 42mm
White LED, service life of 100,000 hours;
Battery life of 40 hours
Adapter interface Includes 1.25 mm and 2.5 mm universal adapters
Interface Type SC, FC, ST , LC
Overview
Host
1.25 mm and 2.5 mm adapter nylon black bag;
LR44 button battery 6F22
(need to purchase by yourself);
Packing box.
Operating environment altitude:
areas below 2000m above sea level
Use environment
1) Do not store this product in high temperature, strong light
and strong magnetic fields, and do not place it in other harsh
environments such as fire sources.
2)Improper use of the product may easily cause the product
damage or may endanger personal and property safety.
3) If consumers violate the product manual and improperly
use it, the personal and property damage caused by it will
bearby yourselve, our company will not bear any legal
responsibility.
4) Non-professionals are strictly prohibited from
disassembling this product.
5) Avoid using electrical appliances or loads that exceed the
output current of this product (the circuit will be protected
and there will be no output).
6) Avoid strong physical effects, including knocking, throwing,
trampling, squeezing, etc.
Nylon carrying bag, product host, battery,
adapter interface.
Standard configuration
SC FC ST LC
Support SC/FC/ST/LC
The hand-held fiber optic microscope is a fiber
end face detector. With its high-end optics, it can quickly
manually focus and detect scratches, dirt, and dust on the
fiber end face. The product supports UPC's SC, FC, ST, LC
male heads, with good optical performance and integrated
laser safety filter, whether it is tested on the production
line or on-site, allowing your technicians to quickly find
scratches, fiber end dirt.
Contact us:
KOMSHINE TECHNOLOGIES LIMITED
Tel : +86 25 66047688
Email : [email protected]
Add: 2F Bldg. D Qinheng Tech. Pk. Nanjing,
JS, 210001, China.
Website :www.KomShine.com
Please read all instructions and warnings before
using this product. Irregular use will cause
damage to the product or personal safety.
