KONWA KT-1E User manual

Evaporative Air Cooler KT-1E
User Manual
KT-1E– BASIC PRINCIPLE
The cooler is a high-tech product, originally from Europe. It is made in
accordance with European high technology.
Its working principle is that water evaporation drives away the surrounding
heat and causes the temperature to cool down.
When water is continuously distributed onto cooling pad surface evenly, the
wet cooling pad makes air cool and fresh. The circulating water falls to the
bottom, forms the water cycle. There is a water level indicator at the
bottom. So when the water level indicator reaches the bottom level, the
inlet valve will open automatically to add water; When the water reaches
the indicated full level, the valve will close automatically.
KT-1E–APPLICATION
Public places :
Company office, supermarket, shop, family big living room, public waiting
room, hospital, school, workshop, workers dormitory, temple, outdoor
teahouse / coffee bar, restaurant, recreation facilities, etc
Manufacturing :
Textile, machinery, ceramic, refine chemical industry, metallurgy, hardware
and leather.
Industrial processing :
Plating, electronic, shoe making, painting, plastic, clothes making, food
package, etc.
Others :
Bareback, golf court, bakery, playground, washing room, kitchen, vegetable
market, gym, underground parking lot, park, warm room, stock farm,
garden, etc

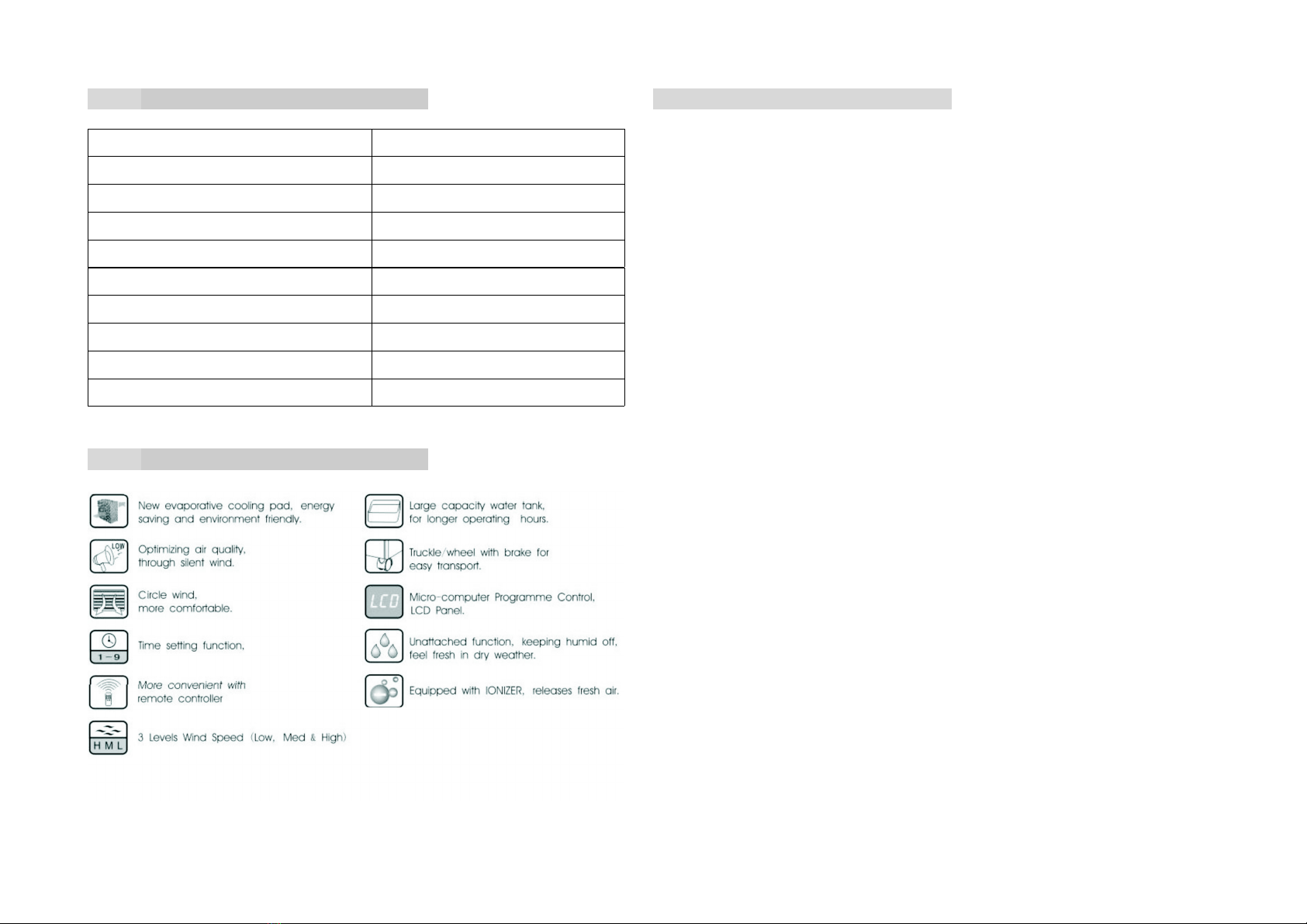

KT-1E----TECHNICAL SPECIFICATION
KT-1E----TECHNICAL SPECIFICATION
KT-1E –IMPORTANT REMINDERS
Please read the manual carefully and operate the cooler before use.
A) Use the machine in the following condition :
1- Temperature: 18°C ~ 45°C; Water Temperature: < 45°C.
2- Electric voltage must not exceed the required volt (+/-) 5%.
3- No pollution of surrounding.
B) The circuit of the cooler must be properly connected and protected to
prevent mouse bites. Do not trample and over-stretch the wire, it may cause
short circuits. Wrong electric voltage of wrong socket will cause danger of
electric shock.
C) Do not use wrong circuit or other wire metal made of other materials
which may cause machine malfunction or explosion.
D) If the product is not operating well or may have malfunctioned, please
inform the distributor or dealer.
E) other tips for cooler use :
1- Keep the doors and windows a little opened to bring in fresh air from
outside when cooler is operating.
2- Check water level in the water tank and supply water when the red light
on LCD panel is flashing.
3- Fresh water is suggested to be replaced in the tank for one or two times
in the beginning period of cooler operation.
4- Push the cooler carefully if the tank is full with water, especially if the
floor is rather rough.
PARAMETER / MODEL KT-1E
Max Airflow (M3/H) 6000
Power supply/Frequency (V/HZ) 220-240/50
Power Consumption (W) 290
Fan Style Axial
Water Consumption (L/H) 4-6
Water Capacity (L) 60
Dimension (L*W*H) (mm) 860×500×1200
Weight (KG) 32
Effective Cooling Area (M2) 30-50

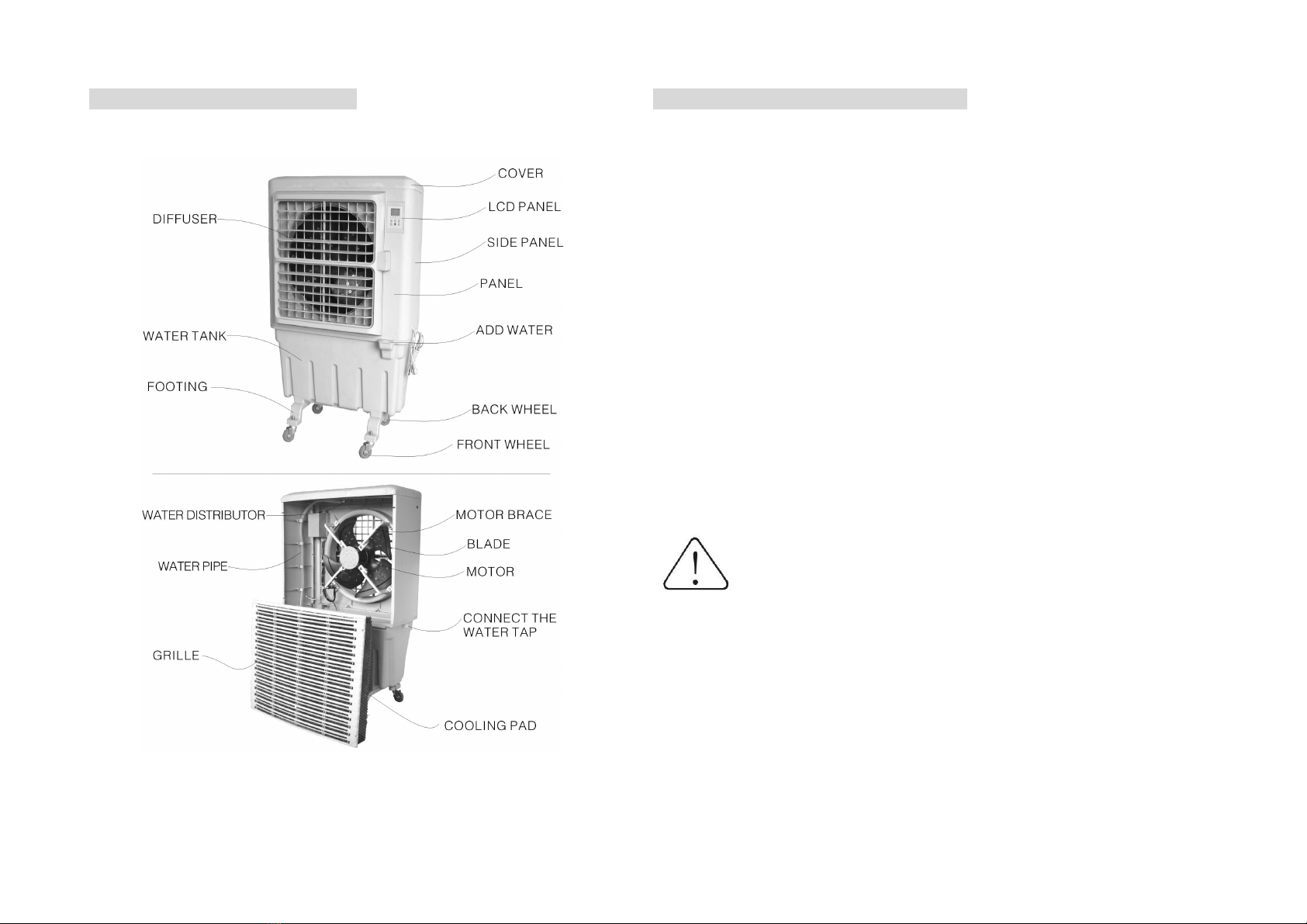

KT-1E –EXPLODED DIAGRAM KT-1E– OPERATION INSTRUCTION
1. Press “On/ Off” to turn on / turn off the cooler.
2. Press “Cool” button to activate cooling function. Water pump works for
one minute, then fan deliver cooling air.
3. Press “Speed” to select desirable speed (Low, Medium, High).
4. Press “Swing” to enjoy natural cooling air.
5. Press “Timer” for time setting. When power is on, press ‘Timer’ to set
the time of cooler operation start; if press until “00” appears, the
setting time of cooler operation start is cancelled. When cooler
operation, press “Timer” to select the time of cooler operation
finish, if press until “00” appears, the setting time of cooler
operation finish is cancelled.
6. Water supply
--Clean water must be used.
--Pour water into water inlet on the right side of the unit slowly to
avoid spillage.
--Water inlet on left side can also be used to connect water tap for
automatic water supply.
WARNING
1. If the supply cord is damaged, it must be replaced by the manufacturer of
its service agent or a similarly qualified person in order to avoid any
hazard.
2. This cooler is not intended for use by persons (including) with reduced
physical, sensory or mental capabilities or lack of experience and
knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
3. Children should be supervised to ensure that they do not play with the
appliance.

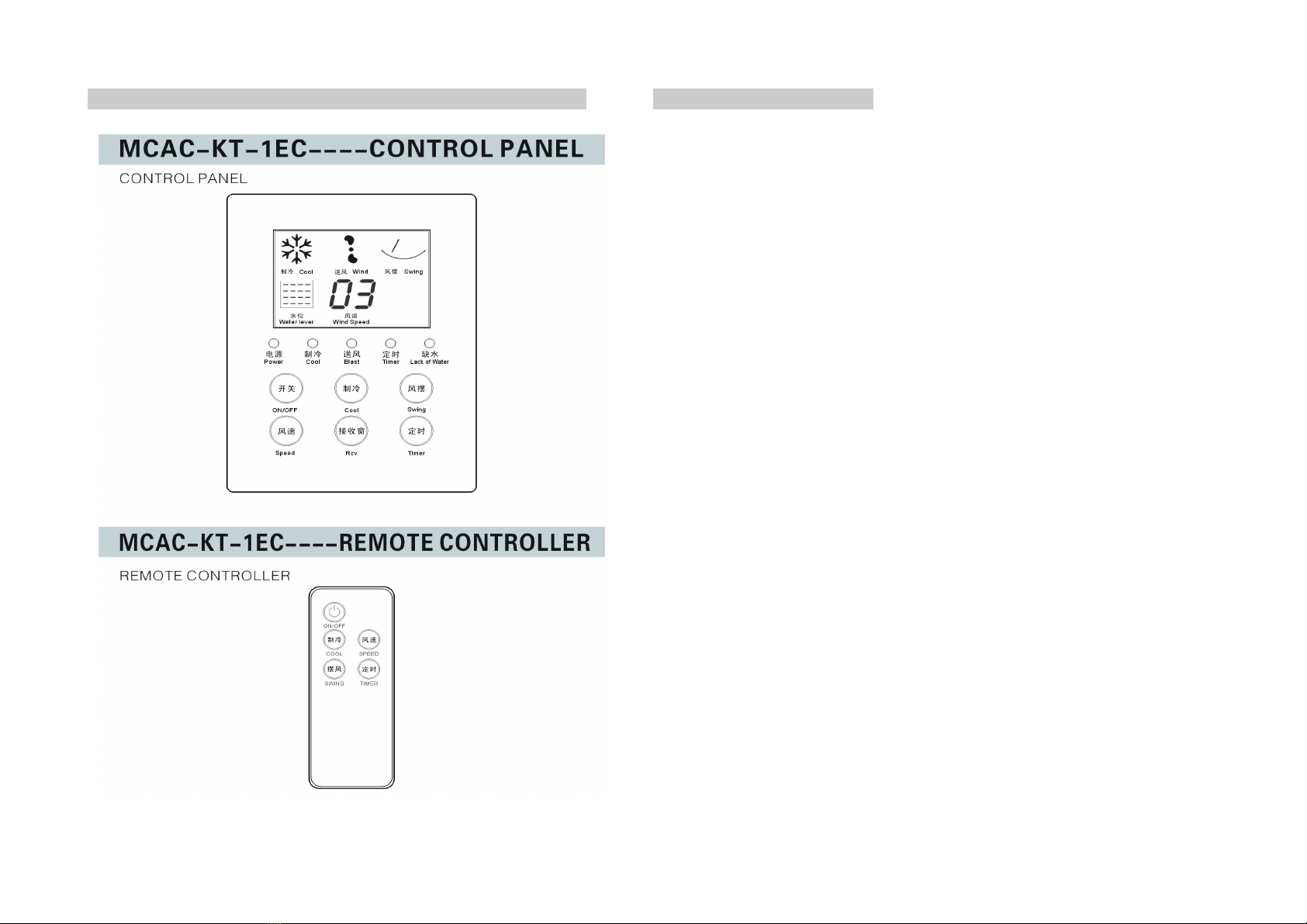

KT-1E—CONTROL PANEL AND REMOTE CONTROLLER KT-1E----MAINTENANCE
NOTE:
To ensure the cooler deliver fresh and clean air, regularly change the water
when dirty, clean the filter and the cooling pad.
1) Remove the filter net by unscrewing the screws, then press the lock,
clean the pad. Never use pressurized water, as it may cause damage to the
pad.
2) Clean the pad from the inner-side to out-side of pad (inner side is
towards motor). Never use any liquid detergent.
3) Unscrew the drainage lid to let dirty water flow out, then clean the water
tank thoroughly with soft cloth. Wash off dirt on the water sensor, water
pump and the float valve.
4) Use mild soap and soft clean cloth when cleaning the cooler casing.
Do not use any caustic chemical detergent that may cause damage to the
surface of cooler.

KT-1E– TROUBLESHOOTING
Malfunction Reasons Remedy / Solutions
-The indicator light
doesn’t on.
-No power.
-Main control goes
wrong.
-Fuse is burnt out.
-Panel goes wrong.
-Check the circuit.
-Change the control board.
-Change the fuse.
-Change the panel.
-Out of control.
-Interfered by power.
-Interfered by
environment.
-Panel does wrong.
-Power off.
-Remove or keep away from
interference.
-Change the panel.
-Display is normal
but without wind or
the wind speed is too
low.
-The fan is stuck.
-Cooling pad or dust filter
is blocked.
-Fan is distorted.
-Main control board goes
wrong.
-Check the cooler fixing hoops
and fan.
-Clean cooling pad or dust filter.
-Change fan.
-Change the main control board.
-The motor is out of
control.
-Main control board goes
wrong.
-Panel goes wrong.
-Change the main control board.
-Change the panel.
-Water leak of
draining valve. -Draining valve is loose. -Screw slightly.
-Air diffuser doesn’t
run.
-Synchronous motor is
burnt out.
-Crankshaft is broken off.
-Crankshaft and swing
bar fall off.
-Change synchronous motor.
-Change crankshaft.
-Fix crankshaft and swing bar
again.
-Water drops splash
out of the air
diffuser.
-Water pipe falls off. -Check water pipe.
NOTE: This trouble shooting is for reference purpose only. If any technical
assistance is needed, please contact your distributor for service / repair.
Healthy & Comfortable
Energy-saving & Environment-friendly


Very reliable quality.


Hugh effective cooling area.


Very quiet.


Speed adjustable.


Automatic swing.


Full function remote controller.


Bigger water tank.


No need for compressed air.


No installation, no duct work design.


Easy to use, easy to clean.


Maintenance friendly.


Anti-bacterial device.
