KOPFJAGER KJ89002 User manual

REAPER RIG
ACCESSORY PLATE
KJ89002
USER MANUAL

REAPER RIG ACCESSORY PLATE

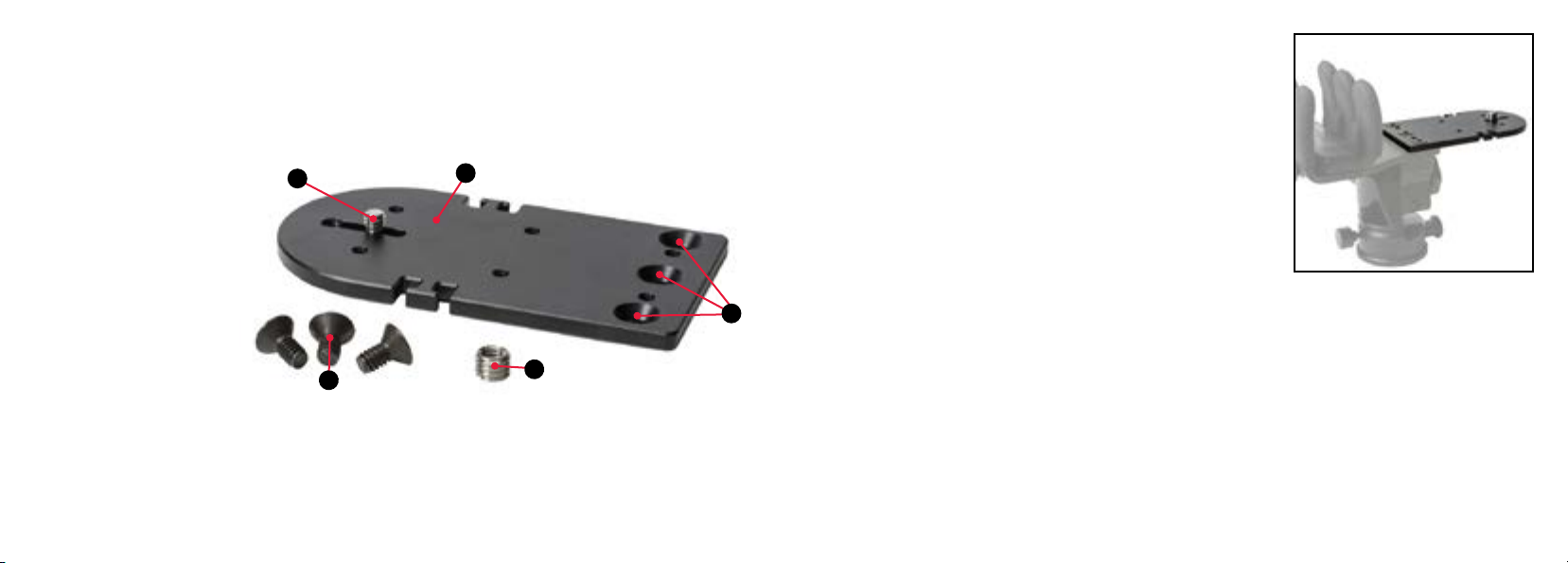

1. 1/4-20” Threaded Stud
2. Mounting Screws
3. 3/8-16” Threaded Adapter
4. Plate Mounting Holes
5. Reaper Rig Plate
DIAGRAM
1
4
3
5
MOUNTING
To mount:
1. Locate the three threaded screw inserts on your Reaper Grip/Rail.
2. Align your Reaper Rig attachment holes over the Reaper Grip/
Rail holes.
3. Install the included screws through the Reaper Rig and Reaper
Grip/Rail plate and tighten.
4. Once fastened, mount your accessories as desired.
The Kopfjäger Reaper Rig Accessory Plate mounts directly to your Reaper Grip or Reaper Rail and
includes a captive 1/4-20” threaded mounting stud. The Reaper Rig features three mounting locations
perfectly suited for top or bottom installation of Picatinny rail sections, including the Magpul MOE 2.5”,
for truly versatile accessory attachment. The Rig also includes two slots to hang a lanyard of calls, remote,
or any other tethered accessories.
WARNING
Before handling the Reaper Rig, read and understand the contents of your Reaper Grip/Rail manual
as well as the Reaper Rig manual.
• Do not exceed the tripod’s maximum load capacity. (see your tripod’s manual)
• Ensure the Reaper Rig is securely fastened.
• Always remove accessories when transporting.
The Reaper Rig Accessory Plate is an adapter plate designed to accommodate mounting of a cam-
era, spotting scope, ashlight, rangender or other accessory adjacent to the Kopfjäger Reaper Grip
or Reaper Rail. When used in conjunction with a camera ball head or our Leveling Head accessory, the
Reaper Rig will co-witness your camera or spotting scope with the optics on your rie, eliminating the need
for an extra tripod.
2
MOUNTING ACCESSORIES
1. Locate the Reaper Rig’s 1/4-20” threaded stud.
2. Thread your camera or spotting scope onto the Reaper Rig
mounting stud and tighten.
MAINTENANCE
Before, after, and during normal operation, it is suggested that you routinely check all of your
connection points and ensure all screws are still rmly set in the proper place.
Please visit www.kjrests.com for warrenty details and information

GENERAL DESCRIPTION
Brand Name Kopfjäger
Model Name Reaper Rig Accessory Plate
Category Name Accessories
SKU Number KJ89002
UPC Number 812495026188
TECHNICAL SPECIFICATIONS
Dimensions, in/mm 4.87 x 2.7 x .23 / 124 x 68 x 6
Material Aluminum
Weight, lbs/g .25 / 120
INCLUDED ACCESSORIES
Three Mounting Screws
Camera Thread Adapter
FEATURES
Mounts action camera or spotting scope to Reaper Grip
Can add Picatinny mount for IR ashlight or laser
SPECIFICATIONS:
Please visit www.kjrests.com for warrenty details and information
