Chapter 1 Introduction
JetPort 5601 is a smart 1-port RS-232/422/485 to Redundant Ethernet Serial Device Server. The
serial interface is configurable in software and supports speed as fast as 921.6kbps. The Dual
Ethernet ports can support RTTD (Redundant to the Device) or connect as Daisy Chain. With
RTTD, the redundant Ethernet ports can auto-recover in less than 200ms if the master link
breaks, as a result guaranteeing a non-stop connection, which provides users the complete
Redundant Ethernet Solution.
JetPort serial device server connects the serial port of devices such as card readers,
measurement devices, or data acquisition terminals, over Ethernet just like locally attached. It
eliminates the limitation of single host and transmission distance of traditional serial
communications by creating access for multiple hosts in Ethernet. The compact size and various
mounting options further create installation flexibility.
This chapter describes:
Serial to Ethernet Technology Overview
Product features
Product specification
Package checklist

JetPort 5601 Serial Device Server User’s Manual
2
Serial to Ethernet Technology Overview
Korenix JetPort serial device servers provide perfect solution to manage serial devices via
Ethernet in flexible ways, such as TCP server, TCP client, UDP, or Windows Real/Virtual COM.
JetPort creates a transparent gateway for the serial communication to Ethernet. If the control
program uses network standard API, you can choose TCP or UDP as the communication
protocol. If the control program uses COM port, you can install the Windows driver to add
Real/Virtual COM ports.
Product Features
JetPort 5601 has the following features:
3-in-1 RS232, RS422, RS485 to Redundant Ethernet Solution
Max. Serial Speed: 921.6 kbps
Dual Ethernet Ports for Daisy Chain or RTTD (Redundant to the Device, Auto-Recovery in
less than 200ms)
Dual Power Inputs by 12-48VDC Terminal Block and 9-30V DC Jack.
Secured Management by HTTPS and SSH.
JetPort Commander, Korenix Windows Utility for Device Discovery, Multiple Device Setting
and Monitoring.
Versatile Serial Modes: Real/Virtual Com, Serial Tunnel, TCP Server, TCP Client, UDP
Up to 5 Simultaneous Real/Virtual COM, TCP Server, TCP Client Connections
Event Warning by Syslog, Email, SNMP trap
Real/Virtual COM driver for Windows Win 10/8/7/Vista/XP/2008/2003/2000
Operating Temperature: -20~70°C
Product Specification
Network Interface
Ethernet
2 x 10/100BaseTX Ports
Connector
RJ-45 Auto MDI/MDI-X
Feature
Redundant Dual Ethernet, auto-recovery in less than 200ms
Protection
Built-in 1.5 KV magnetic isolation protection
Protocols
IP, TCP, UDP, ICMP, DHCP, BootP, ARP/RARP, SSH, SNMP, HTTPS, SNTP, SMTP

Introduction
JetPort 5601 Serial Device Server User’s Manual
3
Serial Communication
Serial Ports
1 x RS-232,RS-422, 2/4-wire RS-485
Connectors
Male DB9
Baud Rates
50 bps to 921.6K bps
Data Bits
7, 8
Stop Bits
1, 2
Parity
None, Even, Odd, Space, Mark
RS-232
DCD, RXD, TXD, DTR, GND, DSR, RTS, CTS,RI
RS-422
Tx-, Tx+, Rx+, Rx-, GND
RS-485(4-wire)
Tx-, Tx+, Rx+, Rx-, GND
RS-485(2-wire)
Data-, Data+, GND
Flow Control
XON/XOFF, RTS/CTS
Serial Line Protection
15KV ESD
Long Distance
Termination
120ohm
Features
LED
Power : Power On(Green)
Ethernet 1/Ethernet 2 : 10/100M Link(Green)
Serial: Transmitting data(Green), Receiving data(Red)
Configuration
Windows Utility-JetPort Commander, HTTPS, SSH
Serial Service
Real/Virtual COM, TCP Server, TCP Client, TCP Tunnel and UDP
Reset
Software reload default, Hardware reset button
SNTP
For time management
Access IP Table
16 IP addresses to prevent illegal users
Monitor
Devices’ status, Real/Virtual COM status
SNMP
RFC1213 MIB II, RFC1317 RS232_like and SNMP Trap
E-Mail Alert
Automatic e-mail warning by pre-defined events
System Log
Trap to Syslog server or local display
System Event
Cold/Warm Start, Login Failed, IP and Password Changed, Access IP Blocked, Serial Port

JetPort 5601 Serial Device Server User’s Manual
4
DCD/RI/DSR/CTS changed, Serial Port connected/disconnected.
Real COM
32bit & 64bit OS
Windows Utility
Windows OS
Win 10/8/7/Vista/XP/2008/2003/2000
JetPort Commander
Device Discovery, Auto IP, Network Setting, Device and Serial Port Setting and monitoring,
Notification setting, Firmware Upgrade, Configuration Backup and Restore,
Group Configuration Wizards
Serial Service Mode
Real/Virtual COM, TCP Server, TCP Client, TCP Tunnel and UDP
Advanced Serial
Setting
TCP Alive Check Timeout, Inactivity Idle Timeout, Performance mode, Delimiter, Force TX
Timeout for Data Packing, Force TX interval time, Force TX data length and Long Distance
Termination
Group Configuration
Wizards
JetPort Commander: Group IP Wizard, Group firmware upgrade, Group Backup/Restore,
Real/Virtual COM and TCP Tunnel Setup Wizard
Power Requirements
System Power
PWR1: 12~48VDC with 3-pinTerminal Block
PWR2: 9~30VDC Power Jack
Power Line Protection
1 KV Burst (EFT), EN61000-4-4
0.5 KV Surge, EN61000-4-5
Power Consumption
Maximum 3.7 Watts
Mechanical
Dimension
110mm(W) x 114mm(D) x 29.6mm(H)
Regulatory Approvals
FCC Class A, CE Class A , UL(compliance), RoHS
Environmental
Operation Temperature
-20~70°C
Operation Humidity
5%~95%, (non-condensing)
Storage Temperature
-40~85°C
Warranty
5 years

Introduction
JetPort 5601 Serial Device Server User’s Manual
5
Package Checklist
JetPort is shipped with the following items:
JetPort 5601 Serial Device Server
Mounting kit
Quick Installation Guide
If any of the above items is missing or damaged, please contact your local sales representative.
Optional Accessories
JetPort 5601 is equipped with two types of power inputs, the terminal block and power jack.
If any need of power adapter, please contact your local sales representative.
Power Adapter
PWA1208-US
Power Adapter 12VDC 0.8A, 100-240VAC US plug
PWA1208-EU
Power Adapter 12VDC 0.8A, 100-240VAC EU plug
PWA1208-UK
Power Adapter 12VDC 0.8A, 100-240VAC UK plug
PWA1208-AU
Power Adapter 12VDC 0.8A, 100-240VAC AU plug

6
2
2
Chapter 2 Hardware Installation
JetPort serial device server can be configured by Windows utility, web browser, or Telnet console.
Advanced management features include SNMP support and Email alert. JetPort Commander is a
powerful Windows utility that supports device discovery, group setup, group firmware update, and
monitoring functions.
This chapter introduces how to quick start JetPort
Panel and LED
Reset Button
Connecting the Power
Connecting the Network
Connection the Serial Device
Din-Rail Mounting Installation

Quick Start
JetPort 5601 Serial Device Server User’s Manual
7
Panel and LEDs
Panel and Interfaces
LED Indicators
There are 5 LEDs in 5601, indicating real-time system status.
LED
Color
Indication
PWR
Green
Power is on and functioning normally.
Off
Power is off, or power error condition exists.
Eth 1
Green
Solid : Ethernet Link
Blinking : Ethernet Activity
Off
Ethernet cable is disconnected, or has a short.
Eth 2
Green
Solid : Ethernet Link
Blinking : Ethernet Activity
Off
Ethernet cable is disconnected, or has a short.
Serial
Green
Serial port is transmitting data.
Red
Serial port is receiving data.
Off
No data is being transmitted or received through the serial port.
Dual Ethernet
2 X 10/100M Ethernet
Auto MDI/MDIX
Auto-Recovery < 200ms
1.5 KV magnetic isolation
DIN Rail Mounting kit
Eth2Eth1 PWR2 PWR1
Dual Power
PWR 1: Terminal Block, 12-48VDC
(V+ / V- / GND)
PWR 2: Power Jack, 9~30 VDC
Serial Connector
1 X RS-232/422/485 Port, DB9
15 KV ESD protection
110 bps to 921.6 Kbps
LED
PWR: Power
Eth1: Ethernet 1 Link/Act
Eth2: Ethernet 2 Link/Act
Serial: Serial TX/RX LED
Reset Button
Press reset button for 10 seconds
to restore the default settings

JetPort 5601 Serial Device Server User’s Manual
8
Reset Button
The Reset button provides users with a quick and easy way to restore the default settings of JetPort.
Press reset button for 10 seconds. JetPort will restore to default value including default IP address
(192.168.10.2), and no password. When the Power LED turns green, the device is ready to function.
Connecting the Power
Terminal Block (PWR1):
1. Insert the positive and negative wires of your DC supply into the V+ and V- contacts of the terminal
block connector.
(GND / V- / V+)
2. Tighten the terminal screws to prevent the DC wires from coming loose.
Power Jack (PWR2):
Connect the power jack input with power adapter. If any need of power adapter, please contact your local
sales representative.
If the power input (PWR 1 or PWR 2) is connected, the power LED will turn green.
Note: If the 2 power inputs are connected (PWR 1, PWR 2), the JetPort 5601 will be powered from the
highest connected voltage. The unit will not alarm for loss of DC IN power, the alarm function only applies
to loss of power at PWR1 or PWR2.
Connecting the Network
Connect the Ethernet cable to the JetPort 5601 10/100M Ethernet port 1, 2 or both. The interfaces
support auto MDI/MDIX. If both of the Ethernet port 1 and 2 are connected when startup device, the
Ethernet port 1 will be the master port, Ethernet port 2 will be the backup. But, if Ethernet port 2 is
attached first before attach port 1, the Ethernet port 2 will remain the master port.

Quick Start
JetPort 5601 Serial Device Server User’s Manual
9
Connecting the Serial Device

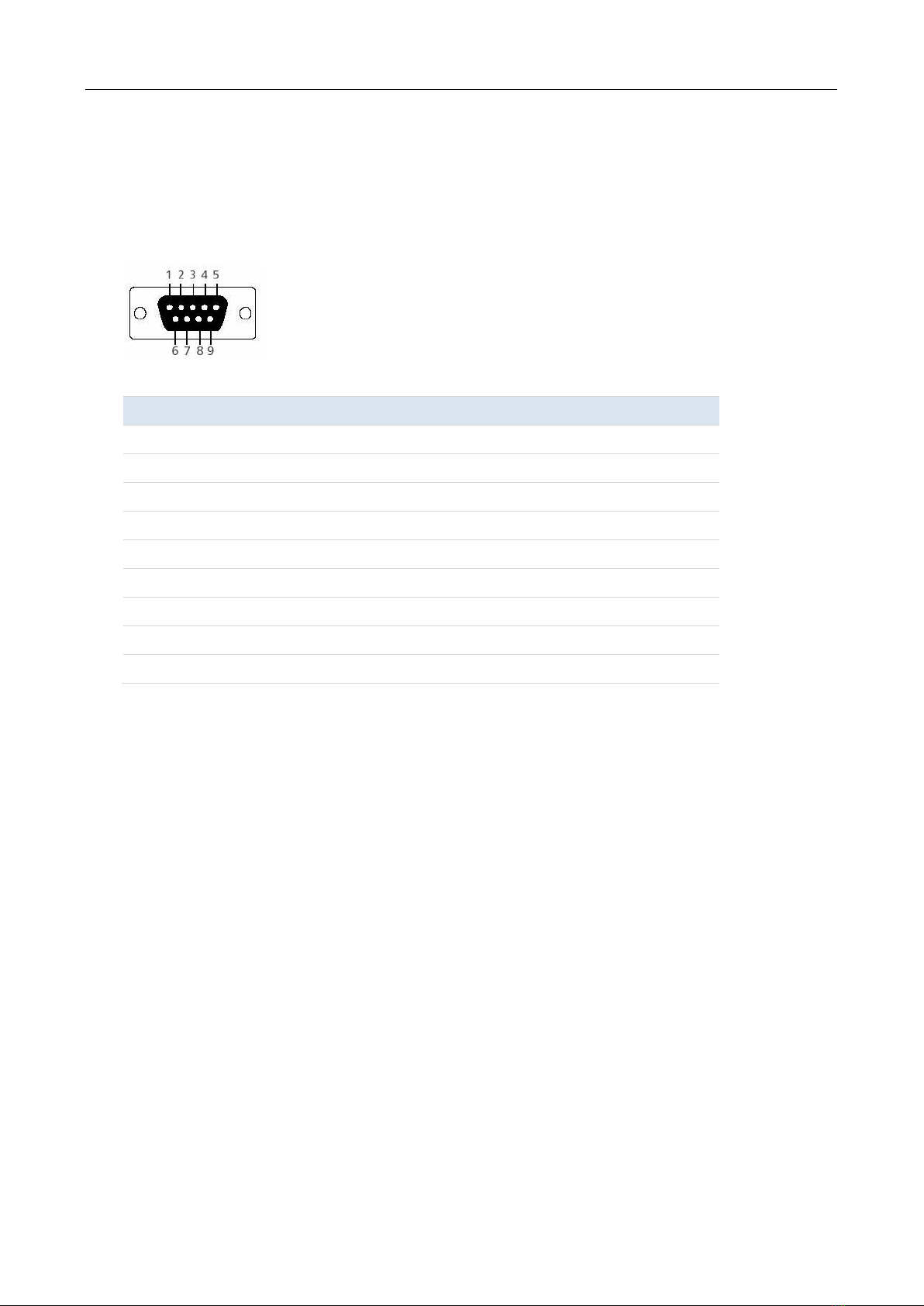

Connect the serial device to the unit DB9 male port by the pin assignment table.
Pin Assignment
Pin #
RS232
RS422
RS485 (4 wire)
RS485(2 wire)
1
DCD
TX-
TX-
DATA-
2
RXD
TX+
TX+
DATA+
3
TXD
RX+
RX+
4
DTR
RX-
RX-
5
GND
GND
GND
GND
6
DSR
7
RTS
8
CTS
9
RI

JetPort 5601 Serial Device Server User’s Manual
10
Din-Rail Mounting Installation

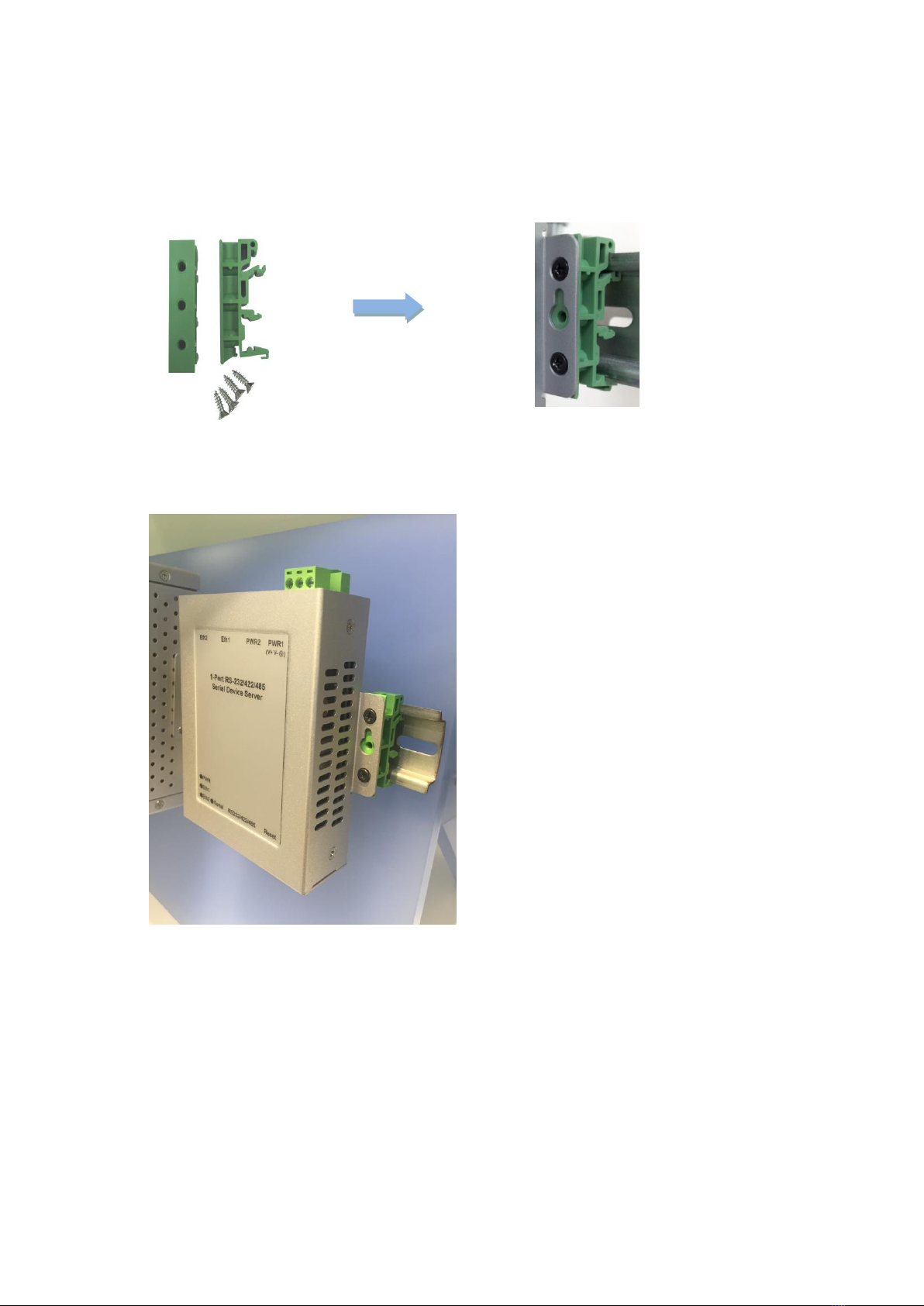

Follow these steps to mount the unit to the rail/track.
1. Use a screwdriver to secure the D3in-Rail mounting kit to the ear.
Wall-Mounting Kits.
2. Lightly push the 5601 into the rail/track.
The figures show the 5601 is attached on the rail/track well.
3. To remove the unit from the rail/track, reverse steps 1-3.
Notice: Due to the safety concern, Korenix requests users to vertically mount the 5601 device to the rail
when using the Terminal Block as the power input. Use the certificated power supply, assured power
construction in your factory as the power source.

11
3
3
Chapter 3 Windows Management Tool
JetPort serial device server provides powerful Windows management tool for multiple device
management.
Below are the major functions in JetPort Windows Commander. This chapter introduces you the
Software Quick Setup. You can know how to install the JetPort Commander and setup the Real/Virtual
COM mode.
The “JetPort Commander Manual” introduces the full configuration of JetPort commander. You can
download from Korenix web site. www.korenix.com
Server Configuration
Broadcast
Configuration
General
Locate
Security
Networking
Notification
Management
Firmware Update
Save / Reload
Port Configuration
Port Serial Settings
Port Service Mode
Port Notification
Setup Wizard
Real/Virtual COM Wizard
Serial Tunnel Wizard
Group IP Wizard
Group Setup Wizard
Group Firmware Wizard
IP Collection
Monitor

JetPort 5601 Serial Device Server User’s Manual
12
Software Quick Setup
JetPort Commander is an easy-to-use utility with auto device discovery in a LAN or adding devices on
the public network. All of the configurations on the serial server can be done in the JetPort Commander.
You can also apply configurations of one serial server to the other serial servers. This document shows
you how to quick setup the software. The full functions and configurations’ description, please refer to
the JetPort Commander Manual which you can download from Korenix web site.
Install JetPort Commander
1. Download JetPort Commander program on the Korenix website.
Korenix website ► Support ► Download Center ► JetPort Commander ► Software
(http://www.korenix.com/support-jetport-software.htm).

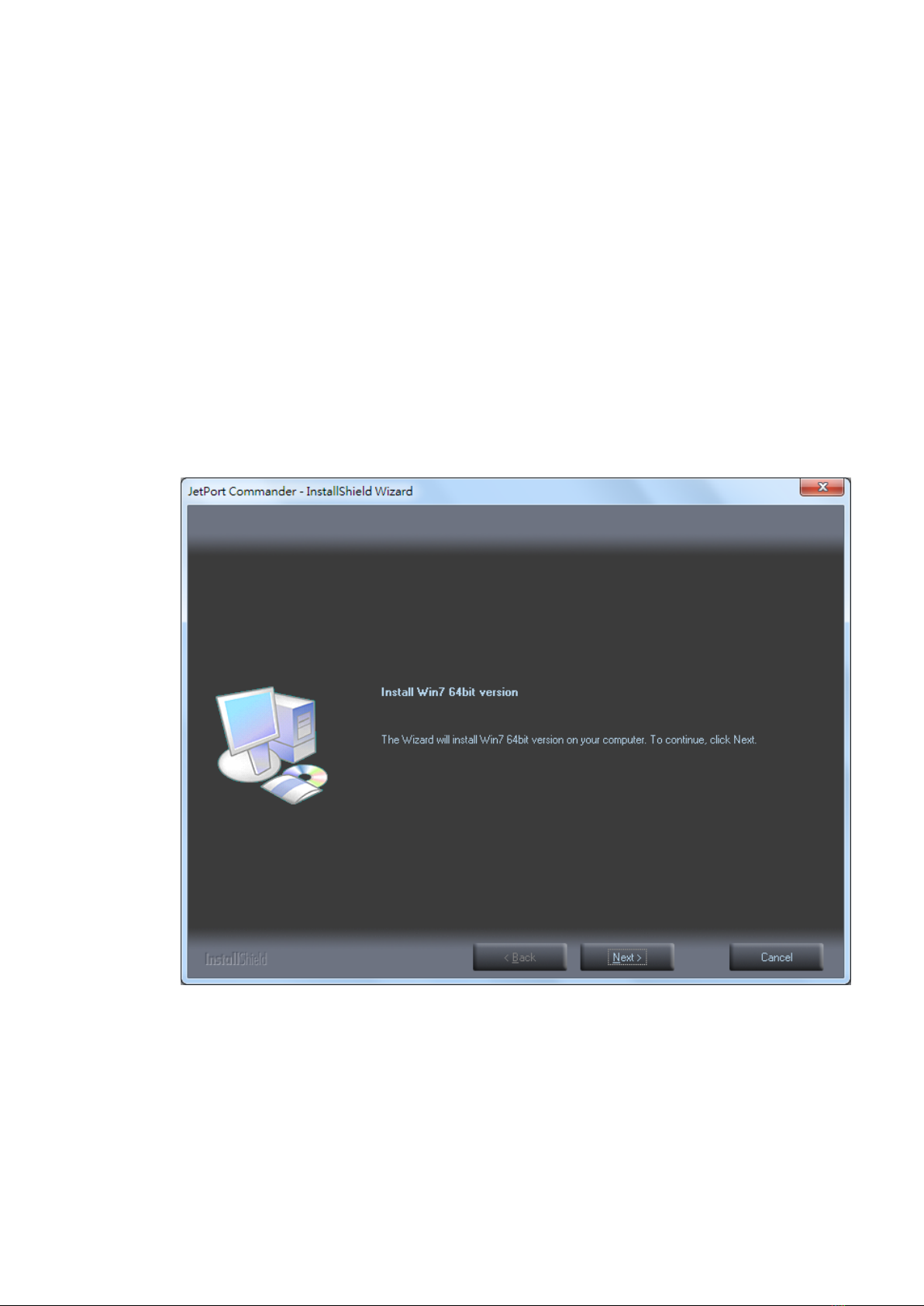

2. Run JetPort Setup.exe to install Windows utility, JetPort Commander.
It will automatically detect OS of your PC. After installation, you should reboot your PC for the
settings to take effect.

Windows Management Tool
JetPort 5601 Serial Device Server User’s Manual
13

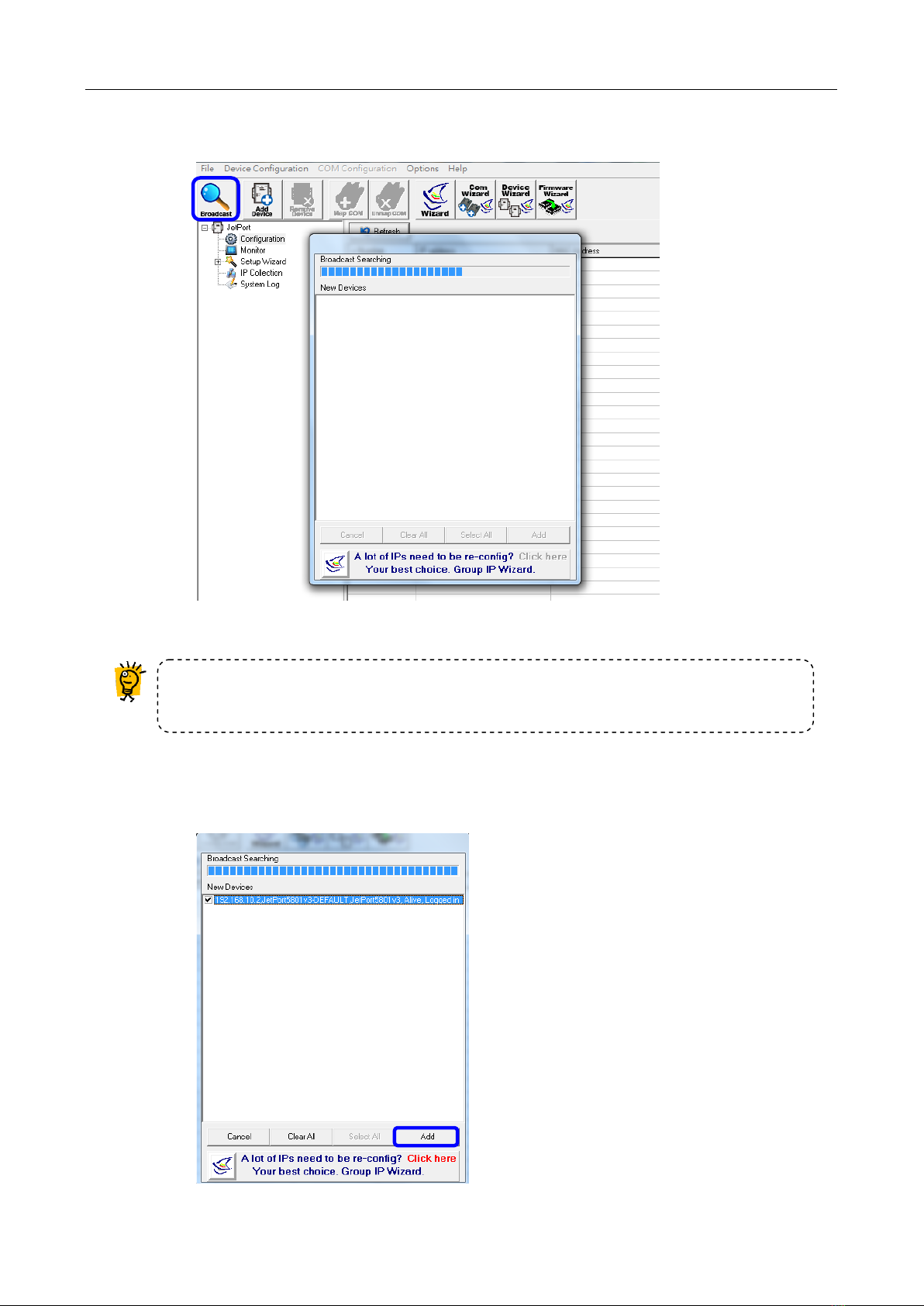

3. Broadcast the JetPort unit: JetPort Commander will broadcast the network and search all
available JetPort units in the network. The default IP address of JetPort is “192.168.10.2”.
4. Configuring the JetPort unit:
4.1 Click on the JetPort unit and select “Add” for further configuring the unit.
Product Tip: If you have multiple Network Adapters (i.e. wireless and wired), please activate ONLY
ONE Network Adapter that can locate the JetPort devices, and CLOSE the rest Network Adapters.
Otherwise, JetPort Commander may broadcast INCORRECTLY.

JetPort 5601 Serial Device Server User’s Manual
14

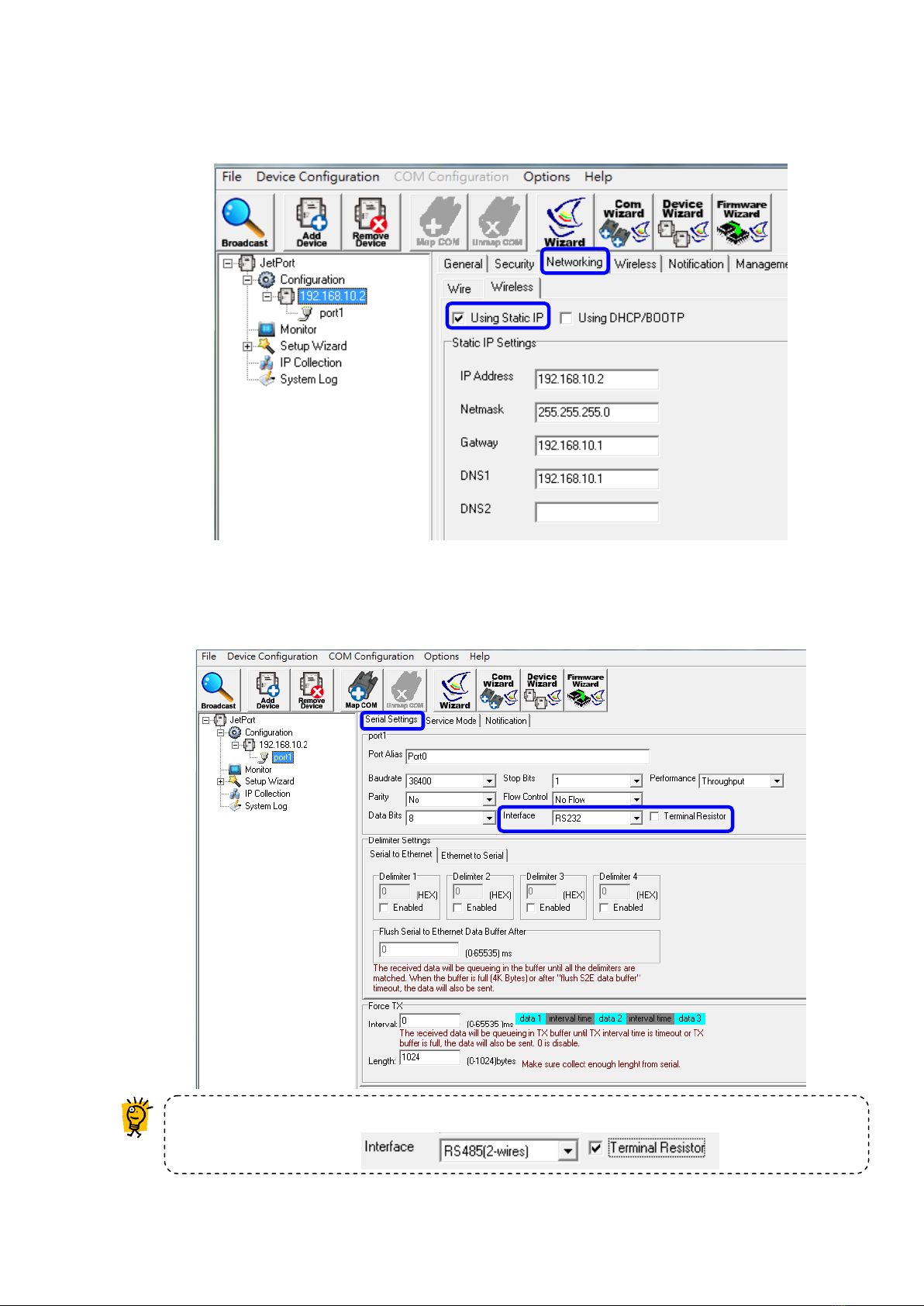

4.2 Go to “Configuration”, and choose the device. Select “Networking” to the network settings
page. Select “Using Static IP” if you want to specify the network parameters, or select
“DHCP/BooTP” if you want dynamic configuration for the JetPort unit.
5. Configuring the serial port as COM port:
5.1 Go to “Configuration”, and choose the device and the “port”. Select “Serial Settings” to
configure the serial settings.
Notice: If you choose RS 485(2-wire) interface, for better connection, please Check “Terminal Resistor.”

Windows Management Tool
JetPort 5601 Serial Device Server User’s Manual
15
5.2 Select “Service mode”, “Real/Virtual COM Mode” and press “Map COM” to map the port to
the COM port.
Congratulations! You have finished JetPort configurations with Real/Virtual COM mode. You can also
use web or telnet console by the JetPort IP address.
Note: This document shows you how to quick setup the software. The full functions
and configurations’ description, please refer to the JetPort Commander Manual
download from Korenix web site.

16
4
4
Chapter 4 Web and Telnet Console
In addition to Windows utility, JetPort 5601 can also be managed by Web-HTTPS and the SSH
Console.
The HTTPS is a security protocol that provides communication privacy over the internet. The
HTTPs packets transmitted between the JetPort and PC would be encrypted.
The SSH allows users to securely login to remote host computers, to execute commands safely
in a remote computer, to securely copy remote files and to provide secure encrypted and
authenticated communications between two non-trusted hosts.
This chapter describes:
HTTPS Console
Server Configuration
Port Configuration
Management
Save / Restart
SSH Console
SSH Client
Configuration
