Korg SDD-200 User manual

SAMPLING
DIGITAL
DELAY
OWNER'S MANUAL
KORG

The SDD-2000 is a new kind of digital delay that is designed to work
IUsed as a conven
tional delay ma
chine, the SDD-2000
can provide very long delay
times of up to. 4368ms. Up to
64 effects such as chorus,
flanging, doubling, and echo
can be programmed for rapid
access. MIDI program change
data can be used to select
stored effects.
N In the trigger over-
I dub mode, a foot
L switch, drum ma
chine trigger signal, MIDI tim
ing clock, or other signal can
be used to set the delay time,
making it easy to match the
tempo of the music.
The sequencer and
sampling modes al-
low audio inputs of
up to 4368ms to be recorded
and then reproduced when
desired. Coupled with a MIDI
keyboard (or other MIDI con
trol device) the sampled
sound can be "played" (like
on a sampling keyboard in
strument).

n
Congratulations and thank you for
purchasing the Korg SDD-2000.
For optimum performance,
long term reliability and safety,
please read this manual before use.
with MIDI data, thereby offering new and exciting capabilities.
4
Rec cancel, program
up, and other prac
tical functions add to
the value of this tjnit for live
performance.
Three outputs —
DIRECT, +MIX,
- MIX — offer varie
ty of stereo reproductiion pos
sibilities.
6
Incremental control
of all parameters
and a 6-column dis
play add to operational conve
nience.
(■KCAll
MTV TMEX4 PWOG/HUU
: — ■■■ PROG NO. *
eHV twe wwte ' '
•^ • ;• -..
[ _ - ' PROGRAMMER
—■
OATA/TME(mt)
•ssss*
DIGITAL DELAY
POWER

To avoid malfunction do not use this unit in the follow
ing locations for long periods of time:
• In direct sunlight ^^^^ « S
• Exposed to extrernes of temperature or humidity;
• In sandy or dusty places.
POWER SUPPLY
■• Useonly with rated AC voltage. If you will be using
this unit ina country having a different voltage, be
sure to obtain the proper transformer to convert to
• To helpiprevent rioiseand diBgraded sound quality,
avoid usingthe sam&outletas other equipment or
branching off extension cords shared by other
equipment
HANDLE GENTLY
Knobs and switches are designed to provide positive
operation with a light touch. Excessive force may
cause damage:
MAINTENANCE
Wipe the exterior with a soft, dry cloth. Never use paint
thinner, benzene or other solvents.
■ ■.■•■■•' ■ I • ■ ■" ■ .■■'*"
PREVENTING ELECTRICAL
INTERFERENCE
Erratic performance may be caused by electrical in-
terference from nearby appliances (radio, TA/, etc:)rOT
especially those with motors. Avoid operating this unit
near possible sources of interference.
KEEP THIS MANUAL
Store this manual in a safe place of future reference.
MM
Id ipireyi^

FEATURES & FUNCTIONS
1. FRONT PANEL
2. REAR PANEL/CONNECTIONS

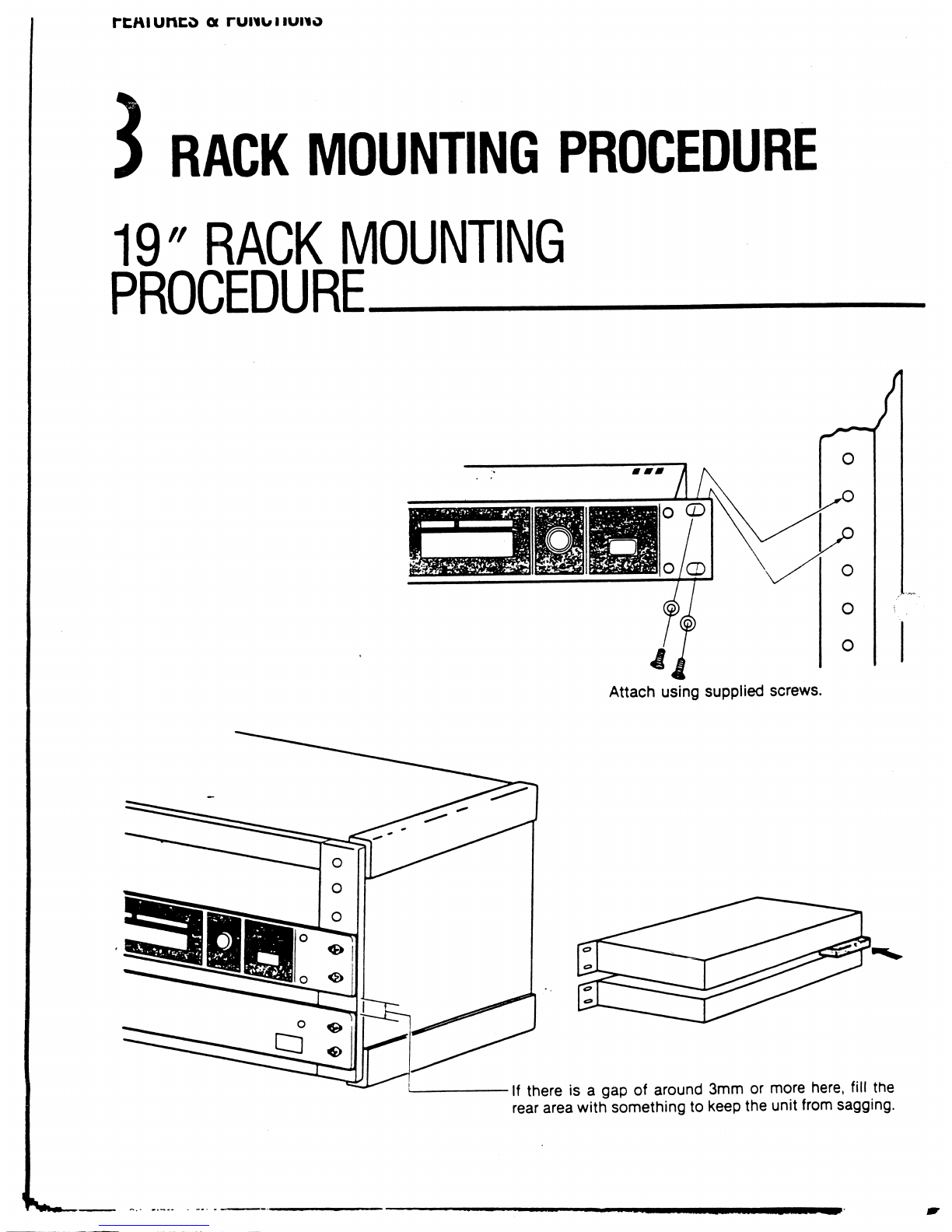

:. RACK MOUNTING PROCEDURE
DIGITAL DELAY MODE
1. BASIC SETTINGS
2. OPERATION
3. PROGRAM WRITE PROCEDURE
6
14
20
21
21
23
A. SETTING BY REC SWITCH OR FOOT SWITCH
B. SETTING BY DRUM MACHINE TRIGGER SIGNAL
C. MIDI TIMING CLOCK SETTING
24
26
28
A. RECORDING/PLAYBACK WITH MIDI SWITCH OFF
B. RECORDING/PLAYBACK WITH MIDI SWITCH ON (FOR PITCH CONTROL)
1. SPECIFICATIONS AND OPTIONS
2. BLOCK DIAGRAM
3. FREQUENCY RESPONSE GRAPH
45
46
47
SDD-2000 PRELOAD PROGRAM UST

1
FRONT PANEL
INPUT SECTION
OUTPUT SECTION
2 Input LEVEL Control—
1 HEADROOM Indicator-
o
HEAOFDOM
♦ 6dB
008
-KWB
2+ \U
0 10
INPUT
OWECT
4 j
i.
*9
-3 DIRECT Volume Control
-4 BYPASS Switch
-5 REC CANCEL LED
/
|RPCCLNC£L|
C)
REC
TWG
10
BYPASS
ME
OUTPUT
•RKOVSOue SEO SAMPUNG
recSync
REC SYNC SECTION
6 REC Switch
7 TRIG OVERDUB Switch-
8 SEQ Switch
9 SAMPLING Switch-
10 TRIG LED
Mia
Ef
f

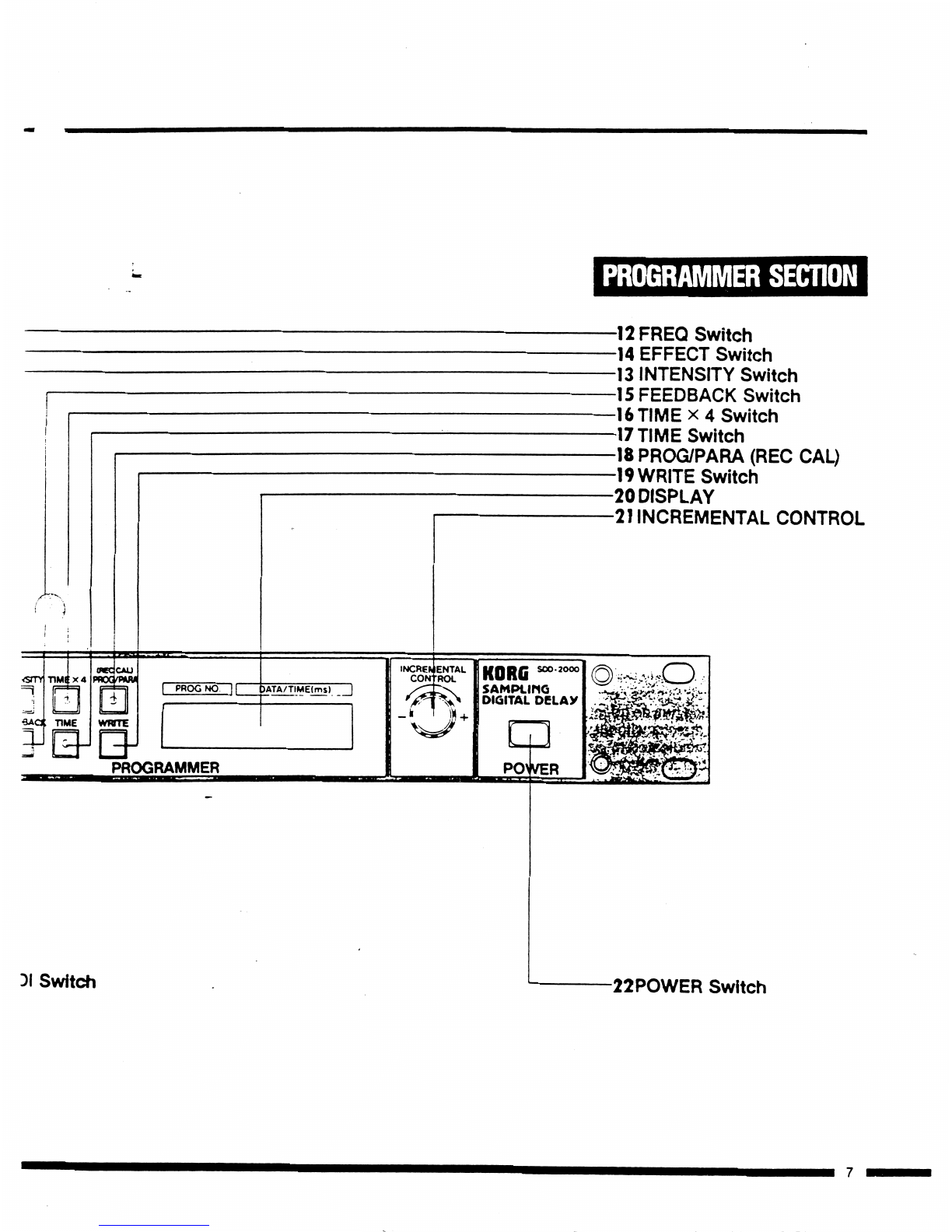

PROGRAMMER SECTION
-ism -
if
PROG NO
)ATA/flME(ms) \
PROGRAMMER
-12 FREQ Switch
-14 EFFECT Switch
-13 INTENSITY Switch
-15 FEEDBACK Switch
-16TIMEX 4 Switch
-17 TIME Switch
-18 PROG/PARA (REC CAL)
-19 WRITE Switch
-20 DISPLAY
-21 INCREMENTAL CONTROL
INCREA ENTAL
CONTROL
KORC *» t00°
SAMPLIMG
DIGITAL DCLAV
POWER
Switch
-22POWER Switch

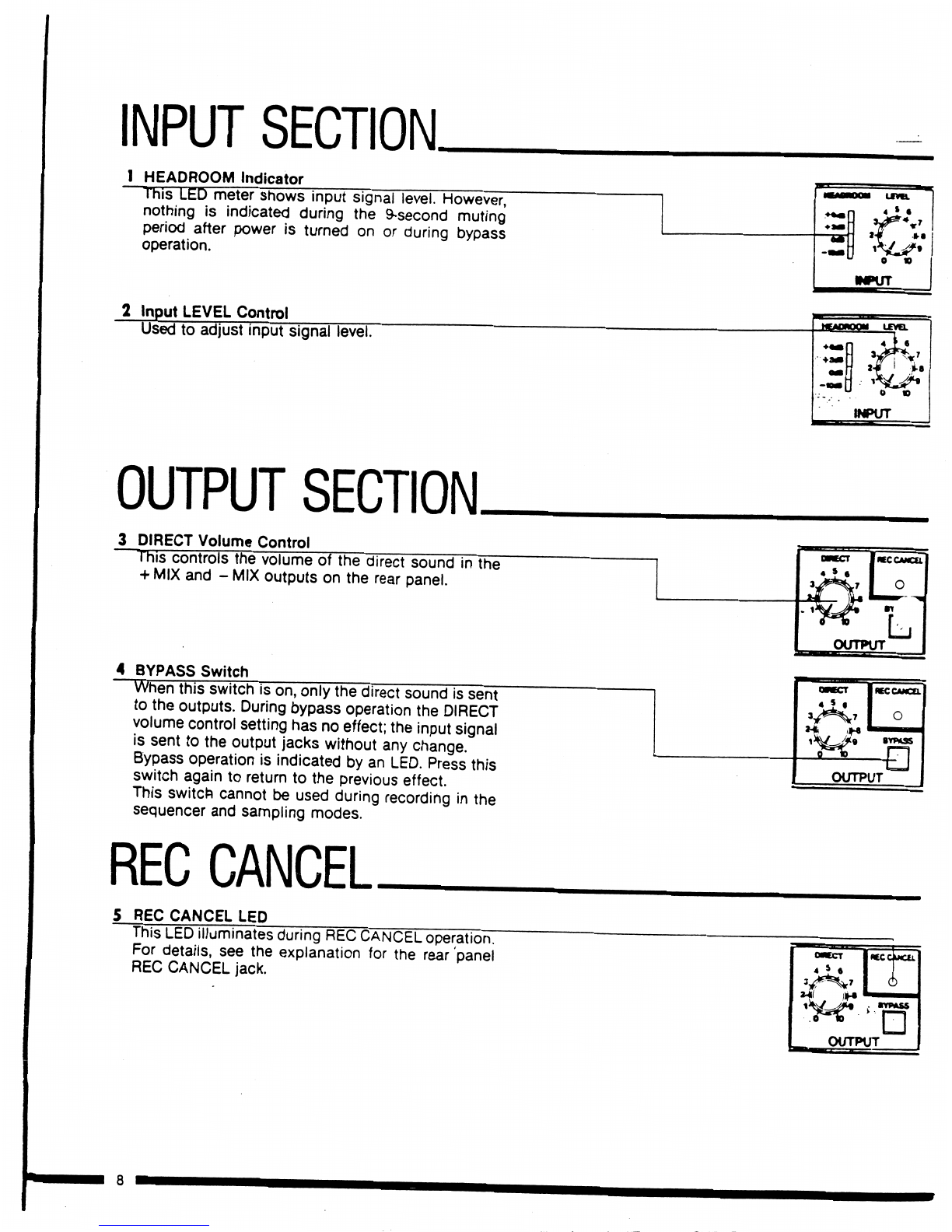

INPUT SECTION.
I HEADROOM Indicator
This LED meter s
ihows input signal level. However,
nothing is indicated during the 9-second muting
period after power is turned on or during bypass
operation.
2 Input LEVEL Control
Used to adjust input signal level.
OUTPUT SECTION.
3 DIRECT Volume Control
is controls the volume of the direct sound in the
+ MIX and - MIX outputs on the rear panel.
4 BYPASS Switch
J this switch is on, only the direct sound is sent
to the outputs. During bypass operation the DIRECT
volume control setting has no effect; the input signal
is sent to the output jacks without any change.
Bypass operation is indicated by an LED. Press this
switch again to return to the previous effect.
This switch cannot be used during recording in the
sequencer and sampling modes.
REC CANCEL
5 REC CANCEL LED
This LED illuminates during REC CANCEL operation.
For details, see the explanation for the rear panel
REC CANCEL jack.
O*ECT |REC CANCEL |
« ? •
O
BYPASS
OUTPUT
■a

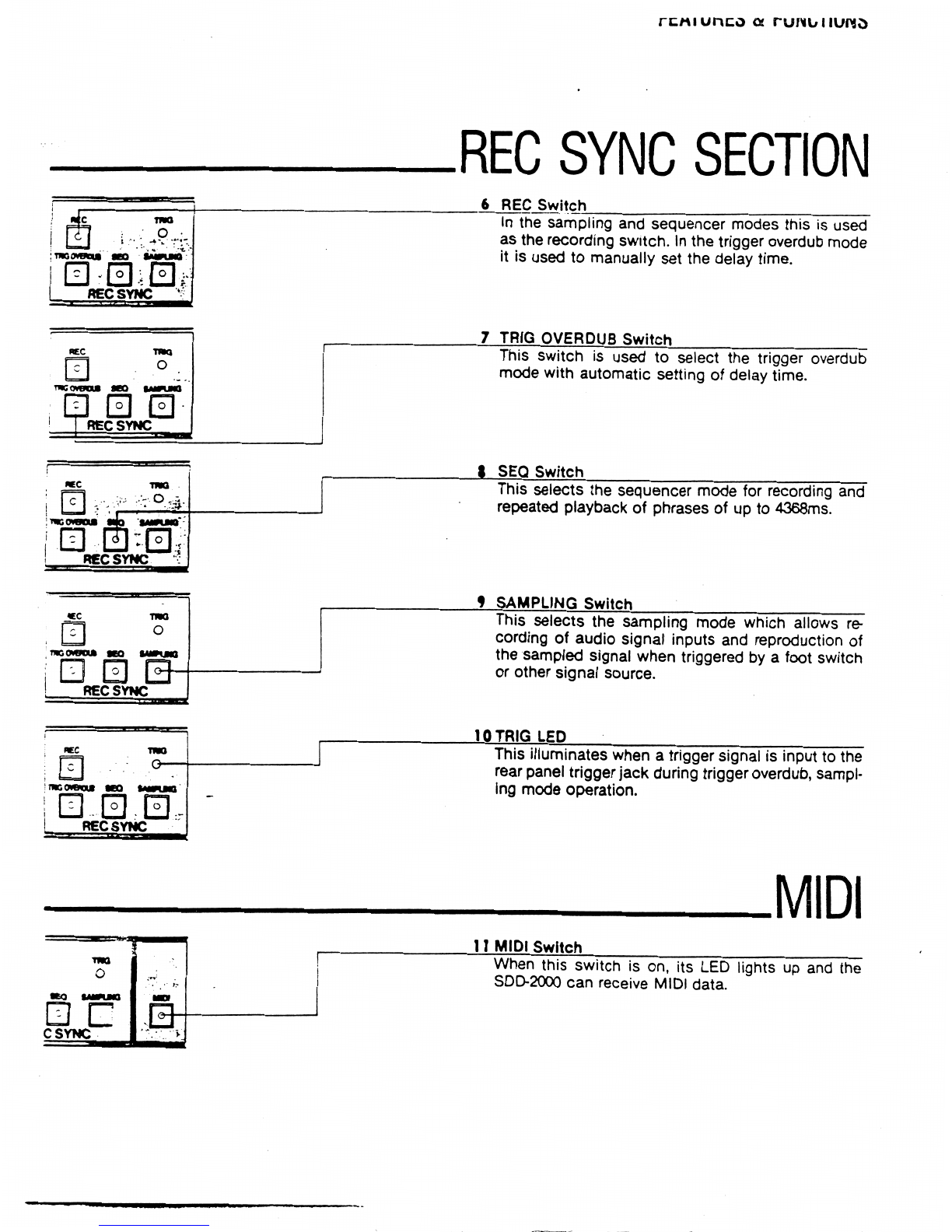

REC SYNC SECTION
mo saotlmq
SEE
RECSYNC
6 REC Switch
In the sampling and sequencer modes this is used
as the recording switch. In the trigger overdub mode
it is used to manually set the delay time.
7 TRIG OVERDUB Switch
This switch is used to select the trigger overdub
mode with automatic setting of delay time.
t SEQ Switch
This selects the sequencer mode for recording and
repeated playback of phrases of up to 4368ms.
SAMPLING Switch
This selects the sampling mode which allows re
cording of audio signal inputs and reproduction of
the sampled signal when triggered by a foot switch
or other signal source.
10 TRIG LED
This illuminates when a trigger signal is input to the
rear panel trigger jack during trigger overdub, sampl
ing mode operation.
csync
MIDI
11 MIDI Switch
When this switch is on, its LED lights up and the
SDD-2000 can receive MIDI data.

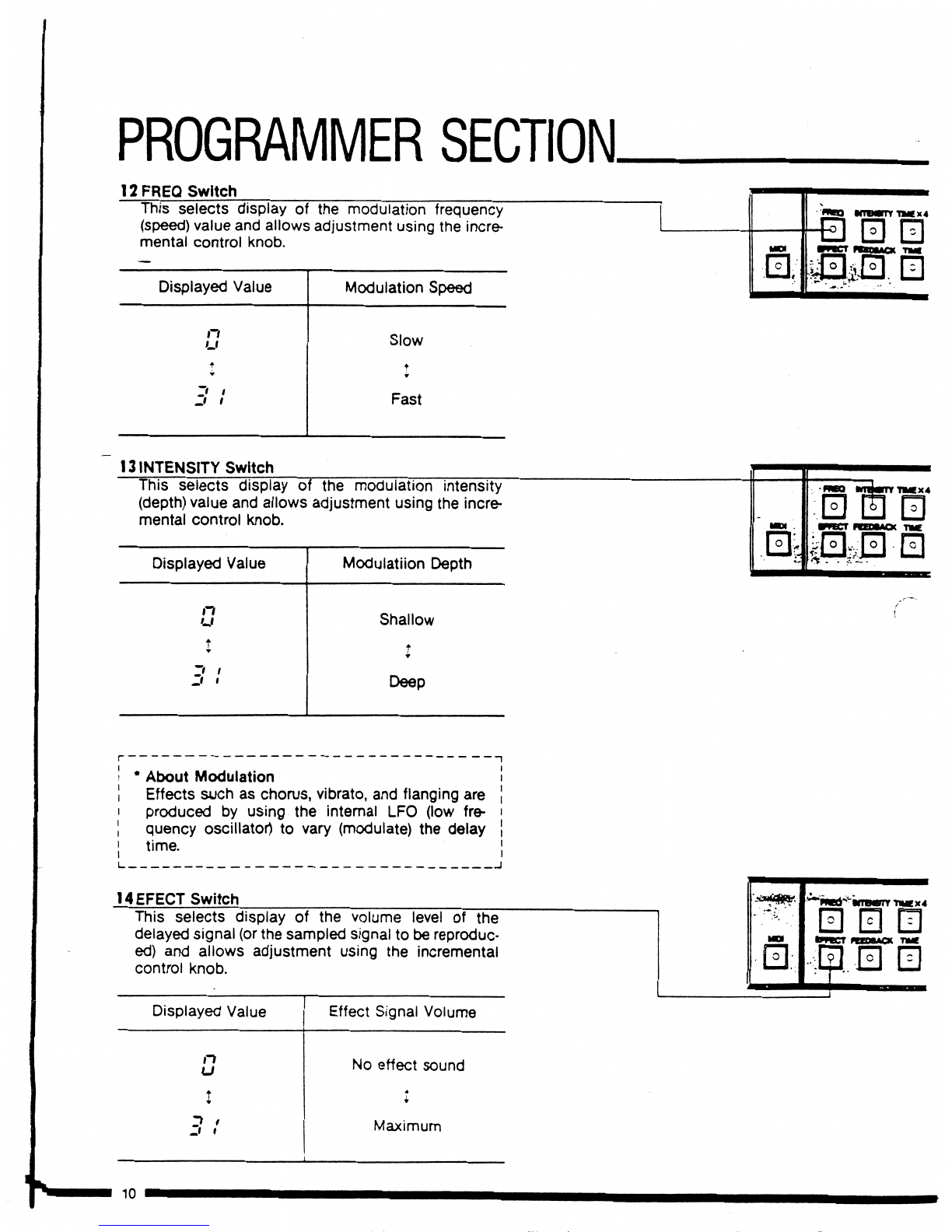

PROGRAMMER SECTION.
12 FREQ Switch
This selects display of the modulation frequency
(speed) value and allows adjustment using the incre
mental control knob.
Displayed Value
n
u
Z* i
Jf t
Modulation Speed
Slow
♦
Fast
13 INTENSITY Switch
This selects display of the modulation intensity
(depth) value and allows adjustment using the incre
mental control knob.
Displayed Value
n
u
I
Z* i
ji i
Modulation Depth
Shallow
t
Deep
B
TKX4
I O I
* About Modulation
Effects such as chorus, vibrato, and flanging are
produced by using the internal LFO (low fre
quency oscillator) to vary (modulate) the delay
time.
14EFECT Switch
This selects display of the volume level of the
delayed signal (or the sampled signal to be reproduc
ed) and allows adjustment using the incremental
control knob.
Displayed Value
n
u
Effect Signal Volume
No effect sound
Maximum

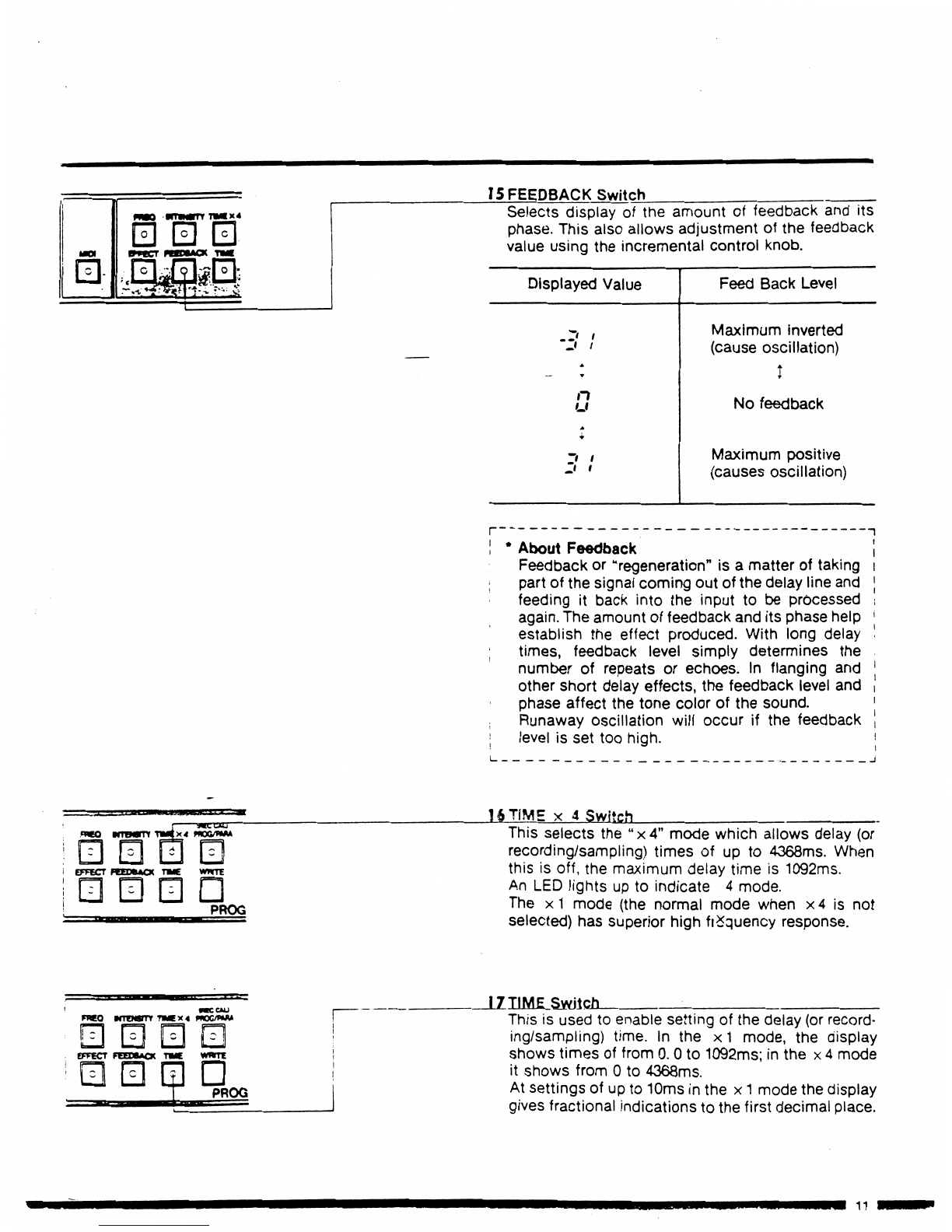

15 FEEDBACK Switch
Selects display of the amount of feedback and its
phase. This also allows adjustment of the feedback
value using the incremental control knob.
Displayed Value
.I' i
A
— -9
n
u
I
Z* t
Feed Back Level
Maximum inverted
(cause oscillation)
I
No feedback
Maximum positive
(causes oscillation)
About Feedback
Feedback or "regeneration" is a matter of taking
part of the signal coming out of the delay line and
feeding it back into the input to be processed
again. The amount of feedback and its phase help
establish the effect produced. With long delay
times, feedback level simply determines the
number of repeats or echoes. In flanging and
other short delay effects, the feedback level and
phase affect the tone color of the sound.
Runaway oscillation will occur if the feedback
level is set too high.
16 TIME x 4 Switch
This selects the "x4" mode which allows delay (or
recording/sampling) times of up to 4368ms. When
this is off, the maximum delay time is 1092ms.
An LED lights up to indicate 4 mode.
The x1 mode (the normal mode when x4 is not
selected) has superior high frequency response.
17TIME Switch
This is used to enable setting of the delay (or record
ing/sampling) time. In the x1 mode, the display
shows times of from 0. 0 to 1092ms; in the x 4 mode
it shows from 0 to 4368ms.
At settings of up to 10ms in the x 1 mode the display
gives fractional indications to the first decimal place.

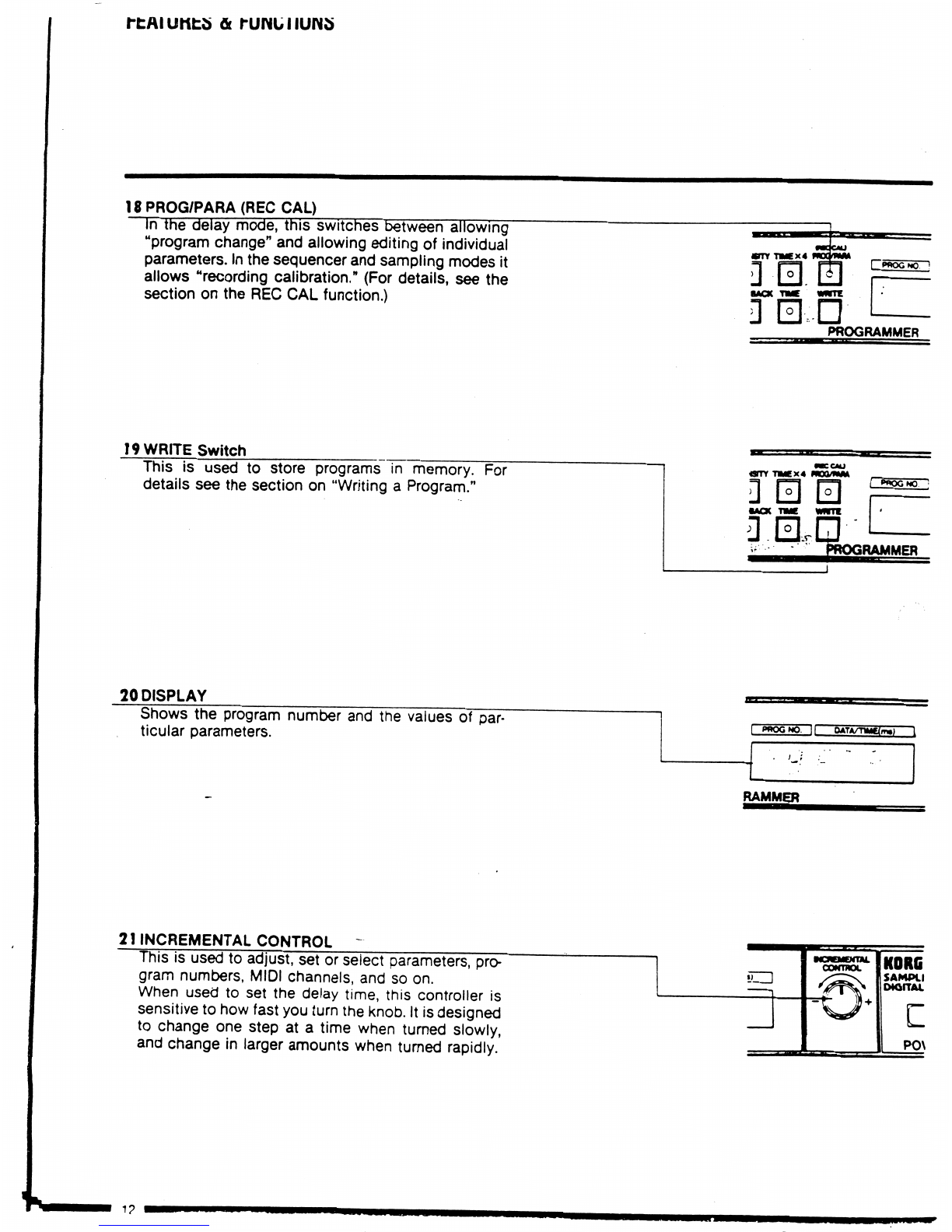

18 PROG/PARA (RECCAL)
In the delay mode, this switches between allowing
"program change" and allowing editing of individual
parameters. In the sequencer and sampling modes it
allows "recording calibration." (For details, see the
section on the REC CAL function.)
19 WRITE Switch
This is used to store programs in memory. For
details see the section on "Writing a Program."
OTY-nMEx4 mum*
0 0 0
I PWQGNQ.
3
; oi
Is*
MER
20 DISPLAY
Shows the program number and the values of par-
ticular parameters.
RAMMER
21 INCREMENTAL CONTROL -
This is used to adjust, set or select parameters, pro-
gram numbers, MIDI channels, and so on.
When used to set the delay time, this controller is
sensitive to how fast you turn the knob. It is designed
to change one step at a time when turned slowly,
and change in larger amounts when turned rapidly.

POWER
{MENTAL
•rraoc
KOMi ■M000
SAMPLING
MOfTAL DCLAy
POWER
22 POWER Switch
This unit takes about nine seconds to initialize itself
after the power is turned on. All functions are in
operative during this muting time.

I
REAR PANEL/CONNECTIONS
CONTROL SECTION
6 BYPASS jack
7 REC CANCEL jack-
8 PROGRAM UP jack-
9 REC jack
10 TRIGGER jack—
11 TUNE Control—
12 MIDI IN jack
13 MIDI THRU jack-
wmmmm
To other MIDI
equipment
From MIDI keyboard,
sequencer,
drum machine,
or computer.
From Drum Mi in<
(DDM-1107220,
KPR-77, etc.) or foot
switch (PS-1 etc.)

INPUT/OUTPUT SECTION
<£>
TRIG R«C PRXjUP CANCEL BYf>ASS
"-GNO 1-bNO "UGNO UGNO
-3 DIRECT Output
-4 + MIX Output

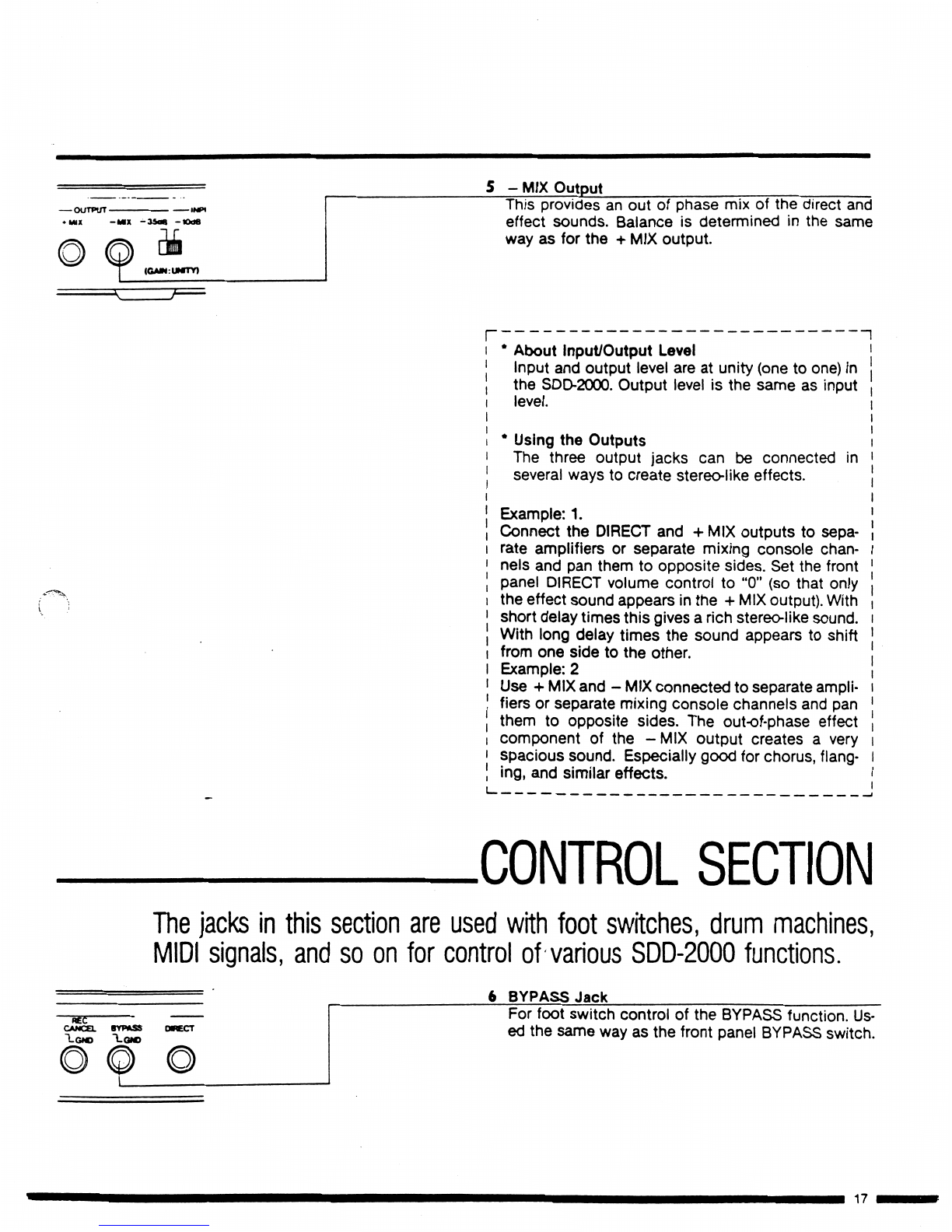

-5 - MIX Output
-2 ATTENUATOR
1 INPUT jack
hum foot switch
To amplifier(s)
or mixing console
(MM-25, KMX-8, etc)
From electric guitar,
bass, microphone,
keyboard, mixing. .-
, etc..-..:,-:
15

INPUT/OUTPUT SECTION .
This section has jacks for the audio input signal and output signals.
1 INPUT Jack
For signal from electric guitar, bass, microphone,
keyboard, etc.
I I
(GAM:1MTY)
2 ATTENUATOR
Set this switch to the position suitable for the type of
input signal used.
-WPl/T-
(GMNjJMTV)
• Input Level Adjustment
• If the input level is too high it will cause distor
tion. If it is too low, it will reduce the signal-to-
noise ratio. Adjust input level so that the HEAD
ROOM indicator + 6dB LED lights occasionally
on maximum signal peaks.
• Remember to check and readjust input level
after changing feedback level. This is necessary
because the amount of feedback will change the
signal level within the circuitry.
• Set the ATTENUATOR to the correct position for
the signal source before adjusting input level.
Switch
-10dB
-35dB
Input Signal Source
From synthesizer, drum machine, other
electronic instrument, mixing console,
or audio system
From electric guitar, bass, electric
piano, microphone, or other low level
signal source.
3 DIRECT Output ir_^_
This provides the direct sound (the input sound) only.
-OUTPUT
BYPASS
DIRECT
+ MIX Output
This provides a mixed output.of the direct and effect
(or recorded/sampled) sounds. Balance is determin
ed by the front panel DIRECT volume control setting
and the PROGRAMMER section EFFECT setting.
OUTPUT
* MIX - Mix

13 MIDI THRU Jack
This provides the MIDI signal received at the MIDI IN
jack unchanged.
This chart shows which kinds of MIDI data can be
received by the SDD-2000 when the front panel MIDI
switch is on. MIDI equipped keyboards, sequencers,
drum machines, and computers can be connected to
the SDD-2000.
pwgra^chamS:^
TiitNGaocK : •; -'t
NOTE ON/OFF .
(WITH VELOCITY) \
M0OUI>Tm^.^:i
(CONTROL CHANGE NO.f)
omniowoff .. ;';-
Aa'fWTESOFF"^^
svsTDr£xcuiav6^H
ACTIVE SOSWG?^
■:i ooa^v
o
X
X
X
X
O
X
O
X
. ■'• TnraGEn
"OVERDUB
x
O
X
X
X
O
X
X
X
SEQUENCER
X
X
O
O
o
o
o
X
o
•5AwHTJN6 ;
X
X
o
o
O
O
O
X
o
NOTE
Modulation data is used to modulate sound record
ed using the SEQUENCER or SAMPLING mode. If
the sent data value is higher than the intensity
parameter value for a mode, then modulation can
be applied at higher than the set value. In this case,
modulation depth is smaller when compared with
those of the delay sound generated with the
DELAY or TRIGGER OVERDUB mode.

rcai unco oc rununuiio
RACK MOUNTING PROCEDURE
PROC
ACK
EDUR
VIOUNTING
A
o
o
o
Attach using supplied screws.
If there is a gap of around 3mm or more here, fill the
rear area with something to keep the unit from sagging.

— OUTPUT
♦ mix -mix -a** -«
(GAM:UNmO
5 -MIX Output
This provides an out of phase mix of the direct and
effect sounds. Balance is determined in the same
way as for the + MIX output.
About Input/Output Level
Input and output level are at unity (one to one) in
the SDD-2000. Output level is the same as input
level.
Using the Outputs
The three output jacks can be connected
several ways to create stereo-like effects.
in
Example: 1.
Connect the DIRECT and + MIX outputs to sepa
rate amplifiers or separate mixing console chan
nels and pan them to opposite sides. Set the front
panel DIRECT volume control to "0" (so that only
the effect sound appears in the + MIX output). With
short delay times this gives a rich stereolike sound.
With long delay times the sound appears to shift
from one side to the other.
Example: 2
Use + MIX and - MIX connected to separate ampli
fiers or separate mixing console channels and pan
them to opposite sides. The out-of-phase effect
component of the - MIX output creates a very
spacious sound. Especially good for chorus, flang
ing, and similar effects.
CONTROL SECTION
The jacks in this section are used with foot switches, drum nnachines,
MIDI signals, and so on for control of various SDD-2000 functions.
6 BYPASS Jack
For foot switch control of the BYPASS function. Us
ed the same way as the front panel BYPASS switch.

FEATURES & FUNCTIONS
7 REC CANCEL Jack
When a foot switch that is connected to this jack is
depressed, the SDD-2000 switches to the REC
CANCEL mode. This leaves the effect sound that is
present at the instant the foot switch is depressed
and switches the input signal to bypass the delay cir
cuitry. While REC CANCEL is on, the front panel
REC CANCEL LED illuminates.
8 PROGRAM UP Jack
The selected program number is advanced each
time a foot switch connected to this jack is depress
ed (in the delay mode).
PWOGUP CANCEL
~t-OMD ~
REC
f»«OGUP CANCEL
"Lgmd
9 REC Jack
For foot switch operation with the same function as
the front panel REC switch, (Used for modes other
than the delay mode.)
10 TRIGGER Jack .
—For a trigger signal input from a drum machine or
foot switch.
This triggers playback of sampled sounds (in the
sampling mode) or sets the delay time (in the trigger
overdub mode).
The front panel TRIG LED illuminates every time a
trigger signal is received.
Foot Switches to be Used with Control Jacks
Foot switches to be used with these control
jacks should be the type that is on during the
period the foot switch is depressed. Such foot
switches include the Korg PS-1 and S-2.
. cormot
two
©
11 TUNE Control .
This lets you adjust the pitch of the reproduced
sound by up to ±50 cents in the sampling and se
quencer modes.
12 MIDI IN Jack
This jack is for reception of MIDI data from a MIDI
keyboard, sequencer, drum machine, or computer.
