KOVAX PROMA-X 910-8 Series User manual
INSTRUCTION MANUAL
Art.No.: 910-8***
DUST EXTRACTOR
INDUSTRIAL ELECTRO-PNEUMATIC DUST EXTRACTOR
M-CLASS & L-CLASS
DUST EXTRACTOR
PAGE 2 | PROMA-X DUST EXTRACTOR
PROMA-X DUST EXTRACTOR
Industrial Electro-Pneumatic
Dust Extractor
DESCRIPTION 3
IMPORTANT SAFETY INFORMATION 4
Explanation of symbols and signs used 4
Important safety information 4
DISPLAY AND CONTROL ELEMENTS 7
COMMISSIONING 9
Before every use 9
Switching on and off 9
Switching on the vacuum cleaner 9
Setting the suction hose diameter 10
Adjusting the suction power 10
Switching off the vacuum cleaner 10
OPERATING MODES 10
Sucking up dry materials 10
PERMANENT FILTER CLEANING 11
EMPTYING THE CONTAINER 12
Dispose of the PE emptying and disposal bag
CHANGING THE FILTER 14
CHANGING THE MOTOR PROTECTION FILTER 14
TRANSPORT 14
MAINTENANCE 15
Testing the effectiveness of the vacuum cleaner 15
PAGE 3 | PROMA-X DUST EXTRACTOR
CLEANING 16
REPAIR 16
Exchange pneumatic connections 16
TROUBLESHOOTING AND REPAIR 16
GENUINE ACCESSORIES 18
TECHNICAL DATA 18
TESTS AND APPROVALS 19
DUST CLASS 19
DECLARATION OF CONFORMITY 20
PAGE 4 | PROMA-X DUST EXTRACTOR

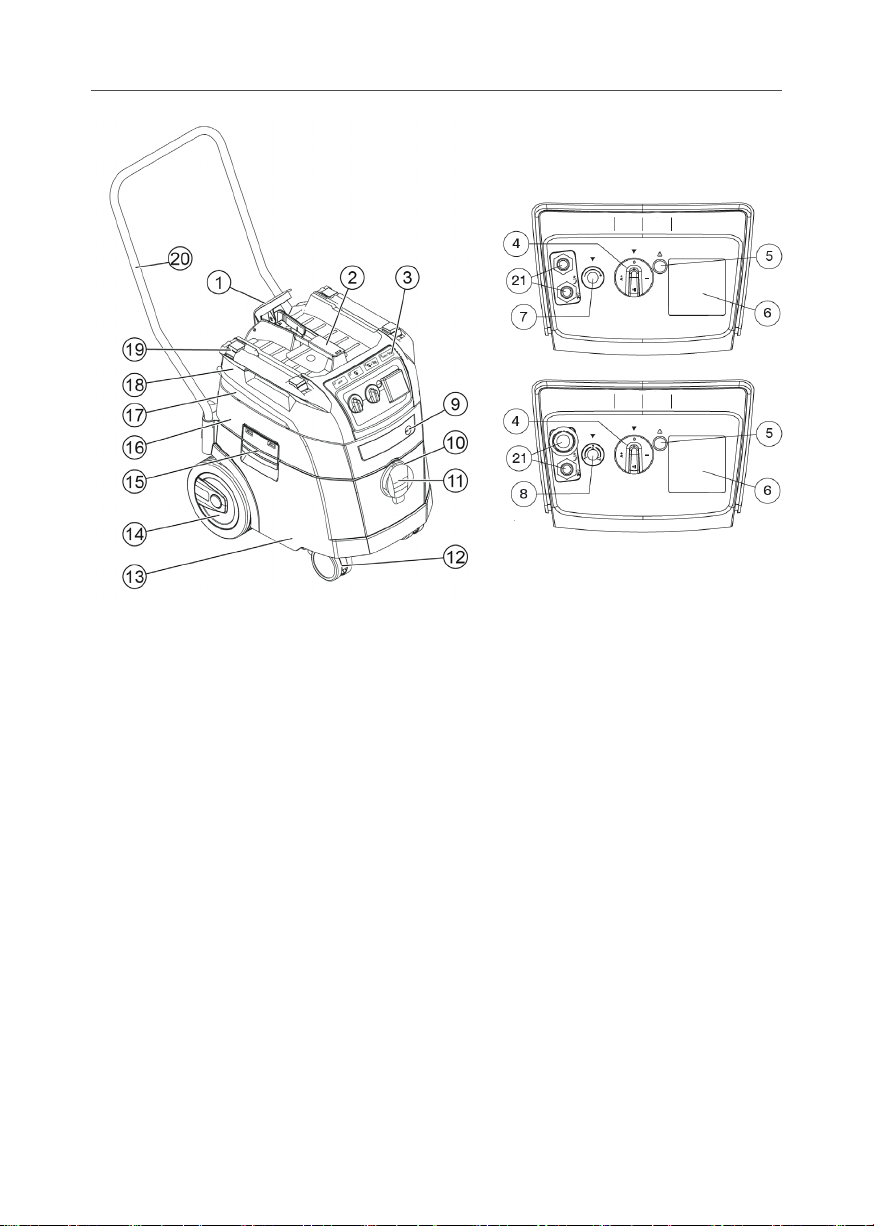

DESCRIPTION
1. Cable hook
4. Rotary switch*
5. Fill level*
6. Plug socket
7. Speed control*
8. Setting suction hose diameter*
9. Lock
10. Intake socket
11. Rotary slide inside
14.Wheel
15. Latch
16. Motor housing
17. Support plate
18. Cover
19. Mounting rail for tool box*
* depending on the equipment variant
PAGE 5 | PROMA-X DUST EXTRACTOR
IMPORTANT SAFETY INFORMATION
Explanation of symbols and signs used
SYMBOL / SIGNAL WORD DISCRIPTION
This is the warning symbol. It warns against possible risk
of injury. Follow all instructions which are marked with
this sign to avoid injury or death.The warning symbol
always appears in association with the signal words
DANGER, WARNING and CAUTION.
DANGER
cause death or serious injury if not avoided.
WARNING
could cause death or serious injury if not avoided.
CAUTION
cause minor or moderate injury if not avoided.
NOTE
ensure safe operation.
�
an action is taken.
�
user.
�
Important safety information
WARNING
Danger of suffocation! Do not allow children to play with packaging material, e.g. plastic bags. Do not climb onto or sit
on the vacuum cleaner. Risk of falling when working on stairs. Pay attention to standing safely.Do not pull the mains
connection cable and suction hose over sharp edges, do not bend it or clamp it.The mains connection cable and suction
hose always must be routed in such a way that no one can trip over it. If any foam or liquid is discharged, immediately
switch off the vacuum cleaner.Always keep the inside of the lid dry.
Do not use the vacuum cleaner including accessories in the following cases:
• Mains connection cable or extension cable is defective or showing cracks
• There is visible damage to the vacuum cleaner, e.g. cracks in the housing
• If you suspect an invisible defect, e.g. after a fall
DANGER
PAGE 6 | PROMA-X DUST EXTRACTOR
IMPORTANT SAFETY INFORMATION
DANGER
•
• materials soaked in solvents
• potentially explosive dusts
• liquids such as petrol, oil, alcohol, diluents
• materials hotter then 60 °C
WARNING
Only use original accessories and spare parts.
WARNING
inappropriate usage, improper operation or repair,the producer shall be exempt from liability. Do not use damaged
extension cables. If the mains connection cable of the vacuum cleaner is damaged,it must be replaced by a special mains
connection cable, which is available from the manufacturer or its customer service.Never allow electrical brushes to come
into contact with the mains connection cable.The voltage on the rating plate must match the mains voltage. Switch off
the vacuum cleaner and disconnect the mains plug after use and before maintenance.When unplugging, only pull on
the mains plug and not on the mains connection cable. Never touch the mains plug with wet hands. Only connect the
thunderstorm. Store the vacuum cleaner dry and indoors,protected from frost.
WARNING
.
.
WARNING
The machine may not be used by persons (including children) who have reduced physical,sensory or metal capabilities or
who are inexperienced or lack the knowledge of how to use the machine. Children must be supervised to ensure that they
WARNING
Using other brushes can compromise safety.When being used in food processing businesses: Immediately clean the
PAGE 7 | PROMA-X DUST EXTRACTOR
IMPORTANT SAFETY INFORMATION
vacuum cleaner after use and disinfect it to avoid microbial contamination.Do not use any steam jets or high-pressure
cleaners for cleaning.Only operate the vacuum cleaner under supervision. Disconnect the vacuum cleaner from the mains

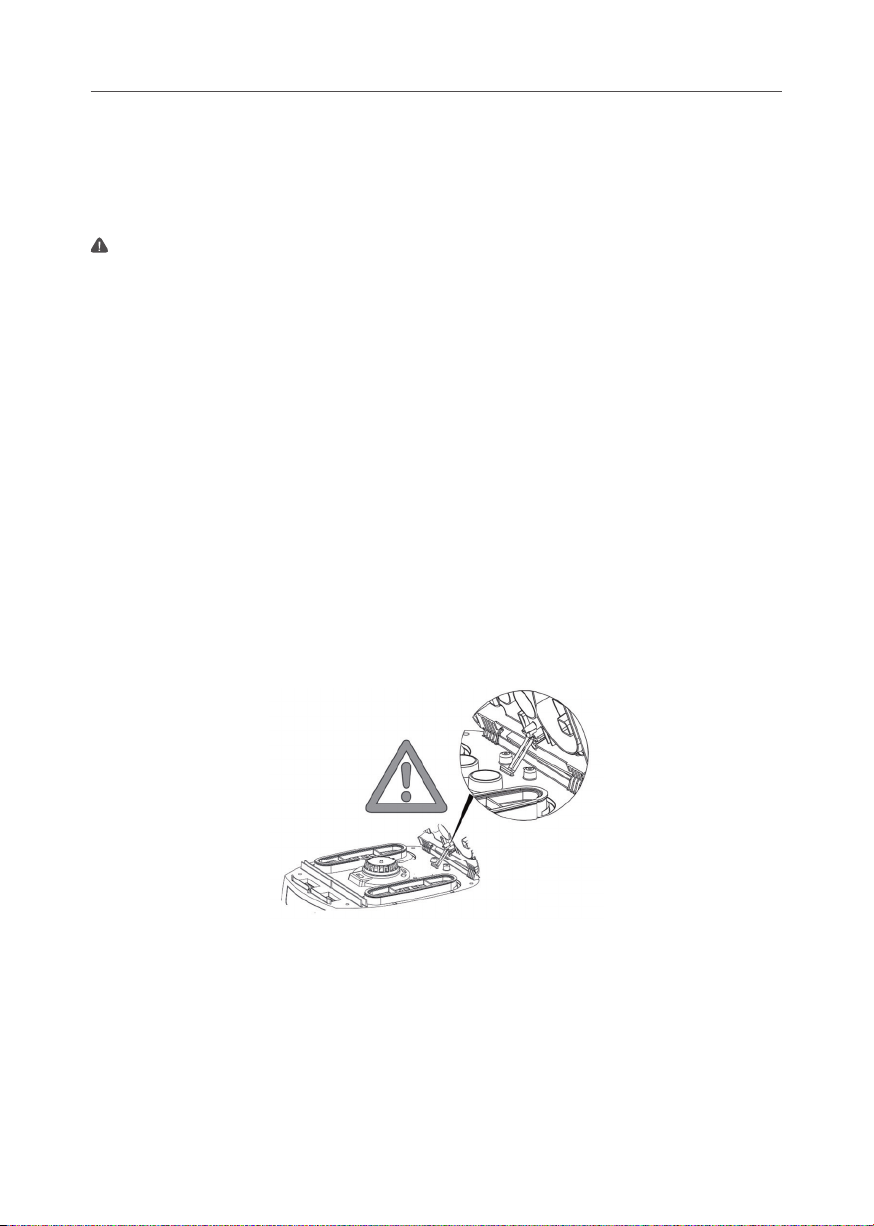

WARNING
Do not exceed the maximum pressure marked on the connected device. Operators and other personnel must always wear
protection for eyes, ears,and respiratory protection when in the work area or while operating this product.Follow your
protective equipment requirements
Read the operating manual carefully before starting to use the vacuum cleaner.The operating manual provides important
instructions for safety, commissioning, operation,maintenance and care. Keep the operating manual in a safe place
tothe design and equipment. Do not perform any other work than described in this manual.This machine is intended for
When unpacking, check for completeness and transport damage.Before use, the operators should be provided with
information, instructions and training for the use of the vacuum cleaner and the substances that it is to be used for,
including the safe procedure for the removal of the gathered material.
PAGE 8 | PROMA-X DUST EXTRACTOR
DISPLAY AND CONTROL ELEMENTS
Switch position Function Description
0Vacuum cleaner is switched off • Plug socket under voltage
IVacuum cleaner starts immediately • Plug socket under voltage
• Filter cleaning function switched off
AR Standby mode
• Plug socket under voltage
•
cleaning function after differential pressure
detection
• When the tool is switched on, the vacuum
cleaner automatically switches on.After the
power tool is switched off,the vacuum cleaner
runs on for approx.10 seconds to prevent any
residue from collecting in the hose
IR Vacuum cleaner starts immediately
• Plug socket under voltage
•
differential pressure detection
• While the vacuum cleaner is running, the folded
certain negative pressure value is reached, at
Fill level indicator*
•
vacuum cleaners with dust class M,an acoustic
signal is also emitted
Setting the suction hose diameter*
•
monitoring, to trigger an audible warning signal
Setting the motor speed* • Adjust the suction power with the speed control
* depending on model
* depending on model
PAGE 9 | PROMA-X DUST EXTRACTOR
COMMISSIONING
Before every use
Make sure that the following conditions are met:
�Vacuum cleaner,mains cable, suction hose and accessories are not damaged.
�
Switching on and off
The plug socket on the vacuum cleaner remains always under voltage, regardless of the main switch position.
WARNING
Danger of injury by automatically starting power tool!
�Switch off power tool or pneumatic tool before connecting to the vacuum cleaner.
For use with pneumatic tools,connect the vacuum cleaner to the compressed air supply (max. 8 bar / 116 psi).
NOTE
With switch in position >0<, the plug socket on the vacuum
cleaner can be used as an extension cable.
Power consumption
Switching on the vacuum cleaner
�Insert plug into plug socket.
�Set switch to position >I< or >IR<.
�Vacuum cleaner starts immediately.
or:
�Set switch to position >AR<.
�Vacuum cleaner is in standby mode for power tools.
PAGE 10 | PROMA-X DUST EXTRACTOR
COMMISSIONING
Setting the suction hose diameter*
�Set suction hose diameter at the switch.
CAUTION
In the modes >AR< and >IR< the following setting is made, depending on the diameter of the hose:
1Ø
2Ø
3Ø
No speed regulation is carried out.
The dust extractor always runs at max.speed.
Adjusting the suction power*
�Adjust motor speed on the switch.
or
�Set auxiliary air slide on the handle tube.
Switching off the vacuum cleaner
�Set switch to position >0<.
�Vacuum cleaner is switched off.
�After switching off,pull the mains plug out.
�Roll up mains connection cable.
�Store the mains connection cable on the cable hook.
�Store the suction tube by inserting it into the accessories holder* on the container rear wall.
�Put the suction hose ends together so that no dirt particles leak out.
�
OPERATING MODES
Sucking up dry materials
�
�When vacuuming dusts: Insert a PE disposal bag in the dirt container.
�
* depending on model
PAGE 11 | PROMA-X DUST EXTRACTOR
PERMANENT FILTER CLEANING
guaranteed.
even for critical types of dust.
PAGE 12 | PROMA-X DUST EXTRACTOR
EMPTYING THE CONTAINER
NOTE
.
�Switch off the vacuum cleaner,pull out the mains plug.
�Open the latches.
�Remove the cover and suction hose from the container.
�Empty the container by pouring out.
Disposeoftheeecelterbag
�Switch off vacuum cleaner.
�Disconnect mains plug.
�Wear appropriate breathing mask.
�Remove suction hose.
�Close off intake socket with cap.
�Open side latches.
�Remove top section.
�
�Dispose of gathered material in accordance with legal requirements.
Dispose of the PE emptying and disposal bag
�Set switch to position >AR<.
�
�
�Switch off vacuum cleaner.
�Disconnect mains plug.
�Wear appropriate breathing mask.
�Remove suction hose.
�Close off intake socket with cap.
�Open side latches.
�Carefully close the PE emptying and disposal bag with the enclosed sealing tape.
�
�Carefully remove the PE emptying and disposal bag from the container.
�Dispose of gathered material in accordance with legal requirements.
PAGE 13 | PROMA-X DUST EXTRACTOR
EMPTYING THE CONTAINER
Inserteecelterbag
NOTE
�
NOTE
�Turn the red rotary slide inside to position CLOSE to the stop
on the marker �.
Insert PE emptying and disposal bag*
NOTE
Only vacuum cleaners with dust class L and M with special containers and
rotary slide in the intake socket of types iPulse L and M are suitable for the
use of PE emptying and disposal bags.
NOTE
�Turn the red rotary slide inside to position OPEN to the stop
on the marker �.
�
�Place the upper bag opening over the container rim.
PAGE 14 | PROMA-X DUST EXTRACTOR
CHANGING THE FILTER
Changingthefoldedltercartridges
�
�Turn the lock on the latch through 90° in a counter-clockwise direction with a coin or similar object and push the latch
to the rear.
�Fold up the cover.
�
properly in accordance with the requirements.
�
�Lift the locking bracket up, fold down the cover and click in place with light pressure.
CHANGING THE MOTOR PROTECTION FILTER
NOTE
�
TRANSPORT
�Remove suction hose.
�Close off intake socket with cap.
�
�Close the side latches.
�Place the accessories in a suitable plastic bag and seal the plastic bag or place it in the tool storage compartment.
�Put the suction hose ends together so that no dirt particles leak out.
�Place the hose around the vacuum cleaner and clamp onto the handle.
PAGE 15 | PROMA-X DUST EXTRACTOR
MAINTENANCE
NOTE
Switch off the vacuum cleaner and pull out the mains plug before carrying out any maintenance work.
For maintenance by the user,the vacuum cleaner must be
- dismantled,
- cleaned and
- maintained,
as far as possible without creating any danger to the maintenance personnel or other.
Suitable precautionary measures include:
- Cleaning before dismantling
- Cleaning of the maintenance area
- Suitable personal protection equipment
The outside of the vacuum cleaner should be cleaned by dust extraction procedures and wiped down,or should be treated
distribution.
When carrying out maintenance or repair work, all contaminated items which have not been adequately cleaned,must
be disposed of. Such items must be disposed of in impermeable bags in accordance with the applicable regulations
concerning the disposal of such waste.
Testing the effectiveness of the vacuum cleaner
tightness of the vacuum cleaner,and control mechanisms.
There must be an adequate air exchange rate L in the room if the exhaust air returns to the room.Observe national
cartridges.
PAGE 16 | PROMA-X DUST EXTRACTOR
CLEANING
NOTE
Acids, acetone and solvents can damage parts of the vacuum cleaner.
�Clean container and accessories with water.
�Wipe the top section with a damp cloth.
�Allow the container and accessories to dry.
REPAIR
WARNING
�
Exchange pneumatic connections
Unscrew the external thread and screw on the spare part. Maximum torque 8Nm.
Unscrew the internal thread and screw on the replacement part. Maximum torque 8Nm.
NOTE
TROUBLESHOOTING AND REPAIR
NOTE
Malfunctions cannot always be traced back to defects in the vacuum cleaner.
Fault Cause
Suction power drops Filter dirty Clean
Filter bag full Change
Container full Empty
Clean
Clean
PAGE 17 | PROMA-X DUST EXTRACTOR
TROUBLESHOOTING AND REPAIR
Vacuum cleaner does
not start Mains plug not in socket Plug mains plug into socket
No mains voltage Check fuse
Mains connection cable defective Replace
Cover not properly closed Close
Water sensor switched off Empty container
Vacuum cleaner in standby mode
>AR<
The vacuum cleaner
does not start when
the tool is switched on
in the >AR< mode
Electrical tool not plugged into
socket on the vacuum cleaner Plug mains plug into socket on the vacuum cleaner
Solenoid valve of pneumatic on-off
unit* contaminated Rinse with alcohol
Inlet pressure too low check pressure
PE emptying and
disposal bag is sucked
Incorrect position of rotary slide Set rotary slide to position OPEN �
Vacuum cleaner with
dust class M: with
is accumulating in the
container
Incorrect position of rotary slide Set rotary slide to position CLOSE �
Fill level indicator
lights up
Filter blocked Clean or change
The suction hose is blocked Clean
Container is full Empty
Do not try anything else, contact customer services.
* depending on model
PAGE 18 | PROMA-X DUST EXTRACTOR
GENUINE ACCESSORIES
NOTE
Only use original accessories.
Properties/material
Filter Plus M Class & LClass Polyester material, dust class Mapproved
(Ti15)
Dust Poly Bag Plus (5 pcs.) For vacuum cleaners dust class M - optional
dust class L
Dust Fleece Bag Plus (5 pcs.) For vacuum cleaners dust class M and L
conection 9100860
connection and pneumatic hose 9100850
regardless of hose diameter,for the same
work independently. Length: 16 cm
Set push handle incl.pin plug, for all Kovax
vacuum cleaners.
TECHNICAL DATA
Voltage V
Frequency
Rated power W1400
Max. power at socket outlet W1600
Negative pressure**
Negative pressure***
Noise level dB(A) 69
Weight****
Dimensions (l x w x h)
** at the fan
*** at the hose
**** incl. push handle
PAGE 19 | PROMA-X DUST EXTRACTOR
TESTS AND APPROVALS
NOTE
Old equipment contains valuable materials which are designed for re-processing.The vacuum
cleaners must not be thrown away in the normal household waste,but should be disposed of at a
suitable proper collection system, e. g. via your communal disposal location.
DUST CLASS
.
of dry, non-combustible dusts, non-combustible liquids,
.
PAGE 20 | PROMA-X DUST EXTRACTOR
DECLARATION OF CONFORMITY
Kovax Europe B.V. | 7602 KC Almelo | The Netherlands
We hereby declare that the machine described below complies with the relevant basic safety and health requirements of
the EC Directives, both in its basic design and construction as well as in the version put into circulation by us.
Vacuum cleaner for dry operation
ISP PROMA-X
Requirements of category II
Manufacturer / Supplier:
We reserve the right to make changes to this manual without prior notice.
Place and date of issue Company Willem Mulderij , Managing Director
Table of contents
Other KOVAX Vacuum Cleaner manuals
Popular Vacuum Cleaner manuals by other brands
Craftsman
Craftsman CMXEVBCV1660L instruction manual
Termozeta
Termozeta Pocket 5000 instruction manual
Bosch
Bosch bbhmove6 Instructions for use
Dustcontrol
Dustcontrol DC 2800 EX RVS Original instructions
Bissell
Bissell SPOTCLEAN 2513 Series manual
Panasonic
Panasonic QuickDraw MC-V5340 operating instructions
