KOVAX PROMA-X User manual
INSTRUCTION MANUAL
M-class Art.No.: 910-0810 | L-class Art.No.: 910-0820
INDUSTRIAL ELECTRO-PNEUMATIC DUST EXTRACTOR - M-CLASS & L-CLASS
PAGE 3 | PROMA-X DUST EXTRACTOR

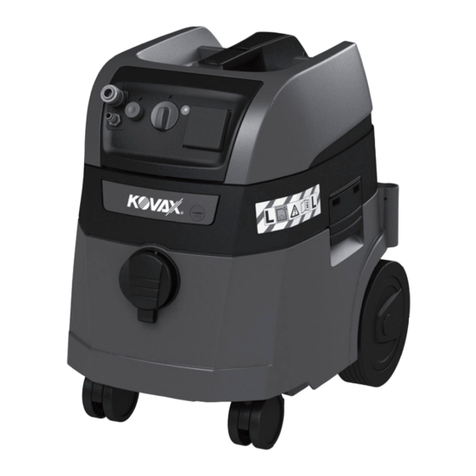

PROMA-X
DUST EXTRACTOR
Industrial Electro-pneumatic Dust Extractor
M-class & L-class
page
OVERVIEW 4
DECLARATION OF CONFORMITY 5
WARNING 6
SPECIFIC USE &
TECHNICAL SPECIFICATIONS 8
GETTING STARTED 9
Power supply 10
Compressed air mains 10
Assembling the swivelling adaptor 10
Electrical tool connections 10
Pneumatic tool connections 11
Preliminary checks 11
MACHINE USE 11
Using the machine in automatic mode (A) 11
Using the machine in manual mode (M) 11
Adjusting the vacuum level 11
Suction hose setting (M-class only) 11
Acoustic alarm (M-class only) 12
Wet vacuum 12
Liquid level indicator 12
MAINTENANCE 12
Service indicator 12
Ordinary operations check 12
Bag replacement 13
Filter replacement 13
Disposal information 13
TROUBLESHOOTING & SOLUTIONS 14
PAGE 4 | PROMA-X DUST EXTRACTOR
OVERVIEW
8
24
16
17
1
2
7
3
12
13
14
15
L-CLASS
1 - VACUUM HEAD
2 - TOOL TRAY
3 - HANDLE
4 - IDENTIFICATION PLATE
5 - COMPRESSED AIR INLET
6 - AIR COUPLING FILTER
7 - POWER CORD
8 - COOLING AIR INLET
9 - COOLING AIR OUTLET
10 - OPERATING AIR OUTLET
11 - HEAD LOCKERS
12 - MAN-0-AUT SWITCH WITH SPEED CONTROL
13 - MOTOR ON INDICATOR
14 - LIQUID LEVEL INDICATOR
15 - SERVICE INDICATOR
16 - ELECTRIC TOOL SOCKET
17 - QUICK COUPLING FOR PNEUMATIC TOOL
18 - PNEUMATIC TOOL CONNECTION
19 - ELECTRIC TOOL HOSE
20 - PNEUMATIC TOOLHOSE (OPTIONAL)
21 - FILTER FRAME
22 - FILTER FRAMES LOCKERS
23 - FILTERS (PAPER OR POLYESTER)
24 - LIQUID LEVEL SENSOR
25 - DUST BIN
26 - ACCESSORIES COMPARTMENT
27 - ANTISTATIC CONNECTION
28 - HOSE NOZZLE
29 - UNIVERSAL SWIVELLING NOZZLE
30 - DUST COLLECTION BAG (PAPER OR PLASTIC)
31 - CASTOR WHEELS WITH LOCK
32 - SUCTION HOSE SETTING (M-CLASS)
33 - RUBBER CAP (M-CLASS)
INSPECTION OF PACKAGE CONTENTS
THE PACKAGE CONTAINS:
- THE MACHINE EQUIPPED WITH POWER CORD;
- 1 VACUUM HOSE (19);
- 1 PAPER DUST BAG (30);
- 1 SWIVELLING NOZZLE + N 2 FRONTWHEELS
+ N 2 RUBBER HOSE CUFFS.
BACK OF THE MACHINE
21
21
22
22
22
30
30
28
28
29
29
31
33
33
25
26
23
8
12
23
23
24
24
16
17
13
32
14
15
1
2
7
3
M-CLASS
20
18
6
4
PAGE 5 | PROMA-X DUST EXTRACTOR
DECLARATION OF CONFORMITY
Kovax Europe B.V. | 7602 KC Almelo | The Netherlands
We declare under our sole responsibility that the products ProMa-X Industrial Electro-pneumatic Dust Extractor M-class
& L-class, to which this declaration relates is in conformity with the Essential Requirements of Safety of the following
:2008; EN 50581: 2012.
Operating instructions include:
Compressed air mains, Assembling the swivelling adaptor,Electrical tool connections, Pneumatic tool connections,
Preliminary checks, Machine use, Using the machine in automatic mode (A), Using the machine in manual mode (M),
only),Wet vacuum, Liquid level indicator,Maintenance, Service indicator,Ordinary operations check, Bag replacement,
Filter replacement, Disposal information,Troubleshooting & Solutions.
Manufacturer / Supplier:
Kovax Europe B.V. - 7602 KC Almelo, The Netherlands
T: +31 (0)53 434 3131 | F: +31 (0)53 430 4900 | www.kovax.eu
We reserve the right to make changes to this manual without prior notice.
Important
Please read these safety and operating instructions carefully before installing, operating or maintaining this tool.
Keep the instruction manual in a safe accessible location.
Required personal safety equipment
Please read and comply with
- The Safety Data Sheets (SDS).Contact the suppliers for copies of the material SDS's.
- General Industry Safety & Health Regulations.State and local regulations.
Almelo, 28.07.2017
Place and date of issue Company Willem Mulderij , Managing Director
Read operator's manual
Wear ear protection
Wear safety glasses
Wear safety gloves
Wear face mask
PAGE 6 | PROMA-X DUST EXTRACTOR
WARNING
WARNING
- Save all warnings and instructions for future reference.The term “power tool” in the warnings refers to your
mains-operated (corded) power tool or battery-operated (cordless) power tool.
- Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric
- Read the Safety Data Sheet (SDS) for the work piece or abrasive materials.Contact the suppliers for a copy of the SDS.
- Before use, users should be provided with information, instruction and training for the use of the appliance and the
pollutant it is used for, including the right method for the safe removal and disposal of the substances collected.
- Keep work area clean and well lit. Cluttered or dark areas invite accidents.
- It is necessary to provide an adequate air change rate in the room if the exhaust air is returned in the room. Reference to
National Regulations is necessary.
Power tools create sparks which may ignite the dust or fumes.
- Do not expose power tools to rain or wet conditions.Water entering a power tool will increase the risk of electric shock.
- The temperature of the work area must be between 10°C and 35°C with humidity between 50% and 90%.
- The surface on which the machine rests must not exceed a maximum 10-degree gradient.
- When operating a power tool in a damp location, use a residual current device (RCD) protected supply. Use of an
RCD reduces the risk of electric shock.
- Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
- Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with
- Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators.There is
an increased risk of electric shock if your body is earthed or grounded.
- The electrical safety of the tool is granted only by using original Kovax parts.
- Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from
heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
- In the event of a blackout,turn the tool switch in OFF position to avoid accidental start when power comes back.
- When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for
outdoor use reduces the risk of electric shock.
- Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power
operating power tools may result in serious personal injury.
standards while using this tool.
PAGE 7 | PROMA-X DUST EXTRACTOR
- Do not wear loose clothing or jewellery. Keep hair, clothing and gloves away from suction parts. Loose clothes, jewellery or
long hair can get caught in suction parts.
arm injury may result from repetitive work, motion and overexposure to vibrations.
- Prevent unintentional starting. Ensure the switch is in the off mode before connecting to power source, picking up
switch on invites accidents.
- Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with
the switch is dangerous and must be repaired.
- Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job
better and safer at the rate for which it was designed.
- Do not lift and transport the machine by the handle with a lifting device.
- Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or
these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
- Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other
condition that may effect the power tool’s operation. If damaged, have the power tool repaired before use. Many
accidents are caused by poorly maintained power tools.
- Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the
working conditions and the work to be performed. Use of the power tool for operations different from those intended
could result in a hazardous situation.
- Immediately disconnect the vacuum from the electrical mains if dust is ejected from air outlet.
- Immediately disconnect the machine from the power supply if you notice the presence of foam or liquid leaking during
the vacuuming of liquid.
DO NOT VACUUM THE FOLLOWING MATERIALS
- Flammable or explosive dust (i.e. magnesium, aluminium,etc.).
- Sanding dust from surfaces treated with paints that have not completed the catalyst cycle.
- Sparks or white hot shavings.
- Flammable or explosive liquids (i.e. petrol, thinners,etc.).
- Aggressive liquids or substances (i.e. acids , bases, solvents,etc.).
ADDITIONAL SAFETY WARNINGS
- All maintenance must be carried out by trained personnel. For service, contact your Kovax Dealer.
WARNING
PAGE 8 | PROMA-X DUST EXTRACTOR
SPECIFIC USE & TECHNICAL SPECIFICATIONS
- This appliance is suitable for heavy duty and industrial operations in accordance with EN60335-1 and EN60335-2-69.
- This appliance is suitable for liquids suctions.
L-Class
Separation of dusts with OEL (occupational exposure limit) values > 1 mg/m³,
(dust class L - light dust HAZARD). Please observe regulations valid in your country.
M-Class
Separation of dusts with OEL values > 0.1 mg/m³ and wood dusts. (dust class M -
medium dust HAZARD). Please observe regulations valid in your country.
TECHNICAL SPECIFICATIONS
OPERATING VOLTAGE AND FREQUENCY
POWER 1200 W
POWER AT SOCKET (MAX) EU 2400 W
TOTAL POWER (MAX) EU 3600 W
AIR CAPACITY EN 60335-2-69 165 M3
VACUUM LEVEL 215 HPA
WEIGHT 13,5 KG
DIMENSIONS 47 X 45 X 63,5 CM
CLASS OF PROTECTION IP X 4
NOISE LEVEL EN 60704-3 73 DB (A)
FILTERS SURFACES 2 X 0,50 M2
CAPACITY OF DUST COLLECTION BAG MAX 5 KG
CONTAINER CAPACITY 45 L
POWER CONTROL SWITCH MAN - O - AUT
PNEUMATIC SECTION YES
INLET AIR PRESSURE 6 BAR
MAX COMPRESSED AIR FLOW
INLET FITTING
PAGE 9 | PROMA-X DUST EXTRACTOR
GETTING STARTED

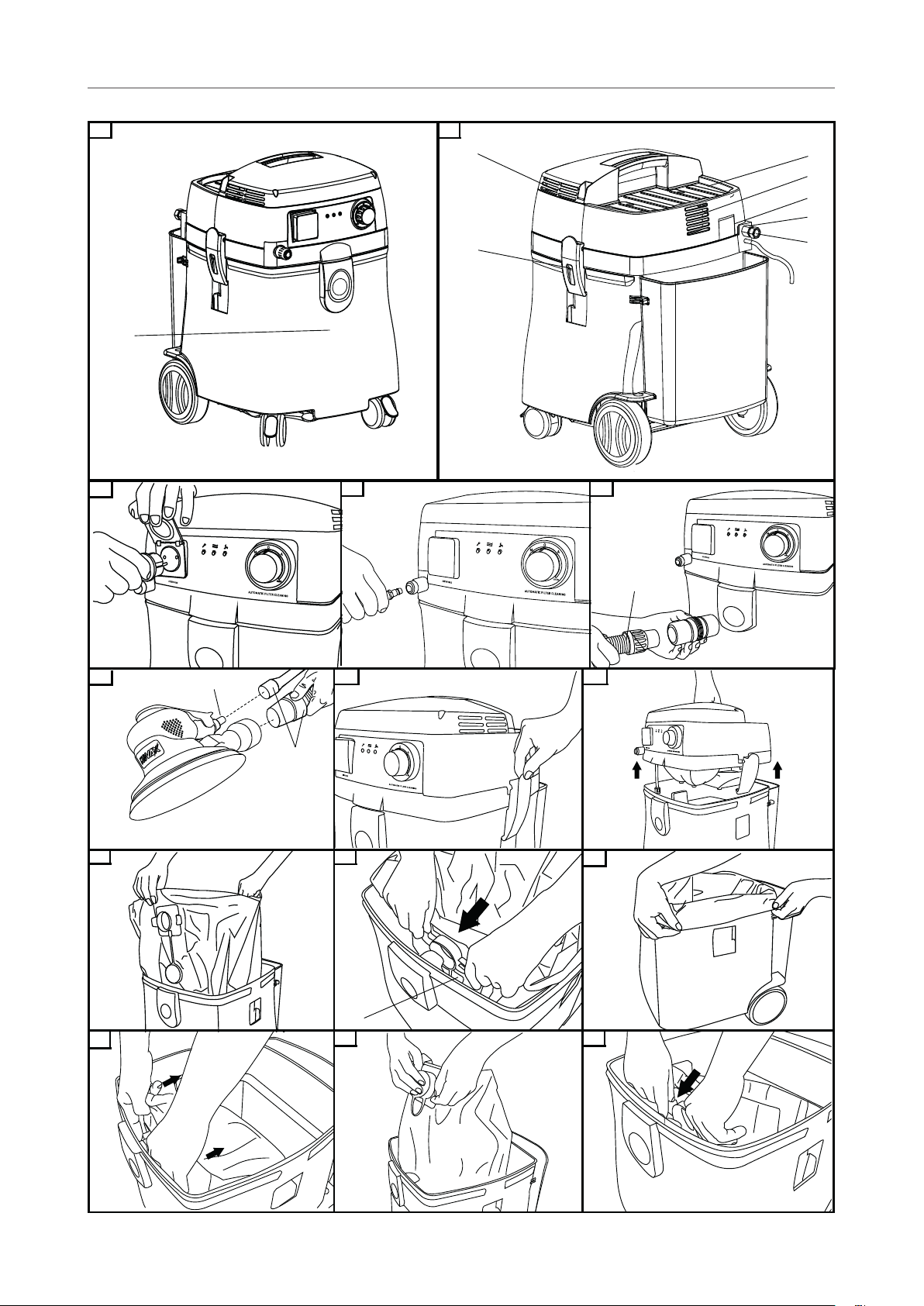

21
4
3
5
19
25
4
10
2
9
5
6
11
7
20
007 008
6
9
10 11
12
13
14
15
16
17
18
19 20
21 22
20a
23
8
18
27
6
4
32
33
7
PAGE 10 | PROMA-X DUST EXTRACTOR
GETTING STARTED
7
20
007 008
6
9
10 11
12
13
14
15
16
17
18
19 20
21 22
20a
23
8
18
27
6
4
32
33
7
Power supply
- Turn the main switch (12) to “O” (off) before connecting this appliance to the supply mains;
- connect to power socket outlets provided with earth conductor and adequate protections.
Compressed air mains
- Do not exceed 6 bar;
- connect the appliance to the compressed air main with an hose suitable for the air pressure and int. diam. 10 mm min.
Assembling the swivelling adaptor (29)
Insert the adaptor in the inlet nozzle (28).
Electrical tool connections
- Check for the tool switch turned off before connecting it to the front panel socket outlet.

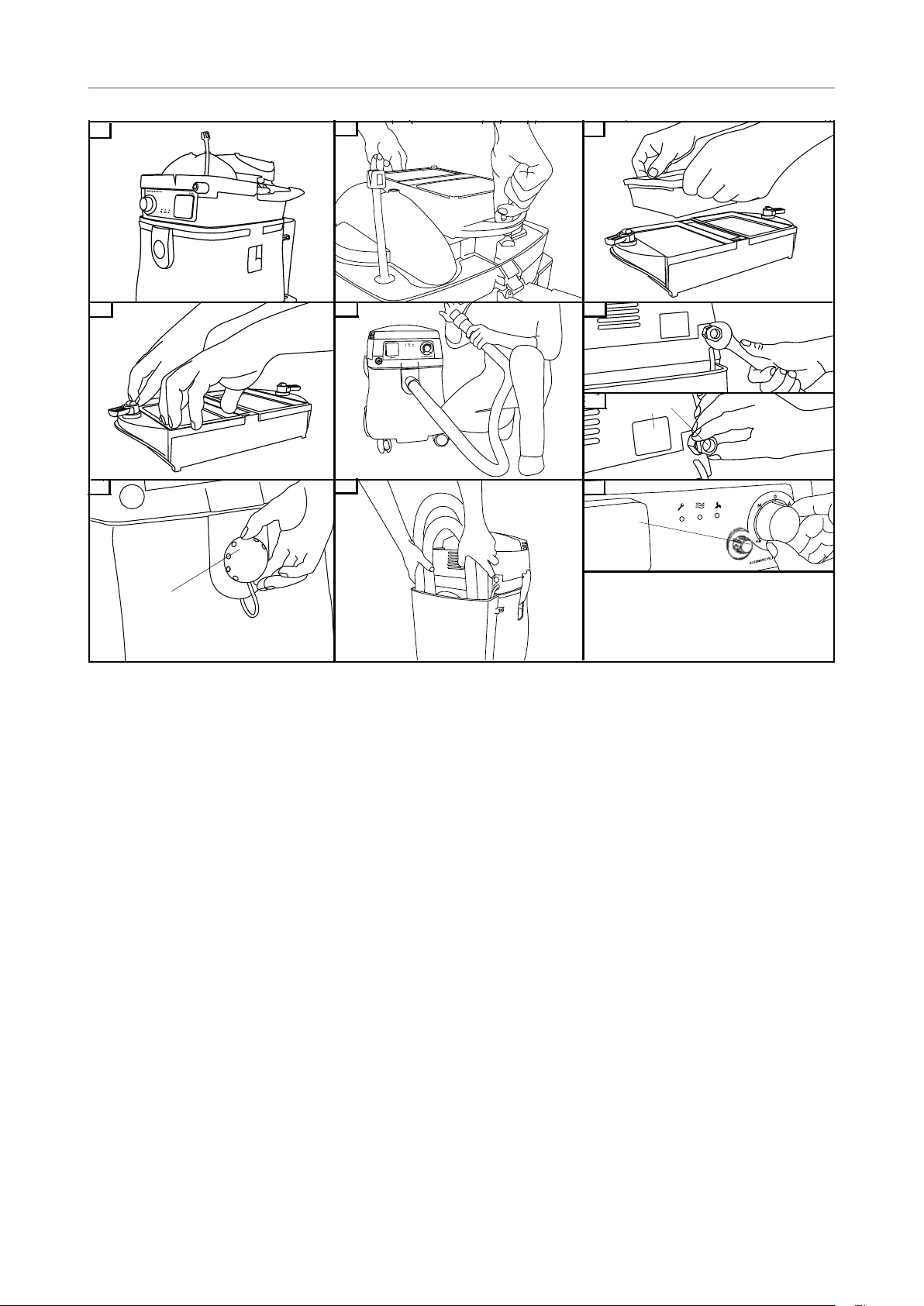

- Insert the tool plug into the front panel socket (16) (pic.3).
- Connect the tool to the swivelling nozzle with the hose (19) (pic.5).
- Do not plug electric tools exceeding the power indicated on the front panel.
M-class
Hose setting: 38
PAGE 11 | PROMA-X DUST EXTRACTOR
Pneumatic tool connections
- Check for the tool switch turned off before connecting it to the front panel quick coupling.
- Connect the tool to the appliance with the quick couplings (17) (pic.4) and (18) (pic. 6).
- Connect the coaxial hose (optional) to the quick coupling (20) (pic.6).
Preliminary checks
- Check the tool functioning as indicated on their instructions manual.
on the head.
- Check that there are no leaks in the compressed air supply system.
Machine use
The machine can operate in manual or automatic mode: to select the mode,turn the switch (12) to the right (automatic
mode) or to the left (manual mode) (pic.23).The green indicator (13) turns on when the vacuum motor starts.
Using the machine in automatic mode (A)
Automatic operations mean that the vacuum starts when an electrical or pneumatic tool is turned on.The vacuum will
automatically turn off eight seconds after the tool is turned off.
Using the machine in manual mode (M)
Manual operations mean that the vacuum runs continuously.Power on the front panel outlet socket is permanently active
during manual running.
Adjusting the vacuum level
The vacuum level can be adjusted in both operating modes by turning the knob (12) towards the "min" position until the
desired power is reached.
It is also possible to perform a complete cleaning cycle as follows (pic.19):
- switch the machine off;
- cap the vacuum sleeve;
- restart the machine keeping the sleeve capped for 15 seconds.
Suction hose setting (M-class only)
For operator’s safety the appliance for M-class dust are provided with an indicator which operates in case of the air
panel throttle (32) (pic. 23). Always use genuine Kovax hoses.
GETTING STARTED & MACHINE USE
PAGE 12 | PROMA-X DUST EXTRACTOR
MACHINE USE & MAINTENANCE
Acoustic alarm (M-class only)
In case of acoustic alarm on locate the causes (C.) and redress (R.) it with the action recommended in the following procedure:
C: Power set-up too low;
R: Increase the suction power;
C: The hose diameter doesn’t match with the hose set-up on the front panel;
R: Set the hose diameter knob (32) on the right diameter;
C: Clogged or bended hose;
R: Check and set straight the hose;
C: Dust bag full;
R: See dust bag “REPLACEMENT SECTION”;
Wet vacuum
Liquid level indicator
The vacuum motor stops and the liquid level indicator (14) turns on when the liquid sensor (24) detects the bin (25)
full. Empty the bin to reset (25).
Service indicator (15)
The indicator turns on for scheduled service to keep the machine working conditions.When warning light is on
contact Kovax to check and service the appliance and reset the warning light. The prolonged use of the vacuum
cleaner with the warning light on can cause more maintenance operation.
Ordinary operations check
- Check the vacuum hose conditions.
- Clean the liquid level sensor (24).
- Check the power cord, plug and outlet socket conditions: in case contact Kovax for replacement.
PAGE 13 | PROMA-X DUST EXTRACTOR
MAINTENANCE
Bag replacement
- Wear an adequate dust mask.
- Detach the vacuum head pushing the side hooks (11) and remove the vacuum head (1) (pic. 7-8).
Paper bag:
- M-class: seal the dust container with the appropriate cap (33).
- Remove the full bag closing the nozzle with the cap provided (pic. 12 and 13).
- Put the new bag inserting the nozzle as illustrated (pic. 14).
Plastic bag:
- Remove the full plastic bag (pic. 9).
- Place the new bag, verifying that the nozzle is positioned on the inlet (pic. 10).
- Turn the bag edge as shown (pic. 11); make sure to keep the compensation holes inside the bin.
Filter replacement
- M-class: seal the dust container with the appropriate cap (33).
- detach the vacuum head pushing the side hooks (11) (pic.7-8).
- turn the vacuum head upside down (pic.15).
Kovax Europe B.V. will not be held responsible for direct or indirect damages resulting from non-compliance with the
requirements of this manual.
Disposal
For EC countries only: According to the European Directive on Waste from electrical and electronic equipment and its
implementation in conformity with national standards, exhausted electrical equipment must be collected separately,
in order to be recycled in an environmentally friendly way. The product, when it reaches the end of its life, must not be
dispersed in the environment or thrown away as household waste. It must be disposed at authorized recycling centres
(contact your local authorities to know where to dispose of the product according to the law).The correct disposal of the
product contributes to the health and preservation of the environment. Illegal disposal of the product will entail
penalties against the offenders.
PAGE 14 | PROMA-X DUST EXTRACTOR
TROUBLESHOOTING & SOLUTIONS
EFFECTS
CAUSES
SOLUTIONS
The motor will not start
No power
Make sure the unit is plugged in
Power cord, switch or motor defective
Contact Kovax
The vacuum does not start automatically
Electronic module
Contact Kovax
Bag full
One of the hoses or accessories is clogged
Dust from the exhaust (10)
Filter cartridge torn ripped
Contact Kovax
Tools do not start
3-way switch malfunction
Contact Kovax
Check air passage
Red indicator on
Ordinary maintenance limit exceeded
Contact Kovax
Yellow indicator on
Max. liquid level exceeded
Empty the bin
Kovax Europe B.V.
7602 KC Almelo
The Netherlands
www.kovax.eu
This manual suits for next models
2
Table of contents
Other KOVAX Vacuum Cleaner manuals
Popular Vacuum Cleaner manuals by other brands
Craftsman
Craftsman CMXEVBCV1660L instruction manual
Termozeta
Termozeta Pocket 5000 instruction manual
Bosch
Bosch bbhmove6 Instructions for use
Dustcontrol
Dustcontrol DC 2800 EX RVS Original instructions
Bissell
Bissell SPOTCLEAN 2513 Series manual
Panasonic
Panasonic QuickDraw MC-V5340 operating instructions
