Koy 04-K71 User manual

PRODUCT MANUAL
Model
04-K71

01
02
02
03
04
05
05
06
07~12
13~15
16~17
18
19
19
19
20
20
Dear Users,
Thanks for purchasing our products.In order to use these products safety
and effectively, please read this manual carefully before use.
We reserve the right to improve our products.
This is a currenty manual,with standard as
0
1
Content
Content
Content
Preparation
Part list
KY0718AA
KY0715CA
KY0713AA
Parameter
parts drawing
Installation drawing
KY0718AA
KY0715CA
KY0713AA
Warning
Usage Notice
Reminder
Maintainance
Trouble Shooting
Install Electricity box
Installation
Operation instruction
Aftersales service

2
0
Preparation
Part list
3m
Tape Measure
8mm
Hexagon Wrench
Tool
5*60
9pcs
4*35
18pcs
4*18
14pcs
4*12
10pcs
8*45
2pcs
Heater underlay
4pcs
Ø10
3pcs
Wire fixer Ø8 Wire fixer
7pcs
Decorated
washer
2pcs
Decorated
screw cap
2pcs
Screwdriver
Suggest using power screwdriver
Preparation Part list
Flat nail
8pcs
Axes
seat
1pcs
Axes
cover
2pcs
1.Check the Qty of components according to packinglist or parts list.
2.Check the Qty of materials according to parts list.
3.Check if there is damage on the surface of product components or not.
4.A grounded outlet needed as recommend to use at least 16A with a fuse
of the leakage protection switch.
5.A professional personnel or electricians is needed when installing
electrical components.
If can not satisfy above conditions, please stop installing immediately and
contact the dealer.
4*25
4pcs

0
3

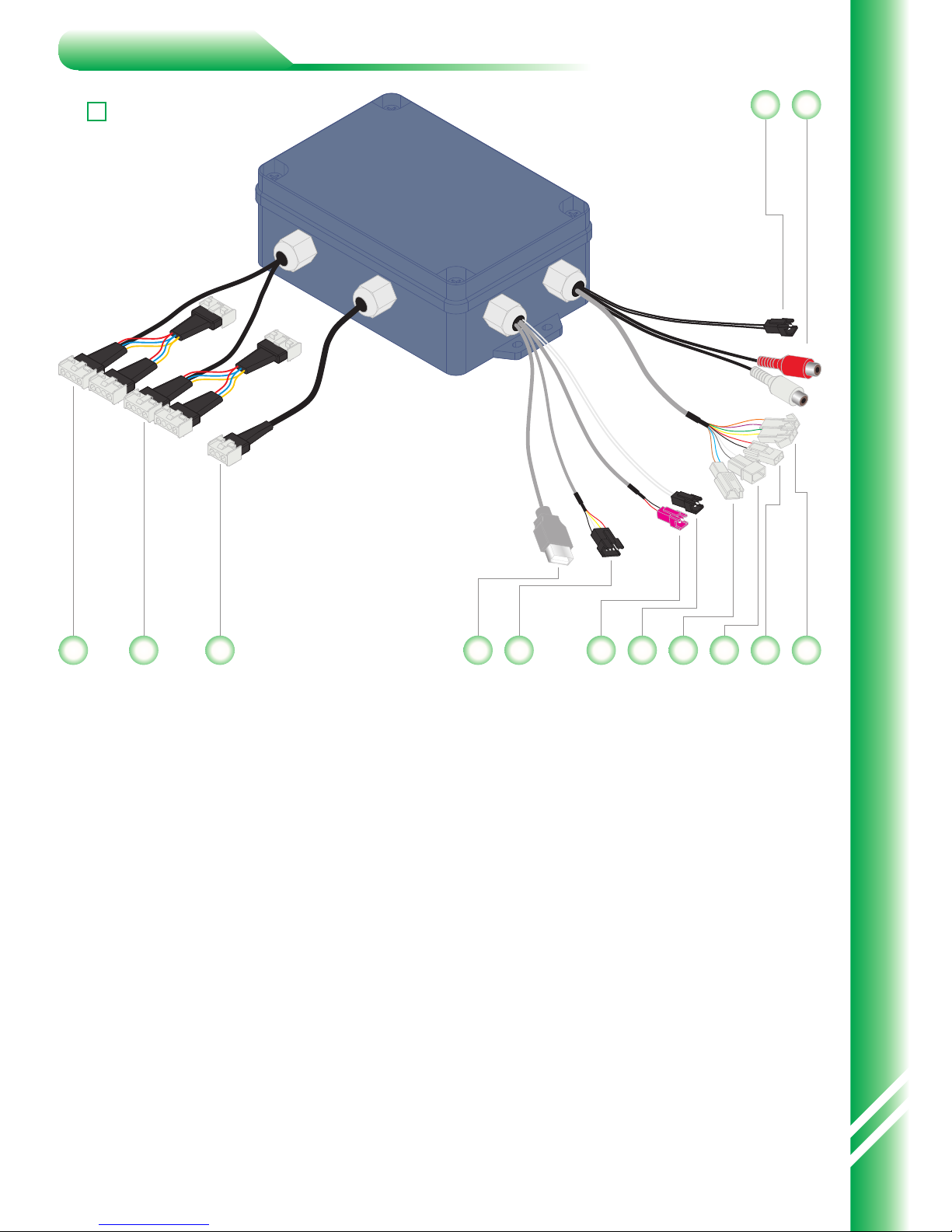

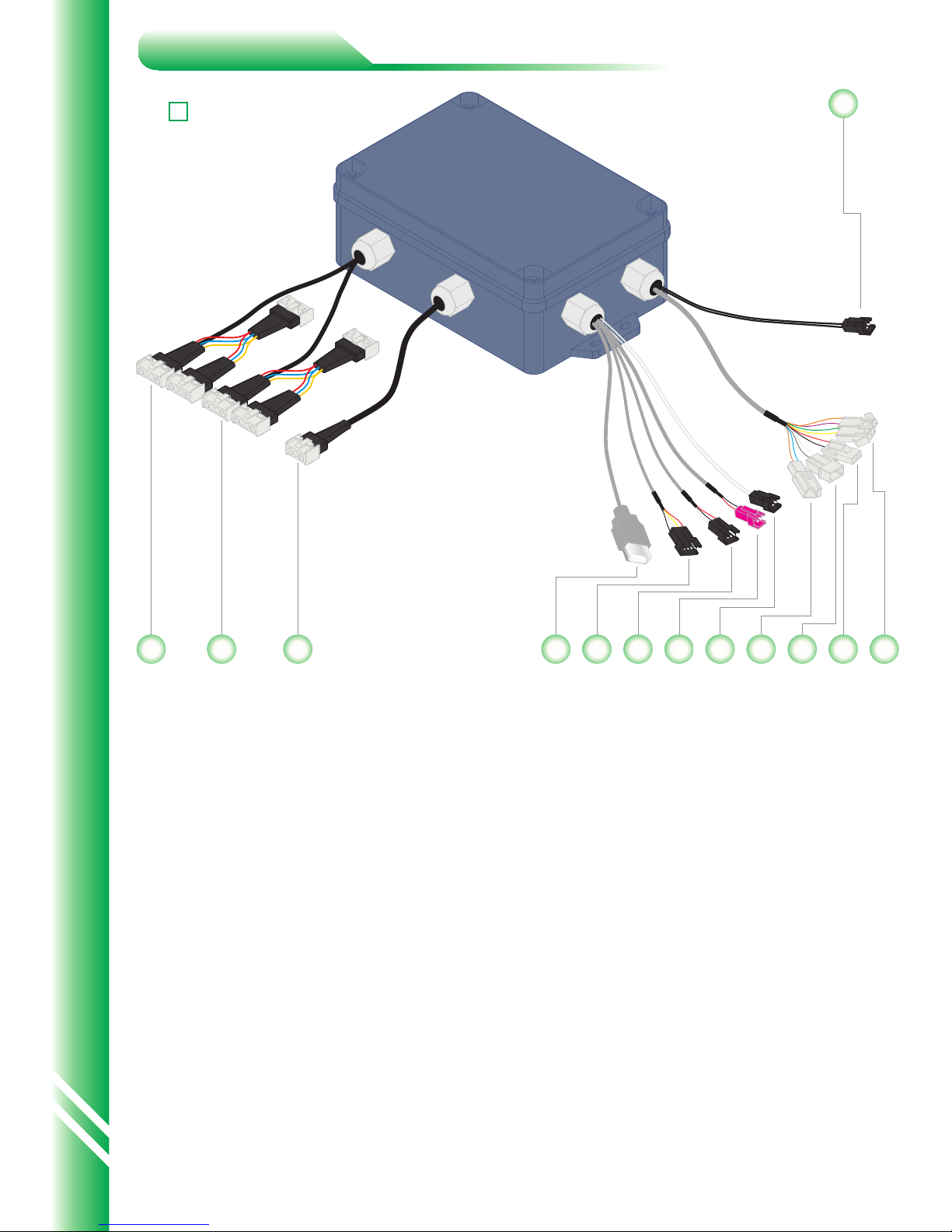

01.[Group A]Connect back heater and leg heater normally.
02.[Gprou B]Connect front heater and side heater normally.
03.[Main power supply]；
04.[USB input]for U disk or memory card
05.[4P Signal wire]To get signal for control panel
06.[3PSignal wire]To get signal for external CD/MP3
07.[Temperature controller wire]To connect the back thermostat
08.[Antenna]；
09.[/]；
10.[Colour wire]With wiring,connecting roof lamp
11.[Fan wire]With wiring,connecting fan
12.[Speaker wire]With wiring,left and right channels,connecting speaker
13.[Temperature protector wire]To connect the temperature protector in the
cabin ,not able to work if cut the connection.
KY0718AA
01 02 03 07 08 09 10 11 12060504
13
Install Electricity box

4
0
01.[Group A]Connect back heater and leg heater normally.
02.[Gprou B]Connect front heater and side heater normally.
03.[Main power supply]；
04.[USB input]for U disk or memory card
05.[4P Signal wire]To get signal for control panel
06.[Temperature controller wire]To connect the back thermostat
07.[Antenna]；
08.[/]；
09.[Colour wire]With wiring,connecting roof lamp
10.[Fan wire]With wiring,connecting fan
11.[Speaker wire]With wiring,left and right channels,connecting speaker
12.[Temperature protector wire]To connect the temperature protector in the
cabin ,not able to work if cut the connection.
13.[Audio wire]Connect external CD
KY0715CA
01 02 03 0504
1213
07 08 09 10 1106
Install Electricity box

0
5

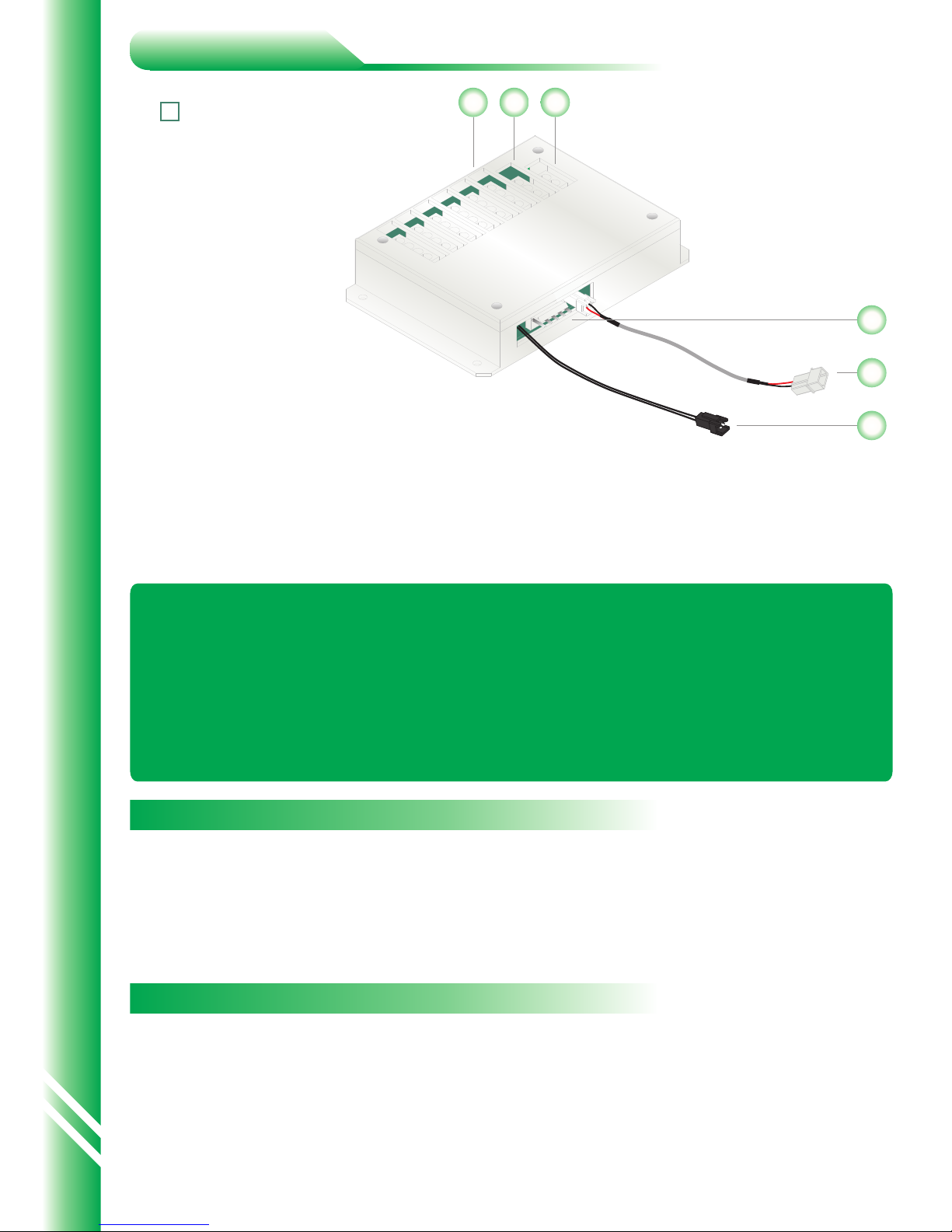

KY0713AA
01.[ ];
02.[Main power outlet];
03.[/];
04.[Colour wire]With wiring,connecting roof lamp;
05.[5PSignal wire socket]To getting signal on the control panel,not able to
work if cut the connection;
06.[Temperature protector wire]To connect the temperature protector in the
cabin ,not able to work if cut the connection.
Infrared power outlet
Technology parameters
Load parameter
Rated Voltage：AC230V
Rated Power：2220W
Rated Current：10A
Rated frequency ：50~60HZ
Insulated Resistance：>20MΩ
Back/Leg heater：AC230V/300W
Side heater：AC230V/500W
Fan：DC12V/5W
Color Light：DC12V/5W
Speaker：8Ω/10W
The plug of Electric box and the load have the different shape, and with
corresponding identification stickers for the line-side, please connect them
strictly.
All electrical boxes are fixed by ST4*25 screws and intalled at the underside
of the seat in the correct place.Scattered wires are fixed by ST4*12 screws.
06
04
05
030201
Install Electricity box

6
0

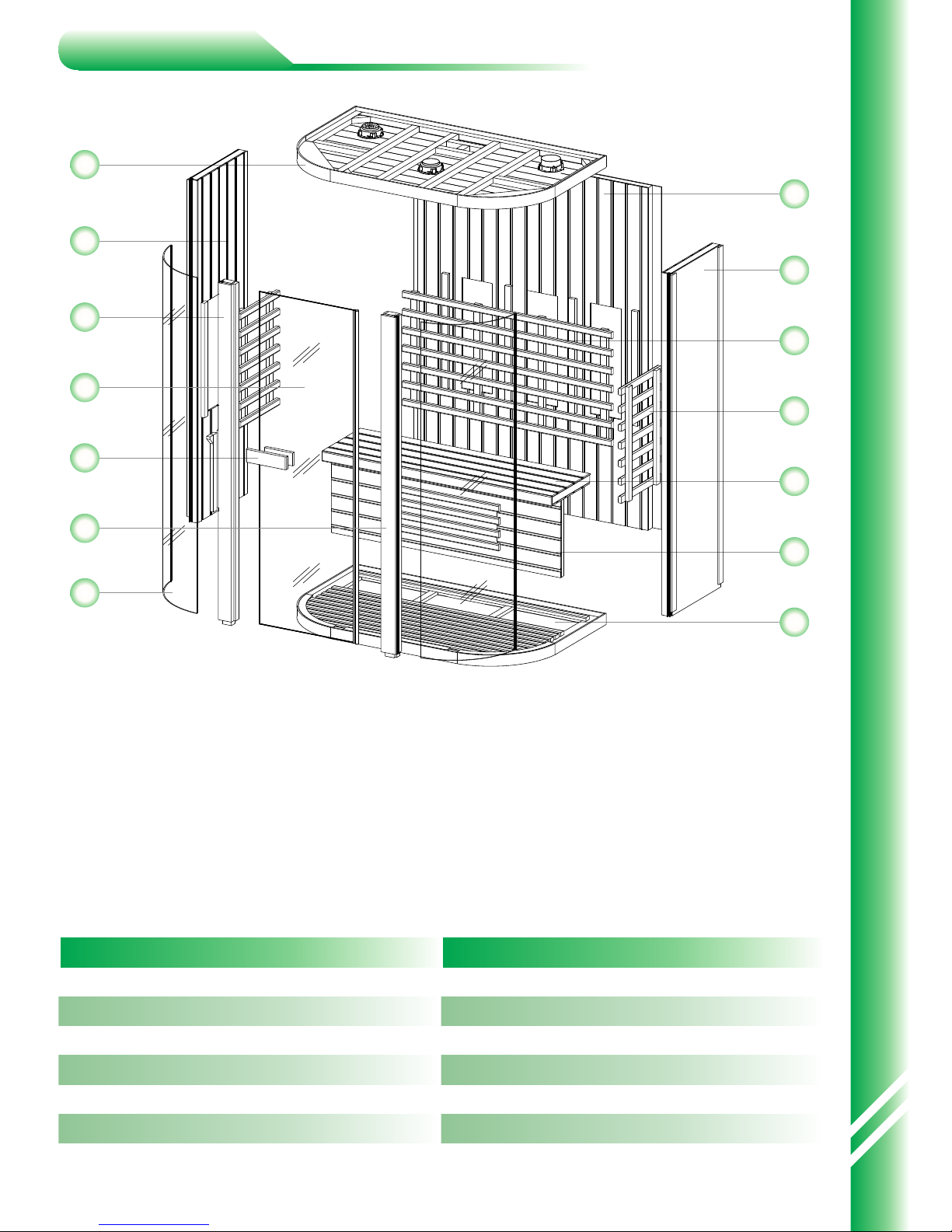

Parts drawing
No. Parts name Qty
1Back board
left side board
Right side board
Right pillar
Top board
Model Size：
1500*1000*1980mm
2
3
4
5
6
1
1
1
1
1
1
No. Parts name Qty
8Seat rack
Seat board
Back protective barrier
Side protective barrier
Glass window
Glass door
9
10
11
12
13
1
1
1
2
2
1
Parts drawing
01
10
07
06
02
04
09
11
03
14
08
05
12
13
Floor
71Handle
14 1
Left pillar

0
7
Step Material Qty
Screw
Size
ST4*18mm
Step 1
Step 2
Heater underlay
1
2
1
Flat nail
4
4
4
Installation drawing

8
0

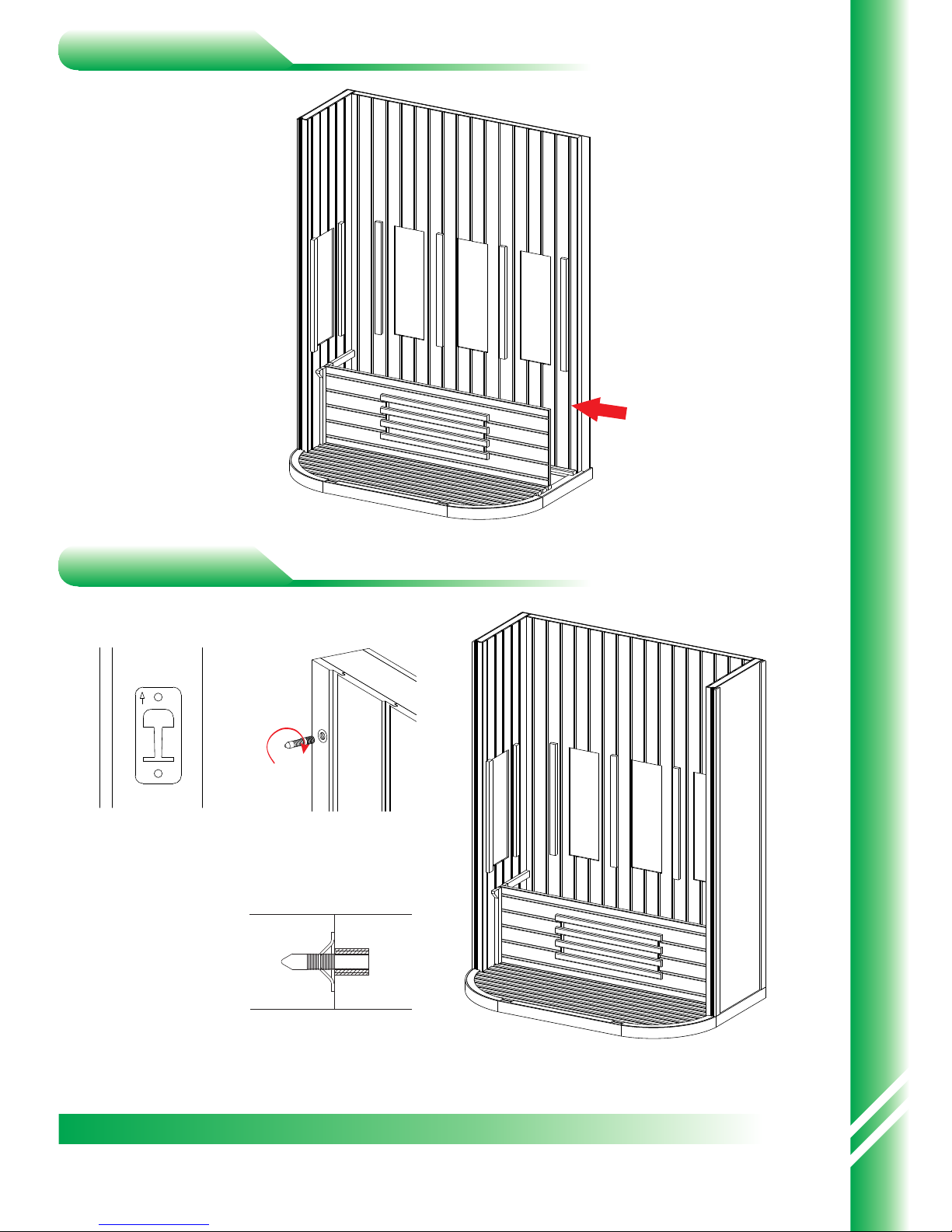

Step 3
Step 4
Step Material Qty
Flat nail
Size
44
Installation drawing

0
9
Step 5
Step 6
Step Material Qty
Screw
Size
ST4*35mm
616
Installation drawing

0
1
Step 7
Installation drawing
Step Material Qty
Screw
Size
ST4*18mm

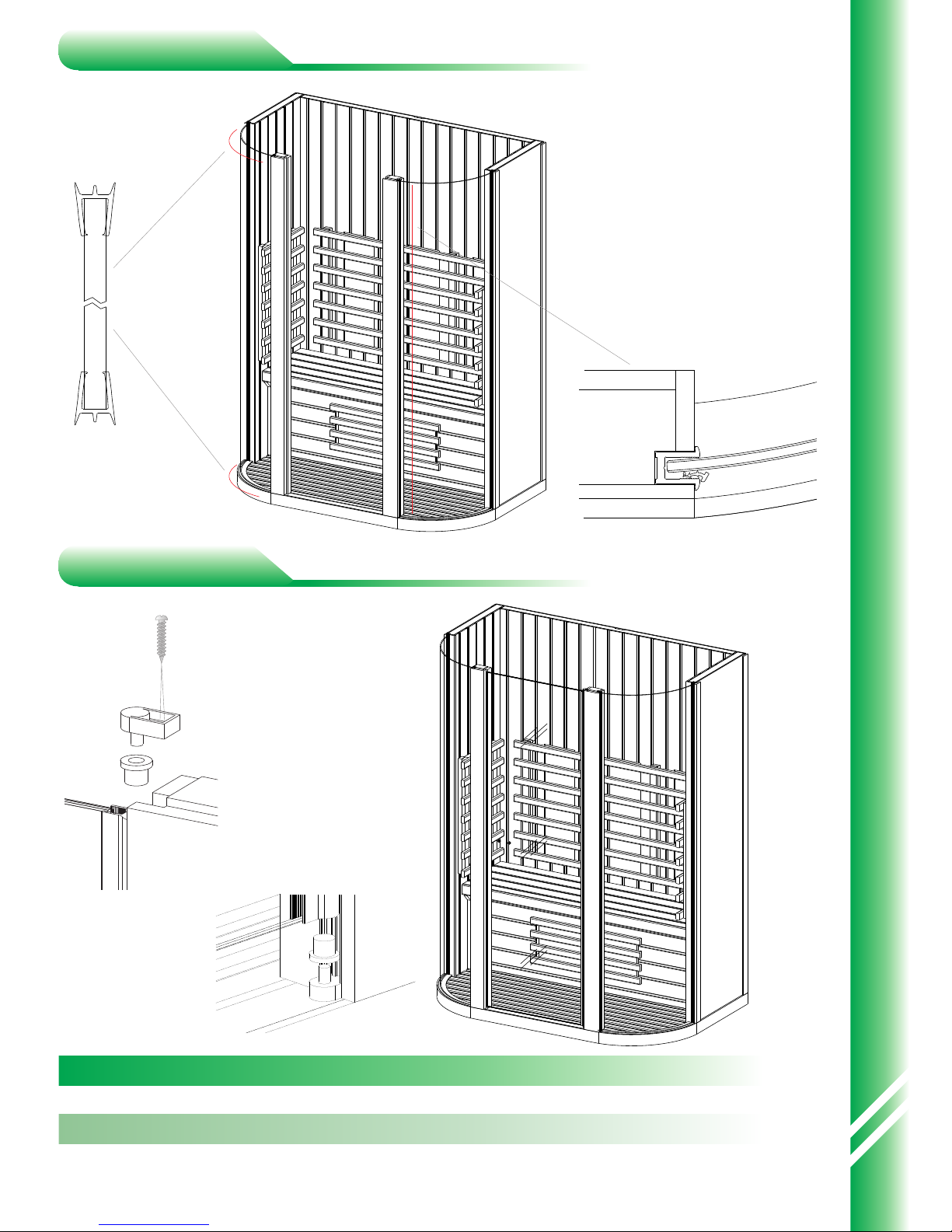

Step 8
Axes seat
8
8
8
Axes cover
1
2
2

1
1
Step 9
Step Material Qty
Screw
Size
ST5*70mm
97
Installation drawing

2
1
Step 10
Installation drawing
Step Material QtySize
Screw ST4*35mm
Decorated screw cap
10
10
10
Decorated washer 2
2
2
Screw M8*45mm
10 2

1
3

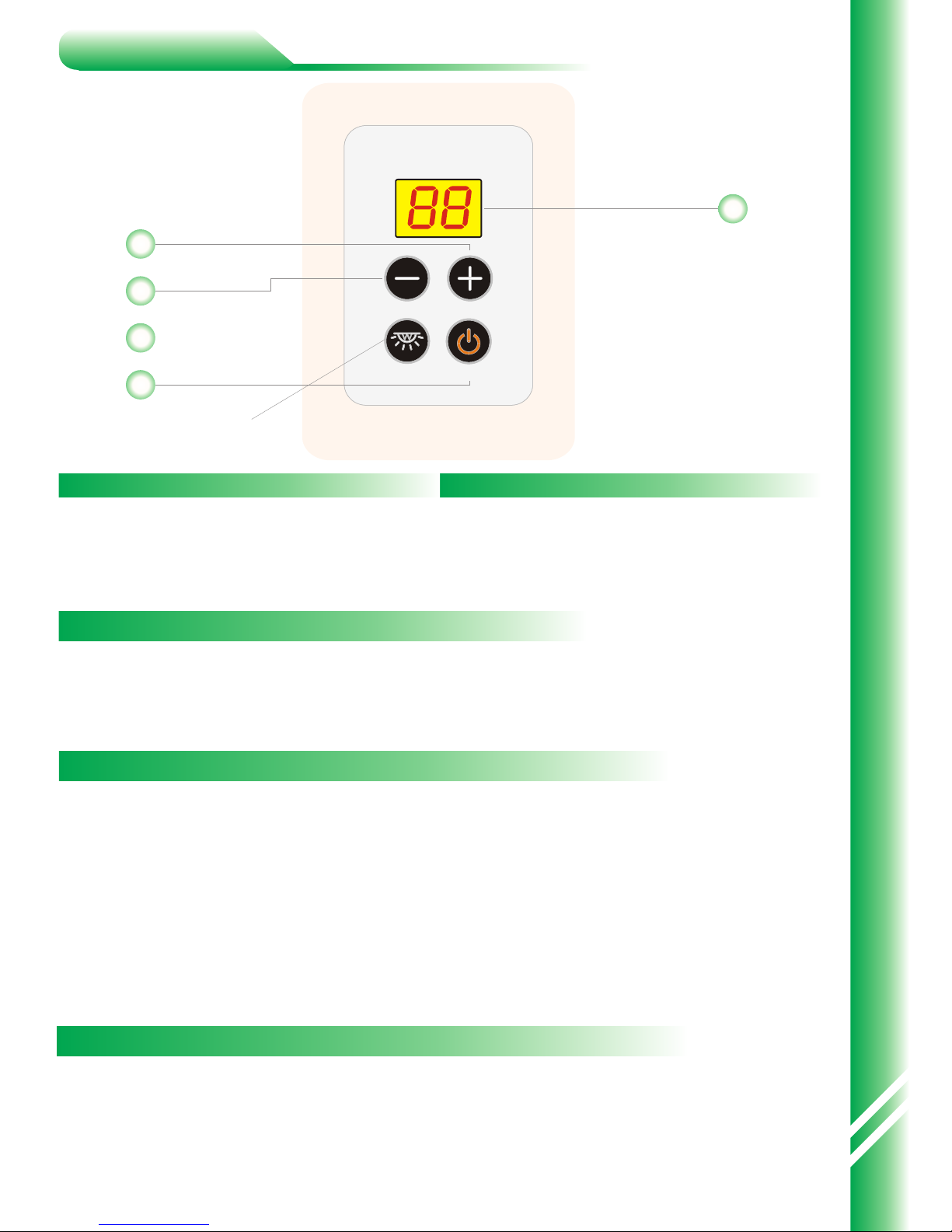

Operation instruction

4
1
Under power on condition,the indicator light of power will be twinkling,and
then press it will be turned on.The multi-color,the carbon fiber heater,and the
far infrared heater will be turn on at the same time.The display show 45℃
temperature for 5 seconds, if there's no any operation, 5 seconds later it will
renew to the temperature of nature.The setted time when it turn on is 30
minutes, at the same time,the indicator light will turn on.Press again, it will
turn off and turn off all of the function and display
Press infrared sauna group A/B to start infrared sauna fuction.
Press infrared sauna key the first time with 100% power,
Second time power90%,
Third time power80%,
Fourth time power70%,
While fifth time to close it.
Under turn on condition,press time+ / time- ,the time will be downwards or
upwards 1 minute,press the key about 1 second,it will be automatically
quickly adjusting.The scale of time adjusting is 01-99 minutes.
Under turn on condition,press temperature+/temperature-,the time will be
downwards or upwards 1℃,press the key about 1 second,it will be quickly
adjusting automatically.The scale of temperature adjusting is 35～
60℃.When the temperature inside reach to the setted temperature,the
system will adjust the power into 70%.When temperature inside is 2℃ lower
than the setted temperature,the system will adjust the power into 100%
power.
Press color light key to adjust the color lamp by hand.It works circularly from
white/green/yellow/blue/red/turn off.Top lamp is controled by the key
within15minutes after shut down the control panel. Once turn on power,white
is acquiescence.
1.Turn on/Turn off
2. Infrared sauna
3.Time/Temperature setting
4.Multi-color top lamp
Operation instruction

1
5
Under power on condition,press fan key to turn on it and then the indicator
light of "HAND" will be light.Press fan key again,the indicator l ight of "HAND"
will be turn off and the same time turn on the "AUTO"function.The indicator l
ight of "AUTO" will be l ight.After the temperature inside the cabinreach to the
setted temperature,the fan will be turn on automatically.When the
temperature inside is 2℃ lower thanthe setted temperature,the fan will be
turn off automatically.
Under power on condition,press FM key to turn on radio.The setted frequency
is the frequency you turn off last time,at the same time the frequency will be
shown on the display for 5seconds,then the temperature will be shown on the
display and the indicator light of frequency will be turn off.Press FM
again,the radio will be turn off.The display show "OFF" world for 10 seconds ;
The scale of frequency is 87.5-108MHZ。
Adjust the frequency under radio on ,press FM+ /FM- to adjust the
frequency.Press one time the frequency will be downwards or upwards
0.1MHZ.Press FM+ / FM- about 2 seconds ,the system will search the
frequency automatically until find a clearly frequency, and then play the
frequency searched.
Under power on condition,input CD/MP3.Press CD/MP3 key to turn on
CD/MP3 function. On the display, it will shown cd on it.Press again to display
MP3,press it the third time to turn off then show OFF on the display.
Under condition of turn on radio or CD/MP3,the setted volume is 8.Press
key+ or key- ,the volume will be downwards or upwards "1" each time.Press
key+ or key- about 1second,it will be automatically quickly adjusting.The
scale of volume is 0～12.
5.Fan function
6.FM function
7.CD/MP3 input
8.Volume adjust
Operation instruction

6
1

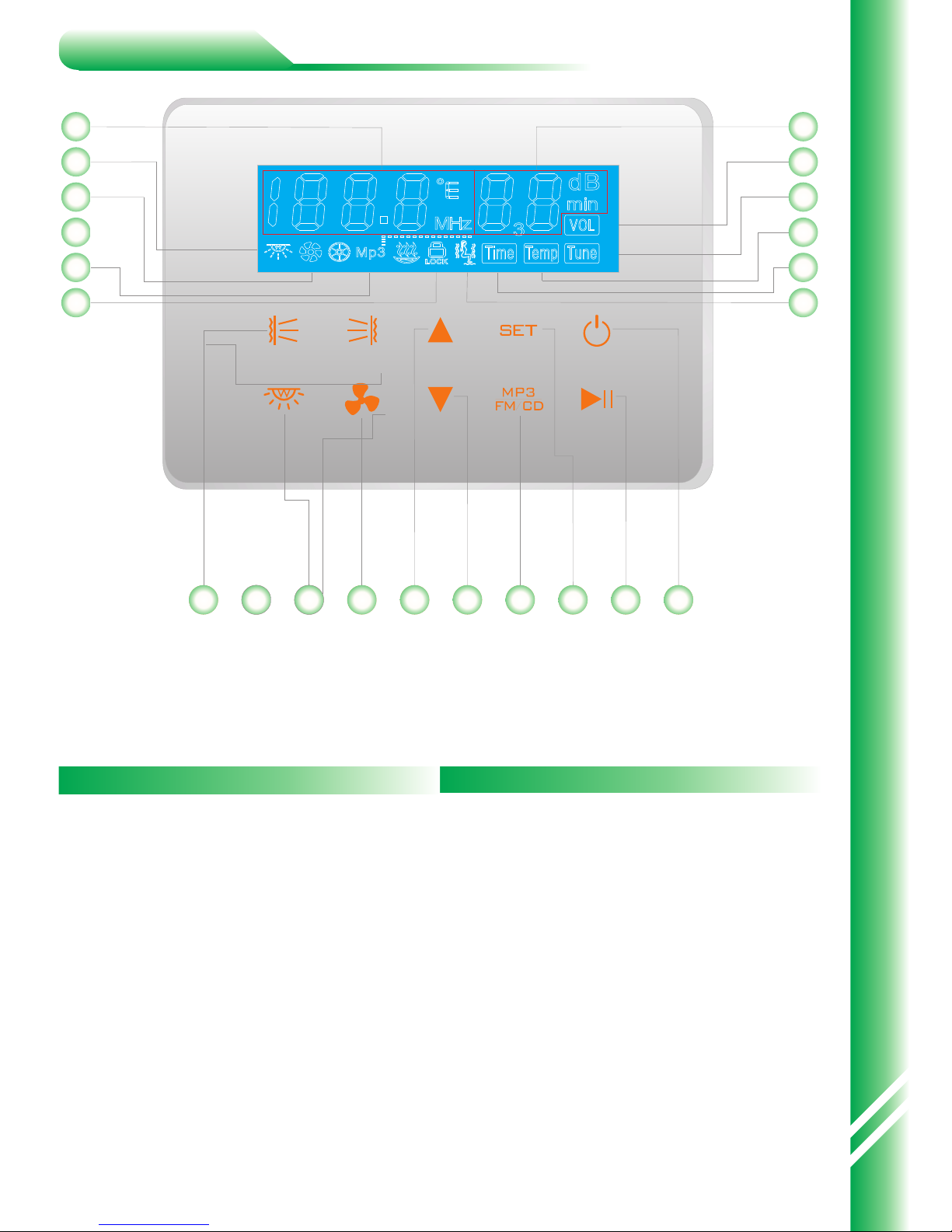

KY0715CA
Key
01.[Infrared sauna group A]；
02.[Infrared sauna group B]；
03.[Colour light]；
04.[Fan]；
05.[Key+]；
06.[Key-]；
07.[CD/MP3/FM]；
08.[Menu]；
09.[Play/Pause]；
10.[Power on/off].
Screen
A.[Temp/FM]；
B.[Colour light]；
C.[Fan]；
D.[CD]；
E.[MP3]；
F.[Lock]；
G.[Volume/time]；
H.[Volume setting；
I.[FM/MP3 setting]；
J.[Temp setting]；
K.[Time setting]；
L.[Infrared sauna].
01
G
H
I
J
K
L
A
C
D
E
F
01 01 02 01 03 01 04 01 05 01 06 01 07 01 08 01 09 01 10
B
Operation instruction

1
7
On: Press the key is about 1 second to start it.
Off: Press power on/off key about 2 seconds to turn off
Touch infrared sauna key group A/B key to start it and it will show its icon.
Touch again to turn off them. When reaches setting temperature, the system
will shut down automatically. when temperature less than 3℃, the system
will restart infrared sauna function automatically .
Touch the menu the first time and the key flashing, touch up/down key to
adjust time setting between 01 ~ 99 minutes; touch the menu again to display
temperature then touch up/down key to adjust the temperature setting with
range 35~60℃.
Press color light key to adjust the color lamp by hand.It works circularly from
white/green/yellow/blue/red/turn off.Top lamp is controled by the key
within15minutes after shut down the control panel.Once turn on power,white
is acquiescence.
Touch the fan key to start fan with fan light icon.Touch it again to turn off.
Under power on condition,press FM key to turn on radio.The setted frequency
is the frequency you turn off last time,at the same time the frequency will be
shown on the display,then the MP3 will be shown on the display .Press FM
key again,the radio will be turn off.The scale of frequency is 87.5-
108MHZ.Adjust the frequency Under radio turn on condition,press FM+/FM-
to adjust the frequency.Press one time the frequency will be downwards or
upwards 0.1MHZ.Press FM+/FM- about 2 seconds,the system will search the
frequency automatical ly until find a clearly frequency,and then play the
frequency searched.
Touch CD/MP3/FM key to turn on CD /MP3.When CD/MP3 works,touch the
menu to set FM display,then touch up/down key to play the next song. Touch
the play/Pause to switch CD/MP3.
Under condition of turn on radio or CD/MP3,the setted volume is 8 Press up
or down key to adjust volume which betweent0 and 12,it displays current
volume under setted time 5seconds,then recover time showing.
After the control panel in the dormancy for 60 minutes ,all the function will
lock automatically,the display become black,the key is on,press"Power on/off
1.Power on/off
2.Infrared sauna function
3.Time/tempreture setting
4.Multi-color top lamp
5.Fan function
6.FM function
7.CD/MP3 function
8.Volume adjust
9.Key-press lock
Operation instruction

8
1
KY0713AA
Key
01.[Adjust+]；
02.[Adjust-]；
03.[Colour light]；
04.[Power on/off].
Screen
A.[Temperature/time setting].
O N / O F F
A
01
02
03
04
1.Turn on/Turn off
2.Time/Temperature setting
3.Multi-color top lamp
Under power on condition, press power on/off to start the system, all
functions inluded infrared sauna which with setted time30minutes when
turning on. It displays the setted temperature of last time in 5 seconds,press
it again to turn off.
Under turn on condition,press time+/time-,the time will be downwards or
upwards 1 minute,press the key about 1second,it will be automatically
quickly adjusting.The scale of time adjusting is 5～30 minutes.Under turn on
condition,press temperature+/temperature-,the time will be downwards or
upwards 1℃,press the key about 1 second,it will be automatically quickly
adjusting.The scale of temperature adjusting is 35～60℃.When the
temperature inside reach to the setted temperature,the system will stop the
infrared sauna .When the temperature inside is 2℃ lower than the setted
temperature,the system will restart it.
Under power on condition,press to adjust the color of top lamp.Total 5 kinds
of colors,it is white/green/yel low/blue/red and turn off by turn.Top lamp is not
controled by the key of.If only with power,the top lamp will turn on in white
color.
Operation instruction

1
9
Aftersales service
【Warning】
【Notice】
【Remind】
1.Product protective grade: IP20. Don't use it at outdoor and humid room.
2.For safety,please don`t change the electrical equipment.If any problem,
please ask a professional and skillful person to repair it.
3.Please don't touch the heater surface once turning on infrared.
4.Pls don't use the product,If you apt to bleed,especial ly people who suffers
heart disease, cardiovascular disease, mal ignant or with new wound.Other
symptoms or patients,please use by doctor`s permition.
5.Any child or person with disability must use the product with the company of
a normal adult.
6.Please don't put any thing which are easy cause fire (eg.towel ) near
heaters.
7.Please don`t use the flow water to wash the cabin.
8.Be sure of power off when clean the cabin, replace parts,or remove
operating faults Please turn off the power when cleaning the cabin,replacing
accessory or damage parts.
9.External connected audio frequency should be not too strong otherwise it
will burn out the system.
10.The power socket switch must be grounded reliably.
11.Please take attention to rated voltage and power supply,if not match then
can`t be used .Otherwise,it will burn out the control ler.
1.The ideal using time is 15 minutes, control system set time is 30 minutes.
2.The suitable temperature is 35~60℃，please djust heater's temperature to
match need.
3.Please put off the power plug from the socket after use.
4.Please make sure wires and sockets are al l connected wel l before turning
on power.
5.After 2 cycles` use(twice 30minutes),turn off the heater at least 30 minutes.
1.In order to extend the l ife of the product,it must at least 30 seconds
between turn on or off.
2.Control system is sti l l working even though turning off the heater or multi-
color lamp,The best way is put off the power socket.
3.Please put chi ld to the suitable seat to avoid infrared`s shining at its`head.
4. Accidental shut down,please re-start.
5.If any uncomfortable when using, please turn off the power.
6.Before using, it is better to have some soft drinks(such as fruit
juices,vegetable juices or mineral water etc.) whi le having a bath or shower
with water not too cold after using.
