Koy K066 User manual

PRODUCT MANUAL
SIZE:
K066:1000*900*2150mm
Model:
K066

Dear Users,
Thanks for purchasing our products.In order to use these products safety
and effectively, please read this manual carefully before use.
We reserve the right to improve our products.
This is a currenty manual,with standard as
Content
01
02
02
03
04
05
06
07~10
11~14
15
15
16
16
17
Content
Preparation
Part list
Circuit drawing
Waterway drawing
Water&electricity install drawing
Parts drawing
Installation drawing
Operation instruction
Warning
Usage Notice
Reminder
Maintainance
Trouble Shooting
Aftersales service
CONTENT
01

17# Spanner Spirit level
3m
Tape Measure
4/2.5mm
Hexagon Wrench
Tool
Screwdriver
Suggest using power screwdriver
Technology parameters
Rated Voltage：AC230V
Rated Power：3020W
Rated Current：13.2A
Rated frequency ：50~60HZ
Insulated Resistance：>20MΩ
Waterproof grade：IPX4
Safety grade：I
Load parameter
Up heater ：AC230V/200W
Down heater ：AC230V/250W
Fan：DC12V/5W
Color Light：DC12V/5W
Speaker：8Ω/10W
1.Check the Qty of components according to packinglist or parts list.
2.Check the Qty of materials according to parts list.
3.Check if there is damage on the surface of product components or not.
4.A grounded outlet needed as recommend to use at least 16A with a fuse
of the leakage protection switch.
5.A professional personnel or electricians is needed when installing
electrical components.
If can not satisfy above conditions, please stop installing immediately and
contact the dealer.
Preparation Parameter
02

Heater
3
Control panel
Temperature
detector
CD IN
Antenna
USB IN
DC12V
ControIIing
Power Box
Speaker
8Ω/10W
DC12V/5W
Cooling
Line
Heat part
Drain
Water lnlet
Water detector
Heat protect
Ozone
Fan
DC12V/5W
CoIor Light
Heater
Heater
Heater

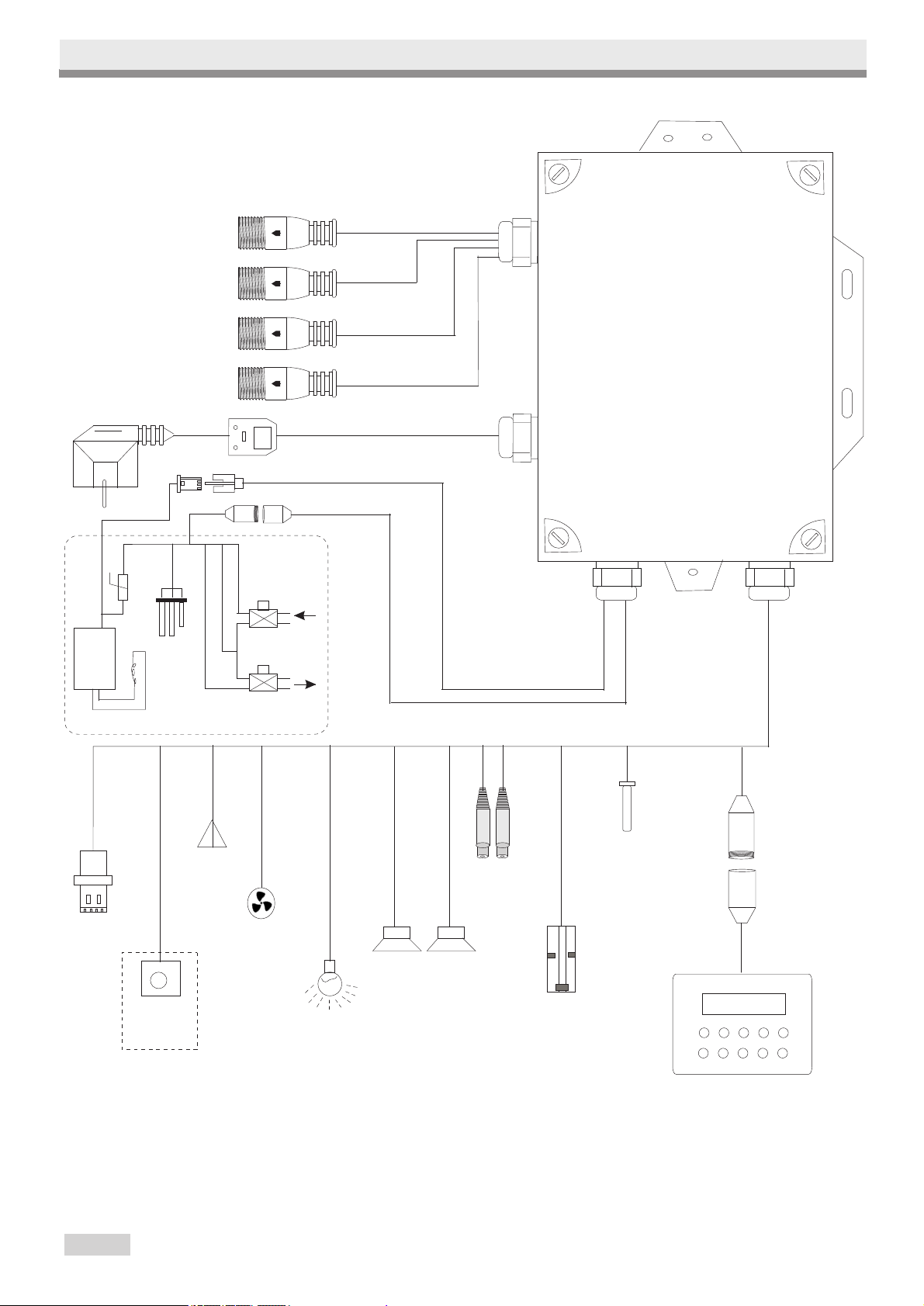

Circuit drawing
(Optional)
03

Attention ：
With seal ring at every connect part

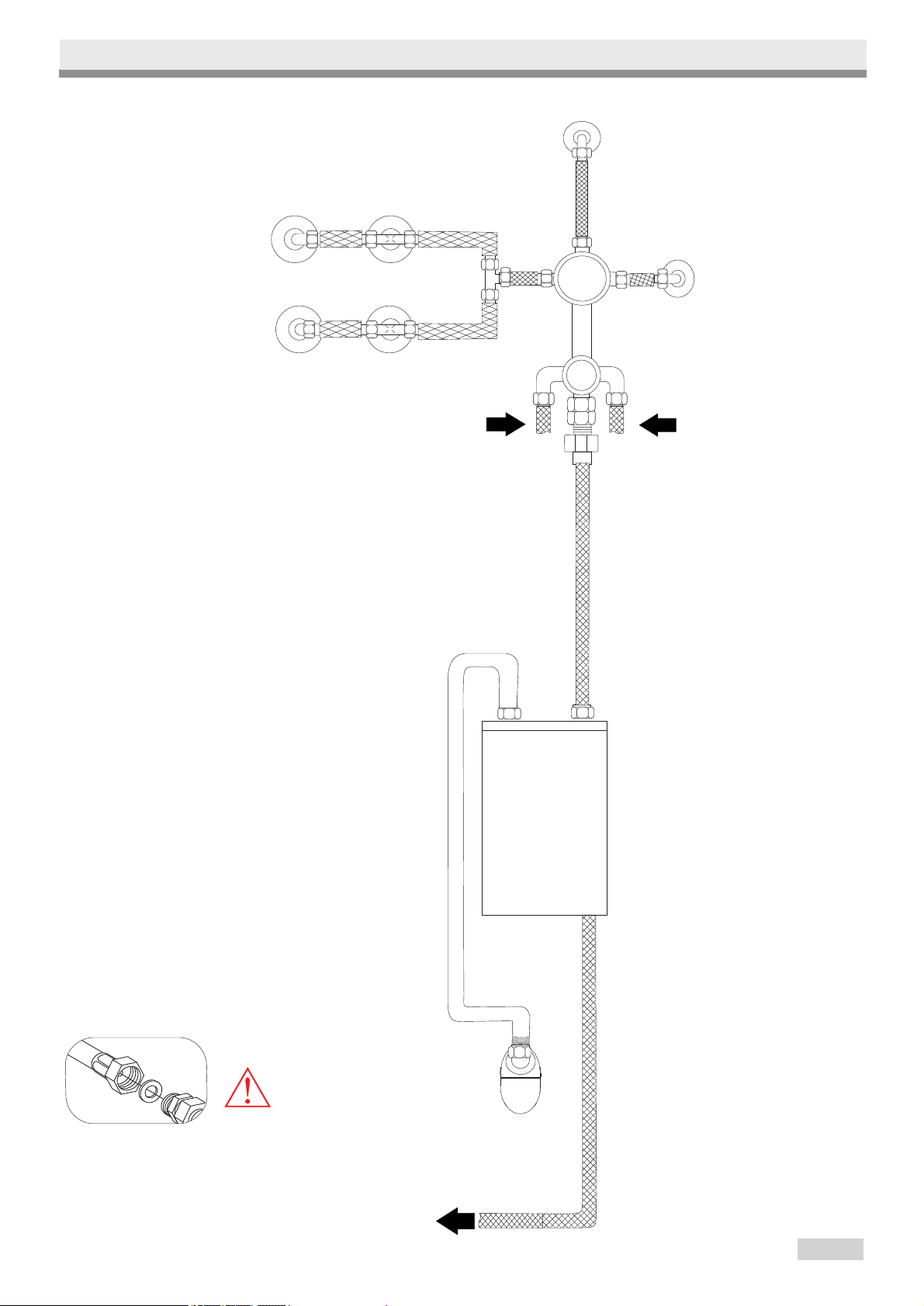

Water inlet valves Drain valves
Top shower
Steam
generator
Steam outlet
Connect drainer
Handle shower
Shower spout head
Cold water Hot water
Waterway drawing
04

Water&electricty install drawing

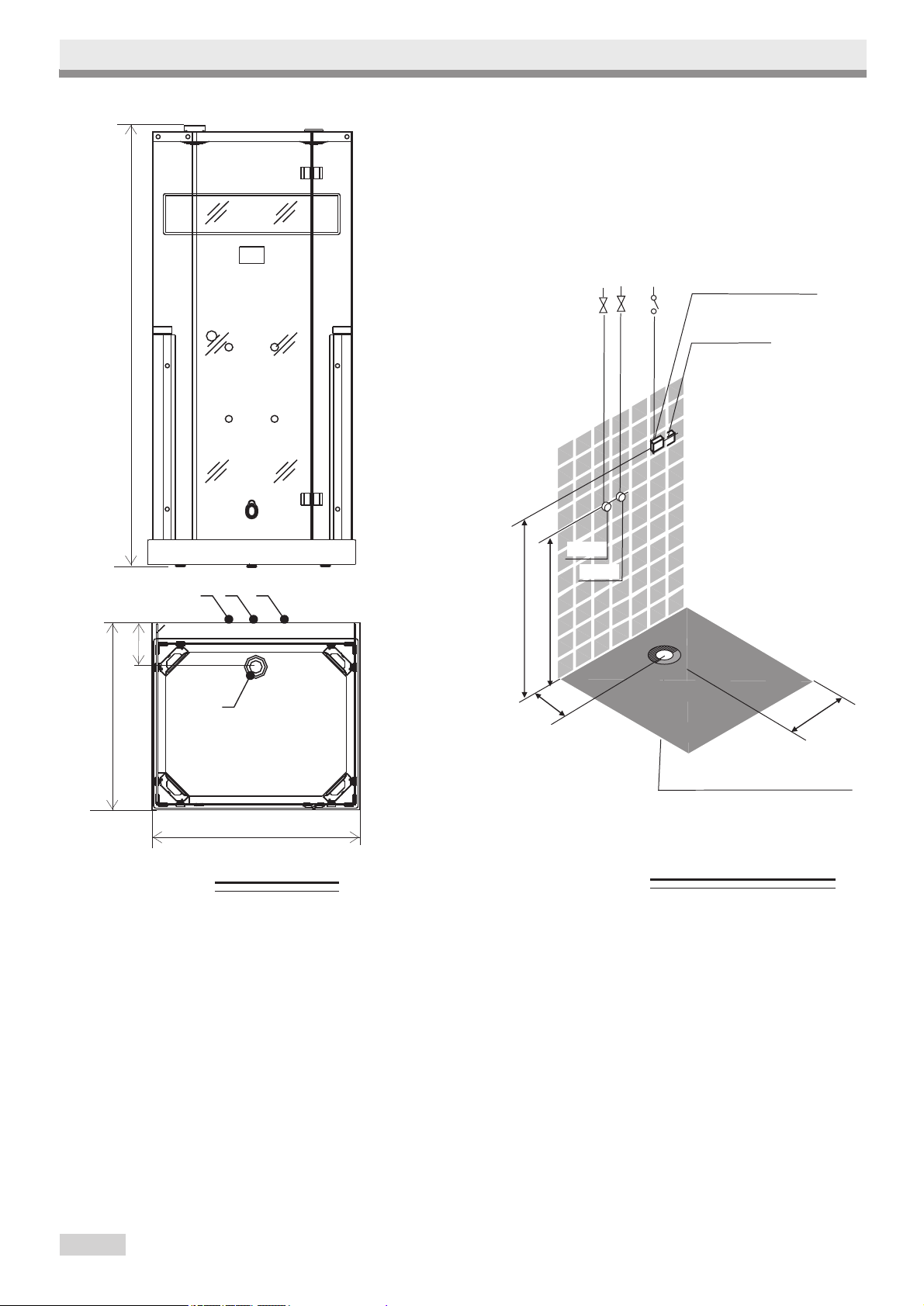

05
CD Socket
Power connection box
32A
Drainage area
（shadow circle area)
725
Tridimensional
2150
210
900
1000
ABC
D
A:hot water,G1/2 galvanize zinc pipe,height:800mm
B:cool water,G1/2 galvanize zinc pipe,height:800mm
C:power:220V/50Hz,rated current:not lower than 32A,height:1200mm
D:sinkhole:：the diameter of the sinkhole underground should be Φ60
Attention:
1)when turn on the steam,please be sure that there's enough cool water,otherwise the steam generator
will be damaged.
2)Power and water resource should be controled by divided switch,the switch must be placed on the
convenient place.
3)After enjoying your shower,the power and water resource must be turn off.
Hot water switch
Cold water switch
A Hot water
200
800
Steam room position
B Cold water
1200
Power switch
  Ichnography 

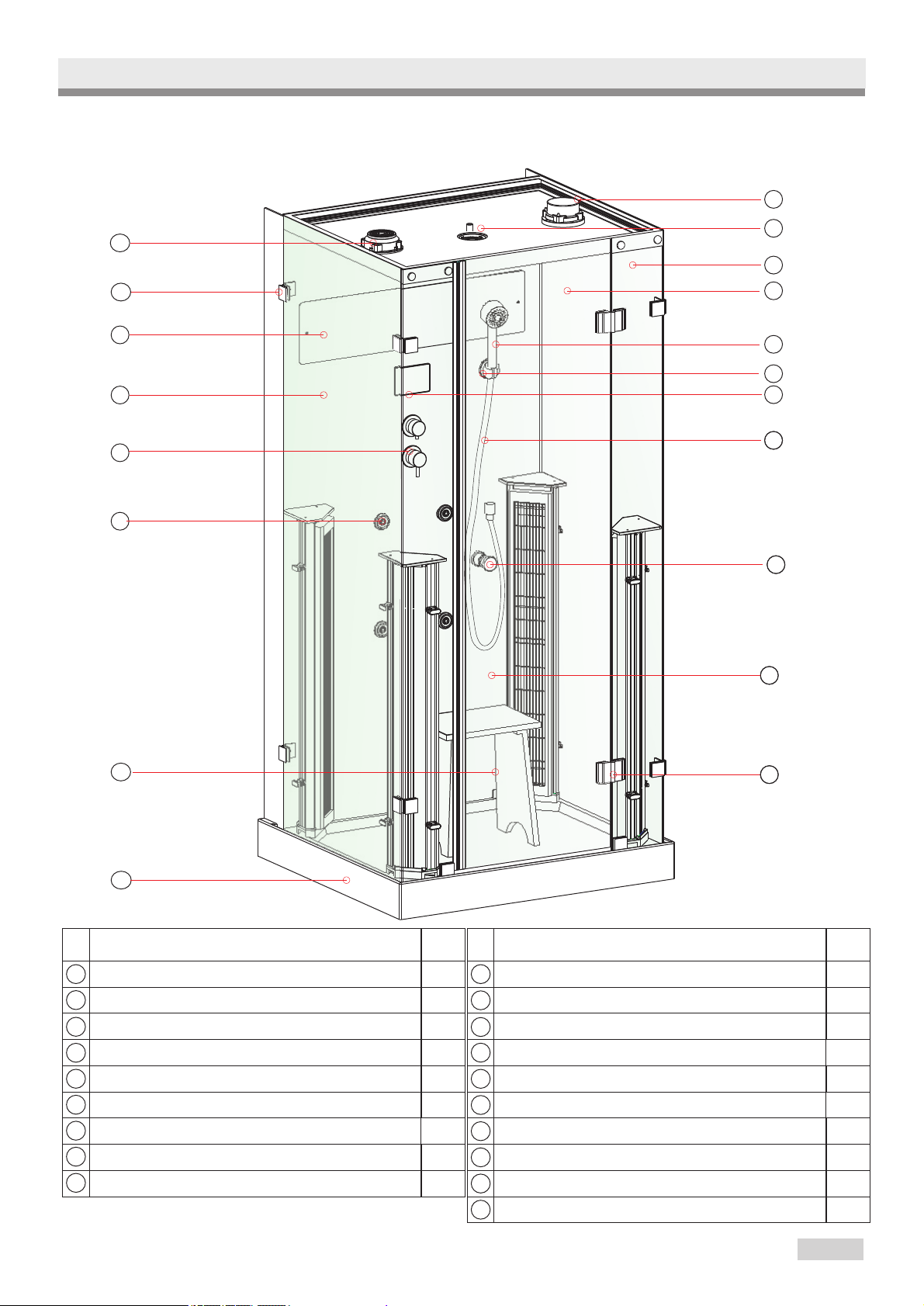

Parts drawing
06
Material
Fan
Hinge4#
Mirrow4#
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
3 Band valve
Massage jet
Seat2#
Tray
Top shower2#
K066 Front and right fix glass
K066 Movable door
Hand shower
Hand shower holder2#
Door handle2#
Back glass
1
1
1
2
1
4
1
1
1
K066 back side fix glass
1
3
5
6
8
2
7
4
NO
Speaker
Qty
NO Material
Control Panel
shower hose
1
1
1
1
1
1
1
1
1
9
10
11
12
13
14
15
16
17
18
Qty
19
19 Hinge(right)1# 2

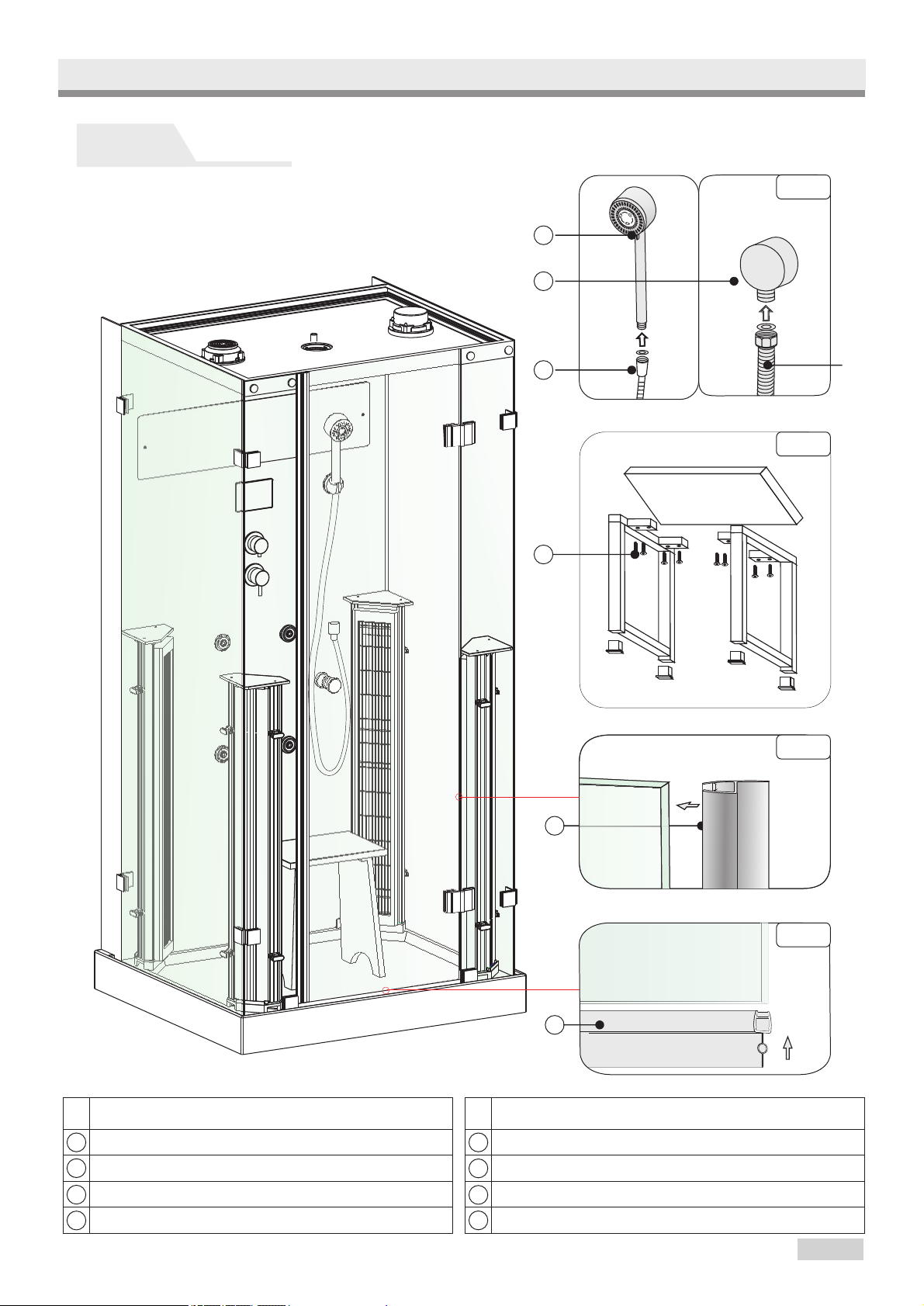

Installation drawing
07
5~10mm
2#decorated coverHook
Material Material
5
6
7
8
NO
ST4*30 Cross screw
Hinge8#
1-1
1-6
1
6
1-4
Hook 2#
1-5
23
4 5
7 8
1.In step1-1,adjust the feet to make the edge of the pan 5-10mm
higher,and make the pan keep horizontal.
2.In step1-3,the plastic seal installed at the middle of the glass,both ends
of the seal keep 13.5mm of the edge of the glass.
1
2
3
4
Cross screw M4*16
Hook 2#
Plastic seal BF012-06
Hinge 4#
1-2
1-3
1
Attention:
NO
Step 1

5
78
7
8
Step 2
Installation drawing
08
Material
1
2
3
Material
4
5
6
NO
Cover screw2#
rosse screw C ST4*25 Magnetic sealBC001-06
Hinge1#(Left)
over screwC
2
3
1
4
5
6
1
oor handleD 2#
2-1
2-1
2-1
2-4
2-2
2-3
NOTE：Up when install glass door
NO

3
3-7
3-6
3-4
Step 3
Installation drawing
09
Material Material
3
4
2
2
3-1
NO
1
2
NO
Screw M4*16 Screw ST4*18
Screw M4*25
3-3
3-2
1
3-5

Step 4
Installation drawing
10
Material Material
2#Hand shower
Hand shower
Shower hose
1
2
3
4
5
6
7
8
NO
Plastic BF003-06-12.4
Plastic BF010-06-18.8
NO
ST4*30(orM6*20)
1
2
3
6
7
4-1
4-2
4-3
4-4
4

Ky1210CA
lightwave
lightwave2
Radio /Mp3/
BT/enter aux
Power
downward
󴘠volume󴘅tun󴘡
Steam
Screen
time/temp set
Exhaus
fan
Mp3player
radio memory
Radio tun
upward
󴘠volume󴘅tun󴘡
Light
1.Function of the panel:
Exhaust fan
Water absent display
（flash）
Steam time setting :set the timefrom 0-99minutes,
tolerant time is 30minutes.
Temp /time display
Temp display:（0-70℃）
Temp setting :（set the temp fro m35-60℃,
tolerant temp is 45℃）
Steam
Function,radio
frequency
Ozone
Light
Radio tun
key board locking
music level display
Bluetooth
2.contant of display:
SET
FIR sauna1
FIR sauna 2
Operation instruction
11

( 1 )Sauna Section:
Plug into the creepage switch ，press the button“ ”，the steam system electrify，the
display show the temperature in the room .the machine runs to base on your demand.
3.
Instruction
(2) temperature set：press ，displayTEMP,press or can
pre-set temperatrue, set from 35-60℃ ，normal atmospheric temperature is 0-70℃,
( 3 ) time set ：press ,display TIME，press or can pre-set
temperature，set form1-99 minutes,it stared to countdown when the function
turn on,the function turn off automatic when countdown to the end.
Note：steam function countdown leave3 min,buzzer will "do do"deep 5 times，
prompt toward the end of heating。
(4) Fan function:press key in the on/off
(5) light function:light when power on,press can be red, green, blue,
white and turn off switch,light turn off after power off 15 minutes, during the
time you can switch colors.
󴘠6󴘡Steam function----Press the steam button 󴘈the is bright󴘈the steam export
after 1 minute，at this time the machine run to base on the
temperature and time you set. (The tolerant temperature and
time is 45C and 30 minutes ) ，when reach the temperature
you set, the temperature is unchanged; when reaching the
time you set，the steam machine is off，the steam sign
disappear.
(7) infrared steam function: press light or ,Correspondence
infrared wave output, the system run according to pre-set temperature
and pre-set time (if not stated run by the system built-set temperature
of 45 degrees and 30 minutes), the system in thermostat when reaches
the set temperature ; When reach setting time, the light is turned off.
The solenoid valve on and spray to lower the temperature each 10 minutes
when Infrared function on.
Note:infrared function and steam function are single options,system setting they
intetlockingand can not work at the same time.
󴘠8󴘡keyboard locking󴘊enter to keyboard locking state if don't operating any function
key more than 1 minutes，press“ ”to unlock.
Operation instruction
12

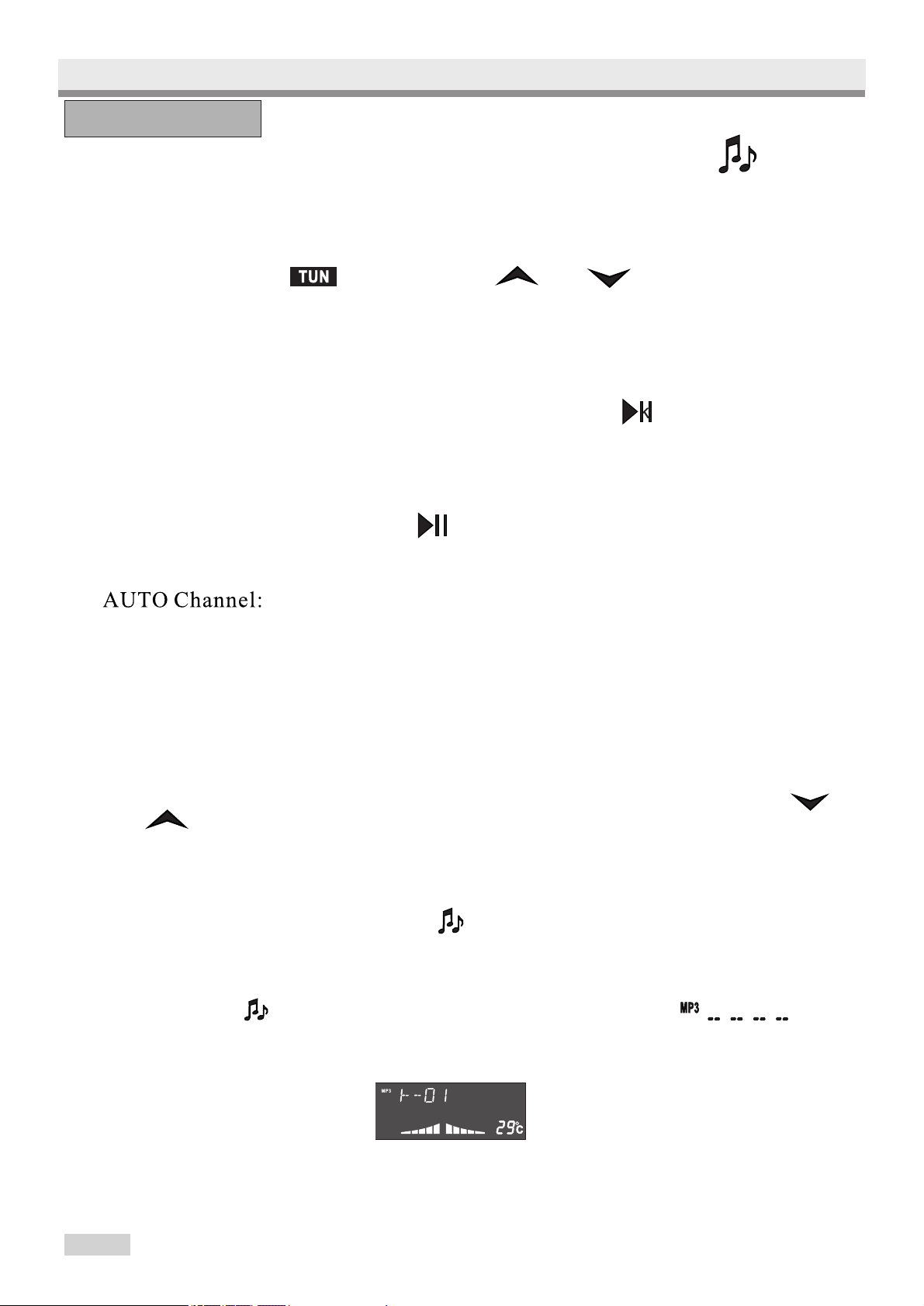

4 .Radio section
（1）Pull out the radio antenna and place in - Y -form. When ( )
key is pressed ,the screen will appear radio frequency and the volume
will rise from -0- to -15- DB with slight sound for loudspeaker.
（2）Search：press the key ( ) when the screen
will display the - - sign. Press ( ) or ( ) key for upward or
downward frequency will move upward or downward automatically
until the broadcasting station is received. In the case of poor receiving,
environment or weak signal for receiving, it is recommended to select
in manual selection mode.
（3）Memory: After selecting the play station , press ( ) key to
display "CH-01 " to "CH-30 " , then it can be stored in this number.
The total memory for station is 20. If the received broadcasting station
is not ideal, please pull out antenna and adjust the direction of
antenna .
󴘠4󴘡repeated hearing: press the ( ) key for selection of the position of
desired station, the screen will display the number "Ch01---Ch 30 " thus
you can hear the voice.
(5)
Press for 2 seconds then be in auto channel selection model,then system
will search channels (87.5-108mhz),lcd will show the frequency you are Sear
ching.when Search channels,lcd sows--01ch,means system search the first
channels,also memory it .then system will search channels by automatically
till 30channels or all frequency.(The number of raido depending on local
radio coverage.The system can save 30 channels.)When auto search finish,
the system return to the first radio and listen normally.
SET
SET
󴘠6󴘡Volume adjustment------The volume can be adjusted by pressing ( )
or ( ) key and the screen will display corresponding volume DB
number
(7) Enter aux function ：Connect the Exterior audio wire with
the external faucet of the main control
box, press ( ) key to the position of
"Mp3" and "aux" ,then choose the
suitable volume .
󴘠8󴘡 USB MP3 player󴘊
press“ ”key to the position of Mp3 ，display show“ ”
MP3function is ready，insert USB disk with Mp3 musicto USB connector，
system search and play the tracks auto ,
as the following picture:
Operation instruction
13

Operation instruction
play/pause：press（ ）to play or pause。tracks select：press（ ） （ ）upward track or
（ ）downward track。
（9）connect with phone Bluetooth
Press key to the position of bluetooth,display show"BT" ,then system search bluetooth auto ,
it have to bluetooth pairing at the first time to pairing ，opearting as follow：
open bluetooth setting of phone open bluetooth search equipment pairing
pairing success.speaker broadcast a piece of music,display show“ ”sign(pairing finish).
as follow：
at bluetooth mode play mobile phone's music:
play/pause：press( )to play or pause，track selection：
press（ ） （ ）upward track or （ ）downward track.
Bluetooth pairing sign
SET
SET

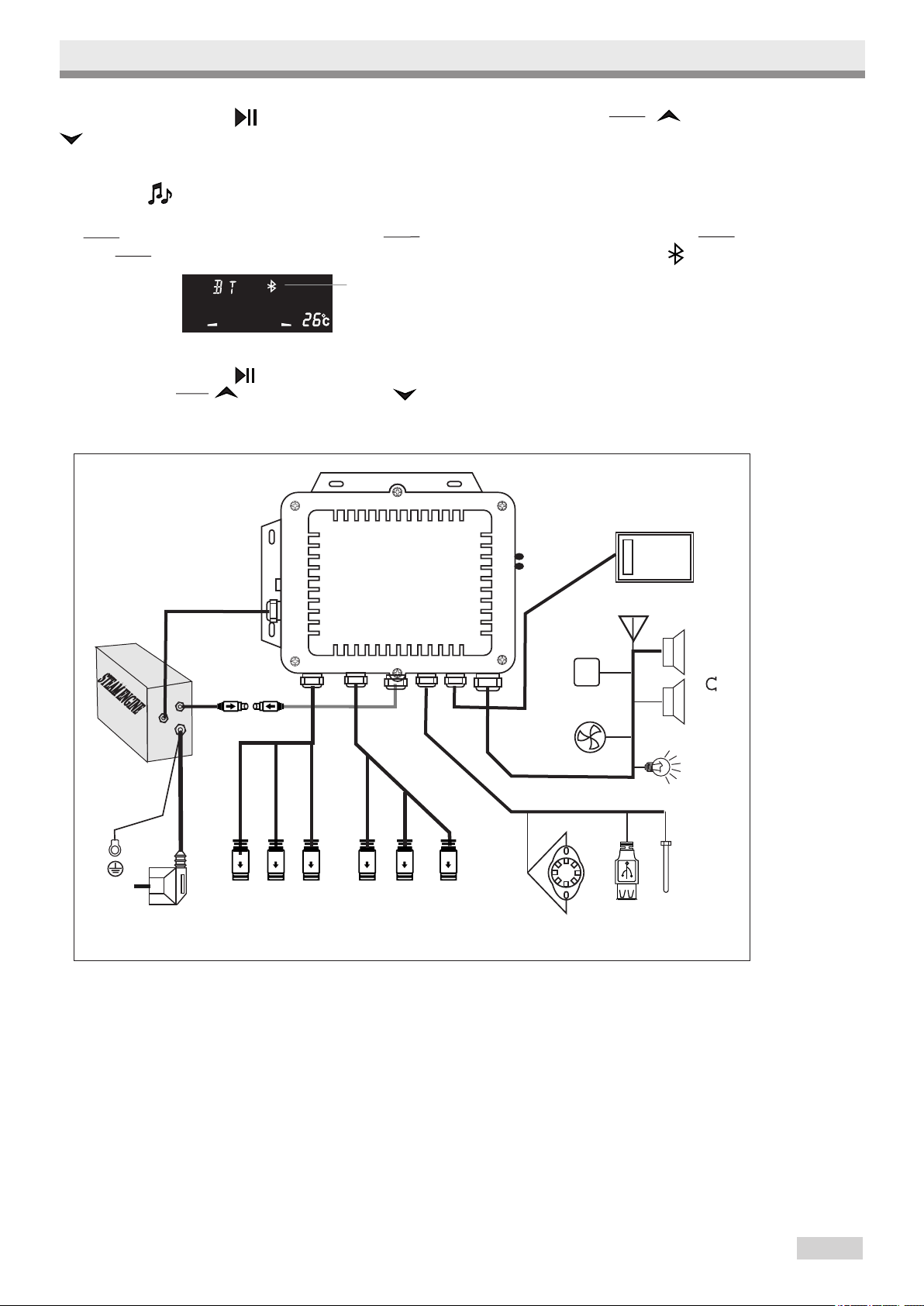

the sketch map of connecting cable
AC220V
POWER INPUT
STEAM ENG INE
16A
Controlling
Power Box
Heater
Heater
Heater
Heater
Heater
Heater
USB IN
Temperature
Control
Temp de
tector
Control
Box
CD INPUT
O3
Fan
DC12V/5W
Ozone DC12V
Speaker
8 /10W
ColorLight
DC12V/5W
ANT
FUSE
3A
1.If the technique information is change ,we will not inform you.
2.Do not connect the other equipment out company did not recommendto this
machine'load cable;don't take down or change the connecting cable,or
damage the machine.
3.Check the connecting cable before the machine is going to work.
Don't pull off the cable when electric leakages.
4、Every grounded place should connect to the ground hard.
14

15
Mixwater
valve
Water divide
valve
Handle
shower
Top shower
Shower
spout head
Picture 2

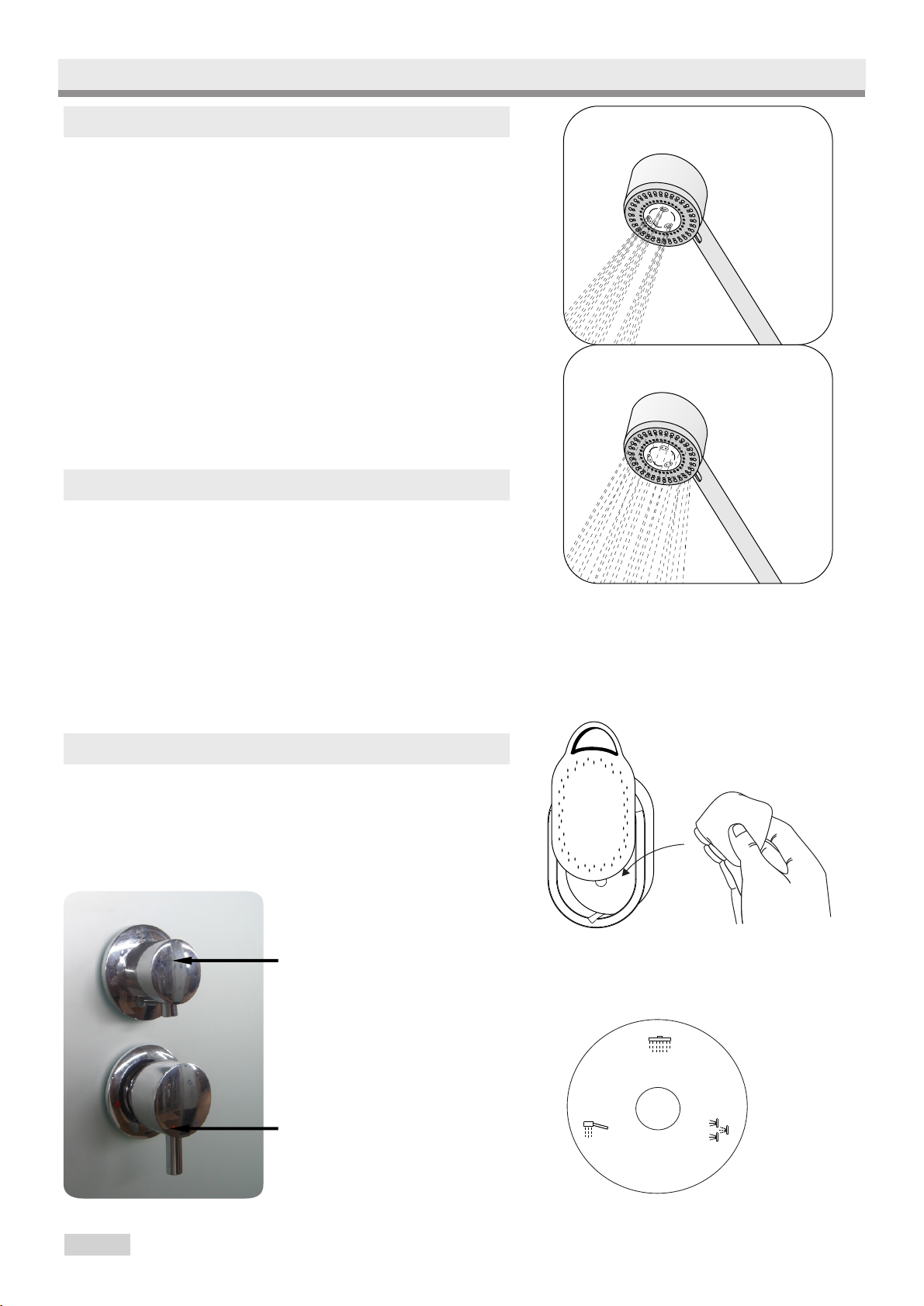

1.Operation of valve
A .Mix water valve function：
Turn to the "H " to connect the hot water ;
Turn to the "C" to connect the cold water ;
Control the place between "H" and "C" to
adjust the temperature of the water ;
B.Water valve function：
Adjust the handle for the valve
(look at picture 1) to the relative function
shelves and take it up to connect the
relative waterway (look at picture 2);
2.Steam nozzle function
Open the cover of the steam nozzle,
put some spice or herbal medicine
(look at picture 3),cover the steam nozzle
cover ,turn on the steam system,scent will
come out together with the steam.After
shut down the system,it is must to clean
the steam nozzle.
3.Handle Shower function
Circumrotate the handle of the handle
shower,there are two water style for your
choice.(look at picture 4)
Picture 1
Picture 3
Picture 4
Operation instruction

16
【Warning】
1.For safety,please don`t change the electrical equipment.If any problem,
please ask a professional and skillful person to repair it.
2.Because the temperature of steam generator is high,the metal part is
wet,for advoiding the scald and eletricity,please shut down the main power
of the control system and touch it after stoping heating for 30 Minutes.
3.Do not touch the covers of the heater when the heating on or off within 10
minutes.
4.please do not open the shower function and infrared function at same
time,and don`t let a mass of water touch the heaters.
5.Pls don't use the product,If you apt to bleed,especial ly people who suffers
heart disease,cardiovascular disease, mal ignant or with new wound.Other
symptoms or patients,please use t by doctor`s permition.
6.Any child or person with disability must use the product with the company
of a normal adult.
7.Please don't put any thing which are easy cause fire (eg.towel ) near
heaters.
8.Be sure of power off when clean the cabin, replace parts,or remove
operating faults Please turn off the power when cleaning the cabin,replacing
accessory or damage parts.
9.External connected audio frequency should be not too strong otherwise it
will burn out the system.
10.The power socket switch must be grounded reliably.
11.Please take attention to rated voltage and power supply,if not match then
can`t be used .Otherwise,it will burn out the control ler.
【Notice】
1.The ideal using time is 15 minutes,control system set time is 30 minutes.
2.The suitable temperature is 35~50℃,please djust heater's temperature to
match need.
3.Please put off the power plug from the socket after use.
4.Please make sure wires and sockets are al l connected wel l before turning
on power.
5.After 2 cycles` use(twice 30minutes),turn off the heater at least 30
minutes.
Operation instruction

17
【Remind】
1.In order to exte
【Maintenance】
nd the l ife of the product,it must at least 30 seconds
between turn on or off.
2.Control system is sti l l working even though turning off the heater or multi-
color lamp,The best way is put off the power socket.
3.Please put chi ld to the suitable seat to avoid infrared`s shining at its`head.
4. Accidental shut down,please re-start.
5.If any uncomfortable when using, please turn off the power.
6.Before using, it is better to have some soft drinks(such as fruit
juices,vegetable juices or mineral water etc.) whi le having a bath or shower
with water not too cold after using.
1.Pls use general neutral liquid detergent to clean the product
curface(Included bamboo wood,Composite board, plastic,aluminum,plated
parts,spray pieces),but don`t use strong alkal ine detergents and organic
solvents(such as Alcohol, Thinner, Ammonia, Acetone etc.)
2.Never wipe gi lded or chrome-plated pieces with rough tool but soft cloth.
3.please keep the tub clean and remove impurities such as hairs to make the
drainage unclogged . If there is any dirt in the tub surface.please clean it
with a place of soft cloth with applled some toothpaste.
4.General neutral liquid detergent and soft cloth can be used for the daily
cleaning of the infrared&steam room. Do not use the detergent containing
the acetone or ammonia spirit.
5.Use 1200# waterproof abrasive paper dipped in water to grind the scratch
on the room surface, then with 2000# , polish it after that with a piece of soft
cloth applied some toothpaste.
6.Pls open the door of this cabine for airiness that can avoid steam or water
stay in it over A long period of time which will cause mildew or peculiar smell.
Aftersales service

18
【Troubleshooting】
No
color
light
No
steam
No
Power
No
sound
Problem
No fan
1.
2.Power failure of leakage
switch.
3.Fuse off.
Poor connection of power.
1.
generator.
2.Temperature explorer is
broken.
3.The heater of the steam
generator is broken.
No water in the steam
1.
2.Speaker supply cord is loose.
3.Damage of speaker.
Low volume setted.
1.
2.Multicolor lamp supply
cord is loose.
3.Damage of multicolor
lamp.
Turn off.
1.
2.Fan supply cord is
loose.
3.Damage of fan.
Turn off or automatic.
Reasons
1.Connect well the power
socket.
2.Reconnect the leakage
switch.
3.Replace fuse.
1.
electromagnetism valve.
2.Change the temperature
protective explorer.
3.Change the heater .
Check water inlet
1.
2.Connect well the supply
cord.
3.Replace speaker.
Adjust volume.
1.
2.Connect well the supply
cord.
3.Replace the multicolor
lamp.
Turn on color light.
1.
2.Connect well the supply
cord.
3.Replace the fan.
Turn on the fan.
Remedy
Tray
seeper Block the drainer.Clear drainer .
No
infrared
1.
temperature detector off.
2.Heater supply plug not
connect well.
3.Damage of infrared
tube/board.
Up to permanent temperature，1.
automatically recover.
2.Connect well the plug.
3.Replace infrared
tube/board.
Temperature off and
Operation instruction
