kozy heat 942 Installation instructions

INSTALLATION & OPERATING MANUAL
#942 DIRECT VENT
DESIGN-CERTIFIED TO:
DECORATIVE & WALL FURNACE ANSI PERFORMANCE & SAFETY STANDARDS
U.S. PATENTS:
#5.931.154,
#5,967,139
#6,004,493
IMPORTANT:
READ INSTRUCTIONS CAREFULLY BEFORE
INSTALLATION. FAILURE TO INSTALL THIS
FIREPLACE CORRECTLY CAN CAUSE SERIOUS
STRUCTURAL AND FIRE HAZARDS AND
MAY VOID YOUR WARRANTY.
www.kozyheat.com
June 2007

INDEX
DESCRIPTION PAGE
SafetyRequirements/Specifications..................................................1-2
VentingGuidelines/Clearances....................................................... 3
DetermineLocation ................................................................4-5
Rough-InVentTermination Dimensions ................................................ 5
Rough-InDimensions................................................................ 6
RemovetheGlassAssembly.......................................................... 7
DirectVentSystemInstallation......................................................8-13
Guidelines & Requirements for Dura-Vent GS & #800 Series Vent Systems . . . 8-10
Horizontal Termination with #800 Series D.V. Kit . . . . . . . . . . . . . . . . . . . . . . . . 11-12
Vertical Termination with #800 Series D.V. Kit . . . . . . . . . . . . . . . . . . . . . . . . . . 12-13
FanInstallation(Optional) .........................................................14-15
Gas Line Installation Requirements - Minimum/Maximum Pressures . . . . . . . . . . . . . . . . . . . . . . 16-17
MillivoltBoardRemoval/Installation................................................18-19
LogInstallation.................................................................... 20
Thermostat - Remote Control - Wall Switch Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Completing the Installation (Re-install the Glass Assembly, Upper & Lower Grills) . . . . . . . . . . . . . . . . . . 22
DamperControlOperation........................................................... 23
Lighting&ShutdownProcedures...................................................24-25
Manifold (outgoing) & Inlet (incoming) Pressure Check Procedures . . . . . . . . . . . . . . . . . . . . . . . . 26
MaintenanceRequirements.......................................................... 27
Troubleshooting .................................................................28-29
ReplacementParts ................................................................. 30
WarrantyPolicy .................................................................31-32

Page 1
MODEL #942 DIRECT VENT
DECORATIVE / ROOM HEATER GAS BURNING FIREPLACE
INSTALLATION & OPERATING INSTRUCTIONS
IMPORTANT:
READ THIS MANUAL BEFORE INSTALLING AND USING THIS FIREPLACE
INSTALLATION AND SERVICE MUST BE PERFORMED BY A QUALIFIED INSTALLER,
SERVICE AGENCY OR THE GAS SUPPLIER.
WARNING: If the information inthis manual is not followed exactly,a fire or explosion may resultcausing property
damage, personal injuryorloss of life.
ThisfireplacehasbeentestedtoandcomplieswithANSIZ21.88!2002•CSA2.33-M02“VENTEDGASFIREPLACE
HEATERS”. Installationmustconformwithlocalbuildingcodesorintheabsenceoflocalbuildingcodes,with
the National Fuel Gas Code, ANSI Z223.1, NFPA 54 - Current Edition.
Thisappliancemaybeinstalledinanaftermarketpermanentlylocated,manufactured(mobile)home,wherenot
prohibited by local codes. This appliance is only for use with the type(s) of gas indicated on the rating plate.
This appliance is not convertible for use with other gases, unless a certified kit is used.
FOR YOUR SAFETY
WHAT TO DO IF YOU SMELL GAS
Open windows.
Extinguish any open flame.
Do not try to light any appliance.
Do not touch any electrical switch; do not use any phone in your building.
Immediately call you gas supplier from a neighbor’s phone. Follow the gas supplier’s
instructions.
If you cannot reach your gas supplier, call the fire department.
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or
any other appliance.
COMMONWEALTH OF MASSACHUSETTS INSTALLATIONS:
WARNING: This ProductMust Be InstalledBy A Licensed Plumber Or Gas Fitter When Installed Within the
Commonwealth of Massachusetts.
IMPORTANT: Installation of a CO detectoris required in the fireplace room.

Page 2
WARNING: Do not use this fireplace if any part has been under water. Immediately call a qualified service
technician to inspect this appliance and to replace any part of the control system and any gas control which
has been under water.
WARNING: DO NOT REPLACE THE BURNER WITH ANY OTHER SIZED BURNER. REPLACEMENT WITH AN
UNAUTHORIZED BURNER CAN RESULT IN TEMPERATURES EXCEEDING THE LIMITS FOR THIS
FIREPLACE, AND VOID YOUR WARRANTY.
IMPORTANT:
NON-COMBUSTIBLE FACING MATERIAL MAY BE APPLIED OVER THE FACE. TO PREVENT THE
FACING MATERIAL FROMCRACKING ANDFALLING OFF DUE TO EXPANSION OFTHE FACE WHEN
HEATED, DO NOT ATTACH FACING MATERIAL DIRECTLY TO THE FACE OF THE FIREPLACE.
FIREPLACE SPECIFICATIONS -
HEIGHT (TOP OF FACE): 40"
HEIGHT (TOP OF STAND-OFF): 40"
FRONT WIDTH: 41 7/8"
BACK WIDTH: 31"
DEPTH (INCLUDES FACE): 19"
FLUESIZE: 5" exhaust,8"intake

Page 3
VENTING GUIDELINES
IMPORTANT: THIS FIREPLACE IS APPROVED FOR USE ONLY WITH ONE OF THE FOLLOWING
DIRECT VENT SYSTEMS. THESE SYSTEMS MAY BE USED FOR HORIZONTAL OR
VERTICALTERMINATIONS.
- #844 DIRECT VENT TERMINATION KIT - for terminations of 3' or less.
- #845 DIRECT VENT TERMINATION KIT - for terminations greater than 6' but less than 8'.
- #846 DIRECT VENT EXTENSION KIT-6'
- SIMPSON DURA-VENT DV-GS DIRECT VENT CHIMNEY SYSTEM - 5" X 8"
- AMERI-VENT DIRECT VENT CHIMNEY SYSTEM - 5"X 8"
Refer topages #8- #13for complete venting installation instructions / requirements.
CLEARANCES:
Minimum clearance to combustible material:

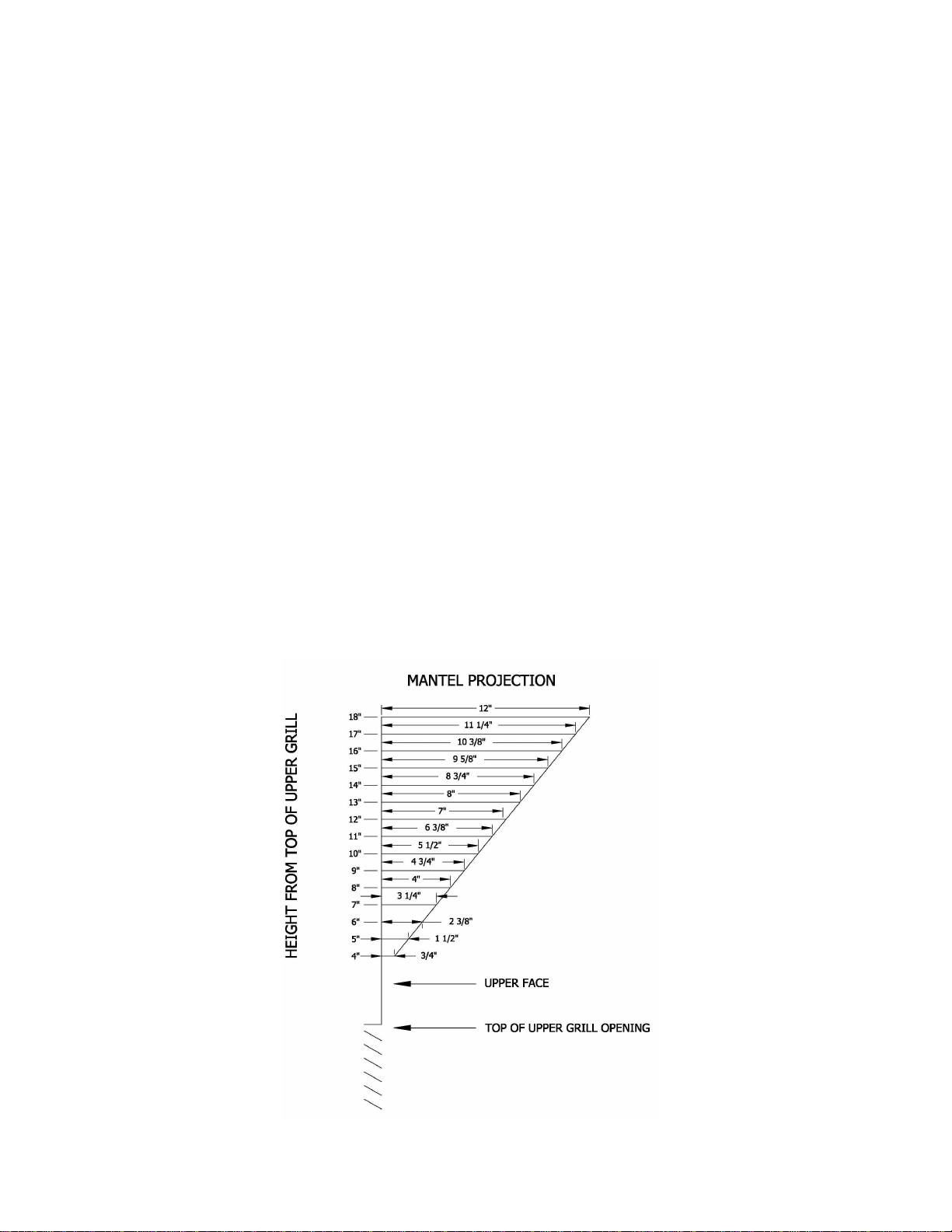

From fireplace sides & back: 0" From heat outletto 8" mantel(or see Figure 1): 13"
From fireplace top stand-off: 0" From glazing (glass)to adjacent sidewall: 12"
To flooring: 0" From fireplace to enclosure ceiling: 4"
From #800 Series flexible chimney: 2" From Dura-Vent chimney system: 1"
NOTE: Eventhoughtheminimumclearancefromthesidesandbackis0",werecommendthatyouallowan expansion
space of 1/4" from the sides and back. If this expansion space is not left, the fireplace will make a loud
‘banging’noisewhen it heats upor cools down and cracking of anyface material usedmay occur.
Figure 1

Page 4
A) DETERMINE LOCATION - Figure 2A.
1. Determinethe exact positionof your fireplace. If possibleplace the fireplace in such a manner
that the piping will beplaced between two studs so additional framingis not necessary.
2. This fireplace may be installed on either the outside or inside of an exterior wall. See Figure 2A.
The location of doors, windows, soffits / overhangs, etc. must be considered in relation to where
the venttermination cap is tobe located. Refer toFigure 2B, page #5.
3. Ensure the proper clearances are maintained as outlined on page #3.
4. If theoptional heat ducts are used, theirlocation must be considered in relation to the location of
the fireplace.
The heatducts may be vented into the same room as the fireplaceor may be ventedtoother
rooms. A maximum run of 20 ft. for each duct is recommended.
Venting should be completed before framing the fireplacein. Refer toinstructions included in the
#970 duct kit for complete installation requirements.
CAUTION: THE SURROUNDING WOOD CHASE OF THE OUTSIDE WALL MUST BE
INSULATED TO PREVENT COLD AIR FROM ENTERING THE ROOM.
NOTE: Due to high temperatures, this fireplace should be located out of
traffic areas and away from furniture and draperies.
Figure 2A
MODEL #942 DIRECT VENT
NOTE: * = 1/4" CLEARANCE

Page 5
TERMINATION VENT CAP LOCATION:
This gas appliance must not be connected to a chimney flue serving another type of appliance.
IMPORTANT!
HorizontalTerminationsusingeitherthe#800SeriesDirectVentSystem,SimpsonDura-VentDV-GSChimneySystemorAmeri-VentDirect
VentSystem must follow the clearances to doors, windows, and ground level as shown below for proper vent cap location.
GENERAL:
1. Terminations against vinyl siding must use a vinyl siding protector. Follow instructions included.
2. DO NOT RECESS TERMINATION KIT INTO OUTSIDE BUILDING MATERIALS -i.e.: brick, stone,etc.. If necessary,extendframing so
that termination kit will be exposed once building materials are installed.
3. Vent termination must not be located where it will become plugged by snow or other material. The flow of combustion and ventilation air
must be not obstructed.
LOCATION CLEARANCES:
SAbove grade, veranda, porch, deck, balcony - 12". (A)
SOperable window- 12". (B)
SPermanently closed window -12" (recommended to prevent condensation on window.(C)
SVentilated soffit - 24". (D)
SUnventilated soffit - 12". (E)
SOutside / inside corner - 12". (F)
SMeter / Regulator: not to be installed above within 3ft. horizontally from the center line of theregulator.
SService regulator vent outlet - 3ft. radius.
SNon-mechanical airsupply inlet to building -12".
SCombustion air inlet to any other appliance - 12".
SMechanical airsupply inlet (G)- US: 3 ft. aboveif within 10 ft. horizontally.
NOTE: Massachusetts installations: 10 ft.
SAbove furnace exhaust orinlet - 12".
SAbove paved side-walk or paved driveway located on public property -7 ft. * (H)
NOTE: A vent cannot be located directly above a side-walk or paved driveway that is located between two single family dwellings
and serves both dwellings.
SUnder veranda,porch, deck, or balcony (must be fully opened ona min. of 2 sides) - 12". (I)
SBetween two horizontal terminations - 12".
SBetween two vertical terminations - 12" (J) - Note: May be the same height.
*Clearance must be in accordance with local installation codes and the requirements of the gas supplier.
Figure 2B

Page 6
B) FRAME & POSITION THE FIREPLACE
1. Frame an opening for the firestop / wall thimble. The location of this opening is determined by your venting
specifications. Refer to the information below.
Figure 3
TYPICAL HORIZONTAL INSTALLATIONS:

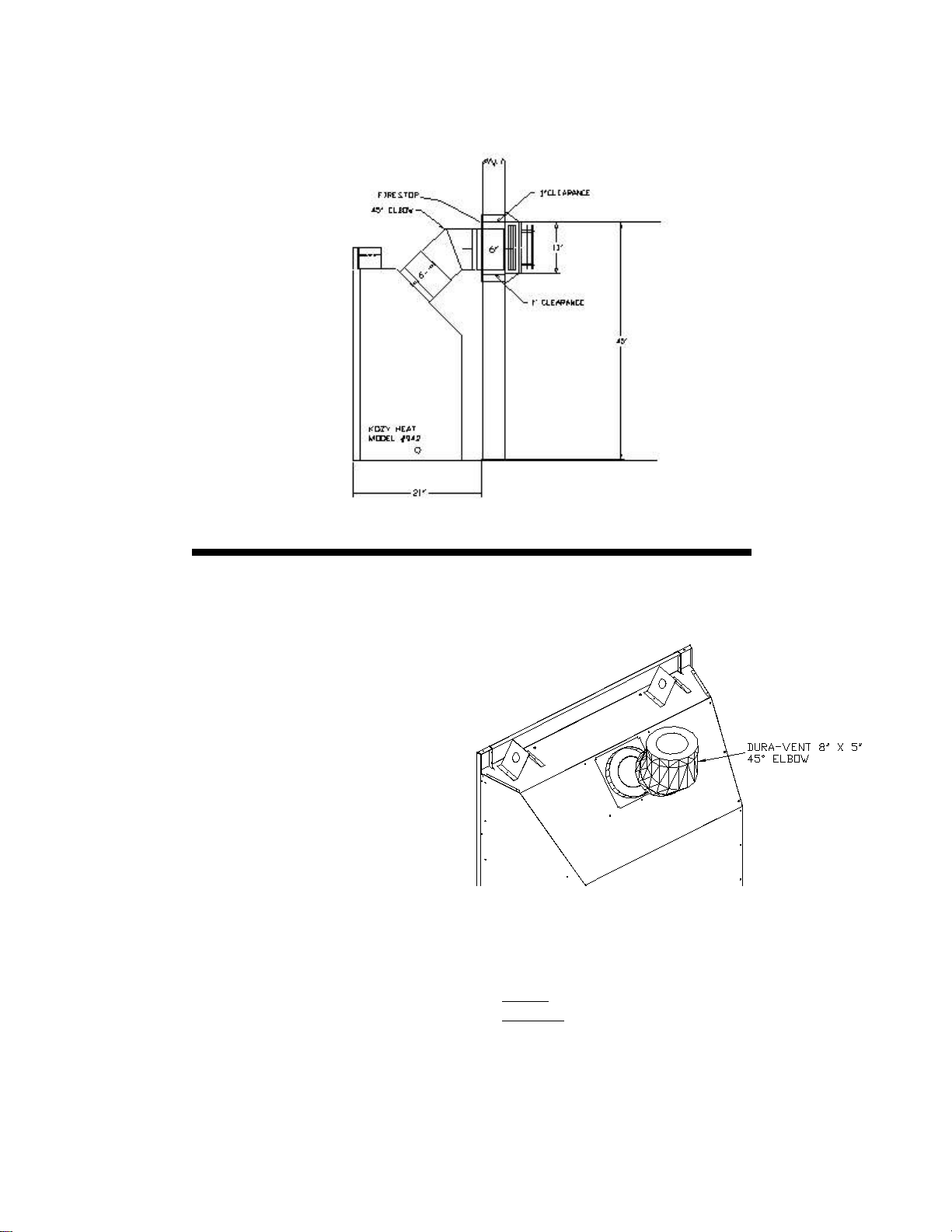

Dimensions are 12 1/2" wide x 12 1/2" high when using the #800
series direct vent kits and 11" X 11" when using the Dura-Vent
chimney system. The top of this opening must be a minimum of
45" * above the height ofthe hearth (optional). See Fig. 3. Refer to
pages #8-#13 for additional venting specifications.
*IMPORTANT: This measurement is determined by the vertical
height and horizontal length of the venting application desired.
The measurement is to the TOP of the pipe. Refer to pages
#8 - #13 of this installation manual for requirements and
restrictions.

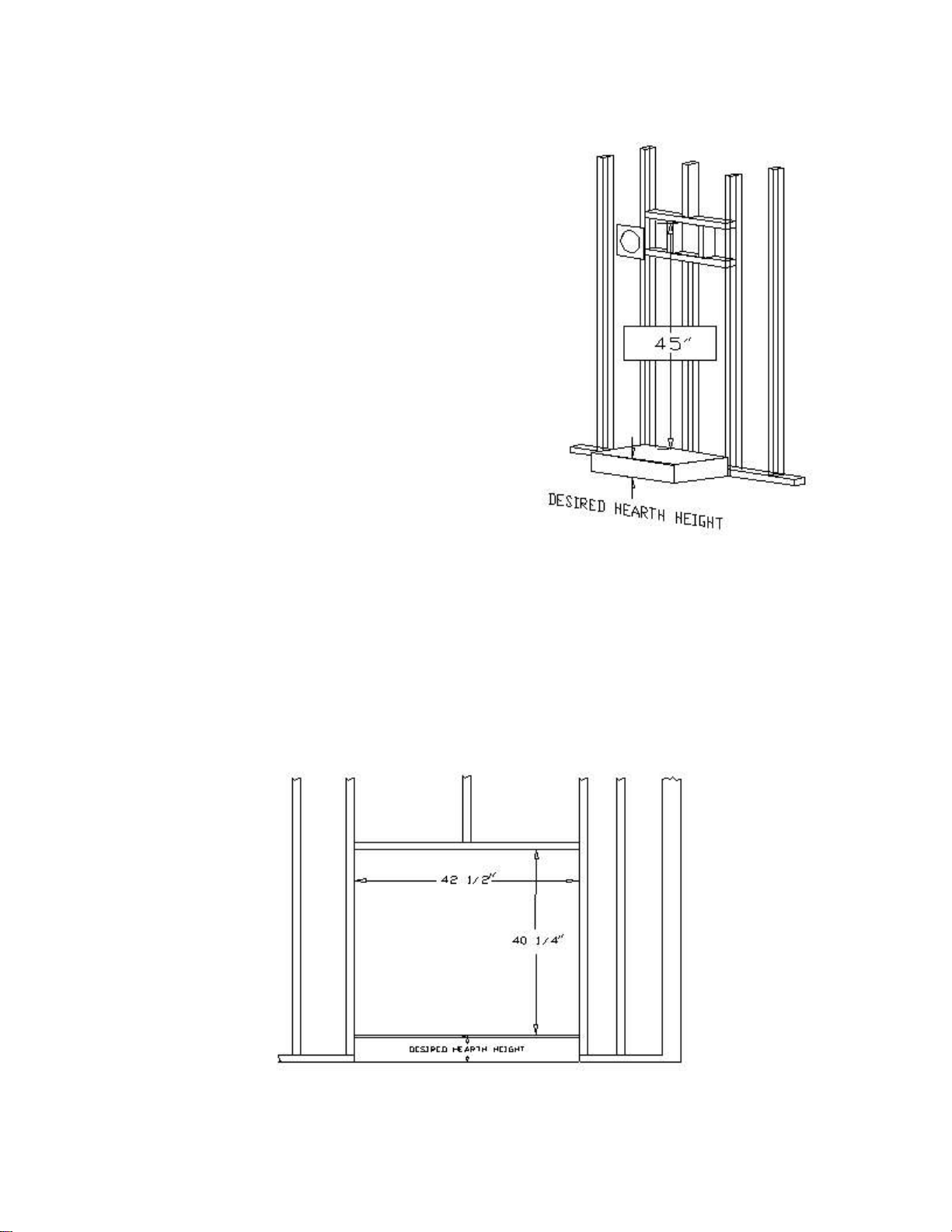

2. Rough in the wall enclosure. The minimum rough
opening dimensions are 42 1/2" wide, 40 1/4" high and 21"
deep. Build the hearth to the desired size and height. See
Figure 4.
NOTE: When the fireplace is installed directly on carpeting,tile, orothercombustible materialsother than wood flooring,itmustbe
installed on a metalor wood panelextending the fullwidth anddepth ofthe fireplace. The minimum for the supportplatform under
the fireplace is 42"wide by19"deep. Ifmasonry is to be used,(optional),prepare the necessary foundation for the masonry load.
When masonry construction is being used, a lintel must be used over the top of the fireplace to support the added weight.
NOTE: A hearth is not required. Ifa hearth is desired, combustible materials may be used.
NOTE: Provide for a minimum of 6" of clearance in front of the lower grill. This will provide adequate space for opening to
operate the control valve. Do not obstruct the upper and lower grill areas to allow proper ventilation air around the fireplace. Air
enters the fireplace at the lower grill and exits at the upper grill. Do not block this passage.
Figure 4
3. Place the fireplace into position.

Page 7
4. REMOVE THE GLASS ASSEMBLY.
A. Locate the spring-loaded handles securing the glass assembly (under the firebox).
B. Pull the latch handles out, then down to release the glass assembly.
C. Pull the bottom of the glass assembly out and lift up off the tabs atthe top.
D. Set aside where it will not be broken.
E. Remove the log package and klinkers from inside the firebox & setaside for later installation.
Figure 5

Page 8
C) VENTING REQUIREMENTS
IMPORTANT: THIS FIREPLACE IS APPROVED
FOR USE ONLY WITHONE OF THE FOLLOWING
DIRECT VENT SYSTEMS.
Note: We recommend using the #800 series direct
vent system for horizontal vent runs only. The
Simpson Dura-Vent DV-GS & AMERI-VENT DIRECT
VENT5"x8"systemsmaybeusedforbothhorizontal
and vertical vent runs.
-#844 DIRECT VENTTERMINATIONKIT- for vent
runs 3' or less.
-#845 DIRECTVENTTERMINATIONKIT - forvent
runs greater than 6' but less than 8'.
- #846 DIRECT VENT EXTENSION KIT - 6'
- SIMPSON DURA-VENT DV-GS DIRECT VENT
CHIMNEY SYSTEM - 5" x 8".
- AMERI-VENT DIRECT VENT SYSTEM - 5" X 8".
HORIZONTAL TERMINATIONS:
Minimum 6" run directly from appliance outlet, followed by a
45-degree elbow.
Minimum horizontal run outlet: 6"
Maximum Horizontal run: 20 ft. (with 1/4" per foot incline)
VERTICAL TERMINATIONS:
Attach a 45-degree elbow directly onto appliance outlet.
Maximum vertical rise from appliance outlet: 40 ft.
IMPORTANT: Straight vertical terminations must use

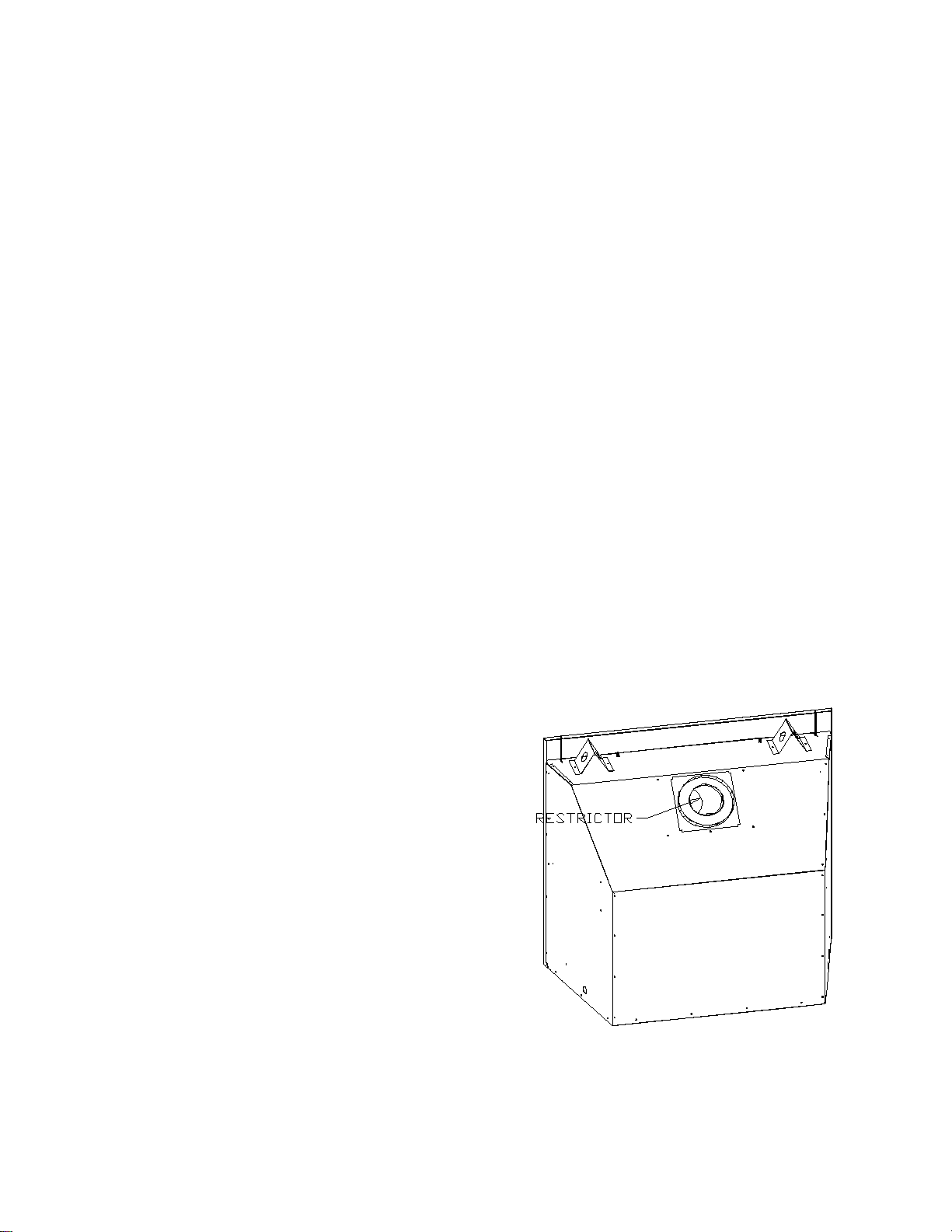

the included restrictor plate for vent runs 15' - 40'.
ELBOWS:
(1) 45 elbow at start & (2) 90 elbows included within the
o o
maximum vent runs. Each additionalelbow reduces the
maximum horizontal distance by 5'.
FOR SIMPSON DURA-VENT DV-GS & AMERI-VENT 5” X
8” DIRECT VENT SYSTEMS - Follow installation
instructions included with the vent system.
Vertical Termination: A 45-degree
elbow may be attached directly to
thefireplace and run a maximum of
40 ft. 2 - 90-degree elbows may be
used within the40 ft. vertical ventrun.
Ventruns of 15' - 40' must install the
restrictor plate included with this
fireplace.
Figure 6 20 FT. MAX. HORIZONTAL RUN
IMPORTANT:
1/4" RISE PER HORIZONTAL
FOOT MUST BE MAINTAINED.
Horizontalterminations:Theminimumventrundirectlyoffthefireplaceis6". Connecttoa45-
degree elbow prior to attaching to the fireplace to ensure the chimney is positioned
horizontally. 2-90-degreeelbowsmaybeusedwithinthemaximum 20ft.horizontalventrun.
For each additional elbow, the maximum horizontaldistance must bereduced by 5'.

Page 9
VERTICAL TERMINATIONS:
WHEN VERTICALLY TERMINATING THE MINIMUM CHIMNEY HEIGHT ABOVE THE ROOFLINE IS
DETERMINED BY THE FOLLOWING CHART:
Roof Pitch Minimum Height Roof Pitch Minimum Height
above roof line above roof line
Flat to 6/12 1 ft. 11/12 to 12/12 4 ft.
6/12 to 7/12 1 ft. 3 in. 12/12 to 14/12 5 ft.
7/12 to 8/12 1 ft. 6 in. 14/12 to 16/12 6 ft.
8/12 to 9/12 2 ft. 16/12 to 18/12 7 ft.
9/12 to 10/12 2 ft. 6 in. 18/12 to 20/12 7 ft. 6 in.
10/12 to 11/12 3 ft. 3 in. 20/12 to 21/12 8 ft.
IMPORTANT: VERTICAL TERMINATIONS USING THE #800 SERIES FLEXIBLE CHIMNEY SYSTEMS REQUIRE A SUPPORTING CHASE
TOBEBUILTAROUND THECHIMNEYABOVE THEROOFLINE. A2"CLEARANCETO COMBUSTIBLEMATERIALSMUST
BE MAINTAINED AROUNDTHE PIPE.
EXAMPLE OF TYPICAL HORIZONTAL & VERTICAL TERMINATIONS
Figure 7A
Note: Simpson Dura-Vent Note: Kozy Heat Direct Vent System
chimney system shown in shown in horizontal termination.
vertical termination.

Page 10
TYPICAL HORIZONTAL TERMINATION
Figure 7B
*SIMPSON DURA-VENT DV-GS VENT SYSTEM:
*AMERI-VENT DIRECT VENT SYSTEM:
Followtheinstallationinstructionsincludedwiththe
vent systemalong with the following requirements:
- Vent runs must be in compliance as outlined on pages
#6-#9ofthisinstallationmanual.Straightverticalruns of
15 - 40 ft. require a restrictor plate.
- A 45 degree elbow may be used directly at the stove
connection to vertically position the chimney.
Figure 8
Secure the elbow or 6” section of chimney to the 8” collar with four screws (not provided).
NOTE: The 5" pipe on the elbow or 6” section fits INSIDE the 5" collar on the fireplace.
The 8" pipe on the elbow or 6” section fits OUTSIDE the 8" collar on the fireplace.

Page 11
INSTALLATION OF #800 SERIES DIRECT VENT TERMINATION KIT(S)
IMPORTANT:
The flex pipe is permanently attached to the exterior plate. DO NOT ATTACH the #844 or #845 termination kit to the fireplace
(or extensionkit) until it has passed through thewall or roof. Thetermination plates should all be installed on the exterior
of the outside wall or top of supporting chase on the roof.
HORIZONTAL TERMINATIONS:
IF TERMINATING AGAINST VINYL SIDING, A VINYL SIDING PROTECTOR, INCLUDED WITH THE #844 and
#845 DIRECT VENT KITS, MUST BE USED. FOLLOW INSTRUCTIONS INCLUDED.
CAUTION: This gas appliance must not be connected to a chimney flue serving another type of appliance.
1. If yourchimney termination is 8' or less from the fireplace top and doesn’t require an extension kit, proceed to step #7.
2. If your chimney termination willrequire one ormore extension kits (part #846), proceed with the following steps. Each
#846 extension kit contains enough 5" and 8" flexible aluminum to extend the chimney an additional 6'.
3. Gently stretch the 5" & 8" flexible aluminum pipes on the termination kit (#844 or #845) and on each extension kit, if
used, the length required so when all the sections are connected together the chimney height for your installation is
attained.
IMPORTANT: DO NOT STRETCH THE EXTENSION KIT BEYOND 6'. DO NOT STRETCH BEYOND WHAT IS
REQUIRED - IT IS VERY DIFFICULT TO RECOMPRESS THE FLEX PIPES ONCE STRETCHED.
4. Using your extension kitpieces, place a bead of sealant outside the 5" flex pipe collar (C) - the end with the
EXTERNAL lip - and slide it inside the 5" pipe on top of the fireplace (D). Secure with 3 additionalevenly spaced
screws.
NOTE: This connection is very difficult to remove without damaging the collars once installed.
5. Place a bead of sealant inside the 8" flex pipe collar
(E)-theendwith the internallip - and slide it overthe
8" pipe on top of the fireplace (F). Secure with 3
additional evenly spaced screws.
Note: The minimum vertical rise is 43"
from the connection on the fireplace
to the top of the pipe.
Figure 9
6. If additional extension kits are being used, repeatsteps #4 and #5, placing the 5" & 8" pipesonto the previous
extension kit.

Page 12
Referring to Figure 9, page #11:
NOTE:Attachmentbracketsareincludedwiththeterminationkit. Theseoptionalbracketsshouldbescrewedornailed(screws
notprovided)ontothe topandbottomofthe121/2"squareopening,ontheexteriorofthehouse. The terminationplatesthen
fitbetween these brackets, and using the screws provided, screw the brackets to the termination kit box (A). Attach the vinyl
siding protector (G).
7. Apply a liberal bead ofexteriorsealant around the outer edge ofthe plate (A), and place the assembly through the
12 1/2" square opening in the exterior wall. Place screws through the four slots (B), securing it in place.
8. Gently pull the 5" & 8" flexible aluminum down to the top of the extension kit, or the top of the fireplace if no extension
kits were used.
9. Place a bead of sealantoutside the 5" flex pipe collar (C) and slide it into the 5" pipe on the extension kit or top of the
fireplace (D). Secure with 3 additional evenly spaced screws.
NOTE: This connection is very difficult to remove without damaging the collars once installed.
10. Place a bead of sealant inside the 8" flex pipe collar (E) and slide it over the 8" pipe on the extension kit or top of the
fireplace (F). Secure with 3 additional evenly spaced screws.
11. OPTIONAL: Place insulation between the 8" pipe and the wall studs.
VERTICAL TERMINATIONS:
Prepare the chimney:
1. Gently stretch the 5" & 8" flexible aluminum pipes on the termination kit (#844 or #845) and on each extension kit, if
used, the length required so when all the sections are connected together, the chimney height for your installation is
attained.
IMPORTANT:
DO NOT STRETCH THE EXTENSION KIT BEYOND 6'. DO NOT STRETCH BEYOND WHAT IS REQUIRED - IT IS
VERY DIFFICULT TO RECOMPRESS THE FLEX PIPES ONCE STRETCHED.
2. If your chimney is 8' orless from the fireplace top and doesn’t require an extension kit, proceed to the‘Connect the
chimney to the stove’ section.
3. If yourchimney termination willrequire one or more extension kits (#846), proceed with the following steps. Each #846
extension kit contains enough 5" & 8" flexible aluminum pipe to extend the chimney an additional 6'.

Page 13
Connect the chimney sections:
1. Place a bead of sealant outside the 5" flex pipe collar on the termination kit (#844 or #845) and slide inside the
5" collar - the end with the internal notches - on the extension kit. Secure with 3 additional evenly spaced
screws.
2. Place a bead of sealant inside the 8" flex pipe collar on the termination kit (#844 or #845) and slide it over the
8" collar - the end with the external notches - on the extension kit. Secure with 3 additional evenly spaced
screws.
3. If additional extension kits are being used, connect the 5" & 8" flex pipes on each extension kit together in the
same manner as described in steps #1 & #2.
Connect the chimney to the fireplace:

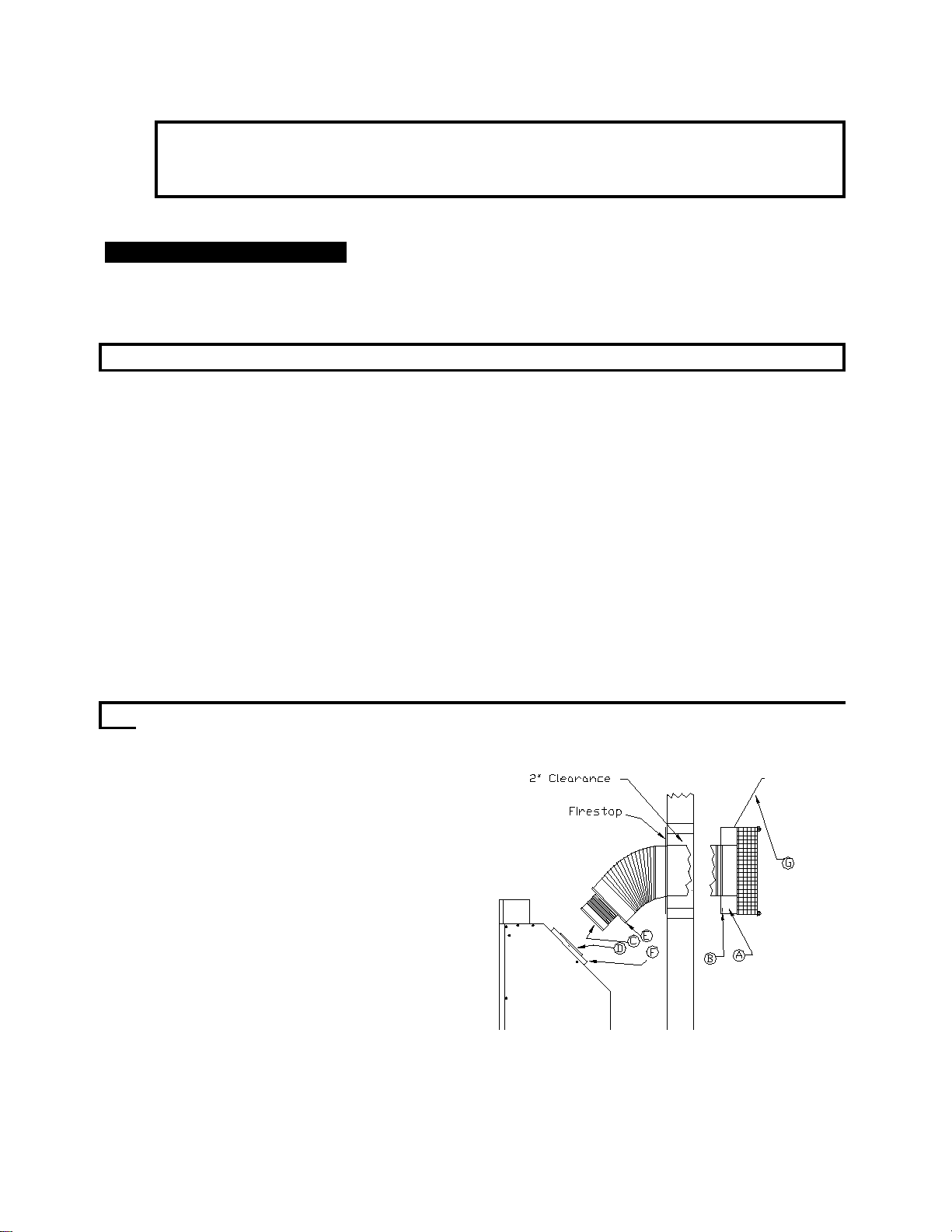

A firestop should be secured to the 12 1/2" x 12 1/2" framed opening whenever passing the chimney through a
ceiling or roof.
NOTE: The framing and supporting chase for the termination kit should be at least partially complete.
1. Place a weighted rope around the end of the 5" & 8" flex pipes and carefully guide them down the chase to the
top of the fireplace.
2. Apply a liberal bead of sealant around the outer edge of the plate (A) and place on top of the chase. Secure
using the screws provided.
3. The restrictor plate (included) must be placed
insidethe5"fluecollaron thetopofthefireplace
before connection of the chimney to fireplace is
made. This is required for vent runs of 15' - 40'.
a. Bend the (3) tabs on the restrictor plate required
for your installation far enough so that it will
securely fit inside the groove on the 5" collar on
the fireplace. (Note: The tabs should be in the
‘up’ position.) Refer to Figure 10.
4. Connecttheflexpipestothefireplaceas follows:
Placeabeadof sealantoutsideof the5"flexpipe
collar (end should have external lip) and slide it
inside the 5" pipe on the fireplace. Secure with
3 additional evenly spaced screws.
5. Place a bead of sealant inside the 8" flex pipe
collar (end should have an internal lip) and slide
it over the 8" pipe on the fireplace. Secure with 3
additional evenly spaced screws.
6. OPTIONAL: Placeinsulationaround the 8" pipe.
Figure 10

Page 14
D) FAN INSTALLATION (OPTIONAL)
INSTALLATION OF THIS FAN SHOULD BE DONE ONLY BY A QUALIFIED INSTALLER.
IMPORTANT: IF THE FAN IS INSTALLED AFTER THE FIREPLACE INSTALLATION, THE LOWER GRILL
MUST BE REMOVED TO PROPERLY INSTALL.
NOTE: If a fan is going to be installed, the wiring must be done prior to enclosing the sides of the fireplace.
An electrical box & romex connector are pre-installed on a removable panel on the left side of the fireplace.
A receptacle / speed control assembly and wire nuts are included in the fireplace components packet.
Your optional fan kit includes:
1. Rightand left fan assemblies with temperature control switch already mounted.
2. Components package: (4) nuts,installation instructions.
NOTE: To wall-mount the speed control, you will need to purchase a speed controlassembly and mounting plate, an electrical
box to mount the speed control and a cover / switch plate with screws.
IMPORTANT: CODE APPROVED LINE VOLTAGE WIRING 14 GAUGE OR BETTER MUST BE USED
WHEN WIRING THIS SYSTEM. REFER TO YOUR LOCAL ELECTRICAL CODES FOR
SPECIFIC REQUIREMENTS IN YOUR AREA.
WARNING: This appliance is equipped with a three-prong (grounding)plug for protection against shock hazard
and should be plugged directly into a properly grounded three-prong receptacle. Do not cut or remove the
grounding prong from this plug.

Page 15
INSTALLATION INSTRUCTIONS. Refer to Figure 11.
1. Remove the lower grill, if installed.
2. OPTIONAL: For easier installation,the fans may be separated by unplugging the three-prong plug from the
receptacle in the right fan assembly.
3. Slide the right fan (with receptacle) (A) through the lowergrillopening and place over the (2) right side mounting
studs (B) located towards the back of the fireplace.
4. Slide the right fan assembly through the lower grill opening and place overthe (2) left mounting studs (B) located
towards the back of the fireplace.
5. Place nuts on mounting studs and tighten.
6. Remove the (2)screws securing the removable access panel (with electrical box & romex connector installed) from
the side of the fireplace.
7. Insert 115V wiring (with ground) through the romex connector installed in the electricalbox in the side of the
fireplace and wire to the speed control / receptacle assembly matching the black (hot), white (neutral) and green
(ground) wires to the corresponding wires on the speed control / receptacle assembly. NOTE: (3) wire nuts are
included in the fireplace components packet.
8. Secure the speed control / receptacle assembly (E) into the electricalbox with the (2) screws provided.
9. Re-install the electrical access panel and secure with the (2) screws previously removed.
10. Place the temperature control switch on the bottom of the firebox.
11. Plug the fan cord (F) into the receptacle in the electrical box.
12. Turn on/off speed control counter-clockwise until it ‘clicks’. This is the ‘OFF’ position.
13. Turn the speed control ‘ON’ by turning the knob clockwise past the ‘click’ - this is the highest setting.
14. Re-install the lower grill, if removed in step #1 above.
NOTE: The fan will not operate unless the speed control has been turned on. The fan will not turn on until sufficient heat
is applied to the thermostatic control switch (C). The fan will turn on and off automatically when the fireplace heats and
cools. Adjust fan to desired speed while it is running.
TEMPERATURE CONTROL SWITCH POSITION: Prior to adjusting the temperature control switch,unplug the 3-prong plug
on the fan cord from the receptacle. Adjust the position of the temperature control switch to a warmer location under the
firebox to turn the fan ‘ON’ sooner or move it to a cooler location under the firebox to turn the fan ‘ON’ later. The fan will
turn on when the sensor in the temperature control switch reaches 110 F and will turn ‘OFF’ when the sensors reach 90 F.
oo
After adjustment, plug the 3-prong plug on the fan cord into the receptacle.

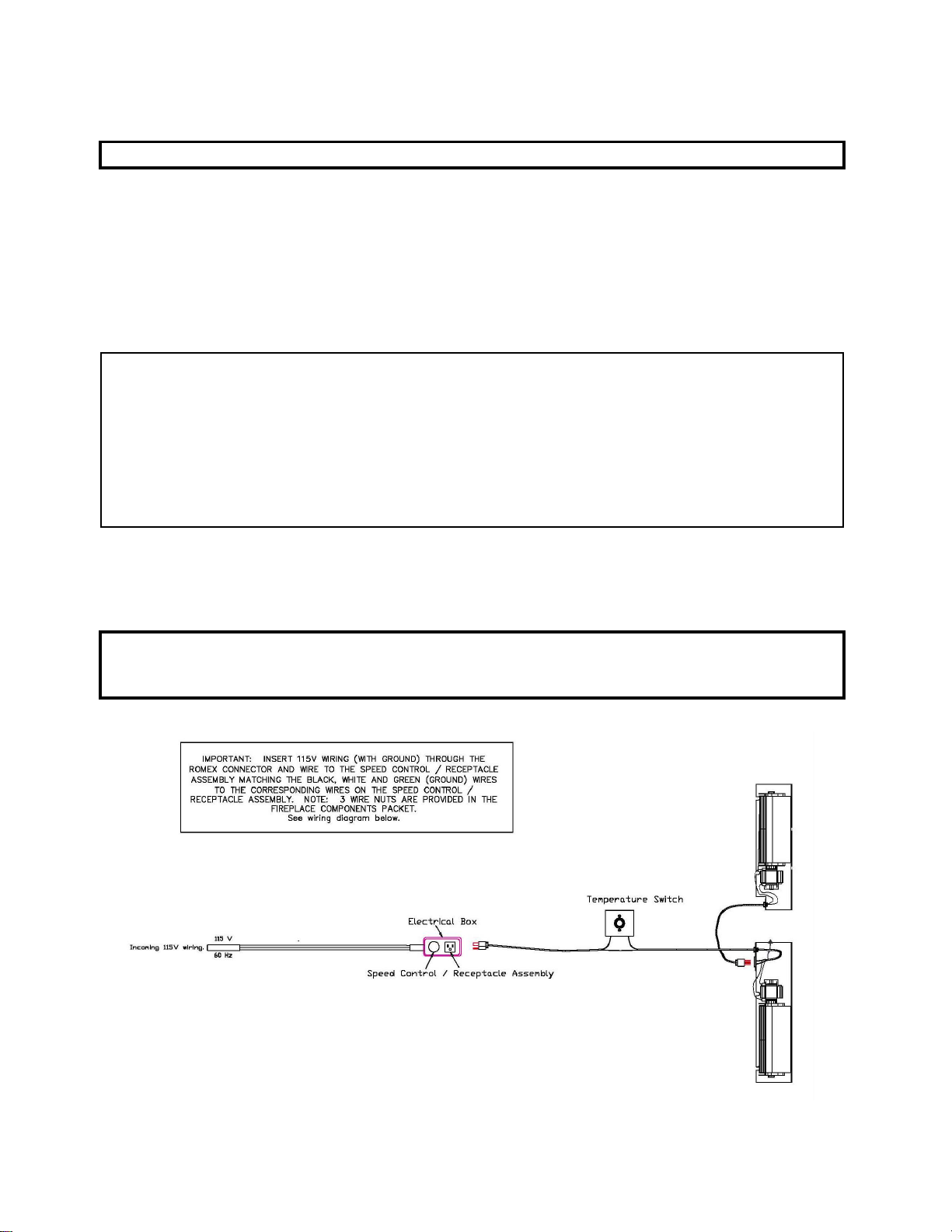

Figure 11 Temperature
Control Switch
A
C
E F BD
White 3-prong receptacle
NOTE: This system,when installed, must be electrically grounded in accordance with localcodes,or in the absence oflocal codes,with the
National Electrical Code, ANSI/NFPA 70-Current edition.

Page 16
E) RUN THE GAS LINE.
CAUTION: Installation of the gas line must only be done by a qualified person in accordance with local
building codes.
This fireplace is equipped with a 3/8" flexible gas line connection 18" long.
NOTE: The gas line should be run to the point of connection where the manual shut off valve and flexible
gas line will connect.
CAUTION: The manual shut offvalve or flexible gas line must not extend outside the fireplace cavity. See the
WARNING label affixed to the flexible gas line for additional installation instructions and warnings.
1. Run the gas line. An accessible shut off valve (included in the fireplace components packet) must be
installed up stream from the regulator.
IMPORTANT: DO NOT RUN THE GAS LINE IN A MANNER THAT WOULD OBSTRUCT THE OPERATION OF
THE OPTIONAL FAN.
2. This fireplace is designed to accept either a 3/8" or 1/2" gas line approved for gas appliances. Consult
local building codes to properly size the gas supply line leading to a 3/8" reduction.
3. A gas line access hole is positioned on either side of the fireplace for gas line connection.
4. Connect the gas line to the manual shut-off valve.
5. Connect the flexible gas line (installed on the millivolt board valve) to the manual shut off valve.
IMPORTANT:
ALL CONNECTIONS WHETHER FIELD OR FACTORY MADE MUST BE CHECKED FOR LEAKS.
NOTE: This appliance and its individual shut off valve must be disconnected from the gas supply piping
system during any pressure testing of that system at test pressures in excess of 1/2 psi.
NOTE: This appliance must be isolated from the gas supply piping system by closing its individual manual
shut off valve during any pressure testing of the gas supply piping systems at test pressures equal to or less
than 1/2 psi.
Pressure check taps for both the manifold (outgoing) and inlet (incoming) pressures are located infrontof the
gas valve. The right pressure tap is the manifold pressure and the leftpressure tap is the incoming pressure.
Follow instructions on page #26 for checking these pressures.

Page 17
NATURAL GAS ONLY:
The minimum inlet gas supply pressure: 5.0 inches W.C.
The maximum inlet gas supply pressure: 10.5 inches W.C.
Manifold Pressure: 3.5 inches W.C.
Manifold Pressure: (low setting) 1.7 inches W.C.
Orifice size (0-2000 ft): 30 Input rating: 39,000 BTU/HR
LP GAS ONLY:
The minimum inlet gas supply pressure: 11.0 inches W.C.
The maximum inlet gas supply pressure: 13.0 inches W.C.
Manifold Pressure: 10.0 inches W.C.
Manifold Pressure: (low setting) 6.3 inches W.C.
Orifice size (0-2000 ft): 49 Input rating: 35,500 BTU/HR
For high altitude installations, consult the local gas distributor or the authority having jursidiction for proper rating methods.

Page 18
F) MILLIVOLT BOARD REMOVAL / INSTALLATION. See Figures 12A & 12B.
NOTE: This fireplaceis equippedwiththemillivoltboardandburnercoverassemblyalreadyinstalled. Pleaseensure that
all of the nuts are tightened, securing the board to the firebox bottom and the burner coverassembly is secured
to the millivoltboard. Follow these procedures should the millivoltboard need replacing oris removed forservice
and/or maintenance or fan installation.
MILLIVOLT BOARD REMOVAL:
CAUTION: If the burner and/orpilot has been burning, the logs will be warm and will continue to hold heat. Place them
on a protected surface upon removal to avoid damage to floor or personal property.
1. Turn the black control knob to the ‘OFF’ position.
2. Shut off the gas supply at the manual shut off valve.
3. Disconnect the flexible gas line from the manual shut off valve.
4. Disconnect any remote control, wall switch or thermostat wires from the top and bottom terminals on
the gas valve.
5. Remove the upper grill and glass assembly and set aside. Refer to the instructions in this manual if
necessary.
6. Remove the logsfrom the boardand set on a properlyprotected surface where they will notbe broken.
7. Loosen and remove the (2) nuts securing the burnercover assembly to the millivolt board as shown
in Figure 12A. Lift the front of the plate up and slide it to the right, off the burner orifice and remove
from the firebox.
NOTE: Release the venturi collar from the bracket while removing the burner cover. Keep venturi
collar on the burner tube (shown in Figures 12D and 12E).

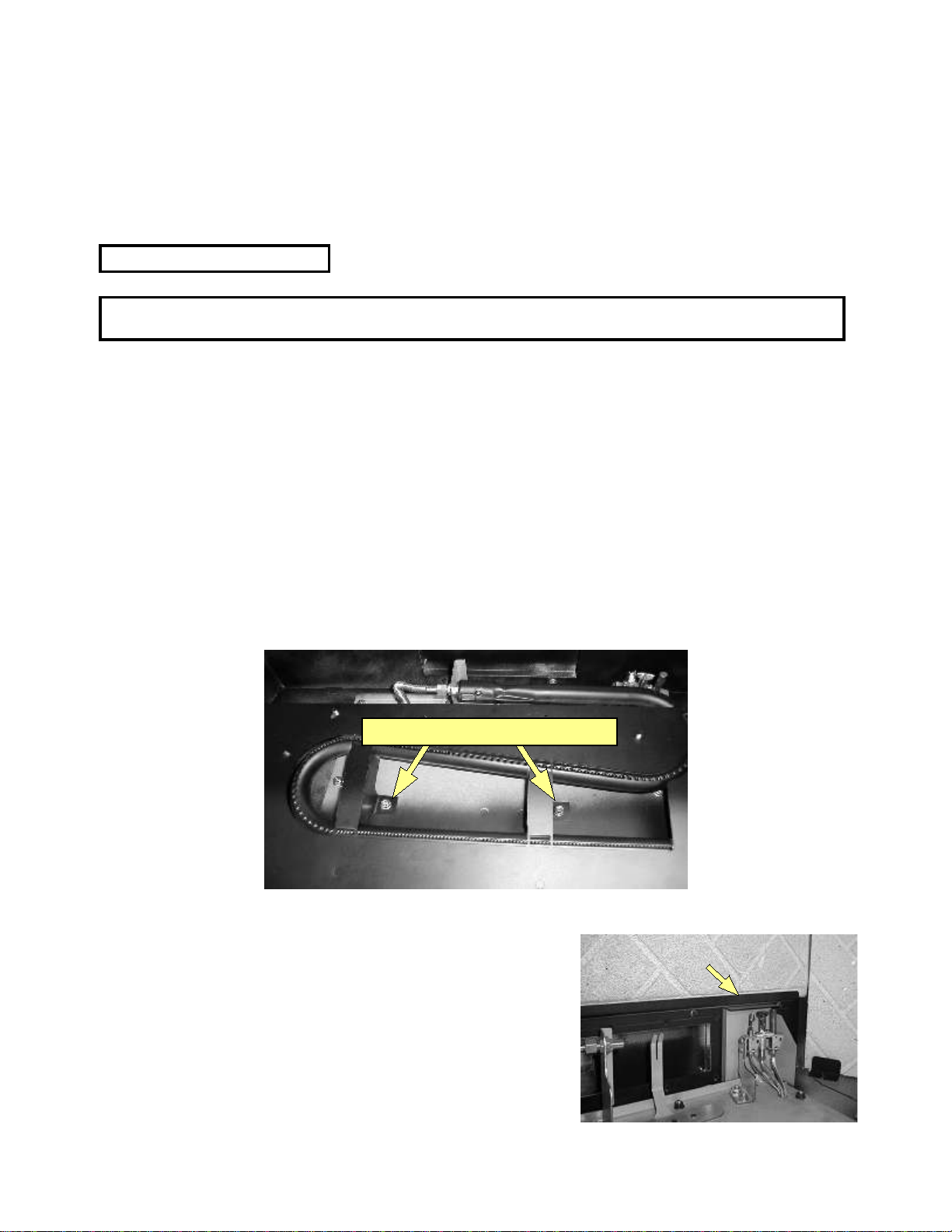

Figure 12A
Pilot Shield
8. Remove the pilot shield and set aside. Figure 12B.
9. Loosen and remove the (8) 1/4" nuts securing the
millivolt board (Figure 12C).
10. Carefully lift the board up off the (8) mounting studs
and remove from the fireplace. Figure 12B
1/4" NUTS SECURING BURNER COVER
