INSTALLATION & OPERATING MANUAL
#936 DIRECT VENT
WALL FURNACE
PATENT PENDING
IMPORTANT:
READINSTRUCTIONSCAREFULLYBEFOREINSTALLATION.
FAILURE TO INSTALL THIS FIREPLACE CORRECTLY CAN
CAUSE SERIOUS STRUCTUAL AND FIRE HAZARDS AND
MAY VOID YOUR WARRANTY.
www.kozyheat.com MAY 1998

Page 1
INDEX
DESCRIPTION PAGE
SAFETY REQUIREMENTS / SPECIFICATIONS ............................ 2-3
MINIMUMCLEARANCES ...............................................3
GASCONVERSIONS ..................................................3
PREPARE THE UNIT ...................................................4
POSITIONTHEUNIT................................................. 5-6
ROUGH-INCHIMNEYVENTDIMENSIONS .............5
ROUGH-INDIMENSIONS ...........................6
VENTINGREQUIREMENTS .......................................... 7-10

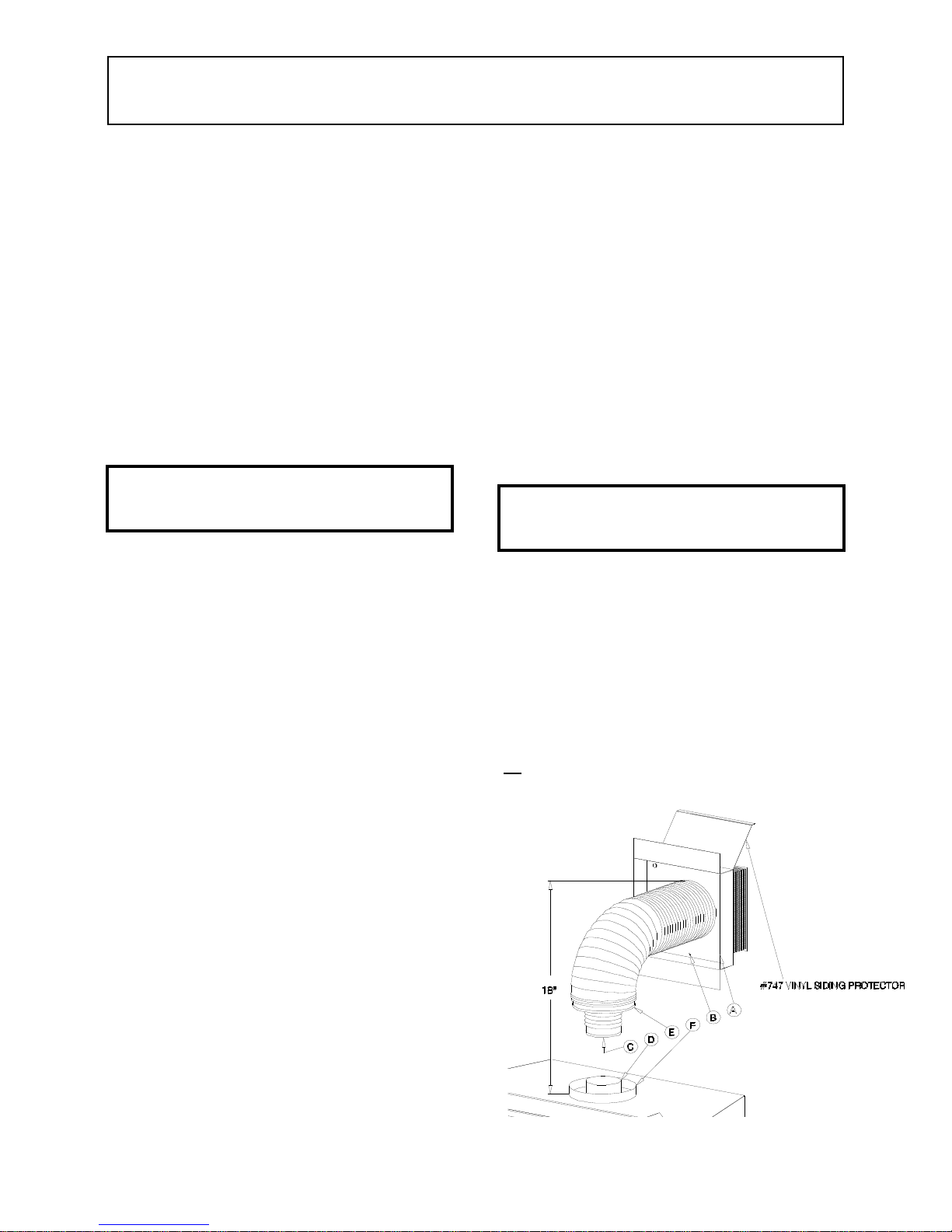

DIRECTVENTKITINSTALLATION ......................................10
FANINSTALLATION ............................................... 11-12
GAS LINE SPECIFICATIONS ........................................ 13-14

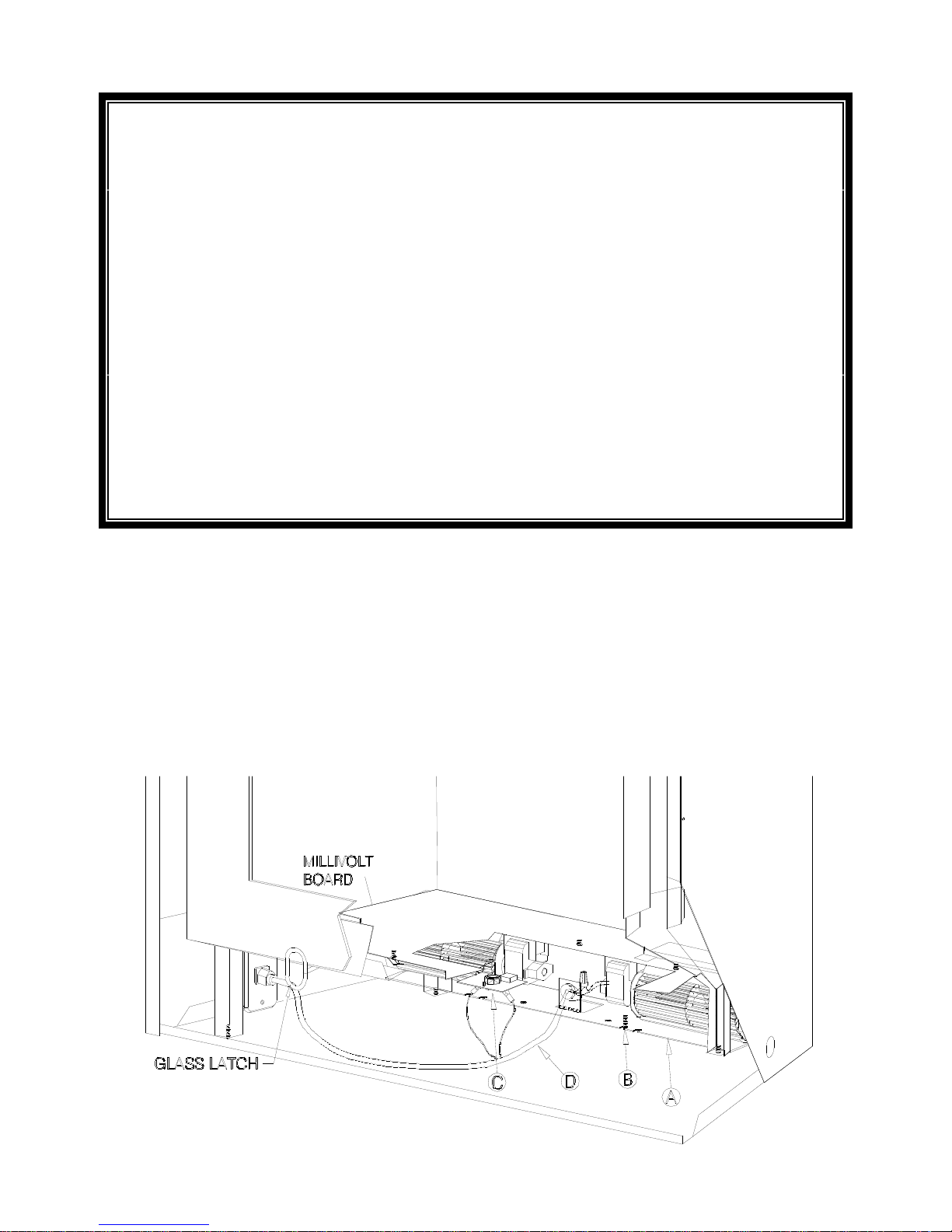

MILLIVOLTBOARDREMOVAL/INSTALLATION ........................ 15-16
LOGINSTALLATION ............................................... 16-17

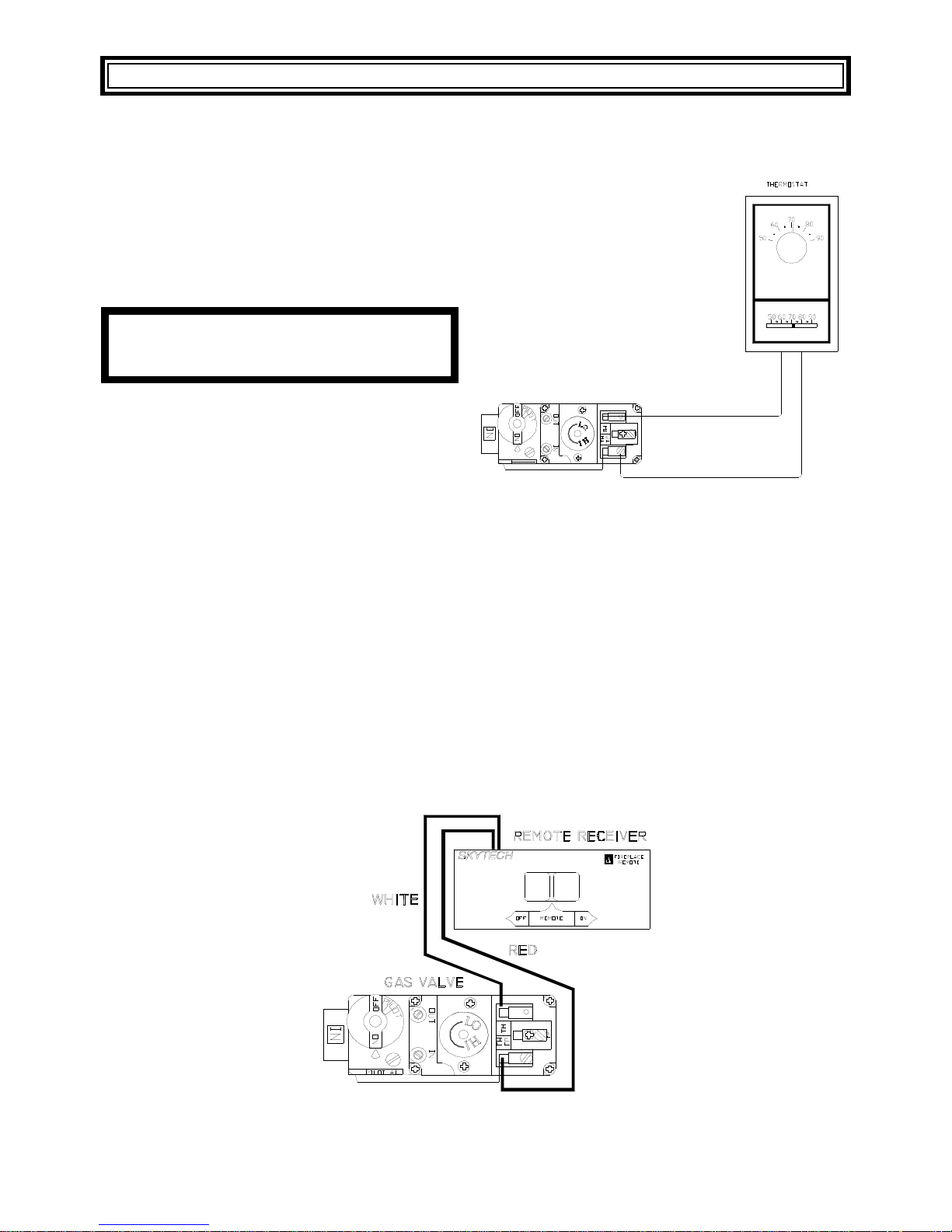

WALLSWITCH-THERMOSTAT-REMOTECONTROLINSTALLATION.........18
COMPLETETHEINSTALLATION........................................19
LIGHTING&SHUTDOWN........................................... 20-21
MANIFOLD & INCOMING PRESSURE CHECK PROCEDURES ................22
CLEANING&MAINTENANCEREQUIREMENTS............................23
TROUBLESHOOTING ............................................. 24-25
REPLACEMENT PARTS LISTS ..................................... 26
IMPORTANT:

Page 2
READTHISMANUALBEFOREINSTALLINGANDUSINGTHISFIREPLACE
MODEL #936 DV WALL FURNACE
INSTALLATION INSTRUCTIONS
This appliance has been tested to and complies
withANSIZ21.44-1993,“GAS-FIREDDIRECTVENT
WALL FURNACES”, and applicable sections of
ANSI Z21.50-1996 “VENTED DECORATIVE
APPLIANCE”. Installationmustconformwithlocal
building codes, or, in the absence of local building
codes, with the national fuel gas code, ANSI
Z223.1-1992 NFPA 54, or the Manufactured Home
Construction and Safety Standard, Title 24 CFR,
Part 3280.
INSTALLATION AND/OR REPAIR OF THIS UNIT SHOULD ONLY BE
DONE BY A QUALIFIED INSTALLER.
WARNING: If the information in this manual is not
followed exactly, a fire or explosion may result causing
property damage, personal injury or loss of life.
FOR YOUR SAFETY: WHAT TO DO IF
YOU SMELL GAS:
!Do not touch any electrical switches.
!Do not try to light any appliance.
!Do not use the phone in your building.
!Immediately call you gas supplier from a
neighbor’s phone.
!Follow the gas suppliers instructions.
!If you cannot reach your gas supplier, call
the fire department.
!Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
WARNING:Improper installation,adjustment,
alteration, service or maintenance can cause
injury or property damage. Refer to this
manual. For assistance or additional
information consult a qualified installer,
service agency, or the gas supplier.
WARNING: Do not use this heater if any part
has been under water. Immediately call a
qualified service technician to inspect the
appliance and to replace any part of the control
system and any gas control which has been
under water.
WARNING: DONOT REPLACE THISBURNER
UNIT WITH ANY OTHER SIZED BURNER.
REPLACEMENT WITH AN UNAUTHORIZED
BURNER CAN RESULT IN TEMPERATURES
EXCEEDINGTHELIMITSFORTHISUNIT,AND
VOID YOUR WARRANTY.

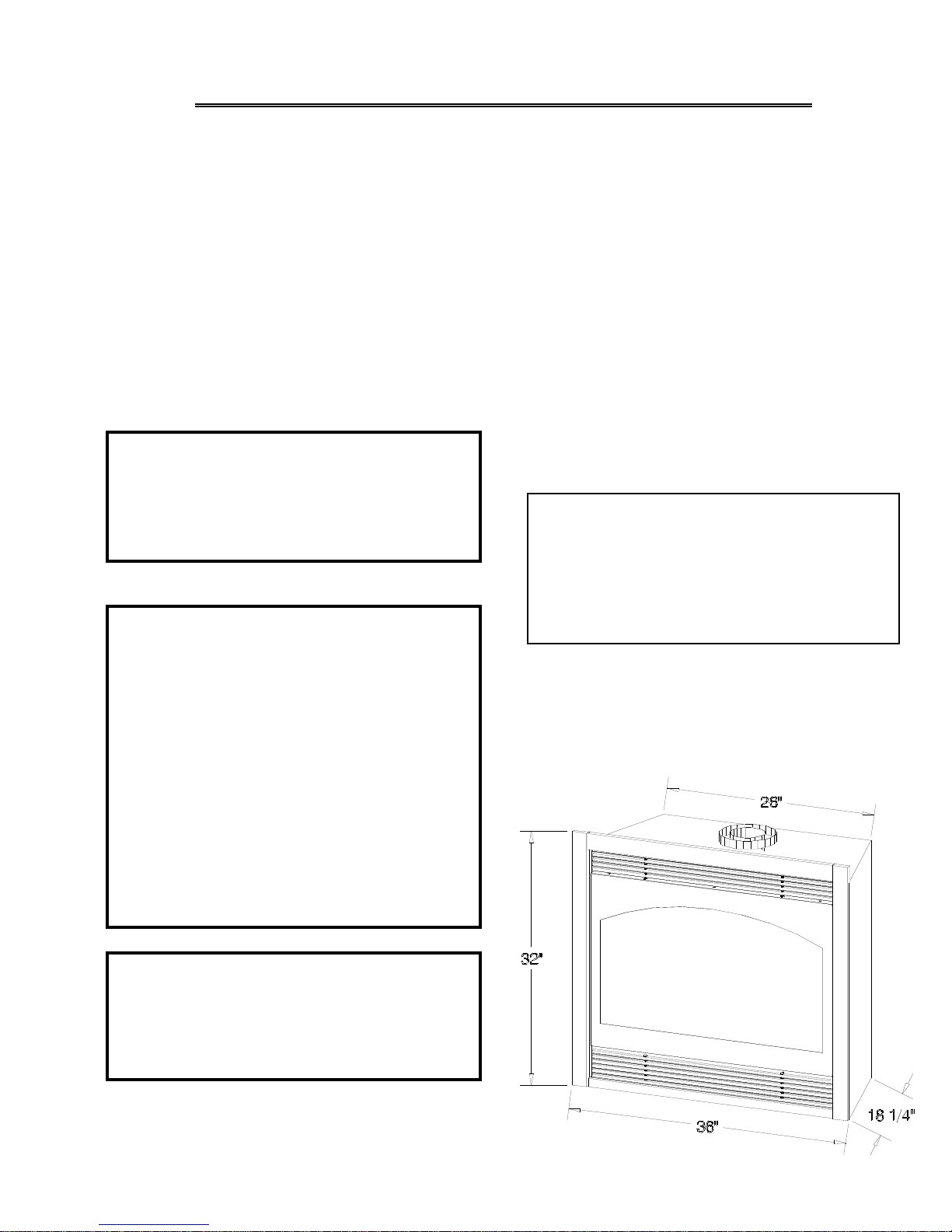

UNIT SPECIFICATIONS -
Height: 32"
Front width (w/o face): 36"
Back width: 26"
Depth(incl. face): 18 1/4"
Face to front of 7” intake 11 1/4”
Flue size: 4" exhaust, 7" intake

Page 3
IMPORTANT: THIS UNIT IS APPROVED FOR USE ONLY WITH ONE OF THE FOLLOWING DIRECT VENT
SYSTEMS :
- #745 DIRECT VENT TERMINATION KIT - for
terminations 4' for less.
- #718 DIRECT VENT TERMINATION KIT - for
terminations greater than 4' but less than 8'.
- #746 DIRECT VENT EXTENSION KIT - used in
conjunction with #745 or #718. The extension kit is
expandable to 6'.
- SIMPSON DURA-VENT DV-GS DIRECT VENT
CHIMNEY SYSTEM: 4” x 6 5/8”. For vertical
terminations.
*Adaptor #923-C is required to adapt the flue
collars to the chimney.
Refertopages#7-#11forcompleteventinginstallation
instructions / requirements.
For visual inspection of proper vent connection; upon completion of installing the direct vent kit, remove the nuts and
the baffle inside the unit to expose the lower end of the flue gas exit.
IMPORTANT:NON-COMBUSTIBLEFACINGMATERIALMAYBEAPPLIEDOVERTHEFACE. TOPREVENTTHEFACING
MATERIALFROMCRACKINGANDFALLINGOFFDUETOEXPANSIONOFTHEFACEWHENHEATED,DONOTATTACH
FACING MATERIAL DIRECTLY TO THE FACE OF THE UNIT.
CLEARANCES Mantel Projection
Minimum clearance to combustibles, see Figure 1:
From unit sides & back: 0"
From unit top stand-off: 0"
To flooring: 0"
From flue vent: 1"
From unit glazing to adjacent sidewall: 8"
From heat outlet to mantle: 12"
GAS CONVERSIONS
If a gas conversion is necessary, one of the following conversions kits must be used:
OCK-331- Natural Gas Converisons Kit - used to convert an LP Millivolt
board to natural gas.
OCK-349 - LP Gas Conversion Kit - used to convert a Natural Gas
Millivolt board to LP Gas.
The conversion shall be carried out in accordance with the requirements of the provincial authorities having
jurisdiction and in accordance with the requirements of the ANSI Z223.1 installation code.
A) PREPARE THE UNIT

Page 4
1. REMOVE THE UPPER GRILL
A. Remove the upper grill (A) by lifting it up far
enough to clear the bottom holes and pull the
bottom of the grill out.
2. REMOVE THE GLASS ASSEMBLY.
See Figure 3.
A. Open the lower grill and locate the spring-
loaded handles securing the glass
assembly (under the firebox).
B. Pull the handles out, then down to release the
glass assembly.
C. Pull the bottom of the glass assembly out and
lift up off the tabs.
D. Set aside where it will not be broken.
E. Remove the box of logs from the firebox and
set aside.
3. REMOVE THE LOWER GRILL.
(FOR OPTIONAL FAN INSTALLATION).
A. Grasp the center of the lower grill and pull
down to open.
B. Remove the 1/4” nuts (B) from the grill
assembly.
C. Pull the entire assembly out of the hinges(A).
D. Re-attach the 1/4” nuts (B) to the grill
assembly and set aside for reinstallation later
in this manual.
Figure 1
Figure 2

Page 5
B) POSITION THE UNIT. See Figure 3.
1. Determinethe exactposition of your fireplace.
If possible, place the fireplace in such a manner
thatthepipingwillbeplaced between twostudsso
additionalframingisnotnecessary. Determinethe
width and depth of the (optional) hearth.
2. The unit may be installed oneither the outside
or inside of an exterior wall. See Figure 1 for
various installation options. Follow clearance
requirements listed above.
CAUTION: COLD AIR TRANSFER AREA. THE
SURROUNDING WOOD CHASE OF THE
OUTSIDE WALL MUST BE INSULATED TO
PREVENT COLD AIR FROM ENTERING THE
ROOM.
NOTE: Due to high temperatures, this
unit should be located out of traffic areas
and away from furniture and draperies.
Figure 3
3. Cut a hole for the firestop, 9 1/2" x 9 1/2". The top
of this hole must be a minimum of 49 1/2" * above
the height of the hearth (optional). See Figure 4A. Fig. 4A
*Important: This measurement is
determined by the vertical height and
horizontal length of the venting
application desired. The measurement
is to the top of the pipe. Please refer to
page #7 of this installation manual for
requirements and restrictions.

Page 6
4. Rough in the wall enclosure. The minimum rough opening dimensions are 32 1/4" high,
36 1/2" wide and 18 1/2" deep. Build the hearth to the desired size, and height. See Fig. 4B.
Figure 4B
NOTE: When the unit is installed directly on carpeting, tile, or other combustible materials other than wood flooring, it
must be installed on a metal or wood panel extending the full width and depth of the unit. The minimum for the support
platform under the unit is 18 1/4" deep by 36" wide. If masonry is to be used (optional), prepare the necessary
foundation for the masonry load. When masonry construction is being used, a lintel must be used over the top of the unit
to support the added weight.
NOTE: A non-combustible hearth extension is not required. If a hearth extension is desired,
combustible materials may be used.
NOTE: Provide for a minimum of 6" of clearance in front of the lower grill. This will provide
adequate space for opening to open the lower grill and operate the controls.
Do not obstruct the upper and lower grill areas to allow proper ventilation air around the unit. Air
enters the unit at the lower grill, and exits at the upper grill. Do not block this passage.
5. Place the unit into position.

Page 7
C) VENTING REQUIREMENTS
IMPORTANT: THIS UNIT IS APPROVED FOR USE ONLY WITH THE FOLLOWING DIRECT
VENT SYSTEMS:
HORIZONTAL TERMINATIONS
#700 SERIES DIRECT VENT TERMINATION KITS:
- #745 KOZY HEAT DIRECT VENT KIT - For terminations of 4' or less.
- #718 KOZY HEAT DIRECT VENT KIT - For terminations greater than 4' but less than 8'.
- #746 KOZY HEAT DIRECT VENT EXTENSION KIT #746 - Used to extend the
#745 or #718 kit an additional 6'. Used for horizontal terminations.
VERTICALTERMINATIONS
-SIMPSON DURA-VENT DV-GS DIRECT VENT CHIMNEY SYSTEM* ( 4” x 6 5/8”).
- Used for vertical terminations only.
- Adaptor #923-C is required to adapt the flue collars on the unit to the chimney system.
- Vent runs must be in compliance as outlined below.
- 45oelbows only - Follow installation instructions included with the #923-C adaptor & chimney
system.
HORIZONTAL & VERTICAL VENTING CHART
Vertical Rise
Horizontal Run
HORIZONTAL VENTING REQUIREMENTS

Page 8
MINIMUM VERTICAL RISE* FROM TOP OF UNIT: 18 IN. (to top of 7” pipe)
MINIMUM HORIZONTAL RUN: 6 IN.
MAXIMUM HORIZONTAL RUN: 20 FT. (Horizontal runs must maintain 1/4” rise per ft.)
TOTAL HORIZONTAL & VERTICAL RUN MUST NOT EXCEED 32 FT.
*Miniminum vertical rise directly off the top of the unit is determined by the length of the horizontal run. Refer
to the venting diagram on page 7.
1. #700 Series vent kits must be supported every
3 ft. to maintain proper rise.
2. NOTE: IF TERMINATING AGAINST VINYL
SIDING, A VINYL SIDING PROTECTOR , INCLUDED
WITH THE #745 AND #718DIRECT VENT KIT, MUST
BE USED. FOLLOW INSTALLATION
INSTRUCTIONS INCLUDED.
3. IMPORTANT: DO NOT RECESS
TERMINATION KIT INTO OUTSIDE BUILDING
MATERIALS - brick, stone, etc. If necessary,
extend framing so that termination kit will be
exposed once building materials are installed.
4. IMPORTANT: VENT TERMINATION MUST
NOT BE LOCATED WHERE IT WILL BE
BECOME PLUGGED BY SNOW OR OTHER
MATERIAL.
5. For each additional elbow used after the first
elbow, you must subtract 5 ft. from the maximum
horizontal run allowed.
For example: A vertical rise of 18” directly off the top of
the unit with a 90oelbowwould be allowed to run 8’ with
1/4” rise per ft.. If an additional elbow is used within this
vent run, the maximum horizontal run allowed would be
3’ ’ with 1/4” rise per ft.. (8 ft - 5 ft. (for additional elbow)
= 3 ft.)

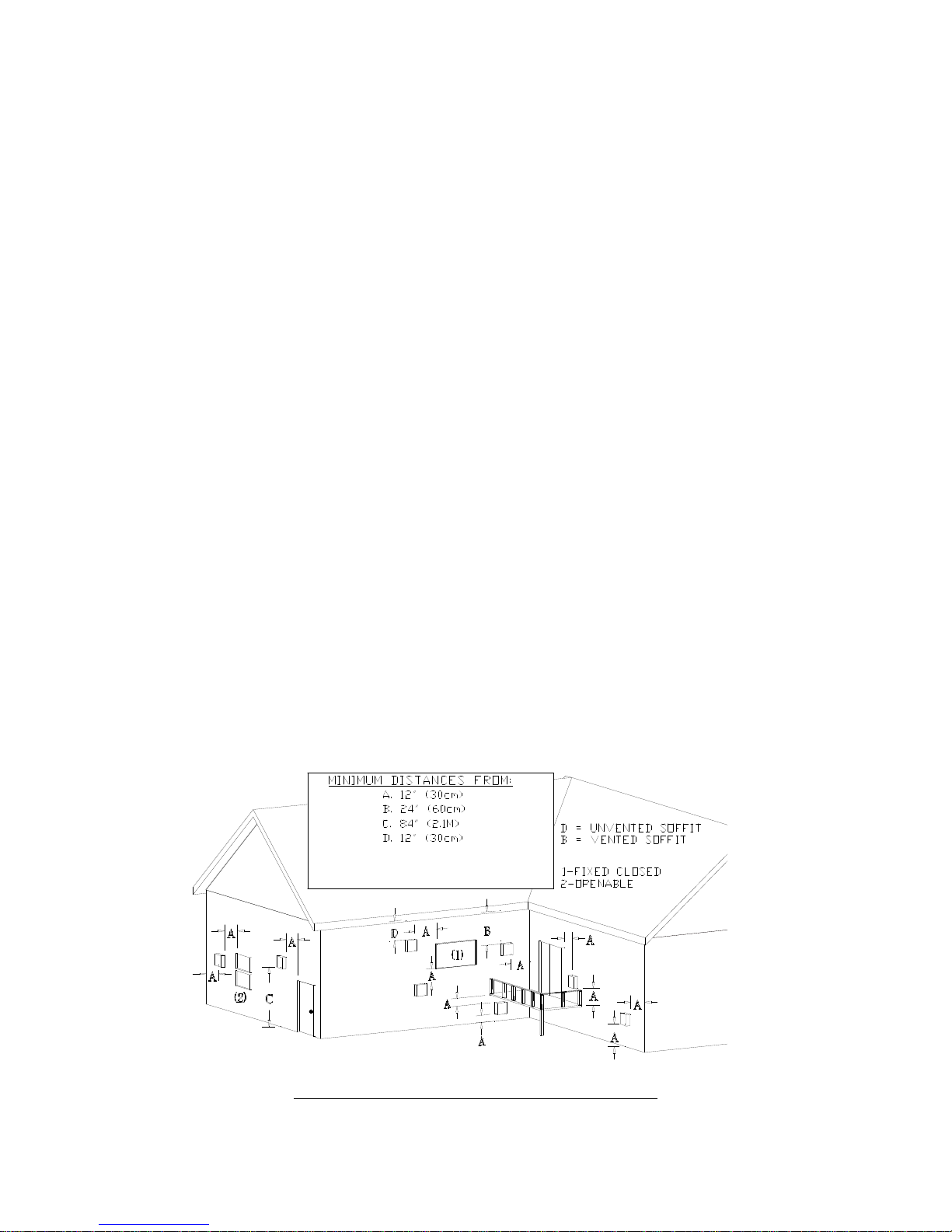

Follow Figure 5 for clearances to doors, windows
and ground level.
Fig. 5
VERTICAL VENTING REQUIREMENTS

Page 9
NOTE: MINIMUM VERTICAL RISE FROM TOP OF UNIT: 18 IN. (to top of 7” pipe)
MAXIMUM VERTICAL RISE FROM TOP OF UNIT: 32 FT.
ELBOWS: 45oonly
MINIMUM CLEARANCE TO COMBUSTIBLES: 1"
WHEN VERTICALLY TERMINATING, THE MINIMUM CHIMNEY HEIGHT ABOVE THE ROOFLINE IS
DETERMINED BY THE FOLLOWING CHART:
Roof Pitch Minimum Chimney Height Roof Pitch Minimum Chimney Height
Flat to 6/12 1 ft. 13/12 to 16/12 6 ft.
6/12 to 9/12 2 ft. 17/12 to 21/12 8 ft
10/12 to 12/12 4 ft.
CAUTION: This gas appliance must not be connected to a chimney flue serving
another type of appliance.
Figure 6
INSTALLATION OF THE #700 SERIES DIRECT VENT TERMINATION KIT(S)

Page 10
NOTE:THEFLEXPIPEISPERMANENTLYATTACHEDTOTHEEXTERIORWALLPLATE.DONOTATTACHTHE#745OR
#718 TERMINATION KIT TO THE STOVE (OR EXTENSION KIT)UNTIL IT HAS PASSED THROUGH THE WALL.THE
TERMINATION PLATES SHOULD ALL BE INSTALLED ON THE EXTERIOR OF THE OUTSIDE WALL.
1. If your chimney termination is 8' or less from the
stovetopanddoesn’trequireanextensionkit, proceed
to step number 6.
2. Ifyourchimneyterminationwillrequireoneormore
extension kits (part #746), proceed with the following
steps. Each#746extensionkitcontainsenough4"&7"
flexible aluminum pipe to extend the chimney an
additional 6'.
3. Using your extension kit pieces, place a bead of
sealant outside the 4" flex pipe collar (C) - the end with
theEXTERNALnotches -andslideitinsidethe4" pipe
ontopofthestove(D). Thisisasnaplockconnection.
NOTE: Thesnaplockconnectionispermanent,you
will not be able to remove this pipe once applied
without damage.
4. Place a bead of sealant outside the 7" flex pipe
collar (E) - the end with the EXTERNAL notches - and
slideitinsidethe7"pipeontopofthe stove(F). Thisis
a snap lock connection.
5. If additional extension kits are being used, repeat
steps 3 and 4, placing the 4" & 7" pipes onto the
previous extension kit.
Referring to the figure below:
6. Apply a liberal bead of sealant around the outer
edge of the plate (A), and place the exterior wall
assemblythroughthe9½"squarehole. Placescrews
through the four slots (B) securing it in place.
NOTE: Attachmentbrackets areincluded with the
terminationkit. Theseoptional brackets shouldbe
screwed, or nailed (screws not provided) onto the
top and bottom of the 9 ½ " square hole, on the
exterior of the house. The termination plates then
fit in between these brackets, and using the
screws provided, screw the brackets to the
termination kit box (A). Attach the vinyl siding
protector.
7. Gently pull the 4" & 7" flexible aluminum down to
the top of the extension kit, or the top of the unit if no
extension kits were used.
8. Place a bead of sealant outside the 4" flex pipe
collar (C) and slide it inside the 4" pipe on top of the
stove (D). This is a snap lock connection.
NOTE: The snap lock is permanent, you will not be
able to remove this pipe once applied without
damage.
9. Place a bead of sealant outside the 7" flex pipe
collar (E) and slide it inside the 7" pipe on top of the
stove (F). This is a snap lock connection.
10. OPTIONAL: Place insulation between the 7" pipe
and the wall studs.
Note: The 18” minimum vertical
rise measurement is to the
top of the 7” pipe.
Figure 7
D) FAN INSTALLATION

Page 11
INSTALLATION OF THIS FAN SHOULD BE DONE ONLY BY A QUALIFIED INSTALLER
IMPORTANT: IF A FAN IS GOING TO BE INSTALLED, IT MUST BE COMPLETED BEFORE
THE MILLIVOLT BOARD IS CONNECTED TO THE GAS LINE.
NOTE:If a fan is going to be installed, the wiring must be done prior to enclosing the sides of theunit. An electrical
box is pre-installed in the fireplace and a receptacle & cover is included in the fireplace components packet.
Your optional fan kit #600 includes:
1. Fan assembly with 2 -110 CFM fans and limit switch already mounted.
2. Components Package: Includes speed control with mounting bracket, nut & knob*,
(2) nuts, installation instructions.
*NOTE: To wall-mount the speed control, you will need to purchase: (1) Electrical box
(1) Cover / switch plate
NOTE: Code approved line voltage wiring 16 gauge or better must be used when wiring
this system.
WARNING: This appliance is equipped with a three-prong (grounding) plug for protection against
shockhazardandshouldbepluggeddirectlyintoaproperlygroundedthree-prongreceptacle. Donot
cut or remove the grounding prong from this plug.

Page 12
Instructions: Refer to figure 8.
1. Remove the glass / frame assembly and lower grill. (Refer to page #4 of this manual.)
2. FOR EASIER INSTALLATION, remove the millivolt board (Refer to page #15 of this manual.)
3. Pull left glass latch out, turn clock-wise 1/4 turn and hook it over the face as shown.
4. Insert right side of the fan (A) diagonally through lower grill opening (to the left of the valve if the
millivolt board has not been removed) and slide it to the back right corner.
5. Lift the left side of the fan over the mounting studs. Repeat for the right side.
NOTE: The fan is now behind the mounting studs.
6. Thread the 1/2” nuts on mounting studs approx. 3/4 of the way.
7. Pull the fan forward aligning the slots on the fan bracket to the mounting studs and tighten the nuts.
8. Install electrical box and mount the on/off speed control on a wall, if desired.
9. Snap the receptacle into the cover.
10. Insert 115V wiring (with ground) through the romex connector installed in the electrical box
in the side of the unit and wire to the receptacle.
11. Place the cover on the box and secure with screws.
12. Place the limit switch (C) on the bottom of the unit, as close to the center as possible.
13. Plug cord (D) into fan receptacle.
14. Turn on/off speed control clockwise until it clicks.
15. Replace the millivolt board, if removed in step #2. (Refer to page #15 of this manual.)
16. Replace the glass /frame assembly & lower grill. (Refer to page #4 of this manual.)
NOTE: The fan will not operate unless the speed control has been turned on. Adjust fan to desired
speed while it is running.
NOTE: The fan will not turn on until sufficient heat is applied to the thermostatic control switch (C). The
fan will turn on and off automatically when the fireplace heats and cools.
NOTE: This appliance, when installed, must be electrically grounded in accordance with local codes, or in
the absence of local codes, with the National Electrical Code, ANSI/NFPA 70-1990.
FIGURE 8
E) RUN THE GAS LINE.

Page 13
CAUTION: Installationofthegas linemustonlybe donebya qualifiedpersoninaccordance
with local building codes.
NOTE: This unit is equipped with a 3/8" flexible gas connection, 18" long.
NOTE: The gas line should be run to the point of connection where the shut-off valve and flexible gas
line will connect.
CAUTION: The manual shut-off valve or flexible gas tubing must not extend outside of the unit
cavity. SeetheWARNINGlabelaffixedtotheflexibletubingforadditionalinstallationinstructionsand
warnings.
NATURAL GAS:
The minimum inlet gas supply pressure: 7.0 inches W.C. (recommended)
The maximum inlet gas supply pressure: 10.5 inches W.C.
Manifold pressure: 3.5 inches W.C. Efficiency: 74%
Manifold pressure (lo setting): 1.7 inches W.C. AFUE: 67%
Orifice size: 31 Input: 36,000 BTU’s
LP GAS:
The minimum inlet gas supply pressure: 11.0 inches W.C. (recommended)
The maximum inlet gas supply pressure: 13.0 inches W.C.
Manifold Pressure: 10.0 inches W.C. Efficiency: 73%
Manifold Pressure (lo setting): 5.4 inches W.C. AFUE: 68%
Orifice size: 49 Input: 35,000 BTU'S
The efficiency rating of this appliance is a product thermal efficiency rating determined under continuous operating
conditions and was determined independently of any installed system.
NOTE: For high altitude installations consult the local gas distributor or the authority having jurisdiction for proper
rating methods.
1. Run the gas line. An accessible shut off valve must be installed up stream from the regulator.
NOTE: Do not run the incoming gas line in a manner that would obstruct the operation of the fan.
2 . This unit is designed to accept either a 3/8" or 1/2" gas line approved for gas appliances. Consult
local building codes to properly size the gas supply line leading to a 3/8" reduction. Also, see the chart on
page #13 for proper supply line sizing.
3. A gas line knockout is positioned on either side of the unit for gas line connection.
4. Connect the gas line to the manual shut-off valve.
5. Connect the flexible gas line (installed on the millivolt board valve) to the manual shut off valve.
IMPORTANT:

Page 14
ALL CONNECTIONS WHETHER FIELD OR FACTORY MADE MUST BE
CHECKED FOR LEAKS!
NOTE: The appliance and its individual shutoff valve must be disconnected from the gas supply piping
system during any pressure testing of that system at test pressures in excess of ½ psi.
NOTE: The appliance must be isolated from the gas supply piping system by closing its individual manual
shutoff valve during any pressure testing of the gas supply piping system at test pressures equal to or less
than ½ psi.
Pressure check taps for both the manifold (outgoing) & inlet (incoming) pressures are located in front of the
gas valve. The top pressure tap is the manifold pressure and the bottom pressure tap is the incoming
pressure. Follow instructions on page #22 for checking these pressures.
Tubing size Maximum run
3/8" I.D. 10'
1/2" I.D 70'
5/8" I.D. 100'
3/4" I.D. 125'
FIgure 9
SOULTION TO EXAMPLE
(1) Maximum demand for outlet “A” 30
CFH
Maximum demand for outlet “B” 25
CFH
Maximum demand for outlet “C” 75 CFH
Maximum demand for outlet “D” 136 CFH
TOTAL DEMAND 266 CFH
(2) The length of pipe from the gas meter to the most remote outlet (outlet “A”) is 60'.
THIS IS THE ONLY DISTANCE USED.
(3) Using horizontal line marked 60', outlet “A” supplying 30 cubic feet an hour requires ½ inch pipe.
Outlet “B” supplying 25 cubic feet an hour requires ½ inch pipe. Section 1 supplying outlets “A” & “B”,
55 cubic feet an hour requires ½ inch pipe.
F) MILLIVOLT BOARD REMOVAL / INSTALLATION. See Figures 10A & 10B.

Page 15
NOTE: The unit is equipped with the millivolt board already installed. Follow these
procedures should the millivolt board need replacing or is removed for servicing.
MILLIVOLT BOARD REMOVAL.
1. Shut off the gas supply at the manual
shut-off valve.
2. Disconnect gas line flex tube from the
manual shut-off valve.
3. Disconnect any wall switch, remote
control or thermostat from the valve.
Figure 10A
4. Remove the logs from the unit.
5. Loosen and remove the (2) 1/4” nuts
securing the burner tube & burner cover
assembly and remove.
6. Loosen and remove the (8) 1/4" nuts and, while grasping the board, gently lift it off the (8) bolts
and remove from the unit.
Figure 10B

Page 16
INSTALLING THE BOARD.
NOTE: The millivolt board is fitted with a gasket to seal the millivolt board. Make certain this
gasket is properly placed around the opening before installing the regulator board.
1. Grasp the board with both hands and place into the unit, lining up the eight 1/4" holes.
CAUTION: Before securing the board into place make sure that all of the wires
(attached under the board) are clear and unobstructed.
2. Attach the 1/4" nuts (included with the board assembly) and tighten.
3. Place the burner tube / cover assembly onto the board, properly seating the burner tube
over the orifice and aligning the slots in the board to the studs in the cover. Secure with the
(2) 1/4” nuts.
4. Connect the flexible gas line to the manual shut-off valve.
5. Reconnect any remote, wall switch or thermostat.
6. Replace the logs as described in section ‘G’.
IMPORTANT: CHECK ALL CONNECTIONS WHETHER FIELD OR FACTORY MADE FOR
LEAKS.
G) LOG INSTALLATION. See Figures 11A & 11B, page 17.
This #936-500 log set includes:
(1) AA - Log (1) C - Log (1) L - Log
(1) AB - Log (1) G - Log (1) M - Log
(1) AC - Log (2 pc.) (1) J - Log (1) N - Log
Referring to figures 11A & 11B:
NOTE: THE ‘J’, ‘N’, ‘L’, AND ‘AA’ LOGS HAVE ALIGNMENT HOLES INCORPORATED INTO
THE BOTTOM AND SHOULD BE PLACED ONTO THE CORRESPONDING PINS IN THE
BURNER COVER.
Referring to the diagrams on page #17.
1. Place the ‘J’, ‘N’, ‘L’ and ‘AA’ logs into position on the burner cover aligning the holes in the bottom of the
logs to the corresponding pins in the burner cover.
2. Position top logs ‘AB’, ‘C’, and ‘M’ onto the previously positioned logs as shown*.
3. Position the 2 pc. ‘AC’ log behind the log grate and set the ‘G’ log into the corresponding notch in the
‘AC’ log*.
ATTENTION HOMEOWNER / INSTALLER:
TO ACHEIVE OPTIMUM GLOW AND FLAME APPEARANCE, IT MAY BE NECESSARY TO SLIGHTLY
ADJUST THE VENTURI SHUTTER POSITION AND/OR THE LOG POSITIONS.

Page 17
*Refer to the completed log set diagram, figure 11B.
Figure 11A
AB M
C
L N AA
J
²G²AC
Figure 11B
INSTALLED #936 DV LOG SET
INITIAL BURN PERIOD
Due to the makeup of these unique fiber logs, the curing process may take up to 4 hours of burn time. During this
period, the logs will discolor but will return to their true color once the curing process is complete. Do not burn this
fireplace without the glass properly in place.

Page 18
***MAKE SURE THE HOMEOWNER IS AWARE OF THIS***
H) THERMOSTAT - WALL SWITCH - REMOTE INSTALLATION (optional). See Figure 12 & 13.
CAUTION: DO NOT connect high voltage wire to the switch.
1. If desired, a thermostat, wall switch or remote
control unit may be used to turn the unit off and on.
Onlyone of thesemaybeinstalled. Follow instructions
included with each kit.
NOTE: INSTALLATION OF A THERMOSTAT OR WALL
SWITCH SHOULD ONLY BE DONE BY A QUALIFIED
INSTALLER.
2. Run low-voltage (thermostat) wire from the on/off
switch,tothedesiredlocationofthethermostator wall
switch. Do not run wire more than 30'.
NOTE: If too heavy of wire is used or run more than
30',theelectricitygenerated by the unit's generator will
not be sufficient to make the regulator work properly.
The pilot may light, but will go out when the burner is
turned on.
IMPORTANT:Nohighvoltageisrequiredtooperate
any of these systems.
Remote Control Wiring Diagram
Thermostat Wiring Diagram
Figure 12
The on/off rocker switch on the millivolt
board must be in the ‘off’ position if any of
the above systems are installed on the
unit.
Note: If the unit is turned on with a remote
control, wall switch or thermostat, it must
be turned off by the same method.
Figure 13

Page 19
I) COMPLETE THE INSTALLATION
1. Complete the fireplace walls, and the unit
facing.
CAUTION: THESURROUNDINGWOODCHASE
OF THE OUTSIDE WALL MUST BE INSULATED
TO PREVENT COLD AIR FROM ENTERING THE
ROOM.
2. THIS STEP SHOULD ONLY BE DONE BY A
QUALIFIED INSTALLER OR SERVICE TECHICIAN:
a) Perform lighting and shutdown procedures
as described on page #19 . This should be done
prior to replacing the glass so that any necessary
adjustments can be made and proper operation
verified.
3. Replacetheglass. ReferalsotoFigure3,pg.6.
A) Align the slots in the top of the glass
assembly over the tabs on the fireplace.
B) Place the glass assembly so it is flush with
the front of the fireplace front.
C) Secure the assembly to the fireplace by
pushing the two spring loaded handles (located
underthe firebox) back, locking them into position.
WARNING: DO NOT OPERATE THIS FIREPLACE
WITH THE GLASS ASSEMBLY REMOVED,
CRACKEDORBROKEN. Replacementoftheglass
assemblyshouldbedonebyalicensedorqualified
service person.
4. Upper Grill - Replace
A) Line the rods of the grill up with the upper
holes. Ensure the springs are in place.
B) Placetherodsintheholesandpushupuntil
the bottoms of the rods clear the glass frame.
C) Place the bottom of the rods into the lower
holes and release. The grill will set down into
place.
Remove:
A) Lifttheuppergrillupfar enough to clear the
bottom holes and pull bottom of grill out.

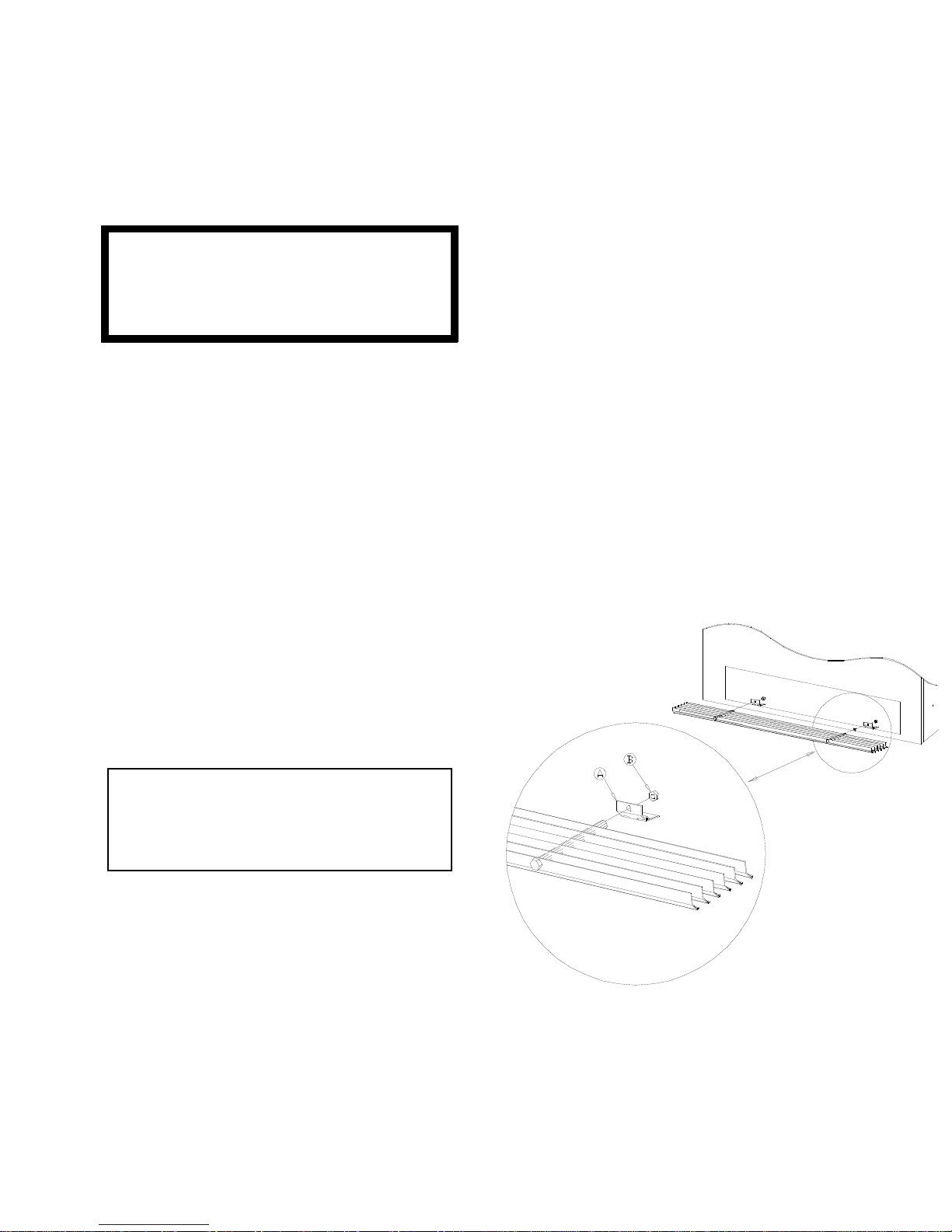

5. Lower grill - See Figure 14
Remove:
A) Removethe1/4"nuts(B)fromthelowergrill
assembly.
B) Pull the entire grill assembly out of the
hinges.
C) Re-attach the 1/4" nuts (B).
Replace:
A) Removethe1/4"nuts(B)fromthelowergrill
assembly.
B) Slip the bolt through the hinge (A).
C) Re-attach the 1/4" nut (B).
D) Repeat “a” through “d” for the remaining
hinge.
The grill is now in place. The grill may be
lowered for lighting purposes, etc.
Figure 14
