kozy heat 961 DV Manual

This appliance may be installed in an aftermarket permanently located, manufactured home (USA
only) or mobile home, where not prohibited by local codes. This appliance is only for use with the
type(s) of gas indicated on the rating plate. This appliance is convertible for use with other gases.
An LP Gas conversion kit is included.
WARNING: If the information in these
instructions are not followed exactly, a fire
or explosion may result causing property
damage, personal injury or loss of life.
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
WHAT TO DO IF YOU SMELL GAS:
‚Do not try to light any appliance.
‚Do not touch electrical switches; do not use
the phone in your building.
‚Immediately call your gas supplier from a
neighbor’s phone. Follow the gas suppliers
instructions.
‚If you cannot reach your gas supplier, call the
fire department.
‚Installation and service must be performed by
a qualified installer, service agency or the gas
supplier.
Model #961 DV
Installation & Operating
Instructions
WARNING: Improper installation, adjustment, alteration, service or maintenance can cause injury, property damage, or
loss of life. Refer to this manual for assistance. For additional information, consult a qualified installer, service
agency or the gas supplier.
IMPORTANT:
READ ALL INSTRUCTIONS CAREFULLY BEFORE INSTALLATION. FAILURE TO
INSTALL THIS FIREPLACE CORRECTLY CAN CAUSE SERIOUS STRUCTURAL AND FIRE
HAZARDS AND MAY VOID YOUR WARRANTY.
February 2008

Index
DESCRIPTION PAGE
SafetyRequirements ................................................................ 2-3
Specifications .......................................................................3
MinimumClearances ..................................................................4
DetermineLocation ................................................................. 4-6
Rough-inVentSystemsDimensions...................................... 5
RoughOpeningDimensions ........................................... 6
GlassRemoval.......................................................................7
VentingRequirements .............................................................. 5-10
Horizontal/VerticalRequirements......................................5-7
RestrictorInstallation................................................ 8
HorizontalVentingInstructions ........................................8-9
VerticalVentingInstructions/RestrictorRequirement........................ 10
FanInstallation .................................................................. 11-12
Minimum/MaximumGasSupplyPressure/RuntheGasLine ................................. 13-14
Millivolt Board Removal / Installation ................................................... 14-16
LogInstallation .....................................................................17
WallSwitch,Thermostat,RemoteControlInstallation ..........................................18
CompletetheInstallation ........................................................... 19-21
AttachExteriorTrim(Optional)/SecuringtheFireplace ...................... 19
Install the 788-B Lintel .............................................. 19
SeasonHeatDumpAdjustment........................................ 20
InitialStart-up.................................................... 20
Re-install the Glass Assembly / Install the Grills .......................... 20-21
Lighting&Shutdown/PressureTesting................................................. 22-24
Cleaning&MaintenanceRequirements ....................................................25
Troubleshooting ................................................................. 26-27
ReplacementParts...................................................................28
WarrantyPolicy.................................................................. 29-30

COMMONWEALTH OF MASSACHUSETTS REQUIREMENTS
NOTE: The following requirements
reference various Massachusetts and
national codes not contained in this
manual.
For all sidewall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or
in part for residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust
vent termination is less than (7) feet above finished grade in the area of the venting , including but not limited to decks and
porches, the following requirements shall be satisfied:
INSTALLATION OF CARBON MONOXIDE DETECTORS
At the time of installation of the side wall horizontal vented gas fueled equipment, the installing plumber or gas-fitter shall
observe that a hard wired carbon monoxide detector with an alarm and battery back-up is installed on the floor level where
the gas equipment is to be installed. In addition, the installing plumber or gas-fitter shall observe that a battery operated or
hard wired carbon monoxide detector is installed on each additional level of the dwelling, building or structure served by
the side wall horizontal vented gas fueled equipment. It shall be the responsibility of the property owner to secure the ser-
vices of qualified licensed professionals for the installation of hard wired carbon monoxide detectors.
In the event that the side wall horizontally vented gas fueled equipment is install in a crawl space or attic, the hard wired
carbon monoxide detector with alarm and battery back-up may be installed on the next adjacent floor level.
In the event that the requirements of this subdivision can not be met at the time of completion of installation, the owner
shall have a period of thirty (30) days to comply with the above requirements; provided, however, that during said thirty
(30) day period, a battery operated carbon monoxide detector with an alarm shall be installed.
APPROVED CARBON MONOXIDE DETECTORS
Each carbon monoxide detector as required in accordance with the above provisions shall comply with NFPA 720 and be
ANSI/UL 2034 listed and IAS certified.
SIGNAGE
A metal or plastic identification plate shall be permanently mounted to the exterior of the building at a minimum of eight (8)
feet above grade directly in line with the exhaust vent terminal for the horizontally vented gas fueled heating appliance or
equipment. The sign shall read, in print no less the one-half inch (1/2) in size, “GAS VENT DIRECTLY BELOW.
KEEP CLEAR OF ALL OBSTRUCTIONS”.
INSPECTION
The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not approve the installation
unless, upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the pro-
visions of 248 CMR 5.08 (2) (a) 1 through 4.
EXEMPTIONS
The following equipment is exempt from 248 CMR 5.08 (2) (a) 1 through 4:
The equipment listed in Chapter 10 entitled “Equipment Not Required To Be Vented” in the most current edition
of NFPA 54 as adopted by the Board; and
Product Approved side wall horizontally vented gas fueled equipment installed in a room or structure separate
from the dwelling, building or structure used in whole or in part for residential purposes.

COMMONWEALTH OF MASSACHUSETTS REQUIREMENTS
MANUFACTURER REQUIREMENTS- GAS EQUIPMENT VENTING SYSTEM PROVIDED
When the manufacturer of Product Approved side wall horizontally vented gas equipment provides a venting system de-
sign or venting system components with the equipment, the instructions provided by the manufacturer for installation of
the equipment and the venting system shall include:
Detailed instructions for the installation of the venting system design or the venting system components; and
A complete parts list for the venting system design or venting system.
MANUFACTURER REQUIREMENTS- GAS EQUIPMENT VENTING SYSTEM NOT PROVIDED
When the manufacturer of Product Approved side wall horizontally vented gas equipment does not provide the parts for
venting the flue gases, but identifies “special venting systems”, the following requirements shall be satisfied by the manu-
facturer:
The referenced “special venting systems” instructions shall be included with the appliance or equipment
installation instructions and;
The “special venting systems” shall be Product Approved by the Board, and the instructions for that system shall
include a parts list and detailed installation instructions.
A copy of all installation instructions for all Product Approved side wall horizontally vented gas fueled equipment, all
venting instructions, all parts lists for venting instructions, and/or all venting design instructions shall remain with the ap-
pliance or equipment at the completion of the installation.

Page 1
IMPORTANT:
READ THIS MANUAL BEFORE INSTALLING AND USING THIS FIREPLACE
GAS FIREPLACE MODEL 961 DIRECT VENT
INSTALLATION INSTRUCTIONS
This appliance has been tested to & complies with ANSI Z21.88-2002·CSA 2.33-M02 ‘VENTED GAS FIREPLACE
HEATER’. Installation must conform with local building codes, or, in the absence of local building codes, with the
national fuel gas code, ANSI Z223.1- NFPA 54 (Current Edition). Approved for U.S. Installations only.

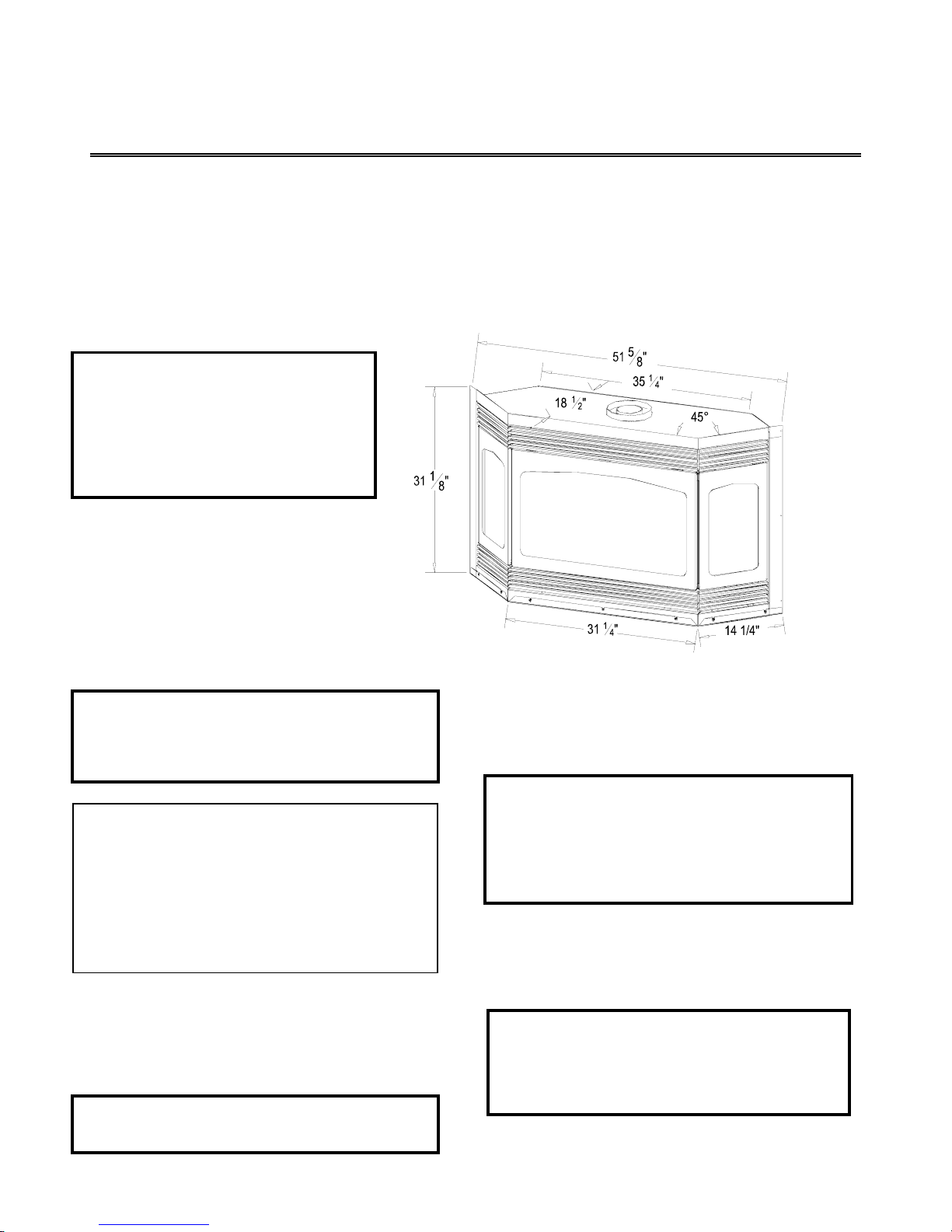

SPECIFICATIONS
Height: 31 1/8” Width: 51 5/8"
Back Width: 35 1/4" Depth: 18 1/2”
Flue Size: 4” exhaust
7” intake
Figure 1
Do not use this fireplace if any part has been under
water. Immediately call a qualified service
technician to inspect this appliance and to replace
any part of the control system and any gas control
which has been under water.
COMMONWEALTH OF MASSACHUSETTS
INSTALLATIONS
WARNING: This Product Must Be Installed By A Licensed
Plumber Or Gas Fitter When Installed Within The
Commonwealth of Massachusetts.
IMPORTANT: Installation of a CO detector is required in
the fireplace room.
WARNING: DO NOT REPLACE THIS BURNER WITH
ANY OTHER SIZED BURNER. REPLACEMENT WITH
AN UNAUTHORIZED BURNER CAN RESULT IN
TEMPERATURES EXCEEDING THE LIMITS FOR THIS
FIREPLACE AND VOID YOUR WARRANTY.
DUE TO HIGH TEMPERATURES, THIS FIREPLACE
SHOULD BE LOCATED OUT OF TRAFFIC AND AWAY
FROM FURNITURE AND DRAPERIES.
YOUNG CHILDREN SHOULD BE CAREFULLY
SUPERVISED WHEN THEY ARE IN THE SAME ROOM
AS THIS FIREPLACE.
CHILDREN AND ADULTS SHOULD BE ALERTED TO
THE HAZARDS OF HIGH SURFACE TEMPERATURES
AND SHOULD STAY AWAY TO AVOID BURNS OR
CLOTHING IGNITION.
CLOTHING OR OTHER FLAMMABLE MATERIAL
SHOULD NOT BE PLACED ON OR NEAR THE
APPLIANCE.
MASONRY CONSTRUCTION: A lintel, PART #788B,
must be used to support the added weight when
masonry construction is used. See page #19 for
additional information.
IMPORTANT: DO NOT PLACE FACING MATERIAL
OVER THE EXTERIOR FACE. THE FACE WILL
EXPAND WHEN HEATED AND WILL CAUSE
CRACKING OF THESE MATERIALS. FAILURE TO
FOLLOW THESE INSTRUCTIONS WILL VOID YOUR
WARRANTY.

Page 2
Minimum clearance to combustibles:
Top Stand-off: 0" From flue vent:: 1"
Sides & Back: 0” Heat Outlet grill to mantel: (See Figure 2)
Floor: 0" Bay Front to Adjacent Sidewall: 12”
Side Glass to Adjacent Sidewall: 3”
Mantel depth
Figure 2
A) DETERMINE LOCATION. Figure 3A.
1. Determine the exact position of your fireplace.
2. This fireplace may be installed on either the outside
or inside of an exterior wall. See Figure 3A for
various installation options.
3. Horizontal Terminations: Determine the vent
run and termination cap location. If possible, place
the fireplace in such a manner that the piping will
be placed between two studs so additional framing
is not necessary.
4. The location of doors, windows, soffits/overhangs,
etc. must be considered in relation to where the
vent termination cap will be located.

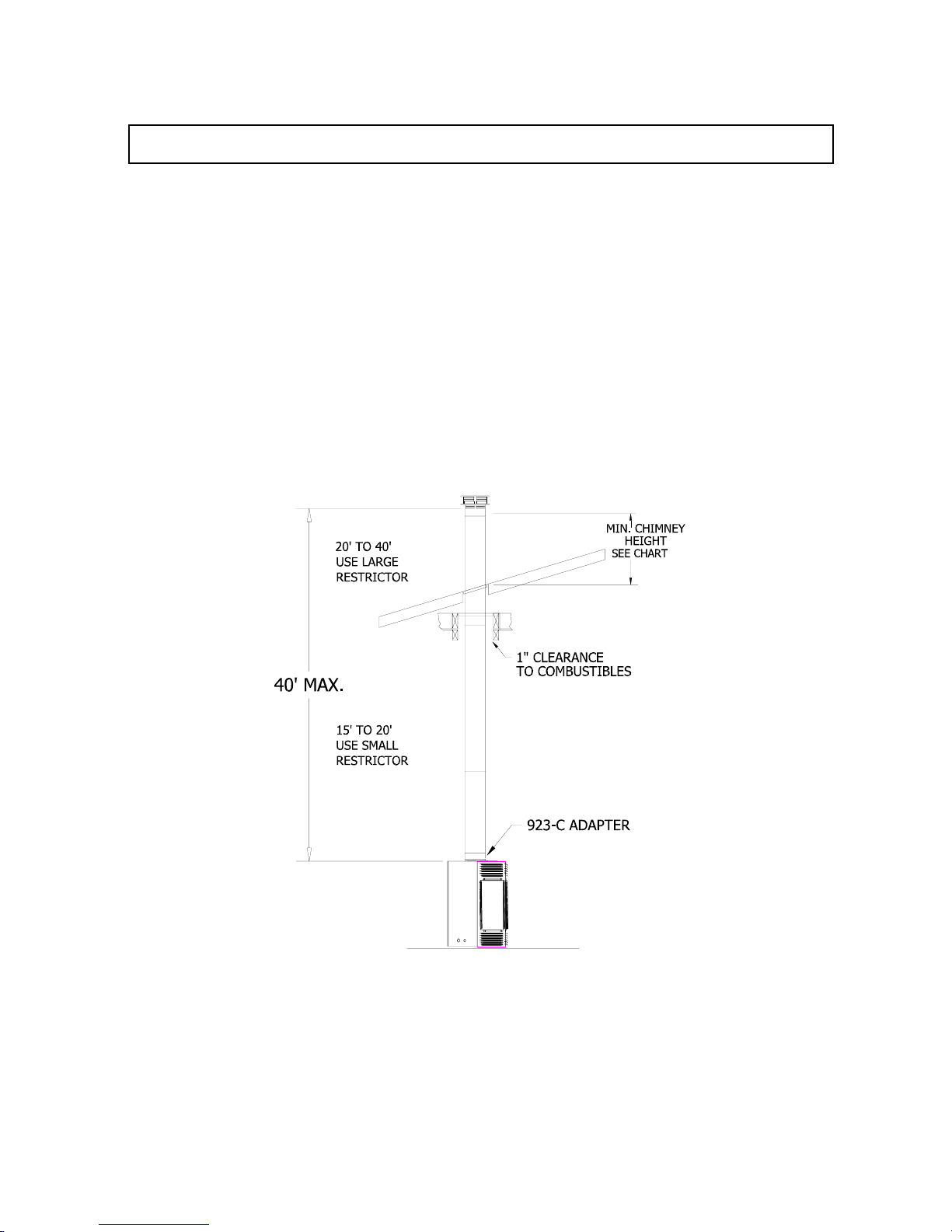

5. Vertical Terminations: Follow instructions
included with the Simpson Dura-Vent DV-GS for
position of chimney. The #923-C adaptor must be
used.
6. Allclearancestocombustible requirements must be
maintained. Follow clearance requirements above.
7. If the optional heat ducts are used, their location
must be considered in relation to the fireplace.
The heat ducts may be vented into the same room as
the fireplace or may be vented to other rooms. A
maximum run of 20 ft. is recommended.
Venting should be completed before framing in the
fireplace.
Refer to the instructions included with the #970 duct
kit for complete installation requirements.

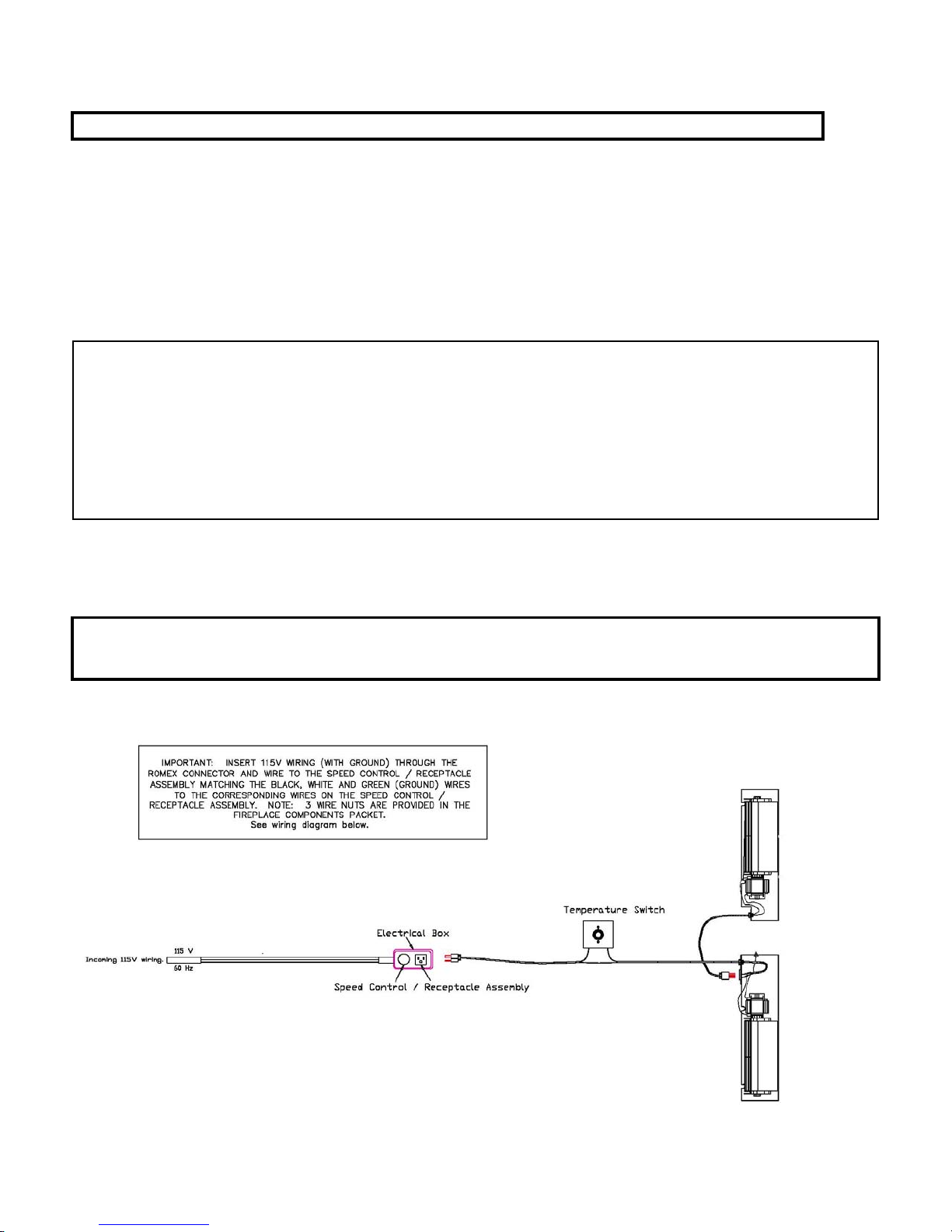

8. If using the optional fan kit, 115V wiring should be
run to the lower left of the fireplace by a qualified
technician. A removable electrical box panel with
romex connector is located on the left side of the
fireplace. The wiring should be run prior to enclosing
the sides of the fireplace.
9. CAUTION - COLD AIR TRANSFER AREA. The
surrounding outside walls must be insulated to
prevent cold air from entering the room.

Page 3
MODEL 961 DIRECT VENT
71
4
NOTE: DUE TO HIGH TEMPERATURES, THIS FIREPLACE SHOULD BE LOCATED OUT OF TRAFFIC
AREAS AND AWAY FROM FURNITURE AND DRAPERIES.
Figure 3A
NOTE: Even though the minimum clearance from the back wall is 0", we recommend that you allow
an expansion space of 1/4" from the back wall to allow for heat expansion. If this room is not
left, the fireplace may make a loud "banging" noise when it heats up or cools down.

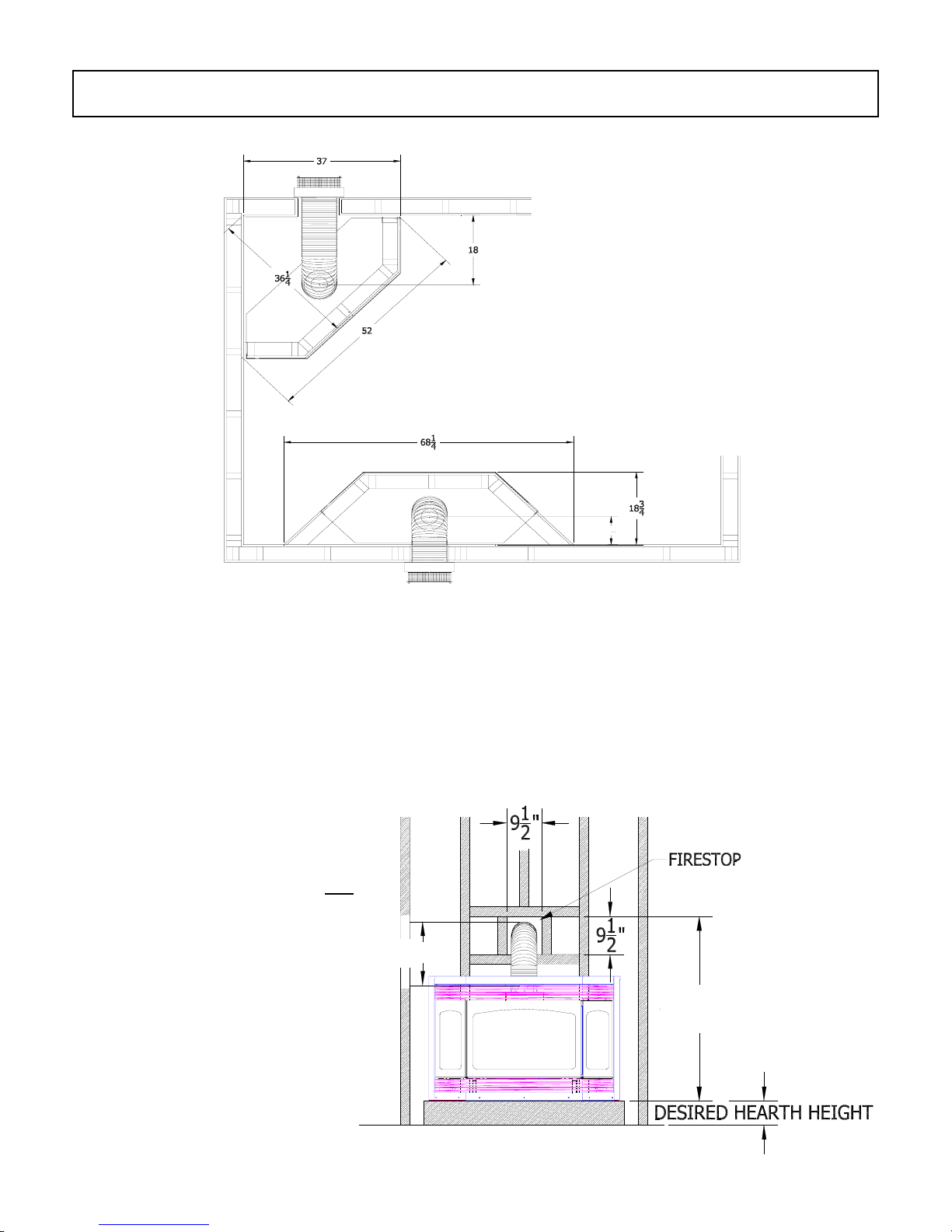

10. Cut an opening for the wall thimble, 9 ½” x 9 ½”. The top of this opening must be a minimum of 47 1/4"*
above the height of the hearth (optional) or floor the fireplace is setting on. See Figure 3B.
*Important: This measurement is
determined by the vertical height &
horizontallengthof theventingapplication
desired. The measurement is to the
TOP of
the pipe. Please refer to pages #5 - #10 of
this installation manual for requirements
& restrictions.
Figure 3B
17" MIN.
47 1/4" MIN.

Page 4
11. Rough in the wall enclosure (Figure 3C). Minimum rough opening dimensions are 52” w x 31 1/4" h. Depth is
determined by your specific application. Build the hearth, if used, to the desired size and height.
NOTE: A metal or wood panel extending the full width and depth of the fireplace (minimum size is 51 5/8” wide
x 18 ½" deep) must be placed under the fireplace when the fireplace is to be installed directly on carpet, tile or other
combustible materials other than wood flooring.
If masonry is to be used (optional), prepare the necessary foundation for the masonry load. When masonry
construction is being used, a lintel, part #788B, must be used over the top of the fireplace to support the added
weight.
NOTE: Provide for a minimum of 6" (152
mm) of clearance in front of the lower grill.
Thiswill provide adequatespaceforopening
the lower grill to access control panel.
Figure 3C
NOTE: A hearth is not required. If a hearth is desired, combustible materials may be used.
Do not obstruct the upper and lower grill areas to allow proper ventilation air around the fireplace. Air enters the
fireplace through the lower grill, and exits out the upper grill. Do not block this passage.
12. Place the fireplace into position.
NOTE: DO NOT PLACE FACING MATERIAL OVER THE EXTERIOR FACE. THE FACE
WILL EXPAND WHEN HEATED AND WILL CAUSE CRACKING OF THESE MATERIALS.
FAILURE TO FOLLOW THESE INSTRUCTIONS WILL VOID YOUR WARRANTY.

Page 5

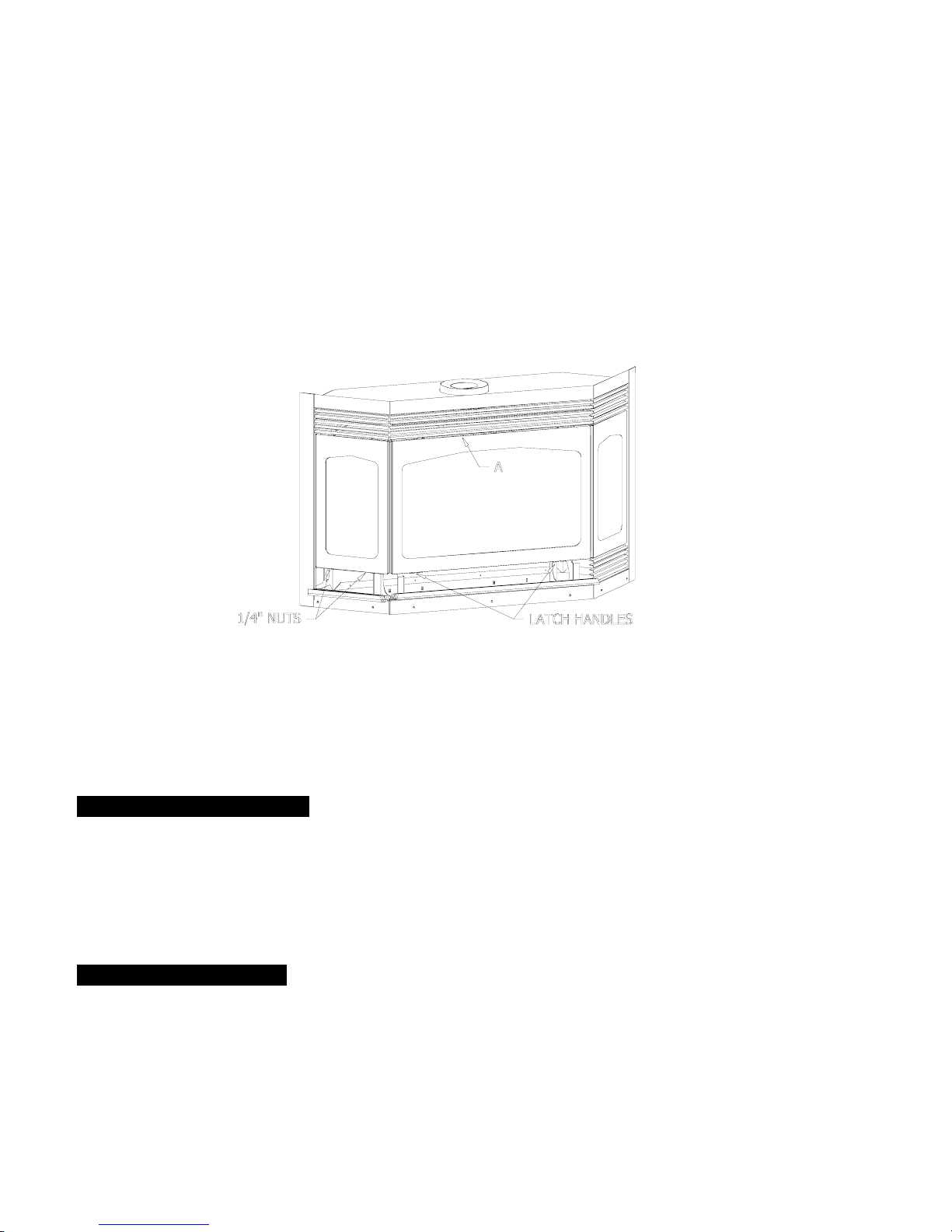

C) REMOVE GLASS ASSEMBLIES. See Figure 4.
Front Glass:
1. Locate the spring-loaded latch handles securing the center glass assembly.
2. Pull the handles out, then down to release the glass assembly.
3. Pull the bottom of the glass assembly out and lift up off the tabs (A) at the top.
4. Set aside where it will not be broken.
Side Glass:
1. Loosen and remove the (2) nuts securing each side glass assembly.
2. Pull the bottom of the glass assembly out and lift up off the tabs (at the top). Set aside.
3. Repeat steps #1 & #2 for remaining side glass assembly.
Figure 4
D) VENTING REQUIREMENTS
IMPORTANT: This fireplace is approved for use only with one of the following direct vent systems:
HORIZONTAL TERMINATIONS
#700 SERIES DIRECT VENT TERMINATION KITS: Used for horizontal terminations.
- Kozy Heat Direct Vent Kit #745 – for terminations of 4’ or less.
- Kozy Heat Direct Vent Kit #718 – for terminations of 8’ or less.
- Kozy Heat Direct Vent Extension Kit #746 – Used to extend the #745 kit
or #718 kit an additional 6’.
VERTICAL TERMINATIONS
SIMPSON DURA-VENT DV-GS DIRECT VENT CHIMNEY SYSTEM (4” X 6 5/8”)
-Simpson DV-GS chimney system – Used for vertical terminations.
- A restrictor is required & included with this fireplace.
- Adaptor #923-C is required to adapt the flue collars on the fireplace to the DV-GS
chimney system and is available from your dealer.

Page 6

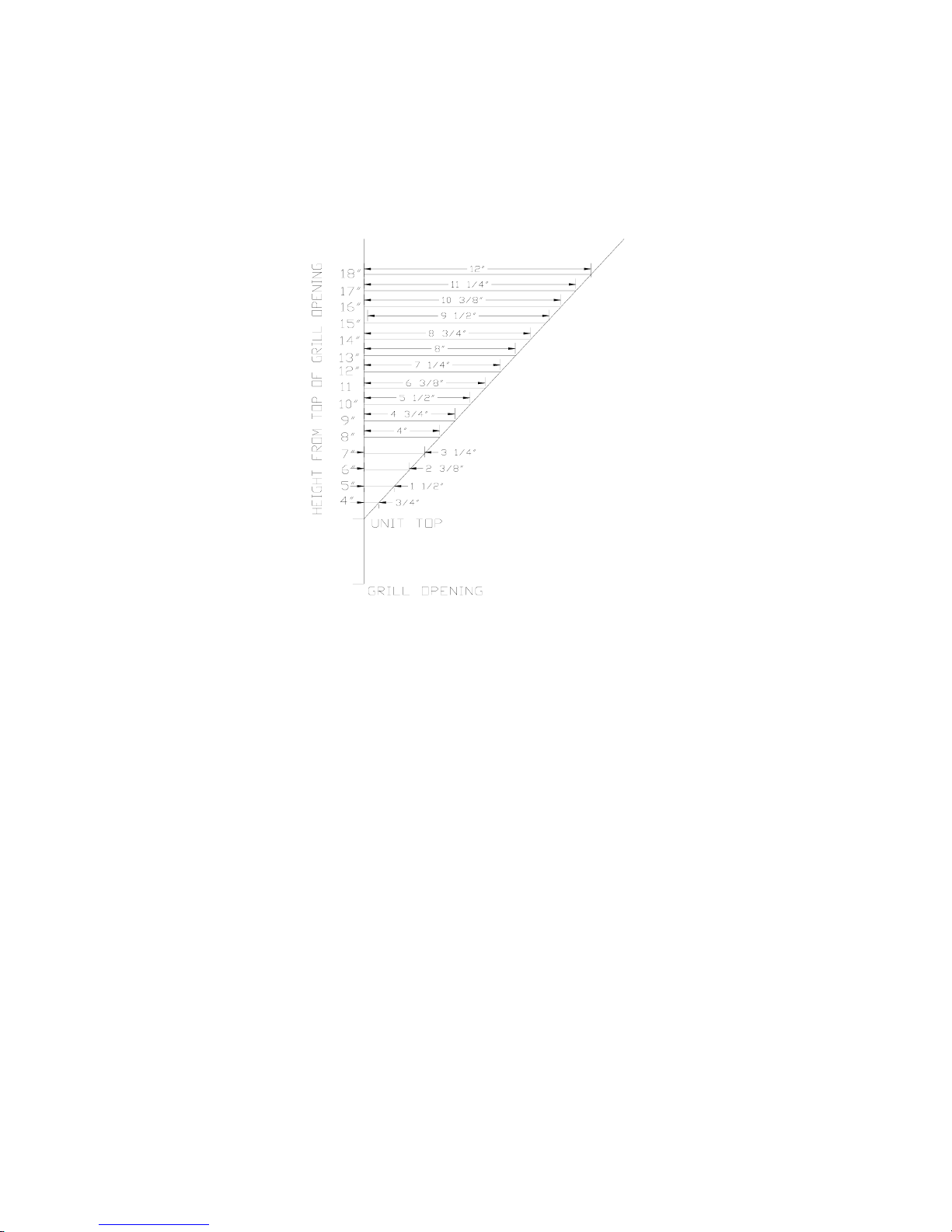

HORIZONTAL & VERTICAL VENTING CHART
VERTICAL RISE
HORIZONTAL RUN
EXAMPLE 1: Horizontal runs up to 2 ft. must have a minimum vertical rise of 17”.
EXAMPLE 2: If the horizontal run is 8 ft., the vertical rise required is 28”.
EXAMPLE 3: If the horizontal run is 21 ft., the vertical rise required is 48”.
IMPORTANT: All horizontal runs must maintain a ¼” rise per foot incline.
1'-5"

Page 7
TERMINATION VENT CAP LOCATION:
This gas appliance must not be connected to a chimney flue serving another type of appliance.
GENERAL:
1. Terminations against vinyl siding must use a vinyl siding protector. Follow instructions included.
2. DONOTRECESSTERMINATIONKITINTOOUTSIDEBUILDINGMATERIALS-i.e.:brick,stone,etc.. Ifnecessary,
extend framing so that termination kit will be exposed once building materials are installed.
3. Vent termination must not be located where it will become plugged by snow or other material. The flow of
combustion and ventilation air must be not obstructed.

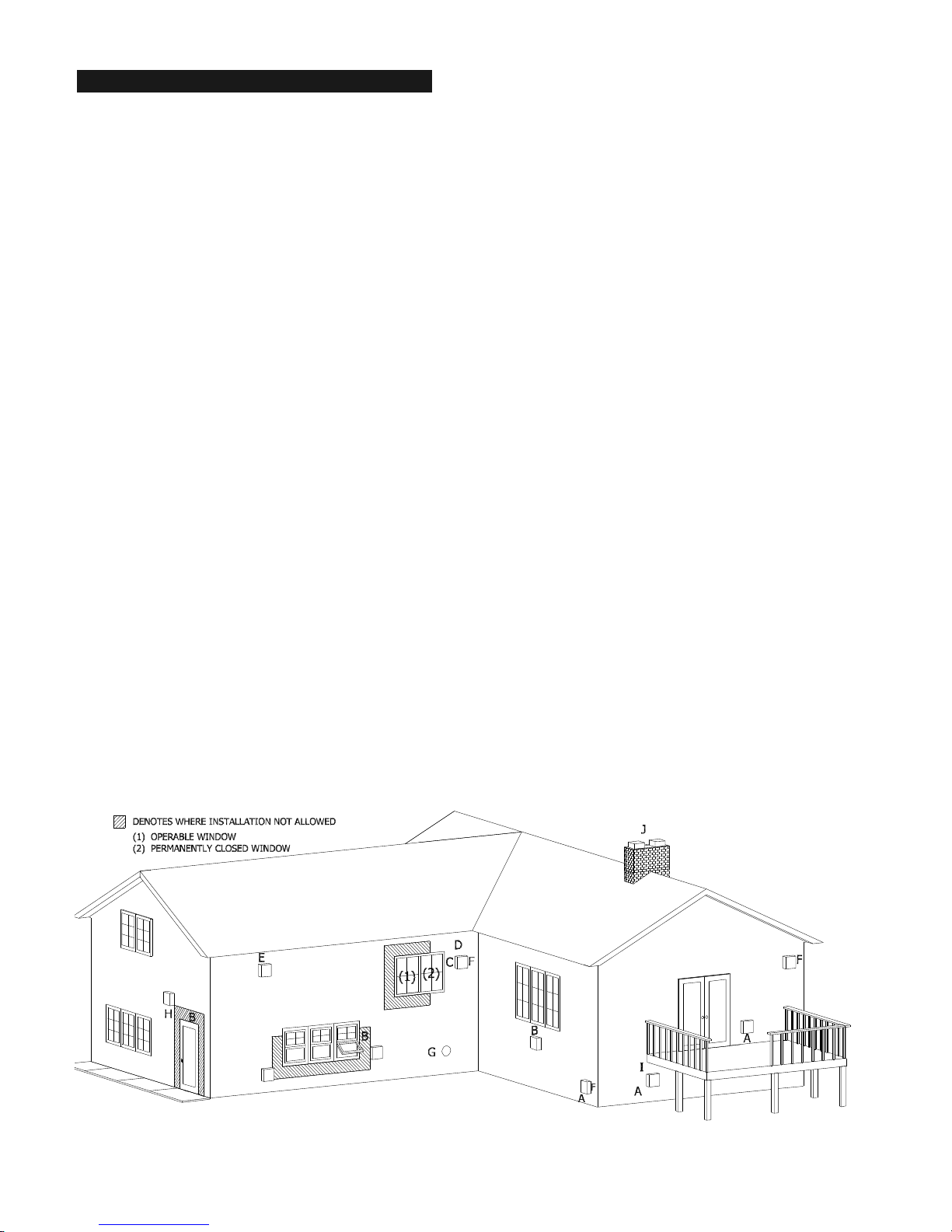

LOCATION CLEARANCES:
SAbove grade, veranda, porch, deck, balcony - 12". (A)
SOperable window - 12". (B)
SPermanently closed window - 12" (recommended to prevent condensation on window (C)).
SVentilated soffit - 24". (D)
SUnventilated soffit - 12". (E)
SOutside / inside corner - 12". (F)
SMeter / Regulator: Not to be installed above within 3 ft. horizontally from the center line of the regulator.
SService regulator vent outlet - 3 ft. radius.
SNon-mechanical air supply inlet to building - 12".
SCombustion air inlet to any other appliance - 12".
SMechanical air supply inlet - (G) CANADA: 6 ft. US: 3 ft. above if within 10 ft. horizontally.
SNote: MASSACHUSETTS INSTALLATIONS: 10 ft.
SAbove furnace exhaust or inlet - 12".
SAbove paved side-walk or paved driveway located on public property - 7 ft. * (H)
NOTE: A vent cannot be located directly above a sidewalk or paved driveway that is located between two
single family dwellings and serves both dwellings.
SUnder veranda, porch, deck, or balcony (must be fully opened on a min. of 2 sides) - 12". (I)
SBetween two horizontal terminations - 12".
SBetween two vertical terminations - 12". (J) - Note: May be the same height.
* Clearance must be in accordance with local installation codes and the requirements of the gas supplier.
Figure 5

Page 8
RESTRICTOR INSTALLATION
The restrictor plate included in the fireplace components packet can
be installed as either a large or small restrictor, depending on your
specific venting configuration.
There are several factors which can affect proper draft of the vent
system and the burner operation of a fireplace. Installing a restrictor
may be necessary to resolve the problem, even though it may not be
required under ‘normal conditions’.
IMPORTANT: DO NOT INSTALL IF THE VENTING
CONFIGURATION IS AT THE MINIMUM REQUIREMENTS!
The restrictor included is sized as the ‘large’ restrictor, Figure 6A.
To reduce the size to the small restrictor, simply bend the section
without the tabs off at the perforation and discard, Figure 6B.
Figure 6A
Large Restrictor
Figure 6B
Small Restrictor
Remove this
section
.
To install the restrictor, refer to Figures 7A & 7B and bend the tabs ‘up’ far enough (approximately 80-degrees) so that when
positioned into the exhaust pipe, will create tension to hold itself in place. Do not over bend the tabs! Slide the restrictor into
the exhaust pipe with the tabs pointing toward you. Access to the exhaust pipe can be gained by removing the nuts securing
the exhaust baffle inside the firebox at the top.
Figure 7A Figure 7B
Install with the tabs
pointing
toward you.
IMPORTANT: RE-INSTALL THE EXHAUST BAFFLE AFTER RESTRICTOR INSTALLATION IS COMPLETE. DO NOT
OVER TIGHTEN THE NUTS!
HORIZONTAL VENTING REQUIREMENTS
MINIMUM VERTICAL RISE* FROM TOP OF FIREPLACE: 17 IN. (to top of 7” pipe)
MAXIMUM HORIZONTAL RUN: 21 FT. (Horizontal runs must maintain ¼” rise per ft.)
MAXIMUM ELBOWS : 2 – 90N
TOTAL HORIZONTAL & VERTICAL RUN MUST NOT EXCEED 40 FT.
* Minimum vertical rise directly off the top of the fireplace is determined by the length of the
horizontal run. Refer to the venting diagram on page #6.
Figure 8
MIN 17"

Page 9
17"
17" Min.
INSTALLATION OF THE #700 SERIES HORIZONTAL DIRECT VENT TERMINATION KIT(S).
NOTE: #700 Series vent kits must be supported every 3 ft. to maintain proper rise. The flex pipe is permanently attached to
the exterior wall plate. Do not attach the #745 or #718 termination kit to the fireplace (or extension kit) until it has passed
through the wall. The termination plates should all be installed on the exterior of the outside wall.
1. If your chimney termination is 8' or less from the
stove top and doesn’t require an extension kit,
proceed to step #7.
2. If your chimney termination will require one or more
extension kits (part #746), proceed with the
following steps. Each #746 extension kit contains
enough 4" & 7" flexible aluminum pipe to extend the
chimney an additional 6'.
3. Gently stretch the 4" & 7" flexible aluminum pipes on
the termination kit (#745 or #718) and on each
extension kit, if used, the length required so when all
thesections areconnectedtogether, the ventsystem
length for your venting configuration is attained.
4. Using your extension kit pieces, place a bead of
sealant outside the 4" flex pipe collar (C) - the end
without the lip- and slide it inside the 4" pipe on top
of the fireplace (D). Secure with 3 evenly spaced
screws.
NOTE: This connection is very difficult to
remove without damaging the collars
once installed.
5. Place a bead of sealant outside the 7" flex pipe collar
(E) - the end without the lip - and slide it inside the
7" pipe on top of the fireplace (F). Secure with 3
evenly placed screws.
6. If additional extension kits are used, repeat steps #4
and #5, placing the 4" & 7" pipes onto the previous
extension kit.
Referring to Figure 9:
7. Apply a liberal bead of exterior sealant around the
outer edge of the termination kit box (A), and, from
the outside, place the exterior wall assembly through
the 9 ½ " square hole. Place screws through the
four holes (B) securing it in place.
NOTE: Attachment brackets are included with the
termination kit. These optional brackets should be
screwed, or nailed (screws not provided) onto the top
and bottom of the 9 ½ " square hole, on the exterior of
the house. The termination plates then fit between these
brackets, and using the screws provided, screw the
brackets to the termination kit box (A). Attach the vinyl
siding protector.
7a. OPTIONAL: Place insulation between the 7" pipe
and the wall studs.
7b. The flexible termination kit includes an interior
firestop assembly shown on Figure 2B, page #3,
which is installed on the inside wall (over wall
materials), around the flexible pipe. Slide the
firestop over the flex pipe with the spacer legs
toward the wall.
OPTIONAL: Apply a liberal bead of sealant
around the outside / wall side edge and place
over the 9 1/2” square opening.
7c. Secure each corner with a drywall screw.
8. Gently pull the 4" & 7" flexible aluminum down to the
top of the extension kit, or the top of the fireplace if
no extension kits were used.
9. Place a bead of sealant outside the 4" flex pipe collar
(C) and slide it inside the 4" pipe on top of the
fireplace (D). Secure with 3 evenly spaced screws.
NOTE: This connection is very difficult to
remove without damaging the collars once
installed.
10. Place a bead of sealant outside the 7" flex pipe collar
(E) and slide it inside the 7" pipe on top of the
fireplace (F). Secure with 3 evenly spaced screws.
Note: The 17” minimum vertical
rise measurement is to the
top of the 7” pipe.
Figure 9

Page 10
INSTALLATION OF THE SIMPSON DURA-VENT INSTALLATION FOR VERTICAL TERMINATIONS:
NOTE: ADAPTOR REQUIRED - #923-C adaptor is required to adapt the flue collars on the fireplace
to the Dura-Vent chimney system and is available from your dealer.
Follow the installation instructions included with the #923-C adaptor AND chimney system. This chimney
system may be purchased from your local dealer.
Maximum vertical termination: 40 ft.
Maximum elbows : (2) 90oeach
RESTRICTOR INSTALLATION: Install the small restrictor for vertical vent runs of 15' to 20'.
Install the large restrictor for vertical vent runs of 20' to 40'.
Figure 10

Page 11

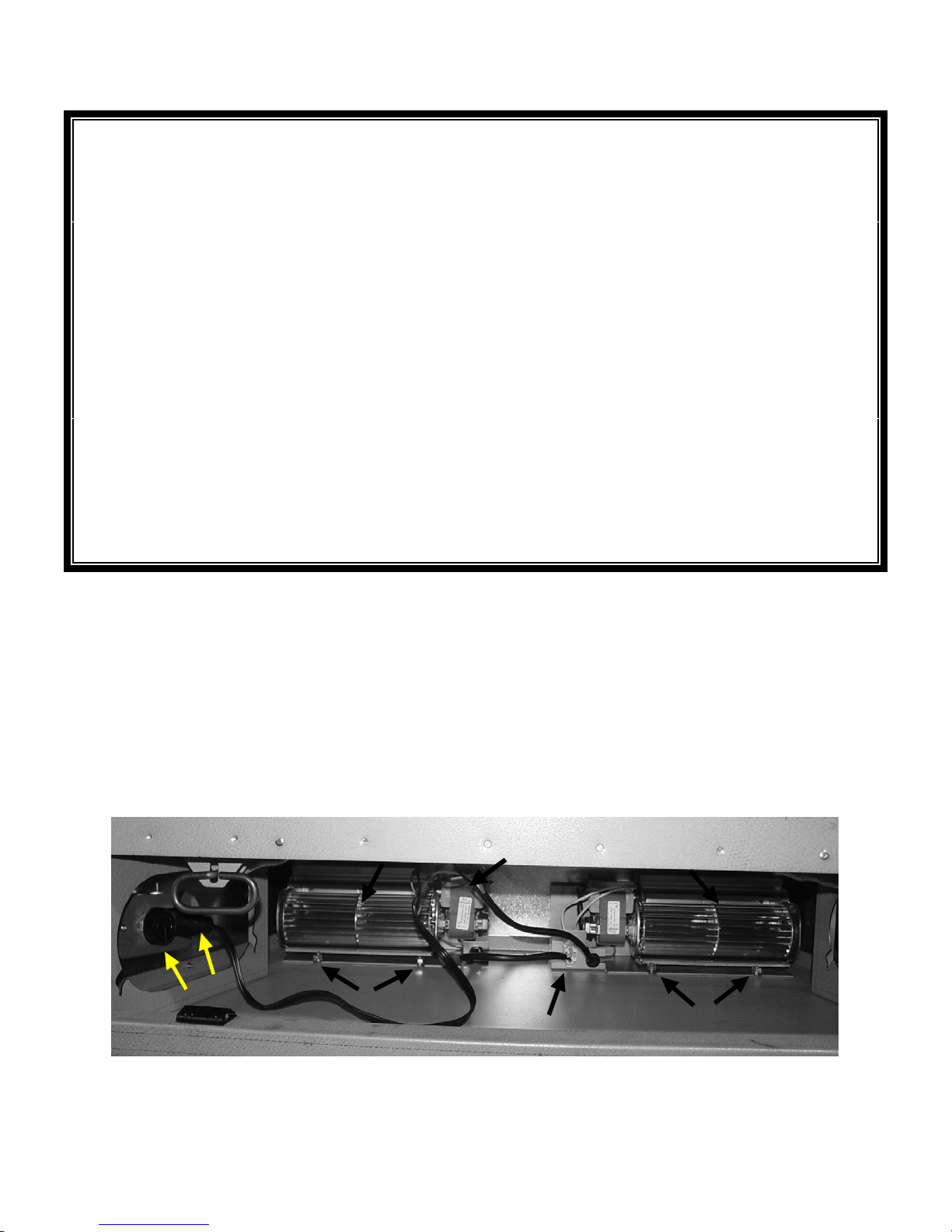

D) FAN INSTALLATION
INSTALLATION OF THIS FAN SHOULD BE DONE ONLY BY A QUALIFIED INSTALLER.
IMPORTANT: THE FAN IS EASIEST TO INSTALL BEFORE THE MILLIVOLT BOARD IS CONNECTED TO THE
GAS LINE.
IMPORTANT: IF THE LOWER GRILL HAS BEEN INSTALLED, IT MUST BE REMOVED TO PROPERLY INSTALL THIS
FAN.
NOTE: The fan wiring must be done prior to enclosing the sides of the fireplace. An electrical box & romex
connector are pre-installed on a removable panel on the left side of the fireplace. A receptacle/speed
control assembly and (3) wire nuts are included in the fireplace components packet.
This optional fan kit #600-1* includes:
1. Right and left fan assemblies with magnetic limit switch already mounted.
2. Components package: (4) nuts, installation instructions.
NOTE: To wall-mount the speed control, you will need to purchase a speed control assembly & mounting plate, an electrical
box to mount the speed control and a cover / switch plate with screws.
*NOTE: Fan kit #TRF-028 is also available for this fireplace. Follow instructions included with the fan.
IMPORTANT: Code approved line voltage wiring 14 gauge or better must be used when wiring
this assembly. Refer to your local electrical codes for specific requirements in your
area.
WARNING: This appliance is equipped with a three-prong (grounding) plug for protection against shock
hazard and should be plugged directly into a properly grounded three-prong receptacle. Do not cut or
remove the grounding prong from this plug.
Figure 11A

Page 12
INSTALLATION INSTRUCTIONS. REFER TO FIGURE 11B.
1. Remove the center front lower grill, if installed.
2. OPTIONAL: For easier installation, the fans may be separated by unplugging the three-prong plug from the
receptacle in the right fan assembly.
3. Lay the left fan (A) (without receptacle) on its back & slide through the lower grill opening on the
right side of the
valve.
4. Rotate upright and slide to the left. Place the fan over the (2) left mounting studs (C) located towards the back of
the fireplace.
3. Lay the remaining fan (B) on its back and place over the right mounting studs (C) in the same manner as step #4.
4. Place nuts on mounting studs and tighten.
5. If the fans were separated in step #2 above, plug fans together by inserting the three-prong male end on the short
fan cord on the left fan assembly into the receptacle in the right fan assembly.
6. Remove the removable access panel (with electrical box & romex connector installed) from the side of the fireplace.
7. Insert 115V wiring (with ground) through the romex connector and wire to the speed control / receptacle assembly
matching the black (hot), white (neutral) and green (ground) wires to the corresponding wire on the speed control /
receptacle assembly. NOTE: (3) wire nuts are included in the fireplace components packet.
8. Secure the speed control / receptacle assembly (D) into the electrical box with the (2) screws provided.
9. Re-install the electrical access panel and secure.
10. Place the thermostatic control switch (with magnet) on the bottom of the firebox.
11. Plug the fan cord (E) into the receptacle in the electrical box.
12. Turn on/off speed control counter-clockwise until it ‘clicks’. This is the ‘OFF’ position.
13. Turn the speed control ‘ON’ by turning the knob clockwise past the ‘click’ - this is the highest setting.
14. Re-install the lower grill, if removed in step #1 above.
NOTE: The fan will not operate unless the speed control has been turned ‘ON’. The fan will not turn ‘ON’ until sufficient
heat is applied to the thermostatic control switch . The fan will turn ‘ON’ and ‘OFF’ automatically when the fireplace
heats and cools. Adjust fan to desired speed while it is running.
THERMOSTATIC CONTROL SWITCH POSITION: Prior to adjusting the thermostatic control switch, unplug the 3-prong
plug on the fan cord from the receptacle. Adjust the position of the thermostatic control switch to a warmer location
under the firebox to turn the fan ‘ON’ sooner or move it to a cooler location under the firebox to turn the fan ‘ON’ later.
The fan will turn on when the sensor in the temperature control switch reaches 110oF and will turn ‘OFF’ when the
sensors reach 90oF. After adjustment, plug the 3-prong plug on the fan cord into the receptacle.
Figure 11B
Thermostatic
A Control Switch B
E
D C
White 3-prong C
receptacle
NOTE: This appliance must be electrically grounded and connected in accordance with local codes, or in the absence of local codes,
with the National Electrical Code, ANSI/NFPA 70-Current edition.

Page 13
E) RUN THE GAS LINE.
CAUTION: Installation of the gas line must only be done by a qualified person in accordance with local building
codes.
GAS CONVERSIONS:
This fireplace is manufactured for use with Natural Gas. An LP Gas conversion kit is included with this fireplace.
Follow instructions included with this conversion kit.
Natural Gas Conversion Kit #OCK-S31A - used to convert an LP millivolt board to Natural Gas.
LP Gas Conversion Kit #OCK-S50A - used to convert a Natural Gas millivolt board to LP Gas.
The conversion shall be carried out in accordance with the requirements of the provincial authorities having jurisdiction
and in accordance with the requirements of ANSI Z223.1 installation code.
NOTE: This fireplace is equipped with a flexible gas connector and manual shut off valve.
NOTE: The gas line should be run to the point of connection where the shut-off valve and flexible gas line will
connect.
CAUTION: The manual shut-off valve or flexible gas tubing must not extend outside of the fireplace cavity. See the
WARNING label affixed to the flexible tubing for additional installation instructions and warnings.
NATURAL GAS: The minimum inlet gas supply pressure: 7.0 inches W.C. (recommended)
The maximum inlet gas supply pressure: 10.5 inches W.C.
Manifold pressure: 3.5 inches W.C.
Manifold pressure (lo setting): 1.7 inches W.C.
Orifice size (0-2000 ft.): 31 Input: 38,000 BTU’s
LP GAS: The minimum inlet gas supply pressure: 11.0 inches W.C. (recommended)
The maximum inlet gas supply pressure: 13.0 inches W.C.
Manifold Pressure: 10.0 inches W.C.
Manifold Pressure (lo setting): 6.3 inches W.C.
Orifice size (0-2000 ft.): 50 Input: 38,000 BTU’s
NOTE: For high altitude installations consult the local gas distributor or the authority
having jurisdiction for proper rating methods.
1. Run the gas line. An accessible shut off valve must be installed up stream from the regulator.
NOTE: Do not run the incoming gas line in a manner that would obstruct the operation of the fan.

Page 14
LOG GRATE
2. This fireplace is designed to accept either a 3/8" or 1/2" gas line approved for gas appliances. Consult local building
codes to properly size the gas supply line leading to a 3/8" reduction.
3. A gas line knockout is positioned on either side of the fireplace for gas line connection.
4. Connect the gas line to the manual shut-off valve.
5. Connect the flexible gas line (installed on the millivolt board) to the manual shut off valve.
IMPORTANT: ALL CONNECTIONS WHETHER FIELD OR FACTORY MADE MUST
BE CHECKED FOR LEAKS!
NOTE: The appliance and its individual shutoff valve must be disconnected from the gas supply piping system during any pressure
testing of that system at test pressures in excess of ½ psi.
NOTE: The appliance must be isolated from the gas supply piping system by closing its individual manual shut off valve during any
pressure testing of the gas line at test pressures equal to or less than 1/2 psig (3.5 kPa).
Pressure check taps for the manifold (outgoing) and inlet (incoming) pressures are located in front of the gas valve. The right
pressure tap is the manifold pressure and the left pressure tap is the incoming pressure. FOLLOW INSTRUCTIONS ON PAGE
#24 OF THIS MANUAL.
G) MILLIVOLT BOARD & BURNER ASSEMBLY REMOVAL / INSTALLATION - Figures 11A-11E.
NOTE: This fireplace is equipped with the millivolt board and burner plate already installed. Ensure that all of
the nuts are tightened, securing the board to the firebox. Follow these procedures in the event this
assembly needs to be removed for service and/or maintenance.
MILLIVOLT BOARD REMOVAL.
1. Open the lower grill to access the gas valve
and controls.
2. Turn the control knob to ‘OFF’.
3. Remove the front upper grill, glass assembly,
log set, rock wool embers & log grate. Figure 11A.
4. Shut off the gas supply at the manual shut-off valve.
5. Disconnect the flexible gas line tube from the
manual shut-off valve.
6. Disconnect any wall switch, remote control or
thermostat wires from the valve.
Figure 11A
7. Loosen and remove the (2) ¼” nuts securing the
burner cover. Figure 11B.
8. To release the adjustable venturi collar at the end of
the burner tube, gently push back the mounting bracket
only far enough to release the collar. Figure 11B.
9. Remove the burner cover from the firebox.
Figure 11B

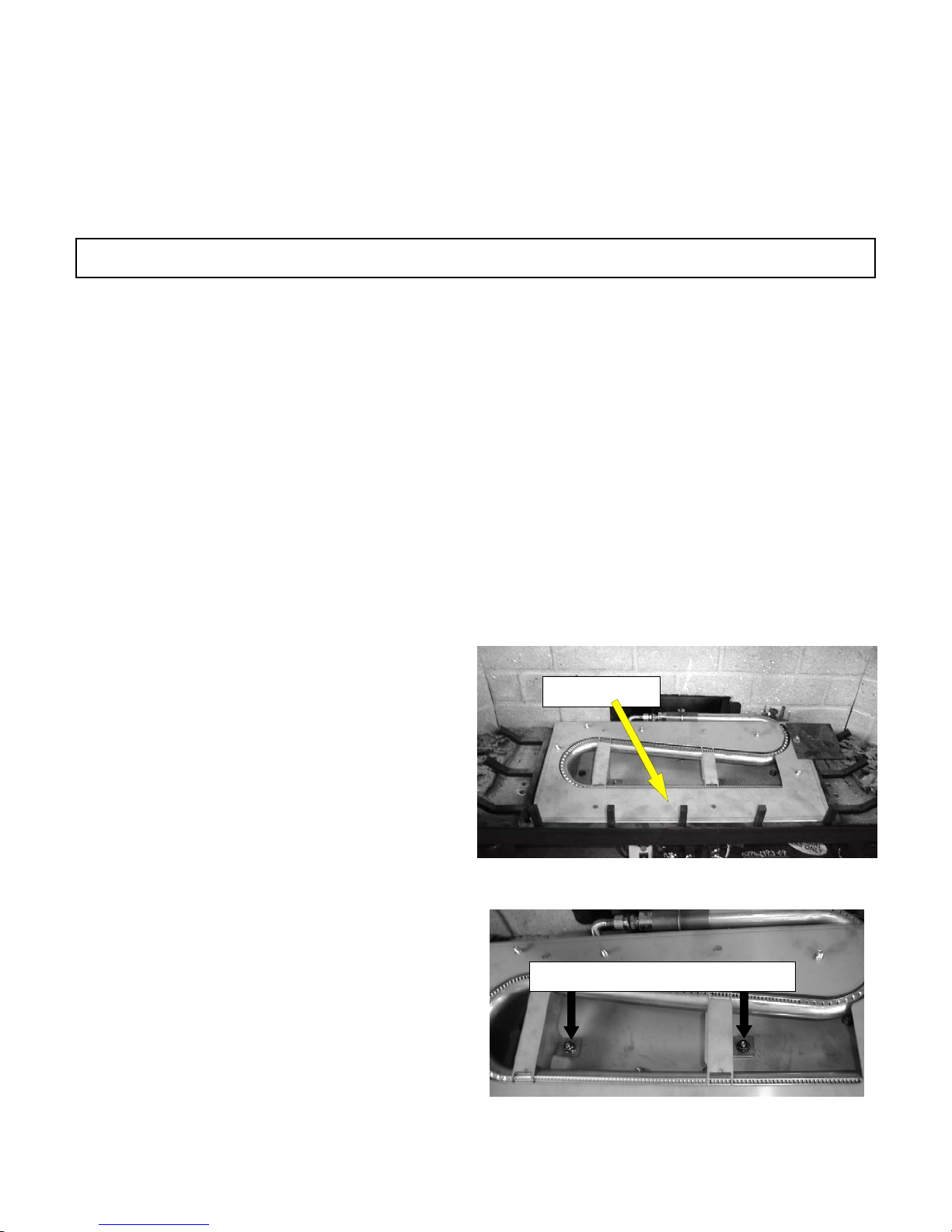

1/4" NUTS SECURING BURNER COVER

Page 15
10. Remove the pilot shield and set aside. Figure 11B.
11. Loosen and remove the (8) 1/4" nuts securing the millivolt board and, while grasping the board, gently
lift it off the (8) studs and remove from the firebox. Figure 11C.

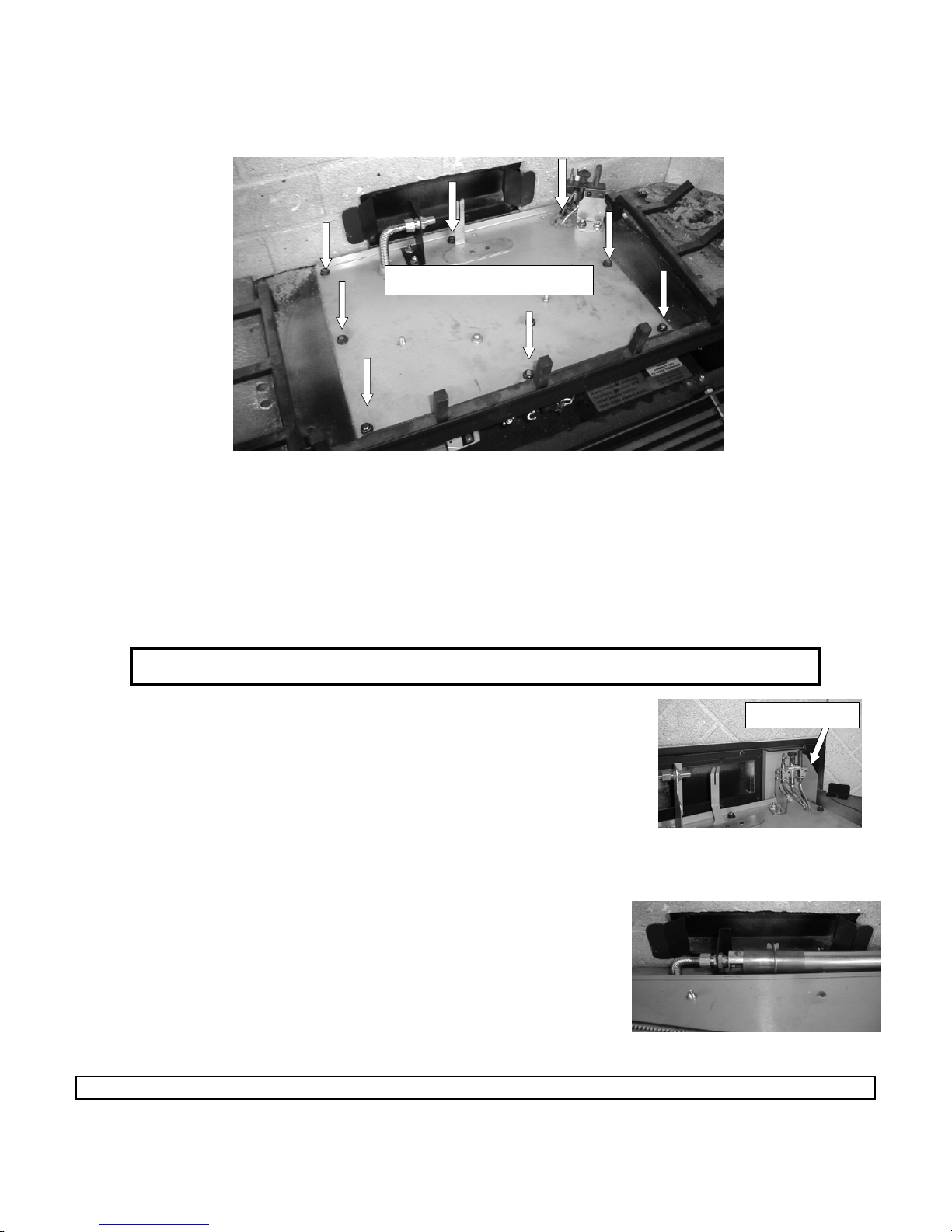

Figure 11C
INSTALLING THE BOARD.
NOTE: This fireplace is fitted with a gasket to seal the millivolt board. Make certain this gasket is properly placed
around the opening before installing the millivolt board.
1. Grasp the burner with both hands and place into the firebox, lining up the (8) 1/4" holes in the millivolt board to
the (8) studs on the firebox bottom. Refer to Figure 11C.
CAUTION: Before securing the board into place make sure that all of the wires (attached under the
board) are clear and unobstructed.
2. Attach the 1/4" nuts (included with the board assembly & tighten).
3. Re-install the pilot shield. Figure 11D.
4. Re-install the burner cover, aligning the mounting holes in the burner brackets
to the corresponding mounting studs on the bottom of the millivolt board.
Figure 11B.
IMPORTANT: Ensure that the burner tube is properly seated over
the burner orifice.
Figure 11D
5. Secure with the remaining (2) ¼” nuts. Figure 11B.
6. To position the adjustable venturi collar into its mounting bracket,
gently push the bracket back far enough to slip the flange on the
collar into the slot on the bracket. Figure 11E.
7. Connect the flexible gas line to the manual shut-off valve.
8. Re-connect any wall switch, thermostat or remote control wires to the valve.
9. Re-install the log grate, (Figure 11A, page #14), logs and
rock wool burning embers (page #17).
12. Light the pilot and burner to ensure proper ignition and operation.
13. Re-install the glass assembly and upper grill. Figure 11E
IMPORTANT: CHECK ALL CONNECTIONS WHETHER FIELD OR FACTORY MADE FOR LEAKS.
1/4" NUTS SECURING BOARD
PILOT SHIELD

Page 16
EXTERNALLY ADJUSTABLE VENTURI. FIGURES 12A - 12C.
An externally adjustable venturi has been incorporated into the millivolt board assembly for this fireplace. Follow the instructions
below for proper operation and settings.
CAUTION: THE SURFACES OF THIS FIREPLACE ARE HOT WHILE THE BURNER IS IN OPERATION. ALLOW THE FIREPLACE TO
COOL PRIOR TO ADJUSTING THE VENTURI OR USE EXTREME CAUTION AND WEAR THE APPROPRIATE
PROTECTION TO AVOID SERIOUS BURNS.
Referring to the millivolt board above, locate the adjustable venturi lever attached to
the bottom of the millivolt board.
1. The venturi has been factory set for a typical minimum venting configuration
using Natural Gas.
Natural Gas: Lever is positioned in the left notched out section of the bracket
as shown in Figure 12A. This is approximately 1/4" opened.
LP Gas: Lever is positioned in the right notched out section of the
bracket as shown in Figure 12B. This is approximately 5/8" opened.

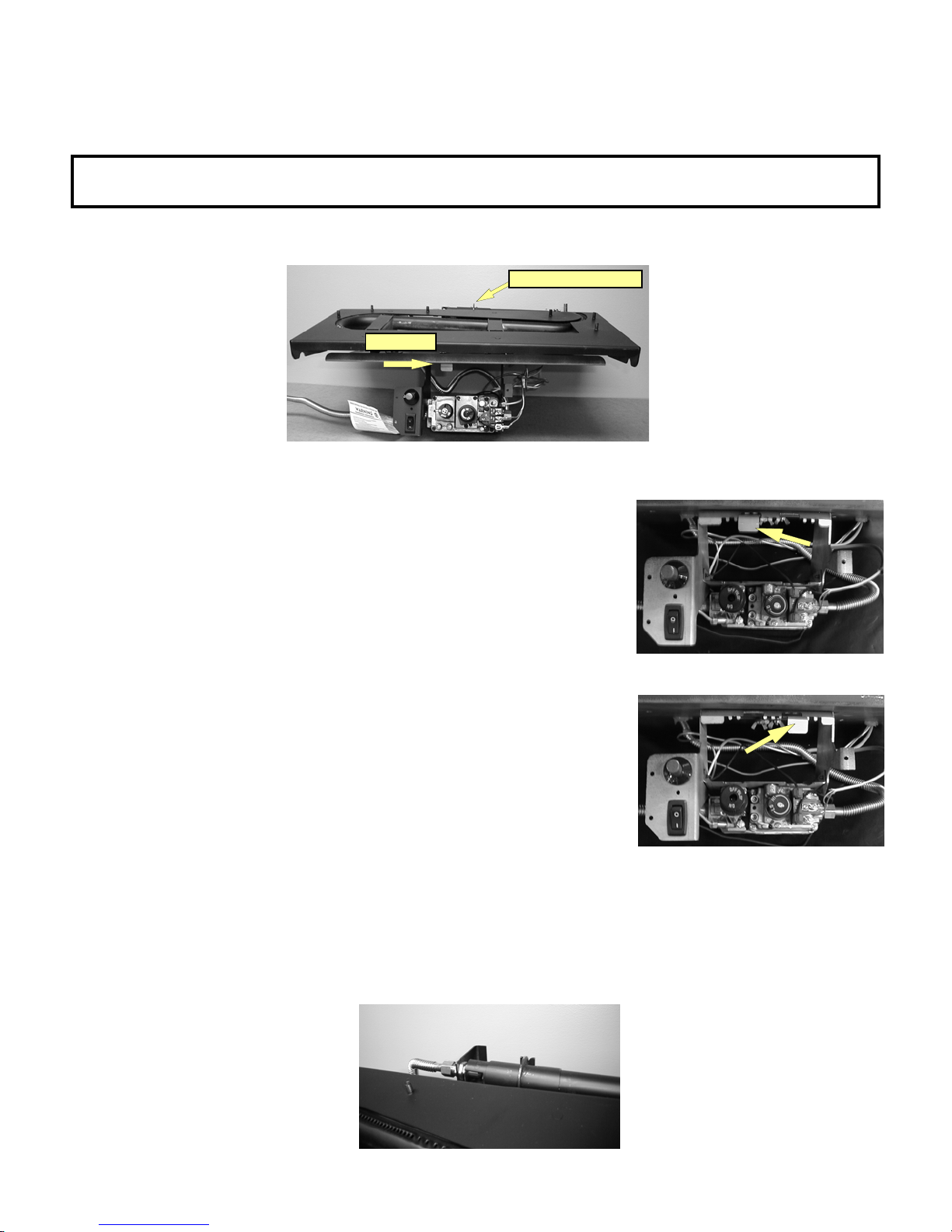

Figure 12A
The lever may be adjusted in small increments by pulling the lever down slightly
and sliding it in either direction, placing the slots in the lever(under the millivolt
board) into the smaller notches on either side of the factory-set positions.
ADJUSTMENTS:
Placing the lever to the right will close the venturi air collar allowing less air
to be mixed with the gas in the burner tube.
Placing the lever to the left opens the venturi collar allowing more air to be
mixed with the gas in the burner tube. Figure 12B
NOTE: Eachfireplace installation isdifferent- i.e.: Ventingconfiguration, chimney systemused, etc. Adjustthe venturi
opening as necessary to achieve proper burn and appearance.
CAUTION: Do not close the shutter too far! This will cause the fireplace to burn ‘dirty’ which will result in soot
accumulation inside the glass, the firebox and possibly the logs.
Figure 12C
VENTURI COLLAR SHOWN IN
THE ‘OPENED’ POSITION
LEVER
VENTURI COLLAR
