kozy heat MINNETONKA 55345 User manual

WARNING:Iftheinformationintheseinstructions
is not followed exactly, a fire or explosion may
result, causing property damage, personal injury
or loss of life.
MINNETONKA
Direct Vent Gas Fireplace
MODELS: #55345
#55345-RF
INSTALLATION AND
OPERATING MANUAL
US Patent #6004493
‚Do not store or use gasoline or other flammable
vaporsandliquidsinthevicinityofthisoranyother
appliance.
WHAT TO DO IF YOU SMELL GAS:
‚Do not try to light any appliance.
‚Do not touch electrical switches; do not use the
phone in your building.
‚Immediately call your gas supplier from a
neighbor’s phone. Follow your gas supplier’s
instructions.
‚If you cannot reach your gas supplier, call the fire
department.
Installation & service must be performed by a qualified
installer, service agency, or the gas supplier.
This appliance may be installed in an aftermarket
permanentlylocated,manufactured(mobile)home,where
not prohibited by local codes.
This appliance is only for use with the type(s) of gas
indicated on the rating plate. This appliance is not
convertible for use with other gases, unless a certified kit
is used. An LP Gas conversion kit is included with this
fireplace.
IMPORTANT:
READ INSTRUCTIONS CAREFULLY BEFORE INSTALLATION. FAILURE TO
INSTALL THIS FIREPLACE CORRECTLY CAN CAUSE SERIOUS STRUCTURAL
AND FIRE HAZARDS AND MAY VOID YOUR WARRANTY.
www.kozyheat.com July 2007

Page 1
INDEX
DESCRIPTION PAGE
SAFETY REQUIREMENTS / SPECIFICATIONS .............................................................................. 2-3
MINIMUM CLEARANCES ................................................................................................ 4-5
TYPICALINSTALLATIONOPTIONS.........................................................................................5
VENTINGREQUIREMENTS.............................................................................................. 5-9
MINIMUM/MAXIMUMVENTINGREQUIREMENTS ......................................... 6
HORIZONTALVENTING ..............................................................6-7
TERMINATIONCAPLOCATION......................................................... 8
VERTICALVENTING.................................................................. 9
DETERMINELOCATION .............................................................................................. 10-11
VENT SYSTEM FRAMING .............................................................10
ROUGH-INDIMENSIONS..............................................................11
PREPARETHEFIREPLACE ........................................................................................... 12-13
POSITIONTHEFIREPLACE ..............................................................................................13

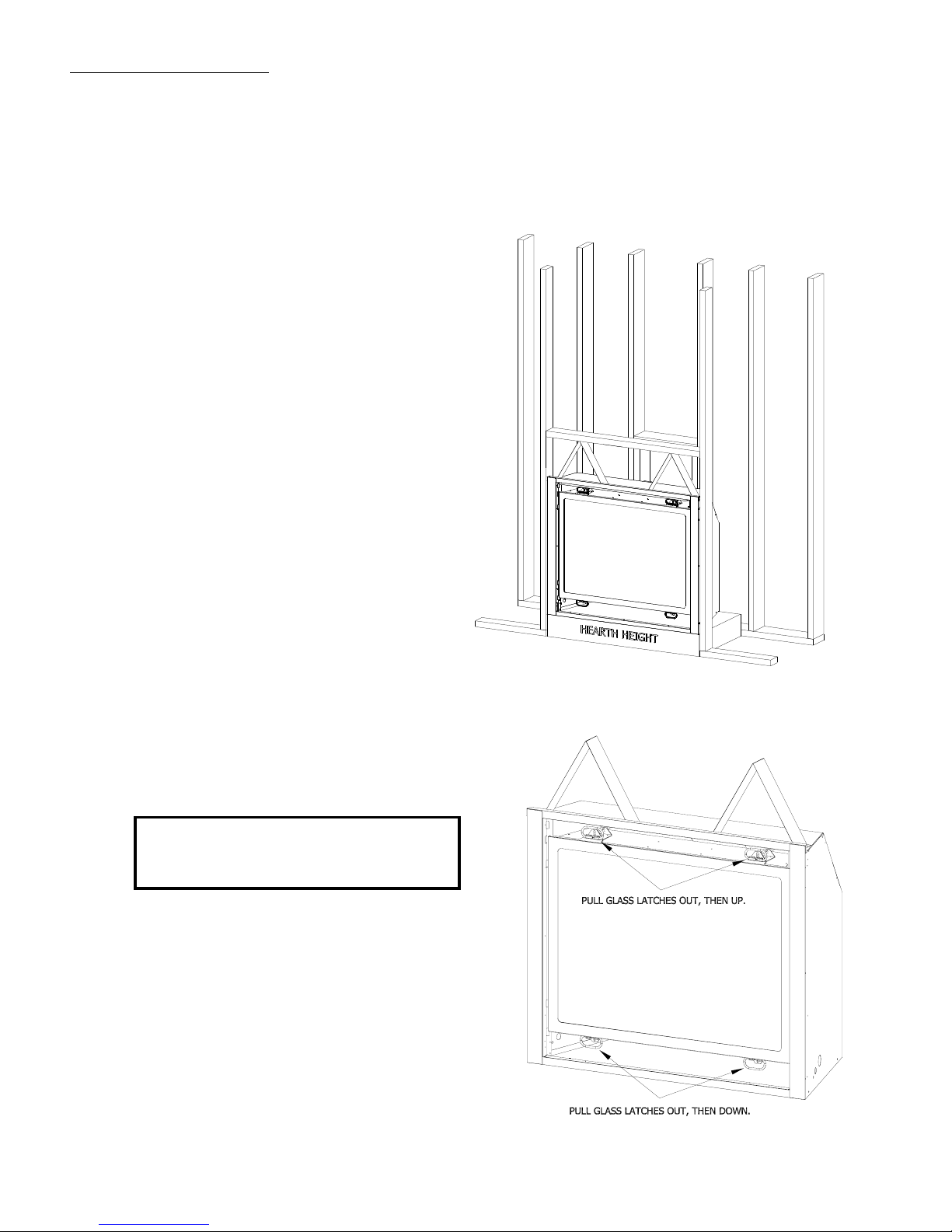

REMOVE THE GLASS ASSEMBLY ......................................................13
DIRECTVENTCHIMNEYINSTALLATION ................................................................................ 14-15
FANINSTALLATION.................................................................................................. 16-18
Model #55345 .................................................................... 16-17
Model #55345-RF ................................................................... 18
GAS LINE SPECIFICATIONS ........................................................................................... 19-20
SECURE THE MILLIVOLT BOARD .........................................................................................20
ADJUSTCOMBUSTIONAIRINTAKESHIELD-VERTICALTERMINATIONSONLY .................................................20
LOGINSTALLATION ....................................................................................................21
THERMOSTAT-WALLSWITCH-REMOTECONTROLINSTALLATION ..........................................................22
COMPLETETHEINSTALLATION ....................................................................................... 23-24
MODEL #55345 LIGHTING & SHUTDOWN ............................................................................ 25-26
MANIFOLD & INCOMING PRESSURE CHECK PROCEDURES .................................................27
MODEL #55345-RF LIGHTING & SHUTDOWN ............................................................................ 28-29
MANIFOLD & INCOMING PRESSURE CHECK PROCEDURES .................................................30
CLEANING & MAINTENANCE REQUIREMENTS ..............................................................................31
MILLIVOLT BOARD REMOVAL / INSTALLATION .......................................................................... 32-33
TROUBLESHOOTING ................................................................................................ 34-35
REPLACEMENTPARTSLISTS ............................................................................................36
WARRANTY POLICY ................................................................................................. 37-38

Page 3
IMPORTANT:
READ THIS MANUAL BEFORE INSTALLING AND USING THIS FIREPLACE
‘MINNETONKA’ DIRECT VENT GAS FIREPLACE
This fireplace has been tested to and complies with ANSI Z21.88B-2003•CSA 2.33B-2003 “VENTED GAS FIREPLACE HEATERS”
byOMNI-TestLaboratories, Beaverton,OR. Installationmustconformwithlocalbuildingcodesorintheabsenceoflocalbuilding
codes,with theNational FuelGasCode, ANSIZ223.1/NFPA 54- CurrentEdition, orthe Naturalor PropaneInstallation Code,CSA
B149.1.
COMMONWEALTH OF MASSACHUSETTS
INSTALLATIONS
WARNING: This Product Must Be Installed By A Licensed
Plumber Or Gas Fitter When Installed Within The
Commonwealth of Massachusetts.
IMPORTANT: Installation of a CO detector is required in
the fireplace room.
WARNING: Do not use this fireplace if any part has been
underwater. Immediatelycallaqualifiedservicetechnician
to inspect this appliance and to replace any part of the
control system and any gas control which has been under
water.
WARNING:
DO NOT REPLACE THIS BURNER ASSEMBLY WITH
ANY OTHER SIZED BURNER. REPLACEMENT WITH
AN UNAUTHORIZED BURNER CAN RESULT IN
TEMPERATURES EXCEEDING THE LIMITS FOR THIS
UNIT, AND VOID YOUR WARRANTY.
IMPORTANT: NON-COMBUSTIBLE FACING MATERIAL
MAY BE APPLIEDOVER THE FACE. TO PREVENT THE
FACING MATERIAL FROM CRACKING AND FALLING
OFF DUE TO EXPANSION OF THE FACE WHEN
HEATED, DO NOT ATTACH FACING MATERIAL
DIRECTLY TO THE FACE OF THE UNIT. DO NOT
OBSTRUCT THE FLOW OF VENTILATION AIR.
CONSULTYOURLOCALORNATIONALINSTALLATION
CODES TO ASSURE THAT ADEQUATE COMBUSTION
AND VENTILATION AIR IS AVAILABLE.
INSPECT THE FIREPLACE & ALL COMPONENTS
Inspect the fireplace, vent system & all components. Contact your dealer if any parts are damaged or missing. Do not
install the fireplace with damaged, incomplete, or substitute parts.
PLANNING THE INSTALLATION
Prior to installation of this fireplace, the following must be considered:
‚Location of fireplace.
‚Configuration of vent system.
‚Gas piping.
‚Electrical wiring (for fan, optional on Model #55345).
‚Framing.
‚Hearth height, width & depth. NOTE: A hearth is not required.
‚Materials used for finishing the fireplace.
‚Optional accessories used: Fan, wall switch, remote control, thermostat, etc. (Model #55345)
NOTE: Whenthefireplaceisinstalleddirectlyoncarpeting,tile,orothercombustiblematerialsotherthanwoodflooring,itmust
beinstalledon ametalor woodpanelextendingthefullwidthanddepth ofthefireplace. Theminimumfor thesupport platform
under the fireplace is 40 7/8" wide by 21 3/8" deep.
Ifmasonryistobeused(optional),preparethenecessaryfoundationforthemasonryload.Whenmasonryconstructionisbeing
used, a lintel must be used over the top of the fireplace to support the added weight.

Page 4
SPECIFICATIONS
Height .................................34½"
Height to top of stand-off .................. 441/2"
Front width ............................ 407/8"
Backwidth............................. 291/4"
Depth................................. 213/8”
Refer to Diagrams for additional measurements.
Top
Front
FIGURE 1
Left side Right side
8 1/4"

Page 5
INSTALLATION REQUIREMENTS:
Minimum clearances from the fireplace to combustible materials:
From face top: 10 "
From left & right sides & back: 1/2"
Surround sides: 1/4"
Bottom to flooring: 0"
Top to ceiling: 31"
Side to adjacent sidewall: 12"
MANTEL REQUIREMENTS*
Combustible Material:
Fireplace top to 10" mantel: 15" minimum*
Projection: 3/4" maximum projection allowed
a minimum of 10" from fireplace top.
*Mantel height must be raised 1" for every additional 1" of depth.
See chart at right for mantel requirements. Only non-combustible
material allowed in shaded area from 0" - 15" from the top of
the fireplace.
HEARTH REQUIREMENTS - Figures 2A & 2B
When the fireplace is installed on carpet, tile or other combustible material, it must be installed on a metal or wood
panel extending the full width & depth of the fireplace.
The minimum platform size is 40 7/8" wide X 21 3/8" deep.
HEARTH EXTENSIONS:
If a hearth extension is desired, combustible materials may be used.
Figure 2A
Figure 2B

Page 6
VENT SYSTEM CLEARANCES:
Dura-Vent or Selkirk Metalbestos chimney systems: Horizontal Sections: Top: 3"
Sides & Bottom: 1"
Vertical Sections: All sides: 1"
#800 Series Flex Vent System: Top:3"
Sides & Bottom: 1"
IMPORTANT: THE KOZY HEAT WALL THIMBLE PASS-THRU, PART #800-WPT MUST BE USED ON
ALL HORIZONTAL VENT RUNS. THE MINIMUM WALL THICKNESS FOR THIS PASS-
THRU IS 4 ½" AND THE MAXIMUM WALL THICKNESS IS 7 1/2".
TYPICAL INSTALLATION OPTIONS:
Typical Horizontal Installation - Figure 3A Typical Vertical Installation - Figure 3B
Typical Corner
Installation - Figure 3C Clearance to Combustible Material
diagram - Figure 3D
VENTING REQUIREMENTS:
THIS FIREPLACE IS APPROVED FOR USE WITH THE SIMPSON DURA-VENT DV-GS 5" X 8" DIRECT VENT SYSTEM & SELKIRK
METALBESTOS DIRECT CHIMNEY SYSTEM 5" X 8" DIRECT VENT SYSTEM FOR HORIZONTAL & VERTICAL TERMINATIONS.
THISFIREPLACEISALSOAPPROVEDFORUSEWITHTHEKOZYHEAT#800SERIESFLEXIBLEVENTSYSTEMFORHORIZONTAL
VENTING APPLICATIONS.
THISFIREPLACEISDESIGNED TO BEUSEDWITHANYOF THEABOVEVENTSYSTEMSWITHOUTTHE USEOFANADDITIONAL
ADAPTOR.
Contact your dealer for the appropriate venting components for your specific application.
Refertotheventsystemmanufacturer’sinstallationmanualforcompleteinstallationinstructions. Installationmustconformwiththeventing
requirements & restrictions as outlined in this manual.
IMPORTANT: Consult the local and national installation codes to assure that adequate combustion and ventilation air is available.

Page 6
VENTING SPECIFICATIONS:
IMPORTANT: Flame height and appearance will vary depending upon venting configuration and type of fuel used. Venting
requirements apply to both Natural Gas & LP Gas.
HORIZONTAL TERMINATIONS:
IMPORTANT: The horizontal heat shield included with this fireplace must be installed when using a 45-degree elbow
to horizontally position the vent system.
Minimum: 45-degree elbow at start followed by 6" section, then termination cap.
Maximum: US INSTALLATIONS: 45-degree elbow at start followed by a maximum 10 ft.
CANADA INSTALLATIONS: 0 to 2000 ft.: 45-degree elbow at start followed by a maximum 10 ft.
2000 - 4500 ft.: Must de-rate burner orifices: Natural Gas: #56 & #35
LP Gas: #69 & #52
45-degree elbow at start followed by maximum 10 ft.
VERTICAL TERMINATIONS: Minimum: 45-degree elbow at start followed by 2 ft.
Maximum: 45-degree elbow at start followed by a maximum 30 ft.
ELBOWS: FOR EACH ADDITIONAL ELBOW USED AFTER THE FIRST ELBOW, 3 FT. MUST BE SUBTRACTED FROM THE
MAXIMUM VENTING ALLOWED. NOTE: (2) 45-DEGREE ELBOWS MAY BE USED IN PLACE OF (1) 90-
DEGREE ELBOW.
HORIZONTAL & VERTICAL COMBINATION: 25 ft. - 10 ft. maximum horizontal / 15 ft. maximum vertical

Page 7

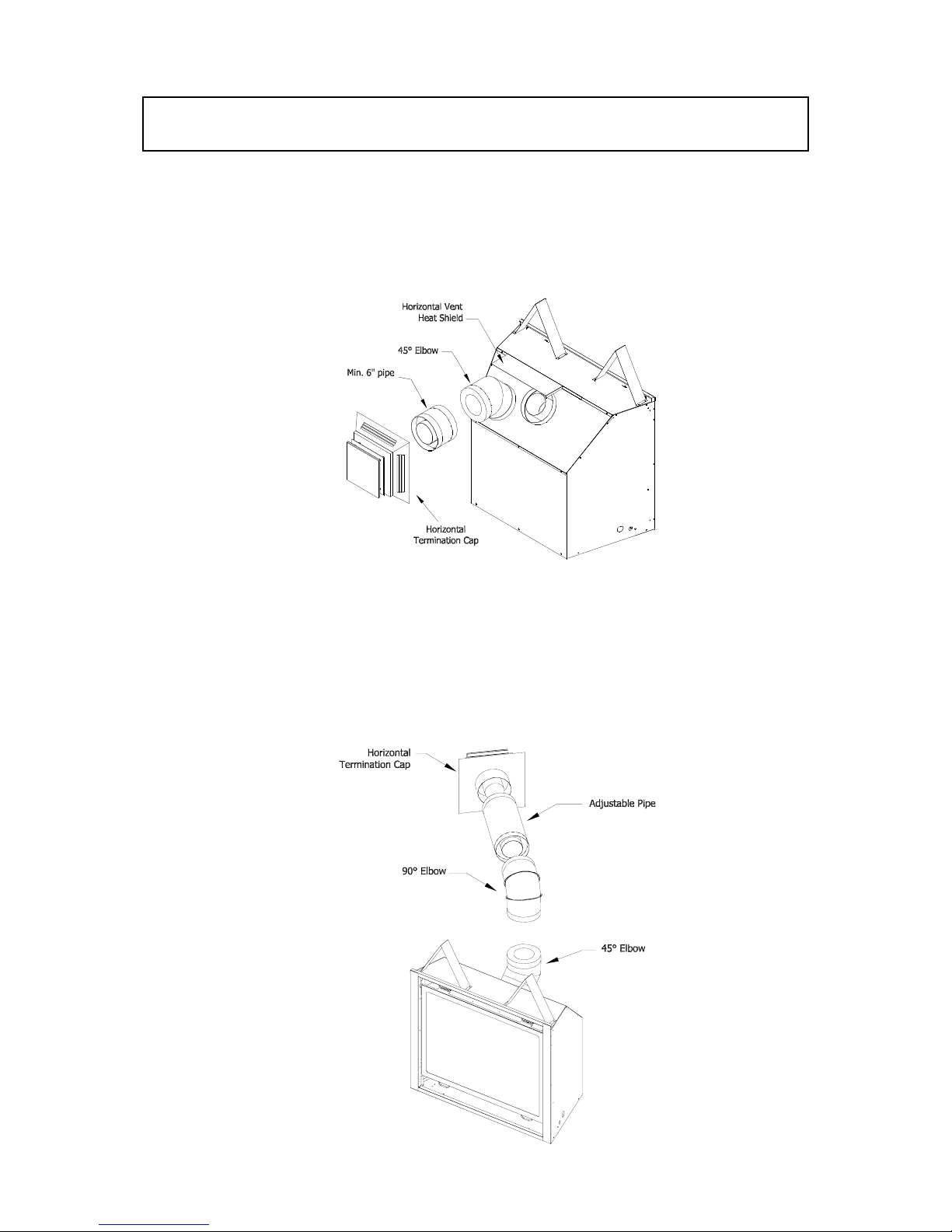

MINIMUM HORIZONTAL VENTING
IMP0RTANT: THE KOZY HEAT WALL PASS-THRU, PART #800-WPT, MUST BE USED ON ALL HORIZONTAL VENT
RUNS. THE MINIMUM WALL THICKNESS FOR THIS PASS-THRU IS 4 ½" AND THE MAXIMUM WALL
THICKNESS IS 7 ½ “
Minimum horizontal venting
NOTE: Horizontal Vent Heat shield must be installed when using
a 45-degree elbow to horizontally position the vent system.
Figure 4A
Minimum corner installation
NOTE: Horizontal Vent Heat shield is not used on
corner venting configurations.
Figure 4B

Page 8
TERMINATION VENT CAP LOCATION:
This gas appliance must not be connected to a chimney flue serving another type of appliance.
GENERAL:
1. Terminations against vinyl siding must use a vinyl siding protector. Follow instructions included.
2. DO NOT RECESS TERMINATION KIT INTO OUTSIDE BUILDING MATERIALS - i.e.: brick, stone, siding, etc.. If necessary,
extend framing so that termination kit will be exposed once building materials are installed.
3. Vent termination must not be located where it will become plugged by snow or other material. The flow of combustion and
ventilation air must be not obstructed.
LOCATION CLEARANCES:
1. Above grade, veranda, porch, deck, balcony - 12". (A)
2. Operable window - 12". (B)
3. Permanently closed window* - 12" (recommended to prevent condensation on window). (C)
4. Ventilated soffit* - 24". (D)
5. Unventilated soffit* - 12". (E)
6. Outside / inside corner* - 12". (F)
7. Meter / Regulator: NOT TO BE INSTALLED ABOVE within 3 ft. horizontally from the center line of the regulator.
8. Service regulator vent outlet - 3 ft. radius.
9. Non-mechanical air supply inlet to building - 12".
10. Combustion air inlet to any other appliance - 12".
11. Mechanical air supply inlet. (G) - CANADA: 6 ft. US: 3 ft. above if within 10 ft. horizontally.
NOTE: Massachusetts installations: 10 ft.
12. Above furnace exhaust or inlet - 12".
13. Above paved side-walk or paved driveway located on public property - 7 ft. (H)
NOTE: A vent cannot be located directly above a side-walk or paved driveway that is located between two single family
dwelling and serves both dwellings.
14. Under veranda, porch, deck, or balcony (must be fully opened on a min. of 2 sides) - 12". (I)
15. Between two horizontal terminations - 12".
16. Between two vertical terminations - 12". (J) - Note: May be the same height.
*Clearance must be in accordance with local installation codes & the requirements of the gas supplier.
FIGURE 5

Page 9
WHEN VERTICALLY TERMINATING, THE MINIMUM CHIMNEY HEIGHT ABOVE THE ROOF LINE IS
DETERMINED BY THE FOLLOWING CHART:
Roof Pitch Minimum Chimney Height Roof Pitch Minimum Chimney Height
Flat to 6/12 1 ft. 13/12 to 16/12 6 ft.
6/12 to 9/12 2 ft. 17/12 to 21/12 8 ft
10/12 to 12/12 4 ft.
CAUTION: This gas appliance must not be connected to or joined with any chimney flue
serving any other appliance.
Figure 6A
NOTE: Horizontal Vent Heat shield is not used on
vertical venting configurations.

Page 10
DETERMINE LOCATION
1. Determine the exact position of your fireplace, the width, depth and height of the hearth (optional), and location of the vent system
termination. Ifpossibleplacethefireplaceinsuchamanner thattheventterminationwillbeplacedbetweentwostudssoadditional
framing is not necessary.
HEARTH REQUIREMENTS: When the fireplace is installed directly on carpet, tile or other combustible material, it must be installed
on a wood or metal panel extending the full width and depth of the fireplace. The minimum platform size is 40 7/8" wide X 21 3/8"
deep.
If masonry is to be used (optional), prepare the necessary foundation for the masonry load. When masonry construction is being
used, a lintel must be used over the top of the fireplace to support the added weight.
IMPORTANT - Vent cap location must be in compliance with the guidelines on page #8 of this manual.
2. HORIZONTAL TERMINATIONS:
IMPORTANT: The horizontal vent heat shield must be
installed when using a 45-degree elbow to horizontally
positiontheventsystemorwhenusingthe#800seriesKozy
Heat flexible vent system for horizontal terminations. Refer
to page #12 of this manual for instruction on attaching the
horizontal vent heat shield.
Frame a 12 1/2" high (H) x 10 7/8" wide (W) opening on the
exterior wall for the chimney termination.
This opening size includes the required 3" clearance at the
top and 1" clearance at the sides and bottom of approved
rigid vent systems and the Kozy Heat #800 series flexible
vent system.
Toachievetheminimumhorizontalventingrequirementsfor
RIGIDPIPE APPLICATIONS, aminimum of 36 1/2"(A) tothe
top of the vent pipe and 39 1/2" (B) to the top of the framed
opening from the floor or hearth the fireplace is setting on
is required. See Figure 7A.
To achieve the minimum venting requirements, for FLEX
VENTAPPLICATIONS,aminimumof40" (A)tothetopofthe
vent pipe and 43" (B) to the top of the framed opening from
thefloororhearththefireplaceissettingonisrequired. See
Figure 7A.
FIGURE 7A
3. VERTICAL TERMINATIONS: Follow vent pipe manufacturer’s installation instructions for vertical terminations. A minimum 1"
clearance on all sides of vertical vent pipe sections must be maintained.
The horizontal vent heat shield is not used for vertical venting configurations.
CAUTION: COLD AIR TRANSFER AREA. THE SURROUNDING CHASE OF THE FIREPLACE MUST COMPLY WITH ALL CLEARANCES AS
OUTLINED IN THIS MANUAL AND BE CONSTRUCTED IN COMPLIANCE WITH LOCAL BUILDING CODES. OUTSIDE WALLS SHOULD BE
INSULATED TO PREVENT COLD AIR FROM ENTERING THE ROOM.
NOTE: Due to high temperatures, this fireplace should be located out of traffic areas and away from furniture and draperies.
4. Build the hearth to the desired size and height. If a hearth extension is desired, combustible material may be used.

Page 11
5. Rough in the wall enclosure. Figure 7B.
IMPORTANT: Framing dimensions should allow for wall
covering thickness and fireplace facing materials. Adjust
rough opening size as necessary to maintain at least the
minimum clearance requirements.
MINIMUM FINISHED OPENING DIMENSIONS (Wall covering /
facing materials included):
HORIZONTAL TERMINATIONS:
44 1/2" high x 41 3/8" wide x 21 7/8" deep*
*½"clearanceattheback&sidesofthefireplacemustbe
maintained for horizontal terminations. See Figure 3A,
page #5.
VERTICAL TERMINATIONS:
44 1/2" high x 41 3/8" wide x 23 7/8" deep*
*2½" clearance at the back to maintain required vent
system clearance and ½" at the sides of the fireplace
mustbemaintainedforverticalterminations. SeeFigure
3B, page #5.
FIGURE 7B
Horizontal termination shown above.
FIGURE 7C
NOTE: Provide adequate clearance in front of the fireplace to access the control valve, install and attach gas line, install a fan, etc..
Do not obstruct the upper and lower convection air passage areas to allow proper ventilation air around thefireplace. Room air
entersthrough thelowerpassage,isheatedand exitsattheupperpassage. Blockingthesepassagesmayresultinoverheating
the fireplace creating a potentially hazardous situation.

Page 12
PREPARE THE FIREPLACE
STAND-OFF ASSEMBLY & INSTALLATION
1. The top stand-off brackets must be formed and correctly
positionedprior topositioning thefireplace into theframed
opening. Figure 8A.
The top stand-off brackets are attached to the top of the
fireplace in a flat state when the fireplace is shipped.
2. Remove the screws securing each stand-off bracket and
remove from the fireplace.
3. Removetheremaining(2)setsofscrewsunderthestand-off
brackets and set aside.
4. Form each stand-off as shown in Figure 8B.
Figure 8B
5. Re-attach the stand-off brackets to the top of the fireplace
usingthe screws removedinsteps#2-#3 above.Figure8C.
Figure 8A
Figure 8C
HORIZONTAL VENT APPLICATIONS:
This fireplace is approved for use with the Simpson Dura-Vent 5" x 8" direct vent system, the Selkirk Metalbestos 5" x 8" direct vent
system, and the Kozy Heat #800 Series flexible direct vent system for horizontal vent applications. No additional adaptor is necessary
to begin installing the chimney components.
ATTACH THE HORIZONTAL VENT HEAT SHIELD:
1. Loosen, but do not remove the center three screws
at the back of the fireplace as shown in Figure 9A.
Figure 9A
2. Bend the horizontal heat shield at the perforation to a 45N
angle. Slide the (3) slots on the horizontal vent heat shield
under the screws. Re-tighten the screws to secure in place.
Refer to Figure 9B.
Figure 9B

Page 13
VERTICAL VENT APPLICATIONS
This fireplace is approved for use with the Simpson Dura-Vent 5" x 8" direct vent system and the Selkirk Metalbestos 5" x 8" direct vent
system for vertical vent applications. There is no additional adaptor necessary to begin installing the chimney components.
POSITION THE FIREPLACE
1. Place the fireplace into position. Figure 10.
NOTE: Shown in horizontal vent
configuration
2. REMOVE THE GLASS ASSEMBLY.
See Figure 11.
A. Locate the spring-loaded handles securing the
glass assembly at the top & bottom of the firebox.
CAUTION: TO PREVENT THE GLASS ASSEMBLY FROM
FALLING FROM THE FIREPLACE AND BECOMING
DAMAGED,FOLLOWTHESEDIRECTIONSEXACTLYWHEN
REMOVING THE GLASS ASSEMBLY.
B. Pull the handles out, then ‘down’ to release the
glass assembly at the bottom.
C. Pull the handles out, then ‘up’ to release the glass
assembly at the top.
D. Lift the glass assembly off from the front of the
fireplaceandset aside whereitwillnotbe broken.
E. Remove the log package from the firebox and set
aside.
Figure 10
Figure 11

Page 14
VENT SYSTEM INSTALLATION:
Installtheventsystemcomponentsforyourspecificventingconfiguration. Followtheventsystemmanufacturer’sinstallation
instructions in conjunction with the venting requirements in this installation manual.
HORIZONTAL&VERTICALTERMINATIONS: Allfirestops,supportbrackets,etc.mustbeusedasspecifiedbytheventsystem
manufacturer.
All clearances and venting requirements as specified in this manual must be followed.
VERTICAL TERMINATIONS: Restrictor usage
1. The restrictor plate (included in the fireplace
components packet) must be placed inside the 5" flue
collar on the top of the fireplace before connection of
the chimney to the fireplace is made. This is required
for vertical vent runs of 8' - 30'.
a. Bend the(3)tabs onthe restrictorplate far enough
so that it will securely fit inside the groove on the
5" collar on the fireplace. (Note: The tabs should
be in the ‘up’ position.) Refer to Figure 12.
2. Proceed with the vent system installation, following
instructions included with the vent system as well as
the requirements listed in this installation manual.
Refer to pages #5 -#9 of this installation manual for
complete venting requirements and restrictions. Figure 12
HORIZONTAL TERMINATIONS:
IMPORTANT: The Kozy Heat wall pass-thru, part #800-WPT, must be used on all horizontal vent applications regardless of
which vent system you are using.
INSTALLATION OF #800 SERIES DIRECT VENT TERMINATION KIT(S)
IMPORTANT: The flex pipe is permanently attached to the exterior plate. DO NOT ATTACH the #844 or #845 termination kit to the fireplace (or
extension kit) until it has passed through the wall or roof. The termination plates should all be installed on the exterior of the outside wall.
HORIZONTAL TERMINATIONS:
IF TERMINATING AGAINST VINYL SIDING, A VINYL SIDING PROTECTOR, INCLUDED WITH THE #844 and #845 DIRECT VENT KITS,
MUST BE USED. FOLLOW INSTRUCTIONS INCLUDED.
CAUTION: This gas appliance must not be connected to a chimney flue serving another type of appliance.
1. If your vent system application is 8' or less from the top of the fireplace and doesn’t require an extension kit, proceed to step #7.
2. If your vent system application will require one or more extension kits (part #846), proceed with the following steps. Each #846
extension kit contains enough 5" and 8" flexible aluminum to extend the chimney an additional 6'.

Page 15
#800-WPT
3. Gently stretch the 5" & 8" flexible aluminum pipes on the termination kit (#844 or #845) and on each extension kit, if used, the
length required so when all the sections are connected together, the vent system length for your installation is attained.
IMPORTANT: DO NOT STRETCH THE EXTENSION KIT BEYOND 6'. DO NOT STRETCH BEYOND WHAT IS REQUIRED - IT IS VERY
DIFFICULT TO RECOMPRESS THE FLEX PIPES ONCE STRETCHED.
4. Using your extension kit pieces, place a bead of sealant outside the 5" flex pipe collar (C) - the end with the EXTERNAL lip - and
slide it inside the 5" pipe on top of the fireplace (D). Secure with 3 additional evenly spaced screws.
5. Place a bead of sealant inside the 8" flex pipe collar (E) - the end with the internal lip - and slide it over the 8" pipe on top of the
fireplace (F). Secure with 3 additional evenly spaced screws.
Minimumventingrequirements:A minimum of40"to
the top of the vent pipe and 43" to the top of the
framed opening from the floor or hearth the fireplace
is setting on is required.
Refer to pages #5 - #9 for complete venting
requirements & restrictions.
FIGURE 13
6. If additional extension kits are being used, repeat steps 4 and 5, placing the 5" & 8" pipes onto the previous extension kit.
Referring Figure 13:
7. An #800-WPT wall pass-thru must be used for horizontal runs that pass through either interior or exterior walls. Install the #800-
WPT wall pass-thru on both sides of the 12 1/2" high x 10 7/8" wide square opening and secure with nails or screws.
NOTE: Attachment brackets are included with the termination kit. These optional brackets should be screwed or nailed (screws not
provided) onto the top and bottom of the 12 1/2" high x 10 7/8" square opening, on the exterior of the house. The termination plates then
fit between these brackets, and using the screws provided, screw the brackets to the termination kit box (A). Attach the vinyl siding
protector (G).
8. Apply a liberal bead of exterior sealant around the outer edge of the plate (A), and place the assembly through the 14 1/8" square
opening in the exterior wall. Place screws through the four slots (B) securing it in place.
9. Gently pull the 5" & 8" flexible aluminum down to the top of the extension kit, or the top of the fireplace if no extension kits were
used.
10. Place a bead of sealant outside the 5" flex pipe collar (C) and slide it into the 5" pipe on the extension kit or top of the fireplace (D).
Secure with 3 additional evenly spaced screws.
NOTE: This connection is very difficult to remove without damaging the collars once installed.
11. Place a bead of sealant inside the 8" flex pipe collar (E) and slide it over the 8" pipe on the extension kit or top of the fireplace (F).
Secure with 3 additional evenly spaced screws.
NOTE: This connection is very difficult to remove without damaging the collars once installed.
12. OPTIONAL: Place insulation between the 8" pipe and the wall studs.

Page 16
MODEL #55345 ONLY: OPTIONAL FAN KIT INSTALLATION INSTRUCTIONS
INSTALLATION OF THIS FAN SHOULD BE DONE ONLY BY A QUALIFIED INSTALLER
IMPORTANT: If a fan is going to be installed, it is easier to complete before the millivolt board is connected to the gas line.
The wiring must be done prior to enclosing the sides of the fireplace. An electrical box and romex connector are pre-
installed on a removable panel on the right side of the fireplace. A receptacle / speed control assembly and (3) wire
nuts are included in the fireplace components packet.
This optional fan kit #TRF-028 includes:
Right & left fan assemblies with thermostatic control switch
Components package: installation instructions
NOTE: Code approved line voltage wiring 14 gauge or better must be used when wiring this assembly. Refer to your local
electrical codes for specific requirements in your area.
WARNING: This appliance is equipped with a three-prong (grounding) plug for protection against shock hazard and should be plugged
directly into a properly grounded three-prong receptacle. Do not cut or remove the grounding prong from this plug.
FIGURE 14

Page 17
INSTALLATION INSTRUCTIONS
THE FOLLOWING COMPONENTS MUST BE REMOVED FROM THE
FIREPLACE PRIOR TO INSTALLATION OF THIS FAN. REFER TO
THE CORRESPONDING PAGES IN THIS INSTALLATION MANUAL
FOR ASSISTANCE IF NECESSARY.
1. Upper hood, upper louver & lower grill, if installed. Refer to
page #24 if necessary.
2. Glass assembly.
Note: Millivolt board has been removed for clarity. It is not
necessary to remove the millivolt board to install this
optional fan kit.
INSTALL THE FANS:
1. Slidetheleftandrightfansthroughthelowergrillopening(left
side of the valve) and push all the way to the fireplace back.
2. Slidetheleftfanassembly to theleftuntilitstops andslidethe
right fan assembly to the right until it stops. NOTE: The fans
will be behind the legs. Figure 15A.
NOTE: Each fan bracket is held in position by a magnetic strip
attachedtothebottomofeachbracket.Themountingstudsare
not used when installing this fan assembly.
3. Connect the fan wiring by inserting the red connectors on the
right fan wires onto the terminals on the left fan assembly. It
does not matter which connector is on each terminal. Figure
15B.
44. From inside the lower right air passageway, loosen the screw
securing the removable access panel (with electrical box &
romex connector installed) and remove the panel.
5. Insert 115V wiring (with ground) through the romex connector
and wire to the speed control / receptacle assembly matching
the black (hot) white (neutral) and green (ground) wire to the
correspondingwireonthespeedcontrol/receptacleassembly.
NOTE: (3) wire nuts are included in the fireplace components
packet.
6. Secure the speed control / receptacle assembly into the
electrical box with the (2) screws provided. Figure 15C.
7. Re-install the electrical access panel and tighten screw.
8. Place the thermostatic control switch on the bottom of the
firebox. Figure 15C.
9. Plug cord into receptacle in the electrical box. Figure 15C.
10. Turn on/off speed control counter-clockwise until it ‘clicks’.
This is the ‘OFF’ position.
11. Turnthespeedcontrol‘ON’byturningtheknobclockwisepast
the ‘click’ - this is the highest setting.
12. Re-install the glass assembly.
13. Re-install the lower grill, upper louver & upper hood. Refer to
page #24 if necessary.
NOTE: The fan will not operate unless the speed control has been turned
‘ON’ and sufficient heat has been applied to the temperature control
switch. The fan will turn ‘ON’ and ‘OFF’ automatically when the fireplace
heats and cools. Adjust fan to desired speed while it is running.
Figure 15A
Connect fan
wiring
Figure 15B
Figure 15C
TEMPERATURE CONTROL SWITCH POSITION: Prior to adjusting the
temperature control switch, unplug the 3-prong plug on the fan cord from the
receptacle. Adjust the position of the temperature control switch to a warmer
location under the firebox to turn the fan ‘ON’ sooner or move itto a cooler
location under the firebox to turn the fan ‘ON’ later. The fan will turn on when
the sensor in the temperature control switch reaches 110oF and will turn
‘OFF’ when the sensors reach 90oF. After adjustment, plug the 3-prong plug
on the fan cord into the receptacle.
NOTE: This appliance must be electrically grounded and connected in
accordance with local codes, or in the absence of local codes, with the
National Electrical Code, ANSI/NFPA 70-Current edition, or the Canadian
Electrical Code, CSA C22.1.
Slide to the left. Slide to the right.
Speed Control /
receptacle assembly
Thermostatic
Control Switch

Page 18
MODEL #55345-RF ONLY: FAN INSTRUCTIONS
INSTALLATION OF THIS FAN WIRING SHOULD BE DONE ONLY BY A QUALIFIED INSTALLER
IMPORTANT: A fan assembly is pre-installed and wired to the RF gas valve in the Model #55345-RF.
The wiring must be done prior to enclosing the sides of the fireplace. An electrical box & romex connector are pre-
installed on a removable panel on the right side of the fireplace. A receptacle and cover is included in the fireplace
components packet.
NOTE: Code approved line voltage wiring 14 gauge or better must be used when wiring this assembly. Refer to your local
electrical codes for specific requirements in your area.
WARNING: This appliance is equipped with a three-prong (grounding) plug for protection against shock hazard and should be plugged
directly into a properly grounded three-prong receptacle. Do not cut or remove the grounding prong from this plug.
Figure 15D
1. Loosen the screw securing the removable access panel (with electrical box & romex connector installed) from inside the lower
right air passageway.
2. Insert 115V wiring (with ground) through the romex connector and wire to the receptacle. Secure the receptacle to the electrical
box.
3. Place the cover on the electrical box and secure with screws.
4. Re-install the electrical access panel and tighten the screw.
5. Plug the 3-prong plug on the fan cord into the receptacle.
6. Upon complete installation of this fireplace, follow the lighting & shutdown instructions on pages #28-#29 of this manual as well as
the instructions included in the remote transmitter for complete fan operation guidelines.

Page 19
RUN THE GAS LINE.
CAUTION: Installation of the gas line must only be done by a qualified person in accordance with local building codes.
GAS CONVERSIONS - Models #55345
This fireplace is manufactured for use Natural Gas. An LP gas conversion kit, part #OCK-S5168, is included with this fireplace.
Follow instructions included with this conversion kit.
GAS CONVERSIONS - Model #55345-RF
This fireplace is manufactured for use with Natural Gas. An LP gas conversion kit, part #OCK-H5168L-RF, is included with this fireplace.
Follow instructions included with this conversion kit.
The conversion shall be carried out in accordance with the requirements of the provincial authorities having jurisdiction and in
accordance with the requirements of the ANSI Z223.1 installation code.
NOTE: This fireplace is equipped with a 3/8" x 18” long flexible gas connector and manual shut off valve.
NOTE: The gas line should be run to the point of connection where the shut-off valve and flexible gas line will connect.
CAUTION: The manual shut-off valve or flexible gas tubing must not extend outside of the fireplace cavity. See the WARNING label
affixed to the flexible tubing for additional installation instructions and warnings.
NATURAL GAS:
The minimum inlet gas supply pressure: 5.0 inches W.C. ( 7.0 inches W.C. recommended)
The maximum inlet gas supply pressure: 10.5 inches W.C.
Manifold pressure: Model #55345: High - 3.8 inches W.C. Model #55345-RF: High - 3.5 inches W.C.
Lo - 1.1 inches W.C. Lo - 1.7 inches W.C.
Orifices sizes: #55 & #34 Input: 40,000 BTU/hr. Efficiency: 69% AFUE: 68% P-4 AFE: 66%
Minimum input: 21,500 BTU/hr
LP GAS:
The minimum inlet gas supply pressure: 11.0 inches W.C. (recommended)
The maximum inlet gas supply pressure: 13.0 inches W.C.
Manifold Pressure: 10.0 inches W.C. Manifold Pressure (lo setting): 6.3 inches W.C.
Orifices size: #68 & #51 Input: 40,000 BTU/hr. Efficiency: 73% AFUE: 72% P-4 AFE: 63%
Minimum input: 26,500 BTU/hr
This fireplace is equipped for use at altitudes of 0-2,000 ft. in the U.S. and 0-4,500 ft.* in Canada.
*HORIZONTAL VENT RESTRICTIONS APPLY FOR CANADA - REFER TO PAGE #6 OF THIS MANUAL FOR COMPLETE INFORMATION.
IMPORTANT: The efficiency rating of this appliance is a product thermal efficiency rating determined under
continuous operating conditions and was determined independently of any installed system.
NOTE: For high altitude installations consult the local gas distributor or the authority having jurisdiction for proper rating methods.
