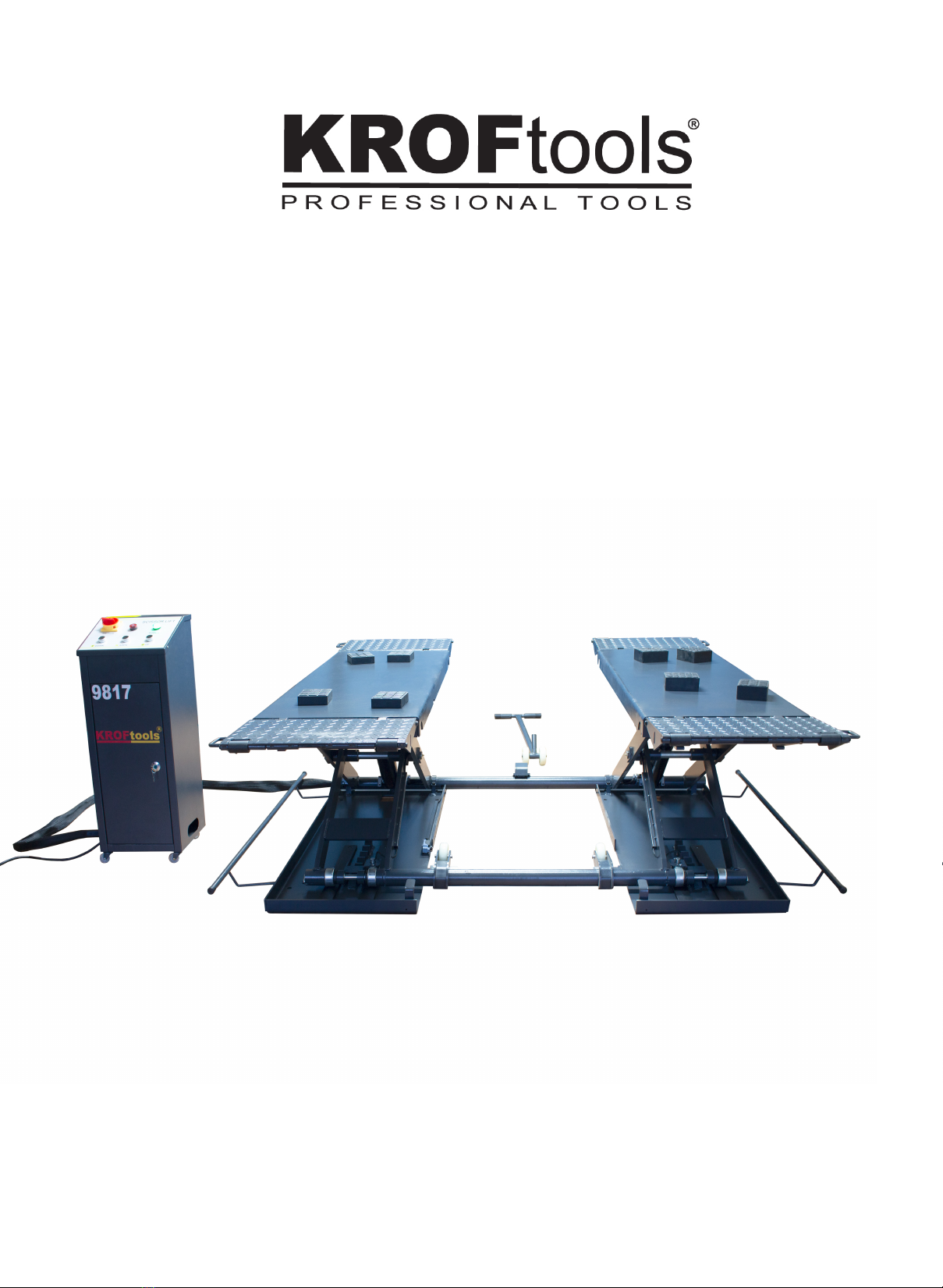

KROFtools 9817 Instructions for use

Instructions and maintenance manual
FOR HYDRAULIC SCISSOR LIFT 3T
REF 9817
The specifications stated on this manual are not binding. We
reserve the right to change the specification without notice

Disclaimer
No part of this book shall be reproduced, stored in retrieval, or transmitted by any means,
electronic, mechanical, photocopying, recording, or otherwise without the written permission of
While every precaution has been taken in the preparation of this manual, the publisher
assumes no responsibility for errors or omissions. Neither is any liability assumed for damages
resulting from the use of information contained herein.
This document is the proprietary information of furnished for customer use only. No other uses are
authorised without written permission from
reserves the right to make changes, without notice to this document and the products are describe.
or it's distributors shall not be liable for technical or editorial errors or omissions made herein; nor
for incidental or consequential damages resulting from the furnishing performances, or use of this
document.
This manual contains information that is correct to the best knowledge of lt is intended to be a guide
and should not be considered as a sole source of technical instruction. lt should not replace good
technical judgment since all possible situations cannot be anticipated. lf there is any doubt as to the
exact installation, configuration, and/or use, please call or its distributor.
The choice of system component is the responsibility of the buyer, and how they are used cannot
be the liability of or its distributors. Assembly, installation, commissioning, initial adjustment and
testing, or any work relating to EXTRAORDINARY maintenance, repair, overhauls, transport and
dismantling of the Lift must be performed by specialist personnel from the authorised to
commission, install and dismantle Lifts.
The manufacturer and its distributors decline all responsibility for injury to persons or damage to
vehicles or objects when any of the above mentioned operations have been performed by
unauthorised personnel or when the rack has been subject to abuse.
This manual explains the operational and safety aspects that may prove useful to the Operator and
Maintenance personnel. lt will give a better understanding of the structure and operation of the Lift
and the best use of the Lift. The operator should familiarise himself with the technical and safety
aspects of the Lift to be competent in operating the Lift.
The words "Operator" and "Maintenance Fitter" used in this manual are construed as follows:
OPERATOR: person authorised to use the Lift. The Lift must be operated in the correct manner as
indicated
MAINTENANCE FITTER: person authorized for routine maintenance of the Lift.
The end user can only use the Lift in the correct manner to which it is intended as defined in the
instructions.

The Safety Alert Symbol means ATTENTION !
BECOME ALERT! YOUR SAFETY IS INVOLVED!
Failure to follow WARNING instructions
could result in severe injur y or death to
WARNING the lift operator, abystander ora
person inspecting or repairing the lift.
CAUTION
A CAUTION indicates special
precautions that must be taken to
avoid damage to the lift.
NOTE
ANOTE provides key information to
make procedures easier or clearer.
and also someimportant things.
Loose clothing should not be worn when operating the Lift. Any personnel with long hair operating
the Lift should use a protection cap as precautionary safety measures.
******* IMPORTANT NOTE********
The following must be observed at all times to ensure correct use of the hoist.
■Follow regular maintenance schedule as per manual
■Ensure safety precautions are taken and use the hoist in accordance with the
manufactures instructions
■lt is the Owner's responsibility to ensure all safety regulations and work cover
requirements are met to satisfy all state laws
IMPORTANT MANUAL INFORMATION
Particularly important information is distinguished in this manual by the
following notations:
NOTE:
•This manual should be considered a permanent part of this lift and should remain
with it even if the lift is subsequently sold.

•We continually seeks advancements in product design and quality. Therefore, while
this manual contains the most current product information available at the time of
printing, there may be minor discrepancies between your lift and this manual. lf you
have any questions concerning this manual, please consult your dealer or call
manufacturing.
TABLE OF CONTENTS
1. SAFETY INFORMATION..........................................................
3
2. TRANSPORT & UNPACKING.................................................
4
3. SPECIFICATIONS.....................................................................
4
4. WORKING PLACE ....................................................................
5
5. DESCRIPTION ...........................................................................
6
6. INSTALLATION ..........................................................................
7
7. OPERATION ...............................................................................
8
8. STORING.....................................................................................
9
9. MAINTENANCE................................................................ 1
O
10. HYDAULIC POWER UNIT................................................ 1
1

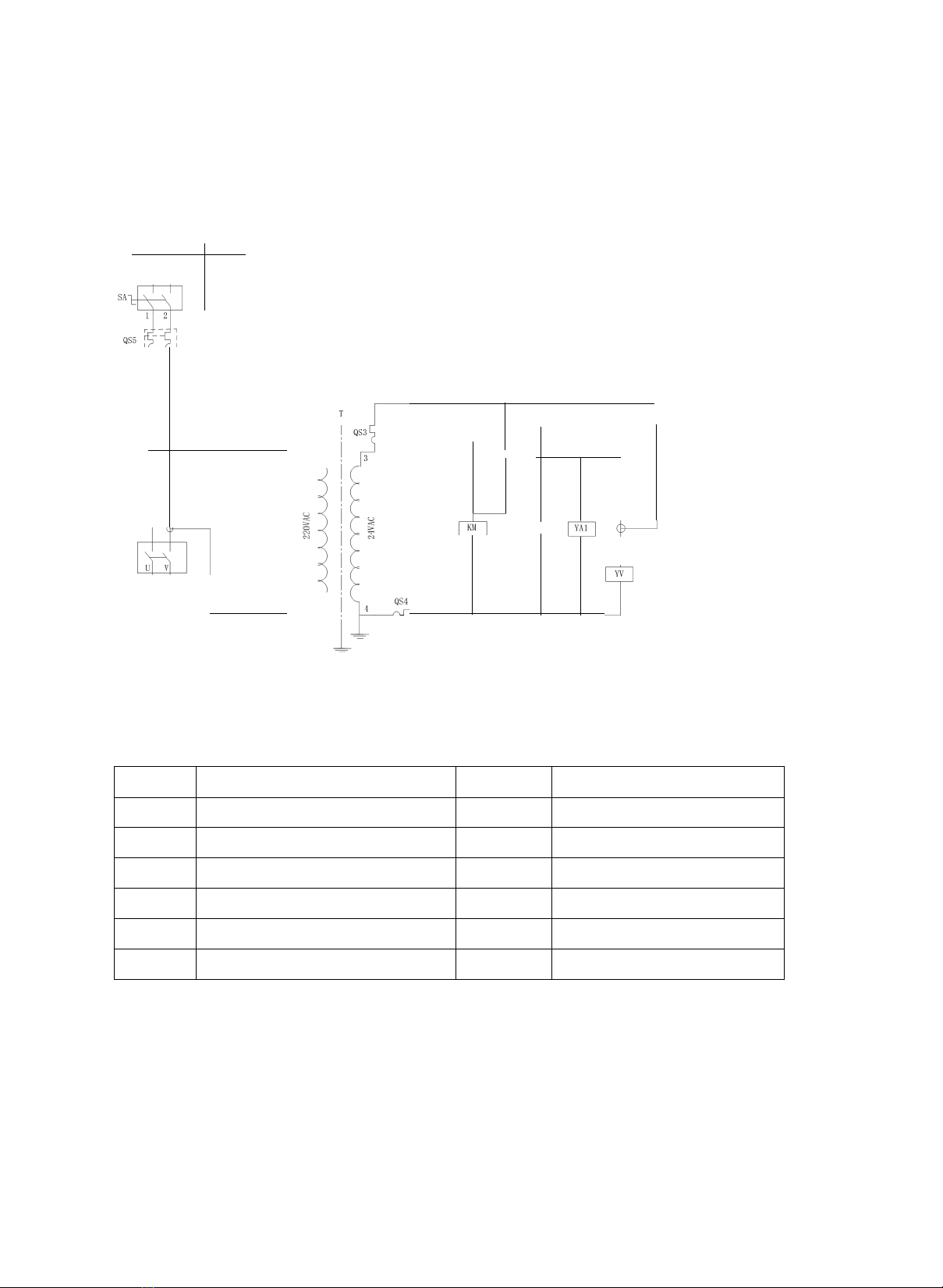

11. ELECTRIC SYSTEM ................................................... 1
3

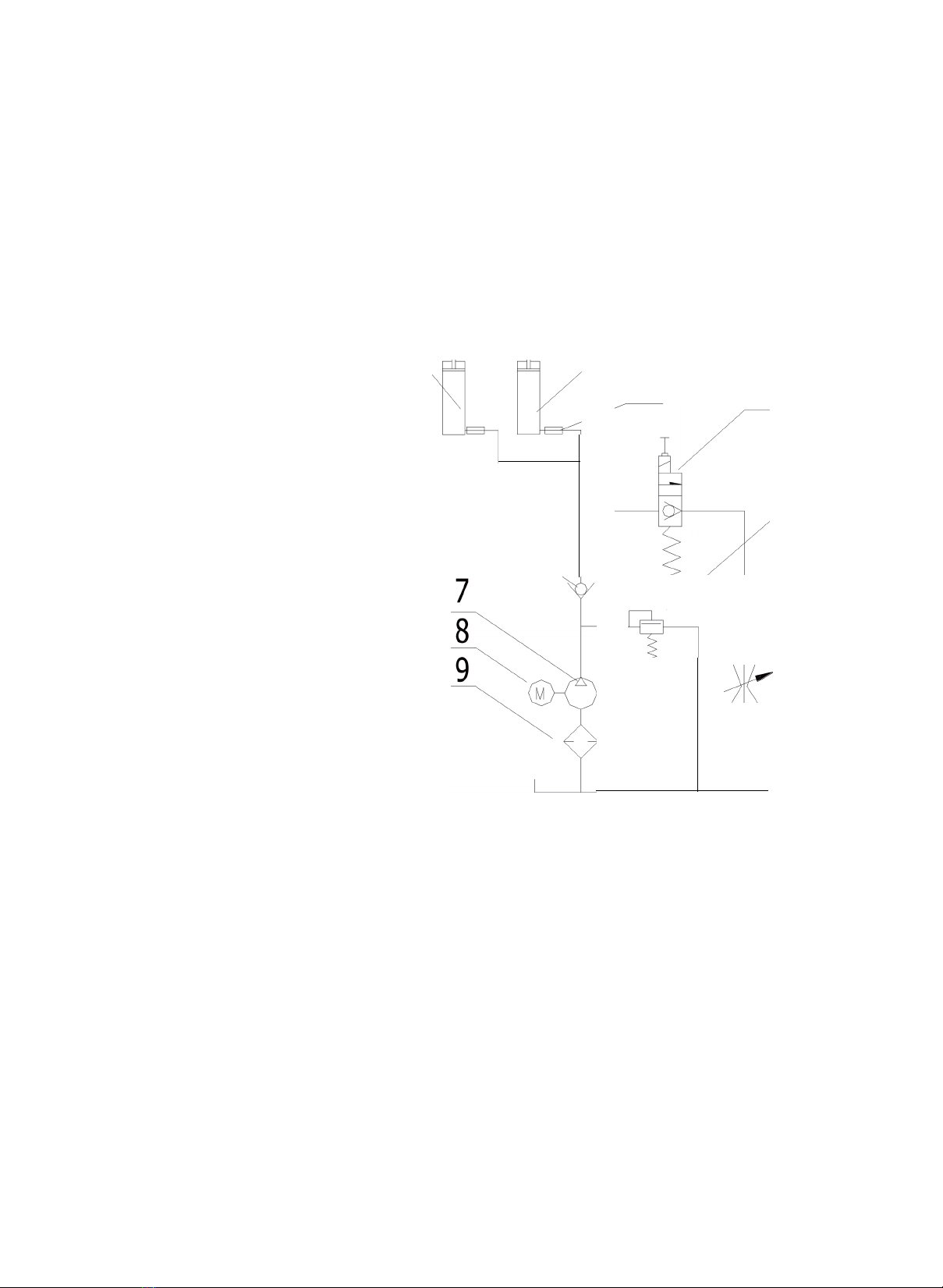

12. HYDRAULIC SYSTEM................................................1
3
13. STRUCTURE DIAGRAM ............................................... 1
4
1. SAFETY INFORMATION
THIS SCISSOR LIFT IS A KIND OF LIFTING EQUIPMENTS. TO MAKE SURE
ITS SAFE WHEN OPERATE DEPENO ON THE TECHNIQUES AS WELL AS
THE EXPERTISE OF THE OPERATOR. EVERY OPERATOR SHOULD KNOW
THE FOLLOWING REQUIREMENTS BEFORE OPERATE THE LIFT.
THEY SHOULD:
□ OBTAIN THOROUGH INSTRUCTIONS FROM A COMPETENT SOURCE ON ALL
ASPECTS OF LIFT OPERATION.
oOBSERVE THE WARNINGS ANO MAINTENANCE REQUIREMENTS IN THE
OWNER'S MANUAL.
□ OBTAIN QUALIFIED TRAINING IN SAFE ANO PROPER OPERATION
TECHNIQUES.
oOBTAIN PROFESSIONAL TECHNICAL SERVICE AS INDICATED BY THE

OWNER'S MANUAL AND/OR WHEN MADE NECESSARY BY MECHANICAL
CONDITIONS.
Please read the following important notice carefully before operate the lift.
Lifting Capacity: 3000KG
WARNING: When the lift is working, any personnel is not allowed to get in the lift
and the car, it could result in severe injury or death!
DO NOTPUT ANYTHING ON THESAFETY LOCK.
2. TRANSPORT & UNPACKING
Depending on the standard request, this lift and the hydraulic pump are protected by two
cartons with pallets. And the machine must be handled with a forklift with the forks
positioned as shown fill the figure.
• Shipping weight for the lift is 520KG.
• Shipping weight for the hydraulic pump is 80KG.
CAUTION Once the packing material has been removed, check the machine for
any things of damage.
Warning Keep the packing materiais out of the reach of children as they can be a
source of danger.
• Keep the packing for possible future transport.

3. SPECIFICATIONS
DIMENSIONS AND OVERALL CLEARANCE DIAGRAM
4. WORKING PLACE
Choose the place that the machine can be installed in compliance with current
work place safety regulations. The floor should not be broken or uneven so that
the machine will be stable and the platform can move freely.
Lifting capacity
3000kg
Max. Lifting height
1000mm
Min. height
110mm
Overall width
1760mm
Platform length
1400-2004mm
Space between platforms
700mm
Lifting time
60 sec
Noise
70db (A) 1m
Operating temperature
10ºC - +50ºC
Work environment:
Closed roam
Power supply
2.2KW
200-240V 50/60Hz 1Ph.
380-415V 50/60Hz 3Ph.
Gross weight
576kg
Net weight
522kg

lf the install at out, it must be protected by some kind of roofing against rain.The
following work environment conditions are applicable
Relative humidity: from 30-95% without condensation.
Temperature: 10-50ºC.
WARNING
The machine can not be operated in explosive atmospheres.

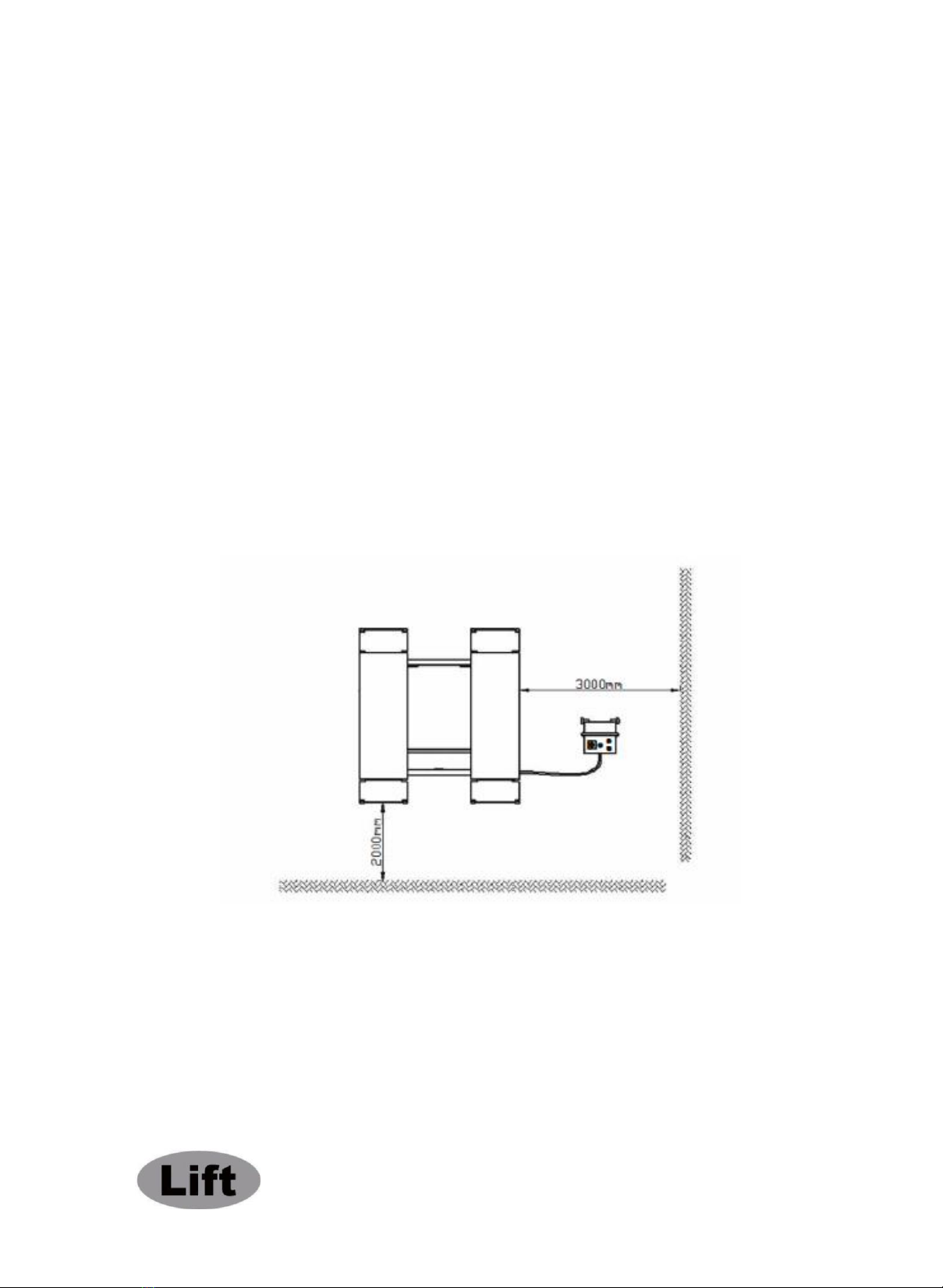

WORKPLACE REQUIREMENTS
Machine need space: requirements are 3200X2000mm with a minimum distancefrom
walls as shown in the diagram.
WARNING
These measurements are also the machine working range. Persons other than specially
trained and authorized operators are expressly forbidden to enter this area.
1. DESCRIPTION

NOTE

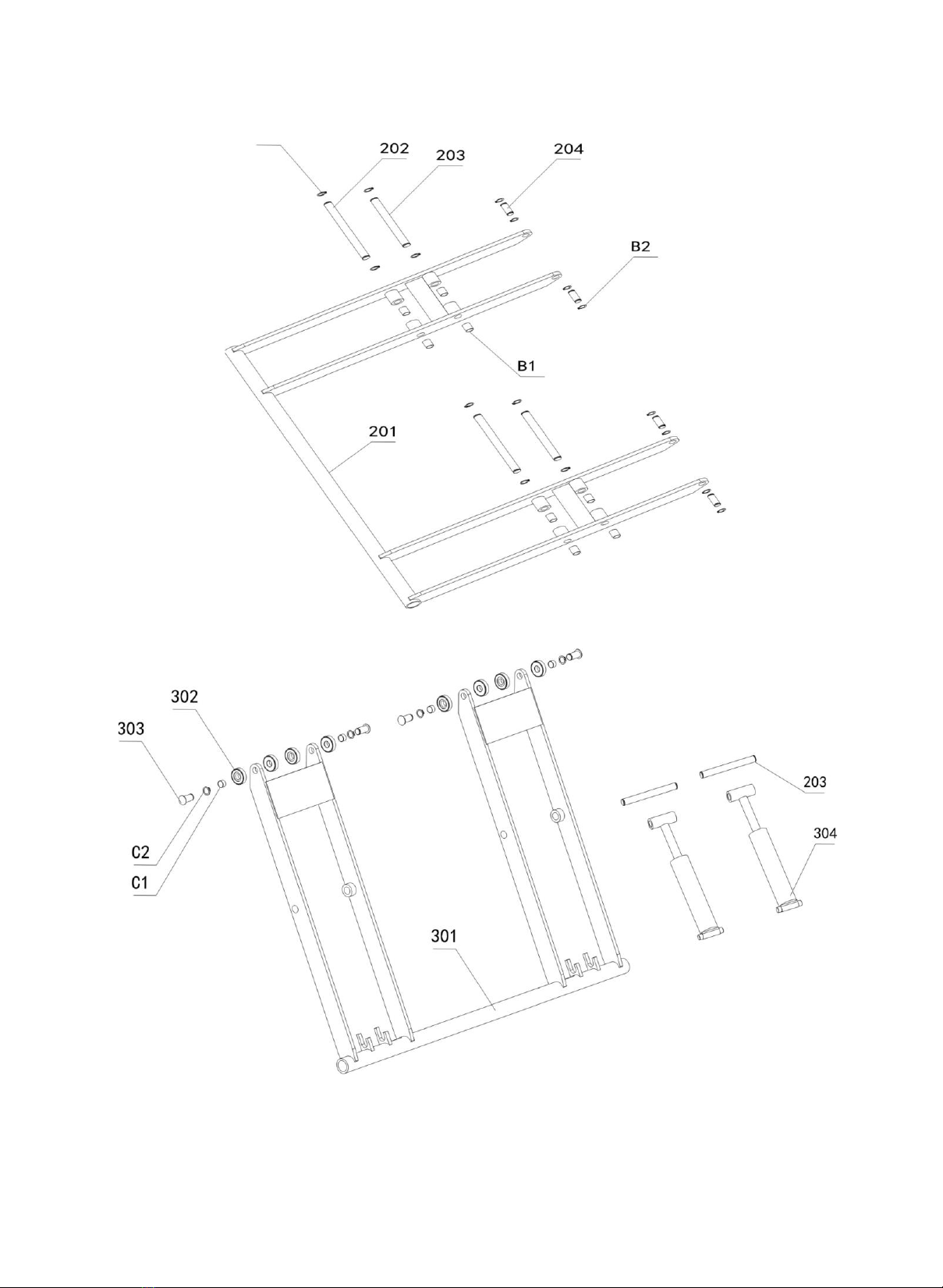

lt is the main parts figures above. More detailed components and assembly please see
exploded view.
5. INSTALLATION
Connecting pipes
There are two pipes from the hydraulic pump as shown in the figure. (X) is a electric wire
and used for the safety lock. (Y) is a hydraulic oil pipe and used for the hydraulic
cylinders.

Enter hydraulic oi/
Remove the motor box off, and then turn the oil cap anti-clockwise to open the oil inlet.
Fill in the hydraulic oil 30# from the oil inlet as shown in the figure.
Oil inlet Oil inlet
NOTE
•Make sure that there is sufficient oil in the tank when the machine in working
•Do not overfill the oil tank, otherwise it may overflow when the oil warms up and
expands.
•Make sure that the oil tank cap is properly closed before working.
6. OPERATION
During all operations, keep hands and other parts of the body as far as possible from
moving parts of the machine. With necklace, bracelets and too large clothes, can be
dangerous for the operator.

Press the UP button,
the lift will go up
When the lift is working (lifting a car), remember:
any personnel do not get in the lift and the car, it could result in severe injury or
death!
Press the DOWN button,
the platform will go down
7. STORING
lf the machine has to be stored for a long time you should :
•Get down the platforms and no heavy object on them.
•Disconnect the machine from all power sources.

Page 10 of 17
•Grease all the parts that could be damaged if they dry out.
•Empty hydraulic oil tank and wrap the machine in a sheet of protective plastic to
prevent dust from reaching the internai working parts.
lf the machine has to work again after a long storing period, it is necessary to:
•put the oil into the tank again.
•restore the electric connection.
8. MAINTENANCE
PRECAUTIONS
WARNING
Maintenance must be carried out only by skilled personnel who are very familiar with the lift.
When performing maintenance on the lift, follow all the necessary precautions to prevent the lift from
being started accidentally:
1. Cut off the power and pull the plug out of the jack.
2. While maintenance is being performed on the machine, always keep in mind all the main possible
risks and the safety instructions indicated in chapter 3 "safety risk of electric shock" at the machine
power supply terminal strip.
IT IS PROHIBITED TO PERRORM MAINTENANCE ON THE OIL CYLINDER. IT SHOULD BE
REPLACED WHEN DAMAGED.
IMPORTANT
1.Only use original spare parts and tools that are suitable for the job and in good condition;
2.Follow the maintenance schedule indicated in the manual: these frequencies are
indicative and must always be considered as general rules to be respected.
3.Good preventive maintenance requires constant attention and continuous supervision on the
machine. Quickly find the cause of any abnormalities such as excessive noise, overheating, leaking
fluids, etc.
Special attention is required for:
1. The condition of lifting parts (cylinder, power unit);
2. Safety devices (oil cylinder and safety wedges)
To perform maintenance correctly, reter to the following documents supplied by the lift
manufacturer:
1. Complete functional diagram of the electric equipment and auxiliary equipment indicating the power
supply connections
2. Hydraulic diagram with lists of parts and max. Pressure values

3. Exploded drawings with the data needed to order spare parts
PERIODIC MAINTENANCE
OPERATION FREQUENCY
To keep the lift working at full efficiency, follow the indicated maintenance schedule. The manufacturer
will not be responsible and will not honor the warranty as a result of
non-compliance with the instructions indicated above.
NOTE
The frequency indicated refers to normal operating conditions; different frequencies will apply to
particularly server conditions.
ALL MAINTENANCE OPERATIONS MUST BE PERFORMED WITH THE LIFT STOPPING OR THE
MAIN SWITCH PLACED AT "O".
When after the machine has been installed, check:
1 That the opposite carriages arms are at the sarne leve!
2 The power unit oil leve!. Add oil up to the right leve!, if necessary
3 EVERY MONTH
10. HYDAULIC POWER UNIT
1 Check the oil leve! in the tank, using the special dipstick, which is attached to the filler cap. lf
necessary, add oil through the cap to reach the required leve!. For the type of oil, see
''TECHNICAL SPECIFICATIONS".
2 After the first 40 hours of operation, check the press oil contamination leve!. (Clean the filter and
replace the oil if there is a high contamination leve!).
HYDRAULIC CIRCUIT
Check that there are no oil leaks in the circuit between the power unit and cylinder and in the cylinder
itself. ln this case, check the condition of the gaskets and replace them, if necessary.
HYDRAULIC PUMP
Under normal operating conditions, check that there is no change in the noise in the motor and gear
pump and check that the relative bolts are properly tightened.
SAFETY SYSTEMS
1 Check the operating condition and efficiency of the safety devices .
2 Use a torque wrench to check that the post bases anchor bolts screws are properly tightened to
the ground as well as the connection bolts.
3 Clean and lubricate the carriage side runners and guides.
4 Check that all screws are tightened

5 Gheck that the locking system works properly.
6 Grease all the moving parts.
EVERY 6-MONTHS...
HYDRAULIC
Gheck the contamination or aging levei of the oil. Gontaminated oil is the main cause of malfunctions
of the valves and leads to a brief service life of the gear pumps.
EVERY 12- MONTHS
General check: visual inspection of all structural parts and mechanisms to guarantee that there are no
problems or abnormalities.
Electric plant: skilled electricians (contact the service center) should test the electric plant, including
the motor of the power unit, and contrai box.
HYDRULIC PLANT OIL
Replace the oil, following the instructions listed below:
1. Lower the lift to the minimum height (on the ground)
2. Make sure that the hydraulic cylinder is at the end of its travei
3. Disconnect the power supply to the lift rack.
4. Drain the oil from the hydraulic circuit, unscrewing the plug located at the bottom of the power unit
reservoir.
5. Glose the drain plug
6. Fill the hydraulic station oil cylinder with oil throng the plug located at the top of the hydraulic
station.
The oil must be filtered.
Oil characteristics and types are reported in the technical specifications.
1. Glose the filler plug
2. Energize the lift
3. Go through two or three up-down cycles (for a height about 20-30 centimeters) to insert oil into the
circuit.
When changing the oil: use only recommend oil or the equivalent; do not use deteriorated oil that has
been in the warehouse for an extended period of time.
AFTER EAGH MAINTENANGE OPERATION, THE MAGHINE MUST RETURN TO ITS INITIAL
GONDITIONS, INGLUDING THE DISASSEMBLEED PROTEGTION AND SAFETY DEVIGE.
To ensure good maintenance, it is important:
1. To sue only tools that are suitable for the job and original spare parts
2. Follow the minimum maintenance schedule as indicated

11
3
6
/
3. lmmediately find the cause of any abnormalities (excessive noise, overheating, leaking fluids, etc)
4. Pay special attention to lifting parts (cylinders) and safety devices
5. Use all the documentation supplied by the manufacturer (wiring diagrams, etc)
11. HYDRAULIC SYSTEM
1. Oil cylinder 1 2 1
2. Oil cylinder 2
3. Descending valve
4. Slipping valve
5. Throttle valve 4
6. Retaining valve
7. Motor
8. Pump station 5
9. Oil filter
10.Oil Tank
11.safe valve
10

12. ELECTRIC SYSTEM
220VAC/ l PH
L N
QS2
M
220VAC/ 50HZ/ 2. 2KW
QS
SWITCH (BREAKER)
YV
VALVE
KM
ALTERNATING CONTACTOR
M
ELECTRIC MOTOR
HL
PLAY DETECTOR TORCH
KT
relay
S81
UPSWITCH
FU1-3
S82
DONE SWITCH
FU4
fuse
SQ
LIMIT SWITCH
QV
TC
TRANSFORMERS
Refer to the above circuit diagram for the connection of the motor.
The rotation of the motor should be towards the direction of the pump, if not, amend the connection of
motor.
1. 5111\
QSI
KM
[-- [- [-
SBI S82 S82
[- -
S83
A
KT
HL
KT
2

13. STRUCTURE DIAGRAM

B3

D1
Dó
401
Code
Name
Code
Name
1
Platform
301
Internai arm
2
Internai arm
302
Roller
3
Externai arm
303
Shaft for roller
4
Base
304
Cylinder
101
Platform
C1
Bearing 2515
102
Ramp
C2
Circlip <D 25
103
Ramp Support
401
Base
104
Roller
402
Tube support
105
Shaft for ramp
403
Upper lock
A1
Bolt M6 X 10
404
Lock
A2
Circlip <D 14
405
Lock fix
A3
Circlip <D 16
406
Lock shaft
201
Externai arm
D1
Bolt M10X 55
202
Shaft for arm
D2
Bolt M6X 10
203
Shaft for cylinder
D3
Bolt M5 X 30
204
Shaft for arm
D4
Cylinder
B1
Bearing 3030
D5
Bolt M10X 55
B2
Circlip <D 25
D6
Slider
B3
Circlip <D 30
! : ---- · ,--
