Kronen KKS 1 Quick start guide

Kombi cutter
Type: KKS 1-3
Translation of the
Original Instruction Manual
English

Instruction Manual KA-1
2
Instruction Manual KKS 1-3
Version: 1.0
Date of release: 09.11.2015

Instruction Manual KA-1
3
Contents
1. General Information.....................................................................................................4
2. Safety...........................................................................................................................8
3. Technical Characteristics...........................................................................................10
4. Installation and Function............................................................................................11
5. Transportation and Packaging ...............................................................................14
6. Installation and Initial Operation.................................................................................15
7. Use and Operating.....................................................................................................16
8. Malfunctions...............................................................................................................22
9. Maintenance ..............................................................................................................23
10. Appendix....................................................................................................................24
11. Index..........................................................................................................................25

Instruction Manual KA-1
4
Attention, you have to follow the instructions to avoid
harm for you and the machine.
1. General Information
Always keep the instruction manual and all the other documents near the kombi
cutter. Before using the machine the first time, make sure that you read the
instruction manual first.
Explanation of the symbols used in the documents
Limitation of liability
If you do not follow the instruction manual, the manufacturer is not liable.
Manufacturer
Kronen Küchengeräte GmbH
Gewerbestr. 3
D-77731 Willstätt
Phone: [phone]
Fax: [phone]
[e-mail]
Caution, risk of injury! Follow the instruction to avoid
injuries.

Instruction Manual KA-1
5
Defects and Claims
1. Claims based on material defects shall be subject to a limitation period of 2
years after surrender of the merchandise. The Seller does not assume any
liability for material defects in pre-owned merchandise.
2. We will, at our discretion, make new delivery for or subsequently improve any
and all rendered services which are verifiably determined to be defective as a
consequence of circumstances existing before the transfer of risk.
3. We reserve title to any and all parts which have been replaced.
4. In particular, no warranty will be assumed for damage or loss resulting from
the following causes, but for which we are not accountable:
Natural wear and tear, intervention or repair work improperly performed by
the Buyer or third parties, unsuitable or incorrect use, incorrect operation,
installation, commissioning, incorrect or negligent handling, improper
maintenance, use of unsuitable operating materials and cleaning agents,
chemical, electrochemical or electrical factors, any modifications of the mer-
chandise performed without our consent.
5. The Buyer shall allow the Seller the necessary time and opportunity to per-
form any subsequent improvement or substitute delivery which we regard, in
our reasonable judgment, to be necessary.
6. In the event of legitimate complaints, the Seller shall bear the immediate
costs of the subsequent improvement or substitute delivery. The total costs
which we must bear shall be limited to the value of the order in the event that
the places of delivery are outside the territory of Germany.
7. In cases in which the Buyer shares accountability for causing the defect, in
particular in the event of breach of the obligation to prevent and reduce loss or
damage, the Seller reserves the right to assert a corresponding damage com-
pensation claim.
8. The Buyer shall, at his discretion, have the right to cancel the contract if and
when –taking into account the statutory exceptions –a period which has been
set for us for subsequent improvement or substitute delivery due to material
defects has lapsed in vain.
9. The Buyer’s rights arising from the liability for material defects may not be
assigned without the Seller’s consent.

Instruction Manual KA-1
6
Terms and Conditions of Warranty
1. The Seller hereby grants to the end customer a warranty for newly manufac-
tured Kronen Küchengeräte GmbH appliances, provided that they remain in
Germany. The warranty period shall be 12 months as of the delivery of the
appliance to the end customer, but shall not exceed 18 months from the dis-
patch of the appliance from the works.
2. Kronen Küchengeräte GmbH will perform subsequent improvement or substi-
tute delivery of the defective parts within the scope of the warranty, provided
that the functional capability of the Kronen Küchengeräte GmbH appliance has
been significantly impaired. Further claims within the scope of the warranty are
excluded.
Following notification in due time of a warranty case, the Kronen Küchengeräte
GmbH service department will decide how the defect is to be remedied and will
discuss the subsequent actions with the customer, engaging an Kronen
Küchengeräte GmbH authorised customer service centre if necessary. If and
when the appliance must be shipped to a service centre for repair within the
scope of the warranty, shipment shall be made at the customer’s expense and
risk.
3. Warranty claims are excluded in the following cases:
- Normal wear and tear
- Incorrect installation of the appliance
- Willful damage or incorrect operation
- Damage caused by calcium deposits
- Damage caused by inspection or repair by persons who are not authorised
by Kronen Küchengeräte GmbH
4. Kronen Küchengeräte GmbH restricts the terms and conditions of warranty
for appliances which are intended for sale abroad. In such cases, Kronen
Küchgengeräte GmbH grants a warranty covering the original Küchengeräte
GmbH spare parts. This warranty covers the functional capability of the spare
parts, provided that they are installed correctly. Kronen Küchengeräte GmbH
shall provide a replacement part in the event of a functional defect. No installa-
tion or personnel expenses which may be incurred will be assumed.
The warranty in this case is limited to 12 months as of the transfer of risk.
5. The warranty services described above are subject to the condition that all
required maintenance and care work is carried out by a customer service au-
thorised by Kronen Küchengeräte GmbH and that any and all care and opera-
tional instructions from Kronen Küchengeräte GmbH have been followed.
The warranty may not be transferred without the written consent of Kronen
Küchengeräte GmbH.

Instruction Manual KA-1
7
6. Kronen Küchengeräte GmbH grants a function warranty of 6 months for each
and every original Kronen Küchengeräte spare part, provided that it has been
installed correctly. Kronen Küchengeräte GmbH shall provide an original part in
the event of failure. No further claims, including claims for the cost of the re-
placement, can be acknowledged. Parts which are subject to above-average
wear and tear by the operator are excluded from the above warranty cover.
Copyright Protection
It is forbidden to copy all the documents delivered with the kombi cutter partly or
completely without the permission of the manufacturer.
Disposal of the Machine
The kombi cutter, respectively all the parts have to be disposed recycled ac-
cording to the local rules and laws. It is forbidden to dispose the kombi cutter
with the household garbage.

Instruction Manual KA-1
8
2. Safety
General Sources of Danger
That is why, we advise you to respect and follow the safety instructions.
-Make sure that unauthorized persons or untrained persons, especially
children, do not start and work with the kombi cutter.
-It is strictly prohibited to change or remove all the safety appliances on
the kombi cutter because this could result in serious danger for the us-
er.
-While you are using the machine stay concentrated and never get dis-
tracted.
-Just use goods which are listed in the instruction manual.
-Always keep your working environment clean and dry to make sure
you don’t slip and fall.
-Don’t put objects on the kombi cutter which don’t belong there and
don’t use the machine as a storage place
Wrongful use or limited knowledge of the safety instruc-
tions could result in accidents and injuries on hands and
fingers.

Instruction Manual KA-1
9
Intended Use
The kombi cutter is an item of technical working equipment, intended solely for
use at work.
It is designed exclusively to slice fruits and vegetables or to cut them into sticks
or wedges. The blades and plungers intended for this purpose are to be used.
Only raw fruits and vegetables, such as apples, tomatoes, carrots and celery,
may be used and processed. The fruits and vegetables must not be frozen
under no circumstances. Any other, improper use is prohibited.
Product misuse may occur if blades or plungers are not inserted into the ma-
chine or if the wrong ones are used.
The kombi cutter is intended for industrial use and only should be used by
trained workers of the company.
Personal protective equipment is not needed for the use of the kombi cutter.
Stricter company rules still apply.
It is strictly prohibited to make any reconstructions on the kombi cutter.
The full responsibility for the intended use and the compliance with safety in-
structions takes the operating company.

Instruction Manual KA-1
10
3. Technical Characteristics
Weight: 5,8 kg
Dimensions : 265 x 205 x 571 mm
Requirements for
intended place: - horizontal and flat
- Not slippery
- Table height between
600 and 900 mm

Instruction Manual KA-1
11
4. Installation and Function
The kombi cutter is fitted with the necessary blades and plungers in order to
process fruits and vegetables. These can be sliced or cut into wedges or sticks
with the according blades and plungers.
Included in delivery
The scope of delivery includes the stainless steel kombi cutter which is com-
pletely assembled. The kombi cutter is delivered in an outer packaging which
includes the instruction manual and –optionally –blades, plungers or other
accessories.
Parts and Description
Body (1): The body is made of stainless steel and comprises an open-
ing and 2 guide rails, in which the blades are inserted to, as well as 2
guide rods with springs for the plunger.
Plunger (2): The punch, which is attached to the plunger, is pressed
down on the fruits or vegetables with the plunger. The plunger is guid-
ed by two guide rods on the body.
Blade (3): The blades are placed in the opening or in the rails on the
body. There are several blades.
Retaining plate (4): The 2 retaining plates prevent the slicing blades
and the wedge cutting blades from slipping.
Retainer (5): The blade is maintained in its position by the retainer.
GN container: The gastro norm pan is placed under the body. After
being processed, the cut fruits or vegetables fall directly into the pan.

Instruction Manual KA-1
12
Overview of modules
1
Body
2
Plunger
3
Blade
4
Retaining plate
5
Retainer
2
3
4
1
5

Instruction Manual KA-1
13

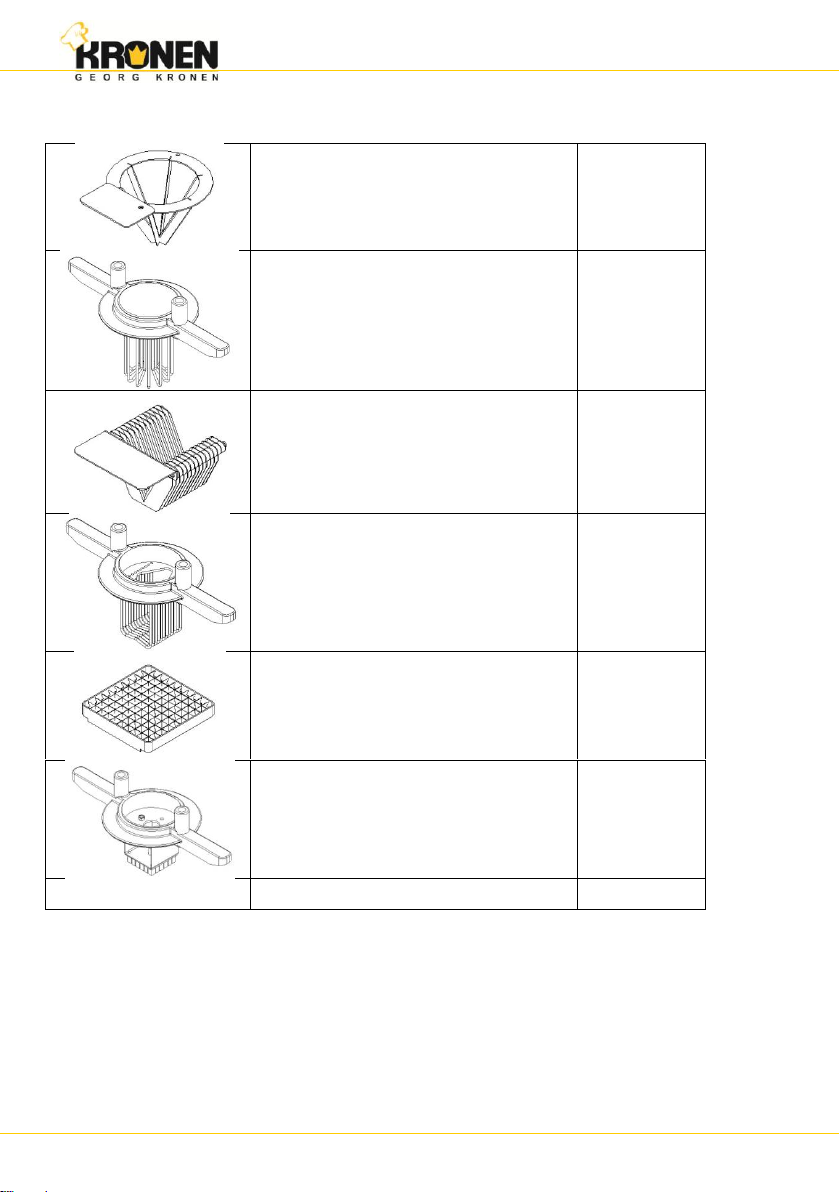

Accessories
Wedge cutting blade
6-er
8-er
Wedge cutting plunger
Slicing blade
5,5 mm
Slicing plunger
5,5 mm
Stick cutting blade
10 mm
Stick cutting plunger
10 mm
GN - container

Instruction Manual KA-1
14
5. Transportation and Packaging
Always transport the kombi cutter in the intended box.
Always transport the machine upright and make sure kombi cutter is secured.
In case there is more than one kombi cutter on the pallet do not put another
pallet on top of it.
Check the box of possible damages when the machine is shipped.
In case of damages, talk to the responsible shipping company.
Open the box by slicing the tape with a tape slicer. Do not use sharp knives.
Lift the kombi cutter out of the box and put it on the table.
Make sure that shipment consists out of the things you ordered. In case the
shipment is not complete talk to the responsible salesman.
There are no transportation devices installed on the vegetable slicer.
Dispose or recycle the machine according to the local laws.
When transporting, hold the kombi cutter by the body
only. Do not hold it by the plunger or the guide rods.

Instruction Manual KA-1
15
6. Installation and Initial Operation
The kombi cutter is shipped ready for use. The installation and the initial opera-
tion can be done by the user.
The table has to fulfill certain requirements:
-Horizontal and flat
-Not slippery
-Table height between 600 and 900 mm
-Workstation is not made of wood
After you have placed the kombi cutter to the intended working place, push it
briefly to the work surface. The suction feet of the kombi cutter suck thereby
firmly on the countertop. The kombi cutter is secured against slipping.
Before the first use make sure you cleaned the kombi cutter. Follow the instruc-
tions in chapter “7 Use and Operating” passage cleaning.

Instruction Manual KA-1
16
7. Use and Operating
Safety instruction for operating
“To-do-list” before operating the machine
Make sure the kombi cutter is clean especially in those areas that come in con-
tact with the food. This includes e.g. the plunger (2) and the blade (3). In case it
is necessary clean those areas according to the instructions given in paragraph
cleaning.
The blades have sharp knives. Be careful when touching
the blade to avoid injuries.
It is strictly forbidden to put your hands between the
plunger and blade. There is an acute danger of injury.

Instruction Manual KA-1
17
Install and remove plunger
In order to remove the plunger (2), loosen the eccen-
tric disc (6) via the knurled screw (7). Now the plunger
(2) can be removed from the guide rods (1) that are
attached to the body. In order to install the plunger
(2), place it onto the guide rods and lock the eccentric
disc (6) by fastening the knurled screw (7). By doing
so, unintended lifting of the plunger (2) remains im-
possible.
2
1
6
7
6/7

Instruction Manual KA-1
18
Insert and remove wedge cutting blade
Insert the blade (3) into the opening of the body (1).
The blade’s position is determined by the pins in the
body (1). In order to lock the blade (3), turn the 2
retaining plates (4) until the blade (3) can no longer
be lifted. In order to remove the blade (3), perform
steps in reverse order.
Insert and remove slicing blade
Insert the blade (3) into the opening of the body (1).
In order to lock the blade (3), turn the 2 retaining
plates (4) until the blade (3) can no longer be lifted.
Press the retainer (5) against the blade to maintain
the blade’s position. In order to remove the blade
(3), perform steps in reverse order.
3
4
1
3
4
1
5

Instruction Manual KA-1
19
Insert and remove stick cutting blade
Insert the blade (3) into the guide rails on the
body (1). Press the retainer (5) against the
blade to maintain the blade’s position. In order
to remove the blade (3), perform steps in re-
verse order.
Safety equipment
An eccentric disc (6) with a knurled screw (7) is attached
to one of the guide rods on the body (1) to avoid unintend-
ed lifting of the plunger. By turning the eccentric disc (6) off
the centre (Fig. 1) of the guide rod and tightening the
knurled screw, lifting the plunger is not possible. By turning
the eccentric disc (6) towards the centre (Fig. 2) of the
guide rod and tightening the knurled screw, lifting the
plunger is possible.
Note: Always ensure the eccentric disc (6) is located off-centre (Fig. 1) when
the plunger is mounted.
1
3
5
7
6
7
6
Fig. 2
Fig. 1

Instruction Manual KA-1
20
Wedge cutting
For wedge cutting, install the wedge cutting blade (3) and the
corresponding plunger (2). Place a gastro norm container
under the body to collect the fruit or vegetable wedges. Place
the fruits or vegetables to be processed onto the blade (3).
Press the plunger (2) down all the way to the stop in one
stroke. The fruit or vegetable wedges will fall into the gastro
norm pan. Hold the plunger (2) at its two handles and slowly
run it upwards until the springs of the guide rods are released.
Slicing
For slicing, install the slicing blade (3) and the corresponding
plunger (2) and apply the same procedure as with wedge
cutting.
Cutting sticks
For stick cutting, install the stick cutting blade (3) and the
corresponding plunger (2) and apply the same procedure as
with wedge cutting.
2
3
2
3
2
3
