Instruction Manual
PAN 118
3in1 Pocket Autoranging DMM
DI Ernst KRYSTUFEK GmbH&CoKG
AUSTRIA, 1230 Wien, Pfarrgasse 79
Tel [phone] | Fax [phone]
[e-mail] | www.krystufek.at

1
Features
•3-1/2 digit (2000 count) LCD display
•Built-in non-contact AC voltage detector
plus flashlight
•Double Molded housing
•CATIII 1000V
•200mA/500V Resettable Fused current inputs and
Overload protection on all ranges
•Autoranging with auto power off
Safety
International Safety Symbols
This symbol, adjacent to another symbol or terminal,
indicates the user must refer to the manual for further
information.
This symbol, adjacent to a terminal, indicates that,
under normal use, hazardous voltages may be
present.
Double insulation

2
Safety Precautions
1. Improper use of this meter can cause damage, shock, injury or
death. Read and understand this users manual before operating
the meter.
2. Make sure any covers or battery doors are properly closed and
secured.
3. Always disconnect the test leads from any voltage source before
replacing the battery or fuses.
4. Do not exceed the maximum rated input limits.
Input Limits
Function Maximum Input
V DC or V AC 600V DC/AC
uA , mA AC/DC 200mA/500V fast acting
Resettable Fuse
Resistance, Diode &
Continuity Test
600V DC/AC
5. Use great care when making measurements if the voltages are
greater than 25VAC rms or 35VDC. These voltages are
considered a shock hazard.
6. Always discharge capacitors and remove power from the device
under test before performing Diode, Resistance or Continuity
tests.
7. Remove the battery from the meter if the meter is to be stored for
long periods.

3
5
6
2
4
3
1
PO
AU
O
T
OFF ER
W
OFF
A
V
Ran
Auto
DMM
ing g
8
9
7
10

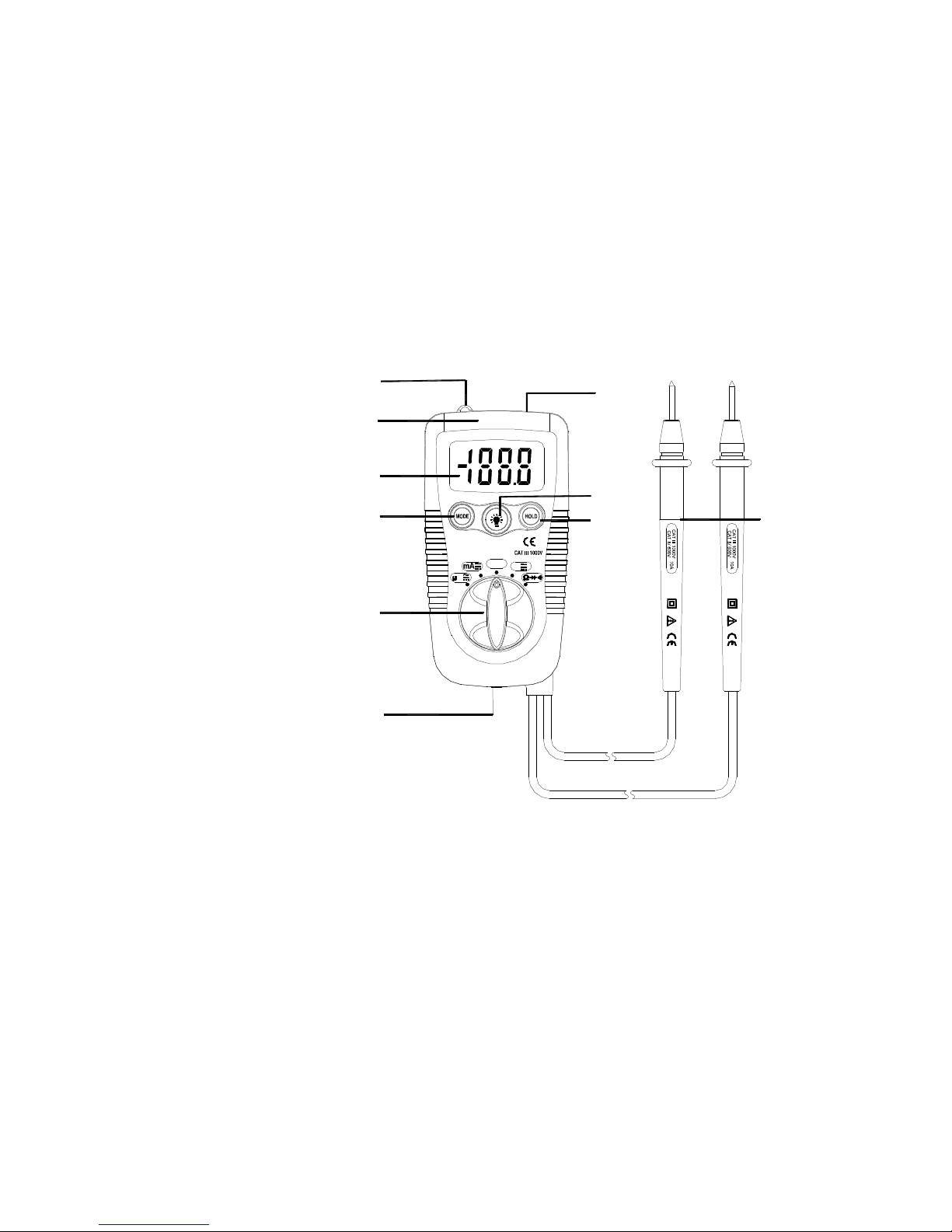

Meter Description
1. Non-contact AC voltage detector probe tip
2. Non-contact AC voltage indicator light
3. 3 1/2 Digit (2000 count)
4. MODE button
5. Function switch
6. Flashlight
7. Flashlight button
8. Data Hold button
9. Battery Cover
10. Test leads

4
Specifications
Electrical Specifications
Function Range Accuracy
DC Voltage 200mV, ±(0.5% rdg + 3d)
2.000V, 20.00V, 200.0V,
600V
±(1.2% rdg + 3d)
AC Voltage
40-400Hz
2.000V, 20.00V ±(1.0% rdg + 8d)
200.0V, 600V ±(2.3% rdg + 10d)
DC Current 200.0µA, 2000µA ±(2.0% rdg + 8d)
20.00mA, 200.0mA
AC Current 200.0µA, 2000µA ±(2.5% rdg + 10d)
20.00mA, 200.0mA
Resistance
200.0Ω±(0.8% rdg + 5d)
2.000kΩ, 20.00kΩ,
200.0kΩ
±(1.2% rdg + 5d)
2.000MΩ±(5.0% rdg + 5d)
20.00MΩ±(10.0% rdg + 5d)

5
Max input voltage 600V AC/DC
Diode Test current 1mA max., open circuit voltage of
1.5V typical
Continuity Check Audible signal if the resistance is <150
Ω
Display 2000 count 3 -1/2 digit LCD
Over range indication LCD displays “OL”
Polarity Minus (-) sign for negative polarity.
Low Battery Indication “BAT” symbol indicates low battery
condition.
Input Impedance >7.5MΩ(VDC & VAC)
AC Response Average responding
ACV Bandwidth 50Hz to400Hz
Auto Power Off 15 minutes (approximately)
Fuse mA, µA ranges; 0.2A/500V fast acting
Resettable Fuse
Batteries Two 1.5V AAA
Operating
Temperature
32oF to 104oF (0oC to 40oC)
Storage Temperature 14oF to 122oF (-10oC to 50oC)
Weight 145g
Size 104x55x32.5mm
Standard IEC1010 CAT III 1000V Pollution
degree II, CE Approved

6
Operation
AC/DC VOLTAGE MEASUREMENTS
CAUTION: Do not measure AC/ DC voltages if a motor
On the circuit is being switched ON or OFF. Large voltage
surges may occur that can damage the meter.
1. Set the function switch to the green V position.
2. Press the MODE button to indicate “DC” or “AC” on the display.
3. Touch the black test probe tip to the negative side of the circuit.
Touch the red test probe tip to the positive side of the circuit.
4. Read the voltage in the display
DC/AC CURRENT MEASUREMENTS
1. Set the function switch to the µA/mA position.
2. For current measurements up to 2000uA DC/AC, set the function
switch to the mA position
3. Press the MODE button to indicate “DC” / “AC” on the display.
4. Remove power from the circuit under test, then open up the
circuit at the point where you wish to measure current.
5. Touch the black test probe tip to the negative side of the circuit.
Touch the red test probe tip to the positive side of the circuit.
6. Apply power to the circuit.
7. Read the current in the display
NOTE: 0.2A/500V fast acting Resettable Fuse current inputs
and Overload protection on mA, µA ranges. No replacement
required.

7
RESISTANCE MEASUREMENT
WARNING: To avoid electric shock, disconnect power to the unit
under test and discharge all capacitors before taking any
resistance measurements. Remove the batteries and unplug the
line cords.
1. Set the function switch to the Ωposition.
2. Press the MODE button to indicate Ω on the display.
3. Touch the test probe tips across the circuit or part under test. It is
best to disconnect one side of the part under test so the rest of the
circuit will not interfere with the resistance reading.
4. Read the resistance in the display
CONTINUITY CHECK
WARNING: To avoid electric shock, never measure continuity on
circuits or wires that have voltage on them.
1. Set the function switch to the Ωposition.
2. Press the MODE button to indicate on the display
3. Touch the test probe tips to the circuit or wire you wish to check.
4. If the resistance is less than approximately 150Ω, the audible
signal will sound. If the circuit is open, the display will indicate
“OL”.
DIODE TEST
1. Set the function switch to the Ωposition.
2. Press the MODE button to indicate on the display.
3. Touch the test probes to the diode under test. Forward voltage
will typically indicate 0.400 to 0.700V. Reverse voltage will indicate
“OL”. Shorted devices will indicate near 0V and an open device
will indicate “OL” in both polarities

8
Non-Contact AC Voltage Measurements
1. Touch the probe tip to the hot conductor or insert into the hot side
of the electrical outlet.
2. If AC voltage is present, the detector light will illuminate.
NOTE: The conductors in electrical cord sets are often twisted.
For best results, rub the probe tip along a length of the
cord to assure placing the tip in close proximity to the
live conductor.
NOTE: The detector is designed with high sensitivity. Static
electricity or other sources of energy may randomly trip
the sensor. This is normal operation
Hold Button
The Data Hold function allows the meter to “freeze” a measurement
for later reference
3. Press the “DATA HOLD” button to “freeze” the display, the
“HOLD” indicator will appear.
4. Press the “DATA HOLD” button to return to normal operation.
Flashlight
Press and hold the top button to turn the flashlight on. Release the
button to turn the flashlight off.
AUTO POWER OFF
The auto off feature will turn the meter off after 15 minutes.
WARNING: Risk of Electrocution. Before use, always
test the Voltage Detector on a known live circuit to
verify proper operation

9
REPLACING THE BATTERY
1. Remove the bottom cover and secure the screw.
2. Replace old battery with fresh Two 1.5V AAA type battery.

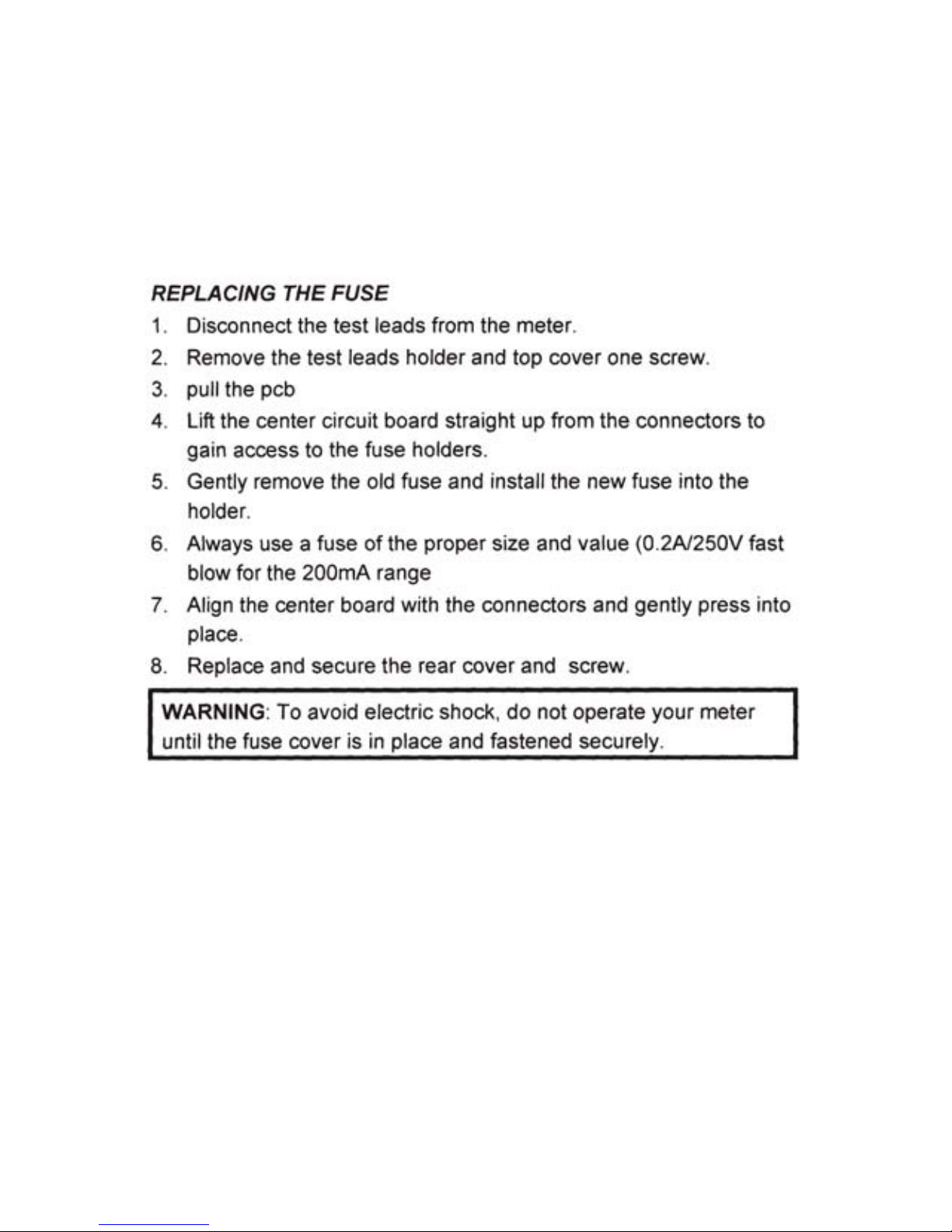

3. Replace the bottom cover and secure the screw.
