KSB Vitastage Series Installation instructions

Hygienic Pump
Vitastage
Installation/Operating
Manual

Legal information/Copyright
Installation/Operating Manual Vitastage
Original operating manual
KSB Aktiengesellschaft
All rights reserved. Contents provided herein must neither be distributed, copied, reproduced, edited
or processed for any other purpose, nor otherwise transmitted, published or made available to a third
party without KSB´s express written consent.
Subject to technical modification without prior notice.
© KSB Aktiengesellschaft Frankenthal 07.04.2011

Contents
Glossary ................................................................................................ 5
1 General ................................................................................................ 6
1.1 Principles .......................................................................................................... 6
1.2 Installation of partly completed machinery .................................................. 6
1.3 Target group ................................................................................................... 6
1.4 Other applicable documents .......................................................................... 6
1.5 Symbols ............................................................................................................ 6
2 Safety ................................................................................................... 8
2.1 Key to safety symbols/markings ..................................................................... 8
2.2 General ............................................................................................................ 8
2.3 Intended use .................................................................................................... 8
2.4 Personnel qualification and training ............................................................. 9
2.5 Consequences and risks caused by non-compliance with these operating
instructions ...................................................................................................... 9
2.6 Safety awareness ............................................................................................. 9
2.7 Safety information for the operator/user .................................................... 10
2.8 Safety information for maintenance, inspection and installation work ... 10
2.9 Unauthorised modes of operation ............................................................... 10
3 Transport/Temporary Storage/Disposal ........................................... 11
3.1 Transport ....................................................................................................... 11
3.2 Storage/preservation ..................................................................................... 11
3.3 Return to supplier ......................................................................................... 12
3.4 Disposal .......................................................................................................... 12
4 Description of the Pump (Set) .......................................................... 13
4.1 General description ....................................................................................... 13
4.2 Designation ................................................................................................... 13
4.3 Name plate .................................................................................................... 14
4.4 Design details ................................................................................................ 14
4.5 Configuration and function ......................................................................... 15
4.6 Noise characteristics ...................................................................................... 15
4.7 Scope of supply ............................................................................................. 16
4.8 Dimensions and weights ............................................................................... 16
5 Installation at Site ............................................................................. 17
5.1 Safety regulations ......................................................................................... 17
5.2 Checks to be carried out prior to installation ............................................. 17
5.3 Piping ............................................................................................................. 17
5.4 Protective equipment ................................................................................... 19
5.5 Electrical system ............................................................................................ 19
Contents
Vitastage 3 of 44

5.6 Electrical connection ..................................................................................... 19
5.7 Checking the direction of rotation .............................................................. 20
6 Commissioning/Start-up/Shutdown ................................................. 22
6.1 Commissioning/start-up ................................................................................ 22
6.2 Operating limits ............................................................................................ 24
6.3 Shutdown/storage/preservation ................................................................... 27
6.4 Returning to service ...................................................................................... 27
7 Servicing/Maintenance ...................................................................... 28
7.1 Safety regulations ......................................................................................... 28
7.2 Maintenance/inspection ............................................................................... 28
7.3 Drainage/disposal .......................................................................................... 29
7.4 Dismantling the pump set ............................................................................ 30
7.5 Reassembling the pump set .......................................................................... 32
7.6 Spare parts stock ........................................................................................... 33
8 Trouble-shooting ............................................................................... 35
9 Related Documents ........................................................................... 37
9.1 General assembly drawing with list of components, Vitastage 05/1 - 05/8 -
horizontal installation .................................................................................. 37
9.2 General assembly drawing with list of components, Vitastage 05/1 - 05/8 -
vertical installation ........................................................................................ 38
9.3 General assembly drawing with list of components, Vitastage 10/1-3;
20/1-3; 30/1-3 - horizontal installation ......................................................... 39
9.4 General assembly drawing with list of components, Vitastage 10/1-3;
20/1-3; 30/1-3 - vertical installation .............................................................. 40
10 EC Declaration of Conformity .......................................................... 41
11 Certificate of Decontamination ....................................................... 42
Index .................................................................................................. 43
Contents
4 of 44 Vitastage

Glossary
Certificate of decontamination
A certificate of decontamination certifies that
the pump (set) has been properly drained to
eliminate any environmental and health
hazards arising from components in contact
with the fluid handled.
Cleaning in place (CIP)
The pump is cleaned with a cleaning agent
while in operation.
Discharge line
The line which is connected to the discharge
nozzle
Hydraulic system
The part of the pump in which the kinetic
energy is converted into pressure energy
Pump
Machine without drive, additional components
or accessories
Pump set
Complete pump set consisting of pump, drive,
additional components and accessories
Steaming in place (SIP)
The pump is sterilised using steam while it is
not running (out of service)
Suction lift line/suction head line
The line which is connected to the suction
nozzle
Glossary
Vitastage 5 of 44

1 General
1.1 Principles
This manual is supplied as an integral part of the type series and variants indicated
on the front cover. It describes the proper and safe use of this equipment in all
phases of operation.
The name plate indicates the type series and size, the main operating data, the order
number and the order item number. The order number and order item number
clearly identify the pump (set) and serve as identification for all further business
processes.
In the event of damage, contact your nearest KSB service centre immediately to
maintain the right to claim under warranty.
Noise characteristics (⇨ Section 4.6 Page 15)
1.2 Installation of partly completed machinery
To install partly completed machinery supplied by KSB, refer to the sub-sections
under Servicing/Maintenance.
1.3 Target group
This manual is aimed at the target group of trained and qualified specialist technical
personnel. (⇨ Section 2.4 Page 9)
1.4 Other applicable documents
Table 1: Overview of other applicable documents
Document Contents
Data sheet Description of the technical data of the pump
(set)
General arrangement drawing/
Outline drawing
Description of mating and installation dimensions
for the pump (set)
Drawing of auxiliary connections Description of auxiliary connections
Hydraulic characteristic curve Characteristic curves showing head, NPSH
required, efficiency and power input
General assembly drawing1) Sectional drawing of the pump
Sub-supplier product literature1) Operating manuals and other product literature
of accessories and integrated machinery
components
Spare parts lists1) Description of spare parts
Piping layout1) Description of auxiliary piping
List of components1) Description of all pump components
1.5 Symbols
Table 2: Symbols used in this manual
Symbol Description
✓Conditions which need to be fulfilled before proceeding with the
step-by-step instructions
⊳Safety instructions
⇨Result of an action
⇨Cross-references
1) If agreed to be included in the scope of supply
1 General
6 of 44 Vitastage

Symbol Description
1.
2.
Step-by-step instructions
Note
Recommendations and important information on how to handle
the product
1 General
Vitastage 7 of 44

2 Safety
All the information contained in this section refers to hazardous situations.

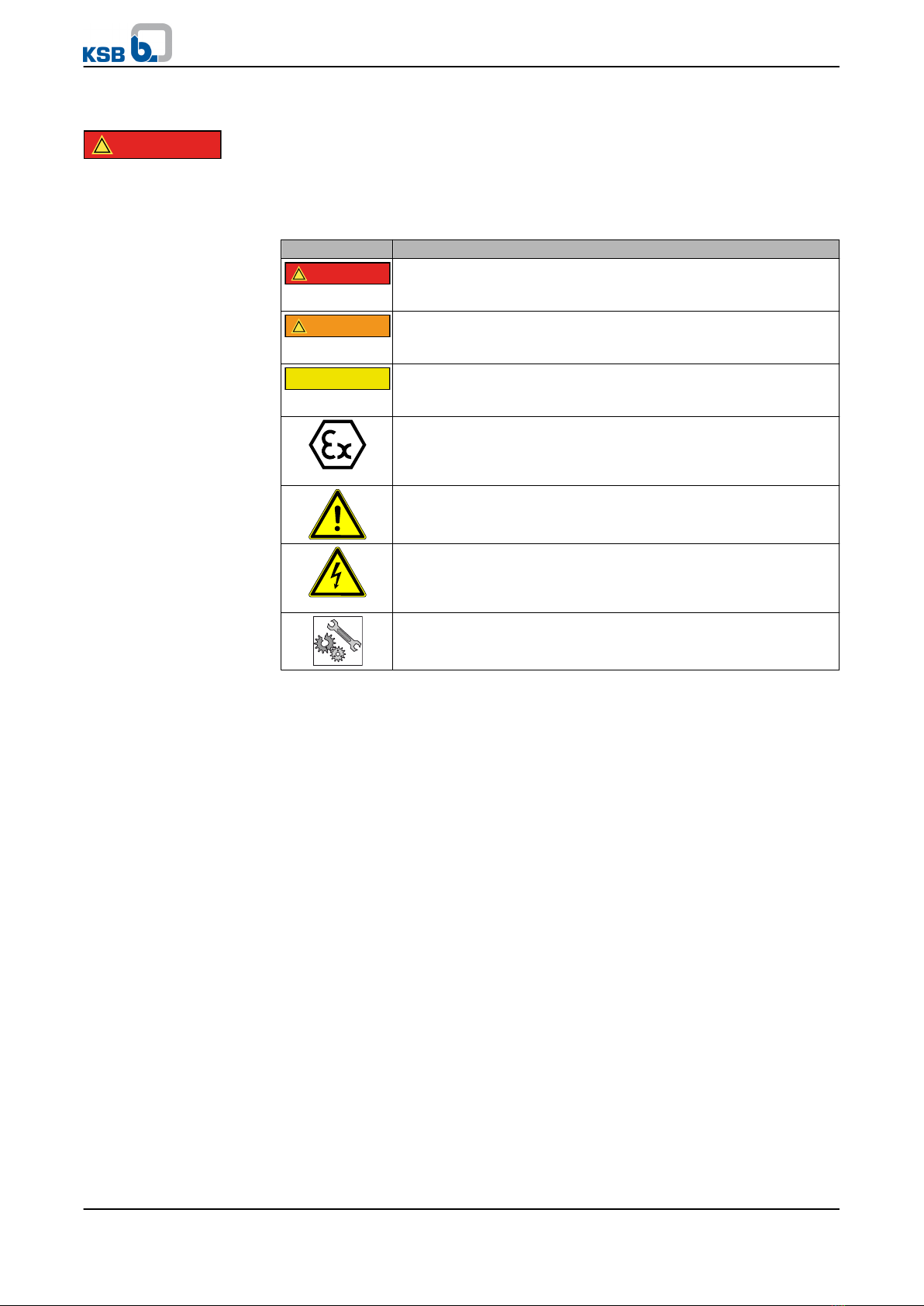

2.1 Key to safety symbols/markings
Table 3: Definition of safety symbols/markings
Symbol Description
!DANGER
DANGER
This signal word indicates a high-risk hazard which, if not avoided,
will result in death or serious injury.
!WARNING
WARNING
This signal word indicates a medium-risk hazard which, if not
avoided, could result in death or serious injury.
CAUTION
CAUTION
This signal word indicates a hazard which, if not avoided, could
result in damage to the machine and its functions.
Explosion protection
This symbol identifies information about avoiding explosions in
potentially explosive atmospheres in accordance with EC Directive
94/9/EC (ATEX).
General hazard
In conjunction with one of the signal words this symbol indicates a
hazard which will or could result in death or serious injury.
Electrical hazard
In conjunction with one of the signal words this symbol indicates a
hazard involving electrical voltage and identifies information
about protection against electrical voltage.
Machine damage
In conjunction with the signal word CAUTION this symbol indicates
a hazard for the machine and its functions.
2.2 General
This manual contains general installation, operating and maintenance instructions
that must be observed to ensure safe pump operation and prevent personal injury
and damage to property.
The safety information in all sections of this manual must be complied with.
This manual must be read and completely understood by the responsible specialist
personnel/operators prior to installation and commissioning.
The contents of this manual must be available to the specialist personnel at the site
at all times.
Information attached directly to the pump must always be complied with and be
kept in a perfectly legible condition at all times. This applies to, for example:
▪Arrow indicating the direction of rotation
▪Markings for connections
▪Name plate
The operator is responsible for ensuring compliance with all local regulations which
are not taken into account in this manual.
2.3 Intended use
The pump (set) must only be operated within the operating limits described in the
other applicable documents.
▪Only operate pumps/pump sets which are in perfect technical condition.
▪Do not operate the pump (set) in partially assembled condition.
!DANGER
2 Safety
8 of 44 Vitastage

▪Only use the pump to handle the fluids described in the data sheet or product
literature of the pump model.
▪Never operate the pump without the fluid handled.
▪Observe the minimum flow rates indicated in the data sheet or product literature
(to prevent overheating, bearing damage, etc).
▪Observe the maximum flow rates indicated in the data sheet or product
literature (to prevent overheating, mechanical seal damage, cavitation damage,
bearing damage, etc).
▪Do not throttle the flow rate on the suction side of the pump (to prevent
cavitation damage).
▪Consult the manufacturer about any use or mode of operation not described in
the data sheet or product literature.
Prevention of foreseeable misuse
▪Never open discharge-side shut-off elements further than permitted.
– The maximum flow rate specified in the data sheet or product literature
would be exceeded.
– Risk of cavitation damage
▪Never exceed the permissible operating limits specified in the data sheet or
product literature regarding pressure, temperature, etc.
▪Observe all safety information and instructions in this manual.
2.4 Personnel qualification and training
All personnel involved must be fully qualified to install, operate, maintain and
inspect the machinery this manual refers to.
The responsibilities, competence and supervision of all personnel involved in
installation, operation, maintenance and inspection must be clearly defined by the
operator.
Deficits in knowledge must be rectified by sufficiently trained specialist personnel
training and instructing the personnel who will carry out the respective tasks. If
required, the operator can commission the manufacturer/supplier to train the
personnel.
Training on the pump (set) must always be supervised by technical specialist
personnel.
2.5 Consequences and risks caused by non-compliance with these operating
instructions
▪Non-compliance with these operating instructions will lead to forfeiture of
warranty cover and of any and all rights to claims for damages.
▪Non-compliance can, for example, have the following consequences:
–Hazards to persons due to electrical, thermal, mechanical and chemical
effects and explosions
– Failure of important product functions
– Failure of prescribed maintenance and servicing practices
– Hazard to the environment due to leakage of hazardous substances
2.6 Safety awareness
In addition to the safety information contained in this manual and the intended use,
the following safety regulations shall be complied with:
▪Accident prevention, health and safety regulations
▪Explosion protection regulations
2 Safety
Vitastage 9 of 44

▪Safety regulations for handling hazardous substances
▪Applicable standards and laws
2.7 Safety information for the operator/user
▪The operator shall fit contact guards for hot, cold or moving parts and check that
the guards function properly.
▪Do not remove any contact guards while the pump is running.
▪Connect an earth conductor to the metal jacket if the fluid handled is
electrostatically charged.
▪Provide the personnel with protective equipment and make sure it is used.
▪Contain leakages (e.g. at the shaft seal) of hazardous fluids handled (e.g.
explosive, toxic, hot) so as to avoid any danger to persons and the environment.
Adhere to all relevant laws.
▪Eliminate all electrical hazards. (In this respect refer to the applicable national
safety regulations and/or regulations issued by the local energy supply
companies.)
2.8 Safety information for maintenance, inspection and installation work
▪Modifications or alterations of the pump are only permitted with the
manufacturer's prior consent.
▪Use only original spare parts or parts authorised by the manufacturer. The use of
other parts can invalidate any liability of the manufacturer for resulting damage.
▪The operator ensures that all maintenance, inspection and installation work is
performed by authorised, qualified specialist personnel who are thoroughly
familiar with the manual.
▪Only carry out work on the pump (set) during standstill of the pump.
▪The pump casing must have cooled down to ambient temperature.
▪Pump pressure must have been released and the pump must have been drained.
▪When taking the pump set out of service always adhere to the procedure
described in the manual. (⇨ Section 6.3 Page 27)
▪Decontaminate pumps which handle fluids posing a health hazard.
▪As soon as the work is completed, re-install and/or re-activate any safety-relevant
and protective devices. Before returning the product to service, observe all
instructions on commissioning. (⇨ Section 6.1 Page 22)
2.9 Unauthorised modes of operation
Never operate the pump (set) outside the limits stated in the data sheet and in this
manual.
The warranty relating to the operating reliability and safety of the supplied pump
(set) is only valid if the equipment is used in accordance with its intended use. (⇨
Section 2.3 Page 8)
2 Safety
10 of 44 Vitastage

3 Transport/Temporary Storage/Disposal
3.1 Transport
DANGER
The pump (set) could slip out of the suspension arrangement
Danger to life from falling parts!
▷Always transport the pump (set) in horizontal position.
▷Never attach the suspension arrangement to the free shaft end or the motor
eyebolt.
▷Refer to the weights given in the general arrangement drawing.
▷Observe the local accident prevention regulations.
▷Use suitable, permitted lifting tackle, e.g. self-tightening lifting tongs.
CAUTION
Deformation of motor shroud during transport
Damage to the pump set!
▷Remove motor shroud, if included in scope of supply, for transport.
To transport the pump/pump set suspend it from the lifting tackle as shown below.
Table 4: Transporting the pump (set)
Without motor foot Motor foot
Ball feet Vertical model
3.2 Storage/preservation
If commissioning is to take place some time after delivery, we recommend that the
following measures be taken for pump (set) storage.
CAUTION
Damage during storage by humidity, dirt, or vermin
Corrosion/contamination of the pump (set)!
▷For outdoor storage cover the packed or unpacked pump (set) and accessories
with waterproof material.
3 Transport/Temporary Storage/Disposal
Vitastage 11 of 44

CAUTION
Wet, contaminated or damaged openings and connections
Leakage or damage to the pump set!
▷Only remove caps/covers from the openings of the pump set at the time of
installation.
Store the pump (set) in a dry, protected room where the atmospheric humidity is as
constant as possible.
Rotate the shaft by hand once a month, e.g. via the motor fan.
If properly stored indoors, the pump set is protected for a maximum of 12 months.
New pumps/pump sets are supplied by our factory duly prepared for storage.
For storing a pump (set) which has already been operated, observe the relevant
instructions. (⇨ Section 6.3.1 Page 27)
3.3 Return to supplier
1. Drain the pump as per operating instructions.
2. Always flush and clean the pump, particularly if it has been used for handling
noxious, explosive, hot or other hazardous fluids.
3. If the fluids handled by the pump leave residues which might lead to corrosion
damage when coming into contact with atmospheric humidity, or which might
ignite when coming into contact with oxygen, the pump set must also be
neutralised, and anhydrous inert gas must be blown through the pump for
drying purposes.
4. Always complete and enclose a certificate of decontamination when returning
the pump (set). (⇨ Section 11 Page 42)
Always indicate any safety and decontamination measures taken.
NOTE
If required, a blank certificate of decontamination can be downloaded from the KSB web
site at: www.ksb.com/certificate_of_decontamination
3.4 Disposal
WARNING
Fluids posing a health hazard
Hazard to persons and the environment!
▷Collect and properly dispose of flushing liquid and any residues of the fluid
handled.
▷Wear safety clothing and a protective mask, if required.
▷Observe all legal regulations on the disposal of fluids posing a health hazard.
1. Dismantle the pump (set).
Collect greases and other lubricants during dismantling.
2. Separate and sort the pump materials, e.g. by:
- Metals
- Plastics
- Electronic waste
- Greases and other lubricants
3. Dispose of materials in accordance with local regulations or in another controlled
manner.
3 Transport/Temporary Storage/Disposal
12 of 44 Vitastage

4 Description of the Pump (Set)
4.1 General description
▪Hygienic pump
▪Multistage centrifugal pump in ring-section design
Pump for handling fluids which are not chemically aggressive, are free from solids
and do not require hermetic sealing.
Hygienic centrifugal pump for the food and beverage industry and the
pharmaceutical industry
Table 5: Installation type
Installation type Illustration Description
B Horizontal, close-coupled design
Axial suction nozzle, radial discharge nozzle
For sizes 05, 10, 20 and 30
BM Pump same as installation type B, but mounted on motor
feet
For sizes 05, 10, 20 and 30
V Vertical close-coupled pump
Axial suction nozzle, radial discharge nozzle
For sizes 05, 10, 20 and 30
All pumps of this type series are fitted with standardised mechanical seals to EN
12756. This ensures reliable operation and interchangeability.
When different standardised mechanical seals are used, the axial length of the seal
has to be verified.
Type and materials of the mechanical seal are specifically selected to match the
nature and composition of the fluid to be handled.
NOTE
Before using the pump for any fluids different to those originally specified, check that the
mechanical seals and joint rings are suitable for that fluid.
If certified seal types or materials are used, make sure that also the replacement seals
meet the certification requirements.
4.2 Designation
Example: Vitastage 10/3/75 2 B T
Table 6: Key to the designation
Code Description
Vitastage Type series
10 Size
4 Description of the Pump (Set)
Vitastage 13 of 44

Code Description
3 Number of stages
75 Motor rating (7.5 kW x 10)
2 Number of poles
B Installation type
T Seal type
4.3 Name plate
VITASTAGE 10/3/75 2 B T
E-Nr
Nr
H 90 m
Q 15 m3/h
Jahr 2010
n 2900 1/min
Aktiengesellschaft
DE Frankenthal
1
2
4
3
6
7
5
Fig. 1: Vitastage name plate
1 Type series, size and version 2 KSB order number
3 Manufacturer's No. 4 Flow rate
5 Head 6 Speed
7 Year of construction
4.4 Design details
▪High-pressure centrifugal pump
▪Horizontal/vertical installation
▪Multistage
Pump casing
▪Casing in ring-section design
Impeller type
▪Closed radial impeller with multiply curved vanes
Shaft seal
▪Standardised mechanical seal to EN 12756
Drive
▪Three-phase motor
▪IP55 enclosure
4 Description of the Pump (Set)
14 of 44 Vitastage

4.5 Configuration and function
1
2
3
4
5
6
7
8
9
10
Fig. 2: Sectional drawing of Vitastage
1 Suction nozzle 2 First impeller
3 Stage casing 4 Diffuser
5 Last impeller 6 Discharge casing
7 Motor 8 Shaft seal
9 Discharge nozzle 10 Pump foot
The pump is installed in either horizontal or vertical position. It is designed with an
axial fluid inlet and a radial fluid outlet. The hydraulic system is fitted on an
extended motor shaft and the casing is directly bolted to the motor.
The fluid enters the casing via the suction nozzle (1) and is accelerated outward in a
cylindrical flow by the first impeller (2). At the flow contour of the stage casing (3)
the kinetic energy of the fluid is converted into pressure energy and the fluid is
routed to the next impeller (11) via the diffuser (4). This process is repeated in all
stages until the fluid has passed the last impeller (5). The fluid then passes through
the discharge casing (6) to the discharge nozzle (9), where it leaves the pump. The
drive shaft enters the casing at the rear of the last impeller (11). The motor (7) is
bolted to the casing. The shaft passage through the casing is sealed with a dynamic
shaft seal (8). Pumps installed horizontally are mounted on motor feet, whereas
vertically installed pumps are mounted on a pump foot (10).
The pump is sealed by a standardised mechanical seal.
4.6 Noise characteristics
Table 7: Surface sound pressure level LpA2)
Size Motor rating
[kW]
Noise characteristic
[dB]
VS 05/1 1.5 69-70.2
VS 05/2 1.5 69.5-71
VS 05/3 2.2 69-71.4
Design
Function
Sealing
2) Measured at a distance of 1 metre, 1.6 metres above the installation surface
4 Description of the Pump (Set)
Vitastage 15 of 44

Size Motor rating
[kW]
Noise characteristic
[dB]
VS 05/4 3 68-71.9
VS 05/5 4 72.1-74.1
VS 05/6 5.5 73-74.6
VS 05/7 5.5 75.2-79.1
VS 05/8 5.5 76.5-79.4
VS 10/1 2.2 75-78.5
VS 10/2 5.5 75.2-79.1
VS 10/3 7.5 76-79.2
VS 20/1 4 78.7-83.1
VS 20/2 7.5 79.4-84.3
VS 20/3 11 79.5-84
VS 30/1 5.5 79.8-85
VS 30/2 11 80-85.7
VS 30/3 15 81.2-86.3
4.7 Scope of supply
Depending on the model, the following items are included in the scope of supply:
▪Pump
▪Electric drive
▪Installation parts
4.8 Dimensions and weights
For dimensions and weights refer to the general arrangement drawing/outline
drawing of the pump (set).
4 Description of the Pump (Set)
16 of 44 Vitastage

5 Installation at Site
5.1 Safety regulations
DANGER
Installation in potentially explosive atmospheres
Explosion hazard!
▷Do not install the pump in potentially explosive atmospheres.
▷Observe the information given in the data sheet and on the name plates of the
pump system.
5.2 Checks to be carried out prior to installation
Place of installation
WARNING
Installation on foundations which are unsecured and cannot support the load
Personal injury and damage to property!
▷Make sure the foundation concrete is of sufficient strength (min. X0 to
DIN 1045).
▷Only place the pump set on a foundation whose concrete has set firmly.
▷Only place the pump set on a horizontal and level surface.
▷Refer to the weights given in the general arrangement drawing.
1. Check the structural requirements.
All structural work required must have been prepared in accordance with the
dimensions stated in the outline drawing/general arrangement drawing.
5.3 Piping
5.3.1 Connecting the piping
DANGER
Excessive loads acting on the pump nozzles
Danger to life from leakage of hot, toxic, corrosive or flammable fluids!
▷Do not use the pump as an anchorage point for the piping.
▷Anchor the pipelines in close proximity to the pump and connect them without
transmitting any stresses or strains.
▷Take appropriate measures to compensate thermal expansion of the piping.
CAUTION
Incorrect earthing during welding work at the piping
Destruction of rolling element bearings (pitting effect)!
▷Never earth the electric welding equipment on the pump or baseplate.
▷Prevent current flowing through the rolling element bearings.
NOTE
It is recommended to install check and shut-off elements in the system, depending on the
type of plant and pump. However, such elements must not obstruct proper drainage or
hinder disassembly of the pump.
✓The suction lift line/suction head line has been laid with a rising/downward slope
towards the pump.
5 Installation at Site
Vitastage 17 of 44

✓The nominal diameters of the pipelines are at least equal to the nominal
diameters of the pump nozzles.
✓Adapters to larger diameters have a diffuser angle of approx. 8° to prevent
excessive pressure losses.
✓The pipelines have been anchored in close proximity to the pump and connected
without transmitting any stresses or strains.
1. Thoroughly clean, flush and blow through all vessels, pipelines and connections
(especially of new installations).
2. Before installing the pump in the piping, remove the flange covers on the suction
and discharge nozzles of the pump.
CAUTION
Welding beads, scale and other impurities in the piping
Damage to the pump!
▷Free the piping from any impurities.
▷If necessary, install a filter.
▷Observe the instructions in (⇨ Section 7.2.2.1 Page 29).
3. If required, install a filter in the piping (see illustration: Filter in the piping).
1
2
Fig. 3: Filter in the piping
1 Differential pressure gauge 2 Filter
NOTE
Use a filter with laid-in wire mesh (mesh width 0.5 mm, wire diameter 0.25 mm) of
corrosion-resistant material.
Use a filter with a filter area three times the cross-section of the piping.
Conical filters have proved suitable.
4. Connect the pump nozzles to the piping.
CAUTION
Aggressive flushing and pickling agents
Damage to the pump!
▷Match the cleaning operation mode and duration for flushing and pickling
service to the casing and seal materials used.
5.3.2 Permissible forces and moments at the pump nozzles
No piping-induced forces and moments (from warped pipelines or thermal
expansion, for example) must act on the pump.
5 Installation at Site
18 of 44 Vitastage

5.4 Protective equipment
WARNING
The volute casing and casing/discharge cover take on the same temperature as the fluid
handled
Risk of burns!
▷Insulate the volute casing.
▷Fit protective equipment.
5.5 Electrical system
5.5.1 Frequency inverter operation
The pump set is suitable for frequency inverter operation as per IEC 60034-17.
When selecting a frequency inverter, check the following details:
▪Data provided by the manufacturer
▪Electrical data of the pump set, particularly the rated current
▪Ensure short start ramps (max. 5 s)
▪Only start speed-controlled operation after 2 minutes at the earliest.
Pump start-up with long start ramps and low frequency may cause clogging.
Observe the following limits when operating the pump set via frequency inverter:
▪Only utilise up to 95 % of the motor power rating P2 indicated on the name
plate.
▪Frequency range 25-50 Hz
Frequency inverter operation produces RFI emissions whose level varies, depending
on the inverter used (type, interference suppression, make). To prevent the drive
system, consisting of a submersible motor and a frequency inverter, from exceeding
the limits stipulated in EN 50081 always observe the EMC information provided by
the inverter manufacturer. If the inverter manufacturer recommends a shielded
power cable, make sure to use a pump set with a shielded power cable.
The pump set generally meets the interference immunity requirements to EN 50082.
For monitoring the sensors installed the operator must ensure sufficient interference
immunity by appropriately selecting and laying the cables in the plant. No
modifications are required on the power/control cable of the pump set. Suitable
analysing devices must be selected. To monitor the leakage sensor inside the motor,
it is recommended to use a special relay available from KSB.
5.6 Electrical connection
DANGER
Unqualified personnel performing work on the pump set
Danger of death from electric shock!
▷Electrical connection must be effected by a trained electrician only.
▷Observe the regulations stipulated in IEC 30364 (DIN VDE 0100).
WARNING
Incorrect connection to the mains
Damage to the mains network, short circuit!
▷Observe the technical specifications of the local energy supply companies.
1. Check the available mains voltage against the data on the name plate.
2. Select an appropriate start-up method.
Selection
Start-up
Operation
Electromagnetic
compatibility
Interference immunity
5 Installation at Site
Vitastage 19 of 44

NOTE
It is recommended to fit a motor protection device.
5.6.1 Setting the time relay
CAUTION
Switchover between star and delta on three-phase motors with star-delta starting takes
too long
Damage to the pump (set)!
▷Keep switch-over intervals between star and delta as short as possible (see table:
Time relay settings for star-delta starting).
Table 8: Time relay settings for star-delta starting:
Motor rating Y time to be set
≤ 30 kW < 3 s
5.6.2 Connecting the motor
NOTE
In compliance with DIN VDE 0530 - Part 8, three-phase motors are always wired for
clockwise rotation (looking at the motor shaft stub).
The pump's direction of rotation is indicated by an arrow on the pump.
1. Change the motor's direction of rotation to match that of the pump.
2. Observe the manufacturer's product literature supplied with the motor.
5.6.3 Earthing
DANGER
Electrostatic charging
Explosion hazard!
Fire hazard!
Damage to the pump set!
▷Connect the PE conductor to the earthing terminal provided.
5.7 Checking the direction of rotation
DANGER
Temperature increase resulting from contact between rotating and stationary
components
Explosion hazard!
Damage to the pump set!
▷Never check the direction of rotation by starting up the unfilled pump set.
▷Separate the pump from the motor to check the direction of rotation.
WARNING
Hands or objects inside the pump casing
Risk of injuries, damage to the pump!
▷Never insert your hands or any other objects into the pump.
▷Check that the inside of the pump is free from any foreign objects.
5 Installation at Site
20 of 44 Vitastage
