KT&C HDI28V12IRM Installation manual

HD CCTV
Digital Video Dome Camera
OPERATION MANUAL
Thank you for choosing our high quality camera. Before attempting to connect operate
this unit, please read and follow these instructions.
M223-HDI28V12-001

These servicing instructions are for use by qualied service personnel only.
To reduce the risk of electric shock do not perform any servicing other than
that contained in the operating instructions unless you are qualied to do so.
Use Class 2 Power Supply Only
CAUTION
2

CONTENTS
1. NOTICES
2. FOR YOUR SAFETY
3. FEATURES
4. EQUIPMENT AND ACCESSORIES

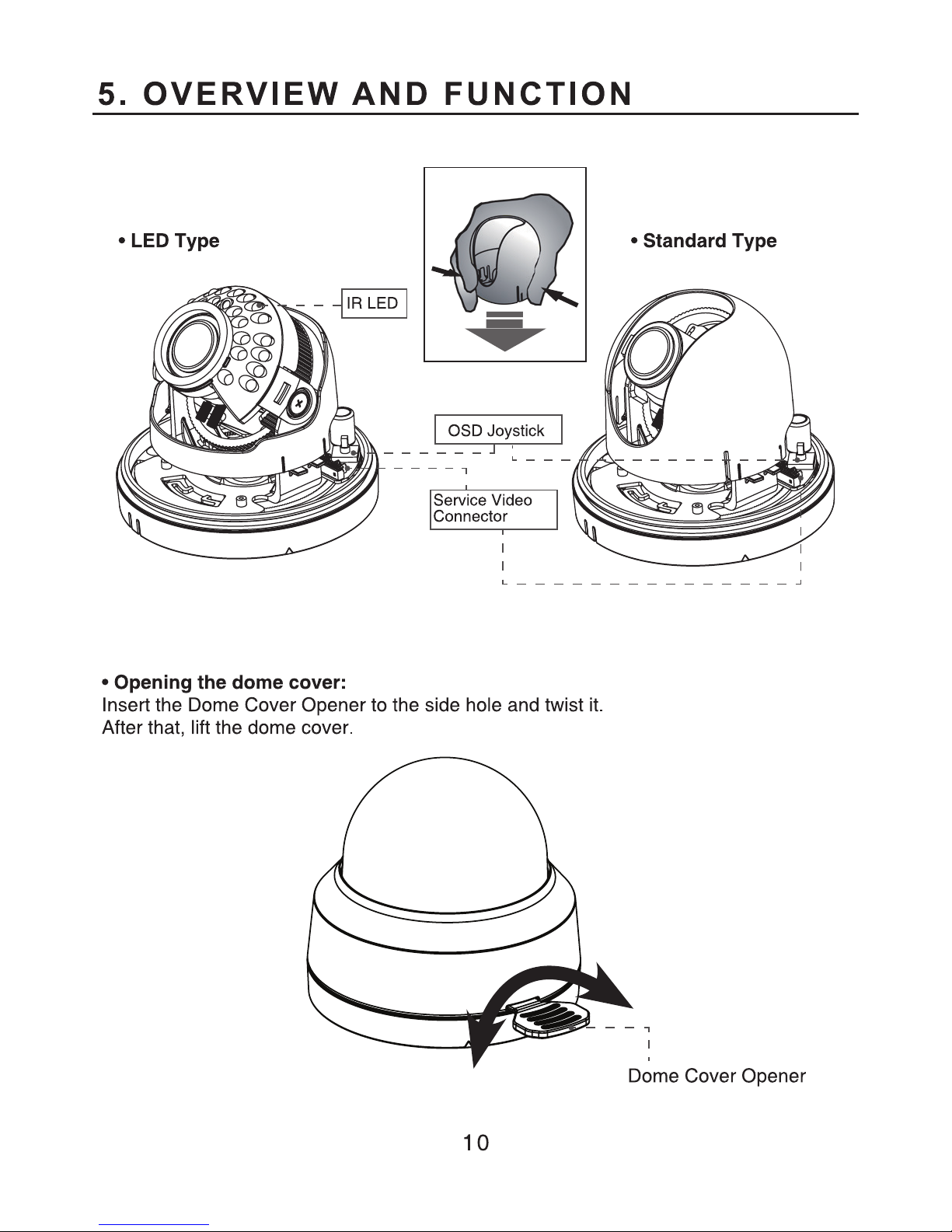

5. OVERVIEW AND FUNCTION
6. INSTALLATION
7. CONNECTION
8. DIMENSIONS
9. SPECIFICATION
10. OSD MANUAL
11. OSD FUNCTION DESCRIPTION
3

1. NOTICES
4
This device complies with Part 15 of FCC regulations.
Operation is subject to the following two conditions:
1. This device may cause harmful interference.
2. This device may receive interference that can cause affect the operation of this
equipment.
Note
This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used
in accordance with the instruction manual, may cause harmful interference to
radio communications. Operation of this equipment in a residential area is likely
to cause harmful interference in which case the user will be required to correct
the interference problems at his or her own expense.
Caution
Alteration or modifications carried out without. appropriate authorization may
invalidate the user's right to operate the equipment.
1. A regulated DC12V 1A power supply is recommended to ensure the best picture quality
and stable operation.
An unregulated power supply may cause damage to the camera.
Using an unregulated power supply will void the product warranty.
2. It is recommended that the camera is used with a monitor that has a CCTV quality
75 video impedance level.
If your monitor is switched to high impedance, then please adjust accordingly.
3. Do not attempt to disassemble the camera to access internal components.
Refer servicing to your dealer.
4. Never face the camera towards the sun or any bright or reective light, which may
cause smear on the picture and possible damage to the image sensor.
5. Do not remove the serial sticker for the warranty service.

1. NOTICES
5
This symbol is intended to alert the user to the presence
of uninsulated “dangerous voltage” within the product’s
enclosure that may be of sufcient magnitude to constitute a
risk of electric shock.
This symbol is intended to alert the user to the presence of
important operating and maintenance (servicing) instructions
in the literature accompanying the appliance.
WEEE
(Waste Electrical & Electronic Equipment)
This marking shown on the product or its remove, indicates that it should not
be disposed with other household wastes at the end of its working life. To
prevent possible harm to the environment or human health from uncontrolled
waste disposal, please separate this from other types of wastes and recycle it
responsibly to promote the sustainable reuse of material resources. Household
users should contact either the retailer where they purchased this product, or
their local government ofce, for details of where and how to safely recycle the
item.
Business users should contact their supplier and check the terms and
conditions of the purchase contract.
This product should not be mixed with other commercial wastes for disposal.
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.

2. FOR YOUR SAFETY
1) All warning and instruductions in this manual should be followed.
2) Save this manual for future reference.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with a dry cloth.
7) Do not block any ventilation openings. Install in accordance
with the manufacturer’s instructions.
8) Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including ampliers) that produce heat.
9) To help prevent from electric shock, plug the equipment and peripheral power cables
into properly polarized or grounded electrical outlets. These cables are equipped with
the wide blade or the third prong to ensure proper grounding. Do not use adapter
plug or remove the ground prong from a cable. If the provided plug does not t your
outlet, consult an electrician.
10) Ensure that nothing rests on your equipment's cabloe and that the cables are not
located where they can be stpped on, trapped over, or pinched.
11) Only use attachments or accessories as specied.
12) Only use the equipment with the cart, stand, tripod, bracket, or table that is specied
by the manufacturer or sold with the apparatus. When a cart is used, use caution to
prevent the cart from tipping over and to avoid injury.
13) Do not connect or disconnect during lighting storms due to risk of electric shock.
14) If any of the following conditions occur, unplug the equipment from the electrical
outlet and replace the part or contact your trained service provider:
• The power cable, extension cable, or plug is damaged.
• An object has fallen into the equipment.
• The equipment has been exposed to water.
• The equipment has been dropped or damaged.
• The equipment does not operate correctly when you follow the operating
instructions.
6

3. FEATURES
• Service Video output for convenient installation, and ease of service.
• 3-Axis gimbal for convenient wall or ceiling mounting.
• Choose between black and white color housing to blend or contrast with the décor.
• Optional junction box plate.
• High Resolution
1/3” 2.1Mega pixel PANASONIC CMOS
• Support various digital video output
1080p 30fps / 1080p 25fps, 720p 60fps / 720p 50fps
• OSD menu for setup and configuration
• WDR (Wide Dynamic Range), Digital slow shutter, 3DNR
• 24 Long Life IR illuminations for 0 Lux viewing performance and
range to 30m ( 100feet ) ( LED type model only )
• Lens Control
DC Iris
• Power Source
DC 12V / AC24V ( Dual Power Type )
DC 12V ( DC Power Type )
7

4. EQUIPMENT
Camera
Sevice Video Output Test
Cable
Manual
Screws - 3ea Pigtail Cable
Template
MOUNT GUIDE
Ø80 INDOOR DOME
Mount Plate /
Dome Cover Opener
8
(12VDC only)

OPTIONAL ACCESSORIES
9
Box adapter
- Junction box mount adapter for indoor
dome camera
- Rough-in box adapter with integral
twist-on ts 1 or 2 gang or 4" octagonal
boxes

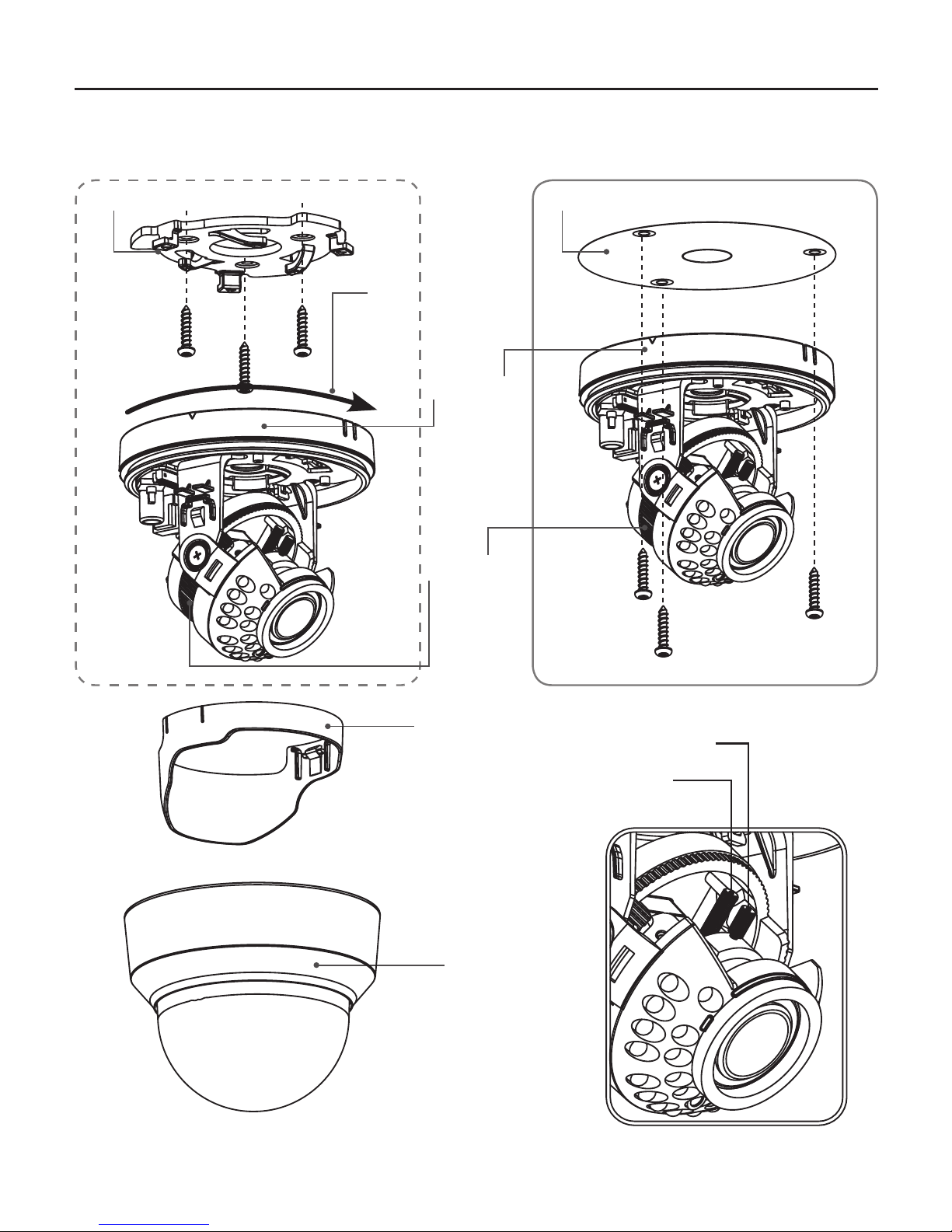

6. INSTALLATION
• LED Type
11
Lens Zoom Knob
Lens Focus Knob
TemplateMount Plate
Screws
Screws
- Installing using the Mount Plate - Installing using the Template
Housing Bottom
3-AXIS GIMBAL
Shroud
Dome Cover
Rotate to Combine.

6. INSTALLATION
• Standard Type
12
Lens Zoom Knob
Lens Focus Knob
TemplateMount Plate
Screws
Screws
- Installing using the Mount Plate - Installing using the Template
Housing Bottom
3-AXIS GIMBAL
Shroud
Dome Cover
Rotate to Combine.

7. CONNECTION
When you install the camera, please glue up the end of cable to
keep it stable in and to protect the camera.
13
VIDEO IN
HANDHELD MONITOR
OPEN
COVER
TEST CABLE
Service Video Connector
DC 12V / AC 24V
DUAL POWER SUPPLY
DC 12V
POWER SUPPLY
DC12V/AC24V
(TERMINAL BLOCK)
HD-SDI IN SDI
RECEIVER
DISPLAY
DEVICE
SDI
RECEIVER
DISPLAY
DEVICE
HD-SDI IN

8. DIMENSIONS
Unit : mm(inch)
14
Ø107 (4.21")
Ø87.5 (3.44")
3-120˚
Ø80 (3.15")
53.1 (2.09")
97.1 (3.82")

9. SPECIFICATION
Model Standard Type LED Type
Image Device 1/3” 2.1 Mega Pixel CMOS
Effective Pixels 1944 (H) x 1092 (V)
Unit cell size 2.75um (H) x 2.75um (V)
Video Output Mode SDI : 1080P 30fps(25fps) / 720P 60fps(50fps)
Minimum Illumination 0.2 lx (F1.6) / 0.006 lx (DSS on) 0 lx (with IR LED On)
S/N Ratio More than 52dB
Shutter Speed
Auto / Manual selectable
1/30(25), 1/60(50), 1/120(100), 1/250, 1/500,
1/1K, 1/2K, 1/4K, 1/8K, 1/16K, 1/30K
Day/Night Electronic D/N (Color/BW/Auto) True D/N (Auto)
WDR/BLC OFF / WDR / BLC
AGC 0 ~ 60dB
3DNR OFF / LOW / MIDDLE / HIGH
Digital Zoom Ratio 1x ~ 20x
Digital Slow Shutter OFF, 2x~32x
Motion Detection ON / OFF
Privacy Masking 16 Zones
White Balance AUTO / AUTO EXT / PUSH LOCK / Manual
Lens Varifocal Lens
OSD Built-in
Language ENGLISH, RUSSIAN, SPANISH, GERMAN,
FRENCH, PORTUGUESE, JAPANESE
External Control Joystick
ETC FLIP(H/V/HV), HLMASK, D-WDR, Defog
Power
Consumption
DC 12VDC(±10%), Max. 150mA 12VDC(±10%), Max. 260mA
Dual 24VAC(±10%), Max. 2.3W
12VDC(±10%), Max. 190mA 24VAC(±10%), Max. 3.9W 12VDC(±10%), Max. 330mA
IR LED -850nm, 24ea
IR Beam Range -Up to 30 m (100 ft.)
Dimension(mm) Bubble Ø80(3.15"), Ø107(4.21") x 97.1(3.82")
Weight DC Approx. 220 g Approx. 240 g
Dual Approx. 240 g Approx. 255 g
Conformity CE, FCC
Temperature Operation: 14°F~122°F(-10°C~+50°C)
Storage: -4°F~140°F(-20°C~+60°C)
Humidity Less than 80%
Specifications and designs are subject to change for improving the
functionality of this product without notice.
15

10. OSD MANUAL
• Menu structure
Main 1st Sub MENU 2nd Sub MENU
LENS
LENS TYPE ALC
ELC
LENS MODE INDOOR
OUTDOOR
RETURN
EXPOSURE
BRIGHTNESS 1~20
SHUTTER MODE
AUTO
MANUAL
FLICKER
SHUTTER SPEED 1/30(25), 1/60(50), 1/120(100), 1/250, 1/500,
1/1K, 1/2K, 1/4K, 1/8K, 1/16K, 1/30K
DSS OFF ~ x32
AGC MAX 12dB ~ 60dB
INITIAL
RETURN
WHITE
BALANCE
WB MODE AUTO, AUTO EXT, PUSH LOCK, MANUAL
CHROMA 0 ~ 20
KELVIN LOW, MIDDLE, HIGH
RED GAIN 0 ~ 20
BLUE GAIN 0 ~ 20
PUSH AUTO LOCK ON, OFF
INITIAL
RETURN
WDR/BLC
MODE OFF, WDR, BLC
WDR LEVEL 0 ~ 4
BLC X-POSITION 0 ~ 20
BLC Y-POSITION 0 ~ 20
BLC X-SIZE 0 ~ 20
BLC Y-SIZE 0 ~ 20
INITIAL
RETURN
DAY&NIGHT
MODE AUTO, COLOR, B&W(Standard type)/AUTO(LED Type)
DWELL TIME 1 sec ~ 10 sec(Standard type)
DAY -> NIGHT 0 ~ 14(Standard type)
NIGHT -> DAY 1 ~ 15(Standard type)
IR OPTIMIZER ON, OFF (LED Type)
IR OPT.LEVEL 0 ~ 15 (LED Type)
INITIAL
RETURN
16

OSD MANUAL
Main 1st Sub MENU 2nd Sub MENU 3rd Sub MENU 4th Sub MENU
SHARPNESS 0 ~ 10
FLIP OFF, H/V/HV-FLIP
DZOOM 1.0x ~ 20x
HLMASK
OFF
ON
HLMASK LEVEL 0 ~ 20
HLMASK COLOR BLK, WHT, YEL, CYN,
GRN, MAG, RED, BLU
HLMASK MODE ALL DAY, NIGHT ONLY
INITIAL
RETURN
D-WDR OFF, ON
DNR OFF, LOW, MIDDLE, HIGH
DEFOG
OFF
ON
DEFOG MODE AUTO, MANUAL
DEFOG LEVEL LOW, MIDDLE, HIGH
INITIAL
RETURN
INITIAL
RETURN
SPECIAL
CAMERA TITLE ON EDIT MODE RETURN
OFF
LANGUAGE ENGLISH / Русский / ESPAÑOL / DEUTSCH / FRANCAISE
PORTUGUÊS / 日本語
PRIVACY
ZONE NO 0 ~ 15
MASK MODE ON, OFF
X-POSITION 0 ~ 60
Y-POSITION 0 ~ 40
X-SIZE 0 ~ 40
Y-SIZE 0 ~ 40
COLOR BLACK, WHITE, YELLOW, CYAN, GREEN,
MAGENTA, RED, BLUE
TRANSPARENCY 100%, 75%, 50%, 25%, 0%
INITIAL
RETURN
MOTION
SENSITIVITY 0 ~ 20
X-POSITION 0 ~ 60
Y-POSITION 0 ~ 40
X-SIZE 0 ~ 40
Y-SIZE 0 ~ 40
INITIAL
RETURN
17

OSD MANUAL
Main 1st Sub MENU 2nd Sub MENU 3rd Sub MENU 4th Sub MENU
SPECIAL
DISPLAY
CAM TITLE OFF, ON
MOTION OFF, ON
DZOOM OFF, ON
INITIAL
RETURN
SYSTEM
DEFECT DET OFF, ON
DOUT FORMAT 720P, 1080P
DOUT FPS 50,60 / 25,30
CVBS NTSC, PAL
APPLY
RETURN
INITIAL
RETURN
FACTORY
DEFAULT
EXIT
18

11. OSD FUNCTION DESCRIPTION
1. LENS
- LENS TYPE:
> Enables user to set the Automatic Light Control.
(DC IRIS Lens)
> Enables user to set the Electronic Level Control.
(Board Lens)
- LENS MODE:
Enables user to set the Environment that is installed.
(Indoor or Outdoor)
2. EXPOSURE
- BRIGHTNESS:
Enables user to control the image brightness (1~20steps).
- SHUTTER MODE:
Enables user to set the Shutter Mode.
-> AUTO, MANUAL, FLICKER
- SHUTTER SPEED: Enables user to set the
Shutter Speed. -> 1/30(25), 1/60(50), 1/120(100), 1/250,
1/500, 1/1K, 1/2K, 1/4K, 1/8K, 1/16K, 1/30K
*() is for digital output frame rate 25 or 50
- DSS(Digital Slow Shutter): Enables user to set
the DSS Level.
-> OFF, X2, X3, X4, X5, X6, X7, X8, X16, X32
- AGC MAX: Enables user to make the imager brighter by amplifying the Gain (12~60dB).
- INITIAL: Enables user to reset the Exposure menu set up.
3. WHITE BALANCE
Enables user to represent white accurately by
controlling the RGB levels.
- WB MODE
1. AUTO: Enables user to trace the White
Balance automatically in the range of 2,300K~10,000K.
2. PUSH LOCK: Enables user to adjust the
White Balance according to the color temperature of
the environment.
3. MANUAL: Enables user to sets the White Balance
according to the circumstance.
4. AUTO EXT: Extended auto mode for special illumination.
- CHROMA: Enables user to set the Color Gain (0~20steps).
- KELVIN: In the MANUAL setting of WB MODE, enables user to set the color
temperature range.
- RED GAIN: In the MANUAL setting of WB MODE, enables user to set the RED GAIN.
- BLUE GAIN: In the MANUAL setting of WB MODE, enables user to set the BLUE GAIN.
- PUSH AUTO: In the PUSH LOCK setting of WB MODE, enables user to x the White
Balance in camera setting.
- INITIAL: Enables user to reset the WHITE BALANCE menu setting.
19

4. WDR/BLC
- MODE: Enables user to set WDR/BLC mode. -> OFF, WDR, BLC
1. WDR(Wide Dynamic Range): For use in conditions were BLC is not sufcient to
produce a clean image, such as in lobbies and places surrounded by windows.
2. BLC(Backlight Compensation): This function helps make subjects visible in backlit
conditions.
- WDR LEVEL: Enables user to set WDR Level (0~4 level).
- BLC X-POSITION: Enables user to set Vertical start position (0~20steps).
- BLC Y-POSITION: Enables user to set Horizontal start position (0~20steps).
- BLC X-SIZE: Enables user to set Vertical size (0~20steps).
- BLC Y-SIZE: Enables user to set Horizontal size (0~20steps).
- INITIAL: Enables user to reset the WDR/BLC setting.
5. DAY&NIGHT
Conversion of output image to COLOR / BW depending on exterior environment.
- D&N MODE
1. COLOR: Enables user to set the image to color mode.(Standard type)
2. B/W: Enables user to set the image to B/W mode.(Standard type)
3 AUTO: Enables user to convert to COLOR/BW automatically by luminance
element on Screen(Standard type) or photocell (LED Type)
- DWELL TIME: In D&N MODE AUTO, enables user to set a delay when changing
COLOR/BW (1~10sec)(Standard Type).
- DAY->NIGHT: Sets threshold for switching from Day to Night.(Standard Type)
- NIGHT->DAY: Sets threshold for switching from Night to Day.(Standard Type)
- IR OPTIMIZER: By the IR LED light, the screen is saturated,
and automatically adjust the brightness, so you can see the screen. (LED Type)
- IR OPT. LEVEL: Enable user to set up IR OPTIMIZER level (0~15 level) (LED Type)
- INITIAL: Enables user to reset the DAY&NIGHT menu.
20
