KT&C KPC-HDX210 User manual

HD CCTV
Digital Video Camera
OPERATION MANUAL
Thank you for choosing our high quality camera.
Before attempting to connect or operate, please read and follow
these instructions.
M133-HDX210-001

These servicing instructions are for use by qualied service personnel only.
To reduce the risk of electric shock do not perform any servicing other than
that contained in the operating instructions unless you are qualied to do so.
Use Class 2 Power Supply Only
CAUTION
2

CONTENTS
1. CAUTIONS
2. IMPORTANT SAFETY INSTRUCTION
3. FEATURES
4. EQUIPMENT AND ACCESSORIES
5. CAMERA COMPONENT DESCRIPTIONS
6. INSTALLATION
7. DIMENSIONS
8. SPECIFICATION
9. OSD MANUAL
3

4
1. CAUTIONS
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions;
1. This device may not cause harmful interference.
2. This device must accept any interference received,
including interference that may cause undesired operation.
Note
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated
in a commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own expense.”
WARNING
This is a class A product. In a domestic environment this product may cause radio
interference in which case the user may be required to take adequate measures.
Caution
Any changes or modications in construction of this devices which are not expressly
approved by the party responsible for compliance could void the user’s authority to
operate the equipment.
1. A regulated DC12V 1A power supply is recommended for use with this camera
for the best picture and the most stable operation.
An unregulated power supply can cause damage to the camera.
When unregulated power supply is applied, product warranty will be out of subject.
2. It is recommended that the camera is used with a monitor that has a CCTV quality
75 video impedance level.
If your monitor is switched to high impedance then please adjust accordingly.
3. Do not attempt to disassemble the camera to gain access to the internal components.
Refer servicing to your dealer.
4. Never face the camera towards the sun or any bright or reective light, which may
cause smear on the picture and possible damage to the CCD.
5. Do not remove the serial sticker for the warranty service.
6. Do not expose the camera to rain or other types of liquid.
7. The apparatus must be connected to a mains socket-outlet with a protective earthing
connection.
CAUTIONS

1. CAUTIONS
5

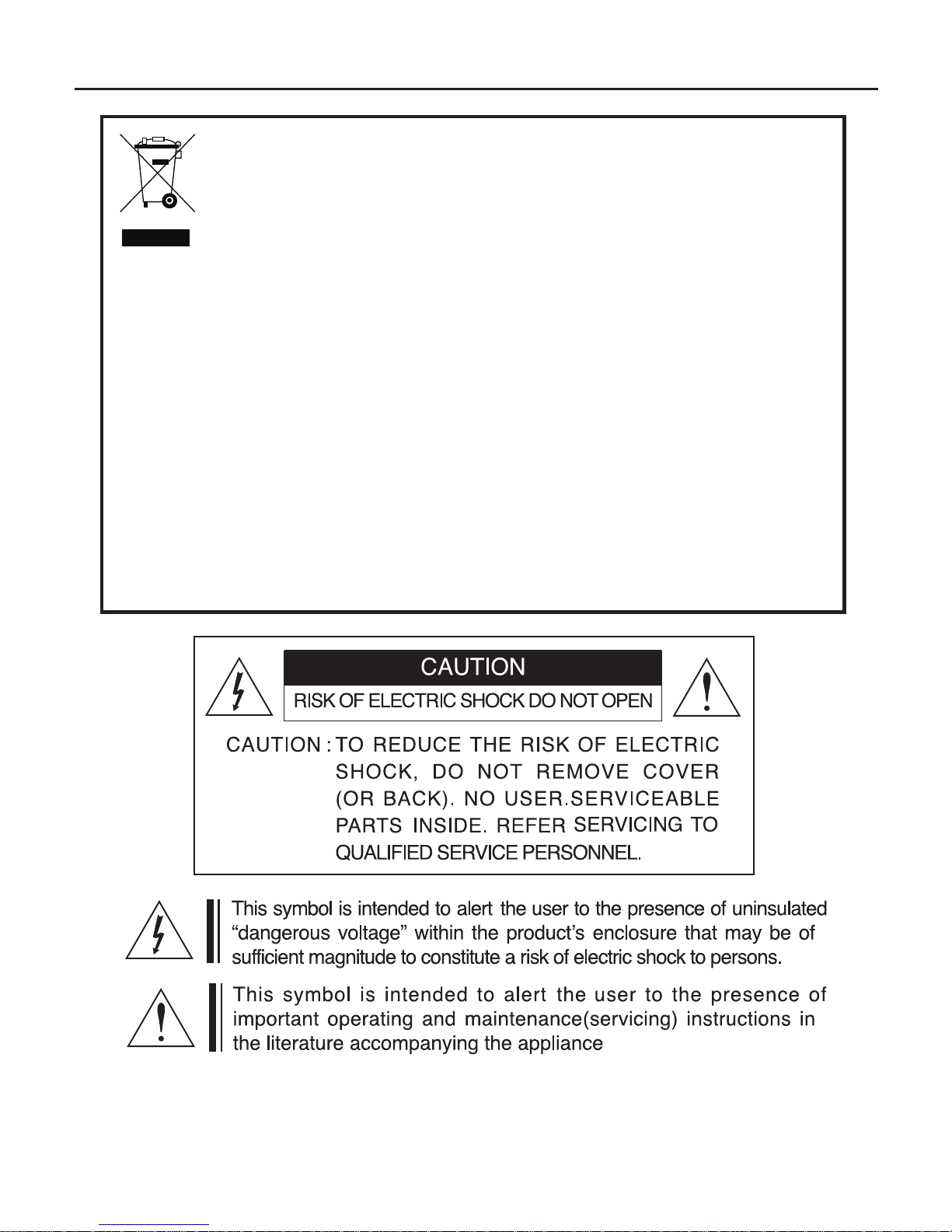

Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries with
separate collection systems)
This marking shown on the product or its literature, indicate that it should not
be disposed with other household wastes at the end of its working life. To
prevent possible harm to the environment or human health from uncontrolled
waste disposal, please separate this from other types of wastes and recycle it
responsibly to promote the sustainable reuse of material resources.
This product should not be mixed with other commercial wastes purchased this
product, or their local government ofce, for details of where and how they can
take item for environmentally safe recycling.
Business users should contact their supplier and check the terms and
conditions of the purchase contract.
Household users should contact either the retailer where they for disposal.

2. IMPORTANT SAFETY INSTRUCTION
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance
with the manufacturer’s instructions.
8) Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including ampliers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. A grounding type
plug has two blades and a third grounding prong. The wide blade or the third
prong are provided for your safety. If the provided plug does not t into your
outlet, consult an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories specied by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specied by
the manufacturer, or sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus combination to
avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long
periods of time.
14) Refer all servicing to qualied service personnel. Servicing is required when
the apparatus has been damaged in any way, such as power-supply cord
or plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
6

3. FEATURES
• High Resolution.
1/3” SONY Progressive Color CMOS Image Sensor,
1920 x 1080 60fps
• Support various digital video output.
720p30, 720p60, 720p25, 720p50,
1080i60, 1080i50,
1080p30, 1080p25
• Video Output.
Primary HD-SDI (BNC)
Test / Setup TV Out (BNC), NTSC / PAL selectable.
• Support RS485 Communucation Protocol for
Camera Configuration Remote Control.
• OSD menu for setup and configuration.
• Lens Control.
Manual Iris,
DC Iris (or Video Iris : factory selectable).
• Provides True Day/Night Capability with Motorized IR Cut Filter.
• Accepts CS Mount Lenses
Adapter included for C-Mount Lens.
• Power Source
DC 12V / AC 24V
7

4. EQUIPMENT AND ACCESSORIES
HD CCTV
Digital Video Camera
AUTO IRIS LENS
CONNECTION PLUG
C-MOUNT ADAPTOR RING
OPERATION MANUAL
TERMINAL BLOCK
8
* NOTE
PLEASE REMOVE PROTECTION FILM
HDcctv 1.0
OUTPUT
AC 24V
DC 12V

5. CAMERA COMPONENT DESCRIPTIONS
• FRONT
9

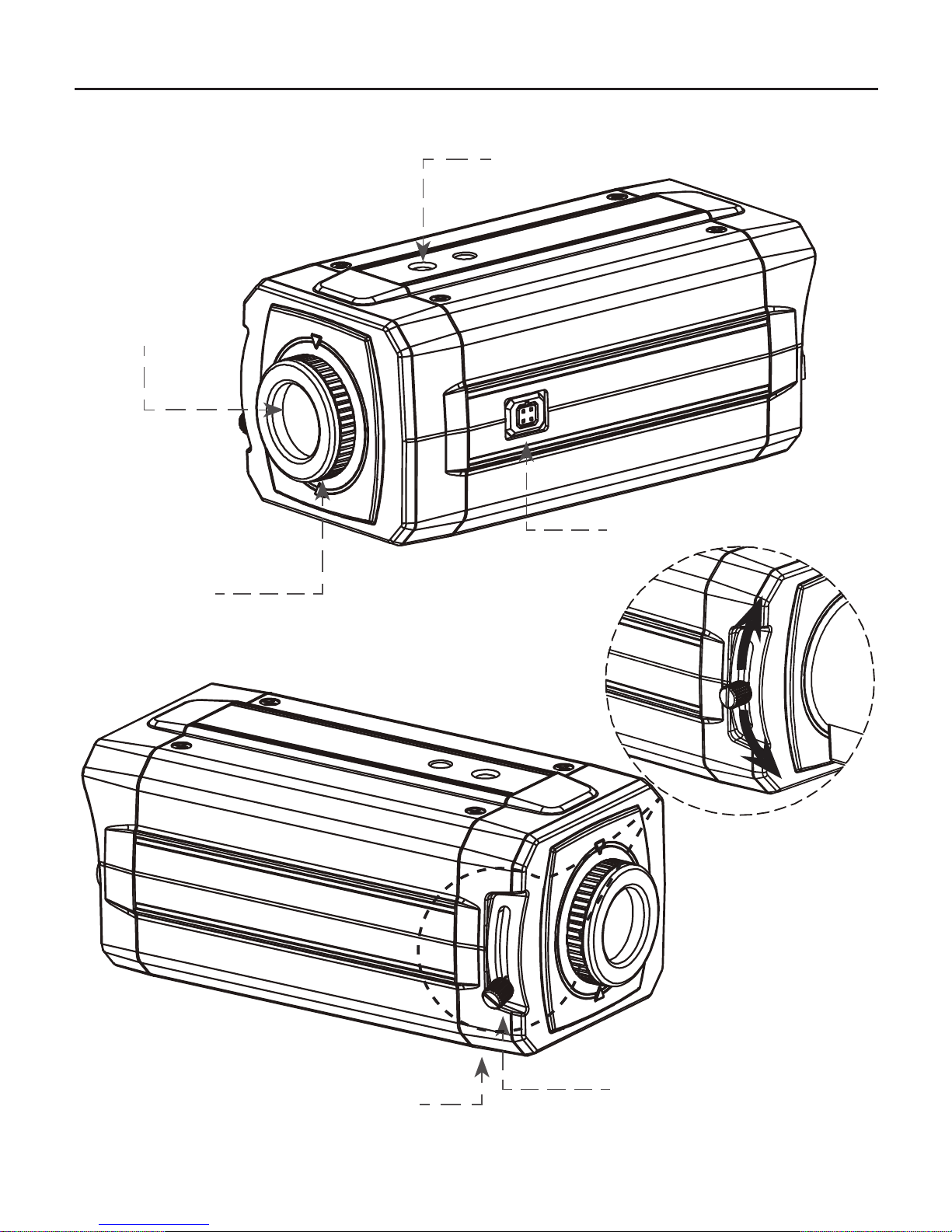

TRIPOD MOUNTING HOLE(1/4"-20 UNC)
AUTO IRIS JACK
MOUNT COVER
C-MOUNT
ADAPTOR RING
(Optional use for C-Mount lens only)
TRIPOD MOUNTING HOLE(1/4"-20 UNC) BACK FOCUS CONTROL LEVER

5. CAMERA COMPONENT DESCRIPTIONS

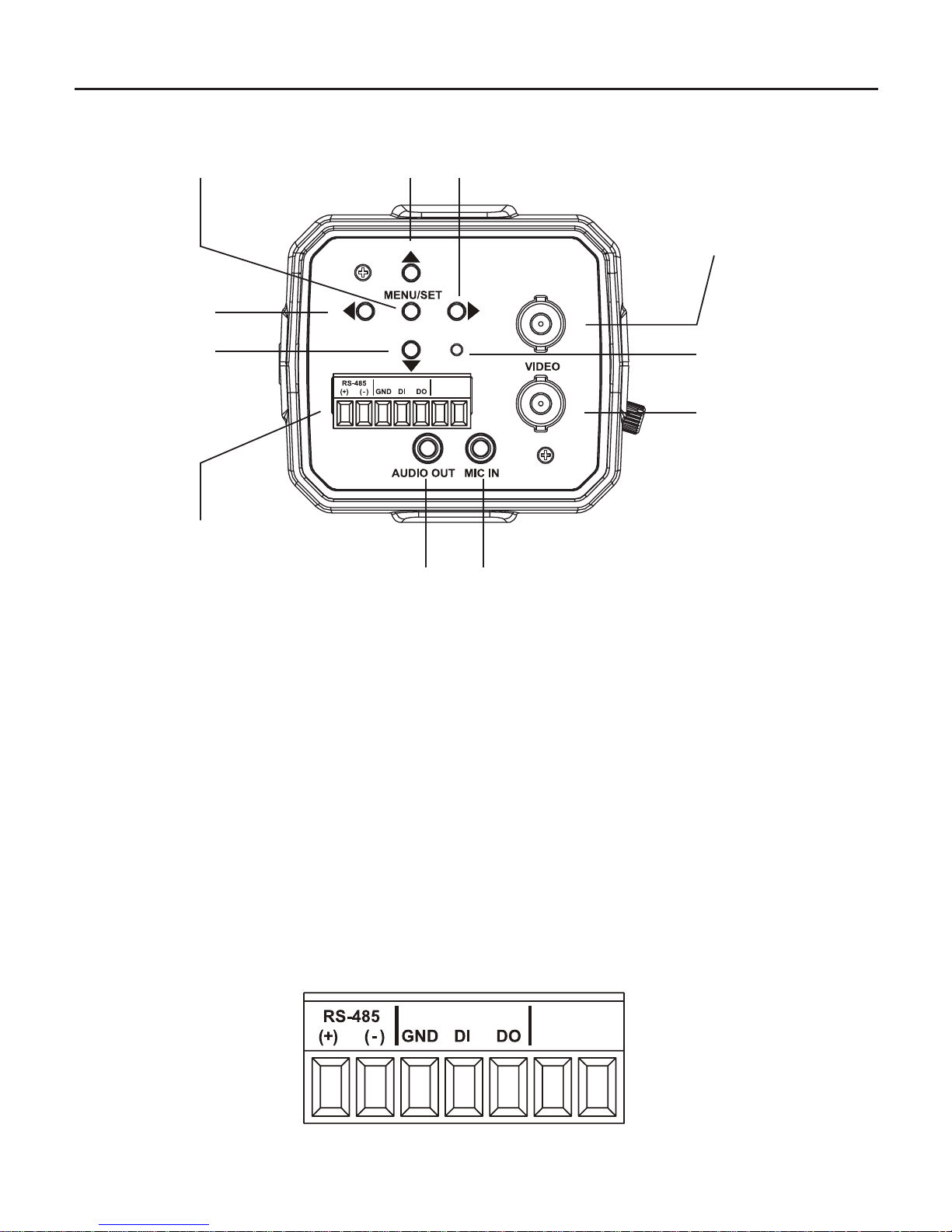

• BACK
①. MENU SET BUTTON
MENU NAVIGATION BUTTONS
②. UP BUTTON
③. DOWN BUTTON
④. LEFT BUTTON
⑤. RIGHT BUTTON
⑥. POWER LED
⑦. SDI OUT BNC
⑧. VIDEO OUT BNC
⑨. MIC IN JACK
⑩. AUDIO OUT JACK (TBD)
⑪. TERMINAL (POWER, RS-485, Digital Input/Output)
10
① ②
③
④
⑤
⑥
⑦
⑧
⑨⑩
⑪
HDcctv 1.0
OUTPUT
AC 24V
DC 12V
AC 24V
DC 12V

11
6. INSTALLATION
• LENS CONNECTION
Mega Pixel Lenses are sold separately. Lenses such as an auto iris lens,
CS-Mount lens and C-Mount lens can be used (adapter included for C-Mount Lens).
NOTE
• Please keep the lens clean.
• Any foreign objects and Finger marks on the lens can cause
inferior image quality in low light level conditions.
When using an auto iris lens

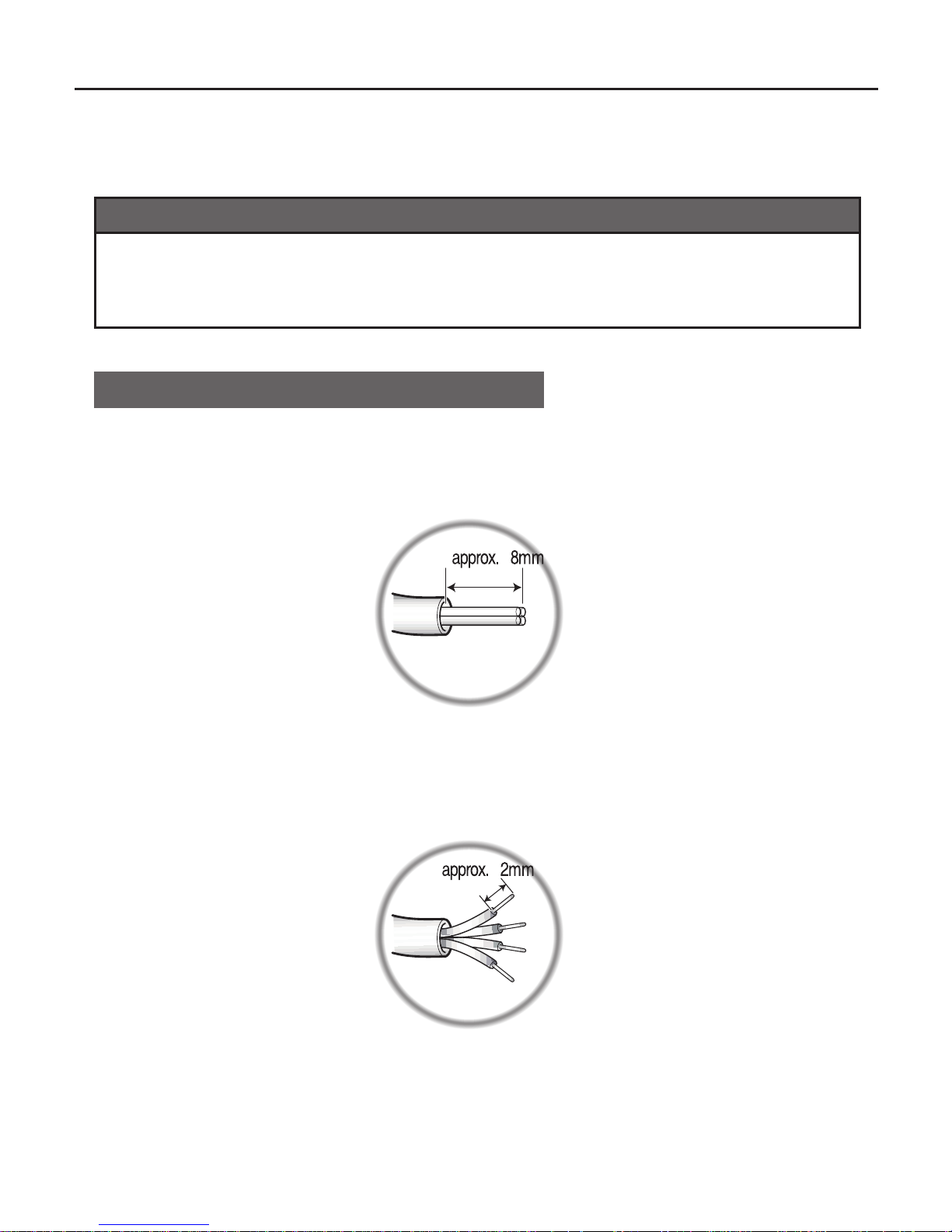

1. Please peel off about 8mm of the outer skin of the auto iris lens cable.
2. Please peel off about 2mm of the outer skin of the insulated conductor
inside the lens cable.

12
6. INSTALLATION
3. Please remove the cover of the auto iris lens connection plug and
solder the lens cable to the connector pin in the plug.
* PIN ASSIGNMENT OF THE LENS CONNECTOR
1) Video auto iris lens
Pin 1: Power source(DC 12V)
Pin 2: N.C(Not used)
Pin 3: Video signal
Pin 4: Shield, GND(Ground)
2) DC auto iris lens
Pin 1: DAMP-(CTL-)
Pin 2: DAMP+(CLT+)
Pin 3: DRV+
Pin 4: DRV-(GND)
4. Please replace the auto iris lens connection plug cover and take off the sensor
protection cap and then attach the auto iris lens to the camera by screwing it in
clockwise.

6. INSTALLATION
5. Please insert the connection plug from the auto iris lens cable into the auto
lens connector, which is located on the side of the camera.
13
C-mount lens : 10mm or less
CS-mount lens : 5mm or less
*NOTE
When using a CS-Mount Lens, you can attach it directly to camera.
If using a C-Mount Lens, you must attach the ring spacer provided,
otherwise if will crack the image sensor.

6. INSTALLATION

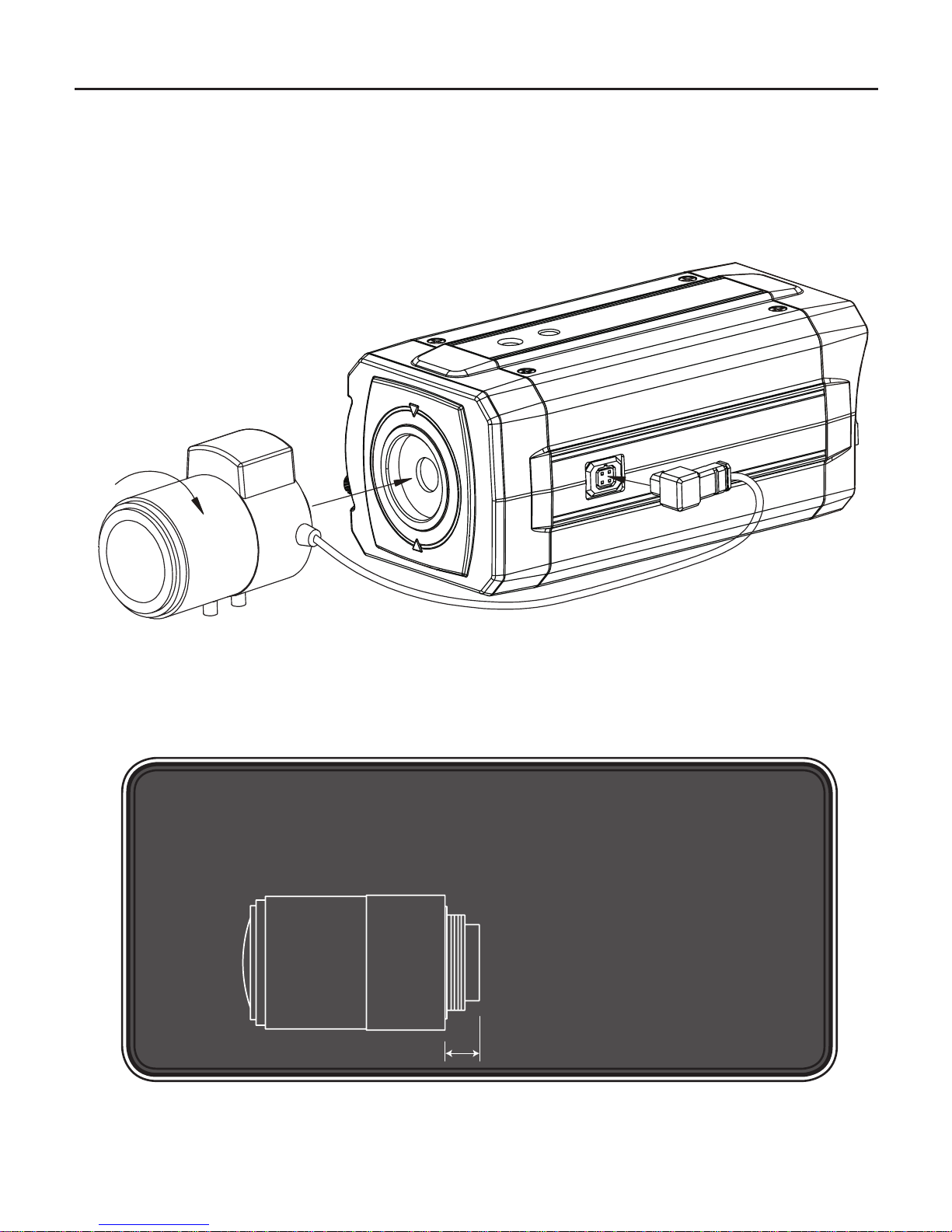

Installation of C-Mount Lens
Installation of CS-Mount Lens
14
C-MOUNT ADAPTOR RING

15
6. INSTALLATION
• MONITOR CONNECTION
DC12V / AC24V REGULATED
POWER SUPPLY
BNC FEMALE
VIDEO
To VIDEO IN
To HD - SDI IN
HDcctv DVR
or Other
HDcctv Signal
Equipment
Hand - Held
Test Monitor
HDcctv 1.0
OUTPUT
AC 24V
DC 12V

16

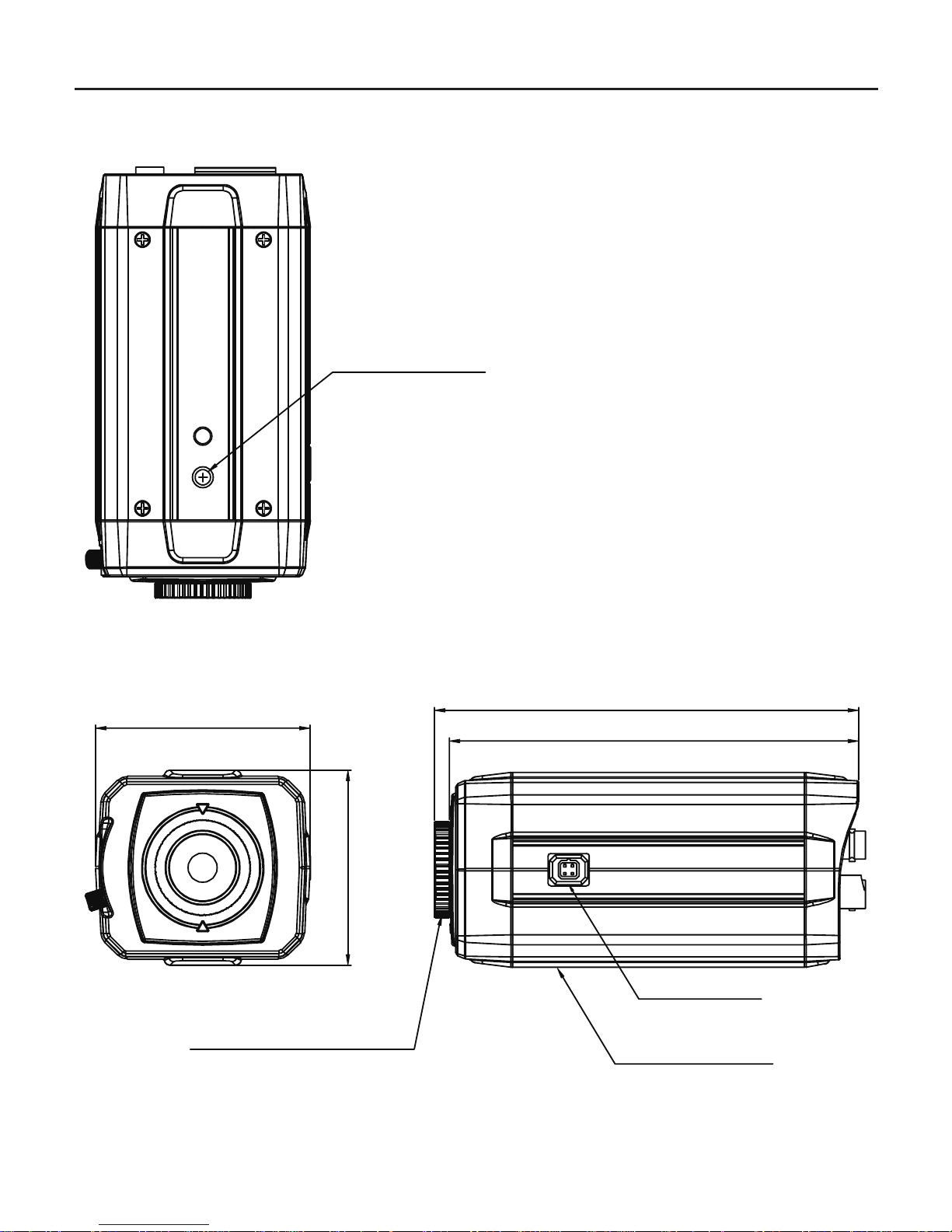

7. DIMENSIONS
Unit(mm)
143.5(C-Mount)
138.5(CS-Mount)
AUTO IRIS JACK
MOUNTING HOLE
C-MOUNT ADAPTOR RING
(Optional use for C-Mount lens only)
72.5
66
MOUNTING HOLE
(1/4"-20 UNC, Depth 5)

8. SPECIFICATION
Image Device SONY 1/3” Progressive Color CMOS Image Sensor
Effective Pixels 2096(H) x 1561(V) 60fps
Unit cell size 2.5um(H) x 2.5um(V)
Video output mode
HD-SDI : 720p30, 720p60, 720p25, 720p50,
1080i60, 1080i50,
1080p30, 1080p25
TV Out : NTSC / PAL selectable
Minimum illumination 1.0 Lux
S/N Ratio Max 50dB
Shutter speed Auto / Manual selectable
Min. Exposure Time 1/10000 sec
Flickerless Off / 60Hz(50Hz) selectable
True Day/Night IR Cut / Pass Filter change
White Balance ATW / Manual / Specific Color / Push
BLC On / Off (by OSD)
WDR On / Off (by OSD)
Lens Control Manual Iris, DC Iris (or Video Iris : factory setting only)
Privacy Mask On / Off selectable & Position controlable each 15 Zone
OSD Menu Yes
Power
Consumption DC 12V (±10%) Max. 500mA
AC 24V (±10%) Max. 6W
Dimension (W x H x D) 72.5mm x 66mm x 138.5mm
Weight 450g
Lens Mount CS / C-mount
Conformity CE, FCC, KC, HDcctv Alliance Base-Line Compliance
Temperature/Humidity
(non-condensing) Operation : -10~50 / 20~80%
Storage : -20~70 / 20~95%
Specications and designs are subject to change for improving the functionality of this product without notice.
17

18
9. OSD MANUAL
• Menu structure
- Main Menu
- VIDEO OUT Menu
SYSTEM
VIDEO OUT
LENS
EXPOSURE
WHITE BALANCE
DAY / NIGHT
VIDEO SDI RESOLUTION
SDI FRAME RATE
CDBS FORMAT
VIDEO APPLY
30HZ / 25HZ
NTSC / PAL
30HZ / 25HZ / 60HZ / 50HZ
60HZ / 50HZ
1080P / 1080I / 720P
1080P
720P
1080i

9. OSD MANUAL
- LENS Menu
- EXPOSURE Menuv
19
LENS LENS TYPE
IRIS VOLUME 0 ~ 50
DC IRIS (VIDEO IRIS) / MANUAL IRIS
EXPOSURE SHUTTER
AGC
FLICKERLESS
BRIGHTNESS
BLC
WDR
0 ~ 186
OFF / 50HZ / 60HZ
0 ~ 255
ON / OFF
ON / OFF
SHUTTER MODE
AE PRIORITY
USER MODE
GAIN LEVEL
SHUTTER
LEVEL
1 ~ 4
1 ~ 150
1 ~ 160
GAIN LEVEL
SHUTTER LEVEL 1 ~ 160
NORMAL AE / AE HOLD / MANUAL
NORMAL / GAIN / SHUTTER
0 DB / 1.2 DB / 3.31 DB
5.12 DB / 6.92 DB / 9.33 DB /
11.14 DB / 12.94 DB /
15.34 DB / 17.16 DB /
18.96 DB / 21.37 DB /
23.18 DB / 24 DB /
27.09 DB / 29.2 DB
NORMAL AE
NORMAL
GAIN
SHUTTER

9. OSD MANUAL
- WHITE BALANCE Menu
- DAY / NIGHT Menu
WHITE BALANCE WB MODE
R GAIN
ATW MODE
0 ~ 255
INDOOR / OUTDOOR
B GAIN
TARGET TEMP
0 ~ 255
1500K / 1567K / 1641K / 1721K /
1810K / 1909K / 2019K / 2143K /
2283K / 2442K / 2625K / 2838K /
3088K / 3387K / 3750K / 4200K /
4773K / 5526K / 6563K / 8077K /
10500K / 15000K
ATW / MANUAL / SPECIFIC COLOR / PUSH
ATW
MANUAL
SPECIFIC
COLOR
DAY & NIGHT DAY & NIGHT
DAY THRESHOLD
DELAY TIME
NIGHT THRESHOLD
AUTO / BW / COLOR
AUTO
0 ~ 255
0 SEC ~ 10 SEC
0 ~ 255
20
