KTM 125 EXC EU 2014 Manual

SETUP INSTRUCTIONS 2014
125 EXC EU
125 EXC SIX DAYS EU
200 EXC EU
200 EXC AUS
200 XC‑W USA
250 EXC EU
250 EXC AUS
250 EXC SIX DAYS EU
250 XC‑W USA
300 EXC EU
300 EXC AUS
300 EXC SIX DAYS EU
300 XC‑W USA
300 XC‑W SIX DAYS USA
Art. no. 3213130en

INTRODUCTION 1
INTRODUCTION
The work described in these setup instructions must be performed before the vehicle is delivered to the customer.
Read the setup instructions in their entirety before beginning work.
Print out the current PDI form found on the KTM DEALER.NET.
These setup instructions were written to correspond to the latest state of this series. We reserve the right to make changes in the inter-
est of technical advancement without at the same time updating these setup instructions.
We shall not provide a description of general workshop methods. Likewise, safety rules that apply in a workshop are not specified here.
It is assumed that the work will be performed by a fully trained mechanic.
All specifications are non-binding. KTM Sportmotorcycle AG specifically reserves the right to modify or delete technical specifica-
tions, prices, colors, forms, materials, services, designs, equipment, etc., without prior notice and without specifying reasons, to adapt
these to local conditions, as well as to stop production of a particular model without prior notice. KTM accepts no liability for delivery
options, deviations from illustrations and descriptions, as well as misprints and other errors. The models portrayed partly contain spe-
cial equipment that does not belong to the regular scope of supply.
© 2013 KTM-Sportmotorcycle AG, Mattighofen Austria
All rights reserved
Reproduction, even in part, as well as copying of all kinds, is permitted only with the express written permission of the copyright
owner.
ISO 9001(12 100 6061)
According to the international quality management standard ISO 9001, KTM uses quality assurance processes that lead
to the maximum possible quality of the products.
Issued by: TÜV Management Service
KTM-Sportmotorcycle AG
5230 Mattighofen, Austria

1 MEANS OF REPRESENTATION 2
1.1 Symbols used
The meaning of specific symbols is described below.
Indicates an expected reaction (e.g. of a work step or a function).
Indicates an unexpected reaction (e.g. of a work step or a function).
Indicates a page reference (more information is provided on the specified page).
Indicates information with more details or tips.
Indicates the result of a testing step.
Denotes a voltage measurement.
Denotes a current measurement.
Denotes a resistance measurement.
1.2 Formats used
The typographical formats used in this document are explained below.
Proprietary name Identifies a proprietary name.
Name®Identifies a protected name.
Brand™ Identifies a trademark.

2 SETUP 3

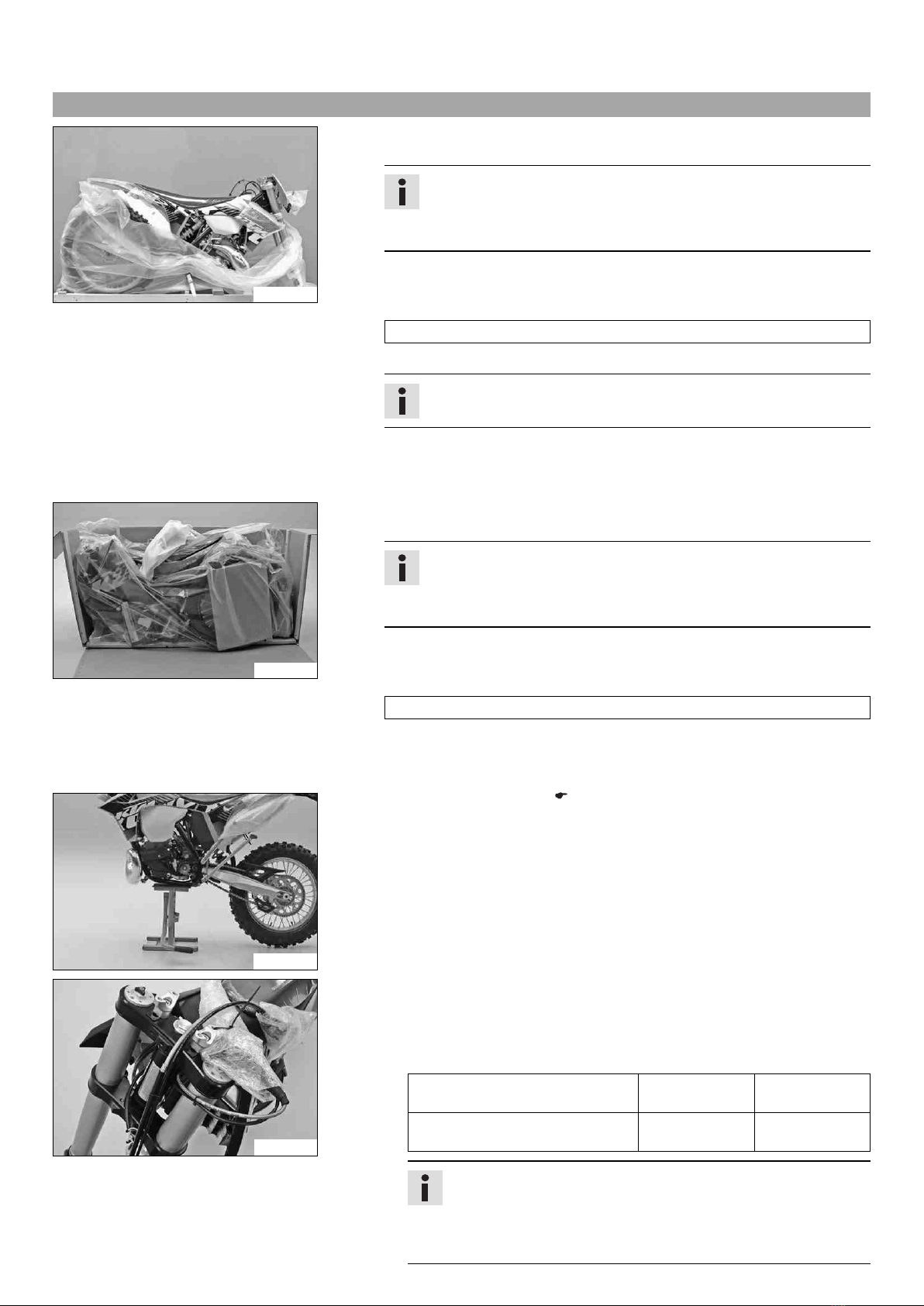

2.1 Unpacking and setting up the vehicle
B00887-01
Packaging 2
–Remove the box and the plastic packaging.
Info
An assistant prevents the motorcycle from falling over.
To avoid damaging the motorcycle during the setup, leave the protective
film on the vehicle until you have finished.
–Remove the separate enclosure and unpack it. Check that the scope of supply
is complete on the basis of the enclosed packing list.
–Have a lift stand available.
Lift stand (54829055000)
–Carefully loosen and remove the tension belt of the footrest mount.
Info
An assistant prevents the motorcycle from falling over.
–Together with an assistant, take the vehicle off the palette.
–Position the vehicle on a lift stand.
–Check the vehicle for transport damage.
600811-10
Package 12
–Remove the box and the plastic packaging.
Info
An assistant prevents the motorcycle from falling over.
To avoid damaging the motorcycle during the setup, leave the protective
film on the vehicle until you have finished.
–Remove the separate enclosure and unpack it. Check that the scope of supply
is complete on the basis of the enclosed packing list.
–Have a lift stand available.
Lift stand (54829055000)
–Together with an assistant, take the vehicle off the palette.
–Position the vehicle on a lift stand.
–Check the vehicle for transport damage.
B00902-01
–Install the shock absorber. ( p. 11)
600814-01
–Route the clutch line with the clutch master cylinder toward the front between
the upper and lower triple clamps.
(125 EXC EU, all 200 models, 250/300 EXC EU, XC-W, EXC AUS)
–Position the fork legs and tighten the screws of the triple clamp.
Guideline
Screw, top triple clamp M8 20 Nm
(14.8 lbf ft)
Screw, bottom triple clamp M8 15 Nm
(11.1 lbf ft)
Info
Grooves are milled into the side of the top end of the fork legs. The
second milled groove (from the top) in the fork leg must be flush
with the top edge of the upper triple clamp.
Position the bleeder screws toward the front.

2 SETUP 4
(250/300 SIX DAYS, 125 EXC SIX DAYS EU)
–Position the fork legs and tighten the screws of the triple clamp.
Guideline
Screw, top triple clamp M8 17 Nm
(12.5 lbf ft)
Screw, bottom triple clamp M8 15 Nm
(11.1 lbf ft)
Info
The rebound damping is located in the right fork leg REB (red
adjusting screw). The compression damping is located in the left
fork leg COMP (white adjusting screw).
Grooves are milled into the side of the top end of the fork legs. The
topmost milled groove must be flush with the top edge of the upper
triple clamp.
Position the bleeder screws toward the front.
101488-10
–Remove screws 1. Take off the handlebar clamps.
–Remove screws 2. Take off the handlebar supports.
–Place the handlebar supports in the required position. Mount and tighten
screws 2.
Guideline
Screw, handlebar support M10 40 Nm
(29.5 lbf ft)
Loctite®243™
Info
Position the left and right handlebar supports evenly.
600824-10
–Position the handlebar.
Info
Make sure the cables and wiring are positioned correctly.
–Position the handlebar clamps. Mount and tighten the screws evenly.
Guideline
Screw, handlebar clamp M8 20 Nm
(14.8 lbf ft)
Info
The markings on the handlebar should be at the center of the handlebar
clamps.
Keep the gap widths equal when tightening.
–Position the speedometer and connector board. Mount and tighten screws.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
B01751-01

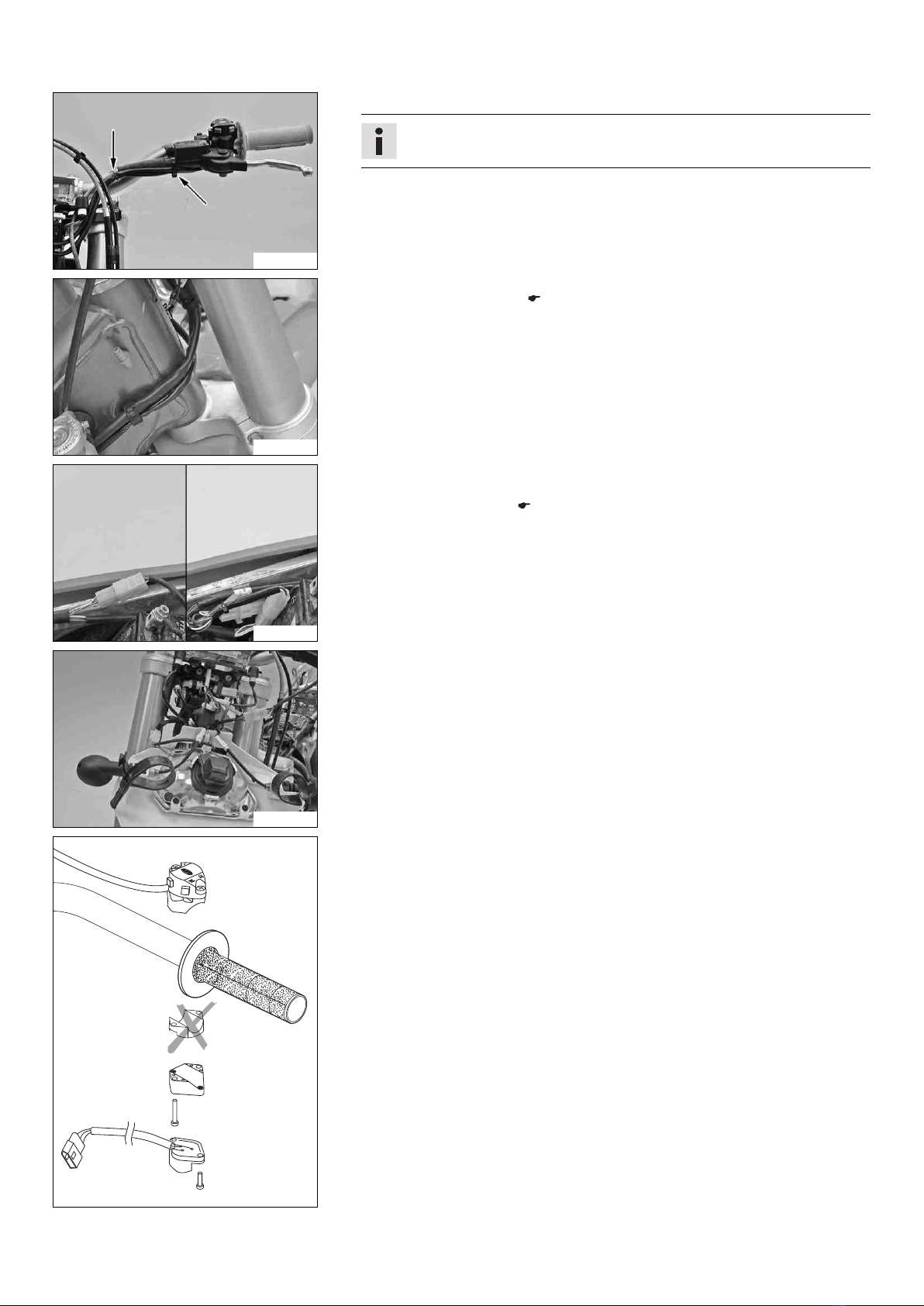

–Position the controls on the right half of the handlebar.
Info
The routing of the cables can be seen in the figure.

2 SETUP 5
B01752-01
–Position the controls on the left half of the handlebar.
Info
The figure shows how to route the clutch line and wiring harness.
B01749-01
(All EXC models)
–Remove the fuel tank. ( p. 9)
–Position the turn signal wiring harness against the main wiring harness and
secure with cable binders.
B01750-01
–Disconnect the plug-in connection from the main wiring harness and connect
the turn signal wiring harness.
–Install the fuel tank. ( p. 10)
B01753-01
–Insert the black and violet cables of bulb included in the separate enclosure
into the socket and position it in the turn signal indicator lamp.
–Position the turn signal on each side and mount and tighten nuts.
–Connect plug-in connection of the right turn signal using the black and brown
cable colors.
–Connect plug-in connection of the left turn signal using the violet and brown
cable colors.
401382-01
–Mount the turn signal switch.

2 SETUP 6
B00904-11

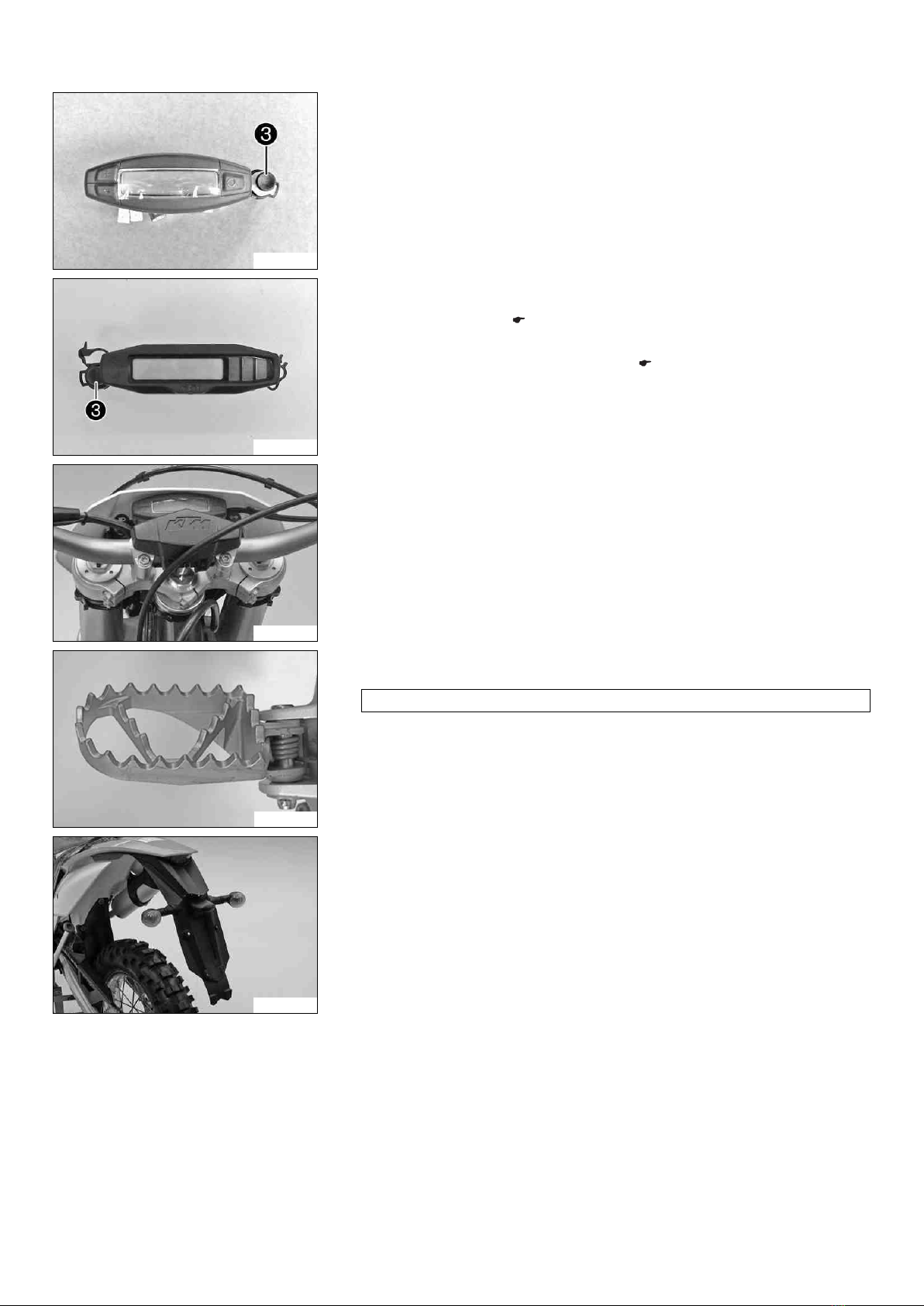

(XC-W)

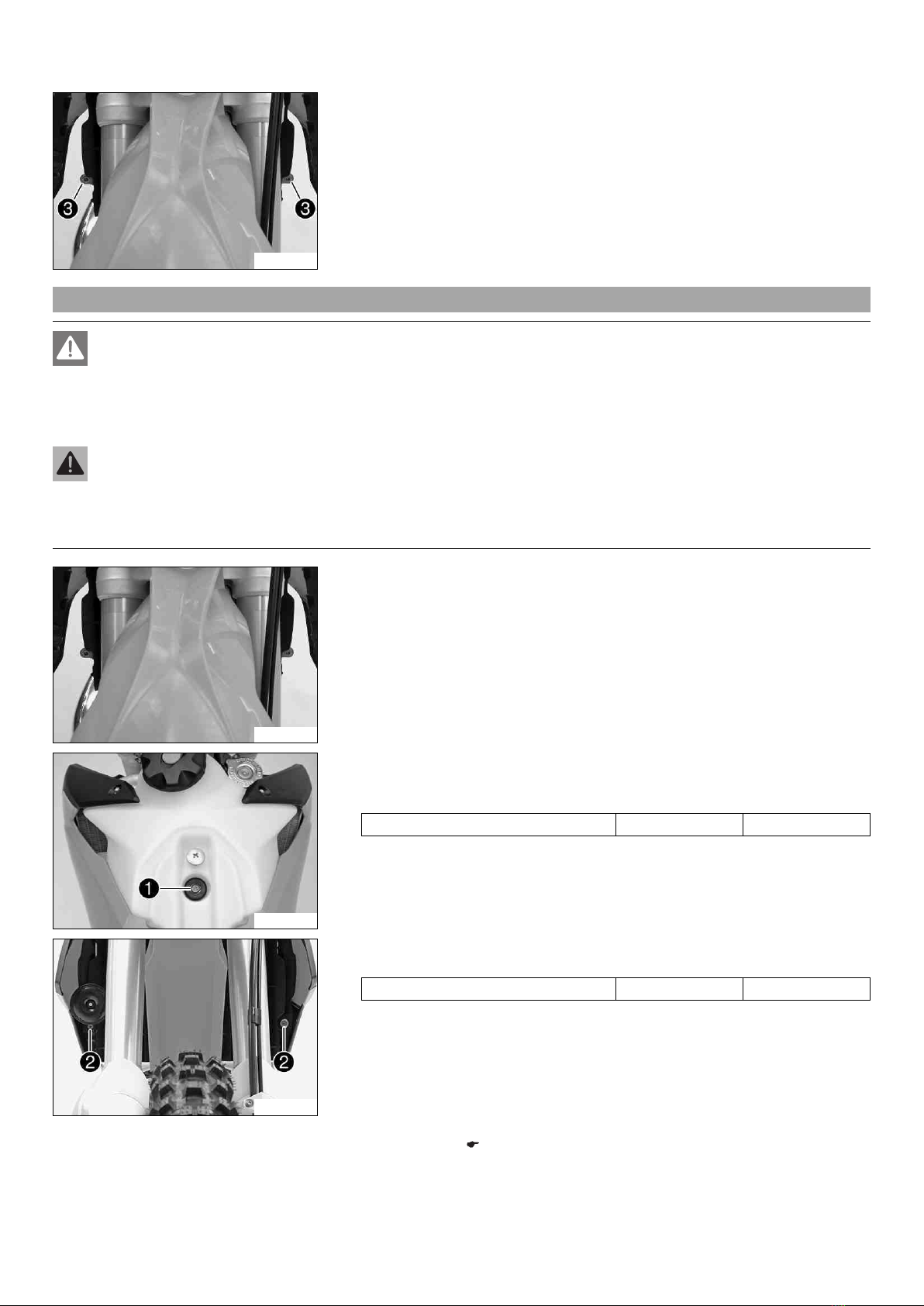

–Connect pull switch 3with the yellow and white cables.
B01747-10
(300 XC‑W SIX DAYS USA)
–Connect pull switch 3with the yellow and white cables.
–Install the front fender. ( p. 13)
–Correctly mount the fuel tank breather.
–Refit the headlight mask with the headlight. ( p. 14)
B00907-01
–Mount the handlebar cushion.
800042-10
–Mount the footrests with the springs and pins. Secure the pins using the washers
and cotter pins.
Pliers for footrest spring (58429083000)
B00908-01
(All EXC models)
–Mount the license plate holder with the license plate lamp, turn signals, and
reflector.
–Connect the electrical components.
–Connect plug-in connection of the right turn signal using the black and brown
cable colors.
–Connect plug-in connection of the left turn signal using the violet and brown
cable colors.

2 SETUP 7
800035-10
(All 200/250/300 models)
Warning
Risk of injury Battery acid and battery gases cause serious chemical
burns.
–Keep batteries out of the reach of children.
–Wear suitable protective clothing and goggles.
–Avoid contact with battery acid and battery gases.
–Keep sparks and open flames away from the battery. Only charge in
well-ventilated rooms.
–In the event of skin contact, rinse with large amounts of water. If
battery acid gets in the eyes, rinse with water for at least 15 minutes
and contact a physician.
–Fill the battery.
Info
Read the notes in the battery package.
–Recharge the battery. ( p. 12)
–Install the battery. ( p. 13)
B00097-01
–Unpack and mount the KTM PowerParts included in the delivery (optional).
Info
Read the accompanying KTM PowerParts fitting instructions.
–Apply the label included in the delivery (optional).
101037-01
(All EXC models)
–Mount the mirror clamps on both sides.
B00909-01
–Mount and tighten the rear mirror on both sides.
–Mount the reflector.
(125 EXC EU, all 200 models, 250/300 EXC EU, XC-W, EXC AUS)

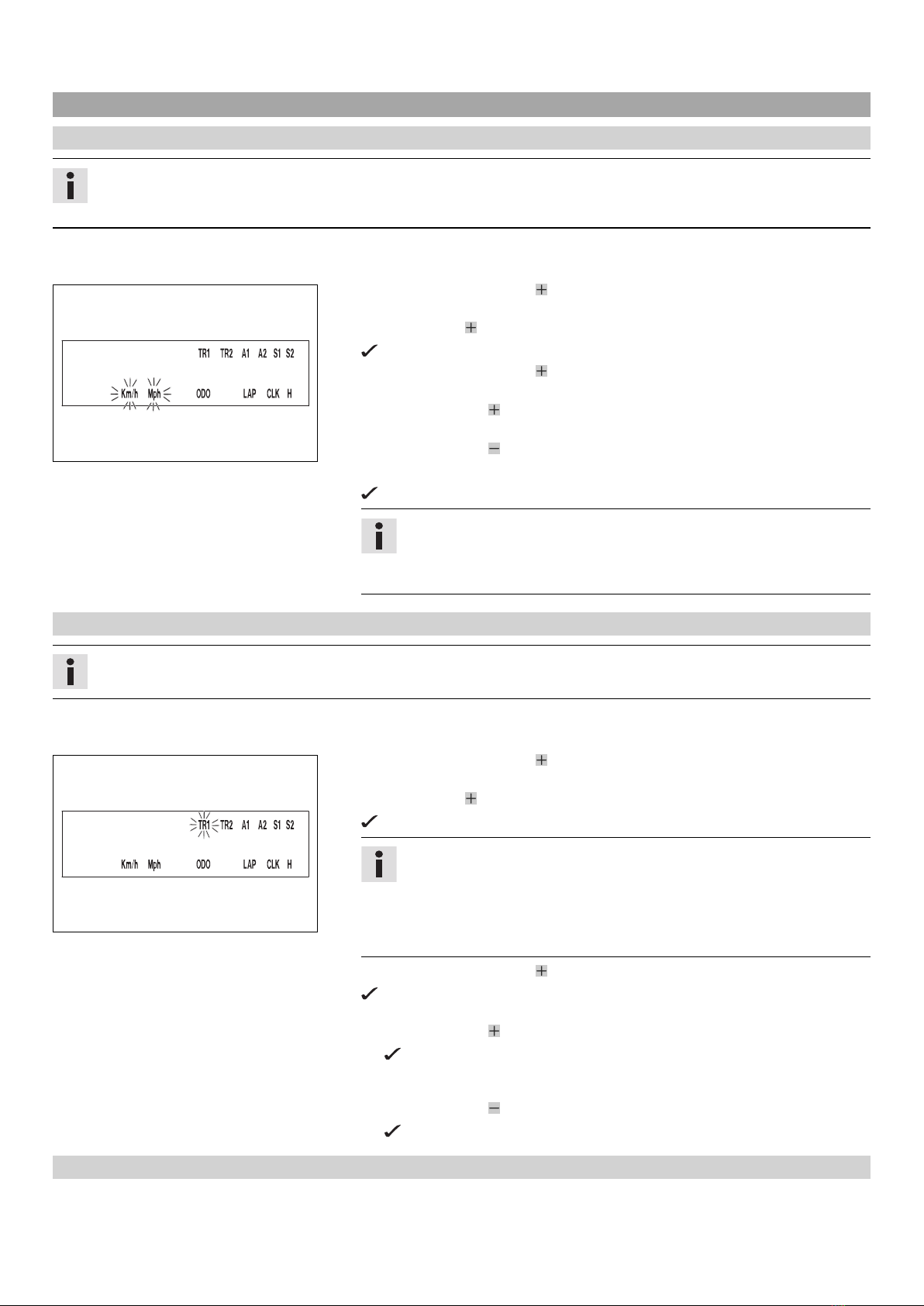

–Set kilometers or miles. ( p. 16)
–Adjust the speedometer functions. ( p. 17)
–Set the clock. ( p. 17)
(250/300 SIX DAYS, 125 EXC SIX DAYS EU)
–Set kilometers or miles. ( p. 18)
–Set the speedometer functions. ( p. 18)
–Set the clock. ( p. 18)
–Position all controls in their exact positions on the handlebar. Tighten all screws.
–Refuel. ( p. 16)
–Print out the current PDI form found on KTM DEALER.NET and perform the
pre-delivery inspection.

3 WORK 8

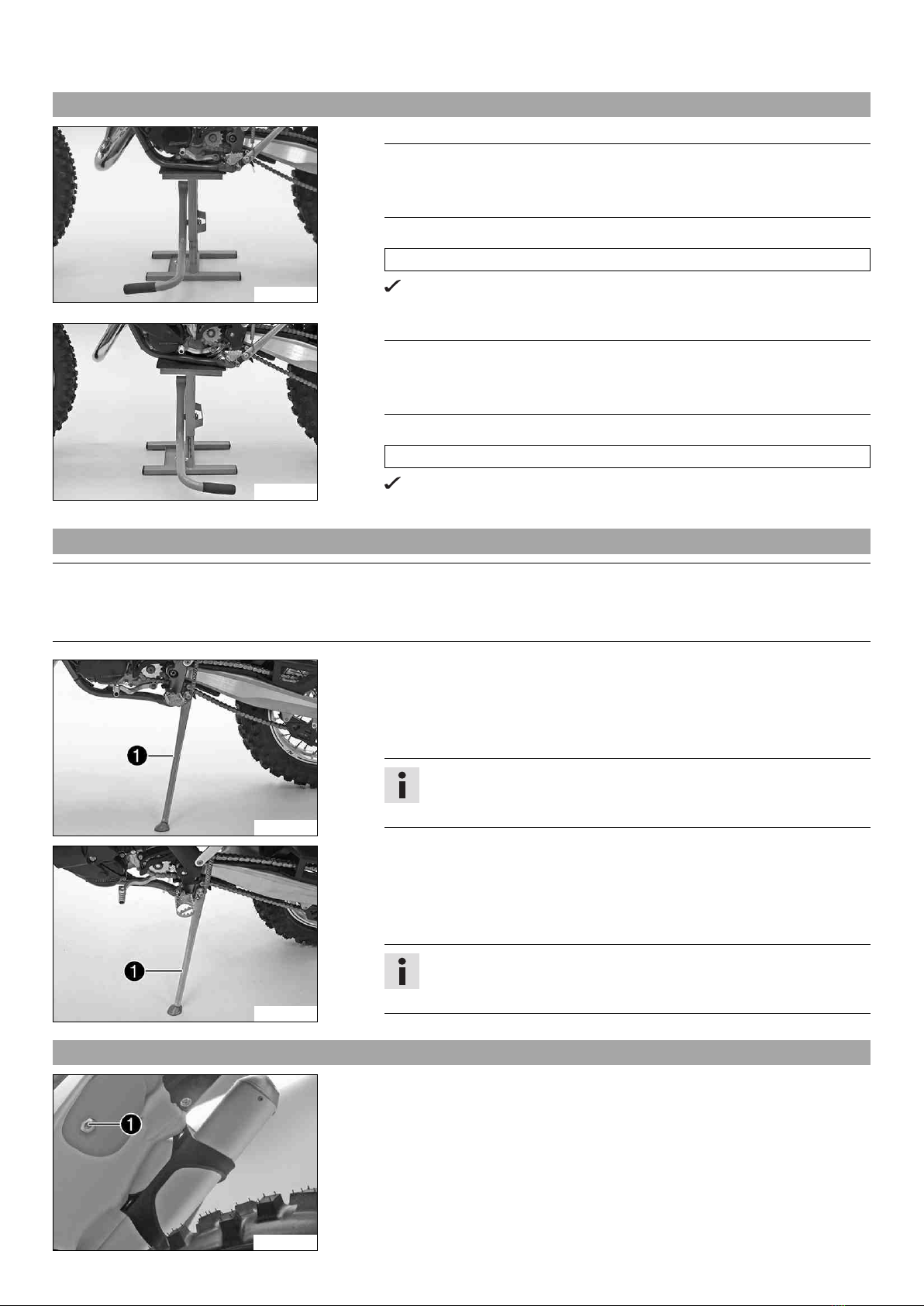

3.1 Raising the motorcycle with the lift stand
602730-01
(All 125/200 models)
Note
Danger of damage The parked vehicle may roll away or fall over.
–Always place the vehicle on a firm and even surface.
–Raise the motorcycle at the frame underneath the engine.
Lift stand (54829055000)
The wheels must no longer touch the ground.
–Secure the motorcycle against falling over.
602709-01
(All 250/300 models)
Note
Danger of damage The parked vehicle may roll away or fall over.
–Always place the vehicle on a firm and even surface.
–Raise the motorcycle at the frame underneath the engine.
Lift stand (54829055000)
The wheels must no longer touch the ground.
–Secure the motorcycle against falling over.
3.2 Removing the motorcycle from the lift stand
Note
Danger of damage The parked vehicle may roll away or fall over.
–Always place the vehicle on a firm and even surface.
602731-10
(All 125/200 models)
–Remove the motorcycle from the lift stand.
–Remove the lift stand.
–To park the motorcycle, press side stand 1to the ground with your foot and
lean the motorcycle on it.
Info
When you are riding, the side stand must be folded up and secured with
the rubber band.
602704-10
(All 250/300 models)
–Remove the motorcycle from the lift stand.
–Remove the lift stand.
–To park the motorcycle, press side stand 1to the ground with your foot and
lean the motorcycle on it.
Info
When you are riding, the side stand must be folded up and secured with
the rubber band.

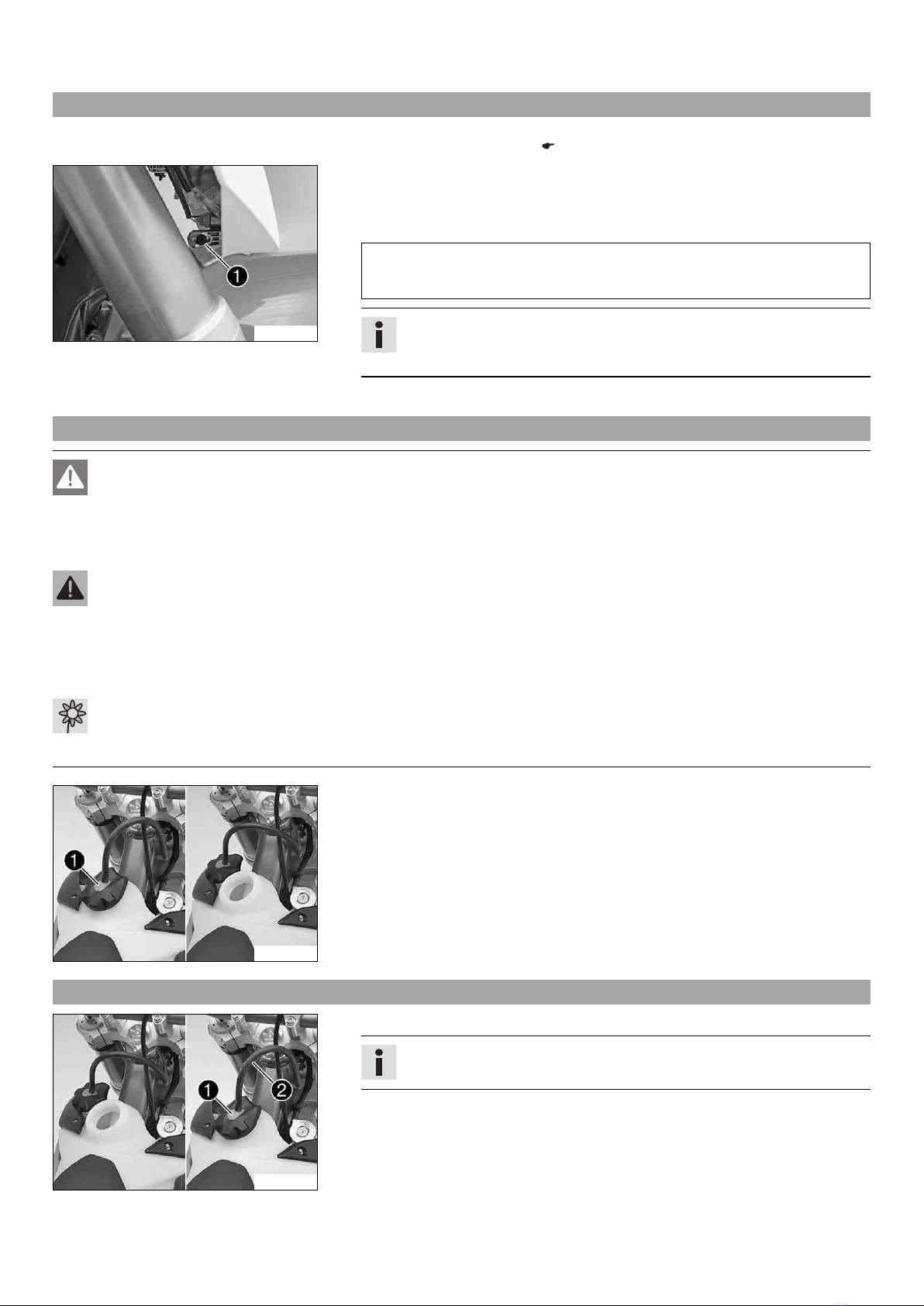

3.3 Removing the seat
B00817-10
–Remove screw 1. Lift up the seat at the rear, pull it back and then remove from
above.

3 WORK 9
3.4 Mounting the seat
602715-01
–Hook in the front of the seat at the collar bushing of the fuel tank, lower at the rear
and simultaneously push forward.
–Make sure that the seat is correctly locked in.
B00817-10
–Mount and tighten screw 1of the seat fixation.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
3.5 Removing the fuel tank
Danger
Fire hazard Fuel is highly flammable.
–Never refuel the vehicle near open flames or burning cigarettes, and always switch off the engine first. Be careful that no
fuel is spilt, especially on hot vehicle components. Clean up spilt fuel immediately.
–The fuel in the fuel tank expands when warm and may emerge if overfilled. Follow the instructions on refueling.
Warning
Danger of poisoning Fuel is poisonous and a health hazard.
–Fuel must not come into contact with the skin, eyes, or clothing. Do not breathe in the fuel vapors. If contact occurs with
the eyes, rinse with water immediately and contact a physician. Immediately clean contaminated areas on the skin with
soap and water. If fuel is swallowed, contact a physician immediately. Change clothing that is contaminated with fuel.
Store fuel properly in a suitable canister and keep away from children.
Preparatory work
–Remove the seat. ( p. 8)
602742-10
Main work
–Turn handle 1of the fuel tap to the OFF position.
–Pull off the fuel hose.
Info
Remaining fuel may run out of the fuel hose.
–Remove screws 1with the collar sleeve.
(All EXC models)
–Hang the horn and horn bracket to one side.
602720-11
–Remove screw 2with the rubber bushing.
–Remove the tube from the fuel tank vent line.

3 WORK 10
602721-10
–Pull both spoilers off of the sides of the radiator bracket 3and lift off the fuel
tank.
3.6 Installing the fuel tank
Danger
Fire hazard Fuel is highly flammable.
–Never refuel the vehicle near open flames or burning cigarettes, and always switch off the engine first. Be careful that no
fuel is spilt, especially on hot vehicle components. Clean up spilt fuel immediately.
–The fuel in the fuel tank expands when warm and may emerge if overfilled. Follow the instructions on refueling.
Warning
Danger of poisoning Fuel is poisonous and a health hazard.
–Fuel must not come into contact with the skin, eyes, or clothing. Do not breathe in the fuel vapors. If contact occurs with
the eyes, rinse with water immediately and contact a physician. Immediately clean contaminated areas on the skin with
soap and water. If fuel is swallowed, contact a physician immediately. Change clothing that is contaminated with fuel.
602721-01
Main work
–Check the routing of the throttle cable.
–Position the fuel tank and fit the two spoilers to the sides of the radiator bracket.
–Make sure that no cables are trapped or damaged.
602720-10
–Mount the fuel tank vent hose.
–Mount and tighten screw 1with the rubber bushing.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
(All EXC models)
–Position the horn with the horn bracket.
602742-11
–Mount and tighten screws 2with the collar sleeve.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
–Connect the fuel hose.
Finishing work
–Mount the seat. ( p. 9)

3 WORK 11
3.7 Installing the shock absorber
602768-11
Main work
(All 125/200 models)
–Push splash protector 1to the side and position the shock absorber. Mount
and tighten screw 2.
Guideline
Screw, top shock
absorber
M12 80 Nm
(59 lbf ft)
Loctite®2701™
–Mount and tighten screw 3.
Guideline
Screw, bottom shock
absorber
M12 80 Nm
(59 lbf ft)
Loctite®2701™
Info
The heim joint for the shock absorber at the swing arm is Teflon
coated. It must not be lubricated with grease or with other lubricants.
Lubricants dissolve the Teflon coating, thereby drastically reducing the
service life.
602714-11
(All 250/300 models)
–Push splash protector 1to the side and position the shock absorber. Mount
and tighten screw 2.
Guideline
Screw, top shock
absorber
M12 80 Nm
(59 lbf ft)
Loctite®2701™
–Mount and tighten screw 3.
Guideline
Screw, bottom shock
absorber
M12 80 Nm
(59 lbf ft)
Loctite®2701™
Info
The heim joint for the shock absorber at the swing arm is Teflon
coated. It must not be lubricated with grease or with other lubricants.
Lubricants dissolve the Teflon coating, thereby drastically reducing the
service life.
Finishing work
–Remove the motorcycle from the lift stand. ( p. 8)
3.8 Installing the front wheel
Warning
Danger of accidents Reduced braking efficiency due to oil or grease on the brake discs.
–Always keep the brake discs free of oil and grease, and clean them with brake cleaner when necessary.
101388-11
–Check the wheel bearing for damage and wear.
» If the wheel bearing is damaged or worn:
–Change the wheel bearing.
–Clean and grease shaft seal rings 1and bearing surface Aof the spacers.
Long-life grease ( p. 23)
–Insert the spacers.

3 WORK 12

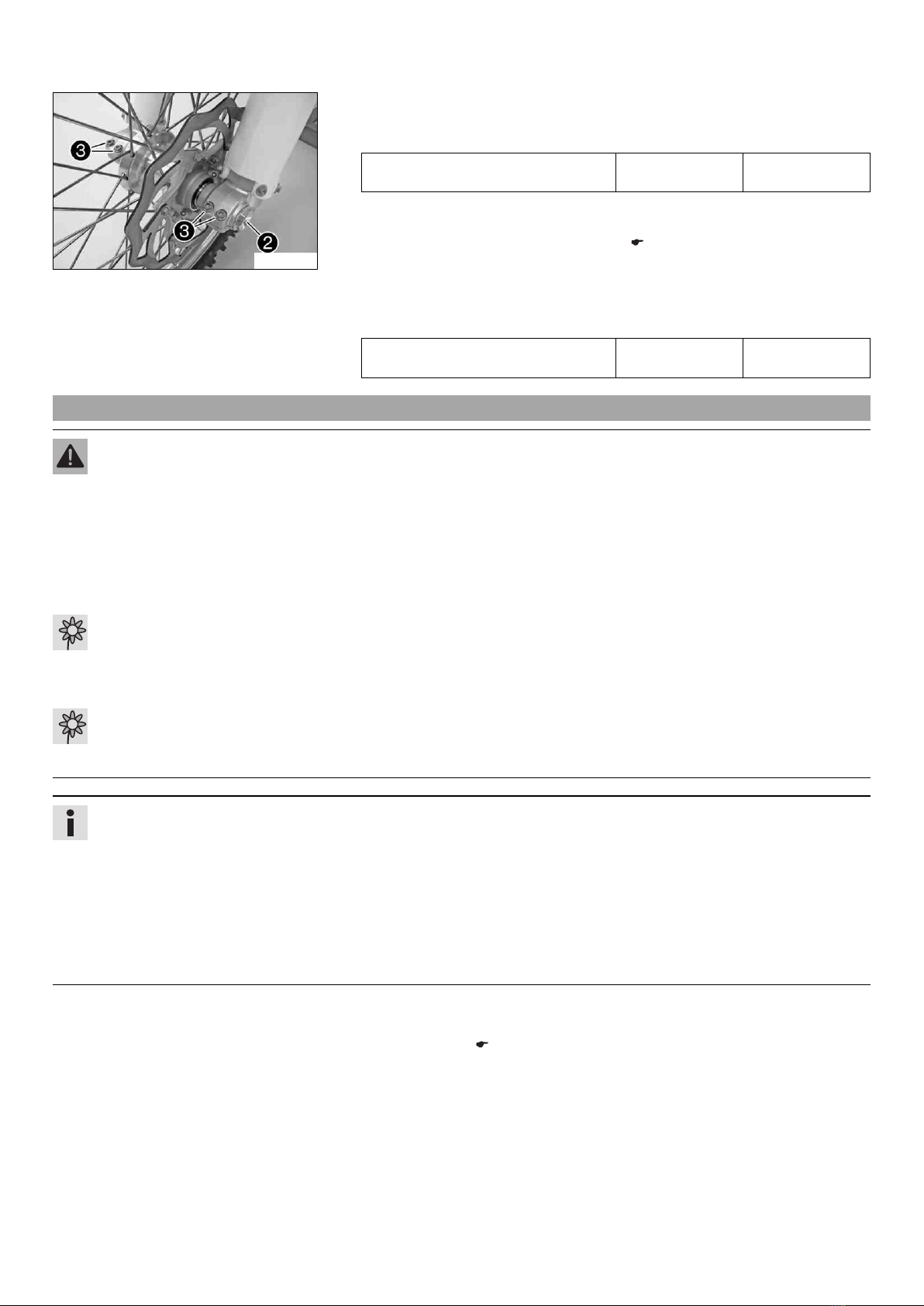

101386-11
–Lift the front wheel into the fork, position it, and insert the wheel spindle.
–Mount and tighten screw 2.
Guideline
Screw, front wheel spindle M24x1.5 45 Nm
(33.2 lbf ft)
–Operate the hand brake lever several times until the brake linings are lying correctly
against the brake disc.
–Remove the motorcycle from the lift stand. ( p. 8)
–Pull the front wheel brake and push down hard on the fork several times to align
the fork legs.
–Tighten screws 3.
Guideline
Screw, fork stub M8 15 Nm
(11.1 lbf ft)
3.9 Recharging the battery (All 200/250/300 models)
Warning
Risk of injury Battery acid and battery gases cause serious chemical burns.
–Keep batteries out of the reach of children.
–Wear suitable protective clothing and goggles.
–Avoid contact with battery acid and battery gases.
–Keep sparks and open flames away from the battery. Only charge in well-ventilated rooms.
–In the event of skin contact, rinse with large amounts of water. If battery acid gets in the eyes, rinse with water for at least
15 minutes and contact a physician.
Warning
Environmental hazard The battery contains elements that are harmful to the environment.
–Do not discard batteries with the household waste. Dispose of faulty batteries in an environmentally compatible manner.
Give the battery to your authorized KTM dealer or dispose of it at a collection point for used batteries.
Warning
Environmental hazard Hazardous substances cause environmental damage.
–Oil, grease, filters, fuel, cleaners, brake fluid, etc., should be disposed of as stipulated in applicable regulations.
Info
Even when there is no load on the battery, it still loses power steadily.
The charge state and the type of charge are very important for the service life of the battery.
Rapid recharging with a high charging current shortens the battery's service life.
If the charging current, charging voltage and charging time are exceeded, electrolyte escapes through the safety valves. This
reduces the battery capacity.
If the battery is depleted from starting the vehicle repeatedly, the battery must be charged immediately.
If the battery is left in a discharged state for an extended period, it will become over-discharged and sulfate, destroying the
battery.
The battery is maintenance-free, i.e., the acid level does not have to be checked.
Preparatory work
–Switch off all power consumers and the engine.
–Remove the seat. ( p. 8)
–Disconnect the minus (negative) cable of the battery to avoid damage to the motor-
cycle's electronics.

3 WORK 13
400240-10
Main work
–Connect the battery charger to the battery. Switch on the battery charger.
Battery charger (58429074000)
You can also use the battery charger to test rest potential and start potential of the
battery, and to test the alternator. With this device, you cannot overcharge the bat-
tery.
Info
Never remove the lid 1.
Charge the battery with at most 10% of the capacity specified on the bat-
tery 2.
–Switch off the charger after charging. Disconnect the battery.
Guideline
The charge current, charge voltage and charge time must not be exceeded.
Charge the battery regularly when the
motorcycle is not in use
3 months
Finishing work
–Mount the seat. ( p. 9)
3.10 Installing the battery (All 200/250/300 models)
101712-10
Main work
–Insert the battery into the battery compartment with the terminals facing to the
front.
Battery (YTX4L-BS)
–Attach rubber band 1.
–Attach positive cable 2.
Guideline
Screw, battery terminal M5 2.5 Nm
(1.84 lbf ft)
Info
Contact disk Amust be mounted between screw 4and cable socket 5
with the claws facing down.
–Slide positive terminal cover 6over the positive terminal.
–Attach negative cable 3.
Guideline
Screw, battery terminal M5 2.5 Nm
(1.84 lbf ft)
Info
Contact disk Amust be mounted between screw 4and cable socket 5
with the claws facing down.
Finishing work
–Mount the seat. ( p. 9)
3.11 Installing the front fender
602713-11
Main work
–Position the front fender. Mount and tighten screws 1.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)

3 WORK 14
602712-11
–Mount and tighten screws 2.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
Finishing work
–Refit the headlight mask with the headlight. ( p. 14)
–Check the headlight setting. ( p. 14)
3.12 Refitting the headlight mask with the headlight
602763-10
Main work
–Connect the electric plug connector 1.
602762-11
–Position the headlight mask and fix it with the rubber band 2.
Info
Ensure that the holding lugs engage in the fender.
–Position the brake line and wiring harness. Put on the clamp and mount and
tighten screw 3.
Finishing work
–Check the headlight setting. ( p. 14)
3.13 Checking the headlight setting
400726-10
–Position the vehicle upright on a horizontal surface in front of a light wall and make
a mark at the height of the center of the low beam headlight.
–Make another mark a distance Bunder the first mark.
Guideline
Distance B5 cm (2 in)
–Position the vehicle vertically a distance Aaway from the wall.
Guideline
Distance A5 m (16 ft)
–The rider now sits down on the motorcycle.
–Switch on the low beam.
–Check the headlight setting.
The boundary between light and dark must be exactly on the lower mark for a
motorcycle with driver.
» If the light-dark border does not meet specifications:
–Adjust the headlight range. ( p. 15)

3 WORK 15
3.14 Adjusting the headlight range
Preparatory work
–Check the headlight setting. ( p. 14)
602764-10
Main work
–Loosen screw 1.
–Adjust the headlight range by swiveling the headlight.
Guideline
The boundary between light and dark must be exactly on the lower mark for a
motorcycle with driver (instructions on how to apply the mark: Checking the
headlight setting).
Info
The headlight range may need to be corrected if luggage is carried on the
vehicle.
–Tighten screw 1.
3.15 Opening the filler cap
Danger
Fire hazard Fuel is highly flammable.
–Never refuel the vehicle near open flames or burning cigarettes, and always switch off the engine first. Be careful that no
fuel is spilt, especially on hot vehicle components. Clean up spilt fuel immediately.
–The fuel in the fuel tank expands when warm and may emerge if overfilled. Follow the instructions on refueling.
Warning
Danger of poisoning Fuel is poisonous and a health hazard.
–Fuel must not come into contact with the skin, eyes, or clothing. Do not breathe in the fuel vapors. If contact occurs with
the eyes, rinse with water immediately and contact a physician. Immediately clean contaminated areas on the skin with
soap and water. If fuel is swallowed, contact a physician immediately. Change clothing that is contaminated with fuel.
Store fuel properly in a suitable canister and keep away from children.
Warning
Environmental hazard Improper handling of fuel is a danger to the environment.
–Do not allow fuel to get into the ground water, the ground, or the sewage system.
602700-10
–Press release button 1, turn the filler cap counterclockwise and lift it free.
3.16 Closing the filler cap
602700-11
–Replace the filler cap and turn clockwise until the release button 1locks in place.
Info
Run the fuel tank breather hose 2without kinks.

3 WORK 16

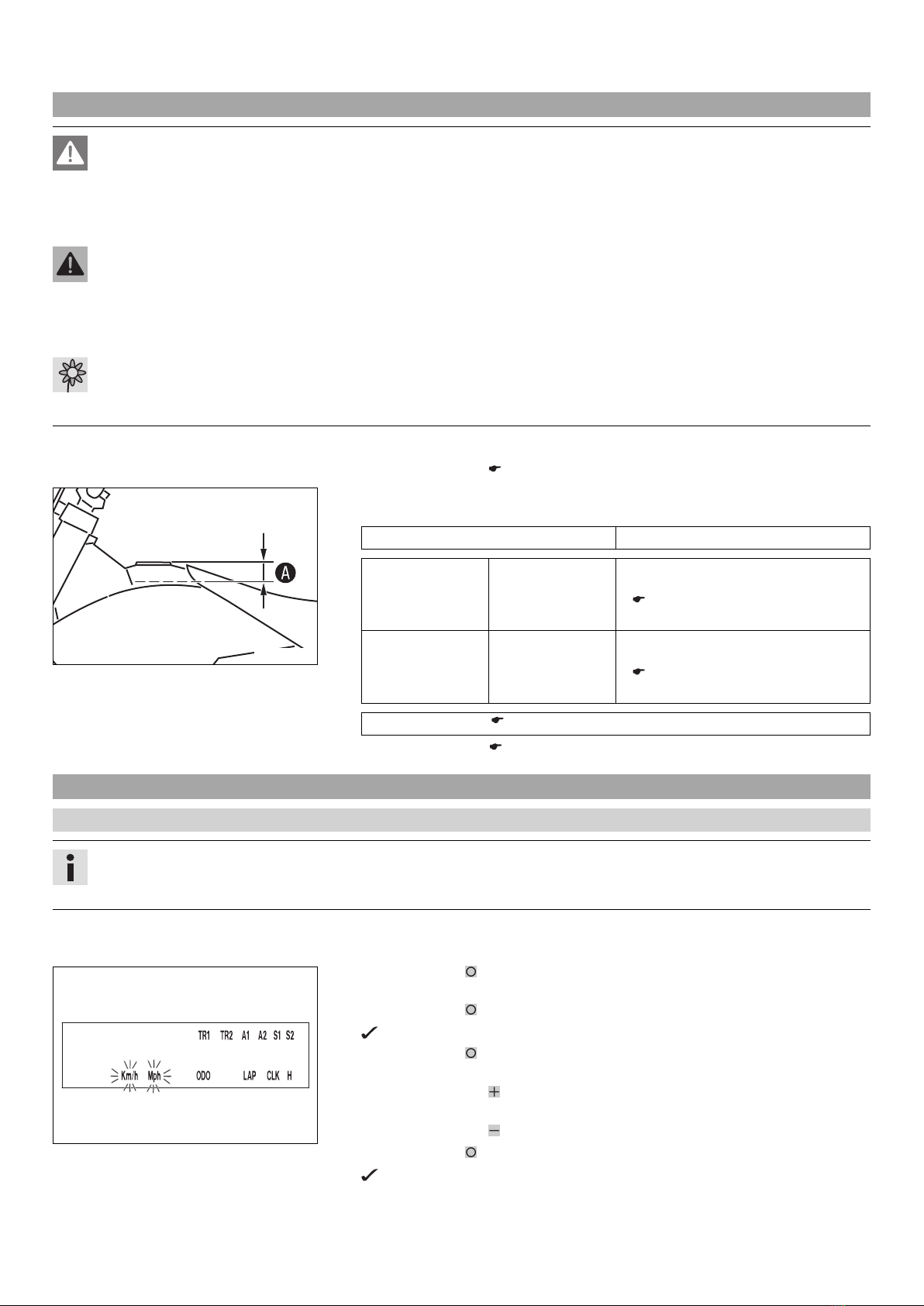

3.17 Refueling
Danger
Fire hazard Fuel is highly flammable.
–Never refuel the vehicle near open flames or burning cigarettes, and always switch off the engine first. Be careful that no
fuel is spilt, especially on hot vehicle components. Clean up spilt fuel immediately.
–The fuel in the fuel tank expands when warm and may emerge if overfilled. Follow the instructions on refueling.
Warning
Danger of poisoning Fuel is poisonous and a health hazard.
–Fuel must not come into contact with the skin, eyes, or clothing. Do not breathe in the fuel vapors. If contact occurs with
the eyes, rinse with water immediately and contact a physician. Immediately clean contaminated areas on the skin with
soap and water. If fuel is swallowed, contact a physician immediately. Change clothing that is contaminated with fuel.
Warning
Environmental hazard Improper handling of fuel is a danger to the environment.
–Do not allow fuel to get into the ground water, the ground, or the sewage system.
–Switch off the engine.
–Open the filler cap. ( p. 15)
400382-10
–Fill the fuel tank with fuel up to measurement A.
Guideline
Measurement of A35 mm (1.38 in)
Total fuel tank
capacity, approx.
(EXC EU,
EXC SIX DAYS)
9.5 l
(2.51 US gal)
Super unleaded gasoline (95 octane),
mixed with 2-stroke engine oil (1:60)
( p. 22)
Total fuel tank
capacity, approx.
(EXC AUS, XC‑W,
XC-W SIX DAYS)
10 l (2.6 US gal) Super unleaded gasoline (95 octane),
mixed with 2-stroke engine oil (1:60)
( p. 22)
2-stroke engine oil ( p. 22)
–Close the filler cap. ( p. 15)
3.18 125 EXC EU, all 200 models, 250/300 EXC EU, XC-W, EXC AUS
3.18.1 Setting kilometers or miles
Info
If you change the unit of measure, the ODO value is retained and converted accordingly.
The values TR1,TR2,A1,A2 and S1 are cleared when the unit of measure is changed.
Condition
The motorcycle is stationary.
400329-01
–Press the button briefly and repeatedly until Happears at the bottom right of the
display.
–Press the button for 3 - 5 seconds.
The Setup menu is displayed and the active functions are shown.
–Press the button repeatedly until the Km/h/Mph display flashes.
Adjusting Km/h
–Press the button .
Adjusting Mph
–Press the button .
–Press the button for 3 - 5 seconds.
The settings are stored and the Setup menu is closed.

3 WORK 17
Info
If no button is pressed for 20 seconds, or if no impulse comes from the
wheel speed sensor, the settings are automatically saved and the Setup
menu is closed.
3.18.2 Adjusting the speedometer functions
Info
When the vehicle is delivered, only the SPEED/H and SPEED/ODO display modes are activated.
Condition
The motorcycle is stationary.
400318-01
–Press the button briefly and repeatedly until Happears at the bottom right of the
display.
–Press the button for 3 - 5 seconds.
The Setup menu is displayed and the activated functions are shown.
–Change to the desired function by pressing the button briefly.
The selected function flashes.
Activating a function
–Press the button .
The symbol remains on the screen and the display changes to the next
function.
Deactivating the function
–Press the button .
The symbol on the screen goes out and the display changes to the next
function.
–All desired functions are activated or deactivated accordingly.
–Press the button for 3 - 5 seconds.
The settings are stored and the Setup menu is closed.
Info
If no button is pressed for 20 seconds, or if no impulse comes from the
wheel speed sensor, the settings are automatically saved and the Setup
menu is closed.
3.18.3 Setting the clock
Condition
The motorcycle is stationary.
400330-01
–Press the button briefly and repeatedly until CLK appears at the bottom right of
the display.
–Press the button for 3 - 5 seconds.
The hour display flashes.
–Set the hour display with the button and/or button .
–Press the button briefly.
The next segment of the display flashes and can be set.
–You can set the following segments in the same way as the hours by pressing
the button and the button .
Info
The seconds can only be set to zero.
–Press the button for 3 - 5 seconds.
The settings are stored and the Setup menu is closed.
Info
If no button is pressed for 20 seconds, or if no impulse comes from the
wheel speed sensor, the settings are automatically saved and the Setup
menu is closed.

3 WORK 18
3.19 250/300 SIX DAYS, 125 EXC SIX DAYS EU
3.19.1 Setting kilometers or miles
Info
If you change the unit, the value ODO is retained and converted accordingly.
The values TR1,TR2,A1,A2 and S1 are cleared when the unit of measure is changed.
Condition
The motorcycle is stationary.
400329-01
–Repeatedly press the button briefly until Happears at the bottom right of the
display.
–Press the button for 2–3 seconds.
The Setup menu is displayed and the active functions are shown.
–Repeatedly press the button briefly until Km/h/Mph flashes.
Setting the Km/h
–Press the button .
Setting the Mph
–Press the button .
–Wait 3–5 seconds
The settings are stored.
Info
If no button is actuated for 10–12 seconds or there is no signal from the
wheel speed sensor, then the settings are automatically stored and the
Setup menu is closed.
3.19.2 Setting the speedometer functions
Info
When the vehicle is delivered, only the SPEED/H and SPEED/ODO display modes are activated.
Condition
The motorcycle is stationary.
400318-01
–Repeatedly press the button briefly until Happears at the bottom right of the
display.
–Press the button for 2–3 seconds.
The Setup menu is displayed and the active functions are shown.
Info
If no button is pressed for 10–12 seconds, the settings are automatically
stored.
If no button is actuated for 20 seconds or there is no signal from the wheel
speed sensor, then the settings are automatically stored and the Setup
menu is closed.
–Repeatedly press the button briefly until the desired function flashes.
The selected function flashes.
Activating the function
–Press the button .
The symbol continues to appear in the display and the next function
appears.
Deactivating a function
–Press the button .
The symbol disappears in the display and the next function appears.
3.19.3 Setting the clock
Condition
The motorcycle is stationary.
