WORKSHOP MANUAL
F2880,F3680,RCK72-F36,
RCK72R-F36,RCK60-F36,
RCK60R-F36
KiSC issued 04, 2006 A

TO THE READER
This Workshop Manual has been prepared to provide servicing personnel with
information on the mechanism, service and maintenance of KUBOTA F2880, F3680,
KUBOTA Mower RCK72-F36, RCK72R-F36, RCK60-F36, RCK60R-F36. It is divided
into three parts, “General”, “Mechanism” and “Servicing” for each section.
■General
Information on the tractor identification, the general precautions, maintenance check
list, check and maintenance and special tools are described.
■Mechanism
Information on the construction and function are included. This part should be
understood before proceeding with troubleshooting, disassembling and servicing.
Refer to Diesel Engine / Tractor Mechanism Workshop Manual (Code No. 97897-
01873 / 97897-18200) for the one which has not been described to this workshop
manual.
■Servicing
Information on the troubleshooting, servicing specification lists, tightening torque,
checking and adjusting, disassembling and assembling and servicing which cover
procedures, precautions, factory specifications and allowable limits.
All information illustrations and specifications contained in this manual are based on
the latest product information available at the time of publication.
The right is reserved to make changes in all information at any time without notice.
January 2006
© KUBOTA Corporation 2006
KiSC issued 04, 2006 A

1
F2880, F3680, RCK72-F36, RCK72R-F36, RCK60-F36, RCK60R-F36, WSM SAFETY INSTRUCTIONS
SAFETY INSTRUCTIONS
BEFORE SERVICING AND REPAIRING
• Read all instructions including safety instructions in
this manual and your machine safety decals.
• Clean the work area and machine.
• Park the machine on firm and level ground, and set
the parking brake.
• Lower the implement to the ground.
• Stop the engine, and remove the key.
• Disconnect the battery negative cable.
• Hang a “DO NOT OPERATE” tag on the operators
platform.
SAFETY FIRST
This symbol, the industry’s “Safety Alert Symbol”, is used throughout this manual and on labels on
the machine itself to warn of the possibility of personal injury. Read these instructions carefully.
It is essential that you read the instructions and safety regulations before you attempt to repair or use
this unit.
DANGER : Indicates an imminently hazardous situation which, if not avoided, will result in
death or serious injury.
WARNING : Indicates a potentially hazardous situation which, if not avoided, could result in
death or serious injury.
CAUTION : Indicates a potentially hazardous situation which, if not avoided, may result in
minor or moderate injury.
■IMPORTANT : Indicates that equipment or property damage could result if instructions are not
followed.
■NOTE : Gives helpful information.
KiSC issued 04, 2006 A

2
F2880, F3680, RCK72-F36, RCK72R-F36, RCK60-F36, RCK60R-F36, WSM SAFETY INSTRUCTIONS
SAFETY STARTING
• Do not start the engine by shorting across starter
terminals or bypassing the safety start switch.
• Do not alter or remove any part of machine safety
system.
• Before starting the engine, make sure that all shift
levers are in neutral positions or in disengaged
positions.
• Never start the engine while standing on the ground.
Start the engine only from operator’s seat.
SAFETY WORKING
• Do not work on the machine while under the influence
of alcohol, medication, or other substances or while
fatigued.
• Wear close fitting clothing and safety equipment
appropriate to the job.
• Use tools appropriate to the work. Makeshift tools,
parts, and procedures are not recommended.
• When servicing is performed together by two or more
persons, take care to perform all work safely.
• Do not work under the machine that is supported
solely by a jack. Always support the machine by
safety stands.
• Do not touch the rotating or hot parts while the engine
is running.
• Never remove the radiator cap while the engine is
running, or immediately after stopping. Otherwise, hot
water will spout out from radiator. Only remove
radiator cap when cool enough to touch with bare
hands. Slowly loosen the cap to first stop to relieve
pressure before removing completely.
• Escaping fluid (fuel or hydraulic oil) under pressure
can penetrate the skin causing serious injury. Relieve
pressure before disconnecting hydraulic or fuel lines.
Tighten all connections before applying pressure.
AVOID FIRES
• Fuel is extremely flammable and explosive under
certain conditions. Do not smoke or allow flames or
sparks in your working area.
• To avoid sparks from an accidental short circuit,
always disconnect the battery negative cable first and
connect it last.
• Battery gas can explode. Keep sparks and open
flame away from the top of battery, especially when
charging the battery.
• Make sure that no fuel has been spilled on the engine.
KiSC issued 04, 2006 A

3
F2880, F3680, RCK72-F36, RCK72R-F36, RCK60-F36, RCK60R-F36, WSM SAFETY INSTRUCTIONS
VENTILATE WORK AREA
• If the engine must be running to do some work, make
sure the area is well ventilated. Never run the engine
in a closed area. The exhaust gas contains poisonous
carbon monoxide.
PREVENT ACID BURNS
• Sulfuric acid in battery electrolyte is poisonous. It is
strong enough to burn skin, clothing and cause
blindness if splashed into eyes. Keep electrolyte
away from eyes, hands and clothing. If you spill
electrolyte on yourself, flush with water, and get
medical attention immediately.
DISPOSE OF FLUIDS PROPERLY
• Do not pour fluids into the ground, down a drain, or
into a stream, pond, or lake. Observe relevant
environmental protection regulations when disposing
of oil, fuel, coolant, electrolyte and other harmful
waste.
PREPARE FOR EMERGENCIES
• Keep a first aid kit and fire extinguisher handy at all
times.
• Keep emergency numbers for doctors, ambulance
service, hospital and fire department near your
telephone.
KiSC issued 04, 2006 A

4
F2880, F3680, RCK72-F36, RCK72R-F36, RCK60-F36, RCK60R-F36, WSM SAFETY INSTRUCTIONS

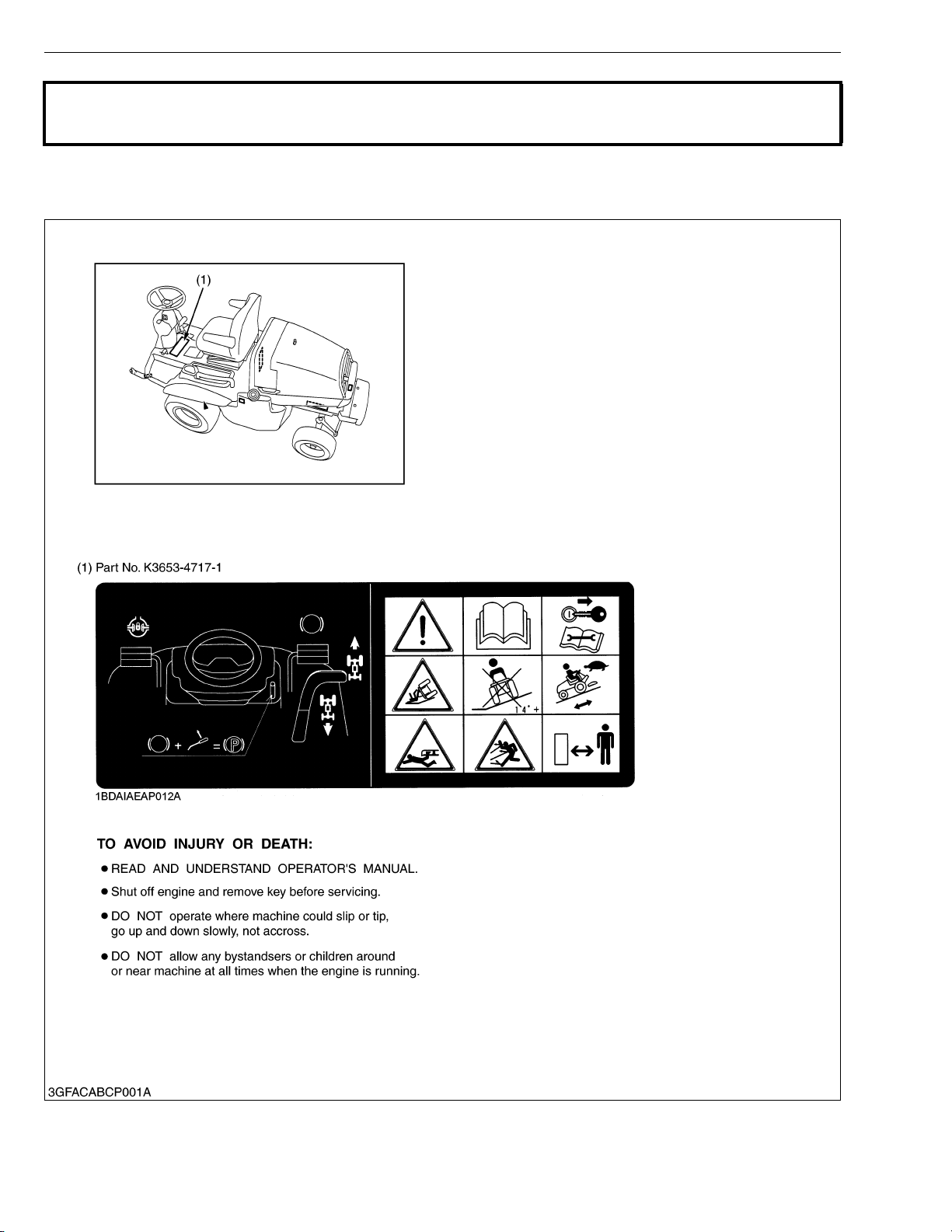

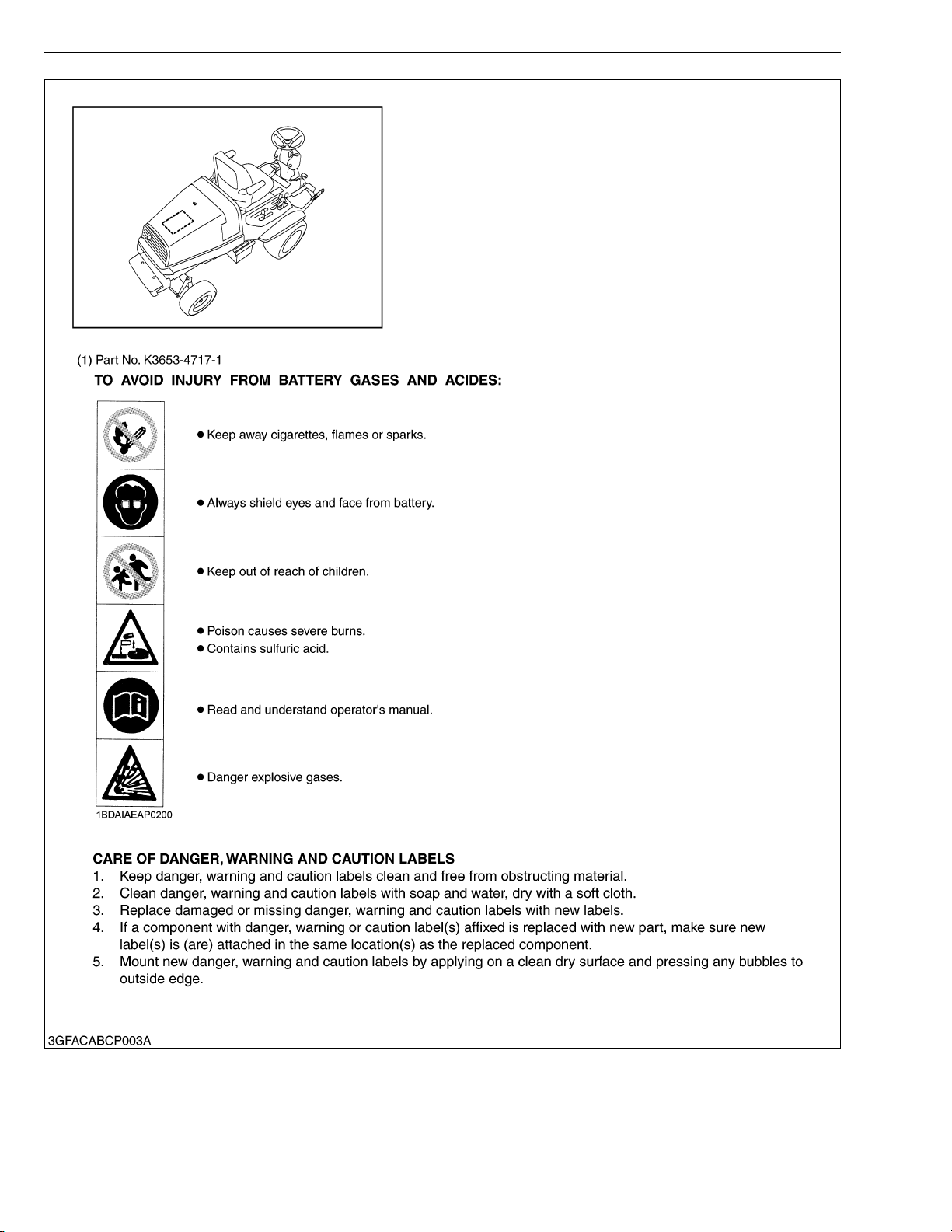

The following safety decals are installed on the machine.
If a decal becomes damaged, illegible or is not on the machine, replace it. The decal part number is listed in
the parts list.
SAFETY DECALS
KiSC issued 04, 2006 A

5
F2880, F3680, RCK72-F36, RCK72R-F36, RCK60-F36, RCK60R-F36, WSM SAFETY INSTRUCTIONS
KiSC issued 04, 2006 A

6
F2880, F3680, RCK72-F36, RCK72R-F36, RCK60-F36, RCK60R-F36, WSM SAFETY INSTRUCTIONS
KiSC issued 04, 2006 A

7
F2880, F3680, RCK72-F36, RCK72R-F36, RCK60-F36, RCK60R-F36, WSM SPECIFICATIONS
SPECIFICATIONS
W1028103
Model F2880 F3680
Engine
Model D1105-E2-FM2-EU V1505-E2-FM3-EU
Engine gross power (SAE) *1 20.4 kW (27.3 HP) 26.3 kW (35.3 HP)
Type Indirect Injection, vertical, water-cooled, 4-cycle diesel
Number of cylinders 3 4
Bore and stroke 78.0 ×78.4 mm (3.07 ×3.09 in.)
Total displacement 1123 cm3(68.58 cu.in.) 1498 cm3(91.42 cu.in.)
Rated revolution 3000min-1 (rpm)
Starting system Electric starter 12 V, 1.1 kW
Lubricating system Forced lubrication by gear pump
Cooling system Pressurized radiator, forced circulation with water pump
Battery 12 V, CCA : 490 A, RC : 112 min.
Fuel Diesel fuel No. 1 [below −10 °C (14 °F)]
Diesel fuel No. 2-D
Capacities
Fuel tank 61 L (16.1 U.S.gals, 13.4 Imp.gals)
Engine crankcase 3.8 L (4.0 U.S.qts., 3.3 Imp.qts)
Engine coolant 4.6 L (4.9 U.S.qts., 4.0 Imp.qts)
Recovery tank 0.6 L (0.6 U.S.qts, 0.5 Imp.qts)
Transmission case 14.0 L (14.8 U.S.qts, 12.3 Imp.qts)
Rear axle differential case 1.5 L (1.59 U.S.qts, 1.32 Imp.qts)
Rear axle gear case 0.5 L (0.53 U.S.qts, 0.44 Imp.qts)
Tire Front 24 ×12 – 12 (4PR) Turf
Rear 18 ×9.5 – 8 (4PR) Turf
Travelling
speeds
Forward Low 0 to 9.0 km/h (0 to 5.6 mph) *2
High 0 to 20.0 km/h (0 to 12.6 mph) *2
Reverse Low 0 to 4.8 km/h (0 to 3.0 mph) *2
High 0 to 11.0 km/h (0 to 6.9 mph) *2
Dimensions
Overall length 2500 mm (98.4 in.)
Overall width 1370 mm (53.9 in.)
Overall height 1350 mm (53.1 in.)
Wheel base 1300 mm (51.2 in.)
Min. ground clearance 185 mm (7.3 in.)
Tread Front 1063 mm (41.9 in.)
Rear 1020 mm (40.2 in.)
Weight (without mower deck) 727 kg (1603 lbs) 744 kg (1640 lbs)
KiSC issued 04, 2006 A

8
F2880, F3680, RCK72-F36, RCK72R-F36, RCK60-F36, RCK60R-F36, WSM SPECIFICATIONS
(Specifications and design subject to change without notice)
NOTE: *1 : Manufacture’s estimate.
*2 : At 2700 engine min-1 (rpm). W1031842
Model F2880 F3680
PTO
Revolution 1 speed (2545 rpm at 3000 engine rpm)
Drive system Shaft drive. KUBOTA 10-tooth involute spline (2545 rpm)
Clutch type Wet multi plates
PTO brake Wet single plate
Steering Hydraulic power steering
Transmission Hydrostatic transmission, High-Low gear shift (2 forward, 2 reverse)
Brake Wet disk type
Minimum turning radius Less than 750 mm (29.5 in.) (inside of front tire)
Differential Front Bevel gear
Rear Bevel gear
4WD system Dual-acting overrunning 4WD
KiSC issued 04, 2006 A

9
F2880, F3680, RCK72-F36, RCK72R-F36, RCK60-F36, RCK60R-F36, WSM DIMENSIONS
DIMENSIONS
KiSC issued 04, 2006 A

G GENERAL
KiSC issued 04, 2006 A

CONTENTS
GENERAL
1. IDENTIFICATION............................................................................................. G-1
2. GENERAL PRECAUTIONS............................................................................ G-2
3. HANDLING PRECAUTIONS FOR ELECTRICAL PARTS AND WIRING.. G-3
[1] WIRING...................................................................................................... G-3
[2] BATTERY................................................................................................... G-5
[3] FUSE.......................................................................................................... G-5
[4] CONNECTOR............................................................................................ G-5
[5] HANDLING OF CIRCUIT TESTER......................................................... G-6
4. LUBRICANTS, FUEL AND COOLANT ......................................................... G-7
5. TIGHTENING TORQUES ............................................................................... G-8
[1] GENERAL USE SCREWS, BOLTS AND NUTS................................... G-8
[2] METRIC SCREWS, BOLTS AND NUTS ............................................... G-8
[3] AMERICAN STANDARD SCREWS, BOLTS AND NUTS WITH UNC
OR UNF THREADS................................................................................. G-9
[4] PLUGS....................................................................................................... G-9
6. MAINTENANCE CHECK LIST..................................................................... G-10
7. CHECK AND MAINTENANCE..................................................................... G-12
[1] DAILY CHECK ........................................................................................ G-12
[2] CHECK POINTS OF INITIAL 50 HOURS........................................... G-17
[3] CHECK POINTS OF EVERY 50 HOURS........................................... G-19
[4] CHECK POINTS OF EVERY 100 HOURS......................................... G-25
[5] CHECK POINTS OF EVERY 200 HOURS......................................... G-26
[6] CHECK POINTS OF EVERY 400 HOURS......................................... G-29
[7] CHECK POINTS OF EVERY 1500 HOURS....................................... G-30
[8] CHECK POINTS OF EVERY 3000 HOURS....................................... G-30
[9] CHECK POINTS OF EVERY 1 YEAR ................................................ G-30
[10]CHECK POINTS OF EVERY 2 YEARS.............................................. G-33
[11]OTHERS.................................................................................................. G-34
8. SPECIAL TOOLS.......................................................................................... G-35
[1] SPECIAL TOOLS FOR ENGINE .......................................................... G-35
[2] SPECIAL TOOLS FOR MACHINE........................................................ G-42
9. TIRES............................................................................................................. G-43
[1] TIRE PRESSURE................................................................................... G-43
10. IMPLEMENT LIMITATIONS.......................................................................... G-44
KiSC issued 04, 2006 A

G-1
F2880, F3680, RCK72-F36, RCK72R-F36, RCK60-F36, RCK60R-F36, WSM G GENERAL
1. IDENTIFICATION
When contacting your local KUBOTA distributor, always specify
engine model name, engine serial number and machine serial
number.
■Engine Serial Number
The engine serial number is an identified number for the engine.
It is marked after the engine model number.
It indicates month and year of manufacture as follows.
•Year of manufacture
•Month of manufacture
e.g. D1105-5A0001
“5” indicates 2005 and “A” indicates January.
So, 5A indicates that the engine was manufactured in January,
2005.
W1010714
Alphabet or
Number Year Alphabet or
Number Year
1 2001 F 2015
2 2002 G 2016
3 2003 H 2017
4 2004 J 2018
5 2005 K 2019
6 2006 L 2020
7 2007 M 2021
8 2008 N 2022
9 2009 P 2023
A 2010 R 2024
B 2011 S 2025
C 2012 T 2026
D 2013 V 2027
E 2014
Month Engine Serial Number
0001 ~ 9999 10000 ~
January A0001 ~ A9999 B0001 ~
February C0001 ~ C9999 D0001 ~
March E0001 ~ E9999 F0001 ~
April G0001 ~ G9999 H0001 ~
May J0001 ~ J9999 K0001 ~
June L0001 ~ L9999 M0001 ~
July N0001 ~ N9999 P0001 ~
August Q0001 ~ Q9999 R0001 ~
September S0001 ~ S9999 T0001 ~
October U0001 ~ U9999 V0001 ~
November W0001 ~ W9999 X0001 ~
December Y0001 ~ Y9999 Z0001 ~
(1) Engine Model Name
(2) Engine Serial Number (3) Machine Serial Number
KiSC issued 04, 2006 A

G-2
F2880, F3680, RCK72-F36, RCK72R-F36, RCK60-F36, RCK60R-F36, WSM G GENERAL
2. GENERAL PRECAUTIONS
• During disassembly, carefully arrange removed parts in a clean
area to prevent confusion later. Screws, bolts and nuts should be
installed in their original position to prevent reassembly errors.
• When special tools are required, use KUBOTA genuine special
tools. Special tools which are not frequently used should be
made according to the drawings provided.
• Before disassembling or servicing electrical wires, always
disconnect the ground cable from the battery first.
• Remove oil and dirt from parts before measuring.
• Use only KUBOTA genuine parts for parts replacement to
maintain machine performance and to assure safety.
• Gaskets and O-rings must be replaced during reassembly.
Apply grease to new O-rings or oil seals before assembling.

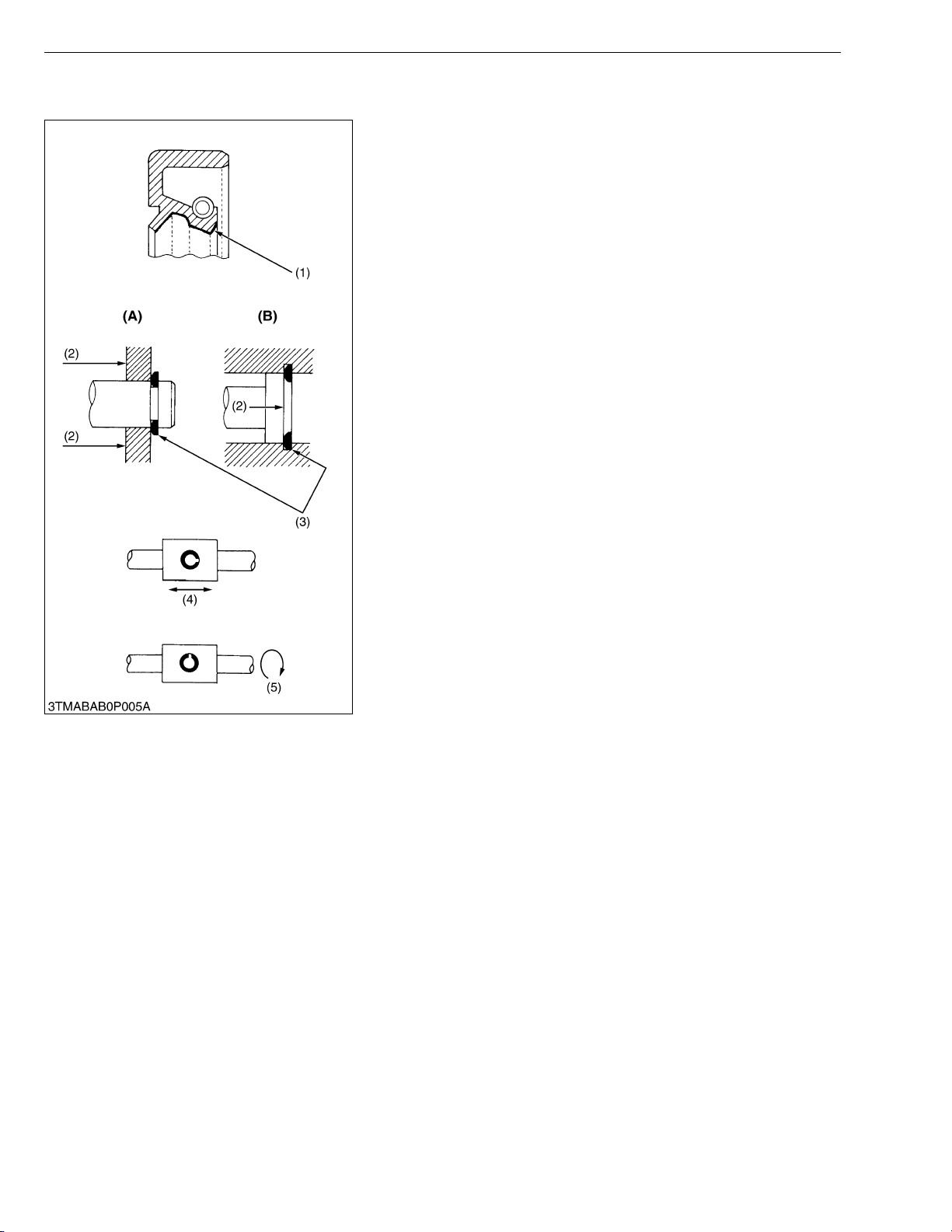

See the figure left side.
• When reassembling external snap rings or internal snap rings,
they must be positioned so that sharp edge faces against the
direction from which a force is applied. See the figure left side.
• When inserting spring pins, their splits must face the direction
from which a force is applied. See the figure left side.
• To prevent damage to the hydraulic system, use only specified
fluid or equivalent.
W10109040
(1) Grease
(2) Force
(3) Sharp Edge
(4) Axial Force
(5) Rotating Movement
(A) External Snap Ring
(B) Internal Snap Ring
KiSC issued 04, 2006 A

G-3
F2880, F3680, RCK72-F36, RCK72R-F36, RCK60-F36, RCK60R-F36, WSM G GENERAL
3. HANDLING PRECAUTIONS FOR ELECTRICAL PARTS
AND WIRING
To ensure safety and prevent damage to the machine and
surrounding equipment, heed the following precautions in handling
electrical parts and wiring.
IMPORTANT
■
• Check electrical wiring for damage and loosened
connection every year. To this end, educate the customer to
do his or her own check and at the same time recommend
the dealer to perform periodic check.
• Do not attempt to modify any electrical parts and wiring.
• When removing the battery cables, disconnect the negative
cable first. When installing the battery cables, connect the
positive cable first.
W10111140

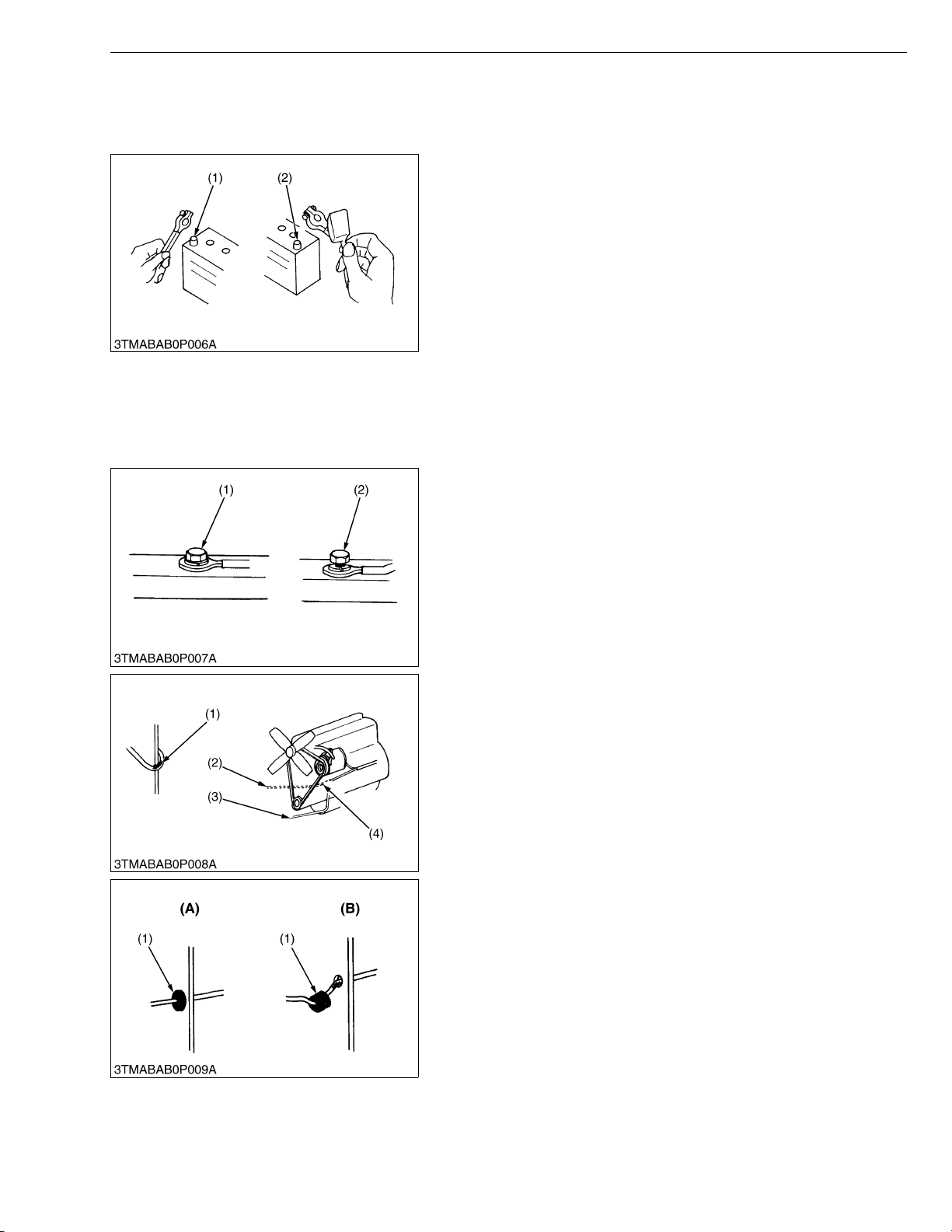

[1] WIRING
• Securely tighten wiring terminals.
W10112160
• Do not let wiring contact dangerous part.
W10113130
• Securely insert grommet.
W10113880
(1) Negative Terminal (2) Positive Terminal
(1) Correct
(Securely Tighten) (2) Incorrect (Loosening Leads to Faulty Contact)
(1) Dangerous Part
(2) Wiring (Incorrect) (3) Wiring (Correct) (4) Dangerous Part
(1) Grommet (A) Correct
(B) Incorrect
KiSC issued 04, 2006 A

G-4
F2880, F3680, RCK72-F36, RCK72R-F36, RCK60-F36, RCK60R-F36, WSM G GENERAL
• Securely clamp, being careful not to damage wiring.
W10114580
• Clamp wiring so that there is no twist, unnecessary sag, or
excessive tension, except for movable part, where sag may be
required.
W10115870
• When installing a part, take care not to trap or damage the wiring.
W10116700
• After installing wiring, check protection of terminals and clamped
condition of wiring before connecting battery.
W10117350
(1) Clamp
• Wind Clamp Spirally
(2) Wire Harness
(3) Clamp
(1) Wiring
(2) Clamp (A) Correct (B) Incorrect
(1) Wiring (A) Incorrect
(1) Cover
• Securely Install Cover
KiSC issued 04, 2006 A

G-5
F2880, F3680, RCK72-F36, RCK72R-F36, RCK60-F36, RCK60R-F36, WSM G GENERAL
[2] BATTERY
• Take care not to confuse positive and negative terminal posts.
• When removing battery cables, disconnect negative cable first.
When installing battery cables, check for polarity and connect
positive cable first.
• Do not install any battery with capacity other than is specified
(Ah).
• After connecting cables to battery terminal posts, apply high
temperature grease to them and securely install terminal covers.
• Do not allow dirt and dust to collect on battery.
CAUTION
• Take care not to let battery liquid spill on your skin and
clothes. If contaminated, wash it off with water immediately.
• Before recharging the battery, remove it from the machine.
• Before recharging, remove cell caps.
• Recharging should take place in a well-ventilated place
where there is no open flame nearby, as hydrogen gas and
oxygen are produced, which is highly flammable. W10118160
[3] FUSE
• Use fuses with specified capacity.
Neither too large or small capacity fuse is acceptable.
• Never use steel or copper wire in place of fuse.
• Do not install working light, radio set, etc. on machine without a
separate power supply.
• Do not install accessories if fuse capacity of reserve power
supply is exceeded.
W10120920
[4] CONNECTOR
• For connector with lock, push lock to separate.
W10122110
• In separating connectors, do not pull wire harnesses.
• Hold connector bodies to separate.
W10122720
(1) Fuse (2) Slow Blow Fuse
(A) Push
(A) Correct (B) Incorrect
KiSC issued 04, 2006 A

G-6
F2880, F3680, RCK72-F36, RCK72R-F36, RCK60-F36, RCK60R-F36, WSM G GENERAL
• Use sandpaper to remove rust from terminals.
• Repair damaged terminals. Make certain there is no terminal
being exposed or displaced.
W10123460
• Make certain that there is no uninsulated femal connectors.
W10124300
• Make certain the plastic cover is large enough to cover whole
connector.
W10125190
[5] HANDLING OF CIRCUIT TESTER
• Use the tester, according to its own operating instructions.
• Check for polarity and range. W10126840
(1) Exposed Terminal
(2) Deformed Terminal (3) Sandpaper (4) Rust
(A) Correct (B) Incorrect
(1) Cover (A) Correct
(B) Incorrect
KiSC issued 04, 2006 A

G-7
F2880, F3680, RCK72-F36, RCK72R-F36, RCK60-F36, RCK60R-F36, WSM G GENERAL
4. LUBRICANTS, FUEL AND COOLANT
* KUBOTA original transmission hydraulic fluid.
No. Place Capacity Lubricants, fuel and coolant
F2880 F3680
1Fuel 61 L 16.1 U.S.gals
13.4 Imp.gals
No. 2-D diesel fuel
No.1-D diesel fuel if temperature
is below – 10 °C (14 °F)
2 Coolant
Cooling
system
4.6 L
4.9 U.S.qts
4.0 Imp.qts Fresh clean water with anti-freeze
Recovery
tank
0.6 L
0.6 U.S.qts
0.5 Imp.qts
3 Engine crankcase 3.8 L 4.0 U.S.qts
3.3 Imp.qts
5.3 L
5.6 U.S.qts
4.7 Imp.qts
Engine oil : API Service
Classification CD, CE or CF Below
0 °C (32 °F) :
SAE10W, 10W-30 or 10W-40
0 to 25 °C (32 to 77 °F):
SAE20, 10W-30 or 10W-40
Above 25 °C (77 °F):
SAE30, 10W-30 or 10W-40
4 Transmission case 14.0 L 14.8 U.S.qts
12.3 Imp.qts
KUBOTA UDT or SUPER UDT
fluid*
5Rear axle differential
case
1.5 L
1.59 U.S.qts
1.32 Imp.qts KUBOTA UDT, SUPER UDT
fluid* or SAE85W, SAE90 gear oil
(API Service Classification : more
than GL-3)
6 Rear axle gear case 0.5 L 0.53 U.S.qts
0.44 Imp.qts
Greasing No. of greasing points Capacity Type of grease
F2880 F3680
Speed control pedal
shaft 1
Until grease
overflows
Multipurpose Grease
NLGI-2 or NLGI-1
(GC-LB)
Link pivots
(RH and LH) 2
Differential lock pedal
boss 1
Universal joint 1
Rear wheel drive
shaft (Front and Rear) 2
Knuckle arm
(RH and LH) 2
Seat adjuster 2 Moderate
amount OilHST neutral shaft 1
Cable (Throttle) 1
KiSC issued 04, 2006 A
