Kubota GL7000-CAN User manual

GL7000-CAN · GL11000-CAN
OPERATOR'S MANUAL
MANUEL DE L'UTILISATEUR
1AEACAFAP0380
Code No.
N° de code. G3106-8916-8
©KUBOTA Corporation 2006
PRINTED IN JAPAN
IMPRIME AU JAPON
READ AND SAVE THIS BOOK
MANUEL A LIRE ET A CONSERVER
GL7000
-
CAN·GL11000
-
CAN
ENGLISHFRANÇAIS

GL-7000-CAN/GL-11000-CAN
AX . L . 14 - 20 . 1 . AK

OPERATOR'S MANUAL
ENGLISH
GL7000-CAN · GL11000-CAN
1AEACAFAP0380
ENGLISH
READ AND SAVE THIS BOOK

California Proposition 65
WARNING
Engine exhaust, some of its constituents,
certain vehicle components and fluids,
contain or emit chemicals known to the
State of California to cause cancer and birth
defects or other reproductive harm.
WARNING
To prevent electrical shock the following instruction must be followed.
Before the generator can be connected to a building's electrical system, a licensed
electrician must install an isolation (transfer) switch in the building's main fuse box.
The switch is the connection point for generator power and allows selection of
generator or main line power to the building.
This will prevent the generator from charging the main power line (backfeeding)
when the main power supply has failed or has been turned off for line repair.
Backfeeding can electrocute or injure line maintenance personnel. Also, generator
and building electrical system damage can occur when normal operating power
returns if unit is used without an isolation switch.
ENGLISH

SAFETY FIRST
This symbol, the industry's ''Safety Alert Symbol'', is used throughout this manual
and on labels on the machine itself to warn of the possibility of personal injury.
Read these instructions carefully. It is essential that you read the instructions and
safety regulations before you attempt to assemble or use this unit.
IMPORTANT :
NOTE :
DANGER :
WARNING :
CAUTION :
FOREWORD
You are now the proud owner of a KUBOTA Diesel Engine Generator. This
generator is a product of KUBOTA quality engineering and manufacturing. It is
made of fine materials and under a rigid quality control system with correct
maintenance. It will give you long, satisfactory service. To obtain the best use of
your generator, please read this manual carefully. It will help you become familiar
with the operation of the generator and contains many helpful hints about generator
maintenance. It is KUBOTA's policy to utilize as quickly as possible every advance
in our research. The immediate use of new techniques in the manufacture of
products may cause some small parts of this manual to be outdated. KUBOTA
distributors and dealers will have the most up-to-date information. Please do not
hesitate to consult with them.
Indicates an imminently hazardous situation which, if not
avoided, will result in death or serious injury.
Indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury.
Indicates a potentially hazardous situation which, if not
avoided, could result in minor or moderate injury.
Indicates that equipment or property damage could result if
instructions are not followed.
Gives helpful information.
ENGLISH

CONTENTS
ENGLISH
SAFE OPERATION ............................................................................................ -1
SERVICING OF GENERATOR ................................................................................... 1
SPECIFICATIONS....................................................................................................... 2
INSTRUMENT PANEL AND PART NAMES ............................................................... 3
GROUND FAULT CIRCUIT INTERRUPTER(GFCI) RECEPTACLE .......................... 5
WHEN THE "RESET" BUTTON EXTENDS DURING OPERATION ....................... 5
EASY CHECKER ..................................................................................................... 6
CONTROL BOX ....................................................................................................... 6
PREPARATION TO SUPPLY THE ELECTRIC POWER ............................................ 7
GENERATOR GROUNDING ................................................................................... 7
RECOMMENDED CAPACITY OF ELECTRICAL DEVICES ................................... 7
Application Range............................................................................................................. 7
CONNECTING THE LOAD.......................................................................................... 9
CONNECTING THE LOAD (RECEPTACLES OUTPUT MODEL)........................... 9
PRE-OPERATION CHECK ....................................................................................... 10
HOW TO OPEN THE DOOR ................................................................................. 10
DAILY CHECK ....................................................................................................... 10
Battery ............................................................................................................................ 10
Engine Oil ....................................................................................................................... 11
Coolant ........................................................................................................................... 11
Fuel................................................................................................................................. 12
PRECAUTIONS ON GENERATOREQUIPPED ENGINE...................................... 12
OPERATING THE GENERATOR.............................................................................. 13
STARTING THE ENGINE ...................................................................................... 13
Warm-up in Cold Ambient Temperatures .......................................................................14
COLD WEATHER STARTING ............................................................................... 15
STOPPING THE ENGINE...................................................................................... 15
IF THE ENGINE FAILS TO STOP IN THE USUAL PROCEDURE
(EMERGENCY STOP)........................................................................................... 16
MAINTENANCE......................................................................................................... 17
SERVICE INTERVALS .......................................................................................... 17
PERIODIC SERVICE................................................................................................. 19
FUEL ...................................................................................................................... 19
Fuel Level Check and Refueling.....................................................................................19
Air Bleeding the Fuel System ......................................................................................... 20
Checking the Fuel Pipes................................................................................................. 20
Cleaning the Fuel Filter Pot ............................................................................................21
ENGINE OIL........................................................................................................... 21
Checking Oil Level and Adding Engine Oil.....................................................................21
Changing Engine Oil....................................................................................................... 22
Replacing the Oil Filter Cartridge.................................................................................... 23

CONTENTS
ENGLISH
AIR CLEANER ....................................................................................................... 23
Cleaning Secondary Air Filter Element........................................................................... 23
Cleaning Primary Air Filter Element................................................................................24
Evacuator Valve.............................................................................................................. 24
Air Cleaner with Dust Cup ..............................................................................................24
RADIATOR............................................................................................................. 25
Checking Coolant Level, Adding Coolant ....................................................................... 25
Changing Coolant ........................................................................................................... 26
Remedies for Rapid Coolant Loss.................................................................................. 26
Checking Radiator Hoses and Clamps........................................................................... 26
Precaution at Overheating .............................................................................................. 26
Cleaning Radiator Core (outside) ...................................................................................27
Cleaning the Radiator..................................................................................................... 27
Anti-Freeze .....................................................................................................................27
BATTERY............................................................................................................... 28
Battery Charging............................................................................................................. 28
Instructions for Long Term Storage ................................................................................ 29
Battery Boost Starting..................................................................................................... 29
ELECTRIC WIRING ............................................................................................... 30
FUSE...................................................................................................................... 30
FAN BELT .............................................................................................................. 31
Adjusting Fan Belt Tension............................................................................................. 31
TRANSPORTING/STORAGE.................................................................................... 32
STORAGE.............................................................................................................. 32
TROUBLESHOOTING............................................................................................... 33
GENERATOR ........................................................................................................ 33
EASY CHECKER ................................................................................................... 34
ENGINE ................................................................................................................. 34
AUTOMATIC START/STOP UNIT............................................................................. 36
WIRING DIAGRAM.................................................................................................... 37

-1SAFE OPERATION
ENGLISH
SAFE OPERATION
Careful operation is your best insurance against an accident. Read and understand this operator's manual
carefully before operating the generator. All operators, no matter how much experience they may have had,
should read this manual and all labels on the generator before operating the generator. It is the owner's
responsibility to instruct all operators in safe operation.
Be sure to observe the following for safe operation.
OBSERVE SAFETY INSTRUCTION
ARead and understand carefully this OPERATOR'S MANUAL and
LABELS ON THE GENERATOR before attempting to start and
operate the generator.
ALearn how to operate and work safely. Know your equipment and its
limitations. Always keep the generator in good condition.
ABefore allowing other people to use your generator, explain to them
how to operate and have them read this manual before operation.
ADO NOT modify the engine by yourself. UNAUTHORIZED
MODIFICATIONS to the engine may impair the function and / or
safety and affect engine life.
WEAR SAFETY CLOTHING
ADO NOT wear loose, torn or bulky clothing around the generator that
may catch on working controls and projections causing personal
injury.
AUse additional safety items, e.g. hard hat, safety protections, gloves,
etc., as appropriate or required.
ADO NOT operate generator or any equipment attached to it while
under the influence of alcohol, medication, or other substances, or
while fatigued.
ADO NOT wear radio or music headphones while operating the
generator.

SAFE OPERATION-2
ENGLISH
CHECK BEFORE OPERATION & STARTING THE ENGINE
AAlways turn off the circuit breaker and all switches for the electrical
devices before starting the generator.
ACheck the wiring and connections of the electrical devices before
starting the generator.
ABe sure to check the engine before operation. If something is wrong
with the engine, repair it immediately and before operation.
AKeep all guards and shields in place before operating the generator.
Replace any that are damaged or missing.
ACheck to see that bystanders are at a safe distance from the
generator before starting.
AAlways keep the generator at least 1 m (3 ft.) away from buildings and
other facilities.
ADO NOT allow children or livestock to approach the generator while
the engine is running.
ADO NOT start the engine by shorting across starter terminals or
bypassing normal starting circuit. The generator may start
unexpectedly causing electric shock to others.
HANDLING ELECTRICAL COMPONENTS
Always exercise extra caution when handling electrical equipment.
Careless handling of electrical components can cause serious personal
injury, death by electrocution or property damage.
ADO NOT touch the electrical system during operation.
AConnect or disconnect the load to the AC receptacles or terminals
only when the engine is stopped.
AMake certain that all power cables and wiring are in good condition.
Bare wire or frayed insulation can cause dangerous electrical shock,
burns or death.
ADO NOT use or store the generator in damp or wet conditions.
Handling terminals and cables with wet hands can result in personal
injury or death.
AAlways shut the engine off and allow to cool before cleaning. Use
water sparingly when cleaning the outside of the generator. Make
sure that water does not splash onto the electrical system or into the
generator.
ADO NOT touch the generator with wet hands. You may get an electric
shock that can cause burns or death.
ADO NOT connect this generator to any building's electrical system
unless an isolation switch has been installed by a licensed electrician.
ADO NOT run other generators in parallel.

-3SAFE OPERATION
ENGLISH
KEEP THE AREA AROUND THE ENGINE CLEAN
ABe sure to stop the engine before cleaning.
AKeep the engine clean and free of accumulated dirt, grease and trash
to avoid a fire. Store flammable fluids away from sparks and fire.
ADO NOT stop the engine without idling. Sudden stops can cause
temperatures around the engine to rise suddenly. Keep the engine
idling for about 5 minutes before stopping.
SAFE HANDLING OF FUEL AND LUBRICANTS
AAlways stop the engine before refueling and/or lubricating.
ADO NOT smoke or allow flames or sparks in the working area.
Fuel is extremely flammable and explosive under certain conditions.
ARefuel only when the engine has cooled off. Refuel in a well
ventilated and open place. When fuel and lubricants are spilled, clean
them up before starting the engine.
ADO NOT mix gasoline or alcohol with diesel fuel. The mixture can
cause a fire and damage engine components.
AOperate the generator on a firm and level surface only.
DO NOT tilt or move the generator while it is running since this can
cause fuel spillage.
EXHAUST GASES & FIRE PREVENTION
AEngine exhaust fumes can be very harmful if allowing them to
accumulate. Be sure to run the engine in a well ventilated place and
where there are no people or livestock near the generator.
ADO NOT operate the generator in a closed area such as inside
houses, warehouses, tunnels, wells, ship holds, tanks, etc. or places
without proper ventilation.
ADO NOT operate the generator where the building or other
obstructions block off air circulation or where exhaust gas can
accumulate.
AThe exhaust gas from the muffler is very hot. To prevent a fire, DO
NOT expose to dry grass, papers, oil and any other combustible
materials to exhaust gas. Also, keep the engine and muffler clean at
all times.
ATo avoid fire, be alert for leaks of flammables from hoses and lines.
Be sure to check for leaks from hoses or pipes, such as fuel and
engine oil by following the maintenance check list.
ATo avoid a fire, DO NOT short across power cables and wires. Check
to see that all power cables and wiring are in good condition.
AKeep all power connections clean and tight. Bare wire or frayed
insulation can cause a dangerous electrical shock and personal
injury.

SAFE OPERATION-4
ENGLISH
HANDS AND BODY AWAY FROM THE ROTATING PARTS
ADO NOT operate the generator with the side covers removed or
open. Serious personal injury may result if fingers or clothing are
caught in the rotating parts.
ABe sure to stop the engine before checking or adjusting belt tension
and cooling fan.
ATo avoid personal injury, keep your hands and body away from the
rotating parts, such as cooling fan, V-belt, fan drive pulleys or
flywheel.
ADO NOT run the engine with installed safety guards detached. Install
safety guards securely before operation.
ESCAPING FLUID
ARelieve all pressure in the oil and the cooling systems
before any lines, fittings or related items are removed or
disconnected.
ABe alert for possible pressure when disconnecting any
device from a system that utilizes pressure. DO NOT
check for pressure leaks with your hand. High pressure oil
or fuel can cause serious personal injury.
AEscaping fluid under pressure has sufficient force to
penetrate skin causing serious personal injury.
AFluid escaping from pinholes may be invisible. Use a
piece of cardboard or wood to search for suspected leaks:
DO NOT use hands or body. Use safety goggles or other
eye protection when checking for leaks.
AIf injured by escaping fluid, see a medical doctor at once.
This fluid can produce gangrene or severe allergic
reaction.

-5SAFE OPERATION
ENGLISH

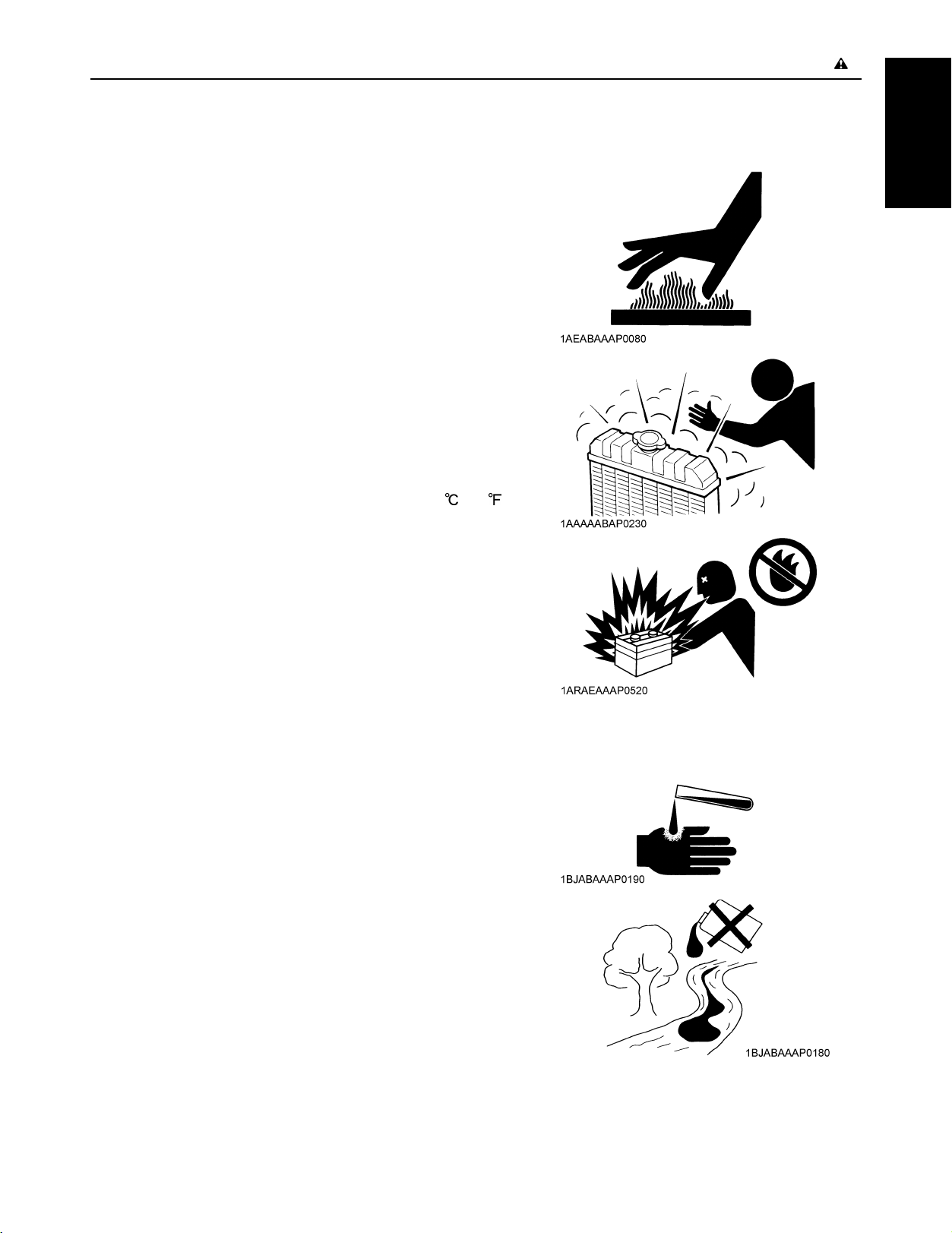

CAUTIONS AGAINST BURNS & BATTERY EXPLOSION
ATo avoid burns, be alert for hot components, e.g. muffler, muffler
cover, radiator, pipes, hoses, engine body, coolant, engine oil, etc.
during operation and just after the engine has been shut off.
ADO NOT remove the radiator cap while the engine is running or
immediately after stopping. Otherwise hot water from the radiator will
escape under pressure causing injury by scalding. Wait for more than
10 minutes to allow the coolant to cool down, before removing the
cap.
AMake sure to close the drain valve of coolant and engine oil, close
radiator pressure cap and tighten hose clamps before operating. If
any of these parts are taken off, or left loose, serious personal injury
can result.
AThe battery presents an explosive hazard. When the battery is being
activated, hydrogen and oxygen gases are extremely explosive.
AKeep sparks and open flames away from the battery, especially when
charging the battery. DO NOT strike a match near the battery.
ADO NOT check battery charge by placing a metal object across the
terminals. Use a voltmeter or hydrometer.
ADO NOT charge battery if frozen, there is a risk of explosion. When
battery is frozen, allow the battery to warm up to 16 (61 ) before
charging.
ADO NOT use or charge the battery if its fluid level is below the
LOWER (lower limit level) mark (refillable type battery only).
Otherwise, the component parts may deteriorate earlier than
expected, which may shorten the service life or cause an explosion.
Add distilled water until the fluid level is between the UPPER and
LOWER levels.
ANTI-FREEZE & DISPOSAL OF FLUIDS
ADO NOT run the engine with installed safety guards detached. Anti-
freeze contains poison. Wear rubber gloves to avoid personal injury.
In case of contact with skin, wash it off immediately.
ADO NOT mix different types of Anti-freeze. The mixture can produce
chemical reaction causing harmful substances. Use approved or
genuine KUBOTA Anti-freeze.
ABe mindful of the environment and the ecology. Before draining any
fluids, find out the correct way of disposing of them. Observe the
relevant environmental protection regulations when disposing of oil,
fuel, coolant, brake fluid, filters and batteries.
AWhen draining fluids from the engine, place some container
underneath the engine body.
ADO NOT pour waste onto the grounds, down a drain, or into any water
source.

SAFE OPERATION-6
ENGLISH
CONDUCTING SAFETY CHECKS & MAINTENANCE
AKnow how to stop the generator quickly, and understand operation of
all the controls. DO NOT permit anyone to operate the generator
without proper instruction.
AWhen checking engine or servicing, place the generator in an open
area and level ground. DO NOT work on anything that is supported
ONLY by lift jacks or a hoist. Always use blocks or safety stands to
support the generator before servicing.
ADetach the battery from the generator before conducting service.Put
a "DO NOT OPERATE!" tag on the key switch and remove the key to
avoid accidental starting.
ATo avoid sparks from an accidental short circuit, always disconnect
the battery's ground cable first and connect it last.
ASulfuric acid in battery electrolyte is poisonous. It is strong enough to
burn skins and clothing and cause blindness if splashed into eyes.
Keep electrolyte away from eyes, hands and clothing.
If you spill electrolyte on yourself, flush with water, and get medical
attention immediately.
ABe sure to stop the engine and remove the key when conducting daily
and periodic maintenance, servicing and cleaning.
ACheck or conduct maintenance after the engine, coolant, muffler, or
muffler cover have cooled off completely.
AAlways use the appropriate lifting equipment and make sure safety
stands are in good condition when performing any service work.
Make sure that you understand how to use the equipment before
servicing.
AUse ONLY the correct engine flywheel rotating techniques for
manually rotating the engine. DO NOT attempt to rotate the engine
by pulling or prying on the cooling fan or V-belt. This practice can
cause serious personal injury or premature machine damage to the
cooling fan.
AReplace fuel, lubricant and coolant hoses with their hose clamps
every 2 years or earlier if required. They are made of rubber and
deteriorate over time whether used or not.
AWhen servicing is performed together by two or more persons, take
care to perform all work safely.
AKeep first aid kit and fire extinguisher handy at all times.

-7SAFE OPERATION
ENGLISH Pay special attention to all labels on the generator.
Refer to following representations for labels used on the GL Series Generator. Labels are available individually from your
KUBOTA Dealer.
DANGER, WARNING AND CAUTION LABELS

SAFE OPERATION-8
ENGLISH

-9SAFE OPERATION
ENGLISH
1. Keep warning and caution labels clean and free from obstructing material.
2. Clean warning and caution labels with soap and water, dry with a soft cloth.
3. Replace damaged or missing warning and caution labels with new labels from your local KUBOTA dealer.
4. If a component with warning and caution label(s) affixed is replaced with new part, make sure new label(s) is (are)
attached in the same location(s) as the replaced component.
5. Mount new warning and caution labels by applying on a clean dry surface and pressing any bubbles to outside edge.
CARE OF WARNING AND CAUTION LABELS

1SERVICING OF GENERATOR
ENGLISH
SERVICING OF GENERATOR
Your dealer is interested in your new generator and has
the desire to help you get the most value from it. After
reading this manual thoroughly, you will find that you can
do some of the regular maintenance yourself.
However, when in need of parts or major service, be sure
to see your KUBOTA Dealer.
For service, contact the KUBOTA Dealership from which
you purchased your generator or your local KUBOTA
Dealer.
When in need of parts, be prepared to give your dealer the
generator and engine serial numbers.Locate the serial
numbers now and record them in the space provided
below.
(To be filled in by purchaser)
model Serial No.
Generator
Engine
Date of Purchase
Name of Dealer
(1) Generator model
(2) Generator serial number
(3) Engine serial number

2 SPECIFICATIONS
ENGLISH
SPECIFICATIONS
GENERATOR
Model Unit GL7000 GL11000
Design - Salient-pole, revolving-field AC generator
(AVR system with separate and self-excitation brush)
Frequency Hz 60
Rated Output kVA 6.5 10
kW 6.5 10
Rated Voltage V 120 / 240
Rated amperage A 54.2 / 27.1 83.3 / 41.7
Phase & Wire - 1 Phase & 4 Wires 1 Phase & 3 Wires
Power Factor % 100
No. of Poles - 2
Insulation - Class B
Voltage Regulation % 5 (No load to full load)
Type of Coupling - Direct coupled
DIESEL ENGINE
Model - Z482 D722
Design - Vertical, water-cooled, 4-cycle diesel engine
No. of cylinders - 2 3
Bore x stroke mm (in.) 67 x 68 (2.6 x 2.7)
Displacement L (cu. in.) 0.479 (29.2) 0.719 (43.9)
Engine speed rpm 3600
Lubricating Oil - API service class CF or higher
Oil capacity L (U.S.gals.) 2.2 (0.58) 3.4 (0.90)
Coolant capacity L (U.S.gals.) 3.7 (0.98) 4.1 (1.1)
SET
Fuel - Diesel fuel No. 2 (ASTM D975)
Fuel consumption (at full load) L (U.S.gals.) / h 2.7 (0.71) 4.1 (1.08)
Fuel tank capacity L (U.S.gals.) 28 (7.4)
Continuous Operating Hours hrs 10 7
Battery (V x Ah/5Hr) - 38B20R (12 V x 28 Ah) 55B24R (12 V x 36 Ah)
Starting System - Electric
L x W x H mm (in.) 1066 x 618 x 698
(42.0 x 24.3 x 27.5)
1281 x 618 x 698
(50.4 x 24.3 x 27.5)
Approx Net Wt. kg (lbs.) 235 (518) 295 (650)
Emergency Stop System - In case of abnormal : Oil pressure, water temperature
No. of Receptacle
5-20R (GFCI) - 1 2
L5-30R - 2 1
L6-30R - 1 1
14-50R - - 1

3INSTRUMENT PANEL AND PART NAMES
ENGLISH
INSTRUMENT PANEL AND PART NAMES
(1) Door (7) Base (13) Oil dipstick (19) Engine oil port
(2) Coolant filling port (8) Engine oil drain plug (14) Oil filter cartridge (20) Battery
(3) Hook (9) Door lock (15) Muffler (21) Air cleaner
(4) Fuel tank cap (10) Coolant drain plug (16) Radiator (22) Door stopper
(5) Fuel gauge (11) Reserve tank (17) Radiator cap (23) Fuel tank
(6) Control panel (12) Fuel filter (18) Solenoid (24) Alternator
(25) Safety shield
