Kubota AP-SBL3074 User manual

Table of Contents
Cover photo may show optional equipment not supplied
with standard unit.
For an Operator’s Manual and Decal Kit in French
Language, please see your Kubota dealer.
Read the Operator’s Manual entirely. When you see this symbol,
the subsequent instructions and warnings are serious - follow
without exception. Your life and the lives of others depend on it!
!
Snow Blowers
AP-SBL3074, AP-SBL3084, AP-SBL3574, & AP-SBL3584
370-578MK
Operator’s Manual
Printed 10/25/23
78379

ii AP-SBL3074,AP-SBL3084, AP-SBL3574, & AP-SBL3584 Snow Blowers 370-578MK 10/25/23
Machine Identification
Record your machine details in the log below. If you replace this manual, be sure to transfer this information to the new
manual.
If you, or the dealer, have added options not originally ordered with the machine, or removed options that were
originally ordered, the weights and measurements are no longer accurate for your machine. Update the record by
adding the machine weight and measurements provided in the Specifications & Capacities Section of this manual with
the option(s) weight and measurements.
Dealer Contact Information
Model Number
Serial Number
Machine Height
Machine Length
Machine Width
Machine Weight
Delivery Date
First Operation
Accessories
Dealer Name:
Street:
City/State:
Telephone:
Email:
California Proposition 65
WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov
!

Table of Contents
© Copyright 2023 All rights Reserved
Kubota provides this publication “as is” without warranty of any kind, either expressed or implied. While every precaution has been taken in the preparation of this manual, Kubota
assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained herein. Kubota reserves the right
to revise and improve its products as it sees fit. This publication describes the state of this product at the time of its publication, and may not reflect the product in the future.
Kubota is a registered trademark.
All other brands and product names are trademarks or registered trademarks of their respective holders.
Printed in the United States of America.
10/25/23 iii
Table of Contents
Important Safety Information . . . . . . . . . . . . . 1
Safety at All Times . . . . . . . . . . . . . . . . . . . . . . . . . 1
Look for the Safety Alert Symbol . . . . . . . . . . . . . . . 1
Be Aware of Signal Words. . . . . . . . . . . . . . . . . . . . 1
Be Aware of Special Notices . . . . . . . . . . . . . . . . . . 1
Safety Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Using This Manual . . . . . . . . . . . . . . . . . . . . . . . . . 8
Terminology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Owner Assistance . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Serial Number . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Section 1: Assembly & Set-up . . . . . . . . . . . . 9
Skid Steer Requirements . . . . . . . . . . . . . . . . . . . . 9
Torque Requirements . . . . . . . . . . . . . . . . . . . . . . . 9
Before You Start . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Skid Steer Shutdown Procedure . . . . . . . . . . . . . . . 9
Loading & Unloading . . . . . . . . . . . . . . . . . . . . . . . 10
Installing Blade . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Installing Chute Assembly . . . . . . . . . . . . . . . . . . . 11
Connecting Spout Cylinder Hoses . . . . . . . . . . . . 12
Section 2: Connect & Disconnect . . . . . . . . . 13
Connect to Snow Blower . . . . . . . . . . . . . . . . . . . . 13
Connect Hydraulic Hoses . . . . . . . . . . . . . . . . . . . 14
Connect Solenoid . . . . . . . . . . . . . . . . . . . . . . . . . 15
Check Equipment Clearances . . . . . . . . . . . . . . . . 15
Disconnect from Snow Blower . . . . . . . . . . . . . . . 16
Section 3: Options . . . . . . . . . . . . . . . . . . . . . 17
Motor Options (SBL30 Series Only) . . . . . . . . . . . 17
Skid Shoe Options . . . . . . . . . . . . . . . . . . . . . . . . 17
Steel Side Skid Shoe Bundle . . . . . . . . . . . . . . . 17
Rear Skid Shoe/Wear Bar Bundle . . . . . . . . . . . 17
Section 4: Adjustments . . . . . . . . . . . . . . . . . 18
Discharge Chute & Spout Deflector . . . . . . . . . . . 18
Chute Rotation Gear Adjustment . . . . . . . . . . . . 18
Steel Side Skid Shoe Adjustment . . . . . . . . . . . . . 19
Rear Skid Shoe/Wear Bar Adjustment . . . . . . . . . 19
Section 5: Operating Instructions . . . . . . . . 20
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
General Safety Information . . . . . . . . . . . . . . . . . . 20
Mount & Dismount Skid Steer . . . . . . . . . . . . . . . . 22
Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Operating Function Checks . . . . . . . . . . . . . . . . . . 22
Transporting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
General Operating Instructions . . . . . . . . . . . . . . . 24
Section 6: Maintenance & Lubrication . . . . . 26
General Maintenance Information . . . . . . . . . . . . . 26
Skid Steer Hydraulic System . . . . . . . . . . . . . . . . . 26
Inspect & Replace Blade . . . . . . . . . . . . . . . . . . . . 26
Impeller & Auger Inspection . . . . . . . . . . . . . . . . . 27
Impeller Motor Mount Inspection . . . . . . . . . . . . . . 27
Auger Motor Mount Inspection . . . . . . . . . . . . . . . 27
Steel Side Skid Shoe Inspection . . . . . . . . . . . . . . 28
Rear Skid Shoe/Wear Bar Inspection . . . . . . . . . . 28
Long-Term Storage . . . . . . . . . . . . . . . . . . . . . . . . 29
Lubrication Points . . . . . . . . . . . . . . . . . . . . . . . . . 29
Auger Flange Bearing . . . . . . . . . . . . . . . . . . . . 29
Section 7: Specifications & Capacities . . . . . 30
Section 8: Features & Benefits . . . . . . . . . . . 31
Section 9: Troubleshooting . . . . . . . . . . . . . . 32
Section 10: Torque Values Chart . . . . . . . . . . 33
Section 11: Warranty & Legal Disclaimer . . . 34

Table of Contents Continued
Parts Manual QR Locator
The QR (Quick Reference) code on the left
will take you to the Parts Manual for this
equipment. Download the appropriate
App on your smart phone, open the App,
point your phone on the QR code and
take a picture.
Dealer QR Locator
The QR code on the left will
link you to available dealers
for Kubota products. Refer to
Parts Manual QR Locator on
this page for detailed
instructions.
Table of Contents
10/25/23
iv
See previous page for Table of Contents.

Important Safety Information
10/25/23 1
Important Safety Information
Listed below are common practices that may or may not be applicable to the products
described in this manual.

Safety at All Times
Careful operation is your best
assurance against an accident.
All operators, no matter how much
experience they may have, should
carefully read this manual and
other related manuals before
operating the power machine and
this attachment.
Thoroughly read and understand
the “Safety Label” section. Read
all instructions noted on them.
Do not operate the equipment
while under the influence of drugs
or alcohol, as they impair your
ability to safely and properly
operate the equipment.
Operator should be familiar with all
functions of the skid steer and
attachment and be able to handle
emergencies quickly.
Make sure all guards and shields
appropriate for the operation are in
place and secured before
operating the attachment.
Keep all bystanders away from
equipment and work area.
Start skid steer from the driver’s
seat with steering levers and
hydraulic controls in neutral.
Operate skid steer and controls
from the driver’s seat only.
Never dismount from a moving
skid steer or leave the skid steer
unattended with the engine
running.
Do not allow anyone to stand
between the attachment and skid
steer while connecting to the
attachment.
Keep hands, feet, and clothing
away from power-driven parts.
While transporting and operating
equipment, watch out for objects
overhead and along the sides
such as fences, trees, buildings,
wires, etc.
Store attachment in an area where
children normally do not play.
When needed, secure attachment
against falling with support blocks.
OFF
REMOVE
Safety Precautions for
Children
Tragedy can occur if the operator
is not alert to the presence of
children. Children generally are
attracted to attachments and their
work.
Never assume children will remain
where you last saw them.
Keep children out of the work area
and under the watchful eye of a
responsible adult.
Be alert and shut the attachment
and skid steer/track loader down if
children enter the work area.
Never carry children on the power
machine or attachment. There is
not a safe place for them to ride.
They may fall off and be run over
or interfere with the control of the
power machine.
Never allow children to operate the
power machine, even under adult
supervision.
Never allow children to play on the
power machine or attachment.
Use extra caution when backing
up. Before the power machine
starts to move, look down and
behind to make sure the area is
clear.
Skid Steer Shutdown
And Storage
Reduce engine speed and shut-off
all power to the attachment.
Park on solid, level ground and
lower attachment until it is flat on
the ground or on non-concrete
support blocks.
Turn off engine. Do not remove
ignition key at this time.
Turn ignition key to the “RUN”
position. Relieve all hydraulic
pressure by moving both joysticks.
Turn ignition key to Off and remove
to prevent unauthorized starting.
If included, raise seat bar and
move controls until both lock.
Wait for all components to stop
before leaving operator’s seat.
Use steps, grab-handles and
anti-slip surfaces when stepping
on and off the skid steer.
Look for the Safety Alert Symbol
The SAFETY ALERT SYMBOL indicates there is a potential hazard
to personal safety and extra precaution must be taken. When you
see this symbol, be alert and carefully read the message that
follows it. Hazard control, and accident prevention are dependent
upon the awareness, concern, prudence, and proper training of
personnel involved in the operation, transport, maintenance, and
storage of equipment.
!
Be Aware of Signal Words
A signal word designates a degree or level of hazard seriousness. They are:
DANGER:
!
WARNING:
CAUTION:
!
!
Indicates a hazardous situation that, if not avoided, will result
in death or serious injury.
Indicates a hazardous situation that, if not avoided, could
result in death or serious injury.
Indicates a hazardous situation that, if not avoided, may result
in minor or moderate injury.
Be Aware of Special Notices
Special notices are intended to point out important and helpful information that
should be followed. They are usually placed inside a box. They are:
Indicates that equipment or property damage could result if
instructions are not followed.
Indicates supplementary explanations that will be helpful when
using the equipment.
IMPORTANT:
NOTE:

Important Safety Information
10/25/23
2
Listed below are common practices that may or may not be applicable to the products
described in this manual.
Practice Safe Maintenance
Understand procedure before doing
work. Refer to the Operator’s Manual
for additional information.
Work on a level surface in a clean
dry area that is well-lit.
Lower attachment to the ground and
follow all shutdown procedures
before leaving the operator’s seat to
perform maintenance.
Do not work under any hydraulically
supported equipment. It can settle,
suddenly leak down, or be lowered
accidentally. If it is necessary to work
under the equipment, securely
support it with stands or suitable
blocking beforehand.
Use properly grounded electrical
outlets and tools.
Use correct tools and equipment for
the job that are in good condition.
Allow equipment to cool before
working on it.
Disconnect battery ground cable (-)
before servicing or adjusting
electrical systems or before welding
on equipment.
Inspect all parts. Make certain that
parts are in good condition &
installed properly.
Replace parts on this attachment
with genuine Kubota parts only. Do
not alter this attachment in a way
which will adversely affect its
performance.
Do not grease or oil attachment
while it is in operation.
Remove buildup of grease, oil, or
debris.
Always make sure any material and
waste products from the repair and
maintenance of the attachment are
properly collected and disposed.
Remove all tools and unused parts
from the equipment before
operation.

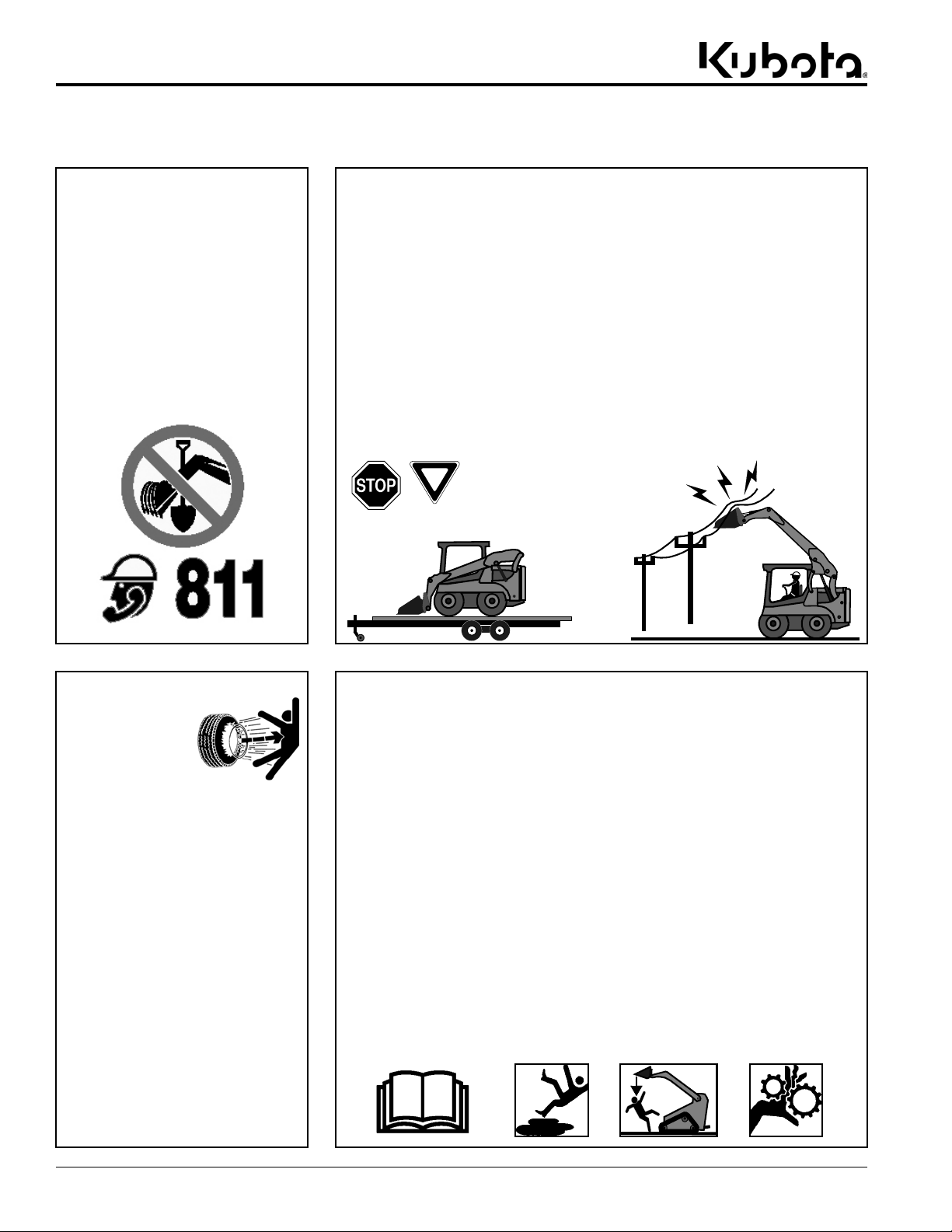

Tire Safety
Tire changing
can be
dangerous
and must be
performed by
trained personnel using the
correct tools and equipment.
Always properly match the wheel
size to the properly sized tire.
Always maintain correct tire
pressure. Do not inflate tires
above recommended pressures
shown in the Operator’s Manual.
When inflating tires, use a clip-on
chuck and extension hose long
enough to allow you to stand to
one side and NOT in front of or
over the tire assembly. Use a
safety cage if available.
Securely support the attachment
when changing a wheel.
When removing and installing
wheels, use wheel handling
equipment adequate for the
weight involved.
Make sure wheel bolts have been
tightened to the specified torque.
Towing Safely
Comply with federal, state, and local
laws.
Use towing vehicle and trailer of
adequate size and capacity. Secure
equipment towed on a trailer with
chocks, tie downs, and chains.
IMPORTANT: Do not tow a load
that is more than double the weight
of the vehicle towing the load.
Sudden braking can cause a towed
trailer to swerve unexpectedly.
Reduce speed if trailer is not
equipped with brakes.
Transport Safely
Comply with federal, state, and
local laws.
Avoid contact with any overhead
utility lines or electrically charged
conductors.
Always drive with attachment on the
end of the loader arms low to the
ground.
Follow recommendations in the
power machine Operator’s Manual
when driving uphill or downhill and
when parking on an incline.
Never travel at a speed which does
not allow adequate control of the
load, steering, and stopping. Some
rough terrains require a slower
speed.
Dig Safe - Avoid
Underground Utilities
USA: Call 811
CAN:
http://www.clickbeforeyoudig.com
Always contact your local utility
companies (electrical, telephone,
gas, water, sewer, and others)
before digging so that they may
mark the location of any
underground services in the area.
Be sure to ask how close you can
work to the marks they positioned.

Important Safety Information
10/25/23 3
These are common practices that may or may not be applicable to the products described in
this manual.

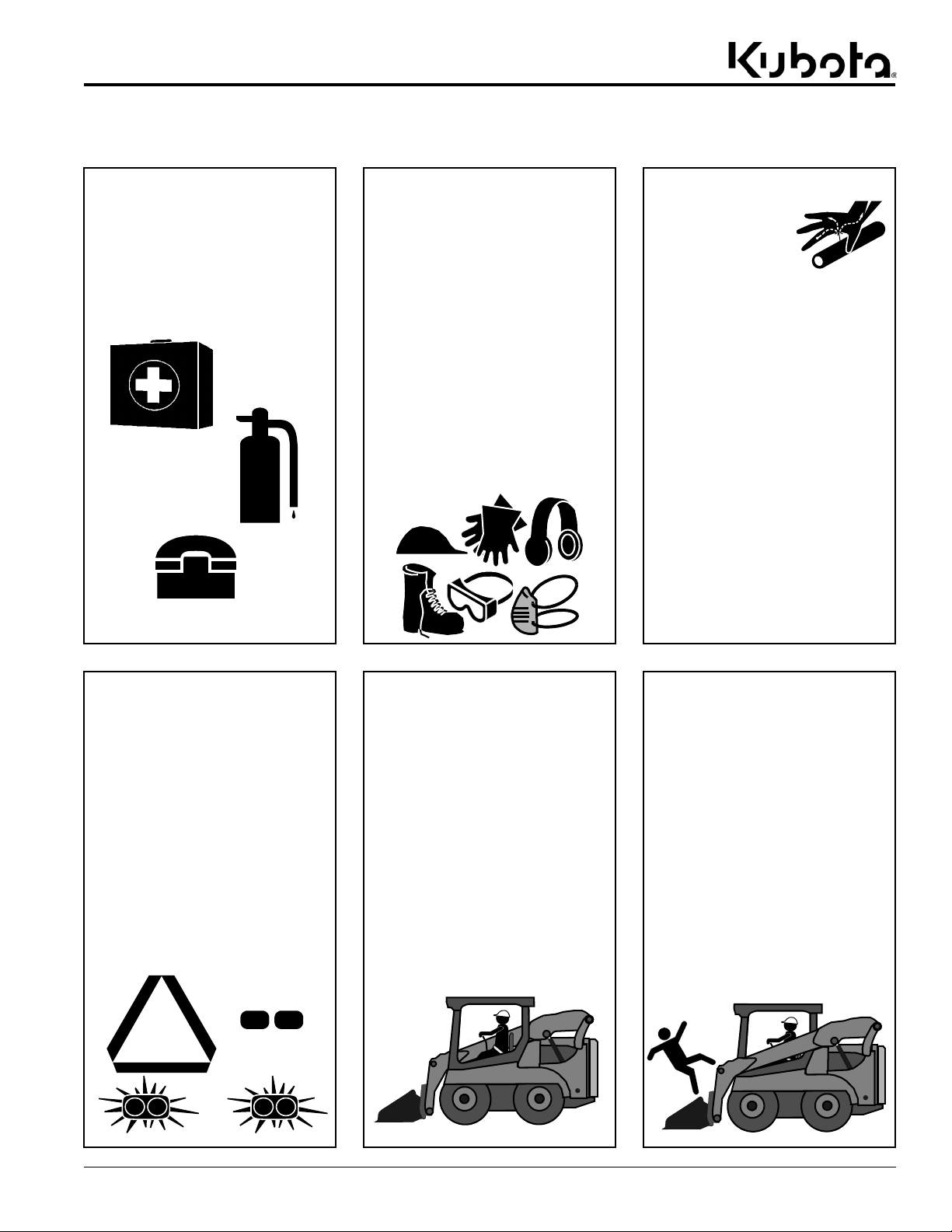

Prepare for Emergencies
Be prepared if a fire starts.
Keep a first aid kit and fire
extinguisher handy.
Keep emergency numbers for
doctor, ambulance, hospital, and
fire department near phone.
911
Avoid High Pressure
Fluids
Escaping fluid
under pressure will
penetrate the skin or
eyes causing serious injury.
Relieve all residual pressure
before disconnecting hydraulic
lines or performing work on the
hydraulic system.
Make sure all hydraulic fluid
connections are properly
tightened/torqued and all
hydraulic hoses and lines are in
good condition before applying
pressure to the system.
Use a piece of cardboard or
wood, NOT BODY PARTS, to
check for suspected leaks.
Wear protective gloves and
safety glasses or goggles when
working with hydraulic systems.
DO NOT DELAY. If an accident
occurs, seek immediate
emergency medical care or
gangrene may result.
Wear Personal Protective
Equipment (PPE)
Wear protective clothing and
equipment appropriate for the job
such as safety shoes, safety,
glasses, hard hat, dust mask,
and ear plugs.
Clothing should fit snug without
fringes and pull strings to avoid
entanglement with moving parts.
Prolonged exposure to loud noise
can cause hearing impairment or
hearing loss. Wear suitable
hearing protection such as
earmuffs or earplugs.
Operating a machine safely
requires the operator’s full
attention. Avoid wearing
headphones while operating
equipment.
Keep Riders Off
Machinery
Never carry riders on the power
machine or attachment.
Riders obstruct operator’s view
and interfere with the control of
the power machine.
Riders can be struck by objects
or thrown from the equipment.
Never use the power machine or
attachment to lift or transport
riders.
Use Seat Belt and ROPS
Land Pride recommends the use
of a CAB or roll-over-protective-
structures (ROPS) and seat belt
in almost all power machines.
Combination of a CAB or ROPS
and seat belt will reduce the risk
of serious injury or death if the
power machine should be upset.
If ROPS is in the locked-up
position, fasten seat belt snugly
and securely to help protect
against serious injury or death
from falling and machine
overturn.
Use Safety
Lights and Devices
A slow moving power machine
can create a hazard when driven
on public roads. They are difficult
to see, especially at night.
Flashing warning lights and turn
signals are recommended
whenever driving on public roads.
For tractors and other agriculture
equipment, a Slow Moving
Vehicle (SMV) sign is required
when traveling on public roads.

Important Safety Information
10/25/23
4
Avoid Crystalline Silica
(Quartz) Dust
Because crystalline silica is a basic
component of sand and granite,
many activities at construction sites
produce dust containing crystalline
silica.Trenching, sawing, and boring
of material containing crystalline
silica can produce dust containing
crystalline silica particles. This dust
can cause serious injury to the
lungs (silicosis).
There are guidelines which should
be followed if crystalline silica
(quartz) is present in the dust.
Be aware of and follow OSHA
(or other local, State, or Federal)
guidelines for exposure to airborne
crystalline silica.
Know the work operations where
exposure to crystalline silica may
occur.
Participate in air monitoring or
training programs offered by the
employer.
Be aware of and use optional
equipment controls such as water
sprays, local exhaust ventilation,
and enclosed cabs with positive
pressure air conditioning if the
machine has such equipment.
Otherwise respirators shall be worn.
Where respirators are required, wear
a respirator approved for protection
against crystalline silica containing
dust. Do not alter respirator in any
way. Workers who use tight-fitting
respirators can not have beards/
mustaches which interfere with the
respirator seal to the face.
If possible, change into disposable
or washable work clothes at the
work site; shower and change into
clean clothing before leaving the
work site.
Do not eat, drink, use tobacco
products, or apply cosmetics in
areas where there is dust containing
crystalline silica.
Store food, drink, and personal
belongings away from the work
area.
Wash hands and face before eating,
drinking, smoking, or applying
cosmetics after leaving the exposure
area.
Listed below are common practices that may or may not be applicable to the products
described in this manual.
Handle
Chemicals Properly
Protective clothing should be
worn.
Handle all chemicals with care.
Follow instructions on container
label.
Agricultural chemicals can be
dangerous. Improper use can
seriously injure persons, animals,
plants, soil, and property.
Inhaling smoke from any type of
chemical fire can be a serious
health hazard.
Store or dispose of unused
chemicals as specified by the
chemical manufacturer.

Important Safety Information
10/25/23 5
This page left blank intentionally.

Important Safety Information
Table of Contents
10/25/23AP-SBL3074,AP-SBL3084,AP-SBL3574, & AP-SBL3584 Snow Blowers 370-578MK
6
818-132C
Danger: Thrown Object Hazard
2 Places: Both Sides of Chute
Safety Labels
Your Snow Blower comes equipped with all safety labels in
place. They are designed to help you safely operate your
attachment. Read and follow their directions.
1. Keep all safety labels clean and legible.
2. Refer to this section for proper label placement. Replace
all damaged or missing labels. Order new labels from your
nearest Kubota dealer. To find your nearest dealer, visit
our dealer locator at www.landpride.com.
3. Some new equipment installed during repair requires
safety labels to be affixed to the replaced component as
specifiedby Kubota.When ordering newcomponentsmake
sure the correct safety labels are included in the request.
4. Refer to this section for proper label placement.
To install new labels:
a. Clean surface area where label is to be placed.
b. Spray soapy water onto the cleaned area.
c. Peelbacking fromlabel andpress labelfirmly ontothe
surface.
d. Squeeze out air bubbles with edge of a credit card or
with a similar type of straight edge.
78386
78386
78386
Important Safety Information
818-831C
Warning: High Pressure Fluid Hazard
1 Place: On Backside of Impeller Housing
70659
848-840C
Danger: Entering Discharge
Chute Hazard
2 Places: Both Sides of Chute

Important Safety Information
Table of Contents
10/25/23 AP-SBL3074, AP-SBL3084,AP-SBL3574, & AP-SBL3584 Snow Blowers 370-578MK 7
78387
78387
78387

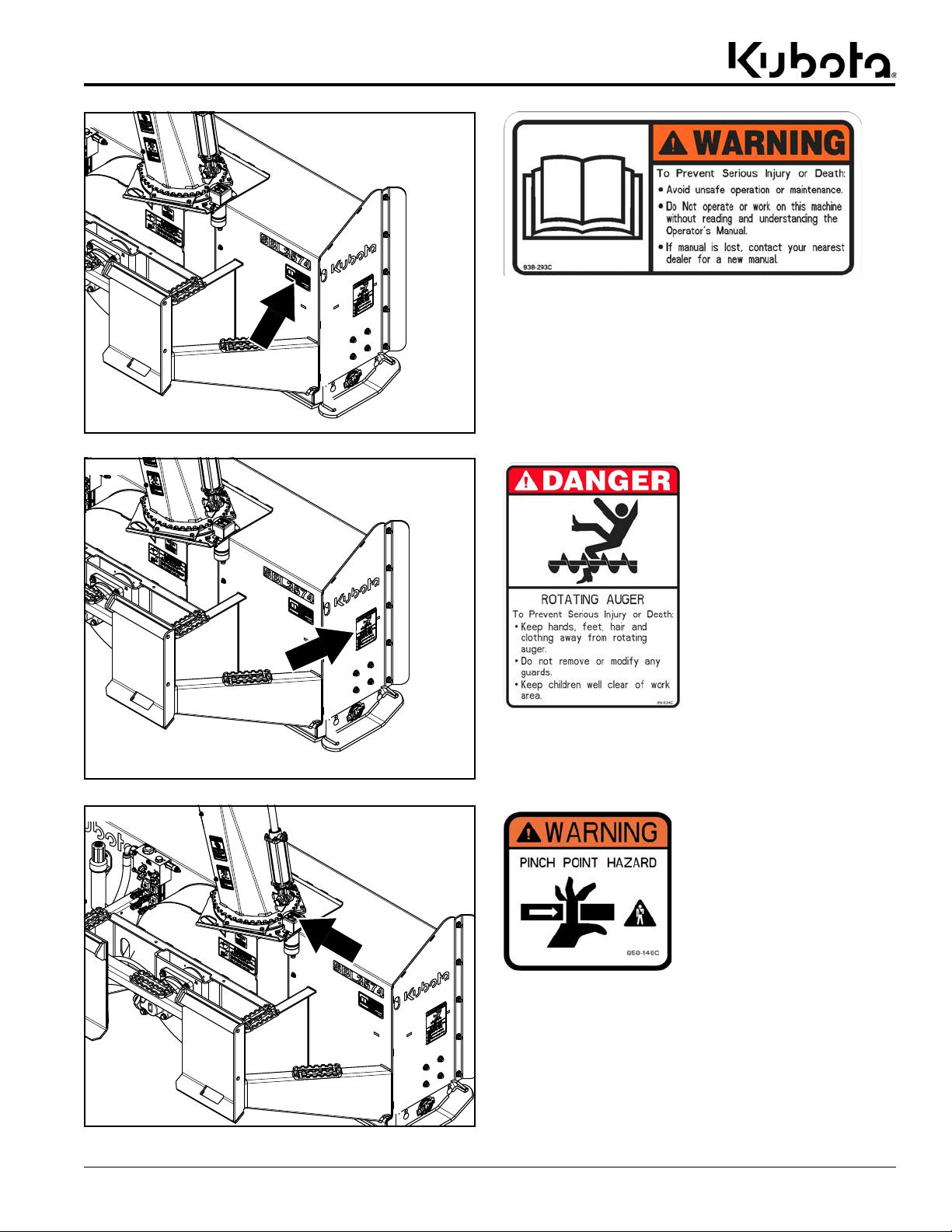

818-634C
Danger: Rotating Auger Hazard
2 Places: One on Each End Panel
70644
838-293C
Warning: Read Operator’s Manual
1 Place: As Shown
70243
858-148C
Warning: Pinch Point Hazard
1 Place: On Chute Gear Guard
70247

Introduction
Table of Contents
10/25/23AP-SBL3074,AP-SBL3084,AP-SBL3574, & AP-SBL3584 Snow Blowers 370-578MK
8
Serial Number
For quick reference and prompt service, record model
and serial number on the inside cover page and again on
the warranty page. Always provide model number and
serial number when ordering parts and in all
correspondences with your Kubota dealer. For location of
your serial number plate, see Figure 1.
Serial Number Plate Location
Figure 1
Further Assistance
Your Kubota dealer wants you to be satisfied with your
new attachment. If for any reason you do not understand
any part of this manual or are not satisfied with the
service received, the following actions are suggested:
1. Discuss any problems you have with your attachment
with your dealership service personnel so they can
address the problem.
2. If you are still not satisfied, seek out the owner or
general manager of the dealership, explain the
question/problem, and request assistance.
3. For further assistance write to:
Kubota by Land Pride
Service Department
1525 East North Street
P.O. Box 5060
Salina, Ks. 67402-5060
E-mail address
[e-mail]
78387
Introduction
Kubota welcomes you to the growing family of new
product owners. This Snow Blower has been designed
with care and built by skilled workers using quality
materials. Proper assembly, maintenance, and safe
operating practices will help you get years of satisfactory
use from this attachment.
Application
The Kubota Snow Blowers, Models SBL3074, SBL3084,
SBL3574, and SBL3584, are designed with a skid steer
mounting plate for attaching to skid steers. They are
designed to remove snow from parking lots, farm yards,
feed lots, driveways, walking paths, and sidewalks in
municipal and commercial areas.
The auger, impeller, and chute rotation are powered with
individual hydraulic motors. Adjustable skid shoes
mounted on both sides can be adjusted to carry the Snow
Blower above hard surfaces, loose gravel, and rocks to
help increase the life of the unit.
For additional information and performance enhancing
options, see “Section 7: Specifications & Capacities”
on page 30 and “Section 8: Features & Benefits” on
page 31.
Using This Manual
•This Operator’s Manual is designed to help familiarize
you with safety, assembly, operation, adjustments,
troubleshooting, and maintenance. Read this manual
and follow the recommendations to help ensure safe
and efficient operation.
•The information contained within this manual was
current at the time of printing. Some parts may change
slightly to assure you of the best performance.
•To order a new Operator’s or Parts Manual, contact
your authorized dealer. Manuals can also be
downloaded, free-of-charge, from our website at
www.landpride.com
Terminology
“Right” or “Left” as used in this manual is determined by
the direction the operator faces while sitting looking
forward in the operator’s seat unless otherwise stated.
Owner Assistance
The dealer should complete the Online Warranty
Registration at the time of purchase. This information is
necessary to provide you with quality customer service.
The parts on your Snow Blower have been specially
designed by Kubota/Land Pride and should only be
replaced with genuine Kubota parts. Contact a Kubota
dealer if customer service or repair parts are required.
Your Kubota dealer has trained personnel, repair parts,
and equipment needed to service the attachment.

Section 1: Assembly & Set-up
Table of Contents
10/25/23 AP-SBL3074, AP-SBL3084,AP-SBL3574, & AP-SBL3584 Snow Blowers 370-578MK 9
Section 1: Assembly & Set-up
Skid Steer Requirements
The Snow Blower is designed to attach to skid steer
loaders with the following minimum requirements:
Hitch type. . . . . . . . . . . . . . . . Universal Quick Attach
Maximum hydraulic pressure . . . 3,550 psi (24.5 mPa)
Hydraulic connections
Hydraulic hoses . . . . . . . . . . . . . . . . . . . . 2 outlets
Case drain hose . . . . . . . . . . . . . . . . . . . . . 1 outlet
Hydraulic flow rate . . . . . . . . . . . . . Various flow rates
SBL3074 & SBL3084 . . . . . 17-23 gpm (64-87 lpm)
... 27-33gpm(102-125lpm)
SBL3574 & SBL3584 . . . 34-41 gpm (129-155 lpm)
Skid steer weight . . . . . . . . . . . . . See Warning below
WARNING
!
To avoid serious injury or death:
Lightweight power machines may need weight added to the
rear to maintain steering control and prevent forward and/or
side tipping. Consult your power machine Operator’s Manual
to determine proper weight requirements and maximum
limitations.
Torque Requirements
Refer to “Section 10: Torque Values Chart” on page 33
to determine correct torque values for common bolts.
Before You Start
WARNING
!
To avoid serious injury or death:
Allow only persons to operate this attachment who have fully
read and comprehended this manual, and who have been
properly trained in the safe operation of this attachment.
Serious injury or death can result from failure to read,
understand, and follow instructions provided in this manual.
Make sure the intended skid steer conforms to the
“Skid Steer Requirements” stated above. Read and
understand the Operator’s Manual for your Snow Blower.
An understanding of how it works will aid in the assembly
and setup of your Snow Blower.
Go through the “Pre-Assembly Checklist” on this page
before assembling the Snow Blower. Speed up your
assembly task and make the job safer by having all
needed parts and equipment readily at hand.
IMPORTANT: The skid steer must be equipped with
a case drain system.
Skid Steer Shutdown Procedure
The following are basic skid steer shutdown procedures.
Follow these procedures and any additional shutdown
procedures provided in your skid steer Operator’s
Manual before leaving the operator’s seat.
1. Reduce engine speed and shut-off all power to the
attachment.
2. Park on solid, level ground and lower attachment until
it is flat on the ground or on non-concrete support
blocks.
3. Turn off engine. Do not remove ignition key at this
time.
4. Turn ignition key to the “RUN” position and relieve all
hydraulic pressure by moving both joysticks.
5. Turn ignition key off and remove to prevent
unauthorized starting.
6. If included, raise seat bar and move controls until
both lock.
7. Wait for all components to come to a complete stop
before leaving the operator’s seat.
8. Use steps, grab-handles and anti-slip surfaces when
stepping on and off the skid steer or attachment.
Pre-Assembly Checklist
Check Ref.
Have a hoist, forklift, or loader with properly sized chains and
safety stands capable of lifting and supporting the equipment
on hand.
Have a minimum of two people available during assembly.
Make sure all major components and loose
parts are shipped with the attachment.
Operator’s
Manual
370-578MK
Double check to make sure all parts, fasteners,
and pins are installed in the correct location.
Refer to the Parts Manual if unsure.
NOTE: All assembled hardware from the factory
has been installed in the correct location.
Remember location of a part or fastener if
removed. Keep parts separated.
Operator’s
Manual
370-578MK
Parts Manual
370-578PK
Make sure working parts move freely, bolts are
tight and cotter pins are spread.
Operator’s
Manual
Make sure all grease fittings are in place and
lubricated. Page 29
Make sure all safety labels are correctly located
and legible. Replace if damaged. Page 6

Section 1: Assembly & Set-up
Table of Contents
10/25/23AP-SBL3074,AP-SBL3084,AP-SBL3574, & AP-SBL3584 Snow Blowers 370-578MK
10
Loading & Unloading
Refer to Figure 1-1:
There are two lifting holes (one on each end panel). Use
these holes to attach lift chains during loading/unloading
and while installing blade in assembly & set-up.
Lift Points
Figure 1-1
78387
I
Installing Blade (SBL3574 Shown)
Figure 1-4
Installing Blade
Refer to Figure 1-4:
DANGER
!
To avoid serious injury or death:
Always secure equipment with solid, non-concrete supports
before working under it. Never go under equipment supported
by concrete blocks or hydraulics. Concrete can break,
hydraulic lines can burst, and/or hydraulic controls can be
actuated even when power to hydraulics is off.
1. Attach blade (#1) as shown with plow bolts (#2) and
nuts (#3).
2. Tighten nuts (#3) to the correct torque.
78408
NOTE: Both blade options install as shown in
Figure 1-4. If desired, the other style blade can be
purchased through your dealer.

Section 1: Assembly & Set-up
Table of Contents
10/25/23 AP-SBL3074, AP-SBL3084,AP-SBL3574, & AP-SBL3584 Snow Blowers 370-578MK 11
Chute Assembly
Figure 1-5
Installing Chute Assembly
Refer to Figure 1-5:
1. Remove flange locknuts (#10), hex head bolts (#7),
and rotational stop (#6). Keep hardware for reuse.
2. Remove flange locknuts (#11), hex head bolts (#9),
bearing strap (#2A), chute bearings (#5), flat washers
(#12), and thin washer (#13). Keep hardware for
reuse.
3. With discharge chute (#1) facing forward as shown.
Slide base of chute over UHMW chute bearing ring
(#14) until base of chute is fully under remaining
bearing straps (#2B & #2C) and chute rotator teeth
(#3) are engaged with sprocket (#4).
4. Reattach bearing strap (#2A) to Snow Blower
housing with existing hex head bolts (#9), chute
bearings (#5), flat washers (#12), thin washer (#13),
and flange locknuts (#11). Tighten flange locknuts
(#11) to the correct torque.
78395
IMPORTANT: Position chute (#1) facing straight
forward to the front as shown in Figure 1-5 before
sliding base of chute over bearing ring (#14).
Refer to Figure 1-6:
5. Verify stop bolts (#8A & #8B) are left of rotational stop
(#6) as shown.
Refer to Figure 1-5:
6. Reattach rotational stop (#6) to Snow Blower housing
with existing hex head bolts (#7) and flange locknuts
(#10). Tighten flange locknuts (#10) to the correct
torque.
Rotational Stop Position
Figure 1-6
78407
U
D
F
B
L
R

Section 1: Assembly & Set-up
Table of Contents
10/25/23AP-SBL3074,AP-SBL3084,AP-SBL3574, & AP-SBL3584 Snow Blowers 370-578MK
12
Installing Spout Cylinder Hoses
Figure 1-7
Connecting Spout Cylinder Hoses
Refer to Figure 1-7 & Figure 1-8:
1. Install grommet (#6) to chute housing.
2. Route straight end of hoses (#3 & #4) through
grommet (#6).
3. Install straight end of hose (#3) to 45 degree fitting on
port (B1) of priority valve. Tighten to correct torque.
4. Install straight end of hose (#4) to 45 degree fitting on
port (A1) of priority valve. Tighten to correct torque.
5. Adjust orientation of hoses (#3 & #4) attached to
cylinder fittings (2A & 2B) to correct any length or
interference issues. Tighten hoses to the correct
torque.
6. Use cable ties to secure hoses where needed.
78400
Priority Valve Ports
Figure 1-8
78405
Install hose (#3) here
Install hose (#4) here

Section 2: Connect & Disconnect
Table of Contents
10/25/23 AP-SBL3074, AP-SBL3084,AP-SBL3574, & AP-SBL3584 Snow Blowers 370-578MK 13
Connect to Snow Blower
Refer to Figure 2-1:
DANGER
!
To avoid serious injury or death:
A crushing hazard exists when connecting and disconnecting
the attachment. Do not allow anyone to stand between
attachment and power machine while approaching or backing
away from the attachment. Do not operate hydraulic controls
while someone is near the power machine and/or attachment.
WARNING
!
To avoid serious injury or death:
Check hitch fit-up frequently. An improper fit-up can cause the
attachment to come loose from the loader hitch plate and fall.
NOTE: The Snow Blowers are designed for skid
steers with front mounted loaders.
Section 2: Connect & Disconnect
Connect to Snow Blower
Figure 2-1
78411
Top Angle
Bars
Bottom
Slots
1. Check for and remove debris in the hitch point areas
before connecting to Snow Blower.
2. Raise lock handles on loader hitch.
3. Drive skid steer slowly to the Snow Blower hitch
making sure hitch plate on the skid steer is parallel
with the Snow Blower’s top angle bars.
4. Tilt top of skid steer hitch plate slightly forward.
5. Position top of skid steer hitch plate under the top
angled bars and slowly raise loader hitch plate up
until hitch plate is seated under the top angle bars.
6. Tilt top of skid steer hitch plate rearward until Snow
Blower makes full contact with face of hitch plate.
7. Push lock handles on the loader hitch down. Make
sure lock pins go through bottom slots in the Snow
Blower hitch and handles are fully locked down.

Section 2: Connect & Disconnect
Table of Contents
10/25/23AP-SBL3074,AP-SBL3084,AP-SBL3574, & AP-SBL3584 Snow Blowers 370-578MK
14

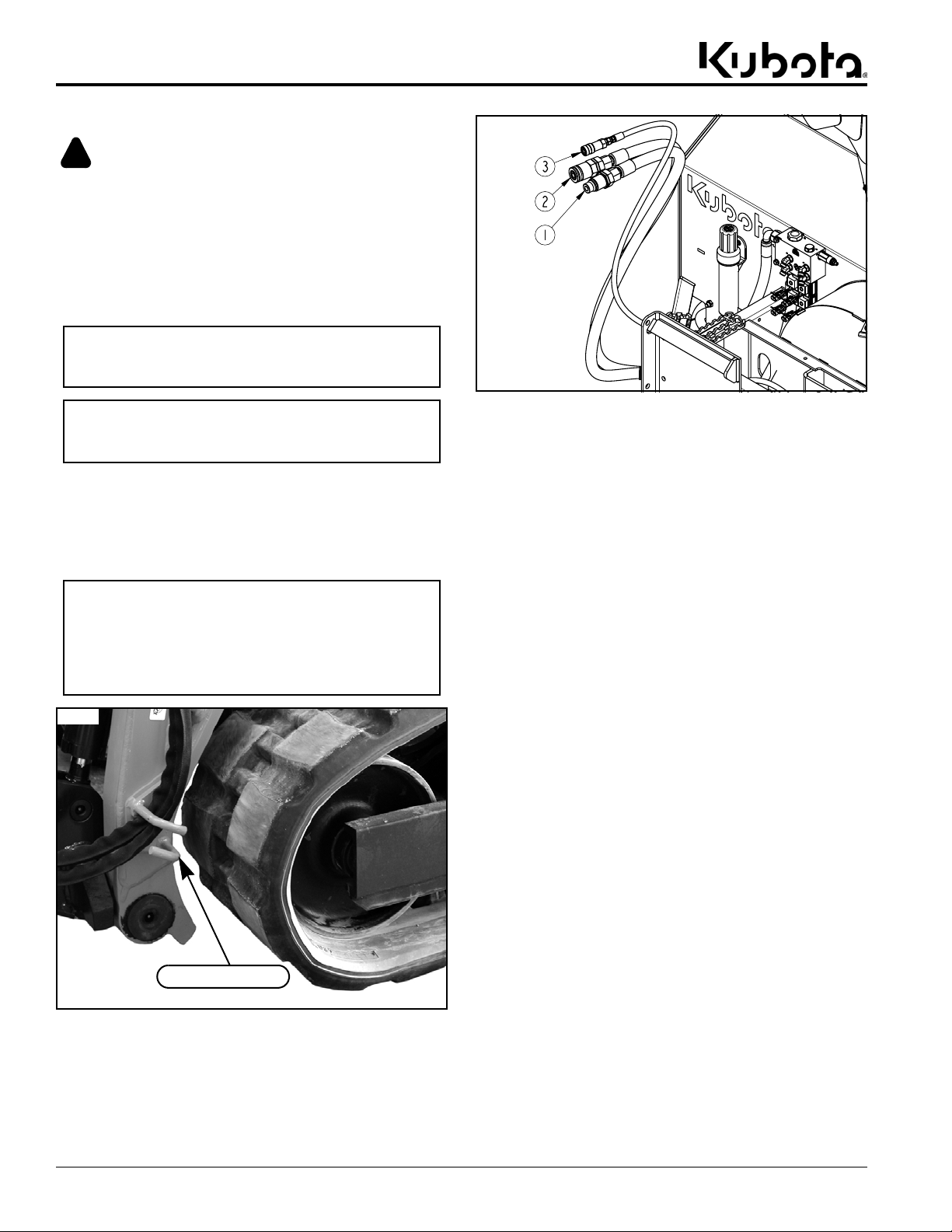

Connect Hydraulic Hoses
WARNING
!
To avoid serious injury or death:
Hydraulic fluid under high pressure will penetrate the skin or
eyes causing a serious injury. Wear protective gloves and
safety glasses or goggles when working with hydraulic
systems. Use a piece of cardboard or wood rather than hands
when searching for leaks. If an accident occurs, seek
immediate emergency medical care or gangrene may result.
DO NOT DELAY.
Refer to Figure 2-3:
Two auxiliary hydraulic outlets are required for the
hydraulic motors and one outlet for the case drain.
1. Route hydraulic hoses along the most convenient
path to access your skid steer hydraulic couplers.
Kubota Hose Stay
Figure 2-2
IMPORTANT: Hose routing is the responsibility of
the owner/operator. Pinched and/or stretched hoses
are not covered under the warranty.
IMPORTANT: Make sure coupler fittings on the
hydraulic hoses and power machine are clean
before connecting them together.
NOTE: If attaching to a Kubota skid steer or track
loader, route hydraulic hoses through Kubota’s
Hose Stay as shown in Figure 2-2. Purchase Hose
Stay #S6763 through your nearest Kubota dealer.
Refer to your power machine Operator’s Manual for
more instructions.
SVL Hose Stay
70979
Connect Hydraulic Hoses
Figure 2-3
2. Clean quick connect couplers of dirt and connect
couplers (#1 & #2) to skid steer couplers. Make sure
quick connect couplers have fully engaged. If they
have not, check the following:
a. Make sure couplers are same size and type.
b. Make sure hydraulic pressure has been released.
3. Clean and connect case drain coupler (#3) to coupler
on skid steer.
4. Turn auxiliary hydraulics on to check impeller
rotation.The impeller should rotate counterclockwise
viewed from the operator’s seat and clockwise
viewed facing impeller and auger from the front. If
impeller rotates incorrectly, switch male and female
couplers (#1 & #2) on hoses and reconnect hoses.
5. Cable ties to be added at end of connect solenoid
instruction steps.
78418

Section 2: Connect & Disconnect
Table of Contents
10/25/23 AP-SBL3074, AP-SBL3084,AP-SBL3574, & AP-SBL3584 Snow Blowers 370-578MK 15

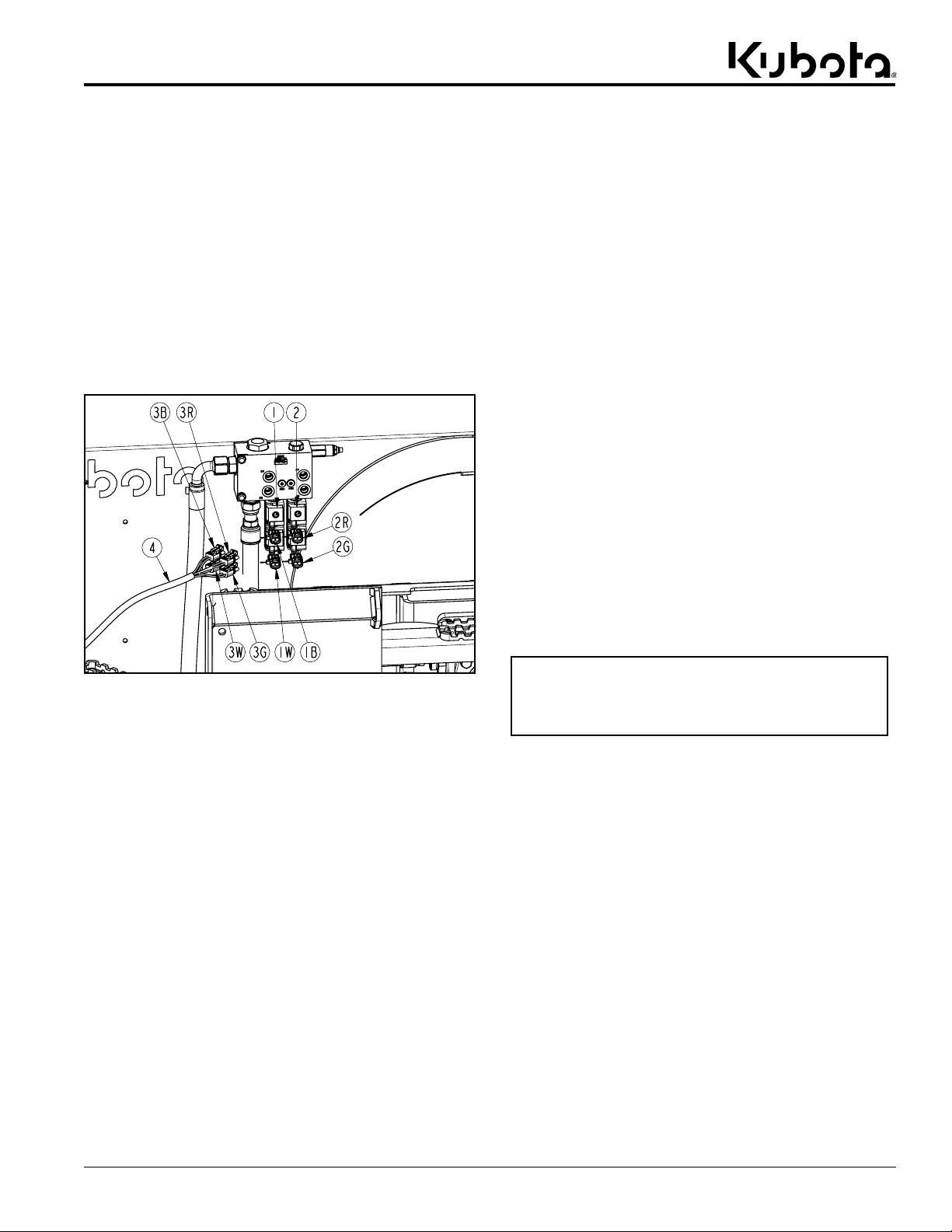

Connect Solenoid
Refer to Figure 2-4:
The wiring harness (#4) connects to solenoids (#1 & #2)
and to the 14 pin connector on the end of the loader arm.
•If control harness (#4) is one of the two SVL
harnesses, refer to installation instructions included
with the harness. For additional help, see your nearest
Kubota dealer.
•If control harness (#4) has a round 14 pin connector,
attach the connector to the 14 pin connector on the end
of the loader arm and then continue with step 1.
•There are also two control harnesses (#4) with a toggle
switch controller available as an accessory through
your Kubota dealer.
Connect Solenoid
Figure 2-4
1. Route wire harness (#4) along the side of hydraulic
hoses, and route to solenoids (#1 & #2). Do not
secure wire harness (#4) with cable ties at this time.
2. At solenoid (#1), attach brown banded
connector (#1B) to brown wire connector (#3B) and
white banded connector (#1W) to white wire
connector (#3W).
3. At solenoid (#2), attach red banded connector (#2R)
to red wire connector (#3R) and green banded
connector (#2G) to green wire connector (#3G).
4. Sitting in the skid steer, fasten seat belt, start skid
steer, turn auxiliary hydraulics “on”, and position
loader arms fully down.
5. Tilt deflector spout up and down. Watch spout to
make sure it moves in the proper direction.
6. Rotate chute to the left and right. Watch chute to
make sure it rotates in the proper direction.
78419
7. Shut skid steer down according to “Skid Steer
Shutdown Procedure” on page 9. Make any needed
adjustments to the solenoid connections as follows:
•If deflector spout tilts opposite of what it should,
change green wire connector (#3G) with red wire
connector (#3R) at solenoid (#2).
•If chute rotates in the opposite of what it should,
change brown wire connector (#3B) with white wire
connector (#3W) at solenoid (#1).
Refer to Figure 2-3 on page 14 & Figure 2-4:
8. Adjust routing of hydraulic hoses (#1, #2, & #3) and
wire harness (#4) as needed and secure with cable
ties where needed.
Check Equipment Clearances
It is important to check clearance before putting the Snow
Blower into operation. Make sure hydraulic hoses and
wiring harness are long enough and won’t become
pinched or entangled in the equipment. Also, make sure
Snow Blower does not come in contact with skid steer
frame by carefully going through its full range of motions.
1. Visually inspect hydraulic hoses for possible pinch
points and shortness. If needed, make hose
adjustments before putting equipment into service.
2. Visually inspect wiring harness for possible pinch
points and shortness. If needed, make adjustments
to the wiring harness before putting equipment into
service.
3. If necessary, have someone stand nearby that can
motion for the operator to stop if a problem develops
while completing steps 4-6 below.
4. Start skid steer and raise loader arms high enough to
tilt hitch plate fully down without Snow Blower making
contact with the ground.
5. Fully extend and retract hydraulic cylinders on the
end of the skid steer loader arms while watching for
interferences between skid steer and Snow Blower
frame.
6. Raise skid steer loader arms fully up and repeat
steps 4-5 above.
IMPORTANT: Make sure hydraulic hoses and wiring
harness are long enough and properly secured
ensuring they do not become stretched or pinched
through their full range of motions.

Section 2: Connect & Disconnect
Table of Contents
10/25/23AP-SBL3074,AP-SBL3084,AP-SBL3574, & AP-SBL3584 Snow Blowers 370-578MK
16
Disconnect from Snow Blower
Refer to Figure 2-5:
DANGER
!
To avoid serious injury or death:
A crushing hazard exists when connecting and disconnecting
the attachment. Do not allow anyone to stand between
attachment and power machine while approaching or backing
away from the attachment. Do not operate hydraulic controls
while someone is near the power machine and/or attachment.
WARNING
!
To avoid serious injury or death:
Hydraulic fluid under high pressure will penetrate the skin or
eyes causing a serious injury. Wear protective gloves and
safety glasses or goggles when working with hydraulic
systems. Use a piece of cardboard or wood rather than hands
when searching for leaks. If an accident occurs, seek
immediate emergency medical care or gangrene may result.
DO NOT DELAY.
See “Long-Term Storage” on page 29 before parking
Snow Blower for long periods.
1. Shut skid steer down according to “Skid Steer
Shutdown Procedure” on page 9.
2. Disconnect solenoid wire harness (#4) from the front
of the loader arm. Do not disconnect harness from
the solenoids.
3. Disconnect hydraulic hoses (#1, #2, & #3) from skid
steer.
4. Store hydraulic hoses and wire harness on the Snow
Blower frame to keep dirt away from the couplers and
electrical connector.
5. Raise lock pins on loader hitch to unlock them from
bottom slots on Snow Blower. If lock pins are
activated from the operator’s seat, return to the skid
steer to raise lock pins.
6. From the operator’s seat, tilt top of loader hitch
slightly forward towards the Snow Blower.
7. Slowly lower skid steer hitch plate until top angle bars
and hitch plate have separated.
8. Back skid steer slowly away from the Snow Blower
making sure it does not interfere with the skid steer.
Disconnect from Snow Blower
Figure 2-5
Bottom
Slots
Top Angle
Bars
78411
