Kubota BX2750D Product manual

OM 0287SB-A MANUAL PART NUMBER 77700-00663
08/09
O
OP PE ER RA AT TO OR R' 'S S A AN ND D
P
PA AR RT TS S M MA AN NU UA AL L
50"SNOWBLOWER - BX2750D
FOR BX SERIES, B7300, B7400HSD, B7500DT/HSD,
B7510DT/HSD, B7610HSD, B2410, B2320, B2620
AND B2920 TRACTORS
SERIAL NO. 2800426 AND UP

TABLE OF CONTENT
OM 0287SB-A 1
INTRODUCTION – TO THE PURCHASER ..........................................................................................3
SAFETY PRECAUTIONS .....................................................................................................................4
Before Operation..........................................................................................................................4
Notice...........................................................................................................................................5
Subframe & Snowblower..............................................................................................................5
Before Operation ...........................................................................................................5
Subframe & Snowblower Operation...............................................................................6
Maintenance ................................................................................................................................8

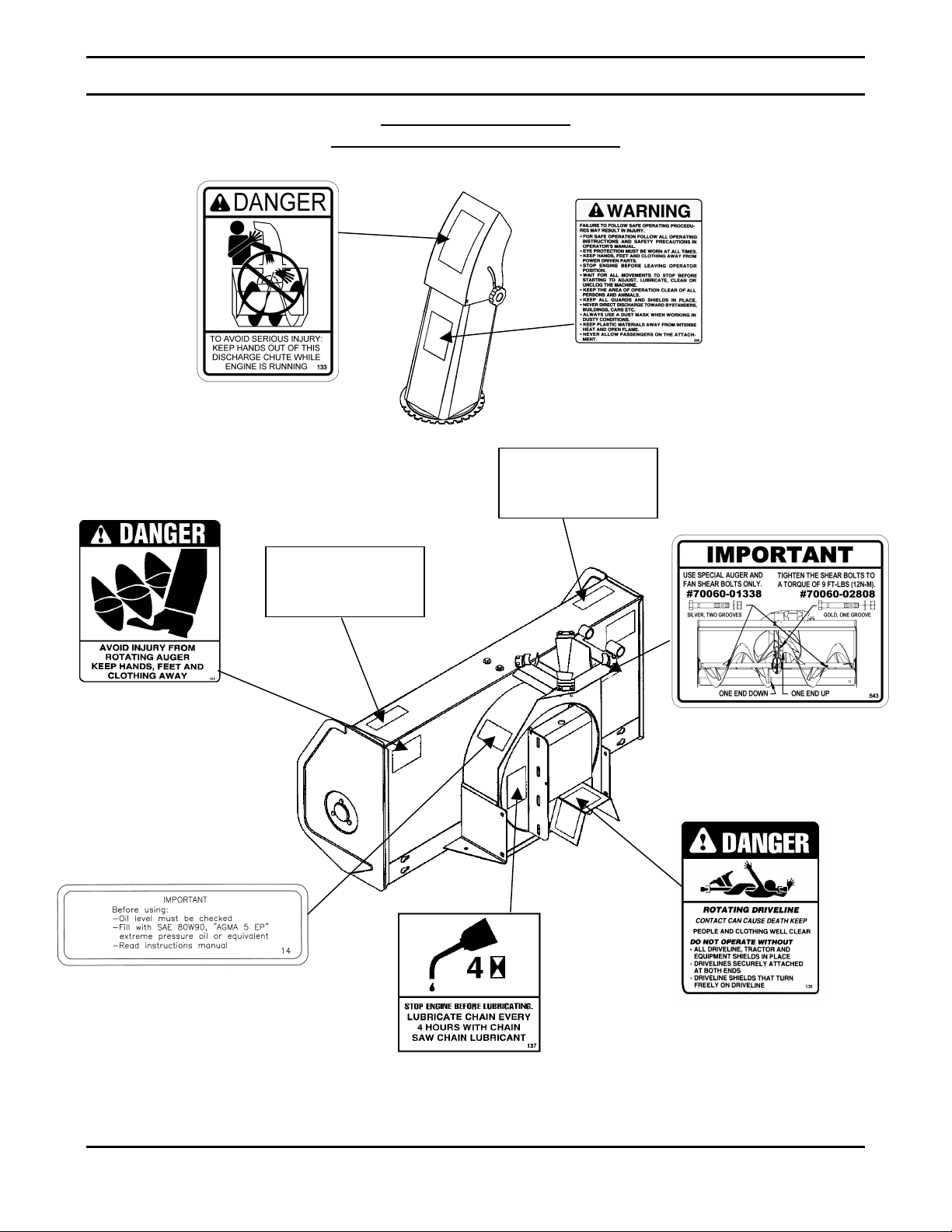

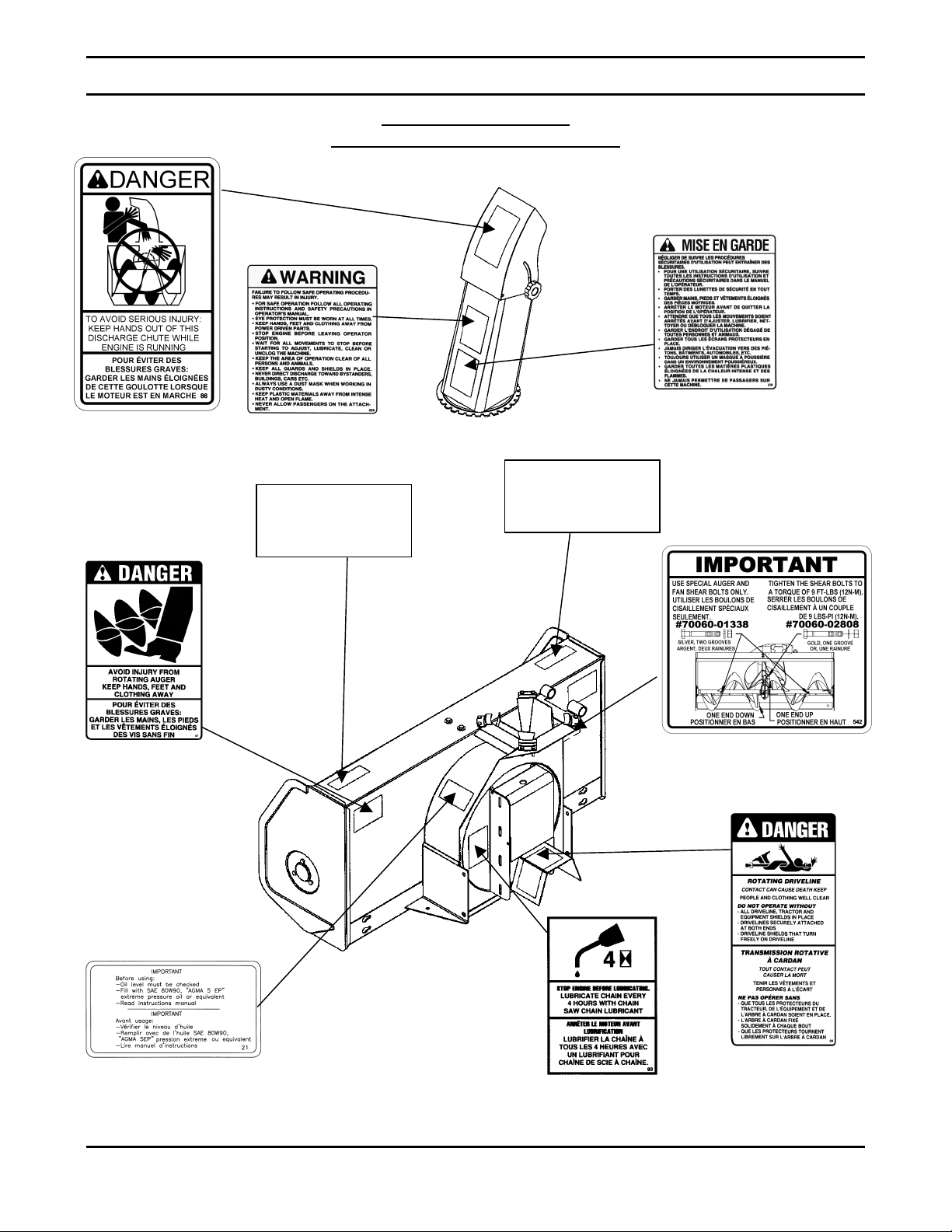

DECALS ...............................................................................................................................................9
ASSEMBLY ........................................................................................................................................11
Snowblower Assembly...............................................................................................................11
Chute Installation ......................................................................................................11

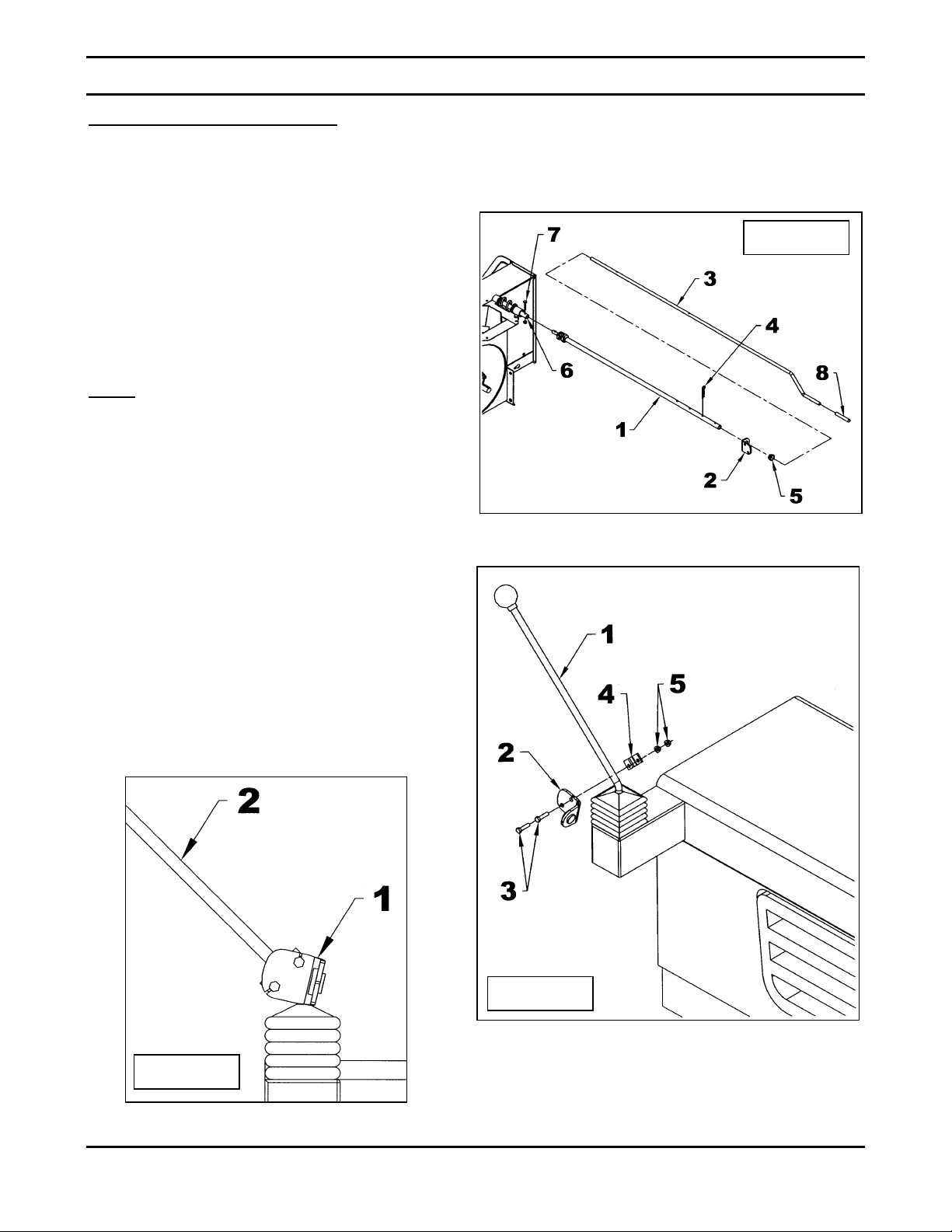

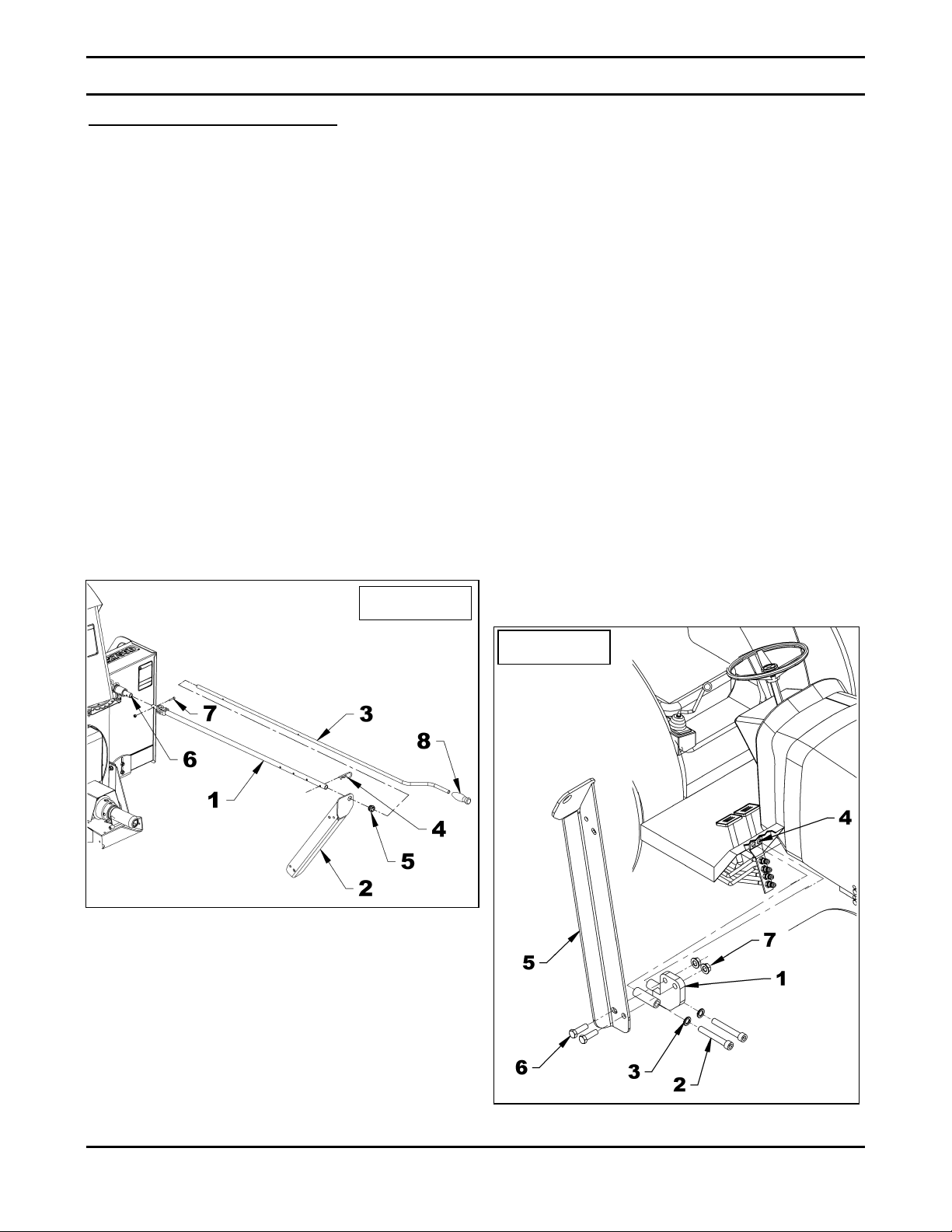

Manual Rotation Installation.......................................................................................12
Manual Rotation Installation on BX1850, BX2350, BX2660 and BX24 Tractors.........13
Manual Rotation Installation on B2320, B2620 & B2920 Tractors ..............................14

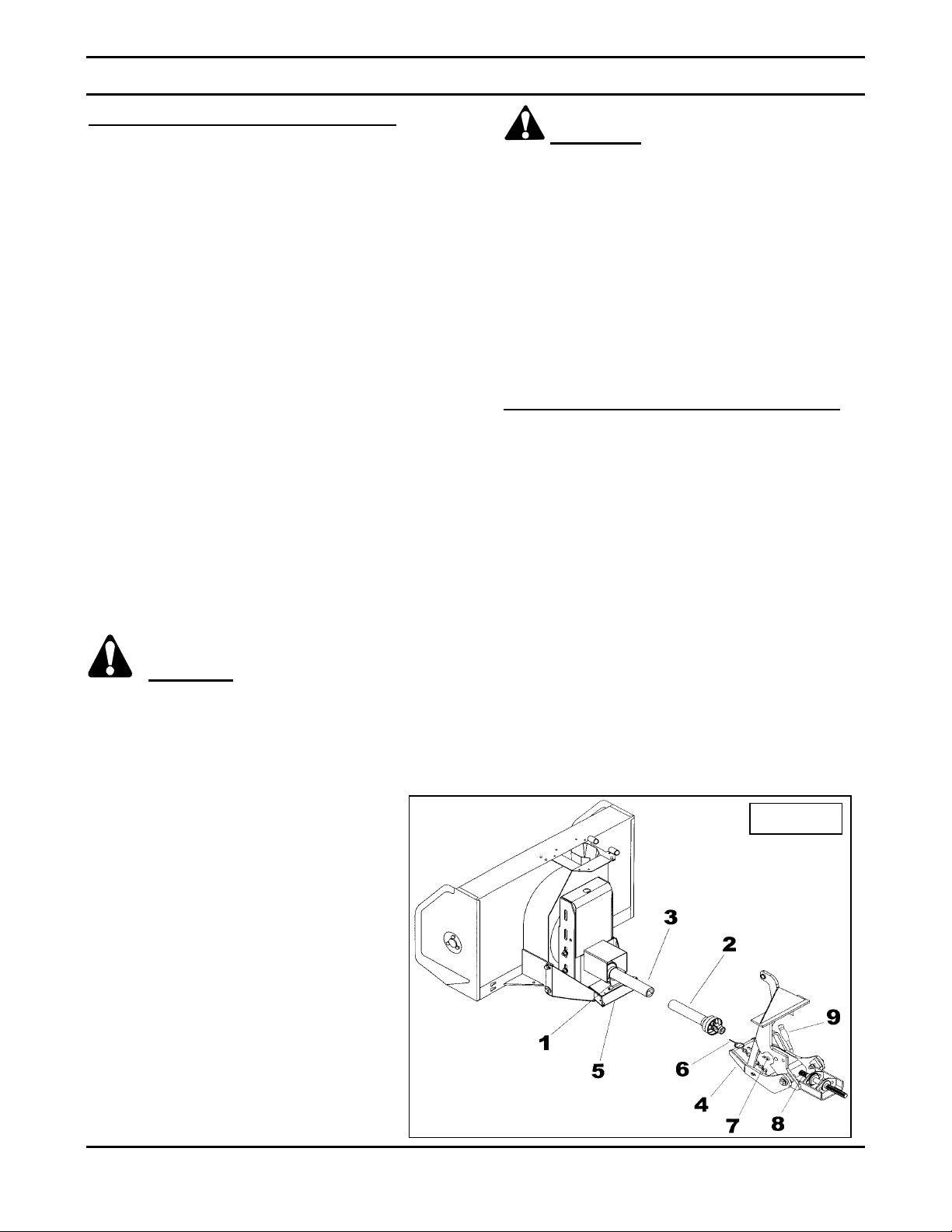

Attaching Snowblower to theTractor ..........................................................................15
Removing Snowblower from the Tractor ....................................................................15
OPERATION ......................................................................................................................................16
General Preparation...................................................................................................................16
Operating Controls ....................................................................................................................16
Engine Speed.............................................................................................................16
Up and Down Control .................................................................................................16
Increasing Traction and Stability ................................................................................16
Engaging the Drive Mechanism .................................................................................16
Deflector Adjustment .................................................................................................17
Skid Shoe Adjustment ...............................................................................................17

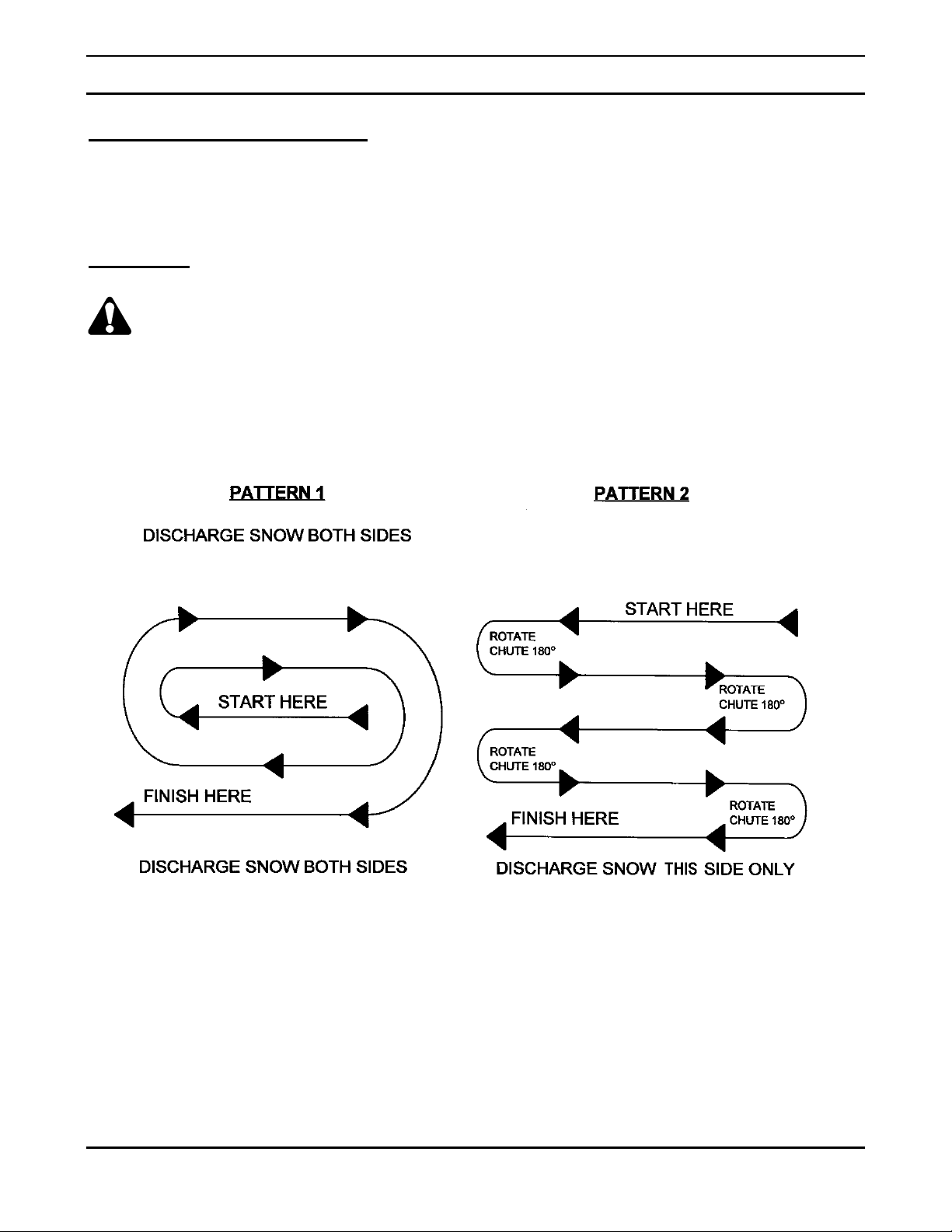

Snow Removal Methods ...........................................................................................................18
MAINTENANCE..................................................................................................................................19
Maintenance .............................................................................................................................19
Gearbox and Reduction Box ......................................................................................19
Shear Bolts.................................................................................................................19
Auger Repositioning ...................................................................................................20
Drive Chain Tension Adjustment ................................................................................20
Lubrication ................................................................................................................................20

TABLE OF CONTENT
OM 0287SB-A 2
PARTS................................................................................................................................................21
Introduction ..............................................................................................................................21
Snowblower Assembly – BX2750D ...........................................................................................22
Chute with Deflector...................................................................................................................23
Manual Chute Rotation ..............................................................................................................25
Worm Gearbox Assembly ..........................................................................................................26
Reduction Box Assembly ..........................................................................................................27
Driveline Female Half (70060-03224).........................................................................................28
AVAILABLE OPTIONS .......................................................................................................................29
AVAILABLE EQUIPMENT ..................................................................................................................30
TORQUE SPECIFICATION TABLE ...................................................................................................31

INTRODUCTION
OM 0287SB-A 3
T O THE P URCHASER
All products are designed to give safe,
dependable service if they are operated and
maintained according to instructions. Read
and understand this manual before
operation.
This manual has been prepared to assist the
owner and operators in the safe operation and
suitable maintenance of the snowblower. The
information is applicable to products at the time
of manufacture and does not include
modifications made afterwards.
Read and understand this operator's manual
before attempting to put snowblower into
service. Familiarize yourself with the operating
instructions and all the safety
recommendations contained in this manual and
those labeled on the snowblower and on the
tractor. Follow the safety recommendations
and make sure that those with whom you work
follow them.
Illustrations
The illustrations may not necessarily reproduce
the full detail and the exact shape of the parts
or depict the actual models, but are intended
for reference only.
Direction Reference
All references to right and left, forward or
rearward, are from the operator's seat, facing
the steering wheel.
To assist your dealer in handling your needs, please record hereafter the model number and serial
number of your snowblower and tractor. It is also advisable to supply them to your insurance
company. It will be helpful in the event that snowblower or tractor is lost or stolen.
TRACTOR SNOWBLOWER
MODEL:
SERIAL NUMBER:
DATE OF PURCHASE:
DEALER NAME:

SAFETY PRECAUTIONS
OM 0287SB-A 4
SAFETY FIRST
This symbol, the industry's "Safety Alert Symbol", is used throughout this manual and on
labels on the machine itself to warn of the possibility of personal injury. Read these
instructions carefully. It is essential that you read the instructions and safety regulations
before you attempt to assemble or use this snowblower.
DANGER : Indicates an immediate hazardous situation which, if not avoided, will
result in death or serious injury.
WARNING : Indicates a potentially hazardous situation which, if not avoided, could
result in death or serious injury.
CAUTION : Indicates a potentially hazardous situation which, if not avoided, may
result in minor or moderate injury.
IMPORTANT : Indicates that snowblower or property damage could result if instructions
are not followed.
NOTE : Gives helpful information.
All products are designed to give safe, dependable service if they are operated and maintained
according to instructions. Read and understand this manual before operation. It is the owner's
responsibility to be certain anyone operating this product reads this manual, and all other applicable
manuals, to become familiar with this snowblower and all safety precautions. Failure to do so could
result in serious personal injury or snowblower damage. If you have any questions, consult your
dealer.
B EFORE O PERATION
Children
Tragic accidents can occur if the operator is not
alert to the presence of children. Children are
generally attracted to machines and the work
being done. Never assume children will remain
where you last saw them.
1. Keep children out of the operating area and
under the watchful eye of another responsible
adult.
2. Be alert and turn machine off if children enter
the work area.
3. Before and when backing, look behind for
small children.
4. Never carry children while operating the
machine. They may fall off and be seriously
injured or interfere with the safe operation of
the machine.
5. Never allow children to play on the machine or
snowblower even when they are turned off.
6. Never allow children to operate the machine
even under adult supervision.
7. Use extra care when approaching blind
corners, shrubs, trees, or other obstructions
that might hide children from sight.

SAFETY PRECAUTIONS - continued
OM 0287SB-A 5
N OTICE
A safe operator is the best assurance against accidents. All operators, no matter how experienced
they may be, should read this operator's manual and all other related manuals before attempting to
operate the snowblower. Please read the following section and pay particular attention to all safety
recommendations contained in this manual and those labeled on the snowblower and on the tractor.
S UBFRAME & S NOWBLOWER
Before Operation
1. Read and understand both the tractor and
this operator's manual before operating the
equipment. Know how to operate all
controls and how to stop the unit and
disengage the controls quickly. Lack of
knowledge could lead to accidents.
2. Never wear loose, torn, or bulky clothing
around the tractor, the subframe and the
snowblower. It may catch on moving parts
or controls, causing injury.
3. Before and during seasons, thoroughly
inspect the area where the snowblower is
to be used and remove all objects that may
be thrown or cause damage to the
snowblower.
4. Set transmission to neutral and disengage
clutch, if equipped, before starting the
engine.
5. Do not operate snowblower in wintertime
without wearing adequate winter garments.
Always wear protective clothing.
6. Never attempt to make any adjustments
while engine is running. Read this manual
carefully to acquaint yourself with the
snowblower as well as the tractor
operator's manual. Working with unfamiliar
snowblower can lead to accidents. Be
thoroughly familiar with the controls and
proper use of the snowblower.
7. Keep all safety guards in place and verify
hardware for proper tightening.
8. Check for moving parts excessive wear
regularly. Replace worn parts with genuine
parts.
9. Replace all missing, illegible, or damaged
safety and warning decals. See list of
decals in operator's manual.
10. Keep safety decals clean of dirt and grime.
11. Do not modify or alter this snowblower or
any of its components, or any snowblower
function without first consulting your dealer.
12. Make sure the tractor is counterweighted
as recommended by your dealer. Weights
provide the necessary balance to improve
stability, traction and steering.

SAFETY PRECAUTIONS - continued
OM 0287SB-A 6
Subframe & Snowblower Operation
1. Before leaving the tractor/snowblower
unattended, take all possible precautions.
Park the tractor/snowblower on level ground,
place the transmission in neutral, set the
parking brake, disengage the PTO, lower the
snowblower to the ground, place all levers
including auxiliary control levers in neutral,
shut off the engine and remove the ignition
key.
2. Before starting the tractor/ snowblower,
remove the ice that might have accumulated
on the auger/fan, inspect and clean every
rotating part.
3. Prior to operation, clear work area of all
objects that can be picked up and thrown.
Mark all curbs, pipes, etc. that cannot be
moved.
4. Be sure the PTO switch/lever is in
OFF/disengaged position before starting
engine.
5. Exercise extreme caution when operating on
or crossing a gravel drive, walks, or roads.
Stay alert for hidden hazards or traffic.
6. Do not carry passengers.
7. Keep clear of all rotating parts. Do not put
hands or feet under, or into snowblower and
subframe with engine running. Be especially
observant of the snowblower areas of
discharge, intake or all other mechanical
motions.
8. For your safety, do not work under any
hydraulically supported machine elements
that may creep down, suddenly drop or be
accidentally lowered.
9. Park the tractor/snowblower on level ground,
place the transmission in neutral, set the
parking brake, disengage the PTO, lower the
snowblower to the ground, place all control
levers in neutral, shut off the engine, remove
the ignition key and allow the rotating parts to
stop BEFORE unclogging the housing or the
chute and making any repairs, adjustments or
inspections. Use only a 36" long stick of wood
to unclog the snowblower.
10. If the snowblower starts to vibrate
abnormally, disengage the PTO, stop the
engine immediately and check for cause.
Excessive vibration is generally a sign of
trouble.
11. Do not run the engine indoors except when
starting engine and transporting attachment
in or out of building. Carbon monoxide gas is
colorless, odorless and deadly.
12. Do not attempt to operate on steep slopes. If
operating on slopes is necessary, exercise
extreme caution when changing direction.
13. Never operate snowblower without guards,
and other safety protective devices in place.
All tractor and snowblower shields and
covers must be correctly installed at all times.
When necessary to remove these, they must
be reinstalled immediately.
14. Never operate snowblower near glass
enclosures, automobiles, window wells,
embankments, etc., without proper
adjustment of snow discharge angle.
15. Never operate machine at high transport
speeds on a slippery surface.
16. Use extra caution when backing up.
17. Disengage power to auger/fan when
transporting or when not in use.
18. Never operate the snowblower without good
visibility and lighting.
19. Prolonged exposure to loud noise can cause
impairment or loss of hearing. Wear a
suitable hearing protective device such as
earmuffs or earplugs to protect against
objectionable or uncomfortable noises.
20. Never allow anyone near the work area.
21. Never allow anyone to operate the
snowblower until they have read the manual
completely and are thoroughly familiar with
basic tractor and snowblower operation.

SAFETY PRECAUTIONS - continued
OM 0287SB-A 7
22. Make sure the tractor is counterweighted as
recommended by your dealer. Weights
provide the necessary balance to improve
stability, traction and steering.
23. Always make sure all snowblower
components are properly installed and
securely fastened BEFORE operation.
24. Adjust housing height to clear gravel or
crushed rocks surface.
25. Keep away from chute discharge. This
chute has the capacity to throw debris at far
distances.
26. Never direct chute discharge towards
people or animals. A thrown debris can
cause serious injury.

SAFETY PRECAUTIONS - continued
OM 0287SB-A 8
M AINTENANCE
ALWAYS USE GENUINE PARTS WHEN
REPLACEMENT PARTS ARE REQUIRED
1. Keep the tractor and snowblower properly
maintained.
2. Park the tractor/snowblower on level
ground, place the transmission in neutral,
set the parking brake, disengage the PTO,
lower the snowblower to the ground, place
all control levers in neutral, shut off the
engine and remove the ignition key and
allow the rotating parts to stop BEFORE
making any snowblower adjustments.
3. To avoid injury, do not adjust, unblock the
driving system, or service the snowblower
with the tractor engine running. Make sure
rotating components have completely
stopped BEFORE leaving the operator’s
seat.
4. Keep the tractor/snowblower clean. Snow ,
dirt or ice build-up can lead to malfunction or
personal injury from thawing and refreezing
in garage.
5. Always wear eye protection when cleaning
or servicing the snowblower or subframe.
6. DO NOT service the tractor while the engine
is running or hot, or if the unit is in motion.
Always lower snowblower to the ground. If
necessary to service snowblower in raised
position, securely support with stands or
suitable blocking before working
underneath. Do not rely on hydraulically
supported devices for your safety. They can
settle suddenly, leak down, or be
accidentally lowered.
7. Do not attempt to service machine, clear
obstructions or unclog the snowblower with
the engine running. Always shut off engine
and allow all motion to cease.
8. The manufacturer will not claim
responsibility for fitment of unapproved
parts and/or accessories and any
damages as a result of their use.
9. Make sure all shields and guards are
securely in place following all service,
cleaning, or repair work.
10. Do not modify or alter this snowblower or
any of its components or operating
functions. If you have questions
concerning modifications, consult with
your dealer.
11. Do not operate a snowblower that is
defective or has missing parts. Make sure
that all recommended maintenance
procedures are completed before
operating the snowblower.
12. Check all controls regularly and adjust
where necessary. Make sure that the
brakes are evenly adjusted.
13. Periodically check all nuts and bolts for
tightness, especially wheel hub and rim
nuts.
14. To avoid serious personal injury:
Escaping hydraulic/diesel fluid under
pressure can penetrate the skin causing
serious injury. Do not use your hands to
check for leaks. Use a piece of cardboard
or paper to search for leaks. If you are
injured by escaping high pressure fluid,
see a medical doctor at once.
15. Stop engine and relieve pressure before
connecting or disconnecting hydraulic
hoses. Tighten all connections before
starting engine or pressurizing hoses.

DECALS
OM 0287SB-A 9
For KUBOTA US only
Replace immediately if damaged
70060
-
01040
(655683)
70060
-
01674
(657804)
70060
-
01213
(657763)
70060
-
01212
(657762)
KUBOTA
70060-02232
(2500484)
BX2750D
77700-00186
(2500643)
70060
-
03763
(660988)
70060
-
01211
(657761)
70060
-
02815
(2500573)

DECALS
OM 0287SB-A 10
For KUBOTA Canada
Replace immediately if damaged
70060
-
03763
(660988)
70060
-
03764
(660989)
KUBOTA:
70060-02232
(2500484)
BX2750D
77700-00186
(2500643)
70060
-
01207
(656780)
70060
-
01208
(656781)
70060
-
01675
(
656808)
70060
-
01041
(655834)
70060
-
01206
(656779)
70060
-
02814
(2500572)

ASSEMBLY
OM 0287SB-A 11
Figure 1
S NOWBLOWER A SSEMBLY
The snowblower is pre-assembled at the factory; however, parts in the bag and box must be
assembled. Use the present manual and lay out all parts for assembly. Separate bolts and nuts into
various sizes. After assembly, torque all the bolts according to the "Torque Specification Table"
enclosed at the end of the manual.
Chute Installation
(Figure 1)
To install the chute, place the snowblower in its
normal position.
1. Place the rotation bushing (item 1) over the
fan discharge, placing the marker (item 2) up
and to the left of the snowblower.
2. Place the chute (item 3) on the rotation
bushing (item 1) slipping the chute ring under
the retaining plate already installed (item A)
and lining up the notches with the rotation
worm already installed.
3. Secure the chute with the three retaining
plates (item 4) using the six 1/4" NC x 3/4"
hex. bolts (item 5) and serrated flange nuts
(item 6).
4. Tighten according to the "Torque
Specification Table " at the end of the
manual.

ASSEMBLY
OM 0287SB-A 12
Manual Rotation Installation
(Figures 2a-2b)
(For all tractor models except the BX1850, BX2350, BX2660, BX24, B2320, B2620 & B2920.
See page 13 for BX1850, BX2350, BX2660 & BX24 and page 14 for B2320, B2620 & B2920)
1. Figure 2a: Insert plastic grommet (item 5)
in the upper hole of the handle support
(item 2).
2. Figure 2a or 2b: Attach handle support
(item 2) to the valve stay:
- Figure 2b: If the upper part of the valve
stay is bolted with M6 x 1.00 x 16mm lg
bolts and the two 6mm lockwashers
(item 1), remove them and attach the
handle support (item 2) using the two M6 x
1.00 x 20mm lg hex. bolts, the 6mm
lockwashers previously removed and the
two Ø5/16" flat washers (items 3-4-5).
The two M6 x 1.00 x 16mm lg hex. bolts
will no longer be used.
- Figure 2b: In all other cases, attach the
handle support with the top 2 existing bolts
(item 1).
3. Figure 2a: Attach the rotation tube (item 1)
to the rotation worm shaft (item 6) by
inserting the yoke in the rotation worm hole
and securing in place with a capscrew 10-
24 NC x 1" (item 7) and a 10-24 NC nylon
insert locknut.
4. Figure 2a: Install the plastic handle
(item 8) on the rotation handle (item 3) and
tighten all bolts.
5. Figure 2a: After completing section
"Attaching Snowblower to Tractor", insert
the rotation handle (item 3) in the handle
support (item 2) and the rotation tube
(item 1) and fasten with a 4mm x 80mm
hairpin (item 4).
Figure 2a
Figure 2b

ASSEMBLY
OM 0287SB-A 13
Figure 3a
Figure 3b
Figure 3c
Manual Rotation Installation
(Figures 3a-3b-3c)
(For tractor models BX1850, BX2350, BX2660 & BX24 only)
1. Figure 3a: Insert plastic grommet (item 5) in
the upper hole of the handle support
(item 2).
2. Figure 3b: As illustrated attach the rotation
handle support (item 2) to the tractor
hydraulic valve lever (item 1) with the two
1/4" NC x 1" lg bolts, the box clamp (item 4)
and the two 1/4" NC serrated flange nuts
(item 5).
NOTE: Figure 3c: The handle support (item 1)
must be positioned on the hydraulic valve lever
(item 2) as shown on figure.
3. Figure 3a: Attach the rotation tube (item 1)
to the rotation worm shaft (item 6) by
inserting the yoke in the rotation worm hole
and securing in place with a capscrew 10-
24 NC x 1" (item 7) and a 10-24 NC nylon
insert locknut.
4. Figure 3a: Install the plastic handle (item 8)
on the rotation handle (item 3) and tighten all
bolts.
5. Figure 3a: After completing section
"Attaching Snowblower to Tractor", insert the
rotation handle (item 3) in the handle support
(fig.3a or 3b, item 2) and the rotation tube
(item 1) and fasten with a 4mm x 80mm
hairpin (item 4).

ASSEMBLY
OM 0287SB-A 14
Manual Rotation Installation
(Figure 4a-4b)
(For tractor models B2320, B2620 & B2920 only)
1. Figure 4a: Insert the plastic grommet
(item 5) in the upper hole of the handle
support (item 2).
2. Figure 4b: Remove the two existing bolts
from the hydraulic pipe support (item 4).
3. Figure 4b: Install the support bracket with
two 10 mm x 1.25 x 70 mm allen socket
head cap screw (item 2) and two 10 mm
lockwashers (item 3). Do not tighten
immediately.
4. Figure 4b: Attach the handle support
(item 5) with two 3/8" NC x 1 1/4" hex. bolts
(item 6) and two 3/8" serrated flange nuts
(item 7). Tighten these two bolts according
to the "Torque Specification Table" at the
end of the
5. Figure 4b: Tighten the two 10 mm bolts
(item 2) while pulling slightly on the support
(item 5) to keep it well distanced from the
hood.
6. Figure 4a: Attach the rotation tube (item 1)
to the rotation worm shaft (item 6) by
inserting the rotation yoke and secure in
place with a 10-24 NC x 1" capscrew
(item 7) and a 10-24 NC nylon insert nut.
7. Figure 4a: Install the plastic handle (item 8)
on the rotation handle (item 3) and tighten
all the bolts.
8. Figure 4a: After completing the section
"Attaching the Snowblower to the Tractor",
insert the rotation handle (item 3) in the
handle support (item 2) and in the rotation
tube (item 1) and lock in place with a 4mm x
80mm hairpin (item 4).
Figure 4b
Figure 4a

ASSEMBLY
OM 0287SB-A 15
Attaching Snowblower to Tractor
(Figure 4)
1. Move quick hitch lever (item 9) rearward to
unlock position.
2. Install the male driveline (item 2), supplied
with the drive kit, on snowblower female
driveline (item 3) and support with the
driveline support (item 1).
3. Position tractor behind snowblower and
raise front male quick hitch to approx-
imately 3/4" from the ground.
4. Introduce male quick hitch (item 4) into
female quick hitch (item 5) on blower.
Raise male section so that it is parallel to
female section and insert it all the way into
female section. Raise blower and move the
lever (item 9) forward to locked position.
Secure latch (item 7) with linch pin (item 6).
5. Connect male driveline (item 2) to
subframe drive shaft (item 8) by sliding
back locking collar on driveline yoke and
pushing yoke over shaft until locking ring
snaps back and push driveline support
down (item 1).
CAUTION:
To avoid serious personal injuries:
Make sure that the driveline quick coupler
is securely locked in place. A "click" must
be heard. If it is not securely fastened, it
will come off the spindle shaft and spin out
of control.
WARNING:
To avoid serious personal injuries:
This shaft turns at very high RPM. If the
collar is not locked to the shaft at tractor
end, or if the yoke at the blower end is not
secured properly, the driveline can fly loose
with great force capable of causing serious
injury or death.
6. Adjust skid shoes according to adjustment
instructions in the next OPERATION
section.
Removing Snowblower from Tractor
(Figures 2a-3a-4a-5)
1. Park tractor/snowblower on level ground,
place all control levers in neutral, set the
parking brake, shut off the engine and
remove the ignition key.
2. Figures 2a-3a or 4a: Remove the rotation
handle (item 3) from the handle support
(item 2)
3. Figure 5: Remove linchpin (item 6) from
male hitch latch and place male hitch lever
(item 9) rearward to unlock position.
4. Figure 5: Disconnect male driveline (item
2) from subframe drive shaft (item 8). Set
driveline on its support (item 1) and
remove snowblower.
Figure 5

OPERATION
OM 0287SB-A 16
G ENERAL P REPARATION
1. Read the operator's manual carefully before
using the tractor and snowblower. Be
thoroughly familiar with the controls and
proper use of the equipment. Know how to
stop the unit and disengage the controls
quickly.
2. Wear adequate winter outer garments while
operating the equipment.
3. Make sure the snowblower is clear of snow
and other material before engaging the
snowblower.
4. Make sure the auger and fan operate freely.
5. Check the oil level in the reduction box and
if necessary, add AGMA 5EP, SAE 80W90
gear oil or equivalent.
6. Check the three shear bolts, one on each
auger section and one between the fan and
gearbox for proper tightness.
7. Adjust the skid shoes so the snowblower
runs leveled.
8. Before engaging the snowblower drive,
always have the engine running at idle.
9. Operate the snowblower at maximum
engine RPM.
O PERATING C ONTROLS
Engine Speed
1. Start the tractor engine. Let the engine
warm up at least one minute before
engaging the drive mechanism then
increase speed gradually.
2. Make sure the snowblower head is properly
positioned and engage the drive
mechanism.
3. Adjust the ground speed according to
conditions. For maximum power, run
engine at or near full throttle.
IMPORTANT : Use full RPM power when
removing wet, sticky snow. Low RPM
power will tend to clog the chute.
Up and Down Control
Refer to the tractor and/or subframe operator’s
manual(s) for detailed hydraulic operation.
WARNING To avoid serious
personal injury: Do not use your hands to
unclog the chute. Use a 36" (925mm) stick
or board. Do not attempt to unclog the
chute while engine is running. If the chute
is clogged, shut off the tractor engine,
remove the key and clear the snow from
the chute.
Increasing Traction and Stability
Make sure the tractor is counterweighted as
recommended by your dealer. Weights provide
the necessary balance to improve stability,
traction and steering.
Engaging the Drive Mechanism
Refer to the tractor's operating manual for
instructions.

OPERATION
OM 0287SB-A 17
WARNING
To avoid serious personal injury:
Make sure tractor engine and snowblower
come to a complete stop and tractor drive
mechanism is disengaged BEFORE making
any adjustments.
Deflector Adjustment
The deflector angle must be set according to
the distance the snow must be thrown. To
adjust the angle:
• Turn the chute to the right as far as
possible.
• Loosen the two deflector knobs on the side
and adjust the deflector at the appropriate
angle.
• Tighten the knobs.
Skid Shoe Adjustment
(Figure 6)
Adjust the snowblower so that the skid shoes
run level and according to the surface
conditions so that stones are not thrown with
the snow.
Adjust both skid shoes to the same height to
keep the cutting edge level and adjust upwards
for smooth surfaces.
Loosen skid shoe bolts (item 2), adjust
according to instructions below and securely
tighten bolts:
Clearance between cutting edge and
surface (fig.6, position 1):
• Level paved surface : Adjust to 1/16" to 1/8"
• Uneven or gravel surface: Adjust to 1/2" to 5/8"
Figure 6

OPERATION
OM 0287SB-A 18
S NOW REMOVAL METHODS
When removing snow, do not use the snowblower as a dozer blade to push snow. Let the snowblower
work its way through deep drifts. If the speed of your tractor is too fast, the snowblower may become
overloaded and clog. For best results, raise the snowblower and remove a top layer of snow. A
second pass with the snowblower will remove the remaining snow.
IMPORTANT: Use full RPM power when removing wet, sticky snow. Low RPM power will tend to clog
the chute.
WARNING: Do not use hands or feet to unclog chute. Do not attempt to clear clogged
chute of snow while tractor engine is running. If the chute clogs, disengage the drive shaft,
shut off the tractor engine, remove the ignition key, wait for all movement to stop, and then
clear the snow from the chute.
A definite pattern of operation is required to thoroughly clean the snow area. These patterns
will avoid throwing snow in unwanted places as well as eliminating a second removal of snow
Where it is possible to throw the snow to the
left and right (above), as on a long driveway, it
is advantageous to start in the middle. Plow
from one end to the other, throwing snow to
both sides without changing the direction of the
discharge guide
If the snow can only be thrown to one side of
the driveway or sidewalk (above), start on the
opposite side. At the end of the first pass,
rotate the discharge guide 180 degrees for the
return pass. At the end of each succeeding
pass, rotate the discharge guide 180 degrees
to maintain direction of throw in the same area.
