Kubota B2781B Product manual

OM 0377SB-A MANUAL PART NUMBER 77700-06538
Rev3 12-15
O
OP PE ER RA AT TO OR R' 'S S A AN ND D
P
PA AR RT TS S M MA AN NU UA AL L
B
B2 27 78 81 1B B - - 5 51 1" " S SN NO OW WB BL LO OW WE ER R
B
B2 27 78 82 2B B - - 6 63 3" " S SN NO OW WB BL LO OW WE ER R
SERIAL NO. 21503940 AND UP

DISCLAIMER
OM 0377SB-A X
LEGAL DISCLAIMER
Kubota Corporation notes that specifications and technical information are subject to change
without notice and Kubota does not represent or warrant that the information in this publication
is completely accurate or current; however, Kubota used reasonable efforts to set forth and
include accurate and up to date information in this publication. Kubota disclaims all
representations and warranties, whether express or implied, including, but not limited to,
warranties of merchantability and fitness for a particular purpose and Kubota shall not be liable
for any damages, whether compensatory, direct, indirect, incidental, special, or consequential,
arising out of or in connection with the use of this publication, or the information therein.
The Product(s) described in this Publication are designed and manufactured only for the country
in which they are initially wholesaled by Kubota. Kubota does not provide parts, warranty or
service for any Product which is re-sold or retailed in any country other than the country for
which the Product(s) were designed or manufactured.

SPECIFICATION
OM 0377SB-A 1
SpecificationDetail
SNOWBLOWERB2781B B2782B
Shippingweight455lbs.(206kg)480lbs.(218kg)
Operatingweight355lbs.(161kg)380lbs.(172kg)
DIMENSIONS 
Overalllength30.75in(781mm)withandwithout
femalehitch
30.75in(781mm)withandwithout
femalehitch
Overallwidth51in(1295mm)63in(1600mm)
Overallheight54.5in(1384mm)withchute;24.5in.
(645mm)withoutchute
54.5in(1384mm)withchute;24.5
in.(645mm)withoutchute
Cuttingwidth51in(1295mm)63in(1600mm)
Cuttingheight22.63in(575mm)22.63in(575mm)
Reachfromcentrelineoffront
axletoscraperblade54.9in(1394mm)54.9in(1394mm)
Reachfromcentrelineoffront
axletoaugershaft47.6in(1209mm)47.6in(1209mm)
Impellerdiameter18in(457mm)18in(457mm)
Impellerhousingdepth7.0in(178mm)7.0in(178mm)
Augerdiameter13.75in(349mm)13.75in(349mm)
Augerheight16.0in(406mm)16.0in(406mm)
Augerclearancefromground2.25in(57mm)2.25in(57mm)
LiftheightabovegroundlevelOperatingposition:7.25in(184mm);
Transportposition:10.5in(267mm)
Operatingposition:7.25in(184mm);
Transportposition:10.5in(267mm)
DRIVESYSTEM 
Numberofphases22
PrimaryDrivePTOPTO
Augerdiameter13.75in(349mm)13.75in(349mm)
Augerpitch16in(406mm)16in(406mm)
Impellerdiameter18in(457mm)18in(457mm)
Numberofbladesonimpeller44
ChutepositionRightRight
ChuterotationManualorhydraulicManualorhydraulic
Chuterotationdegrees255degrees255degrees
Dischargechutediameter7.75in(197mm)7.75in(197mm)
AdjustablechutedeflectorYesYes
AdjustableskidshoesYesYes
ReplaceablecuttingedgeYesYes
HitchsystemQuickhitchsystemQuickhitchsystem
WARRANTY 
Basic12Months,nohourlimit12Months,nohourlimit

TABLE OF CONTENT
OM 0377SB-A 2
SPECIFICATION ...................................................................................................................................1
INTRODUCTION – TO THE PURCHASER ...........................................................................................4
SAFETY PRECAUTIONS.......................................................................................................................5
Before Operation............................................................................................................................5
Notice ............................................................................................................................................6
Subframe & Snowblower................................................................................................................6
Before Operation ............................................................................................................6
Subframe & Snowblower Operation................................................................................7
Transportation ..............................................................................................................................8
Storage ........................................................................................................................................7
Maintenance ..................................................................................................................................9
DECALS................................................................................................................................................10
ASSEMBLY ..........................................................................................................................................11
Snowblower Assembly ................................................................................................................11
Chute Installation ...............................................................................................................11
Rotation worm support Installation ....................................................................................11

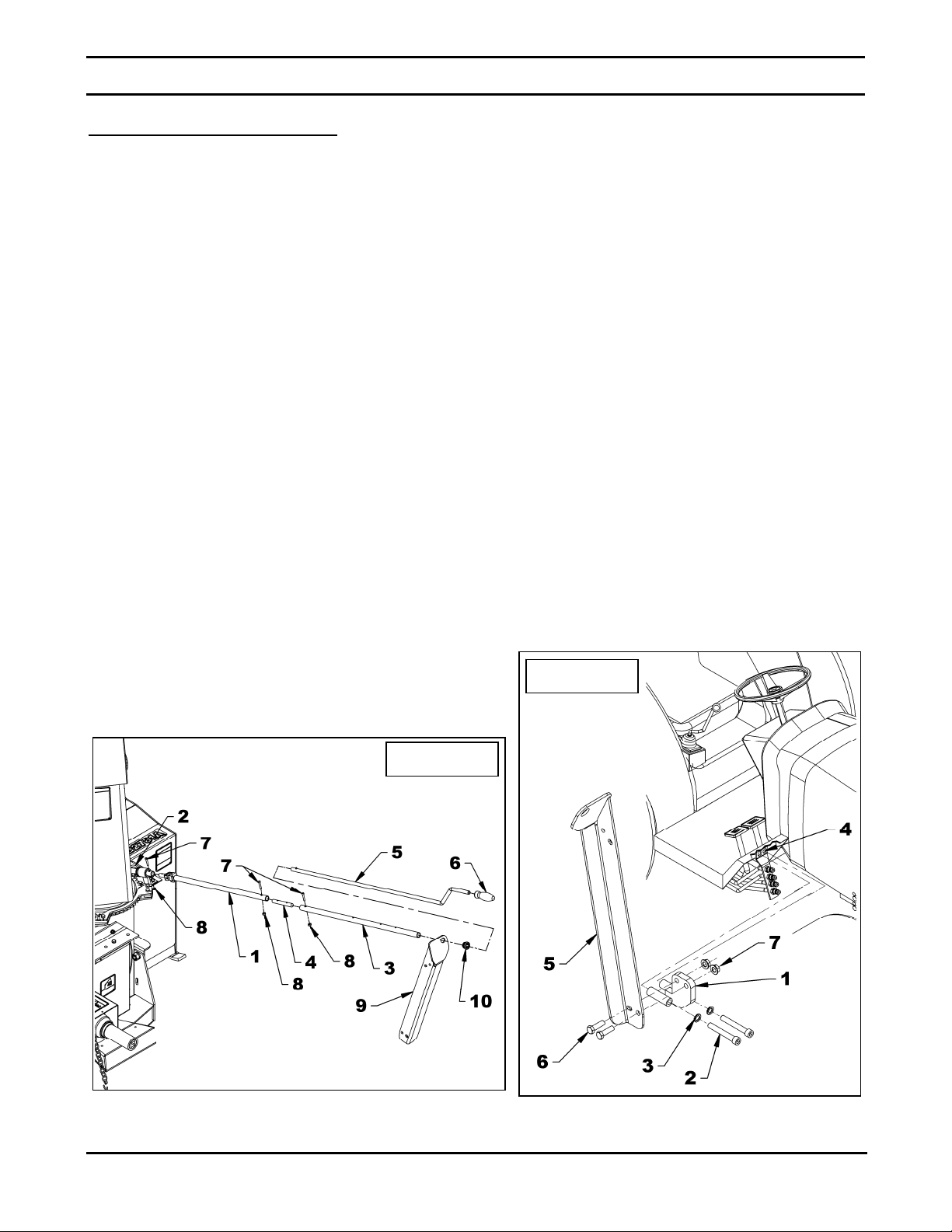

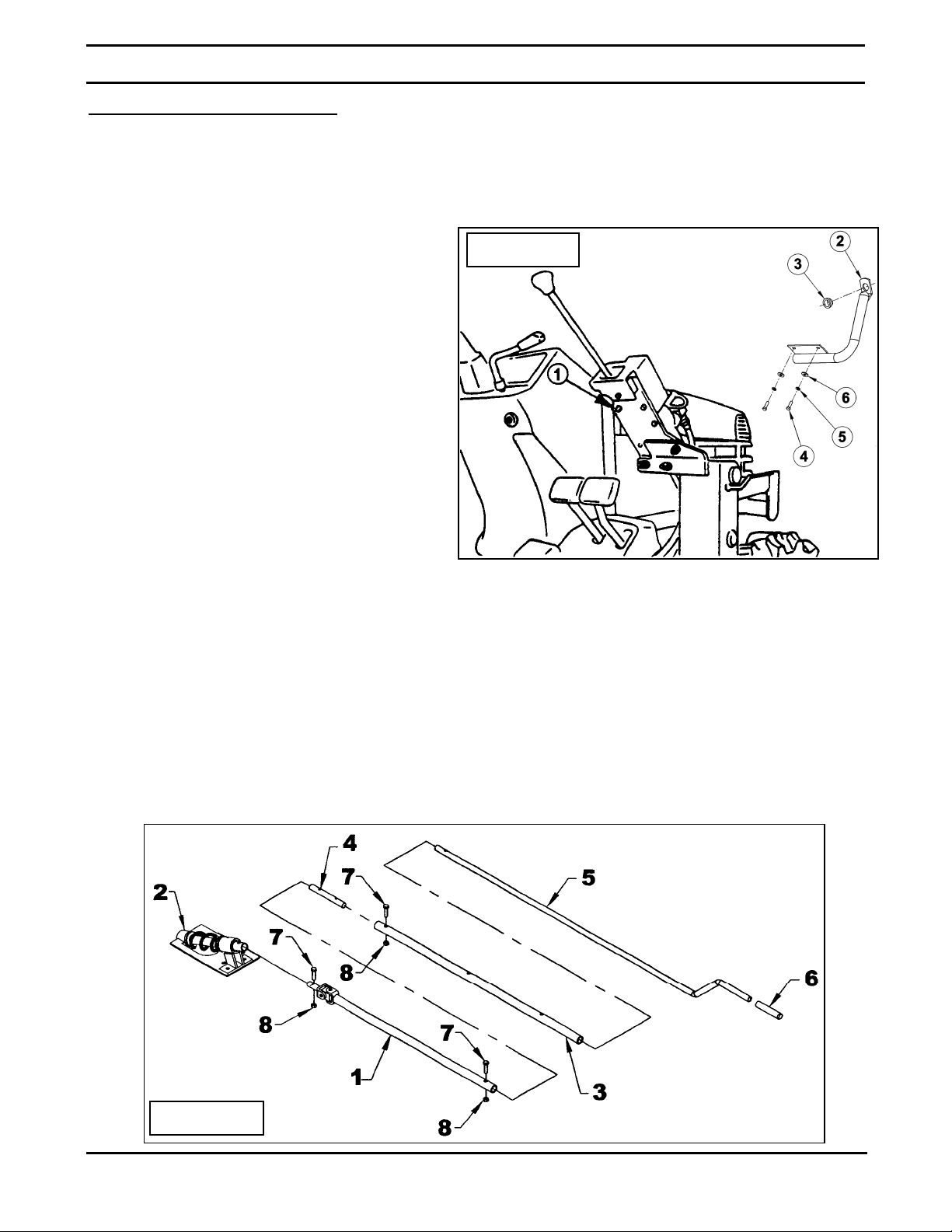

Manual Rotation Installation...............................................................................................12
Manual Rotation Installation - B2320, B2620, B2920, B2301 & B2601 Tractors...............13
Attaching Snowblower to Tractor ......................................................................................14
Detaching Snowblower from Tractor ................................................................................15
OPERATION ........................................................................................................................................16
General Preparation ...................................................................................................................16
Operating Controls .....................................................................................................................16
Manual Chute Rotation ......................................................................................................16
Electric Deflector ...............................................................................................................16
P.T.O. Operation ...............................................................................................................16
Hydraulic Chute Rotation ...................................................................................................16
Up & Down Control ............................................................................................................16
Increasing Traction and Stability .......................................................................................16
Work and Travel Speed .....................................................................................................16

TABLE OF CONTENT
OM 0377SB-A 3
Adjustments ...............................................................................................................................17
Deflector Adjustment ..................................................................................................17
Skid Shoe Adjustment .................................................................................................17
Check of the Hub Bolts ...............................................................................................17

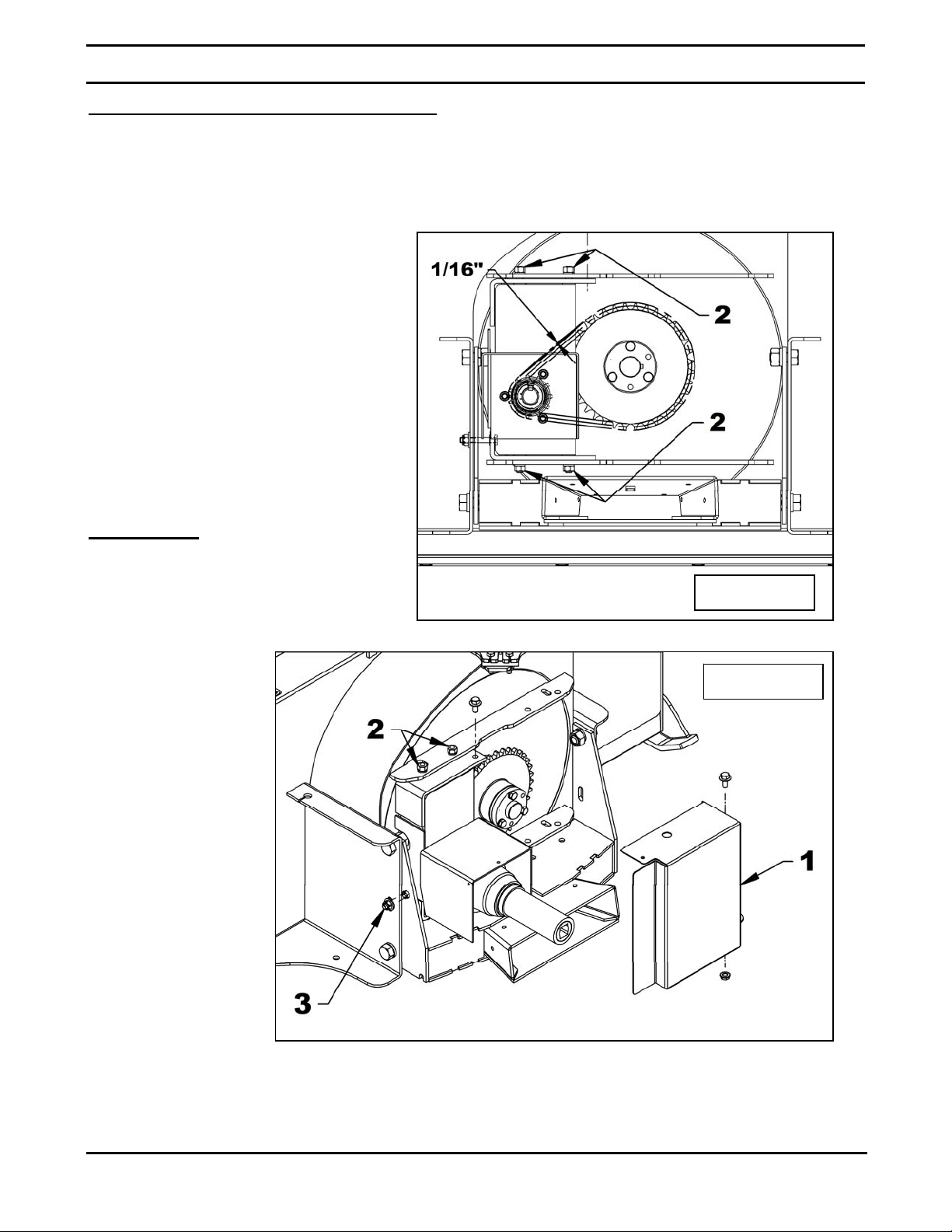

Reduction Chain Tension Adjustment ........................................................................18
Snow Removal Methods ...........................................................................................................19
MAINTENANCE....................................................................................................................................20
Maintenance ..............................................................................................................................20
Shear Bolts .................................................................................................................20
Auger Repositioning ...................................................................................................20
Gearbox.......................................................................................................................21
Oil Level – Oil Filling....................................................................................................21
Oil Change ..................................................................................................................21
Lubrication & Adjustment.............................................................................................................21
PARTS ................................................................................................................................................22
Introduction .................................................................................................................................22
Female Hitch ...............................................................................................................................23
Snowblower Assembly – B2781B ..............................................................................................24
Snowblower Assembly – B2782B ..............................................................................................26
Chute with Deflector ....................................................................................................................28
Manual Chute Rotation................................................................................................................29
Reduction Box ...........................................................................................................................30
Worm Gearbox ............................................................................................................................ 32
Driveline Female Half ...............................................................................................................33
AVAILABLE OPTIONS .........................................................................................................................34
TORQUE SPECIFICATION TABLE .....................................................................................................35

INTRODUCTION
OM 0377SB-A 4
TO THE PURCHASER
All products are designed to give safe,
dependable service if they are operated and
maintained according to instructions. Read
and understand this manual before
operation.
This manual has been prepared to assist the
owner and operators in the safe operation and
suitable maintenance of the snowblower. The
information is applicable to products at the time
of manufacture and does not include
modifications made afterwards.
Read and understand this operator's manual
before attempting to put snowblower into
service. Familiarize yourself with the operating
instructions and all the safety
recommendations contained in this manual and
those labeled on the snowblower and on the
tractor. Follow the safety recommendations
and make sure that those with whom you work
follow them.
Illustrations
The illustrations may not necessarily reproduce
the full detail and the exact shape of the parts
or depict the actual models, but are intended
for reference only.
Direction Reference
All references to right and left are from the
operator's seat, looking at the implement
operating.
To assist your dealer in handling your needs, please record hereafter the model number and serial
number of your snowblower and tractor. It is also advisable to supply them to your insurance
company. It will be helpful in the event that snowblower or tractor is lost or stolen.
TRACTOR SNOWBLOWER
MODEL:
SERIAL NUMBER:
DATE OF PURCHASE:
DEALER NAME:

SAFETY PRECAUTIONS
OM 0377SB-A 5
SAFETY FIRST
This symbol, the industry's "Safety Alert Symbol", is used throughout this manual and on
labels on the machine itself to warn of the possibility of personal injury. Read these
instructions carefully. It is essential that you read the instructions and safety regulations
before you attempt to assemble or use this snowblower.
DANGER : Indicates an immediate hazardous situation which, if not avoided, will
result in death or serious injury.
WARNING : Indicates a potentially hazardous situation which, if not avoided, could
result in death or serious injury.
CAUTION : Indicates a potentially hazardous situation which, if not avoided, may
result in minor or moderate injury.
IMPORTANT : Indicates that snowblower or property damage could result if instructions
are not followed.
NOTE : Gives helpful information.
All products are designed to give safe, dependable service if they are operated and maintained
according to instructions. Read and understand this manual before operation. It is the owner's
responsibility to be certain anyone operating this product reads this manual, and all other applicable
manuals, to become familiar with this snowblower and all safety precautions. Failure to do so could
result in serious personal injury or snowblower damage. If you have any questions, consult your
dealer.
BEFORE OPERATION
Children
Tragic accidents can occur if the operator is not
alert to the presence of children. Children are
generally attracted to machines and the work
being done. Never assume children will remain
where you last saw them.
1. Keep children out of the operating area and
under the watchful eye of another responsible
adult.
2. Be alert and turn machine off if children enter
the work area.
3. Before and when backing, look behind for
small children.
4. Never carry children while operating the
machine. They may fall off and be seriously
injured or interfere with the safe operation of
the machine.
5. Never allow children to play on the machine
or snowblower even when they are turned off.
6. Never allow children to operate the machine
even under adult supervision.
7. Use extra care when approaching blind
corners, shrubs, trees, or other obstructions
that might hide children from sight.

SAFETY PRECAUTIONS - continued
OM 0377SB-A 6
NOTICE
A safe operator is the best assurance against accidents. All operators, no matter how experienced
they may be, should read this operator's manual and all other related manuals before attempting to
operate the snowblower. Please read the following section and pay particular attention to all safety
recommendations contained in this manual and those labeled on the snowblower and on the tractor.
SUBFRAME &SNOWBLOWER
Before Operation
1. Read and understand both the tractor and
this operator's manual before operating the
equipment. Know how to operate all
controls and how to stop the unit and
disengage the controls quickly. Lack of
knowledge could lead to accidents.
2. Never wear loose, torn, or bulky clothing
around the tractor, the subframe and the
snowblower. It may catch on moving parts
or controls, causing injury.
3. Before and during seasons, thoroughly
inspect the area where the snowblower is
to be used and remove all objects that may
be thrown or cause damage to the
snowblower.
4. Set transmission to neutral and disengage
clutch, if equipped, before starting the
engine.
5. Do not operate snowblower in wintertime
without wearing adequate winter garments.
Always wear protective clothing.
6. Never attempt to make any adjustments
while engine is running. Read this manual
carefully to acquaint yourself with the
snowblower as well as the tractor
operator's manual. Working with unfamiliar
snowblower can lead to accidents. Be
thoroughly familiar with the controls and
proper use of the snowblower.
7. Keep all safety guards in place and verify
hardware for proper tightening.
8. Check for moving parts excessive wear
regularly. Replace worn parts with genuine
parts.
9. Replace all missing, illegible, or damaged
safety and warning decals. See list of
decals in operator's manual.
10. Keep safety decals clean of dirt and grime.
11. Do not modify or alter this snowblower or
any of its components, or any snowblower
function without first consulting your dealer.
12. Make sure the tractor is counterweighted
as recommended by your dealer. Weights
provide the necessary balance to improve
stability, traction and steering.

SAFETY PRECAUTIONS - continued
OM 0377SB-A 7
Subframe & Snowblower Operation
1. Before leaving the tractor/snowblower
unattended, take all possible
precautions. Park the
tractor/snowblower on level ground,
place the transmission in neutral, set the
parking brake, disengage the PTO,
lower the snowblower to the ground,
place all levers including auxiliary control
levers in neutral, shut off the engine and
remove the ignition key.
2. Before starting the tractor/ snowblower,
remove the ice that might have
accumulated on the auger/fan, inspect
and clean every rotating part.
3. Prior to operation, clear work area of all
objects that can be picked up and
thrown. Mark all curbs, pipes, etc. that
cannot be moved.
4. Be sure the PTO switch/lever is in
OFF/disengaged position before starting
engine.
5. Exercise extreme caution when
operating on or crossing a gravel drive,
walks, or roads. Stay alert for hidden
hazards or traffic.
6. Do not carry passengers.
7. Keep clear of all rotating parts. Do not
put hands or feet under, or into
snowblower and subframe with engine
running. Be especially observant of the
snowblower areas of discharge, intake
or all other mechanical motions.
8. For your safety, do not work under any
hydraulically supported machine
elements that may creep down,
suddenly drop or be accidentally
lowered.
9. Park the tractor/snowblower on level ground,
place the transmission in neutral, set the parking
brake, disengage the PTO, lower the snowblower
to the ground, place all control levers in neutral,
shut off the engine, remove the ignition key and
allow the rotating parts to stop BEFORE
unclogging the housing or the chute and making
any repairs, adjustments or inspections. Use only
a 36" long stick of wood to unclog the
snowblower.
10. If the snowblower starts to vibrate abnormally,
disengage the PTO, stop the engine immediately
and check for cause. Excessive vibration is
generally a sign of trouble.
11. Do not run the engine indoors except when
starting engine and transporting attachment in or
out of building. Carbon monoxide gas is colorless,
odorless and deadly.
12. Do not attempt to operate on steep slopes. If
operating on slopes is necessary, exercise
extreme caution when changing direction.
13. Never operate snowblower without guards, and
other safety protective devices in place. All tractor
and snowblower shields and covers must be
correctly installed at all times. When necessary to
remove these, they must be reinstalled
immediately.
14. Never operate snowblower near glass enclosures,
automobiles, window wells, embankments, etc.,
without proper adjustment of snow discharge
angle.
15. Never operate machine at high transport speeds
on a slippery surface.
16. Use extra caution when backing up.
17. Disengage power to auger/fan when transporting
or when not in use.
18. Never operate the snowblower without good
visibility and lighting.
19. Prolonged exposure to loud noise can cause
impairment or loss of hearing. Wear a suitable
hearing protective device such as earmuffs or
earplugs to protect against objectionable or
uncomfortable noises.

SAFETY PRECAUTIONS - continued
OM 0377SB-A 8
20. Never allow anyone near the work area.
21. Never allow anyone to operate the
snowblower until they have read the
manual completely and are thoroughly
familiar with basic tractor and snowblower
operation.
22. Make sure the tractor is counterweighted
as recommended by your dealer. Weights
provide the necessary balance to improve
stability, traction and steering.
23. Always make sure all snowblower
components are properly installed and
securely fastened BEFORE operation.
24. Adjust housing height to clear gravel or
crushed rocks surface.
25. Keep away from chute discharge. This
chute has the capacity to throw debris at
far distances.
26. Never direct chute discharge towards
people or animals. A thrown debris can
cause serious injury.
TRANSPORTATION
1. If the tractor/snowblower is to be driven on public
roads, it must be equipped with an SMV
(Slow Moving Vehicle) sign. Check local traffic
codes that may apply to unit usage on public
roads and highways in your area.
2. Be alert for all other traffic when driving the
tractor/snowblower on public roads or highways.
STORAGE
Before storing the snowblower, certain precautions
should be taken to protect it from deterioration.
1. Clean the snowblower thoroughly.
2. Make all the necessary repairs.
3. Replace all Safety Signs that are damaged, lost,
or otherwise become illegible. If a part to be
replaced has a sign on it, obtain a new safety
sign from your dealer and install it in the same
place as on the removed part.
4. Repaint all parts from which paint has worn or
peeled.
5. Lubricate the snowblower as instructed under
"Lubrication" section.
6. When the snowblower is dry, oil all moving parts.
Apply oil liberally to all surfaces to protect against
rust.
7. Attach driveline shield safety chain around
driveline by passing it over the upper hitch
8. Store in a dry place.

SAFETY PRECAUTIONS - continued
OM 0377SB-A 9
MAINTENANCE
ALWAYS USE GENUINE PARTS WHEN
REPLACEMENT PARTS ARE REQUIRED
1. Keep the tractor and snowblower properly
maintained.
2. Park the tractor/snowblower on level ground,
place the transmission in neutral, set the
parking brake, disengage the PTO, lower the
snowblower to the ground, place all control
levers in neutral, shut off the engine and
remove the ignition key and allow the rotating
parts to stop BEFORE making any
snowblower adjustments.
3. To avoid injury, do not adjust, unblock the
driving system, or service the snowblower
with the tractor engine running. Make sure
rotating components have completely
stopped BEFORE leaving the operator’s
seat.
4. Keep the tractor/snowblower clean. Snow ,
dirt or ice build-up can lead to malfunction or
personal injury from thawing and refreezing
in garage.
5. Always wear eye protection when cleaning or
servicing the snowblower or subframe.
6. DO NOT service the tractor while the engine
is running or hot, or if the unit is in motion.
Always lower snowblower to the ground. If
necessary to service snowblower in raised
position, securely support with stands or
suitable blocking before working underneath.
Do not rely on hydraulically supported
devices for your safety. They can settle
suddenly, leak down, or be accidentally
lowered.
7. Do not attempt to service machine, clear
obstructions or unclog the snowblower with
the engine running. Always shut off engine
and allow all motion to cease.
8. The manufacturer will not claim
responsibility for fitment of unapproved
parts and/or accessories and any damages
as a result of their use.
9. Make sure all shields and guards are
securely in place following all service,
cleaning, or repair work.
10. Do not modify or alter this snowblower or
any of its components or operating
functions. If you have questions concerning
modifications, consult with your dealer.
11. Do not operate a snowblower that is
defective or has missing parts. Make sure
that all recommended maintenance
procedures are completed before operating
the snowblower.
12. Check all controls regularly and adjust
where necessary. Make sure that the
brakes are evenly adjusted.
13. Periodically check all nuts and bolts for
tightness, especially wheel hub and rim
nuts.

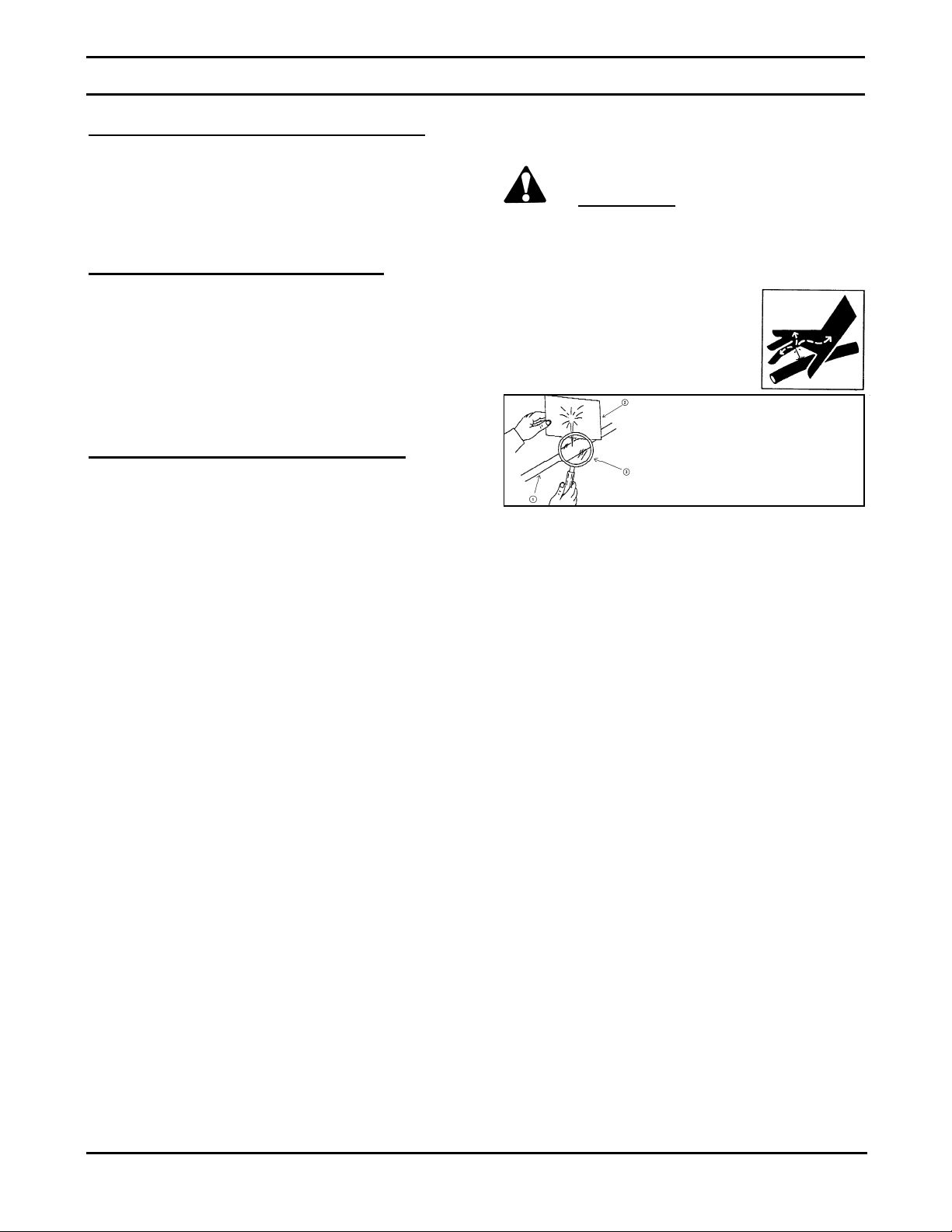

14. To avoid serious personal injury: Escaping
hydraulic/diesel fluid under pressure can
penetrate the skin causing serious injury.
Do not use your hands to check for leaks.
Use a piece of cardboard or paper to
search for leaks. If you are injured by
escaping high pressure fluid, see a medical
doctor at once.
15. Stop engine and relieve pressure before
connecting or disconnecting hydraulic
hoses. Tighten all connections before
starting engine or pressurizing hoses.

DECALS
OM 0377SB-A 10
Replace Immediately if Damaged
70060-01213
(
657763
)
70060-02232
(2500484)
77700-04190
(
2500869
)
70060-04325
(
2500329
)
B2781B: 77700-03073 (2500847)
B2782B: 77700-03074 (2500848)
70060-01211
(
657761
)
70060-01040
(
655683
)
70060-01674
(
657804
)
70060-01212
(
657762
)
70060-01212
(
657762
)
70060-00736
(
2500324
)

ASSEMBLY
OM 0377SB-A 11
Figure 1a
Figure 1b
SNOWBLOWER ASSEMBLY
The snowblower is pre-assembled at the factory; however, parts in the bag and box must be
assembled. Use the present manual and lay out all parts for assembly. Separate bolts and nuts into
various sizes. After assembly, torque all the bolts according to the Torque Specification Table
enclosed at the end of the manual.
Chute Installation (Figure 1a)
NOTE: For manual rotation only: If it is difficult
to turn the chute manually, it might be
necessary to use the 1/16" spacers (item 4) to
give chute some play.
1. Install the rotation bushing (item 1) over the fan
discharge.
2. Loosen the five bolts holding the rotation
handle support enough to be able to move it.
3. Apply lubricant on top of the rotation bushing
(item 1), and place the chute (item 2) over the
bushing, securing the chute with four 3/8"
spacers (item 3) and the three retaining plates
(items 5-6) as illustrated. Secure using eight
5/16" x 1 1/2" bolts (item 7), 5/16" lockwashers
and 5/16"NC hex nuts (items 8-9) in the three
retaining plates (items 5-6). Securely tighten all
bolts.
4. Push the rotation worm towards the chute
leaving sufficient play between the teeth and
the worm to prevent the worm from getting
jammed. Tighten the five bolts of the rotation
handle support.
Rotation worm support Installation
(Figure 1b)
1. Remove from the rotation worm support
(item 1) the two 1/4"NC x 1" bolts, two 1/4" flat
washers, two 1/4" lockwashers and two 1/4 "
nuts (item 2). This hardware is not required for
this assembly.
2. Remove only the three 1/4" nuts (item 3) of the
rotation worm support (item 1).
3. Install the rotation worm support preassembled
(item 1) on the chute base. Secure with three
1/4" x 1" bolts, 1/4" lockwashers, 1/4" flat
washers already installed (item 4) and the 1/4"
nuts (item 3) previously removed.

ASSEMBLY
OM 0377SB-A 12
Manual Rotation Installation
(Figures 2a-2b)
(For all tractor models except B2320, B2620, B2920, B2301 & B2601. See page 13 for those
models)
1. Figure 2a: Attach the handle support (item
2) to the valve stay:
-If the upper part of the valve stay is
bolted with M6 x 1.00 x 16mm lg bolts
and two 6mm lockwashers (item 1),
remove them and attach the handle
support (item 2) using the two M6 x 1.00
x 20mm lg hex. bolts, the 6mm
lockwashers previously removed and the
two 5/16" flat washers (items 4-5-6).
The two M6 x 1.00 x 16mm lg hex. bolts
will no longer be used.
-In all other cases, attach the handle
support with the top 2 existing bolts
(item 1).
2. Figure 2a: Insert the plastic grommet
(item 3) in the hole in the support.
3. Figure 2b: Insert the universal joint end of
the rotation rod (item 1) in the rotation
worm (item 2), and secure with a 10-24 x
1" allen setscrew and 10-24 nylon insert
locknut (items 7-8). Attach the rotation tube
(item 3) to the coupling rod (item 4) then to
the rotation rod (item 1) using two 10-24 x
1" allen setscrews and 10-24 nylon insert
locknuts (items 7-8).
4. Figure 2b: Install the plastic handle
(item 6) on the rotation handle (item 5) and
insert handle in the handle support (fig. 2a,
item 2), and then in the rotation tube
(item 3) and secure in one of the holes with
the snap button.
Figure 2a
Figure 2b

ASSEMBLY
OM 0377SB-A 13
Manual Rotation Installation
(Figure 3a-3b)
(For tractor models B2320, B2620, B2920, B2301 & B2601 only)
1. Figure 3a: Insert the plastic grommet
(item 10) in the upper hole of the handle
support (item 9).
2. Figure 3b: Remove the two existing bolts
from the hydraulic pipe support (item 4).
3. Figure 3b: Install the support bracket with
two 10 mm x 1.25 x 80 mm allen socket
head cap screw (item 2) and two 10 mm
lockwashers (item 3). Do not tighten
immediately.
4. Figure 3b: Attach the handle support
(item 5) with two 3/8" NC x 1 1/4" hex. bolts
(item 6) and two 3/8" serrated flange nuts
(item 7). Tighten these two bolts according
to the "Torque Specification Table" at the
end of the
5. Figure 3b: Tighten the two 10 mm bolts
(item 2) while pulling slightly on the support
(item 5) to keep it well distanced from the
hood.
6. Figure 3b: Insert the universal joint end of
the rotation rod (item 1) in the rotation worm
(item 2), and secure with a 10-24 x 1" allen
setscrew and 10-24 nylon insert locknut
(items 7-8). Attach the rotation tube (item 3)
to the coupling rod (item 4) then to the
rotation rod (item 1) using two 10-24 x 1"
allen setscrews and 10-24 nylon insert
locknuts (items 7-8).
7. Figure 3b: Install the plastic handle (item 6)
on the rotation handle (item 5) and insert
handle in the handle support (fig. 2a,
item 2), and then in the rotation tube
(item 3) and secure in one of the holes with
the snap button.
Figure 3b
Figure 3a

ASSEMBLY
OM 0377SB-A 14
Attaching Snowblower to Tractor
(Figures 4-5)
1. Figure 4: Move the quick hitch lever (item 1)
rearward to the unlock position. Position
tractor behind snowblower and raise front
male quick hitch to approximately 3/4" from
the ground.
2. Figure 4: Insert male quick hitch (item 2)
into the snowblower female quick hitch (item
3). Raise male section so that it is parallel to
female section and insert it all the way into
female section. Raise snowblower and move
the lever forward to lock position. Secure
latch with linch pin.
3. Set snowblower in float position, turn
engine off, set parking brake and remove
ignition key.
4. Connect snowblower driveline to PTO shaft
in frame by sliding back locking collar on
drive line yoke and pushing yoke over shaft
until locking ring snaps back.
5. Figure 5: Remove the driveline support
chain and hook the "S" hook (item 1) on one
of the chain links (not on the other "S" hook).
CAUTION
Make sure that the quick coupler is
securely locked in place. A "click" must
be heard.
6. Adjust skid shoes according to adjustment
instructions in the next OPERATION
section.
WARNING: This shaft turns at very
high RPM. If the collar is not locked to
the shaft at tractor end, or if the yoke at
the blower end is not secured properly,
the driveline can fly loose with great
force capable of causing serious injury
or death.
If using Hydraulic Chute Rotation:
1. Release hydraulic pressure by moving the
control valve lever in all directions.
2. Set snowblower in float position, turn
engine off, set parking brake and remove
ignition key.
3. Connect chute rotation hoses to female
quick coupler on the hydraulic control valve.
4. Verify that pushing the hydraulic control
valve lever to the right rotates the chute to
the right in a clockwise direction. If not,
reverse hoses.
5. Match hydraulic hoses to female couplers
using the colored plastic rings.
Figure 5
4
Fi
g
ure 4

ASSEMBLY
OM 0377SB-A 15
1. Hydraulic hose
2. Cardboard
3. Ma
g
nif
y
in
g
g
lass
Detaching Snowblower from Tractor
(Figure 4)
1. Set snowblower in float position, turn
engine off, set parking brake and remove
ignition key.
If using Manual Chute Rotation:
2. Remove the rotation handle, remove the
linchpin (item 4) from male hitch latch and
place male hitch lever (item 1) rearward to
unlock position.
3. Disconnect driveline from tractor. Set
driveline on its support.
If using Hydraulic Chute Rotation:
4. Release hydraulic pressure by moving
control valve lever in all directions.
5. Disconnect hydraulic hoses from tractor
female couplers and install dust caps and
plugs in couplers.
6. Back tractor away from attachment
carefully.
WARNING: To avoid serious
personal injury. Escaping hydraulic/
diesel fluid under pressure can penetrate
the skin causing serious injury.
Do not use your hands to
check for leaks. Use a
piece of cardboard or
paper to search for leaks.
Stop engine and relieve pressure before
connecting or disconnecting lines.
Tighten all connections before starting
engine or pressurizing lines.
If any fluid is injected into the skin, obtain
medical attention immediately or gangrene
may result.

OPERATION
OM 0377SB-A 16
GENERAL PREPARATION
1. Read the operator's manual carefully before
using the tractor and snowblower. Be
thoroughly familiar with the controls and
proper use of the equipment. Know how to
stop the unit and disengage the controls
quickly.
2. Wear adequate winter outer garments while
operating the equipment.
3. Make sure the snowblower is clear of snow
and other material before engaging the
snowblower.
4. Make sure the auger and fan is operating
freely.
5. Check the oil level in the reduction box and
if necessary, add AGMA 5EP extreme
pressure oil, SAE 80W90 gear oil or
equivalent.
6. Check the three shear bolts, one on each
auger section and one between the fan and
gearbox for proper tightness.
7. Adjust the skid shoes so the snowblower
runs leveled.
8. Before engaging the snowblower drive,
always have the engine running at idle.
9. Operate the snowblower at maximum
engine RPM.
OPERATING CONTROLS
Manual Chute Rotation
Turning the handle in a clockwise direction
turns the chute in the counterclockwise
direction.
Electric Deflector
Moving the toggle up or backward raises the
deflector. Moving the toggle down or forward
lowers the deflector
PTO Operation
The mid PTO is activated by pulling up the
PTO lever on left side of seat. Push down to
disengage.
Hydraulic Chute Rotation
Pushing the hydraulic lever to the right rotates
the chute to the right, in a clockwise direction.
Pushing the lever to the left rotates the chute to
the left.
Up and Down Control
Pulling the lever backward raises the
snowblower, pushing the lever forward lowers
the snowblower and pushing the lever fully
forward sets the snowblower in float position.
IMPORTANT : Use full RPM power
when removing wet, sticky snow. Low RPM
power will tend to clog the chute.
CAUTION : Do not use your hands or
feet to unclog the chute. Use a 36" (925mm)
stick or board. Do not attempt to unclog
the chute while engine is running. If the
chute is clogged, disengage the drive shaft,
place the transmission in neutral, set the
parking brake, lower the implement to the
ground, shut off the tractor engine, remove
the ignition key, wait for all movement to
stop and then clear the snow from the
chute.
Increasing Traction and Stability
The use of tire chains and wheel weights or
rear counterweights is recommended for extra
traction and stability, especially when operating
in snow and/or slippery surfaces. See your
dealer for details.
Work And Travel Speed
Working ground speed will depend on the depth
and density of the snow to be cleared. Normally,
ground speed will range from 4 to 7 mph for
light, dry snowfalls (3-6"), and 1-3 mph for
heavy, wet or drifted snow.

OPERATION
OM 0377SB-A 17
ADJUSTMENTS
ATTENTION: To avoid personal
injury, be sure the tractor engine is off,
the drive shaft disengaged, and all
movement has stopped before making
any adjustments.
Deflector Adjustment
Set the angle of deflection according to the
distance the snow must be thrown. To set
the deflector angle, loosen the two deflector
knobs, adjust the deflector to the appropriate
angle, and retighten the two knobs securely.
Skid Shoe Adjustment
(Figure 6)
Adjust the snowblower so that the skid
shoes run level and according to the surface
conditions so that stones are not thrown with
the snow. Adjust both skid shoes to the
same height to keep the cutting edge level
and adjust upwards for smooth surfaces.
Loosen skid shoe bolts and adjust according
to instructions below, and securely tighten
bolts:
Clearance between cutting edge and
surface:
Level paved surface:Insert bolts in bottom holes
Uneven or gravel surface: Insert bolts to the
required distance: 1/2" - center hole
1" - upper hole
Check of the Hub Bolts
(Figure 7)
1. Remove the guard (item 1) by unscrewing the
two bolts (items 2-3).
2. With 1/4" drive ratchet,check the tightening of
the three bolts (item 4) by applying a pressure
between 12 and 15 lbs, while alterning from
one another. Make sure the three bolts have
the same tightness.
3. Reinstall the guard (item 1).
Figure 6
Figure 7

OPERATION
OM 0377SB-A 18
Reduction Chain Tension Adjustment
(Figures 8a-8b)
1. Figure 8a: Remove chain cover
(item 1).
2. Figure 8a-8b: Loosen the four
nuts securing the reduction box
(items 2) to the snowblower.
3. Figure 8a: Tighten the chain
using the tightening bolt (item 3)
on left hand side of fan housing.
4. Figure 8b: Leave approximately
1/16" deflection in the bottom
span of chain.
5. Tighten the four nuts securing
reduction box to the snowblower.
Install the chain cover.
IMPORTANT:To avoid damage
to the snowblower, retorque all
bolts after the first 10 hours of
operation.
Figure 8a
Figure 8b
