Kuppersberg HMW 650 BX Installation and maintenance instructions

TECHNICAL PASSPORT
ПАСПОРТ ТЕХНИЧЕСКОГО ИЗДЕЛИЯ
MICROWAVE OVEN
МИКРОВОЛНОВАЯ ПЕЧЬ
HMW 650 BX, HMW 650 WH

2
TECHNICAL PASSPORT ENGLISH
Microwave oven
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY........................................................................................3
SPECIFICATIONS...............................................................................................3
IMPORTANT SAFETY INSTRUCTIONS WARNING...........................................4
CLEANING..........................................................................................................6
INSTALLATION INSTRUCTION.......................................................................12
OPERATION INSTRUCTION............................................................................15
TROUBLE SHOOTING......................................................................................21

3
ENGLISH TECHNICAL PASSPORT
Microwave oven
Read these instructions carefully before using your microwave oven, and keep it
carefully. If you follow the instructions, your oven will provide you with many years
of good service.
SAVE THESE INSTRUCTIONS CAREFULLY.
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY
(a) Do not attempt to operate this oven with the door open since this can result
in harmful exposure to microwave energy. It is important not to break or tamper with
the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow
soil or cleaner residue to accumulate on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the oven must not be oper-
ated until it has been repaired by a competent person.
ADDENDUM
If the apparatus is not maintained in a good state of cleanliness, its surface could
be degraded and affect the lifespan of the apparatus and lead to a dangerous situa-
tion.
MODEL: HMW 650 BX, HMW 650 WH
Rated Voltage: 230V~ 50Hz
Rated Input Power(Microwave): 1450 W
Rated Output Power(Microwave): 900 W
Rated Input Power(Grill): 1000 W
Oven Capacity: 25 L
Turntable Diameter: Ø315 mm
External Dimensions: 594х403х382 mm
Net Weight: 17,6 kg
SPECIFICATIONS

4
TECHNICAL PASSPORT ENGLISH
Microwave oven
IMPORTANT SAFETY
INSTRUCTIONS WARNING
To reduce the risk of re, electric
shock, injury to persons or exposure to
excessive microwave oven energy when
using your appliance, follow basic
precautions, including the following:
1. Read and follow the
specic:»PRECAUTIONS TO AVOID
POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY».
2. This appliance can be used by
children aged from 8 years and above
and persons with reduced physical,
sensory or mental capabilities or lack of
experience and knowledge if they have
been given supervision or instruction
concerning use of the appliance in a
safe way and understand the hazards
involved. Children shall not play with
the appliance. Cleaning and user
maintenance shall not be made by
children unless they are older than 8
and supervised. Children less than 8
years of age shall be kept away unless
continuously supervised.
3. Keep the appliance and its cord
out of reach of children less than 8
years.
4. If the supply cord is damaged, it
must be replaced by the manufacturer,
its service agent or similarly qualied
persons in order to avoid a hazard.( For
appliance with type Y attachment).
5. WARNING: Ensure that the
appliance is switched off before
replacing the lamp to avoid the
possibility of electric shock.
6. WARNING: It is hazardous
for anyone other than a competent
person to carry out any service or repair
operation that involves the removal of
a cover which gives protection against
exposure to microwave energy.
7. WARNING: Liquids and other
foods must not be heated in sealed
containers since they are liable to
explode.
8. When heating food in plastic
or paper containers, keep an eye on the
oven due to the possibility of ignition.
9. Only use utensils that are
suitable for use in microwave ovens.
10. If smoke is emitted, switch off
or unplug the appliance and keep the
door closed in order to stie any ames.
11. Microwave heating of
beverages can result in delayed eruptive
boiling, therefore care must be taken
when handling the container.
12. The contents of feeding bottles
and baby food jars shall be stirred or
shaken and the temperature checked
before consumption, in order to avoid
burns.
13. Eggs in their shell and whole
hard-boiled eggs should not be heated
in microwave ovens since they may
explode, even after microwave heating
has ended.
14. The oven should be cleaned
regularly and any food deposits removed.
15. Failure to maintain the oven
in a clean condition could lead to
deterioration of the surface that could
adversely affect the life of the appliance

5
ENGLISH TECHNICAL PASSPORT
Microwave oven
and possibly result in a hazardous
situation.
16. Only use the temperature
probe recommended for this oven.(for
ovens provided with a facility to use a
temperature-sensing probe.)
17. The microwave oven must be
operated with the decorative door open.
(for ovens with a decorative door.)
18. This appliance is intended
to be used in household and similar
applications such as:
— staff kitchen areas in shops,
ofces and other working environments;
— by clients in hotels, motels and
other residential type environments;
— farm houses;
— bed and breakfast type
environments.
19. The microwave oven is intended
for heating food and beverages. Drying
of food or clothing and heating of
warming pads, slippers, sponges, damp
cloth and similar may lead to risk of
injury, ignition or re.
20. Metallic containers for food
and beverages are not allowed during
microwave cooking.
21. The appliance shall not be
cleaned with a steam cleaner.
22. Care should be taken not to
displace the turntable when removing
containers from the appliance. (For
xed appliances and built-in appliances
being used equal or higher than 900mm
above the oor and having detachable
turntables. But this is not applicable
for appliances with horizontal bottom
hinged door.)
23. The microwave oven is intended
to be used built-in.
24. Steam cleaner is not to be used.
25. Surface of a storage drawer can
get hot.
26. WARNING: The appliance and
its accessible parts become hot dur-
ing use. Care should be taken to avoid
touching heating elements. Children
less than 8 years of age shall be kept
away unless continuously supervised.
27. During use the appliance be-
comes hot. Care should be taken to
avoid touching heating elements inside
the oven.
28. WARNING: Accessible parts may
become hot during use. Young children
should be kept away.
29. The appliance must not be in-
stalled behind a decorative door in or-
der to avoid overheating. (This is not ap-
plicable for appliances with decorative
door.)
30. WARNING: When the appliance
is operated in the combination mode,
children should only use the oven under
adult supervision due to the tempera-
tures generated.
31. Do not use harsh abrasive clean-
ers or sharp metal scrapers to clean the
oven door glass since they can scratch
the surface, which may result in shatter-
ing of the glass.

6
TECHNICAL PASSPORT ENGLISH
Microwave oven
DANGER
Electric Shock Hazard.
Touching some of the internal
components can cause serious personal
injury or death. Do not disassemble this
appliance.
WARNING
Electric Shock Hazard.
Improper use of the grounding can
result in electric shock. Do not plug into
an outlet until appliance is properly
installed and grounded.
This appliance must be grounded. In
the event of an electrical short circuit,
grounding reduces the risk of electric
shock by providing an escape wire for
the electric current. This appliance
is equipped with a cord having a
grounding wire with a grounding plug.
The plug must be plugged into an outlet
that is properly installed and grounded.
Consult a qualied electrician or
serviceman if the grounding instructions
are not completely understood or if
doubt exists as to whether the appliance
is properly grounded.
If it is necessary to use an extension
cord, use only a 3-wire extension cord.
1. A short power-supply cord is
provided to reduce the risks resulting
from becoming entangled in or tripping
over a longer cord.
2. If a long cord set or extension
cord is used:
1) The marked electrical rating of
the cord set or extension cord should be
at least as great as the electrical rating
of the appliance.
2) The extension cord must be a
grounding-type 3-wire cord.
3) The long cord should be
arranged so that it will not drape over
the counter top or tabletop where it can
be pulled on by children or tripped over
unintentionally.
CLEANING
Be sure to unplug the appliance from
the power supply.
1. Clean the cavity of the oven
after using with a slightly damp cloth.
2. Clean the accessories in the
usual way in soapy water.
3. The door frame and seal and
neighbouring parts must be cleaned
carefully with a damp cloth when they
are dirty.
4. Do not use harsh abrasive
cleaners or sharp metal scrapers to
clean the oven door glass since they can
scratch the surface, which may result in
shattering of the glass.
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
To Reduce the Risk of Injury to Persons Grounding Installation

7
ENGLISH TECHNICAL PASSPORT
Microwave oven
5. Cleaning Tip---For easier
cleaning of the cavity walls that the food
cooked can touch: Place half a lemon in
a bowl, add 300ml (1/2 pint) water and
heat on 100% microwave power for 10
minutes. Wipe the oven clean using a
soft, dry cloth.
UTENSILS
CAUTION
Personal Injury Hazard
It is hazardous for anyone other
than a competent person to carry out
any service or repair operation that
involves the removal of a cover which
gives protection against exposure to
microwave energy.
See the instructions on «Materials
you can use in microwave oven or to
be avoided in microwave oven.» There
may be certain non-metallic utensils
that are not safe to use for microwaving.
If in doubt, you can test the utensil in
question following the procedure below.
Utensil Test:
1. Fill a microwave-safe container
with 1 cup of cold water (250ml) along
with the utensil in question.
2. Cook on maximum power for 1
minute.
3. Carefully feel the utensil. If the
empty utensil is warm, do not use it for
microwave cooking.
4. Do not exceed 1 minute cooking
time.

8
TECHNICAL PASSPORT ENGLISH
Microwave oven
MATERIALS YOU CAN USE IN MICROWAVE OVEN
Utensils Remarks
Aluminum foil
Shielding only. Small smooth pieces can be used to
cover thin parts of meat or poultry to prevent overcooking.
Arcing can occur if foil is too close to oven walls. The foil
should be at least 1 inch (2.5 cm) away from oven walls.
Browning dish
Follow manufacturer’s instructions. The bottom of
browning dish must be at least 3/16 inch (5mm) above the
turntable. Incorrect usage may cause the turntable to break.
Dinnerware Microwave-safe only.Followmanufacturer’s instructions.
Do not use cracked or chipped dishes.
Glass jars Always remove lid. Use only to heat food until just
warm. Most glass jars are not heat resistant and may break.
Glassware
Heat-resistant oven glassware only. Make sure there is
no metallic trim.
Do not use cracked or chipped dishes.
Oven cooking bags Follow manufacturer’s instructions. Do not close with
metal tie. Make slits to allow steam to escape.
Paper plates and
cups
Use for short–term cooking/warming only. Do not leave
oven unattended while cooking.
Paper towels Use to cover food for reheating and absorbing fat. Use
with supervision for a short-term cooking only.
Parchment paper Use as a cover to prevent splattering or a wrap for
steaming.
Plastic
Microwave-safe only. Follow the manufacturer’s
instructions. Should be labeled «Microwave Safe». Some
plastic containers soften, as the food inside gets hot.
«Boiling bags» and tightly closed plastic bags should be
slit, pierced or vented as directed by package.
Plastic wrap Microwave-safe only. Use to cover food during cooking
to retain moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.

9
ENGLISH TECHNICAL PASSPORT
Microwave oven
Utensils Remarks
Aluminum tray May cause arcing. Transfer food into microwave-
safe dish.
Food carton with metal
handle
May cause arcing. Transfer food into microwave-
safe dish. May cause arcing. Transfer food into
microwave-safe dish.
Metal or metal-
trimmed utensils
Metal shields the food from microwave energy.
Metal trim may cause arcing.
Metal twist ties May cause arcing and could cause a re in the
oven.
Paper bags May cause a re in the oven.
Plastic foam Plastic foam may melt or contaminate the liquid
inside when exposed to high temperature.
Wood Wood will dry out when used in the microwave
oven and may split or crack.
MATERIALS TO BE AVOIDED IN MICROWAVE OVEN

10
TECHNICAL PASSPORT ENGLISH
Microwave oven
TURNTABLE INSTALLATION
a. Never place the glass tray
upside down. The glass tray should
never be restricted.
b. Both glass tray and turntable
ring assembly must always be used
during cooking.
c. All food and containers of food
are always placed on the glass tray for
cooking.
d. If glass tray or turntable ring
assembly cracks or breaks, contact your
nearest authorized service center.
Grill Rack(Can not be used in microwave
function and must be placed on the glass
tray)
A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system
A
F
G
E D C B
Hub (underside)
Glass tray
Turntable shaft
Turntable ring assembly
SETTING UP YOUR OVEN
Names of Oven Parts and Accessories
Remove the oven and all materials from the carton and oven cavity. Your oven
comes with the following accessories:
Glass tray 1
Turntable ring assembly 1
Instruction Manual 1

11
ENGLISH TECHNICAL PASSPORT
Microwave oven
INSTALLATION AND CONNECTION
1. This appliance is only intended for domestic use.
2. This oven is intended for built-in use only. It is not intended for counter-top
use or for use inside a cupboard.
3. Please observe the special installation instructions.
4. The appliance can be installed in a 60cm wide wall- mounted cupboard.
5. The appliance is tted with a plug and must only be
connected to a properly installed earthed socket.
6. The mains voltage must correspond to the voltage specied on the rating
plate.
7. The socket must be installed and connecting cable must only be replaced
by a qualied electrician. If the plug is no longer to accessible following installation,
an all-pole disconnecting device must be present on the installation side with a
contact gap of at least 3mm.
8. Adapters, multi-way strips and extension leads must not be used.
Overloading can result in a risk of re.
The accessible surface
may be hot during
operation.

12
TECHNICAL PASSPORT ENGLISH
Microwave oven
INSTALLATION INSTRUCTION
THE FOLLOWING MUST BE NOTED
Electrical connection
The appliance is tted with a plug and must only be connected to a properly
installed earthed socket. Only a qualied electrician who takes the appropriate
regulations into account may install the socket or replace the connecting cable. If
the plug is no longer accessible following installation, an all-pole isolating switch
must be present on the installation side with a contact gap of at least 3 mm. Contact
protection must be ensured by the installation.
Fitted units
The installation cabinet must not have a back panel behind the appliance.
Minimum installation height: 850 mm.
Ventilation slots and intakes must not be covered.

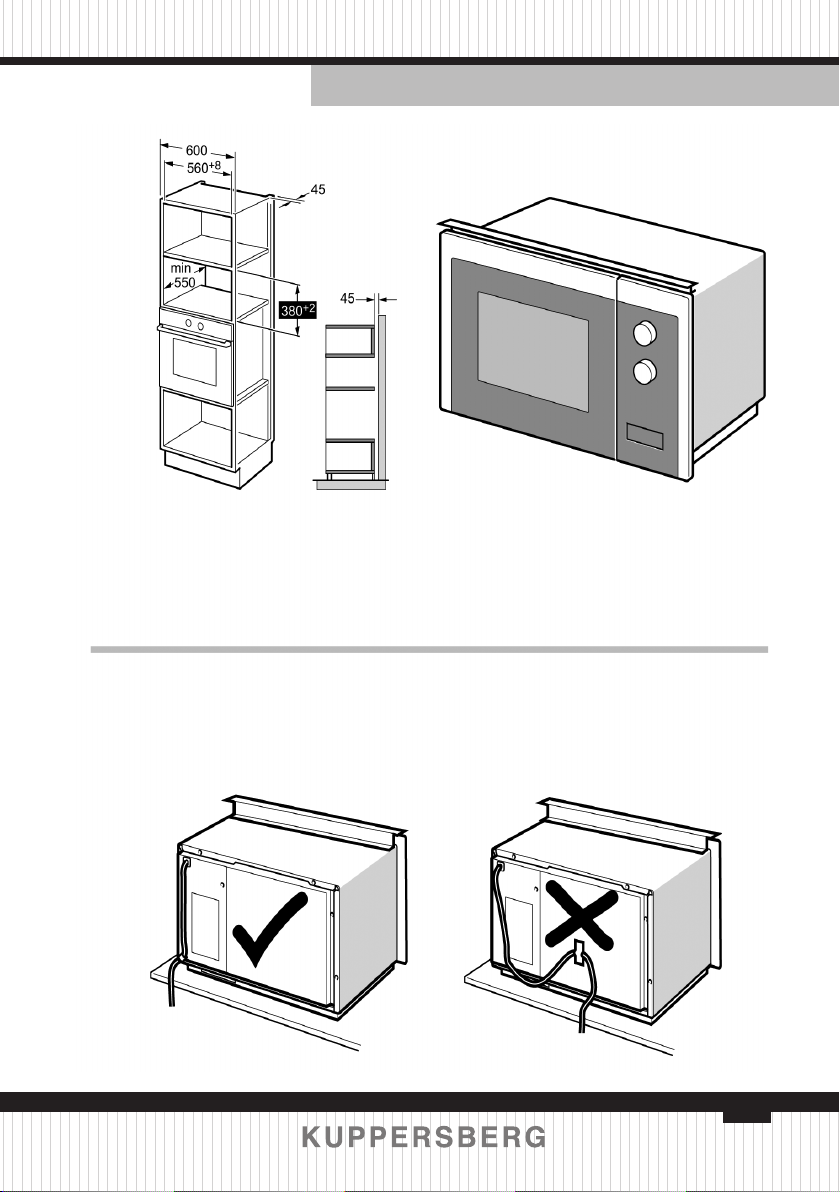

Installing the oven - Fig. 2
Note: Do not trap or kink the mains lead.

13
ENGLISH TECHNICAL PASSPORT
Microwave oven
2
1

14
TECHNICAL PASSPORT ENGLISH
Microwave oven
2
1
3
min. 3mm

15
ENGLISH TECHNICAL PASSPORT
Microwave oven
OPERATION INSTRUCTION
This microwave oven uses modern electronic control to adjust cooking
parameters to meet your needs better for cooking.
1. Clock Setting
When the microwave oven is electried,the oven will display «WELCOME»,
buzzer will ring once. If there is no operation within 1 minute, the oven will enter
to waiting state and «0:00» will display.
1) Press «Kitchen Timer/Clock» will ash; twice, the screen will display «00:00»
and the hour gures
2) Turn to adjust the hour gures,the input time should be within 0--23.
3) Press «Kitchen Timer/Clock» or «Start/+30Sec./Conrm» to conrm, the
minute gures will ash.
4) Turn to adjust the minute gures, the input time should be within 0--59.
5) Press «Kitchen Timer/Clock» or «Start/+30Sec./Conrm» to nish clock
setting. «:» will ash. The current time will display.
Note. 1) If the clock is not set, it would not function when powered.
2. Microwave Cooking
1) Press the «Microwave» key once, and «P100» will display.
2) Press «Microwave» repeatedly to select the microwave power. «P100», «P80»,
«P50», «P30», «P10» will display in order.
3) Turn to adjust the cooking time. (The maximum cooking time is
95minutes).
4) Press «Start/+30Sec./Conrm» to start cooking.

16
TECHNICAL PASSPORT ENGLISH
Microwave oven
NOTE: the step quantities for the adjustment time of the coding switch are as
follow:
0---1 min :5 seconds
1---5 min :10 seconds
5---10 min :30 seconds
10---30 min :1 minute
30---95 min :5 minutes
MICROWAVE POWER CHART
Microwave
Power High Med.High Med. Med.Low Low
Display Р100 P80 P50 P30 P10
3. Grill or Co mbi. Cooking
Press «Grill/Combi.» once, the screen will display «G», and press «Grill/Combi.»
repeatedly to choose the power you want, and «G»,»C-1» or «C-2» will display.
Turn to set cooking time (The maximum cooking time is 95 minutes)
Press «Start/+30Sec./Conrm» again to start cooking.
Example: If you want to use 55% microwave power and 45% grill power(C-1) to
cook for 10 minutes, you can operate the oven as the following steps.
1) Press «Grill/Combi.» once, the screen displays «G».
2) Continue to press «Grill/Combi.» until the screen displays «C-1».
4) Turn to adjust the cooking time until the oven displays «10:00».
5) Press «Start/+30Sec./Conrm» to start cooking.
COMBINATION POWER INSTRUCTIONS:
Program Display Microwave Power Grill Power
Grill G 0 % 100 %
Combi.1 C-1 55 % 45 %
Combi.2 С-2 36 % 64 %

17
ENGLISH TECHNICAL PASSPORT
Microwave oven
NOTE: If half the grill time passes, the oven sounds twice, and this is normal. In
order to have a better effect of grilling food,you should turn the food over, close the
door, and then press «Start/+30Sec./Conrm» to continue cooking. If no operation,
the oven will continue working.
4. Defrost By Weight
1) Press «Weight Defrost» once, the screen will display «100».
2) Turn to select the food weight. The range of weight is 100-2000g.
3) Press «Start/+30Sec./Conrm» key to start defrosting.
NOTE: If half the defrost time passes, the oven sounds twice, and this is normal.
In order to have a better effect of defrosting,you should turn the food over, close the
door, and then press «Start/+30Sec./Conrm» to continue cooking. If no operation,
the oven will continue working.
5. Defrost By Time
1) Press «Time Defrost» once, the screen will display «00:00».
2) Turn to select the cooking time.The maximum time is 95 minutes.
3) Press «Start/+30Sec./Conrm» key to start defrosting.
6. Multi-Stage Cooking
2 stages can be maximumly set. If one stages is defrosting, it should be put in
the rst stage automatically. The buzzer will ring once after each stage and the next
stage will begin.
NOTE: Auto menu and speedy cooking cannot be set as one of the multi-stage.

18
TECHNICAL PASSPORT ENGLISH
Microwave oven
Example: if you want to defrost the food for 5 minutes, then to cook with 80%
microwave power for 7 minutes. The steps are as following:
1) Press «Time Defrost» once, the screen will display «00:00».
2) Turn to adjust the defrost time of 5 minutes;
3) Press «Microwave» once, the screen will display «P100».
4) Press «Microwave» repeatedly to choose microwave power till «P80»
displays;
5) Turn to adjust the cooking time of 7 minutes;
6) Press «Start/+30Sec./Conrm» to start cooking.
7. Kitchen Timer
(1) Press «Kitchen Timer/Clock« once, the screen will display»KT 00:00» .
(2) Turn to enter the correct timer. (The maximum cooking time is
95minutes).
(3) Press «Start/+30Sec./Conrm» or «Kitchen Timer/ Clock» to conrm
setting.
(4) When the kitchen time is reached, the buzzer will ring 5 times.
If the clock has been set(24-hour system), the screen will display the current
time.
NOTE: The kitchen Time is different from 24-hour system. Kitchen Timer is a
timer.
8. Auto Menu
1) In waiting state, turn right to choose the menu .
2) Press «Start/+30Sec./Conrm» to conrm the menu you choose.
3) Turn to choose the food weight.
4) Press «Start/+30Sec./Conrm» to start cooking.

19
ENGLISH TECHNICAL PASSPORT
Microwave oven
THE MENU CHART:
Menu Weight Power
Pizza 200 g С-2
400 g
Meat
250 g
100 % (Mic.)350 g
450 g
Vegetable
200 g
100 % (Mic.)300 g
400 g
Pasta 50g (with 450g cold water) 80 % (Mic.)
100g (with 800g cold water)
Potato
200 g
100 % (Mic.)
400 g
600 g
Fish
250 g
80 % (Mic.)
350 g
450 g
Beverage
1cup (about 120 ml)
100 % (Mic.)2cups (about 240 ml)
3cups (about 360 ml)
Popcorn 50 g 100 % (Mic.)
100 g
9. Speedy Cooking
1) In waiting state, press «Start/+30Sec./Conrm» key to cook with 100%
power level for 30 seconds. Each press on the same key can increase 30 seconds.
The maximum cooking time is 95 minutes.
2) During the microwave,grill,combination cooking and the defrost by time
process, press «Start/+30Sec./Conrm» to increase the cooking time.

20
TECHNICAL PASSPORT ENGLISH
Microwave oven
3) Under the states of auto menu and defrost by weight, cooking time cannot be
increased by pressing «Start/+30Sec./Conrm».
4) In waiting state, turn left to choose the cooking time. After adjusting
the cooking time, press «Start/+30Sec./Conrm» to start microwave cooking with
100% power lever .
10. Lock Function for Children
Lock: In waiting state, press «STOP/Clear» for 3 seconds to enter the children-
lock state and the current time will display if the time has been set, otherwise, the
screen will display .
Lock quitting: In locked state, press «STOP/Clear» for 3 seconds, the lock is
released.
11. Inquiring Function
1) In cooking states of microwave or grill and combination. Press «Micro wave»
or «Grill/Co mbi.» the current power will be displayed for 3 seconds.
2) If the clock has been set , during cooking state, press «Kitchen Timer/Clock»
to check the current time. It will be displayed for 3 seconds.
12. Specication
(1) If the door is opened in the process of cooking, close the door and then
press
«Start/+30Sec./Conrm» to continue cooking.
(2) Once the cooking programme has been set , «Start/+30Sec./Conrm» is
not pressed in 5 minutes. The current time will be displayed. The setting will be
cancelled.
(3) The buzzer sounds once by efcient press, inefcient press will be no
responce.
13. Open the oven door
Press button, the oven door will open.
