Kuppersbusch UWK 8200-0-2Z Operator's manual

BEDIENUNGS- UND
MONTAGEANWEISUNG
GB INSTRUCTIONS FOR ASSEMBLY AND USE
F MANUEL D’UTILISATION ET DE MONTAGE
NL GEBRUIKS- EN MONTAGEAANWIJZING
UWK 8200-0-2Z

17
Contents
General
Contents 17
Your appliance data 18
SafetyInstructions 19
Operating
Air conditioning system 20
Anti vibrations system 20
Humidity maintenance system 20
Anti “Ultra-violet” system 20
Installation and Operation
Setting instructions 21
Electrical connection 22
Installation of shelves 22
Reversing the door swing 23
Temperature setting 23
Interior light 24
Loading 24
Maintenance, Cleaning and Care
Maintenance 26
In case of breakdown 27
Environment 28

18
Please note:
We require the following details for your request for customer service so that our
customer service technicians can be well-prepared to carry out repairs and have the
required spare parts available:
7. Your exact address
8. Your telephone number and, if available, fax number
9. When can customer service call?
10. An exact appliance designation:
model no. and fabric no. (refer to the nameplate and/or the receipt)
Model designation: ...............................................................................................
E-number: ............................................................................................................
F/N: ......................................................................................................................
11. Date of purchase
12. An exact description of the problem or the kind of service you require
Please also have your receipt available.
This will help us to avoid wasting time as well as cutting down on expenses and we
will be able to work more efficiently for you.

19
SAFETY
DO NOT ATTEMPT TO START UP YOUR WINE CELLAR BEFORE CAREFULLY
READING THE INSTRUCTIONS IN THIS MANUAL. KEEP THE MANUAL IN A
SAFE PLACE FOR SUBSEQUENT REFERENCE.
• Ensure that your electrical power-supply (Volts/Amps) effectively corresponds
to the indications stamped on the identification plate of your wine cellar, which
must be connected to a system with an officially approved ground system.
Incorrectly executed repairs and connections are dangerous. Call a
professional to inspect your electrical installation if you suspect that this is the
case.
• For safety reasons, do not use extension leads.
• Disconnect the cellar before carrying out maintenance or cleaning operations
(disconnect the power plug or corresponding circuit breaker according to model).
• Disconnect the power supply immediately if liquid (contents of broken bottles
or other liquids) accidentally comes into contact with electrical components
(motor or others).
• Your cellar may be dangerous if it is damaged (major impact) or has been
subject to the effects of natural disasters of any kind (voltage surges due to
lightning strikes, flooding, fire). Disconnect the power supply and have the
cellar inspected by an approved professional repairman.
• If the power cord is damaged, never try to replace it yourself to avoid any risk
of injury. Call our technical center.
• Keep children away from the device.
• Do not use the device outside.
In the case of non-compliance with connection or user instructions, Küppersbusch is
not liable under any circumstances for subsequent malfunctions or failures.
This appliance must not be used by person with affected mental capacities (including
children), lack of experience or knowledge, excepting under the supervision of an
experimented and responsible person.
Make sure children do not play with the appliance.

20
OPERATING :
The air conditioning system :
Your wine cellar will keep your wine at an ideal temperature, recommended by wine
specialists / connoisseurs, around 12°C within a range of 10°C to 14°C. This has not
to be mixed up with the servicing temperature, first task of your wine cellar, that
varies depending of the type and origin of your wine from 5°C to 18°C..
It is particularly important to avoid sudden changes / variations in temperature and
this is one of the reasons this wine cellar has been designed by specialists in
oenology and at the contrary of classic refrigerator, takes care of the wine sensibility
by ensuring a precise control for a constant temperature.
Anti vibrations system :
The refrigerated compressor is equipped with special suspensions and the inside
cavity is insulated from the outside frame work by a thick layer of polyurethane foam.
These characteristics isolate your wine from vibrations.
Humidity maintenance system :
Your wine cellar is equipped with a manually system for maintaining a correct level of
humidity. If humidity is too low, snap the small plastic reservoir on to top rack of wine
cellar. Fill reservoir to ¾ full. Check water level occasionally to refill.
Designed by specialists in oenology as written above, the wine cellar is allowed for a
storage period of 2 months maximum. Küppersbusch has taken care of the cork’s
sensibility to the humidity rate. That’s why the plastic reservoir has to be put on the
top shelf, under the fan to ensure a minimum humidity. Be careful to control the water
level if you store your wine cellar more than the period advised.
Anti “Ultra-violet” system :
Light accelerated the maturing of your wine. In our full-door wine cabinets, your wine
is protected naturally on the condition that the door is not opened too often. The
glass of this wine cellar has been specially treated to filter the harmful rays, thus
protecting your wine perfectly (92 % rating).
Reinforced security :
Your wine cellar being dedicated for valuables products, we have selected quality
components and conceived production processes to ensure an optimum operating
security.

21
INSTALLATION
Keep the wine cellar in vertical position 24H before setting up

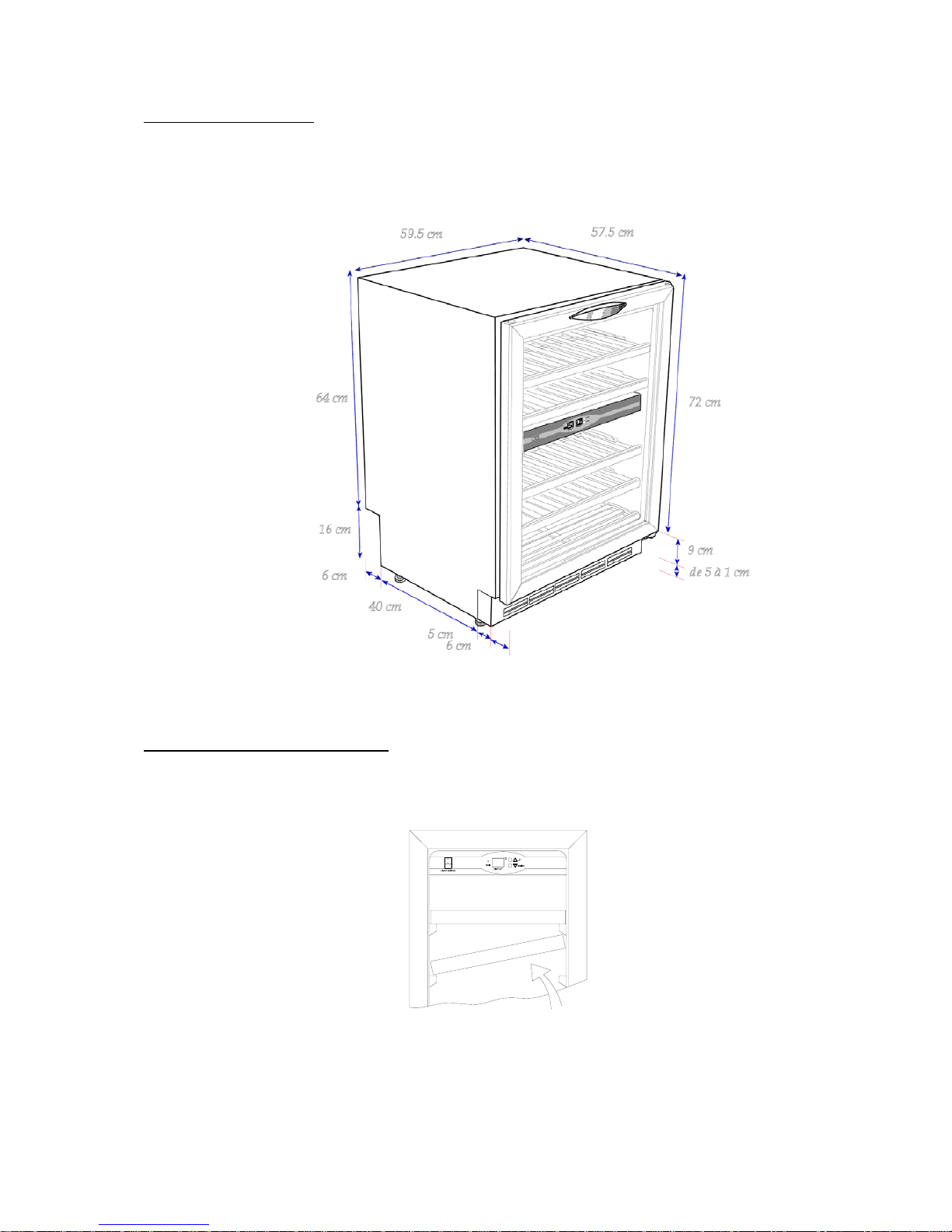

Setting instructions
Remove exterior and interior packing. Use a dry and non abrasive damp to clean
lightly the exterior parts of the appliance. Use a non abrasive and wet damp to clean
the interior parts.
In order to get the most out of your wine cellar while keeping energy consumption to
the lowest, do not place your appliance near a heat source, in direct sunlight or in a
room too cold. Optimal performance is obtained at temperatures between + 16°C
and + 32°C.
For the free standing hinge products and without front ventilation, a space of 70 mm
must be left between the wall and the rear of the appliance. This must be left
unobstructed to allow air to circulate otherwise the appliance will not work correctly.
The appliance must be kept in a level upright horizontal position to avoid possible
vibrations or noises.
The air must circulate freely in front of the product.
Any breakdown resulting of the non respect of use instructions engages only the
user’s responsibility.

22
Electrical connections
Your wine cellar is equipped with a mains lead and fitted with a 230V / 50Hz mono-
phased plug, in accordance with EC regulations / norms. The wall socket must be
connected to the earth and have a 10A minimum fuse protection.
Connect the appliance to the mains.
INSTALLATION OF SHELVES
To put or remove a shelf, place the shelf as indicated on the drawing below and
simply pull or push it on the lateral supports until it is well positioned.
The wood shelves can sustain a load of 12 Kg

23

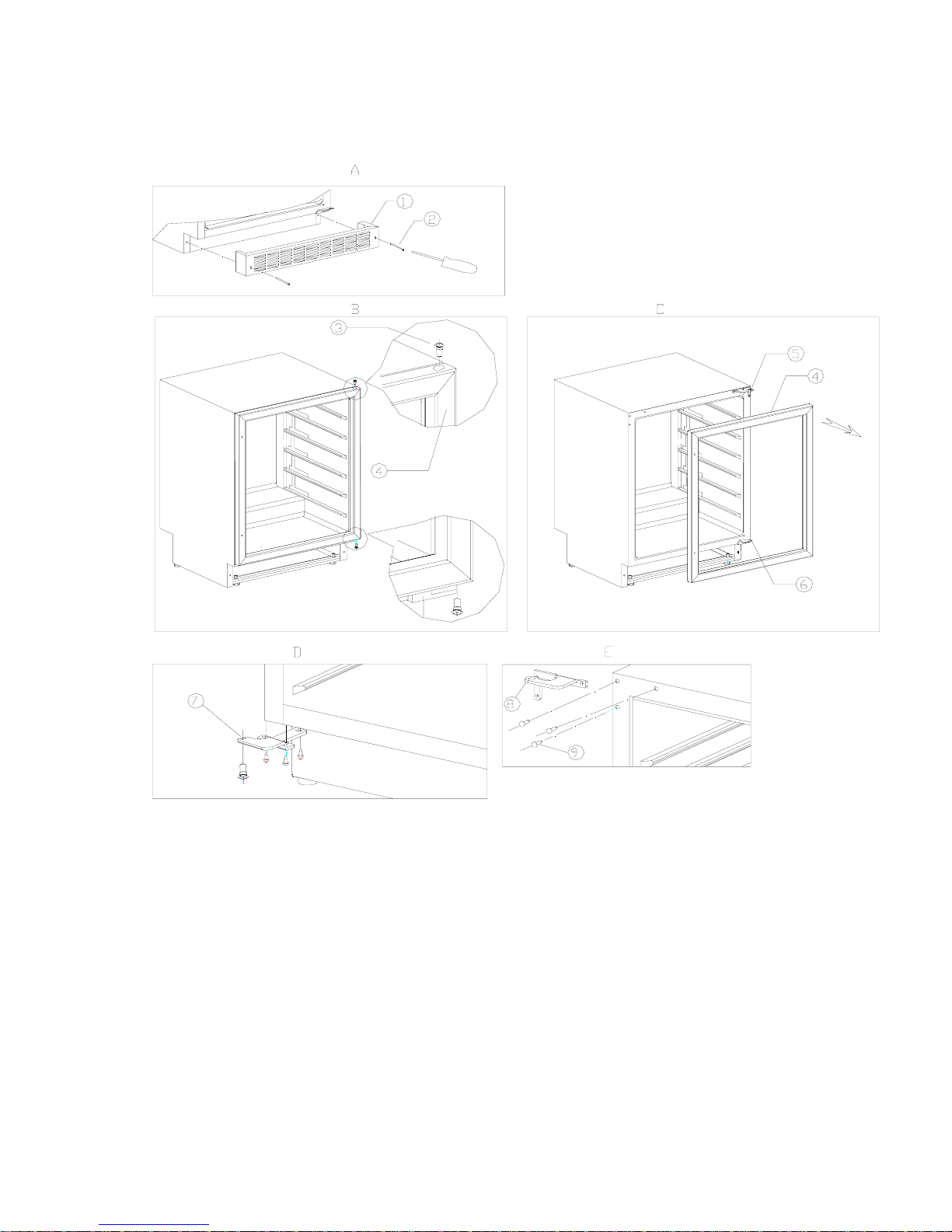

REVERSING THE DOOR SWING
Your wine cellar comes equipped with a reversible door. To reverse the door swing,
use the extra set of opposite hinge (inside the wine cellar at time of shipping).
• First remove the ventilation grid by unscrewing the screws (Fig. A)
• Using a head screwdriver unscrew top hinge and remove. Lift door off bottom
hinge post and set carefully aside. Be careful not to damage locking
mechanism located on bottom of door. (Fig. B + C)
• Unscrew the bottom hinge.
• Remove plastic hole plugs on opposite side of wine cellar cabinet.
• Screw on bottom hinge on the opposite side. (Fig. D)
• Line up hole bottom of wine cellar door with hinge post on bottom door hinge
and set door on hinge post.
• Line up hole on top of side of wine cellar door with hinge post on top.
• Screw on top hinge (Fig. E)
• Replace plastic plugs in screw holes on opposite side of cabinet.
• Mount the ventilation grid to the cabinet by screwing the screws. (Fig A)
Your opening door side is now reversed for you utilisation comfort or installation
possibilities more important.

24
HOW TO CHANGE THE DOOR OPENING

25
TEMPERATURE SETTING
Switching Operation
On / Off indicator
Switching the light Temperature indicator Temperature indicator Temperature setting
On / Off upper compartment lower compartment
Setting the Temperature Control
You can set the temperature as you desire by pushing the “ “or „ “button.
When you push the two buttons for the first time, the LED readout will show the
original temperature set at previous time.
The temperature preset at the factory are:
Upper compartment:: 7°c
Lower compartment: 12°C
The temperature that you desire to set will increase 1ºC if you push the button once,
on the contrary the temperature will decrease 1ºC if you push the button once.
Upper compartment: The temperature setting can be adjusted from 5°C to 10°C.
Lower compartment: The temperature setting can be adjusted from 10°C to 18°C
To view the “set” temperature. (anytime) press and hold the corresponding button for
approximately 5 seconds, the “set” temperature will temporarily “flash” in the LED
display for 5 seconds.
NOTE: To optimize the functioning, it is important to respect a setting
difference about 4°C between upper and lower compartment (8°C and 12°C for
example).
NOTE: The fans works on very often to make homogeneous the temperature inside
the cellar.
The fan to cool the condenser is located down behind the appliance.
So the low noise you can hear is normal.

26
INTERIOR LIGHT :
The switch located on the control panel allows you to switch on or off the lightening.
Each pressure on the switch will light on or off the interior light.
DEFROST CONDENSATION
The cabinet is equipped with an automatic defrost cycle. When the cooling cycle is
finished, the refrigerated parts of the cabinet are defrosted automatically. The water
from the defrost is channelled into an evaporation tray which is located in the back of
the cabinet close to the compressor. The heat from the compressor then evaporates
the water from the tray.
LOADING
The maximum amount of bottles able to be stored which is given , is only given as an
indication and is not contractual. This indication (as with the capacity in liters of a
refrigerator) is to give a quick estimation of the size of the product. This indication
corresponds to tests done with a standard bottle: the bottle type “Bordeaux light 75
cl” (the standardized classification contains for each bottle a geographic origin
(Bordeaux, Bourgogne, Provence,…), and a type (traditional, heavy, light, flute,…)
each with its own specific height and diameter.
In fact, one could store more bottles by stacking a single type of bottle and without
shelves. But a “varied” cabinet is made up of a large variety of bottles and the
“practical” side of the daily use of a cabinet limits the number of bottles stored. Most
probably, a few less bottles will be stored than the indicated amount.
For example, if the cellar is filled only with bottles of burgundy, there will be
approximately 30% fewer bottles than the initial quantity calculated for Bordeaux
How to keep your wine cellar :
Types of bottles:

27
We can see here four types of 75 centilitre bottles are shown here, Burgundy and
Bordeaux with different sizes..
There are many other types with all shapes and capacities.
Note the different storage methods according to bottle height, diameter and crossing
method.

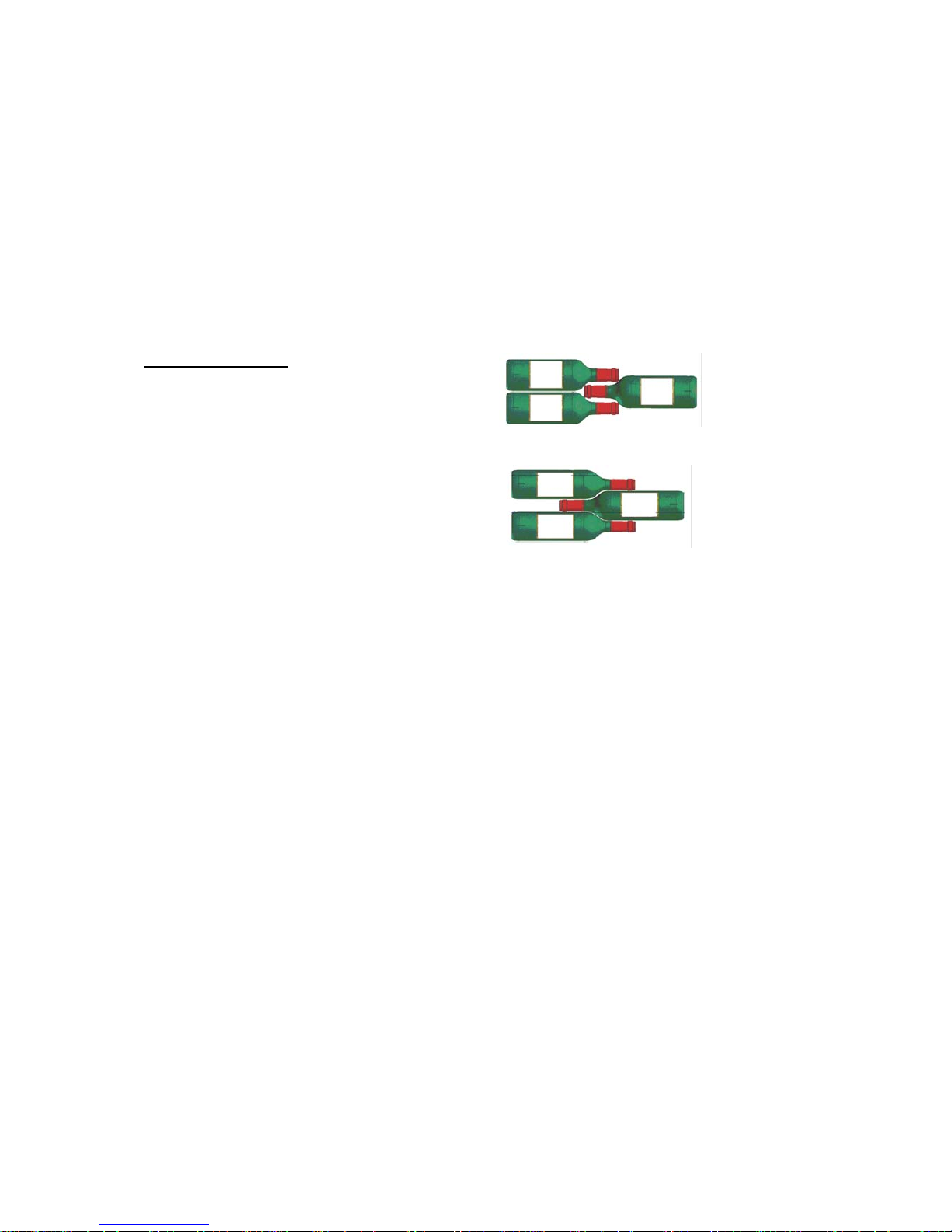

Crossing method :
Note the difference in depth in particular!
Head-to-tail, neck-to-neck
Increased cellar capacity
Head-to-tail, neck between bottles
Less depth
Examples of serving temperatures (To be complied with when tasting your
wines!)
Opinions vary as does the ambient temperature but the general consensus is as
follows:
Vintage Bordeaux - Reds 16 – 17°C
Vintage Burgundy - Reds 15 – 16°C
Vintage dry white wines 14 – 16°C
Light, fruity, young reds 11 – 12°C
Rosés de Provence, early wines 10 – 12°C
Dry whites and regional red wines 10 – 12°C
Regional white wines 8 – 10°C
Champagnes 7 – 8°C
Sweet wines 6°C

28
Maintenance
Before cleaning the cabinet (this must be done regularly), disconnect it either by
unplugging it or by removing the fuse.
It is suggested that before first use and then regularly, the cabinet be cleaned both
inside and out (front, sides and on top) with a mixture of warm water and gentle
cleaning fluid. Rinse with water and let dry completely before reconnecting. Do not
use solvents or abrasive products.
Clean the plasticized steel shelves with a gentle detergent then dry with a soft dry
cloth. The wood shelves need no particular upkeep.
At the moment of the first use, some odours can persist. In this case, make
functioning the appliance at the coldest temperatures, empty, during a few hours. The
cold will cancel all these possible odours.
STORING THE CABINET
If the cabinet is going to be unused for a short period of time. Leave the control
panel with the normal settings.
In case of prolonged un-use
- Remove the bottles from the cabinet
- Unplug the cabinet
- Clean both the inside and the outside of the cabinet
- Leave the door open to avoid condensation, odors and mold..
WHAT TO DO IN CASE OF A POWER OUTAGE
Most power outages are resolved in a short time. An outage of 1 or 2 hours will not
affect the temperatures in your cabinet. In order to protect the wines during the
outage, open the door as little as possible. For outages that are very long, take
necessary steps to protect the wine.
IF THE CABINET MUST BE MOVED
Remove all the bottles in the cabinet and securely fasten all moveable parts..
To avoid damaging the levelling screws on the feet, screw them completely into their
base.
Move the appliance in vertical position or please note from the external packing the
logistical instructions, the side on which it can be layed down.

29
MAIN CHARACTERISTICS
High density insulating foam.
1. ELECTRONIC THERMOSTAT : controls the temperature inside the cabinet.
The compressor runs as long as the required temperature has not been
attained. A very precise apparatus, it controls that the temperature remains
constant.
2. WOODEN SHELVES (depending upon model) : resist odors, rust and
movable for easy upkeep
3. WATERTIGHT JOINT / MAGNETIC DOOR : this system ensures optimum
conditions by avoiding loss of humidity and temperature..
4. TEMPERED REVERSIBLE GLASS DOOR WITH INTERIOR LIGHTING :
The tempered glass door has UV protection. The soft lighting with low emissive
ensures perfect visibility inside without altering your wines.
IN CASE OF BREAKDOWN
Despite the care we bring to our production, a breakdown can never be totally
excluded. Before contacting the After-Sales department of your store, please
check:
- the cabinet is properly plugged in
- there is not a power outage
WARNING
As we wish to continually improve our products, we reserve the right to modify certain
technical characteristics without prior notice.
The warranties for CLIMADIFF products are exclusively given by the distributors
whom we have chosen. No part of the information herein can be interpreted as an
additional guarantee.
WARNING !
Unplug the cabinet before cleaning or repairing the cabinet !

30
ENVIRONMENT
This product is in conformity with the EU Directive 2002/96/CEE.
The symbol of the crossed out trash container on the cabinet indicates that this
product should be, at the end of its useful life, treated separately from general
domestic waste..
It should therefore be taken to an appropriate collection center for electrical and/or
electronic appliances or, if you have purchased an equivalent product to the store
where the new appliance has been bought. The user is responsible for making sure
that the appliance is given to the appropriate structure. A selective collection with the
aim to recycle, treat or eliminate the appliance in an environmentally friendly fashion
contributes to avoid the possible negative effects on the environment, on health and
contributes to the recycling of materials of which the appliance is made.
For more detailed information, on the recycling opportunities, please contact your
local office of the environment or the store in which the appliance was bought.

59
Küppersbusch Hausgeräte GmbH
Postfach 10 01 32, D-45801 Gelsenkirchen, Küppersbuschstr. 16, D-45883 Gelsenkirchen
Telefon: [phone], Telefax: (02 09) 4 01-3 03
www.kueppersbusch.de
Küppersbusch Ges. m. b. H.
Eitnergasse 13, 1230 Wien, Telefon: 01 / 8 66 80-0, Telefax: 01 / 8 66 80 72
